  1. Huffman Encoder Project

  2. Huffman Encoder Project Howd - Zur Hung Eric Lai Wei Jie Lee Yu - Chiang Lee Design Manager: Jonathan P. Lee Overall Project Objective:Design a Low Power Huffman Encoder Final Presentation April 30th, 2007

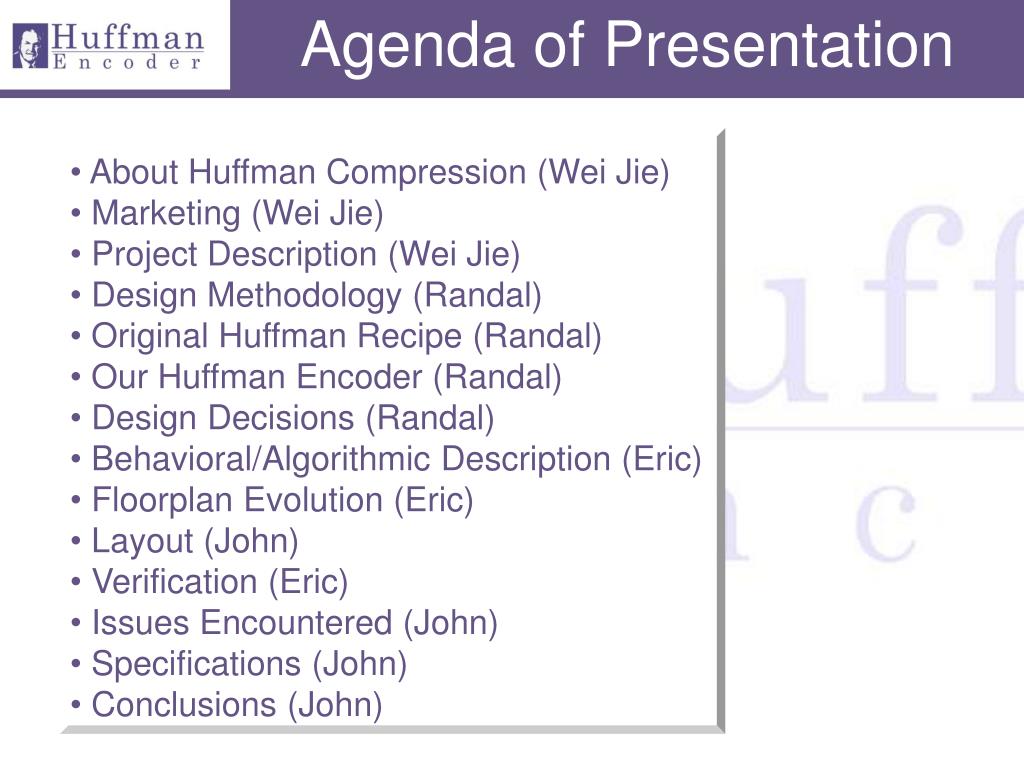

  3. Agenda of Presentation • About Huffman Compression (Wei Jie) • Marketing (Wei Jie) • Project Description (Wei Jie) • Design Methodology (Randal) • Original Huffman Recipe (Randal) • Our Huffman Encoder (Randal) • Design Decisions (Randal) • Behavioral/Algorithmic Description (Eric) • Floorplan Evolution (Eric) • Layout (John) • Verification (Eric) • Issues Encountered (John) • Specifications (John) • Conclusions (John)

  4. About Huffman • Huffman is a compression algorithm • Often used as a back-end to other compressions • Greedy algorithm

  5. The Need for Compression • It is becoming a wireless world • Wireless bandwidth limited • Power is limited • COMPRESSION! • Reduce data size = Save power + time + bandwidth

  6. Why Huffman? • Lossless • Statistical • David Huffman is the man! • Outdid Shannon-Fano coding

  7. Project Description Our Huffman Encoderis a fast and power efficient solution to data compression with on-chip cache

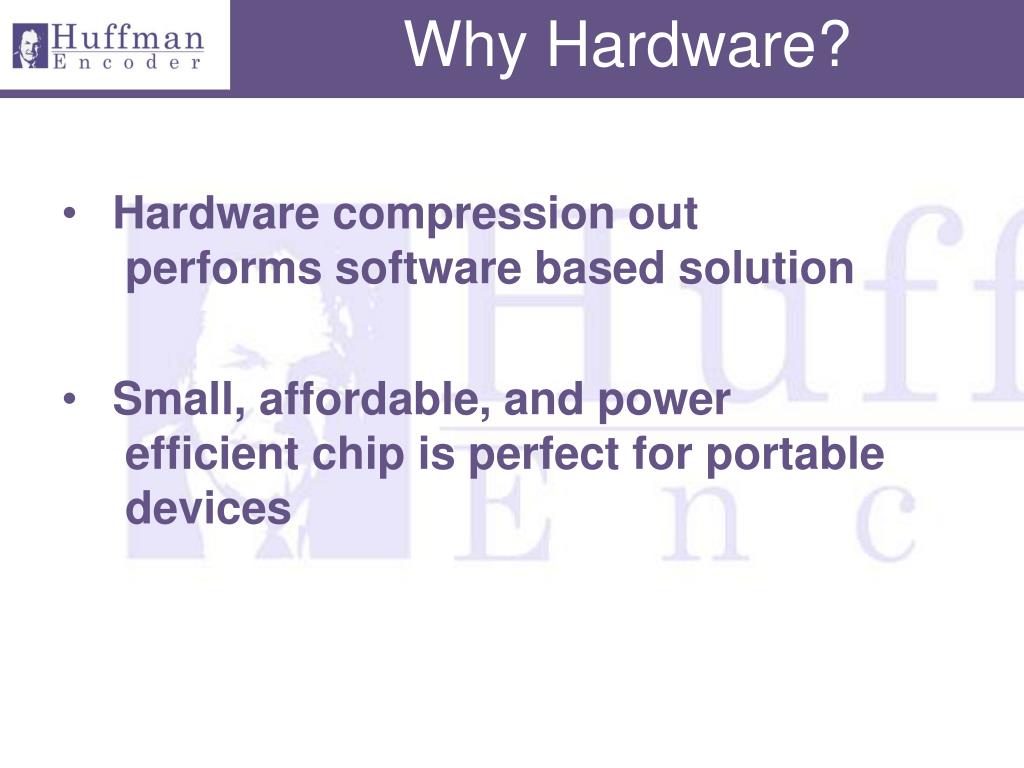

  8. Hardware compression out performs software based solution Small, affordable, and power efficient chip is perfect for portable devices Why Hardware?

  9. Hardware Huffman Solution • Low power, compact, full-custom ASIC • Saves power,time, and system resources • Compress data packets on network cards • Cell phones, PDA, Laptop

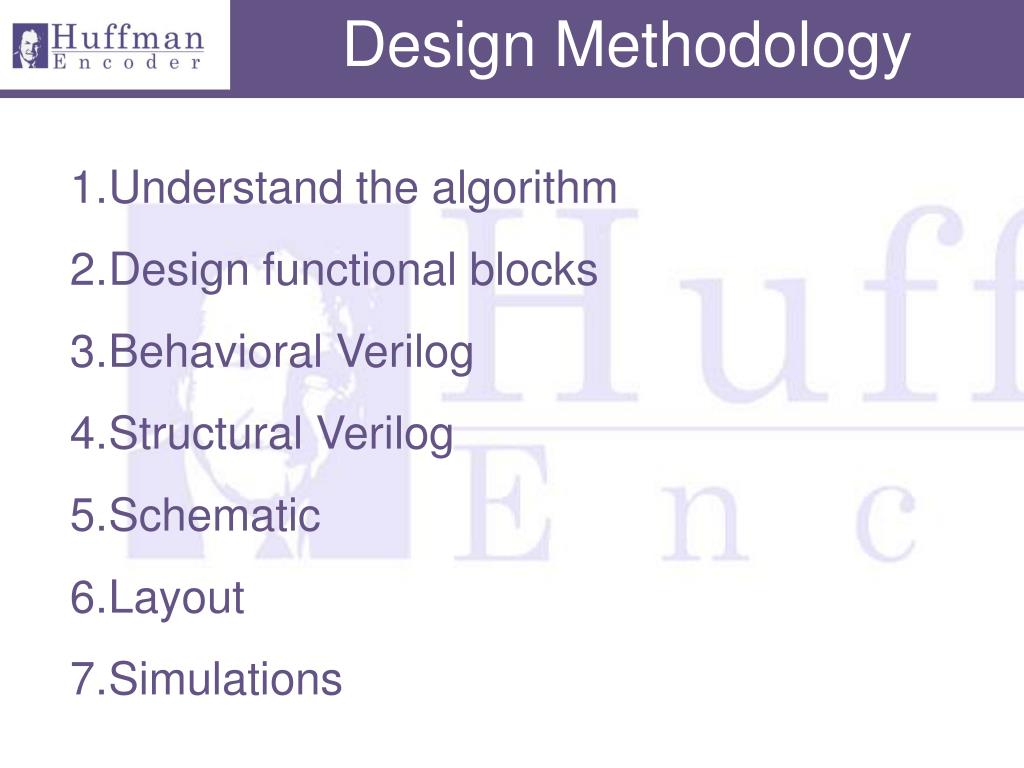

  10. Design Methodology • Understand the algorithm • Design functional blocks • Behavioral Verilog • Structural Verilog • Schematic • Layout • Simulations

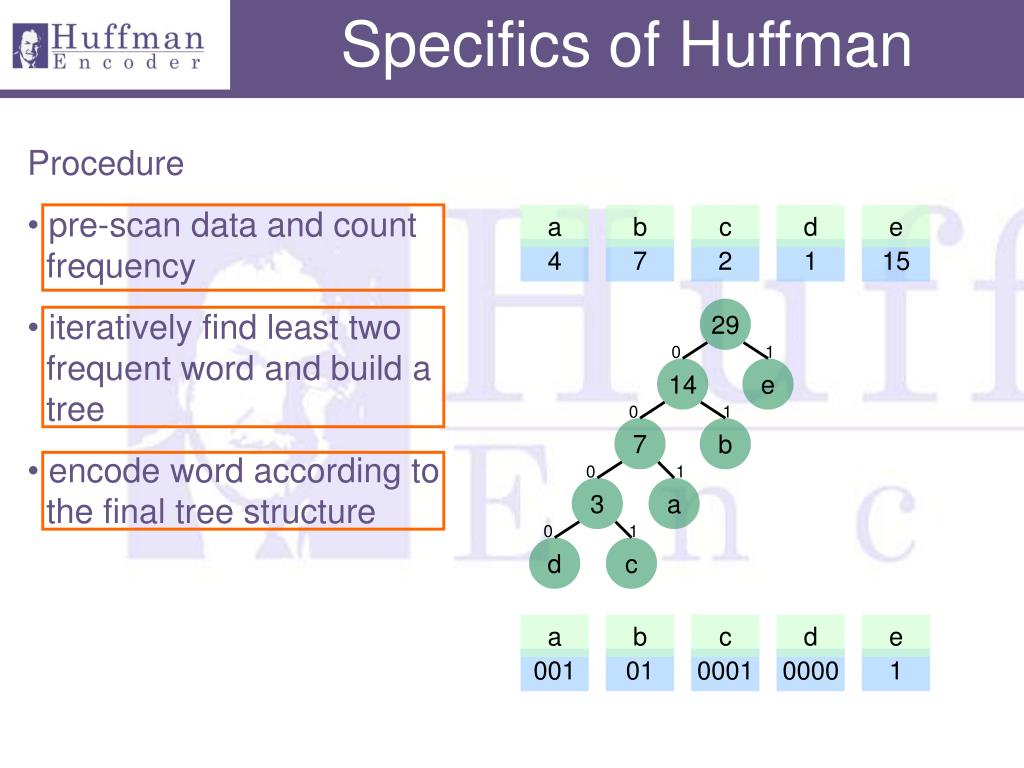

  11. Specifics of Huffman a a b b c c d d e e 4 001 7 01 0001 2 1 0000 15 1 29 0 1 14 e 0 1 7 b 0 1 3 a 0 1 d c • Procedure • pre-scan data and count frequency • iteratively find least two frequent word and build a tree • encode word according to the final tree structure

  12. Our Huffman a a a a a b b b b b c c c c c d d d d d e e e e e 7 14 4 29 4 7 29 14 7 7 3 29 14 2 7 1 7 3 14 29 15 29 15 15 15 0 0 0 0 0 0 1 1 1 0 0 0 2 0 2 2 0 0 3 0 4 4 4 4 0 001 01 1 01 1 0000 01 1 001 00 0 0000 000 1 • Procedure • pre-scan data, count frequency, and assign unique group number • iteratively find least two frequent word to update group number and encoding • finish encoding look up table

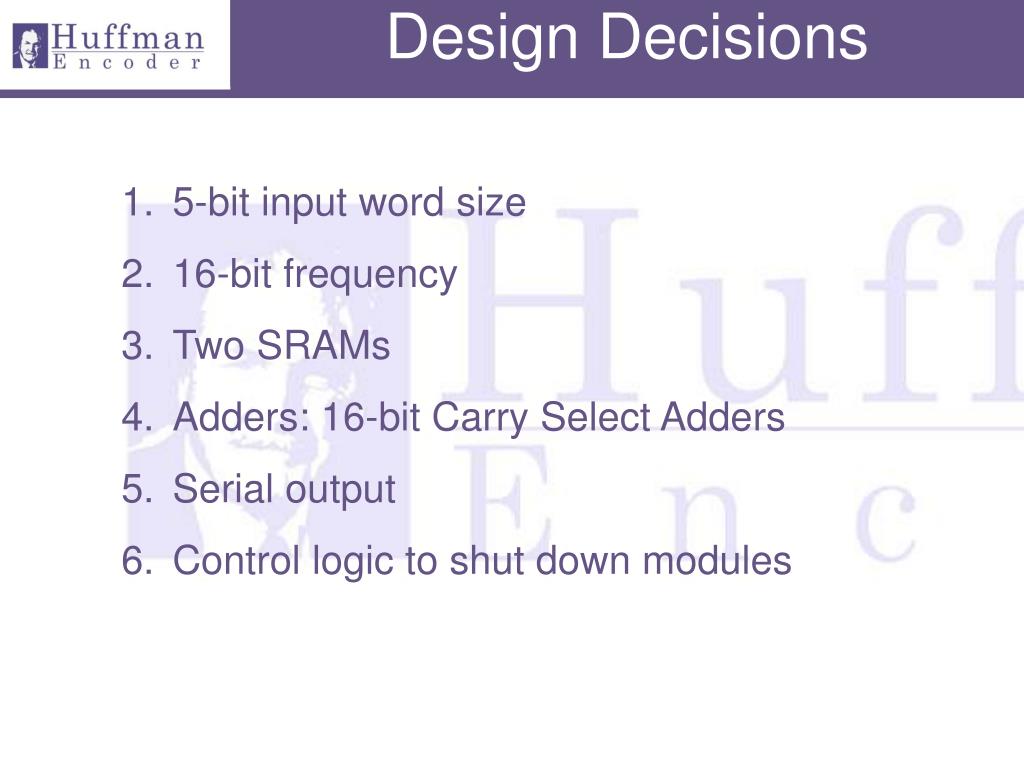

  13. Design Decisions • 5-bit input word size • 16-bit frequency • Two SRAMs • Adders: 16-bit Carry Select Adders • Serial output • Control logic to shut down modules

  14. Behavioral / Algorithm Description turns off unused blocks to reduce power

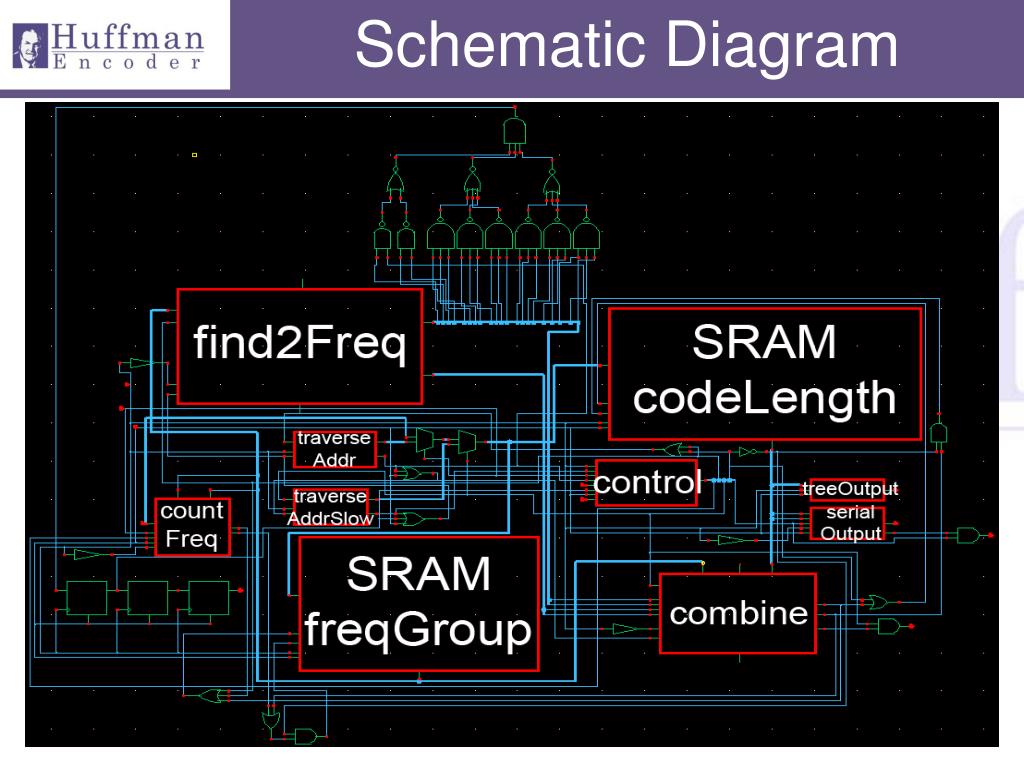

  15. Schematic Diagram

  16. Floorplan Prelayout

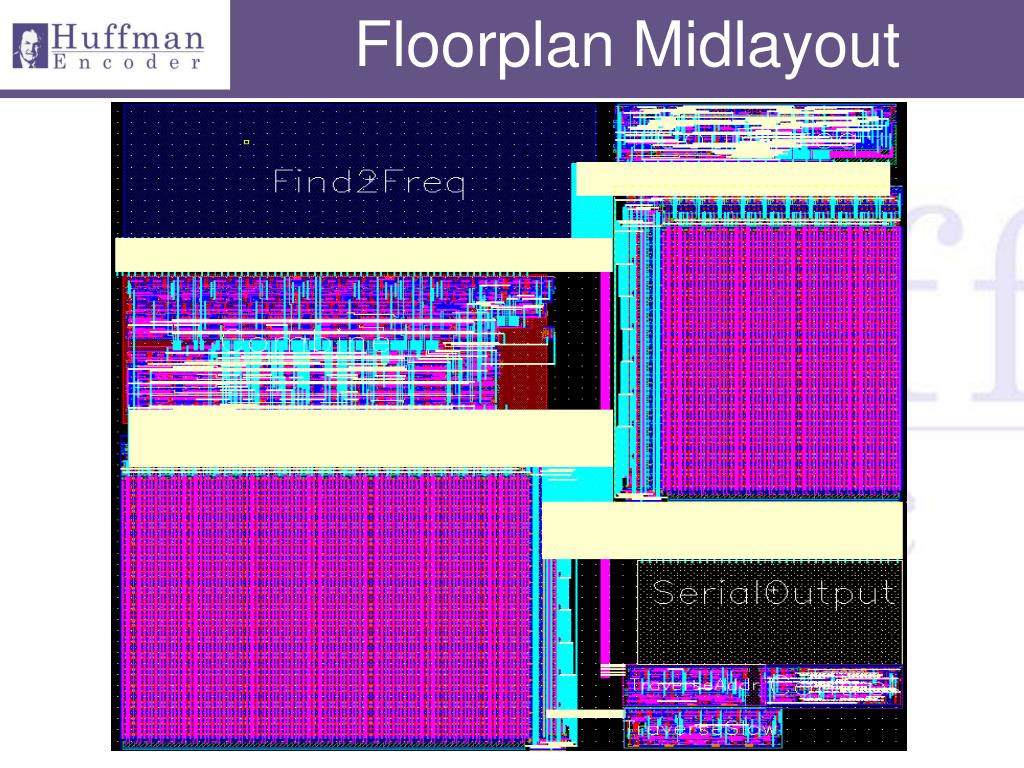

  17. Floorplan Midlayout

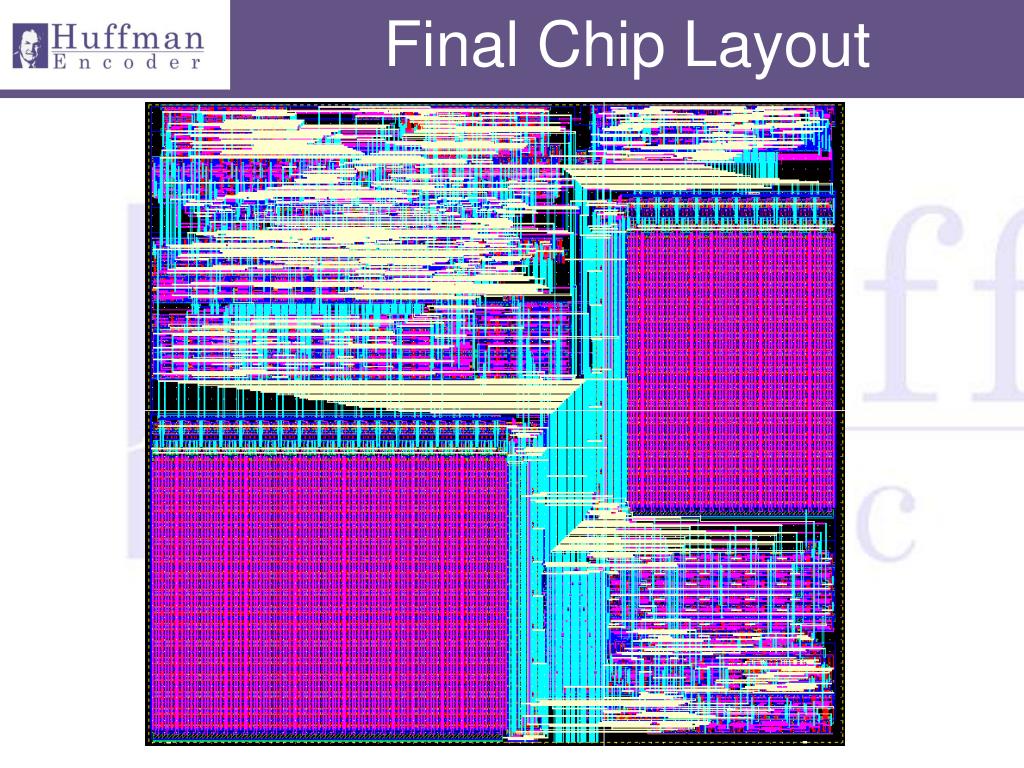

  18. Final Chip Layout

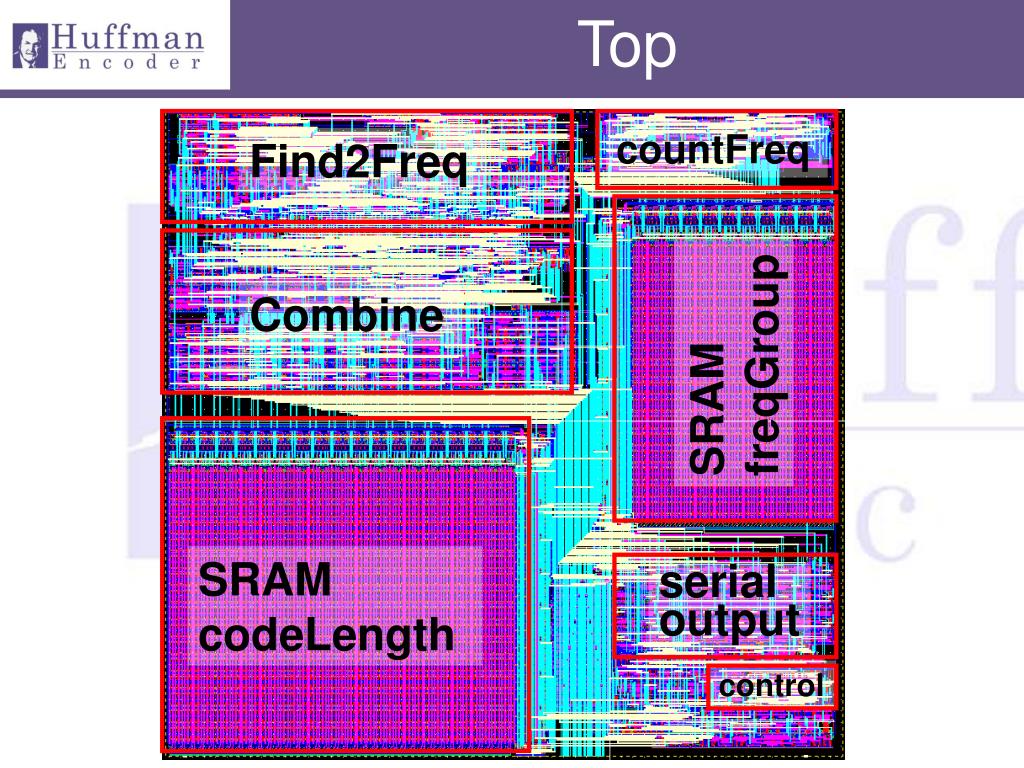

  19. Top countFreq Find2Freq Combine SRAMfreqGroup SRAMcodeLength serial output control

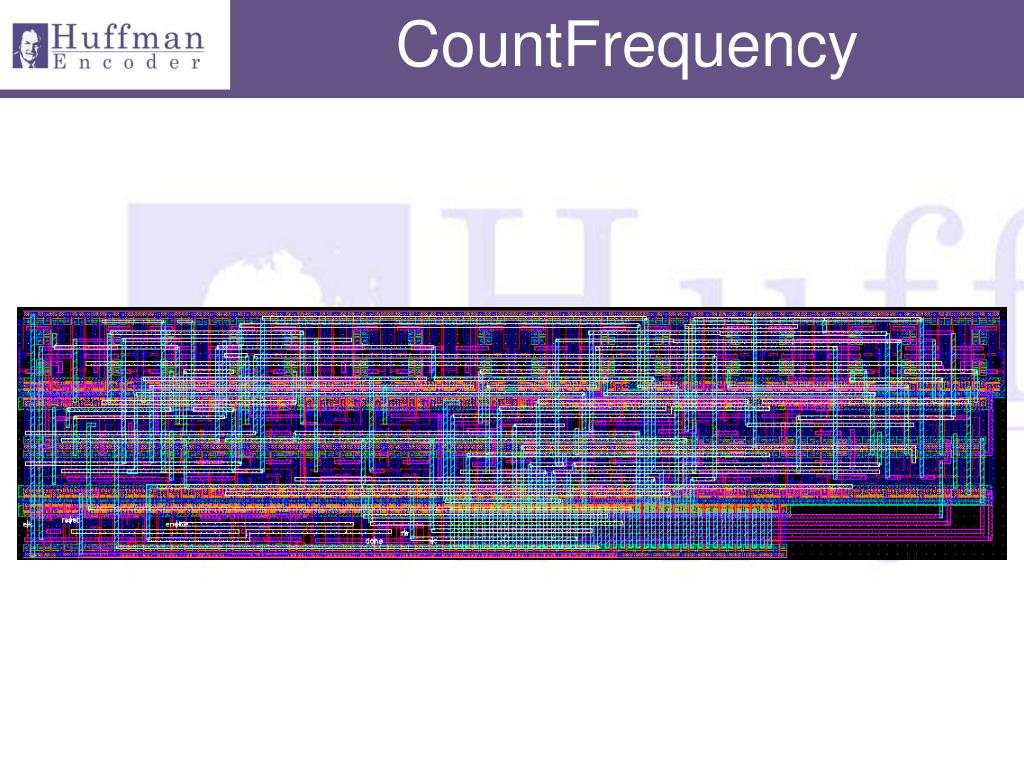

  20. CountFrequency

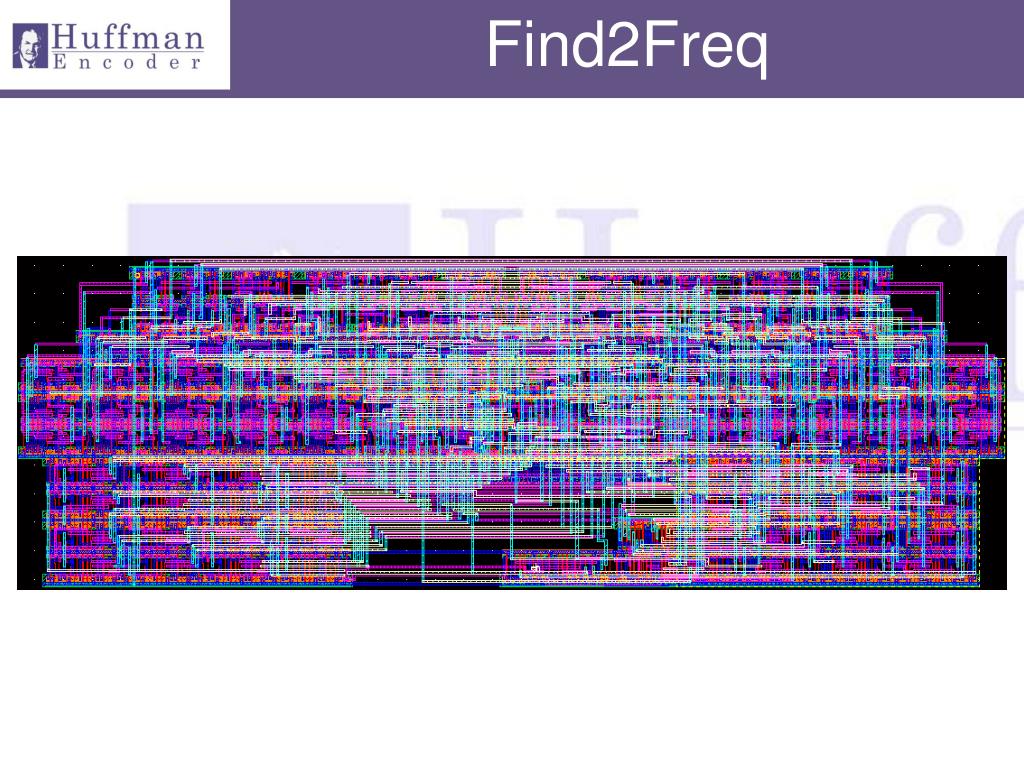

  21. Find2Freq

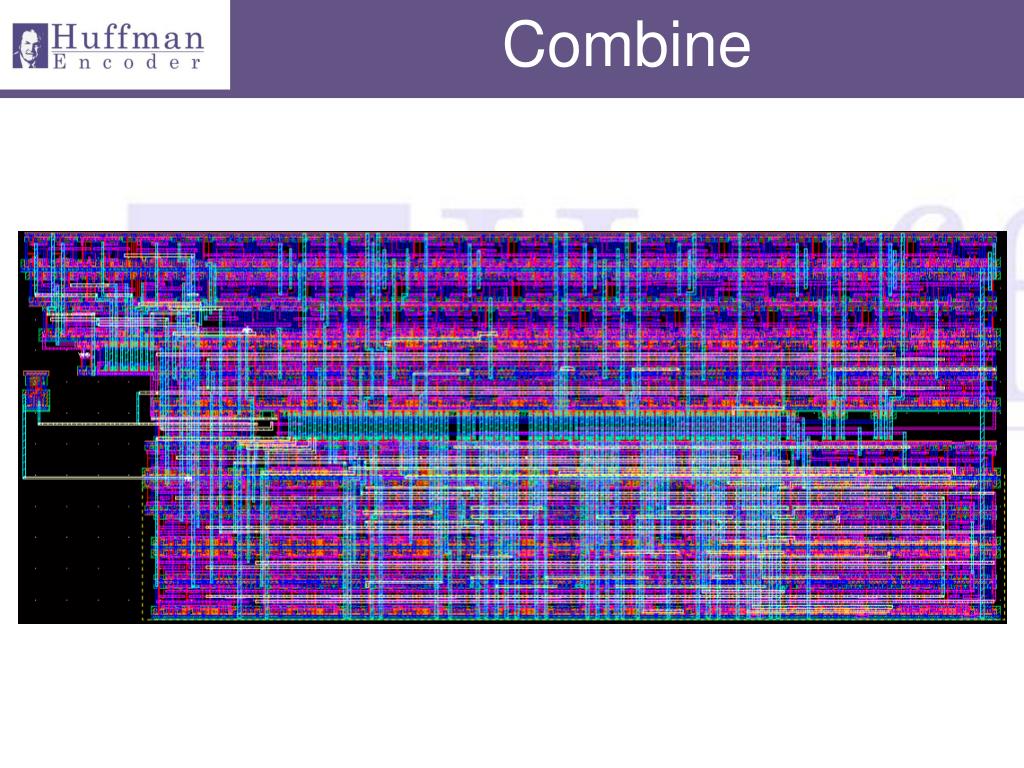

  22. Combine

  23. SerialOutput

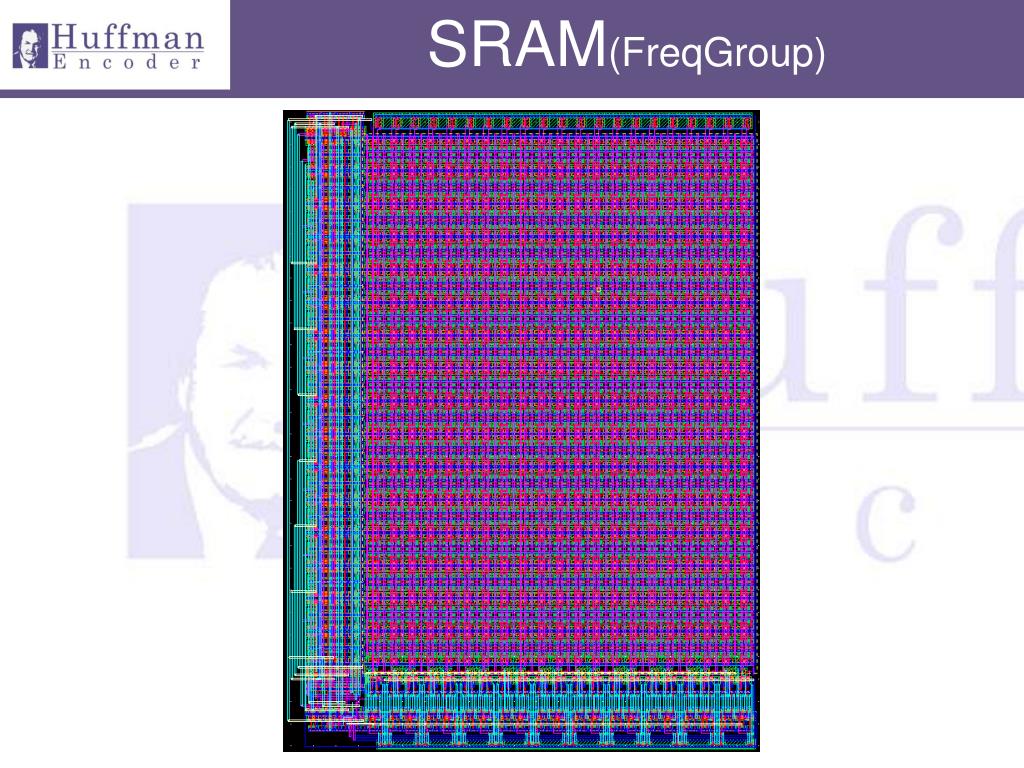

  24. SRAM(FreqGroup)

  25. Poly

  26. Metal 1

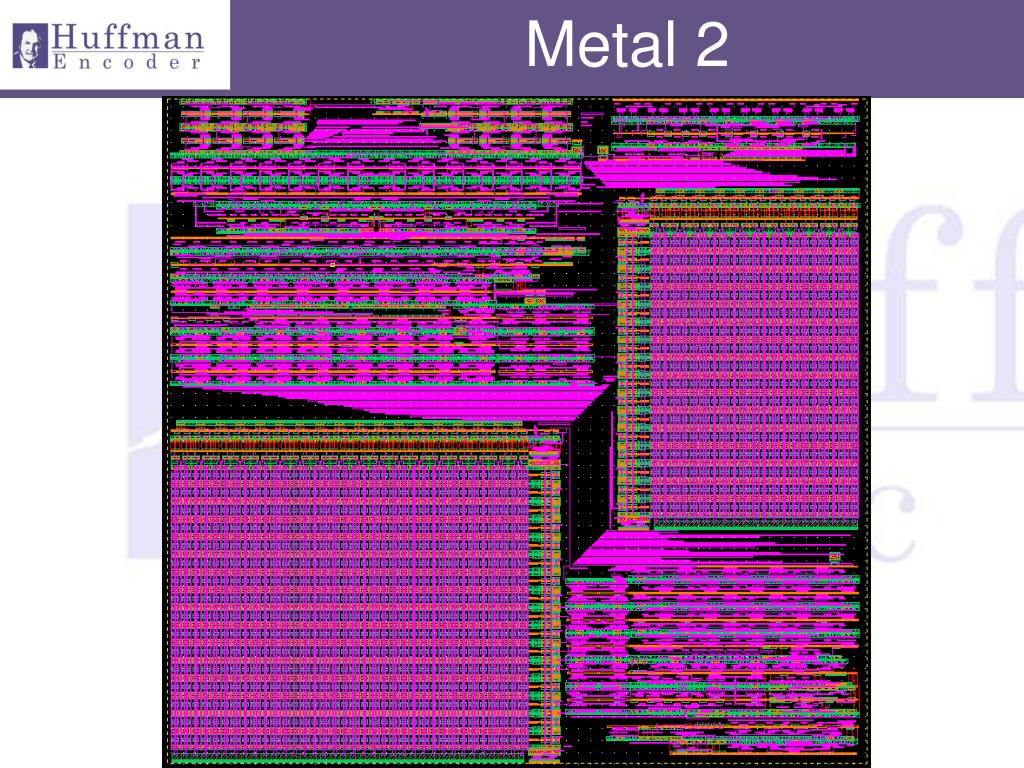

  27. Metal 2

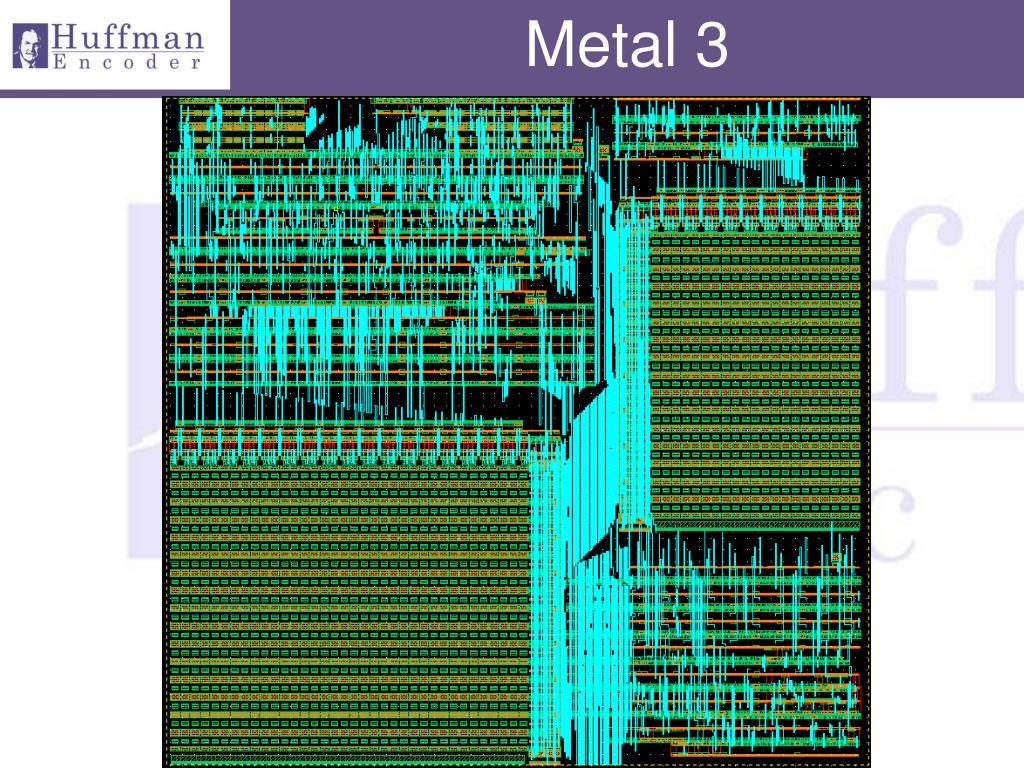

  28. Metal 3

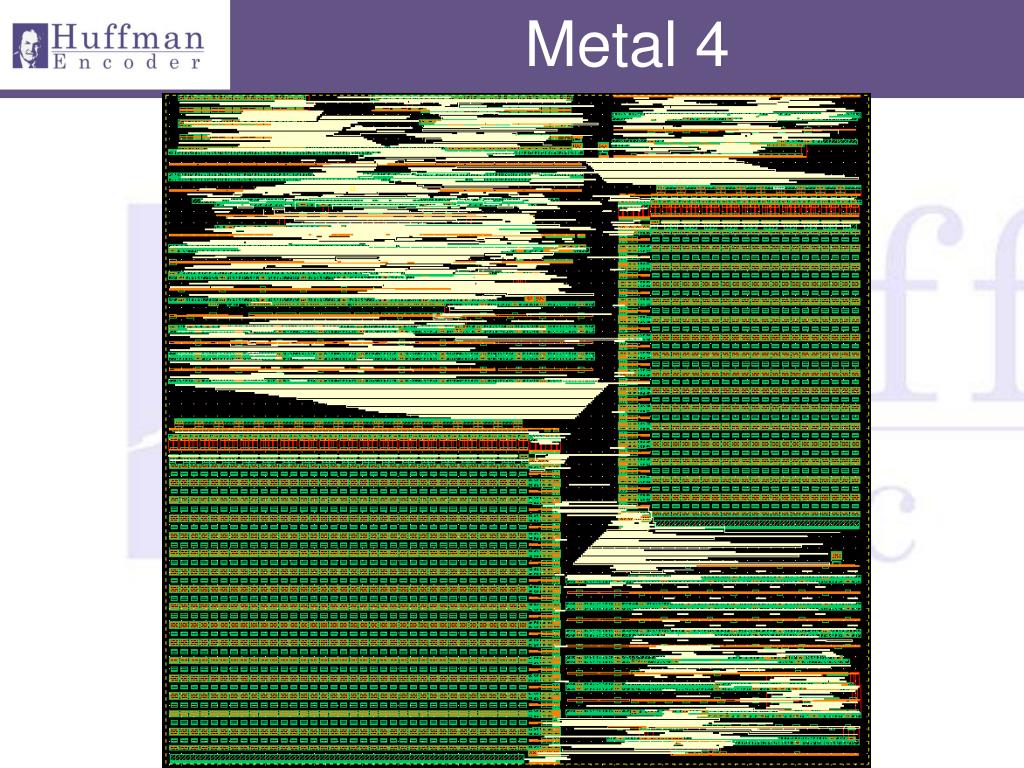

  29. Metal 4

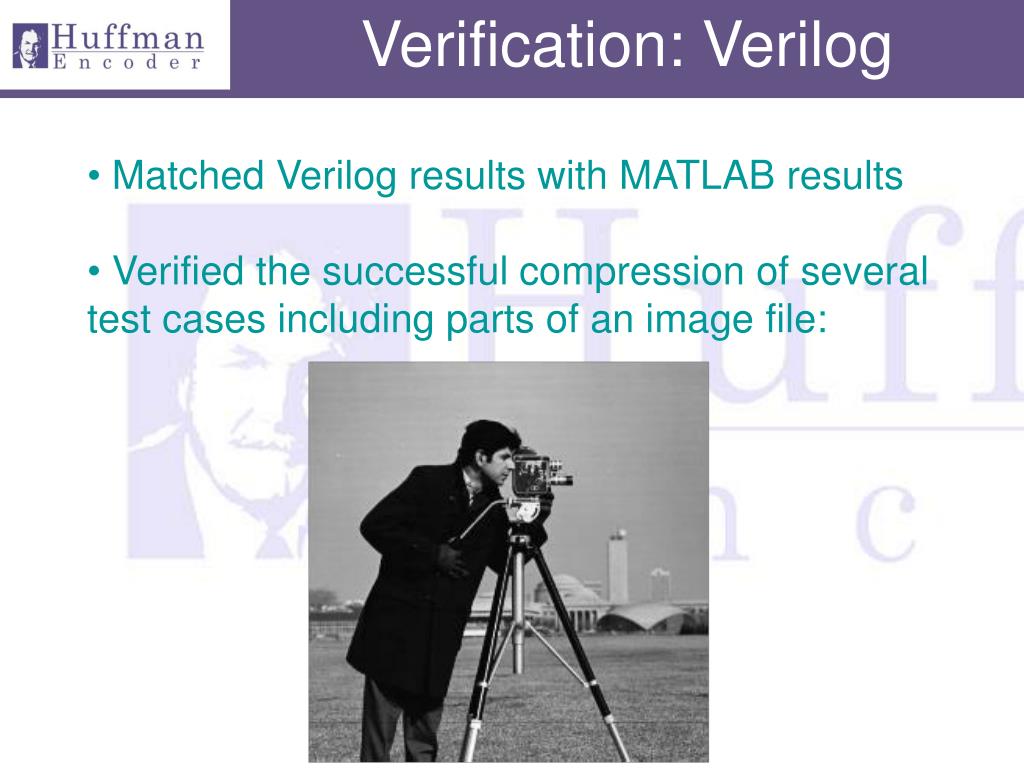

  30. Verification: Verilog • Matched Verilog results with MATLAB results • Verified the successful compression of several test cases including parts of an image file:

  31. Verification: Schematic • Vigorously tested each block • Combined them and encoded several words

  32. Verification: Layout • Verified strong signal integrity • Buffered high fan-outs and long wires • Critical Path: 4.88 ns • All outputs of modules go through registers

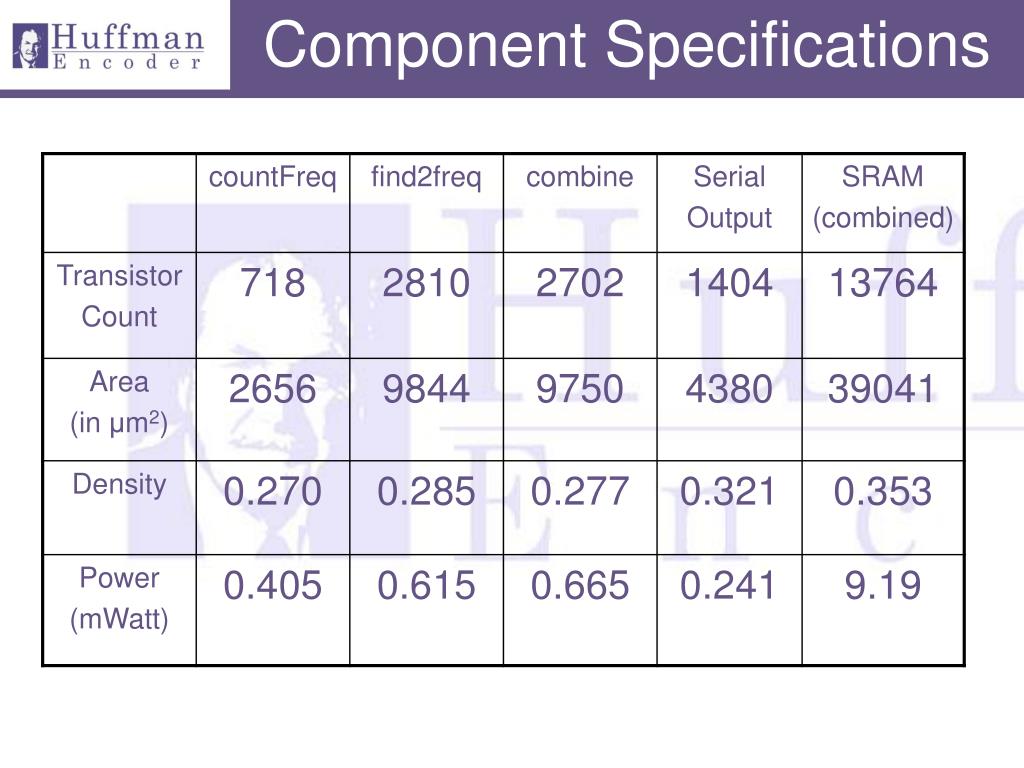

  33. Component Specifications

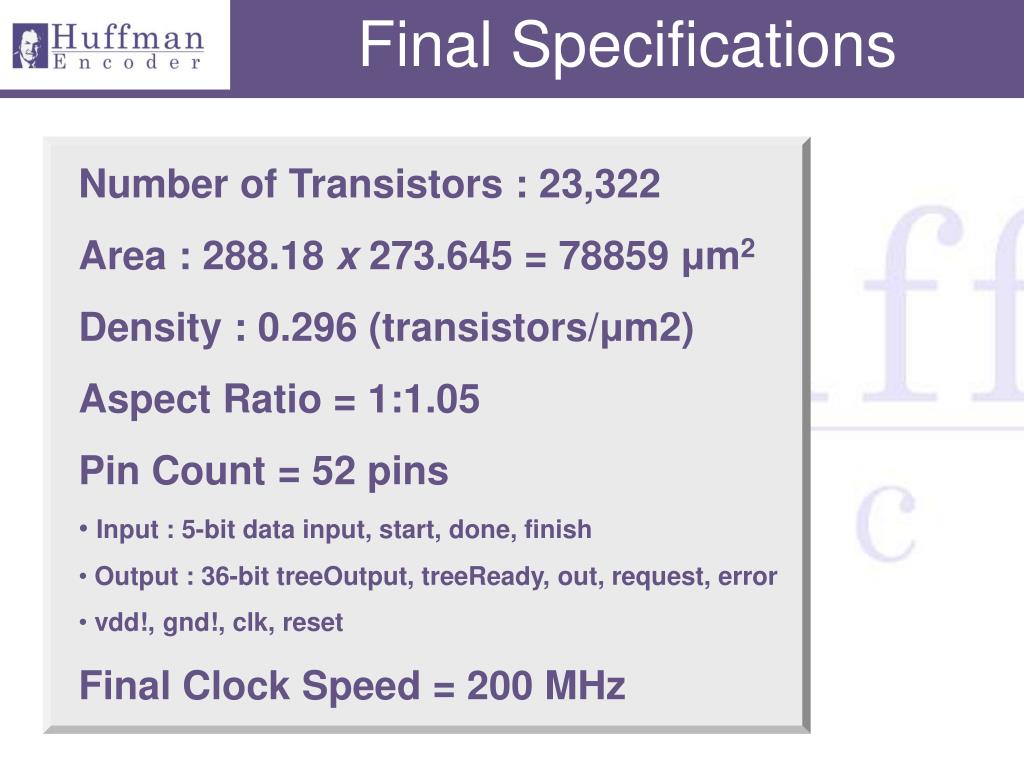

  34. Final Specifications • Number of Transistors : 23,322 • Area : 288.18 x 273.645 = 78859 μm2 • Density : 0.296 (transistors/μm2) • Aspect Ratio = 1:1.05 • Pin Count = 52 pins • Input : 5-bit data input, start, done, finish • Output : 36-bit treeOutput, treeReady, out, request, error • vdd!, gnd!, clk, reset • Final Clock Speed = 200 MHz

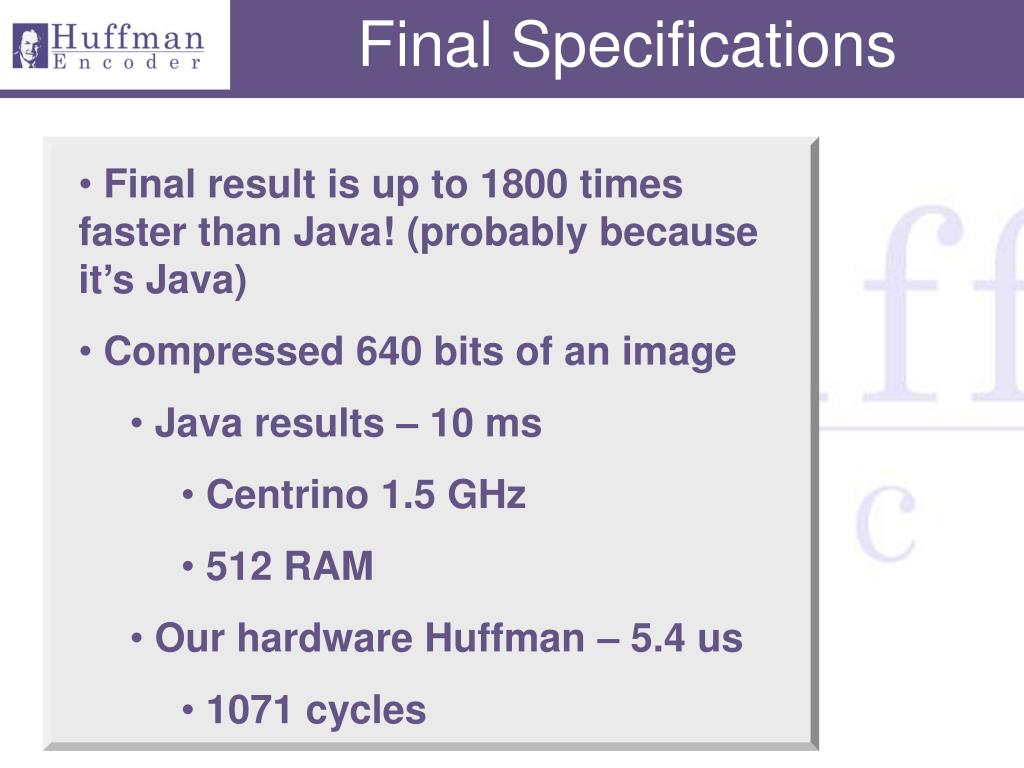

  35. Final Specifications • Final result is up to1800 times faster than Java! (probably because it’s Java) • Compressed 640 bits of an image • Java results – 10 ms • Centrino 1.5 GHz • 512 RAM • Our hardware Huffman – 5.4 us • 1071 cycles

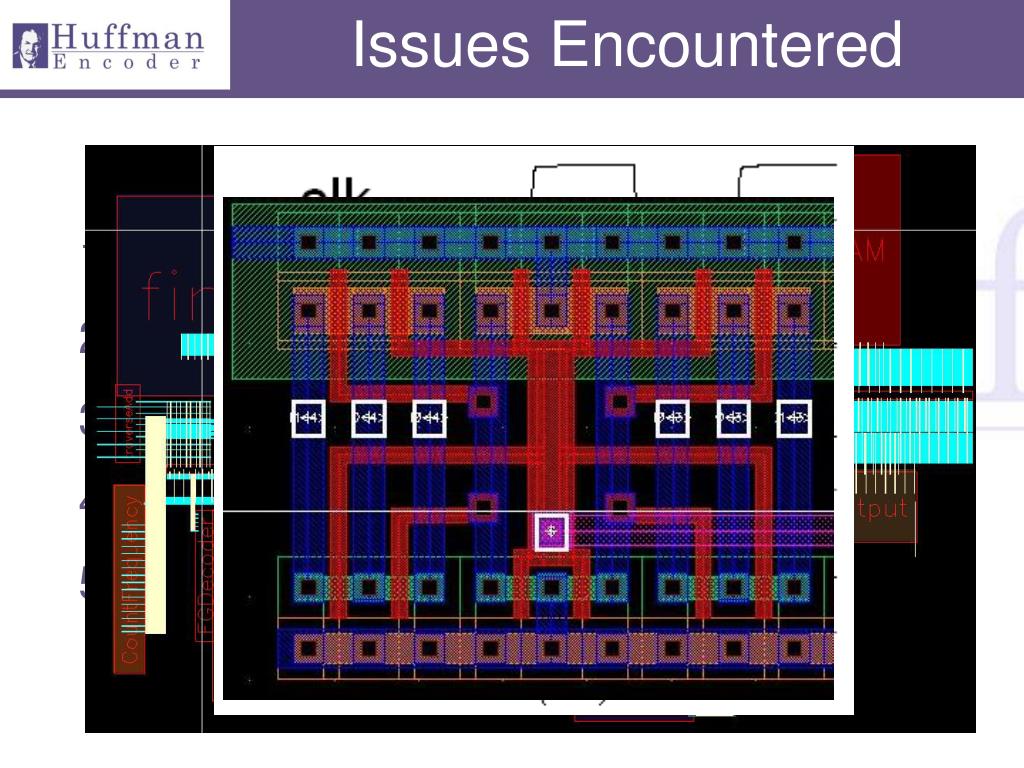

  36. Issues Encountered • Bad estimate for original floorplan • Long SRAM simulation time • SRAM sense amp issue • Too much poly! • Cannot route through SRAM

  37. Conclusions • Next Steps: • Scale up design • Better compression ratio • Higher throughput • Meeting of the Minds • HUFFMAN DECODER!!

  38. Questions?
