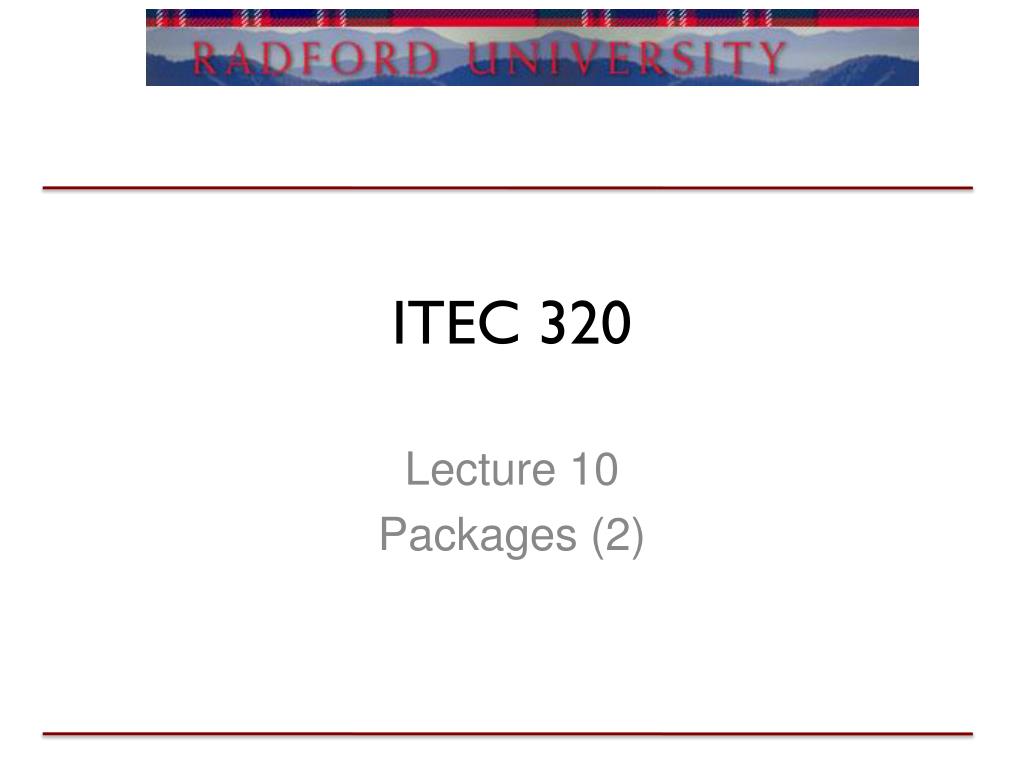

  1. ITEC 320 Lecture 10 Packages (2)

  2. Review • Packages • What parts do they have? • Syntax?

  3. Store in a .ads file Specification • Tells the compiler what the package does, but not how to do it package PairPkg is type Pair is record x, y: Integer; end record function distanceToOrigin(p: Pair) return Integer; end PairPkg;

  4. Body • Contains the code for a certain package’s procedures / functions package body PairPkg is function distanceToOrigin(p: Pair) return Integer is begin return abs p.x + abs p.y; end distanceToOrigin; end PairPkg;

  5. Client with ada.integer_text_io; use ada.integer_text_io; with pairpkg; use pairpkg; procedure pairclient is p: Pair; begin p := newPair(1, 2); put(distanceToOrigin(p)); p.x:= 3; -- Syntax error end pairclient;

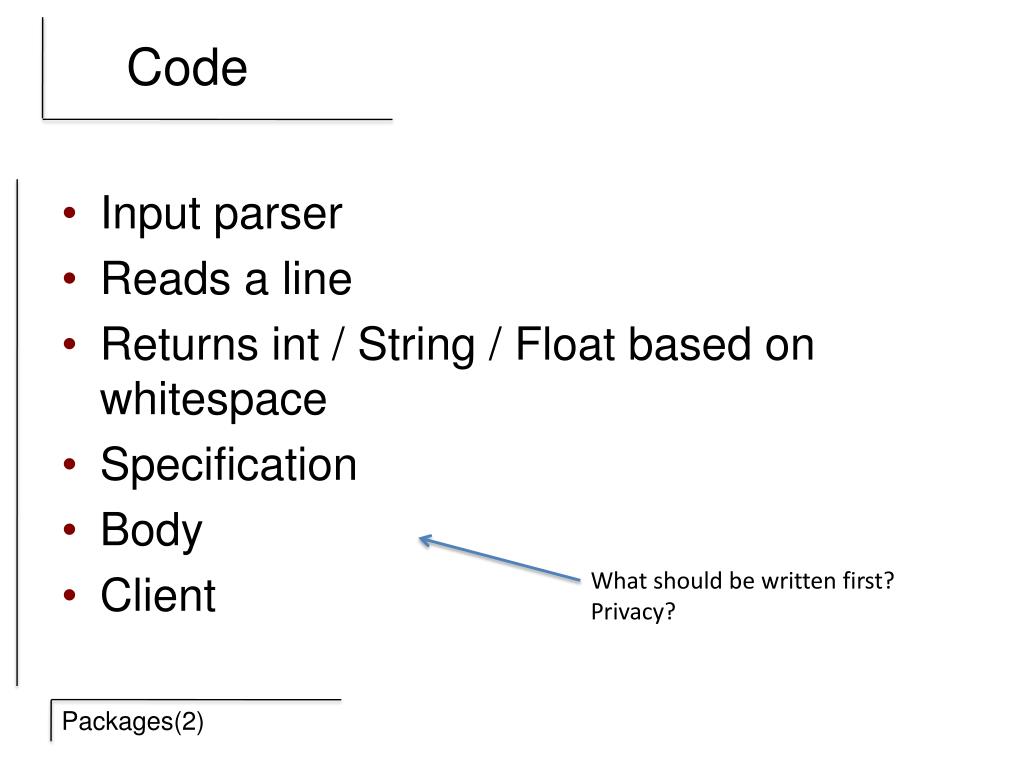

  6. Code • Input parser • Reads a line • Returns int / String / Float based on whitespace • Specification • Body • Client What should be written first? Privacy?

  7. Comparison • Java’s Scanner • Similarities • Differences

  8. Currently What happens when you want to store Strings? packageIntStackPkgistypeStackTypeislimitedprivate;Stack_Is_Empty, Stack_Is_Full : Exception;functionIsEmpty (S : StackType) return Boolean;functionIsFull  (S : StackType) return Boolean;procedure Push (I : Integer; S : inoutStackType);procedure Pop  (S : inoutStackType);function  Top  (S : StackType) return Integer;privateMaxSize : Constant Integer := 1000;typeElementArrayisarray(1 .. MaxSize) of Integer;typeStackTypeisrecord        Elements : ElementArray;TheTop : Integer := 0;end record;endIntStackPkg;

  9. Generic • Formal parameters • Specification • Actual parameters • Client • Need: get away from specific types

  10. Generic generic  -- Generic parameters are declared here    Size : Positive;            -- Size of stack to createtypeItemTypeisprivate;   -- Type of elements packageStackPkgistype Stack islimitedprivate;Stack_Empty: exception; Stack_Full : exception; functionisEmpty (s : Stack) return Boolean;functionisFull  (s : Stack) return Boolean;procedure push (item : ItemType; s : inout Stack);procedure pop  (s : inout Stack);function  top   (s : Stack) returnItemType;privatetypeStackElementsisarray(1 .. Size) ofItemType;type Stack isrecord        Elements : StackElements;        Top : Natural := 0;end record;endStackPkg;

  11. Body with StackPkg;   -- Make the generic stack package availableprocedureavgsis         -- Create the two stack packages that are neededpackageintstkpkgisnewstackpkg(1000, integer);packagefltstkpkgisnewstackpkg(1000, float);   -- package FltStkPkg is new StackPkg(size => 1000, ItemType=> Float);-- A use statement will simplify access to the package members   use IntStkPkg;   use FltStkPkg;   Value           : Integer;   Count, Sum      : Integer := 0;Running_Average : Float;-- Declare the two stack variablesIntStack : IntStkPkg.Stack;  -- Must include package name -- here so that theFltStack : FltStkPkg.Stack;  -- compiler can tell which stack -- is needed

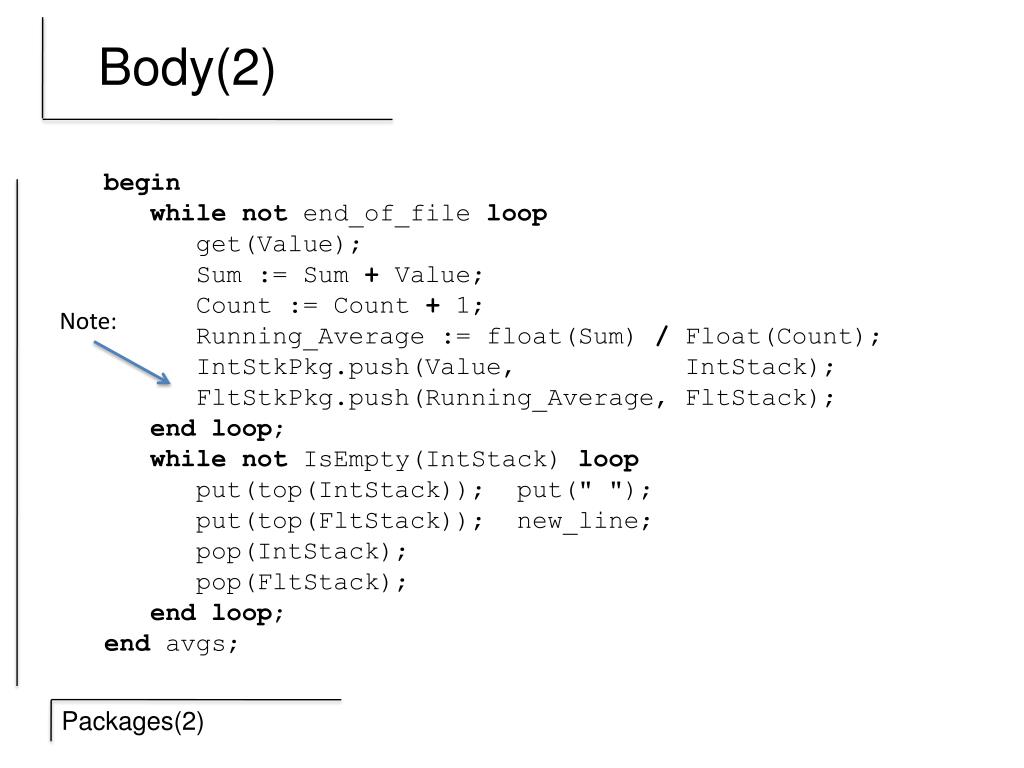

  12. Body(2) beginwhilenotend_of_fileloop      get(Value);      Sum := Sum + Value;      Count := Count + 1;Running_Average := float(Sum) / Float(Count);IntStkPkg.push(Value,           IntStack);FltStkPkg.push(Running_Average, FltStack);end loop;whilenotIsEmpty(IntStack) loop      put(top(IntStack));  put(" ");       put(top(FltStack));  new_line;      pop(IntStack);        pop(FltStack);end loop;endavgs; Note:

  13. Procedures generic type ItemType is private; procedure generic_swap(left, right: in out ItemType); -- Implementation of generic procedure swap procedure generic_swap(left, right : in out ItemType) is old_left: constant ItemType := left; begin left := right; right := old_left; end swap; -- Client file that instantiates generic procedure swap procedure swap_int is new generic_swap(ItemType => Integer); i,j: Integer; begin swap_int(i,j);

  14. Notes • Generic packages cannot be used directly • Make a derived type and use it • Syntax for delaying when a type is applied • Consider in the declare block for packages

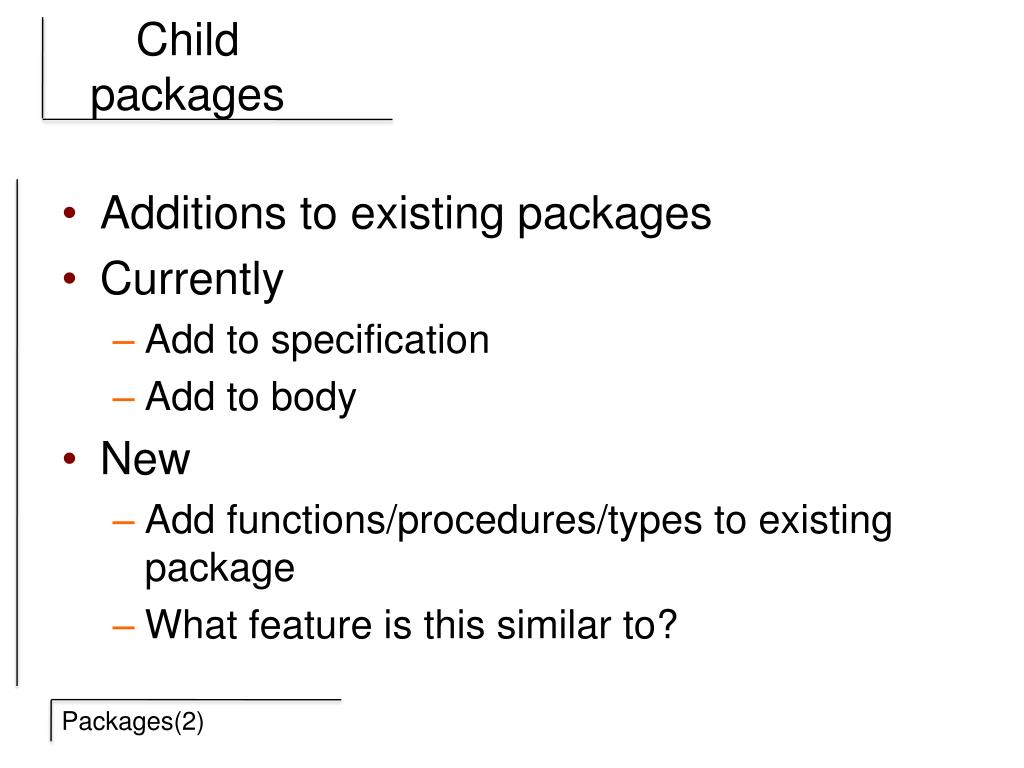

  15. Child packages • Additions to existing packages • Currently • Add to specification • Add to body • New • Add functions/procedures/types to existing package • What feature is this similar to?

  16. Method • Come up with a name for the child package • New package is parent.child • ada.text_io… • Specification is named • parent-child.ads • Body is named • parent-child.adb

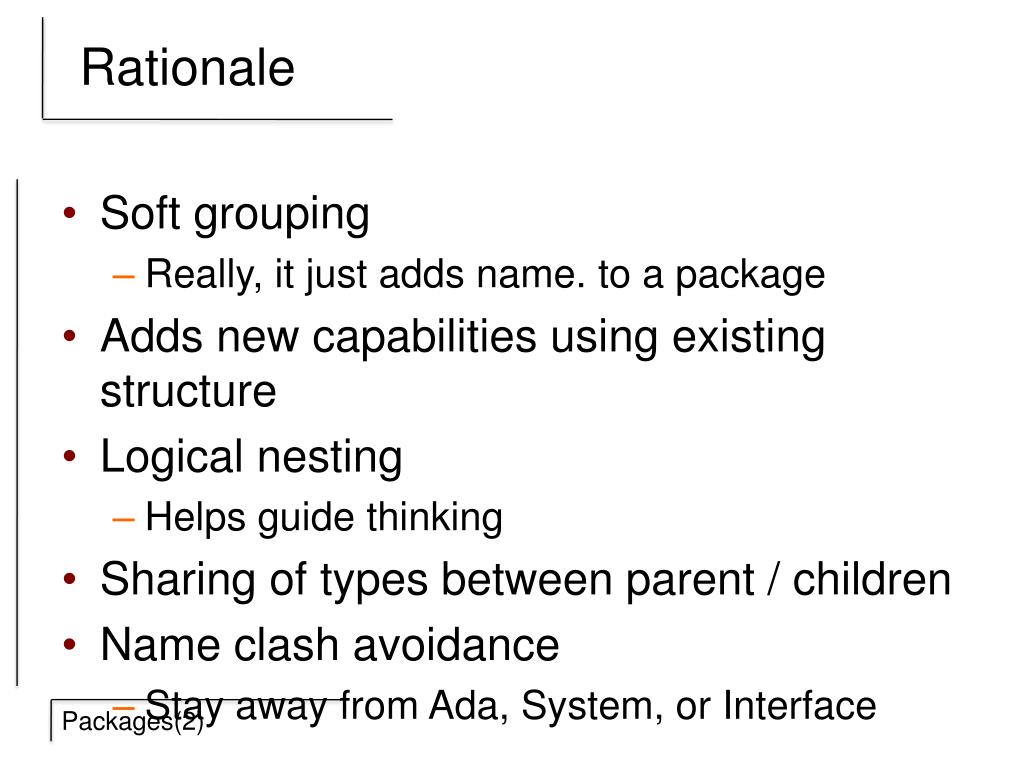

  17. Rationale • Soft grouping • Really, it just adds name. to a package • Adds new capabilities using existing structure • Logical nesting • Helps guide thinking • Sharing of types between parent / children • Name clash avoidance • Stay away from Ada, System, or Interface

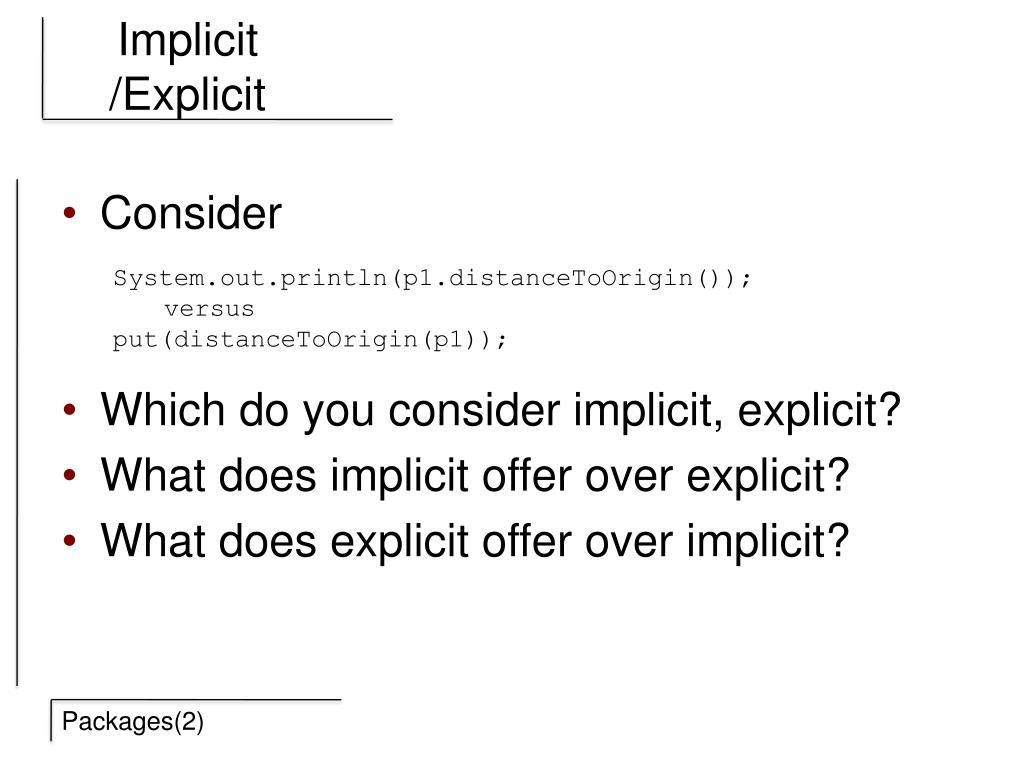

  18. Implicit /Explicit • Consider • Which do you consider implicit, explicit? • What does implicit offer over explicit? • What does explicit offer over implicit? System.out.println(p1.distanceToOrigin()); versus put(distanceToOrigin(p1));

  19. Example 2 // Java Pair p = new Pair(1, 2); Pair q = new Pair(3, 4); System.out.println(p.toString()); System.out.println (q.toString()); -- Ada declare Pair q = newPair(1, 2); Pair r = newPair(3, 4); begin put(toString(q)); put(toString(r));

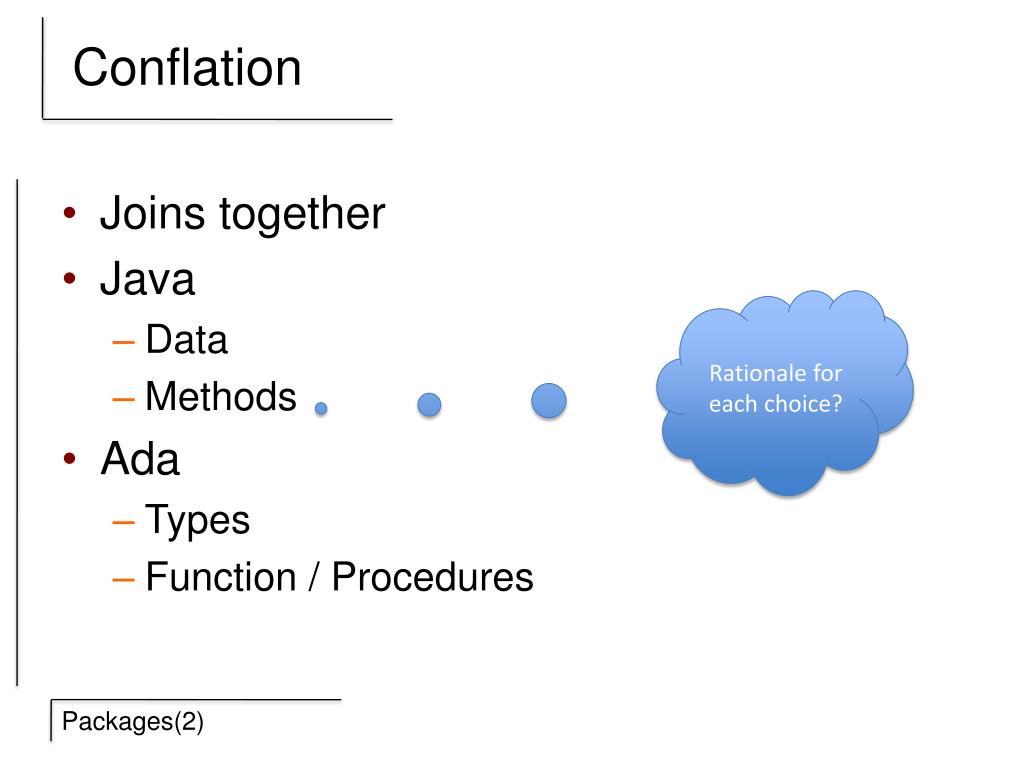

  20. Conflation • Joins together • Java • Data • Methods • Ada • Types • Function / Procedures Rationale for each choice?

  21. Usage scenarios • What is Java best suited for? • What are Java’s weaknesses? • What is Ada best suited for? • What are Ada’s weaknesses?

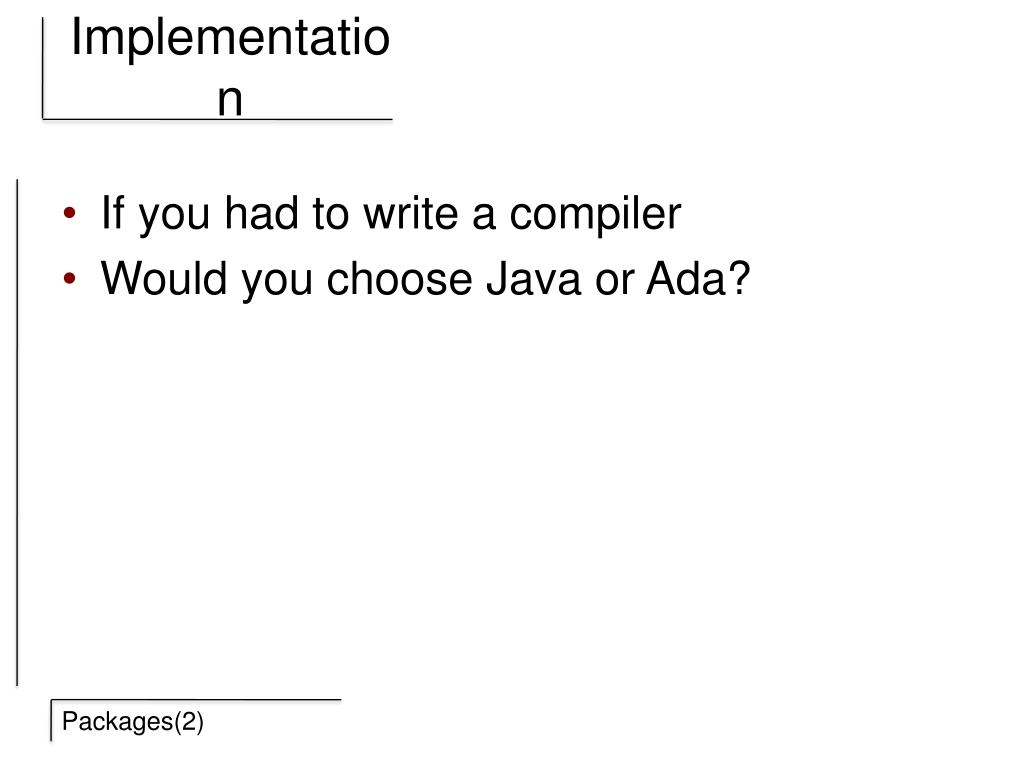

  22. Implementation • If you had to write a compiler • Would you choose Java or Ada?

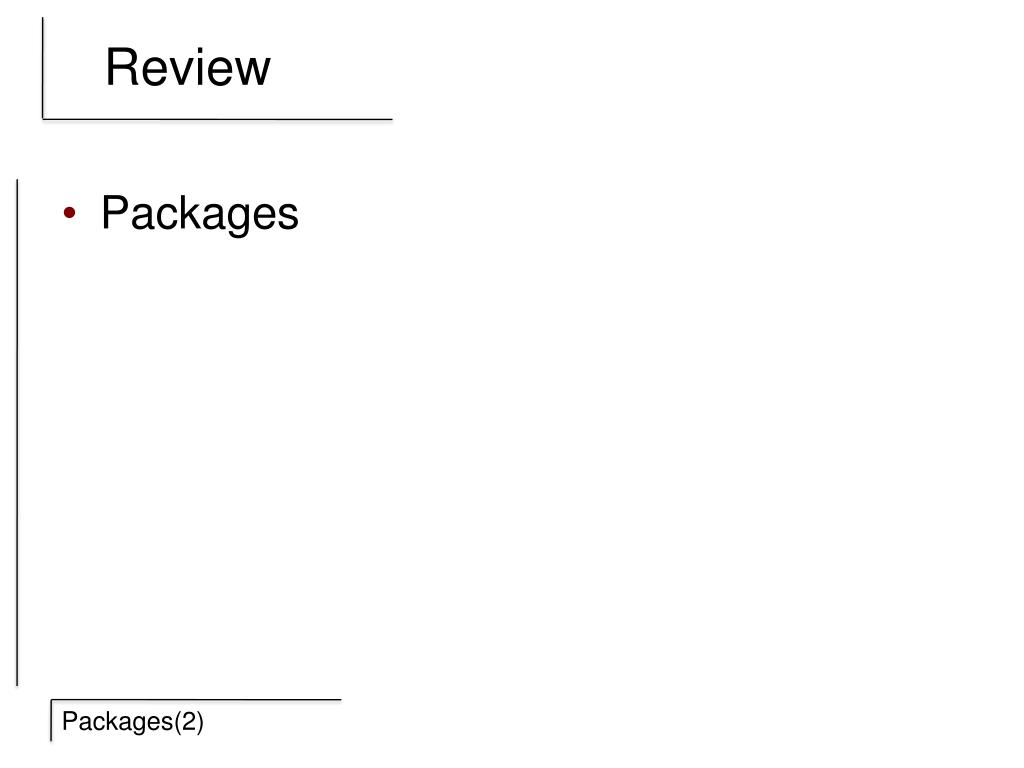

  23. Review • Packages
