  1. Multi-GPU and StreamProgramming KishanWimalawarne

  2. Agenda • Memory • Stream programming • Multi-GPU programming • UVA & GPUDirect

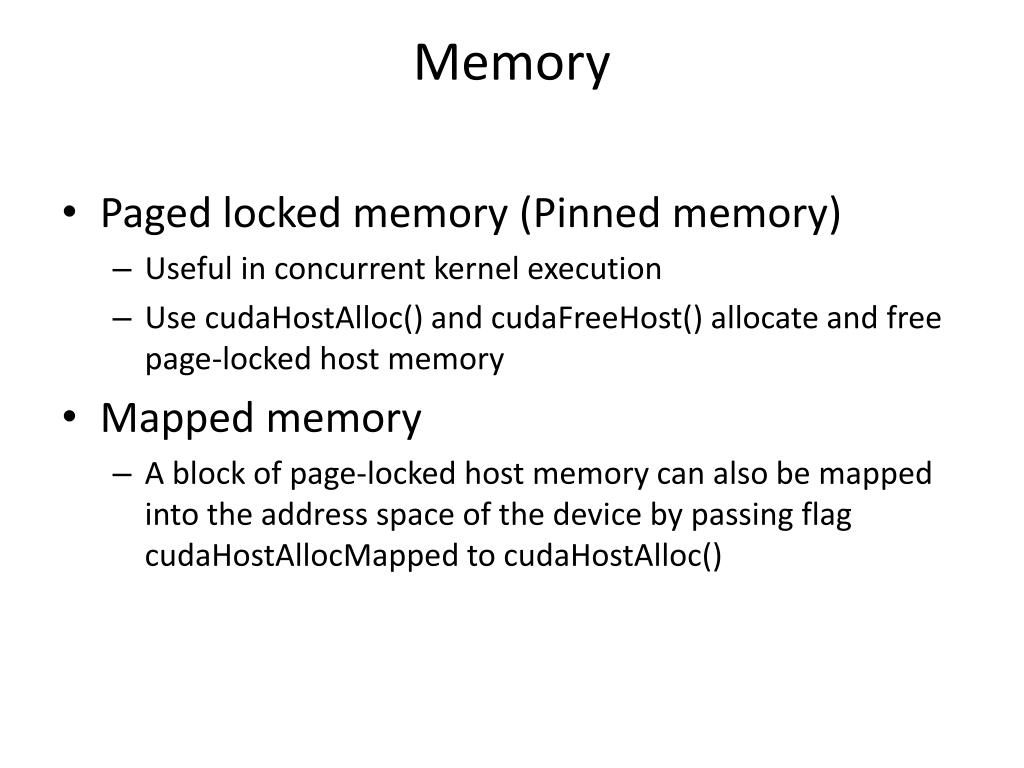

  3. Memory • Paged locked memory (Pinned memory) • Useful in concurrent kernel execution • Use cudaHostAlloc() and cudaFreeHost() allocate and free page-locked host memory • Mapped memory • A block of page-locked host memory can also be mapped into the address space of the device by passing flag cudaHostAllocMapped to cudaHostAlloc()

  4. Zero-Copy • Zero-Copy enables GPU threads to directly access host memory. • Requires mapped pinned (non-pageable) memory. • Zero copy can be used in place of streams because kernel-originated data transfers automatically overlap kernel execution without the overhead of setting up and determining the optimal number of streams • Use cudaSetDeviceFlags() with cudaDeviceMapHost()

  5. Zero-Copy

  6. Stream Programming

  7. Introduction • Stream programming (pipeline) is a useful parallel pattern. • Data transfer from host to device is a major performance bottleneck in GPU programming • CUDA provides support for asynchronous data transfer and kernel executions. • A stream is simply a sequence of operations that are performed in order on the device. • Allow concurrent execution of kernels. • Maximum number of concurrent kernel calls to be launched is 16.

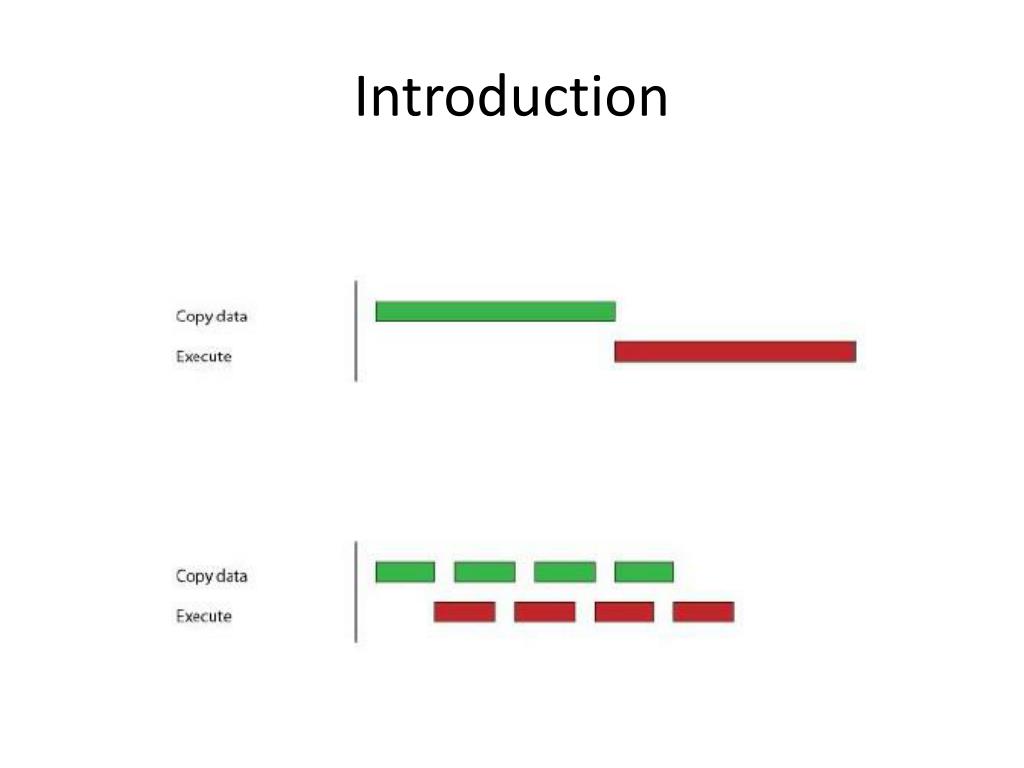

  8. Introduction

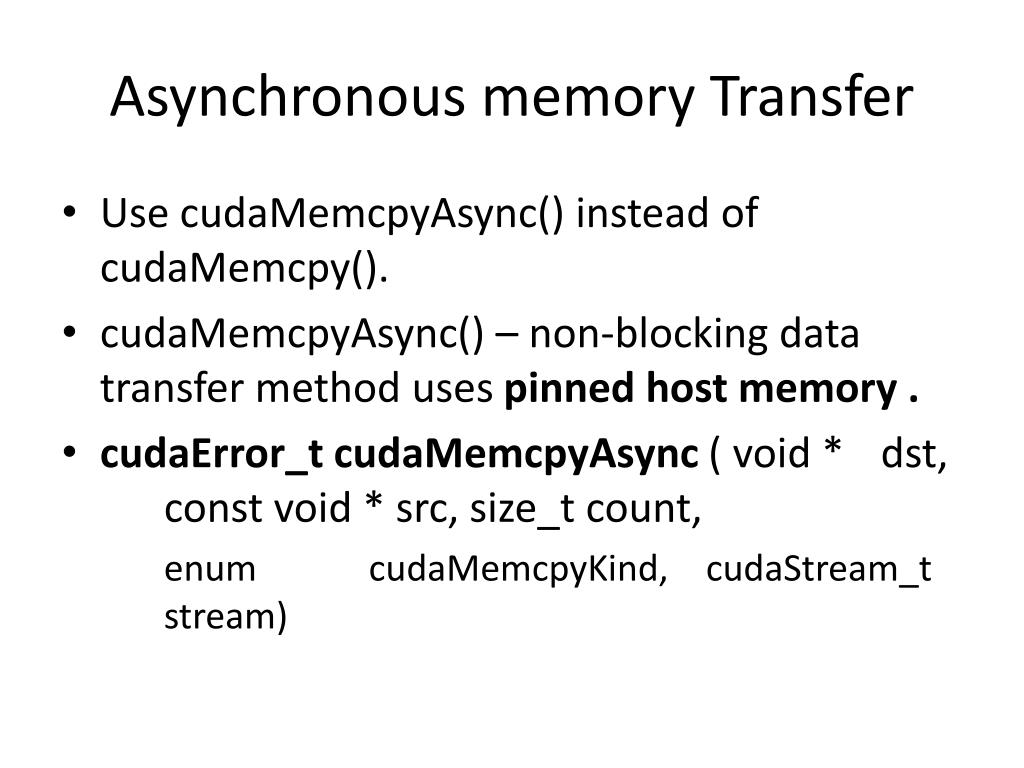

  9. Asynchronous memory Transfer • Use cudaMemcpyAsync() instead of cudaMemcpy(). • cudaMemcpyAsync() – non-blocking data transfer method uses pinned host memory . • cudaError_tcudaMemcpyAsync( void * dst, const void * src, size_t count, enumcudaMemcpyKind, cudaStream_t stream)

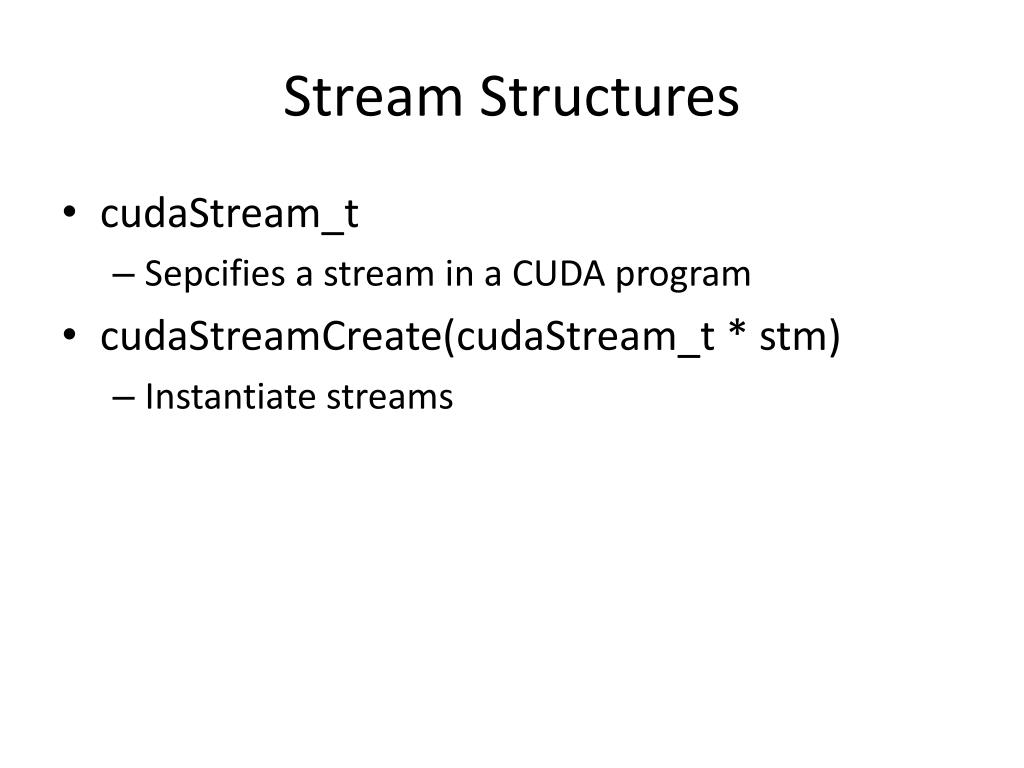

  10. Stream Structures • cudaStream_t • Sepcifies a stream in a CUDA program • cudaStreamCreate(cudaStream_t * stm) • Instantiate streams

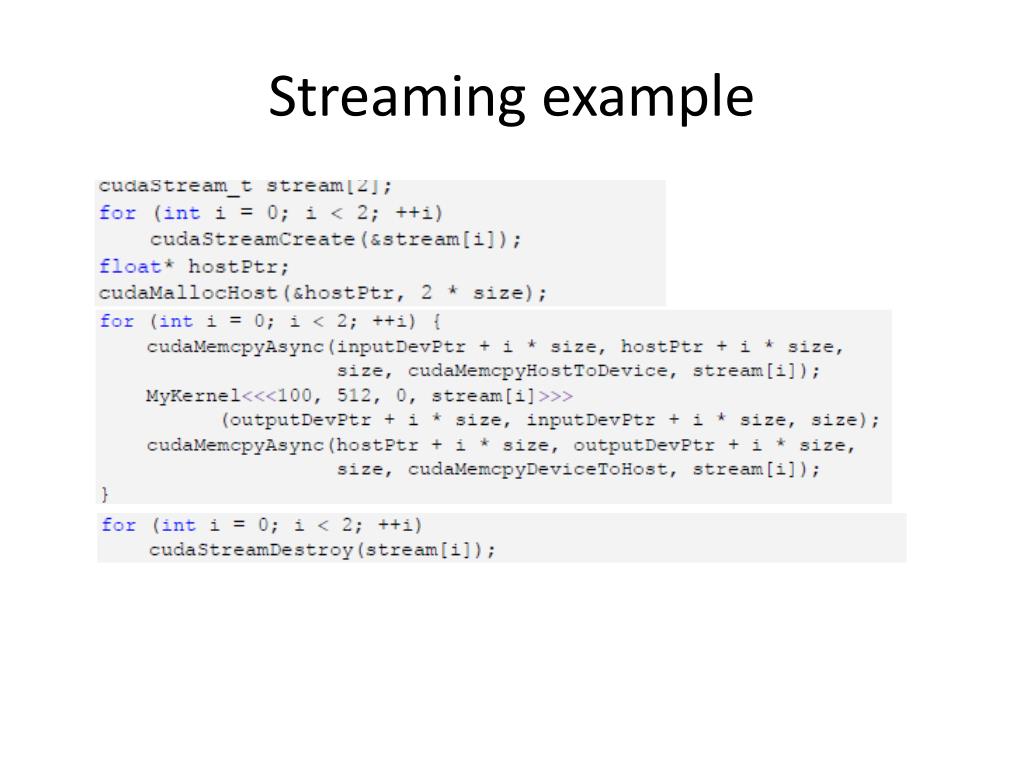

  11. Streaming example

  12. Event processing • Events are used for • Monitor device behavior • Accurate rate timing • cudaEvent_te • cudaEventCreate(&e); • cudaEventDestroy(e);

  13. Event processing • cudaEventRecord() records and event associated with a stream. • cudaEventElapsedTime() finds the time between two input events. • cudaEventSynchronize() blocks until the event has actually been recorded • cudaEventQuery() Check status of an event. • cudaStreamWaitEvent() makes all future work submitted to stream wait until event reports completion before beginning execution. • cudaEventCreateWithFlags() create events with flags e.g:- cudaEventDefault, cudaEventBlockingSync

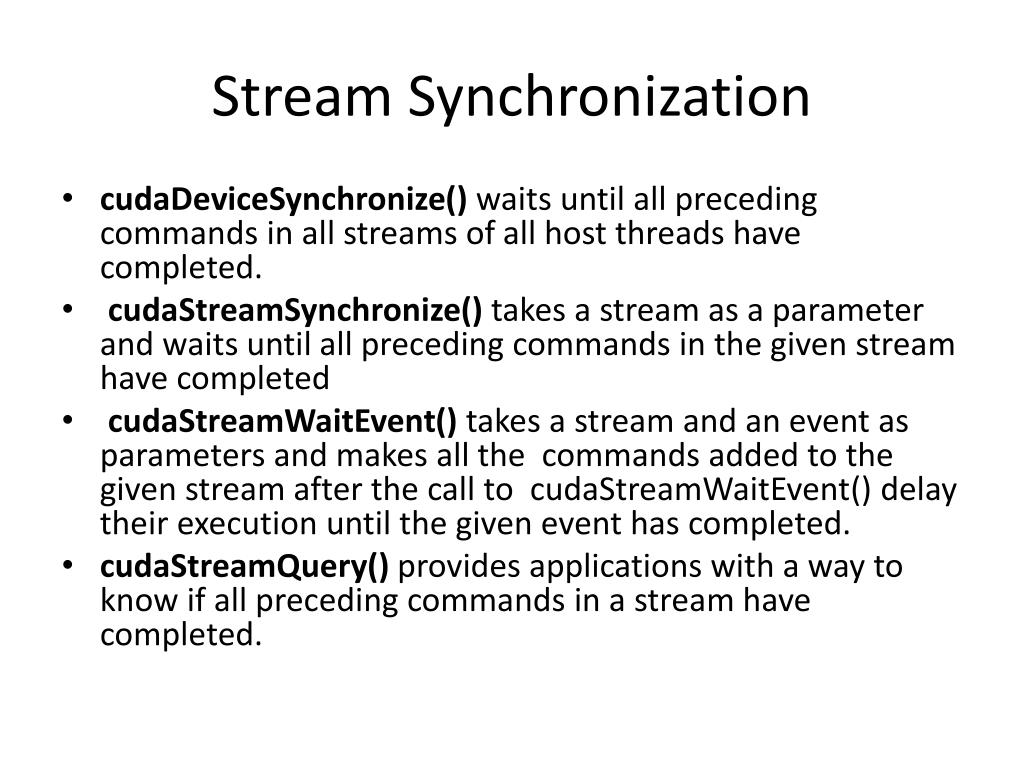

  14. Stream Synchronization • cudaDeviceSynchronize() waits until all preceding commands in all streams of all host threads have completed. • cudaStreamSynchronize() takes a stream as a parameter and waits until all preceding commands in the given stream have completed • cudaStreamWaitEvent() takes a stream and an event as parameters and makes all the commands added to the given stream after the call to cudaStreamWaitEvent() delay their execution until the given event has completed. • cudaStreamQuery() provides applications with a way to know if all preceding commands in a stream have completed.

  15. Multi GPU programming

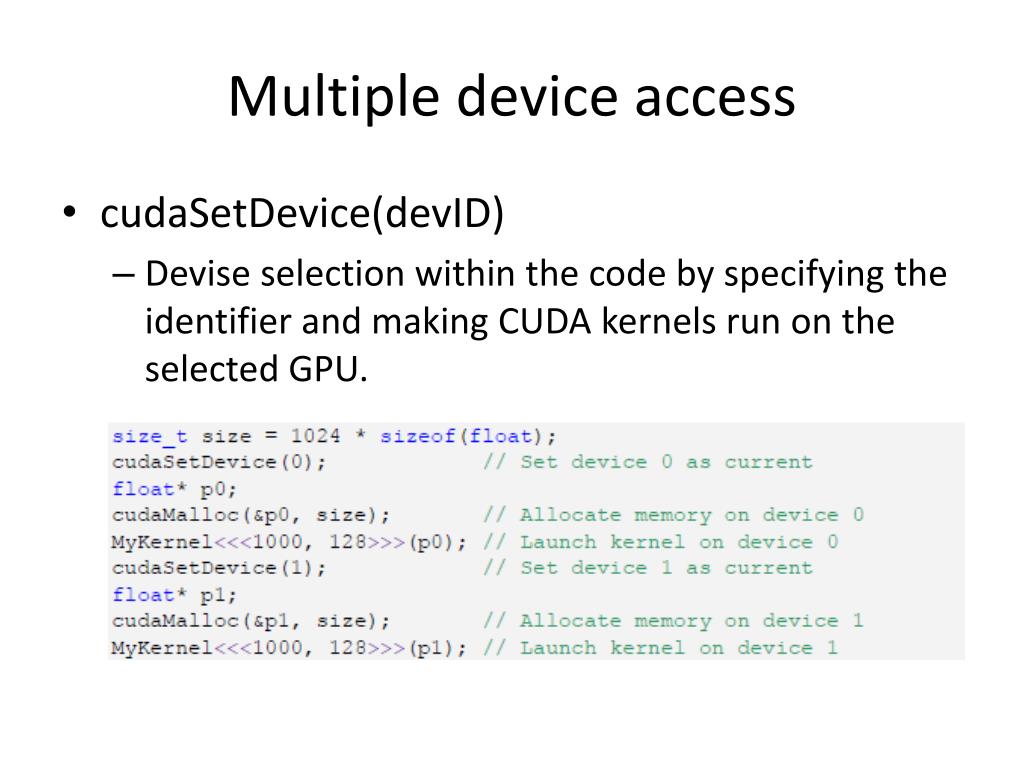

  16. Multiple device access • cudaSetDevice(devID) • Devise selection within the code by specifying the identifier and making CUDA kernels run on the selected GPU.

  17. Peer to peer memory Access • Peer-to-Peer Memory Access • Only on Tesla or above • cudaDeviceEnablePeerAccess() to check peer access

  18. Peer to peer memory Copy • Using cudaMemcpyPeer() • works for Geforce480 and other GPUs.

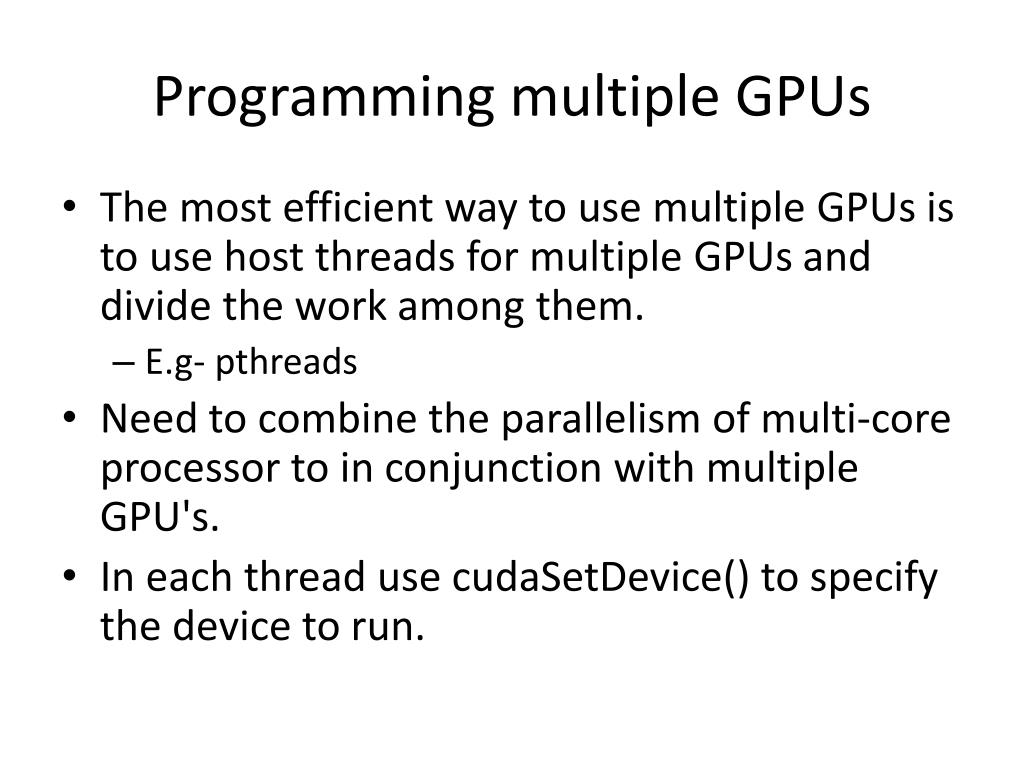

  19. Programming multiple GPUs • The most efficient way to use multiple GPUs is to use host threads for multiple GPUs and divide the work among them. • E.g- pthreads • Need to combine the parallelism of multi-core processor to in conjunction with multiple GPU's. • In each thread use cudaSetDevice() to specify the device to run.

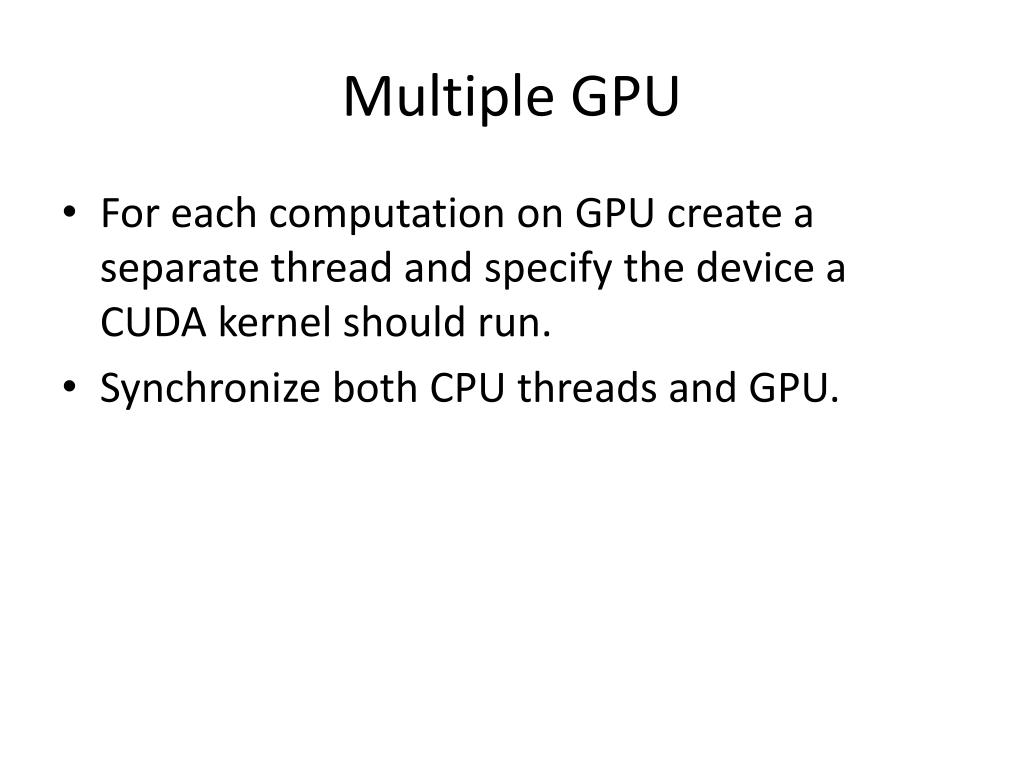

  20. Multiple GPU • For each computation on GPU create a separate thread and specify the device a CUDA kernel should run. • Synchronize both CPU threads and GPU.

  21. Multiple GPU Example void * GPUprocess(void *id){ long tid; tid = (long)id; if(tid ==0){ cudaSetDevice(tid); cudaMalloc((void **)&p2 , size); cudaMemcpy(p2, p0, size, cudaMemcpyHostToDevice ); test<<<10*5024, 1024>>>(p2,tid +2); cudaMemcpy(p0,p2 , size, cudaMemcpyDeviceToHost ); }else if(tid ==1){ cudaSetDevice(tid); cudaMalloc((void **)&p3 , size); cudaMemcpy(p3, p1, size, cudaMemcpyHostToDevice ); test<<<10*5024, 1024>>>(p3,tid +2); cudaMemcpy(p1,p3 , size, cudaMemcpyDeviceToHost ); }

  22. Multiple GPU Example #include <pthread.h> int NUM_THREADS=2; pthread_t thread[NUM_THREADS]; pthread_attr_t attr; pthread_attr_init(&attr); pthread_attr_setdetachstate(&attr, PTHREAD_CREATE_JOINABLE); for(t=0; t<NUM_THREADS; t++) { rc = pthread_create(&thread[t], &attr, GPUprocess, (void *)t); if (rc) { printf("ERROR; return code from pthread_create() is %d\n", rc); exit(-1); } }

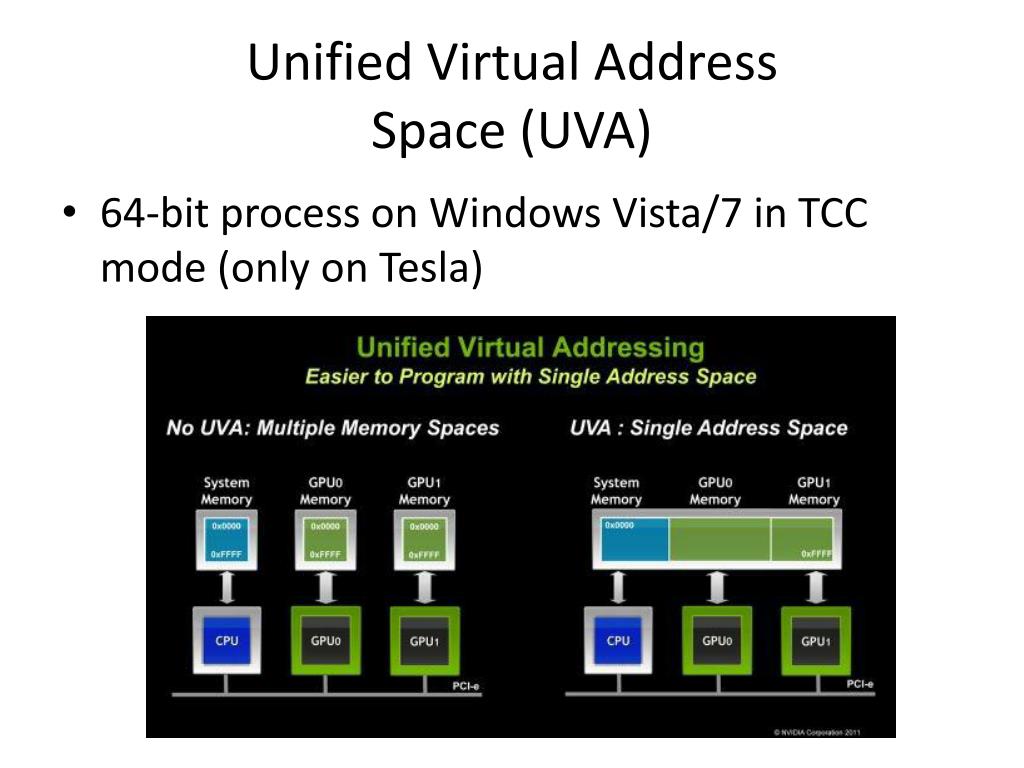

  23. Unified Virtual Address Space (UVA) • 64-bit process on Windows Vista/7 in TCC mode (only on Tesla)

  24. GPUDirect • Build on UVA for Tesla (fermi) products.

  25. GPUDirect
