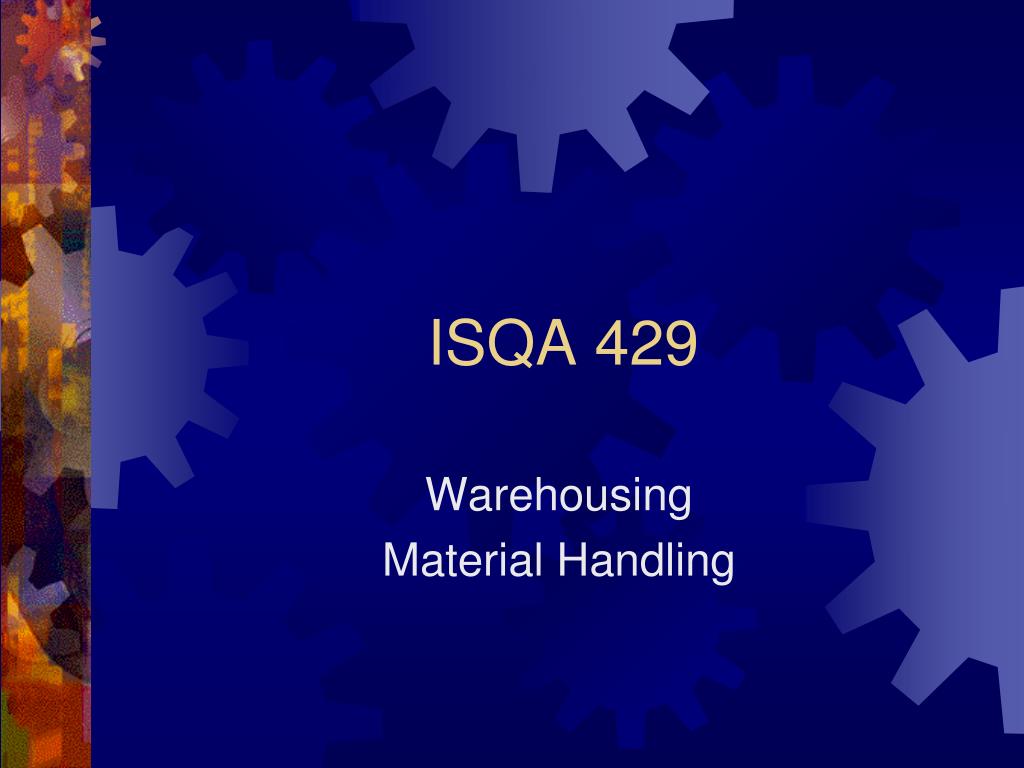

  1. ISQA 429 Warehousing Material Handling

  2. Warehousing • Functions of Warehouses • Storage • Consolidation • Product Mixing • Cross Dock Sorting • Order Processing • Postponement • Security

  3. Warehouse Operations • Receiving • Correct Numbers of Packages • Freight Damage • Match Paperwork • Match Goods to Paperwork • Movement • Mechanical (Fork Lifts, Pallet Jacks) • Automated (Conveyors, ASRS) Storage

  4. Warehouse Operations • Storage • Put-Away Process (Assigned or Random) • Order Processing • Pull • Pack • Ship • Inventory Replenishment • Order Quantities • Order Frequency

  5. Warehouse Operations • Value Added Services • Inventory Control (Bar Code, RFID) • Damage Control • Sustainability • Energy Use • Recycling • Trash Minimization • Housekeeping • Maintenance

  6. Warehouse Types • Public • Contract / Third Party • Private • Bonded Warehouses • Foreign Trade Zones

  7. Principles of Warehouse Layout • One Story Design • Move Goods in Straight Line • Efficient Material Handling Equip. • Efficient Storage Plan • Fast Movers Up Front • Complementary Products Together • Minimize Mispicks • Minimize Aisle Space • NEVER Dead End Aisles • Use Full Cube of Building

  8. Warehouse Operating Costs • Shipping 15% • Receiving 15% • Storage 20% • Order Picking 50%

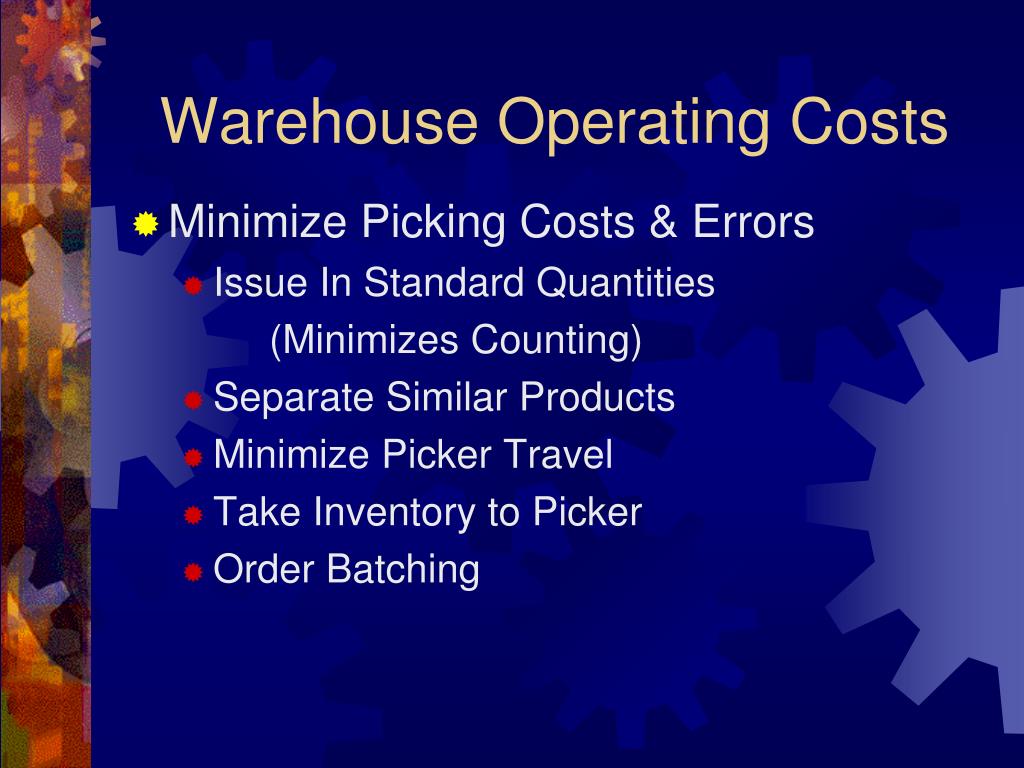

  9. Warehouse Operating Costs • Minimize Picking Costs & Errors • Issue In Standard Quantities (Minimizes Counting) • Separate Similar Products • Minimize Picker Travel • Take Inventory to Picker • Order Batching

  10. Warehouse Issues • Demand Level, Volatility • Demand Stability, Seasonality • Need for Control • Numbers, Locations • Layout • Stocking Plans • Automation and Material Handling • Security • Standardization

  11. Warehouse/Inventory Costs • Inventory Carrying Costs (Excl Whse) • Warehousing Costs • Transportation Costs • Cost of Lost Sales • Objective: Minimize the Combination

  12. Impact of Warehouse Numbers on Inventory Levels 1 Warehouse 100% 2 141% 3 173% 4 200% 5 224% 10 316% Maintains a given service level

  13. Square Root Rule New Inventory Level = Old Inventory Level X Square Root of Number of New Warehouses/Number of Old Warehouses This Maintains the Same Service Level

  14. Packaging • Containment • Protection • Apportionment • Unitization • Convenience • Communication • Conveyorization

  15. Packaging • Identification • Product • Handling Requirements • Hazardous • Legal Requirements (Ingredients, etc.) • Marketing • Reverse Logistics • Recycling

  16. Columbia Sportswear • No Open Toe Shoes • No Loose Clothing – long scarves, etc. • Automation • Conveyor System • Inventory Put-Away • Sorter • Order Picker Computers • Number of Countries on Boxes

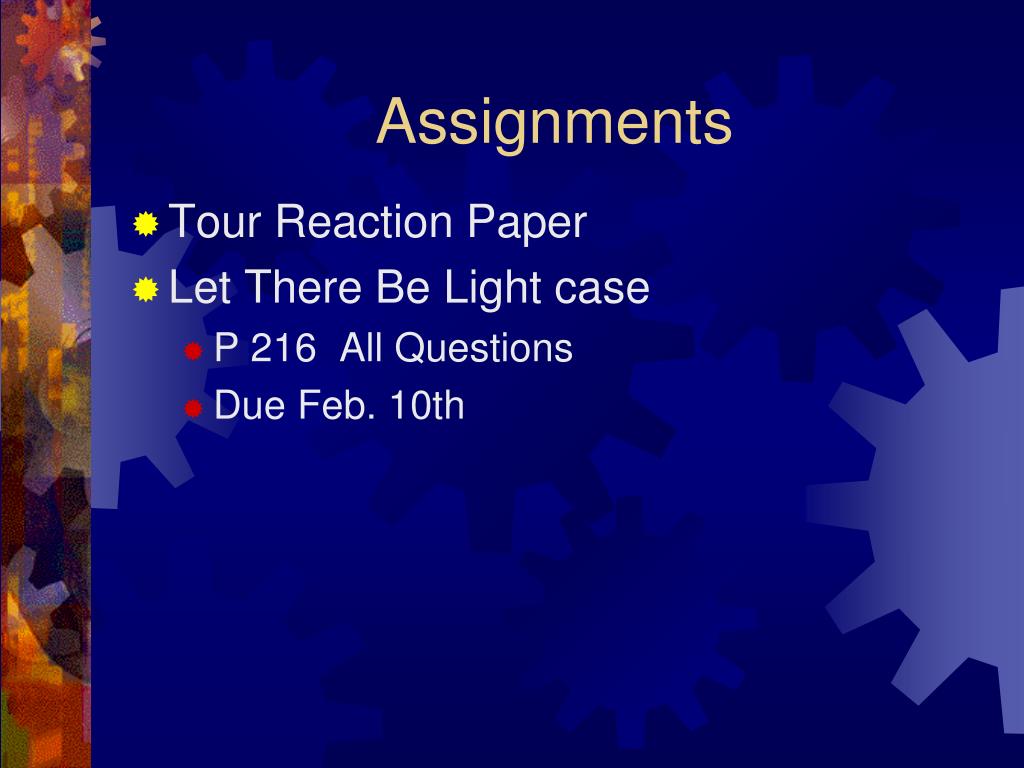

  17. Assignments • Tour Reaction Paper • Let There Be Light case • P 216 All Questions • Due Feb. 10th
