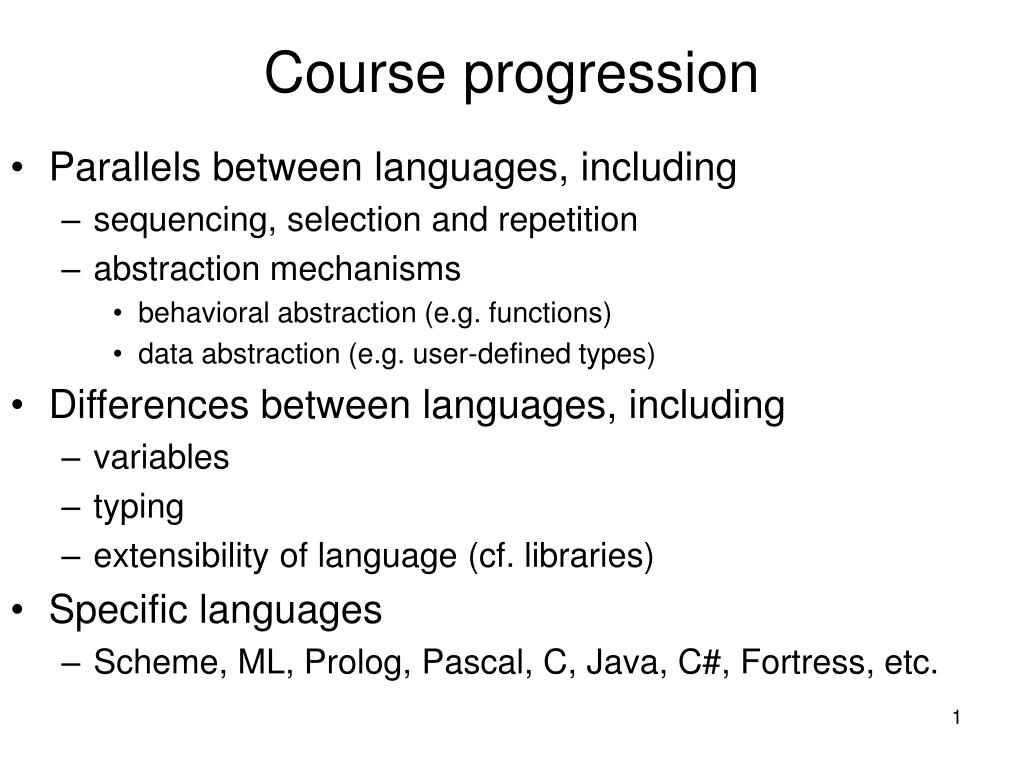

  1. Course progression • Parallels between languages, including • sequencing, selection and repetition • abstraction mechanisms • behavioral abstraction (e.g. functions) • data abstraction (e.g. user-defined types) • Differences between languages, including • variables • typing • extensibility of language (cf. libraries) • Specific languages • Scheme, ML, Prolog, Pascal, C, Java, C#, Fortress, etc.

  2. Functional languages(e.g. Scheme, Lisp, ML) • Scheme is a functional language. • Scheme is based on lambda calculus. • lambda abstraction = function definition • In Scheme, a function is defined using the keyword lambda: (lambda (<parameters>) <body>) • Syntax of Scheme is very simple: • primitive expressions • numbers, such as 17 • symbols, such as ’fred • names, such as fred • complex expressions • function applications, such as (+ 3 2) or (addOne x), consist of a function and arguments for the function. • special forms, such as (define x y), are evaluated in special ways. • ML is a functional language. • ML is based on lambda calculus. • lambda abstraction = function definition • In ML, a function is (typically) defined using the fun keyword: fun <name> <param> = <body> • Syntax of ML is familiar: • block-structured syntax • infix operators for +, *, etc • function names appear before argument lists, not inside parentheses

  3. Evaluation(Scheme and ML share model – focus on Scheme) • Numbers are interpreted in base 10. • Names are looked up in an environment, starting with the current environment, following static links, until the name is found. If it is not found, an error occurs. • (define <var> <expr>) is evaluated by first evaluating <expr>, and binding, in the current environment, the name <var> to that value. • (lambda …) is evaluated by creating an appropriate closure (sometimes called a procedure). The closure’s environment link refers to the environment which was active when the closure was created. • All members of an application are evaluated, after which the first is applied to the rest. • A procedure application is evaluated by creating an environment to bind the parameters of the procedure to its arguments, and then evaluating the body relative to this new environment. The static link of the environment refers to the same environment as the closure, whereas the dynamic link refers to the environment that was active when the procedure was applied.

  4. Functional languages on CSEUNIX systems (e.g. pollux) • Installed in /projects/alphonce/bin • Scheme • text-based interpreter: mzscheme • graphical ide: drscheme • must add /util/gnu/lib to LD_LIBRARY_PATH • Erlang: erl • Installed in /util/bin • Lisp (Allegro Common Lisp): • standalone: acl • from within Emacs: run-acl • ML • Standard ML of NJ: sml

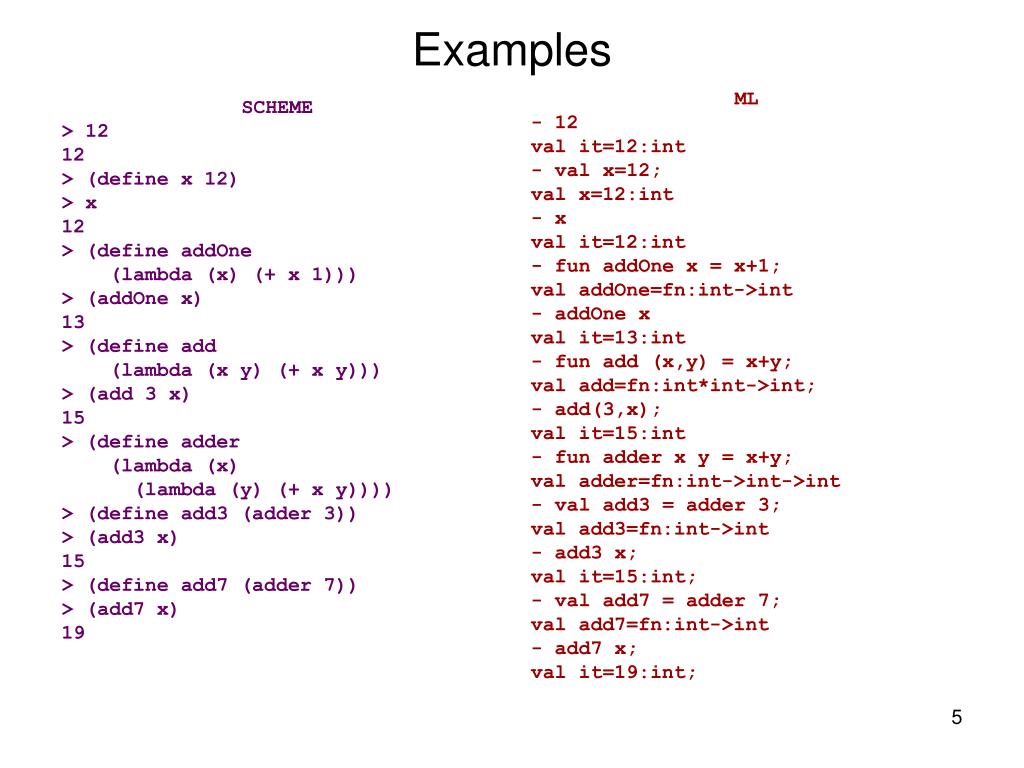

  5. Examples ML - 12 val it=12:int - val x=12; val x=12:int - x val it=12:int - fun addOne x = x+1; val addOne=fn:int->int - addOne x val it=13:int - fun add (x,y) = x+y; val add=fn:int*int->int; - add(3,x); val it=15:int - fun adder x y = x+y; val adder=fn:int->int->int - val add3 = adder 3; val add3=fn:int->int - add3 x; val it=15:int; - val add7 = adder 7; val add7=fn:int->int - add7 x; val it=19:int; SCHEME > 12 12 > (define x 12) > x 12 > (define addOne (lambda (x) (+ x 1))) > (addOne x) 13 > (define add (lambda (x y) (+ x y))) > (add 3 x) 15 > (define adder (lambda (x) (lambda (y) (+ x y)))) > (define add3 (adder 3)) > (add3 x) 15 > (define add7 (adder 7)) > (add7 x) 19

  6. Scheme • Although Scheme is syntactically a simple language, it supports sophisticated modeling: higher-order functions are a powerful tool in describing problems. • Many ideas in design patterns have their roots in functional programming (e.g. strategy allows us to treat methods as first-class, a decorator acts like a function which maps a function to a function – think of the stream decorators in Java). • We describe something as first-class if it can be created at runtime, created anonymously, named, stored in data structures, passed as an argument to a function, returned as a value from a function. • With mutation (the ability to change a name-value binding in an environment) sophisticated systems can be built quite compactly.

  7. Rules of expression evaluation • Numbers evaluate to “themselves” • a character string representing a number evaluates to its base 10 numeric representation (unless a different base is explicitly indicated) • For example: • Scheme > 100 if you ask Scheme to evaluate a string of (decimal) digits 100 you get the corresponding decimal number as a result > #o100 if you ask Scheme to evaluate a string of octal digits 64 you get the corresponding decimal number as a result • This character string to numeric representation happens in other languages as well; consider Java: int x = 100; int y = 0100; System.out.println("x is "+x+", but y is "+y); • prints:x is 100, but y is 64

  8. Evaluating names • A name is evaluated by looking it up. Lookup starts in the current environment, and continues along the chain of statically-linked environments until either a binding is found (in which case the corresponding value is returned) or it isn’t (in which case an error occurs). • For example (assuming no binding for x exists yet): > x Error: reference to undefined identifier: x > (define x 12) > x 12 >

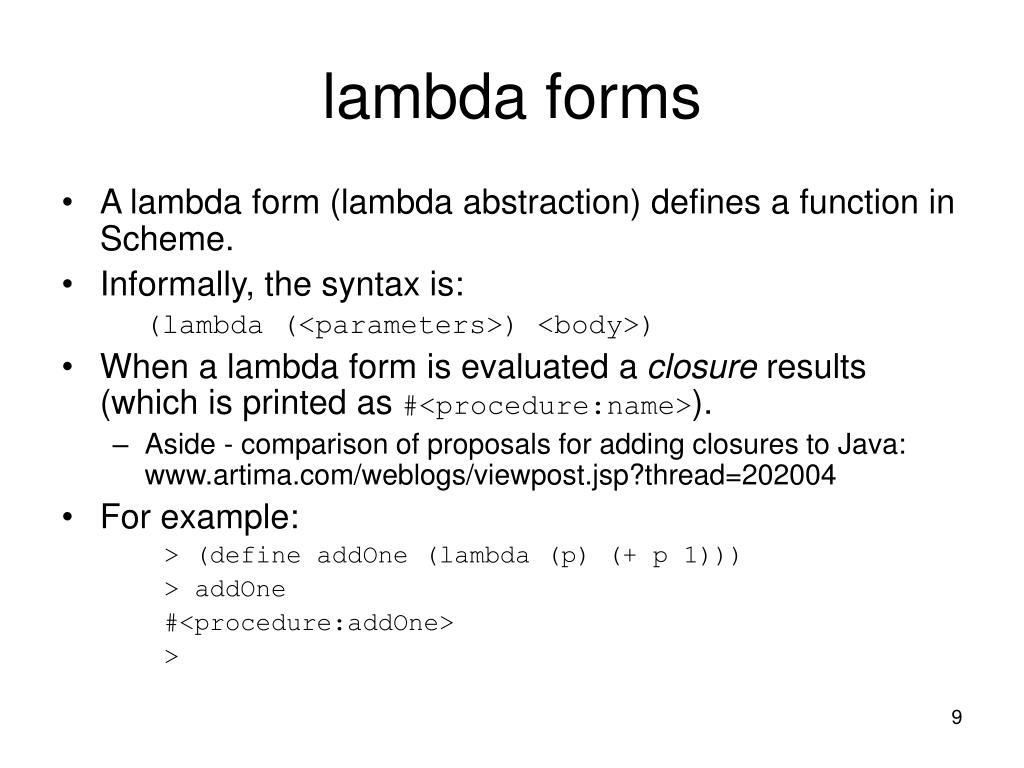

  9. lambda forms • A lambda form (lambda abstraction) defines a function in Scheme. • Informally, the syntax is: (lambda (<parameters>) <body>) • When a lambda form is evaluated a closure results (which is printed as #<procedure:name>). • Aside - comparison of proposals for adding closures to Java: www.artima.com/weblogs/viewpost.jsp?thread=202004 • For example: > (define addOne (lambda (p) (+ p 1))) > addOne #<procedure:addOne> >

  10. Primitives • Primitives, such as + and -, are ordinary names with name-value bindings established at start-up in the primitiveenvironment, the base environment for evaluation (base in the sense that its static link is null). • We can use + wherever we need a function. • For example (defining a function which takes a function as argument): > (define applyOperator (lambda (op) (op 3 4))) > (applyOperator +) 7 > (applyOperator -) -1 • We can also rebind the names of primitives (not a good idea in general, but this shows that primitives are not treated differently from other names in the language). > (+ 3 4) name “+” refers to addition function 7 > (define + -) name “+” now refers to subtraction function > (+ 3 4) -1

  11. Function applications • A function application is evaluated by first evaluating each expression inside the application, then applying the function to its arguments. • This is accomplished by first creating a new environment in which the function’s parameters are bound to its arguments, and then evaluating the function’s body with respect to the new environment (which is now the current environment).

  12. p (+ p 1) Evaluating (addOne 4) primitive env + <proc> - <proc> cons <proc> … user env addOne p 4 (+ p 1)

  13. Local bindings • In a language like C or Java we can create local bindings inside a function/method by defining local variables: int mystery(int x, int y, int z) { int a = func1(x,y); int b = func2(y,z); <body> } • Local bindings can be created using a let-form: (define mystery (lambda (x y z) (let ((a (func1 x y)) (b (func2 y z))) <body>) • Let-form is just syntactic sugar for a procedure application; the above let-form is equivalent to: ((lambda (a b) <body>) (func1 x y) (func2 y z))

  14. Evaluating(define foo (let ((a 1) (b 2)) (lambda (c) (+ a b c)))) primitive env c + <proc> (+ a b c) - <proc> cons <proc> … user env a b (lambda (c) (+ a b c)) addOne a 1 foo b 2 (lambda (c) (+ a b c))

  15. Mutation • set! allows an existing name-value binding to be changed.

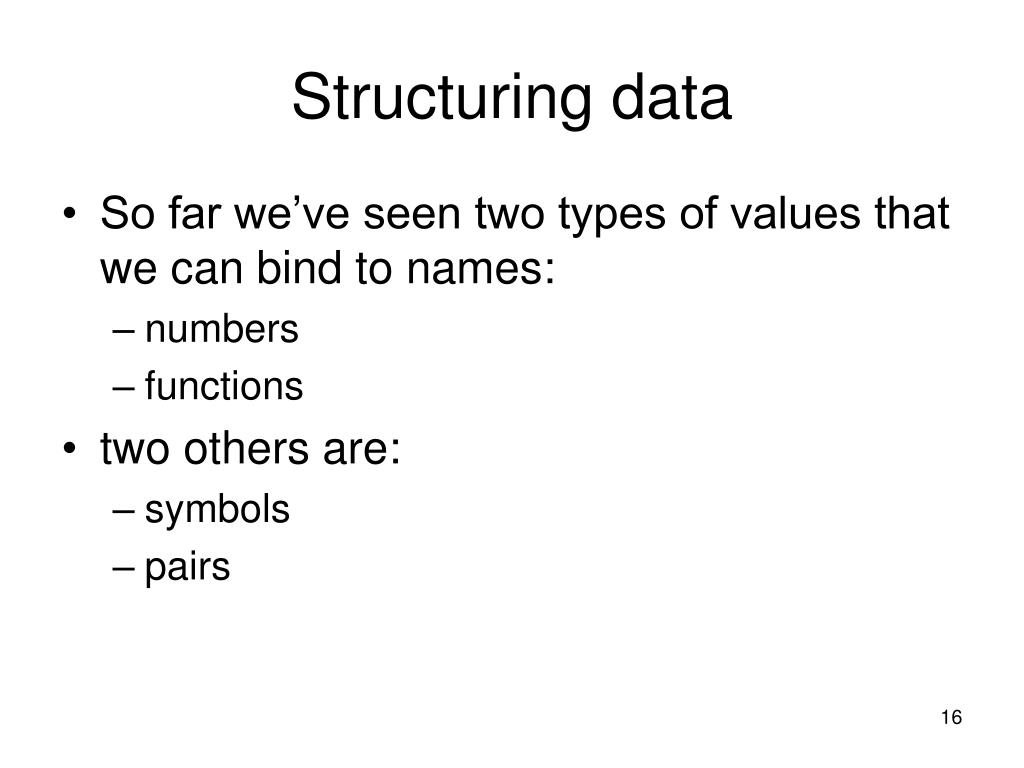

  16. Structuring data • So far we’ve seen two types of values that we can bind to names: • numbers • functions • two others are: • symbols • pairs

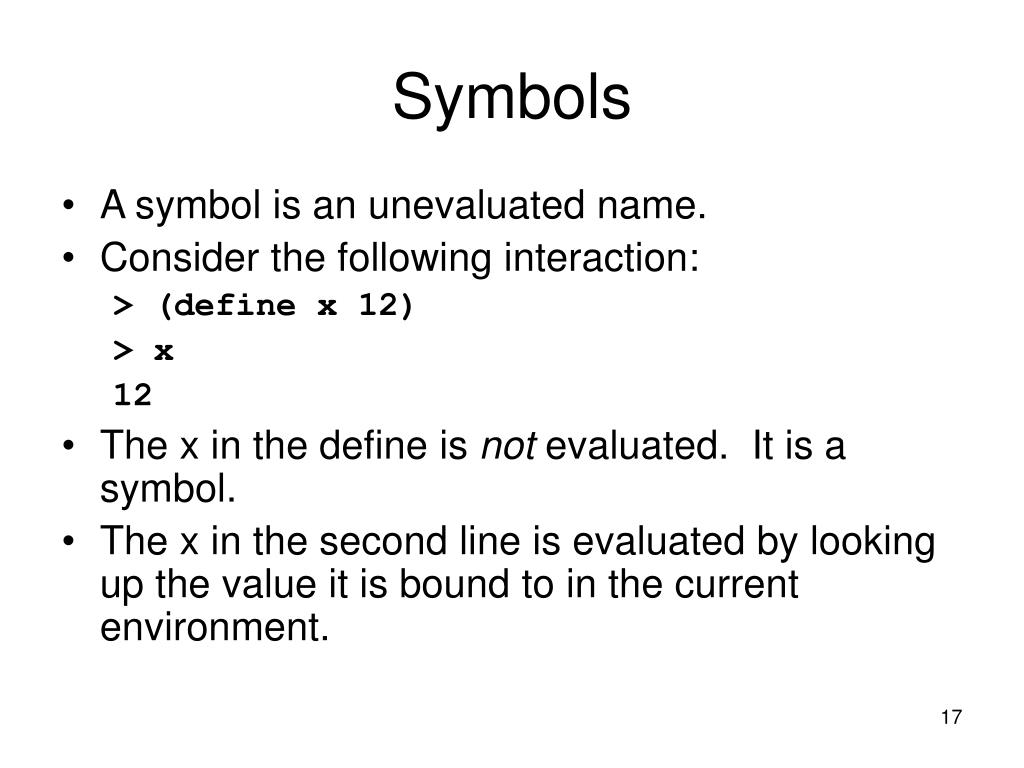

  17. Symbols • A symbol is an unevaluated name. • Consider the following interaction: > (define x 12) > x 12 • The x in the define is not evaluated. It is a symbol. • The x in the second line is evaluated by looking up the value it is bound to in the current environment.

  18. Using symbols • We can bind a name to a symbolic value by quoting the symbol – quoting prevents evaluation: > (define fifi 'poodle) > fifi poodle • The quote mark (') is syntactic sugar for the form (quote …); the above is equivalent to: > (define fifi (quote poodle))

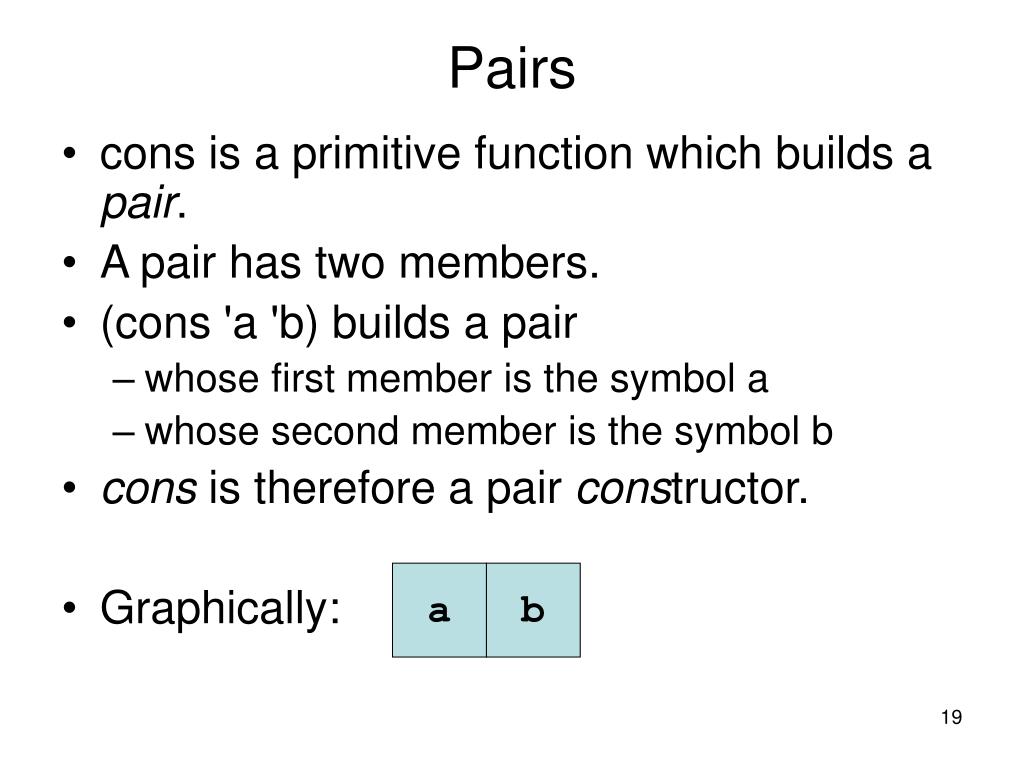

  19. Pairs • cons is a primitive function which builds a pair. • A pair has two members. • (cons 'a 'b) builds a pair • whose first member is the symbol a • whose second member is the symbol b • cons is therefore a pair constructor. • Graphically: a b

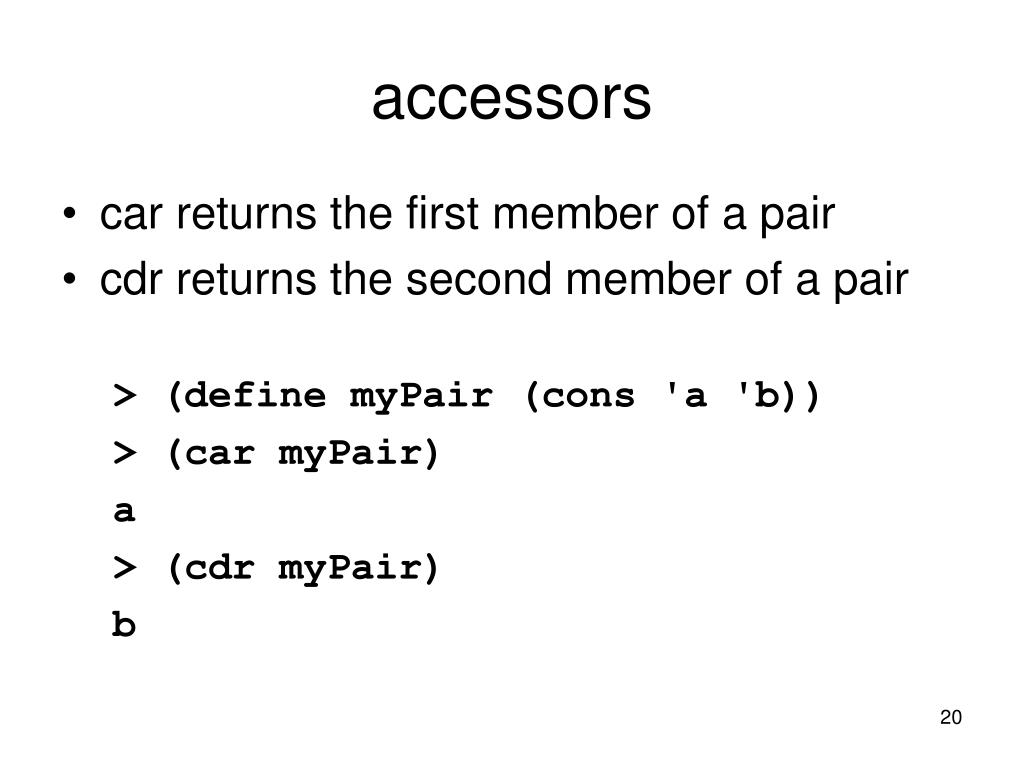

  20. accessors • car returns the first member of a pair • cdr returns the second member of a pair > (define myPair (cons 'a 'b)) > (car myPair) a > (cdr myPair) b

  21. How is a pair displayed? > (define myPair (cons 'a 'b)) > myPair (a . b) • Pairs are printed with a dot (.) separating the first (left) and second (right) components.

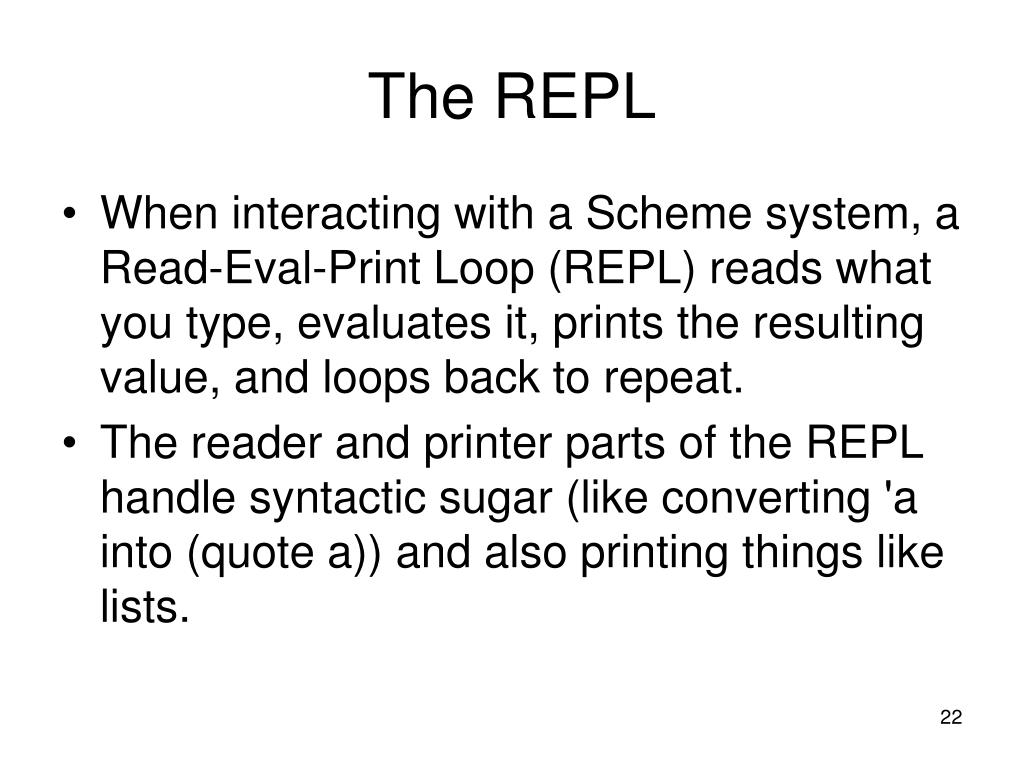

  22. The REPL • When interacting with a Scheme system, a Read-Eval-Print Loop (REPL) reads what you type, evaluates it, prints the resulting value, and loops back to repeat. • The reader and printer parts of the REPL handle syntactic sugar (like converting 'a into (quote a)) and also printing things like lists.

  23. Lists • What is a list? • A recursive definition: • the empty list () is a list • a pair whose cdr is a list is a list • We can build a list using cons and (): > (define myList (cons 'a '())) > myList (a)

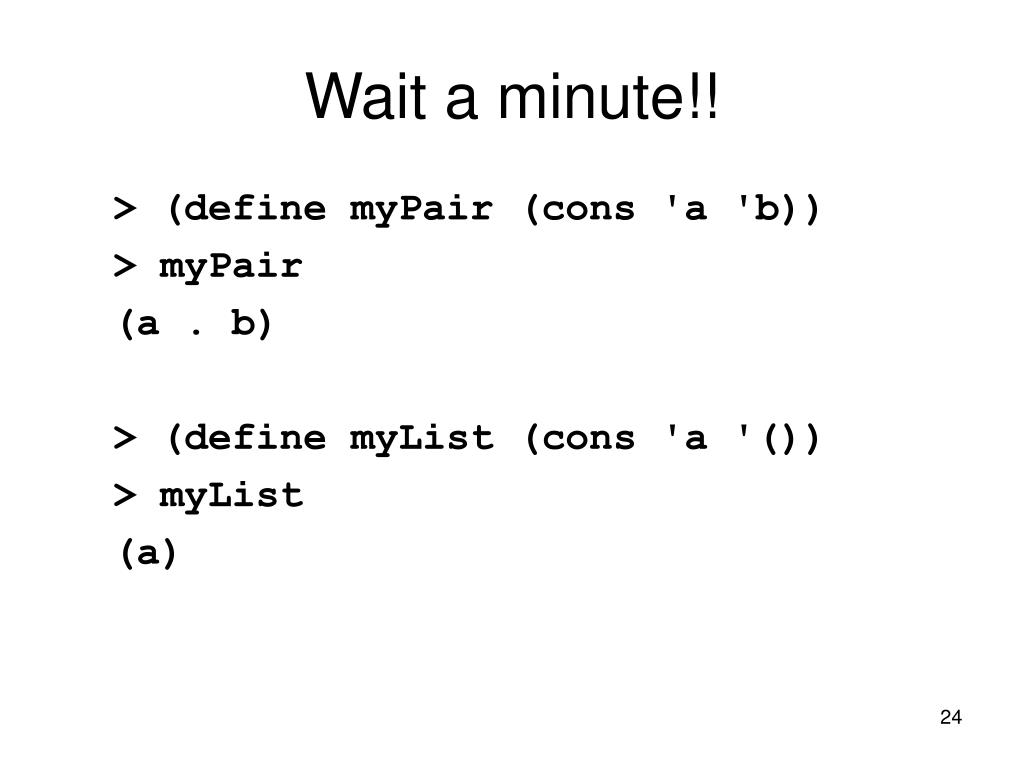

  24. Wait a minute!! > (define myPair (cons 'a 'b)) > myPair (a . b) > (define myList (cons 'a '()) > myList (a)

  25. What's going on? • Why did myList print as (a) rather than as (a . ())? • In fact, they are entirely equivalent: the REPL strikes again. The printer formats pairs which cdr is a pair in a special way to make lists easier to read.

  26. Printing lists • (a . (b . (c . (d . ())))) is printed as (a b c d) • Graphically the structure is: • This structure can be built in a variety of ways, some of which are shown on the next slide. a b c d

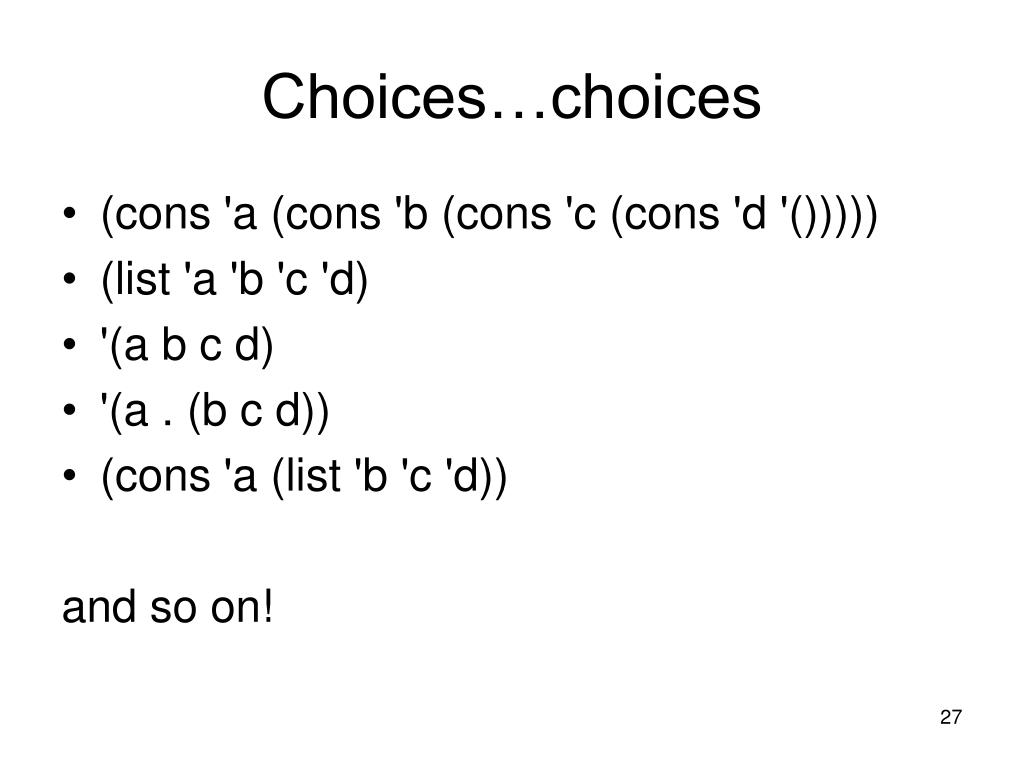

  27. Choices…choices • (cons 'a (cons 'b (cons 'c (cons 'd '())))) • (list 'a 'b 'c 'd) • '(a b c d) • '(a . (b c d)) • (cons 'a (list 'b 'c 'd)) and so on!

  28. Association lists • An association list is a list of pairs. • Used to implement a look-up table of key-value pairs. • The primitive assoc is used to search an association list, given a key. • Example on next slide.

  29. Association list example > (define aList '((fifi . poodle) (fido . bulldog) (clifford . bigRed) (lassie . collie))) > (assoc 'fido aList) (fido . bulldog) > (assoc 'rufus aList) #f

  30. Mutating pair components • set-car! mutates the value of the car of a pair • set-cdr! mutates the value of the cdr of a pair > (define myPair (cons 'a 'b)) > myPair (a . b) > (set-car! myPair 'fred) > myPair (fred . b) > (set-cdr! myPair 'wilma) > myPair (fred . wilma)

  31. Lists in other languages • A list is a recursive data structure • base case: an empty list is a list (called null, or (), in Scheme) • recursive case: a pair whose tail is a list is also a list (cons is pair op) • Lists are fundamental also in Lisp, ML, Prolog, Erlang, etc. • Lists in ML • list type is defined by cases: • [] is empty list constructor (a literal of type ’a list) • :: is non-empty list constructor (a function of type ’a * ’a list -> ’a list) • Example: 1 :: 2 :: [] produces list printed as [1,2] • can write list directly as [1,2] • Lists in Prolog (not entire truth, but close enough for now) • same basic structure as in Scheme • [] is empty list constructor • [_|_] is non-empty list constructor • Example: [ 1 | [ 2 | [] ] ] produces list printed as [1,2] • can write list directly as [1,2]

  32. Homework issues • What is basic algorithm?

  33. Homework issues • What is basic algorithm? • (UPDATE THIS SLIDE)
