  1. © Tan,Steinbach, Kumar Introduction to Data Mining 4/18/2004 1 Data Mining Classification: Basic Concepts, Decision Trees, and Model Evaluation Lecture Notes for Chapter 4 Introduction to Data Mining by Tan, Steinbach, Kumar

  2. Classification: Definition • Given a collection of records (training set ) • Each record is by characterized by a tuple (x,y), where x is the attribute set and y is the class label • x: attribute, predictor, independent variable, input • y: class, response, dependent variable, output • Task: • Learn a model that maps each attribute set x into one of the predefined class labels y

  3. Examples of Classification Task

  4. General Approach for Building Classification Model

  5. Classification Techniques • Base Classifiers • Decision Tree based Methods • Rule-based Methods • Nearest-neighbor • Neural Networks • Naïve Bayes and Bayesian Belief Networks • Support Vector Machines • Ensemble Classifiers • Boosting, Bagging, Random Forests

  6. Example of a Decision Tree categorical categorical continuous class Splitting Attributes Home Owner Yes No NO MarSt Married Single, Divorced Income NO < 80K > 80K YES NO Model: Decision Tree Training Data

  7. NO Another Example of Decision Tree categorical categorical continuous class Single, Divorced MarSt Married NO Home Owner No Yes Income < 80K > 80K YES NO There could be more than one tree that fits the same data!

  8. Decision Tree Induction • Many Algorithms: • Hunt’s Algorithm (one of the earliest) • CART • ID3, C4.5 • SLIQ,SPRINT

  9. General Structure of Hunt’s Algorithm • Let Dt be the set of training records that reach a node t • General Procedure: • If Dt contains records that belong the same class yt, then t is a leaf node labeled as yt • If Dt contains records that belong to more than one class, use an attribute test to split the data into smaller subsets. Recursively apply the procedure to each subset. Dt ?

  10. Hunt’s Algorithm

  11. How to determine the Best Split Before Splitting: 10 records of class 0, 10 records of class 1 Which test condition is the best?

  12. How to determine the Best Split • Greedy approach: • Nodes with purer class distribution are preferred • Need a measure of node impurity: High degree of impurity Low degree of impurity

  13. Measures of Node Impurity • Gini Index • Entropy • Misclassification error

  14. Comparison among Impurity Measures For a 2-class problem:

  15. Measure of Impurity: GINI • Gini Index for a given node t : (NOTE: p( j | t) is the relative frequency of class j at node t). • Maximum (1 - 1/nc) when records are equally distributed among all classes, implying least interesting information • Minimum (0.0) when all records belong to one class, implying most interesting information

  16. Binary Attributes: Computing GINI Index • Splits into two partitions • Effect of Weighing partitions: • Larger and Purer Partitions are sought for. B? Yes No Node N1 Node N2 Gini(N1) = 1 – (5/6)2 – (1/6)2= 0.278 Gini(N2) = 1 – (2/6)2 – (4/6)2= 0.444 Gini(Children) = 6/12 * 0.278 + 6/12 * 0.444= 0.361

  17. Categorical Attributes: Computing Gini Index • For each distinct value, gather counts for each class in the dataset • Use the count matrix to make decisions Multi-way split Two-way split (find best partition of values)

  18. Decision Tree Based Classification • Advantages: • Inexpensive to construct • Extremely fast at classifying unknown records • Easy to interpret for small-sized trees • Accuracy is comparable to other classification techniques for many simple data sets

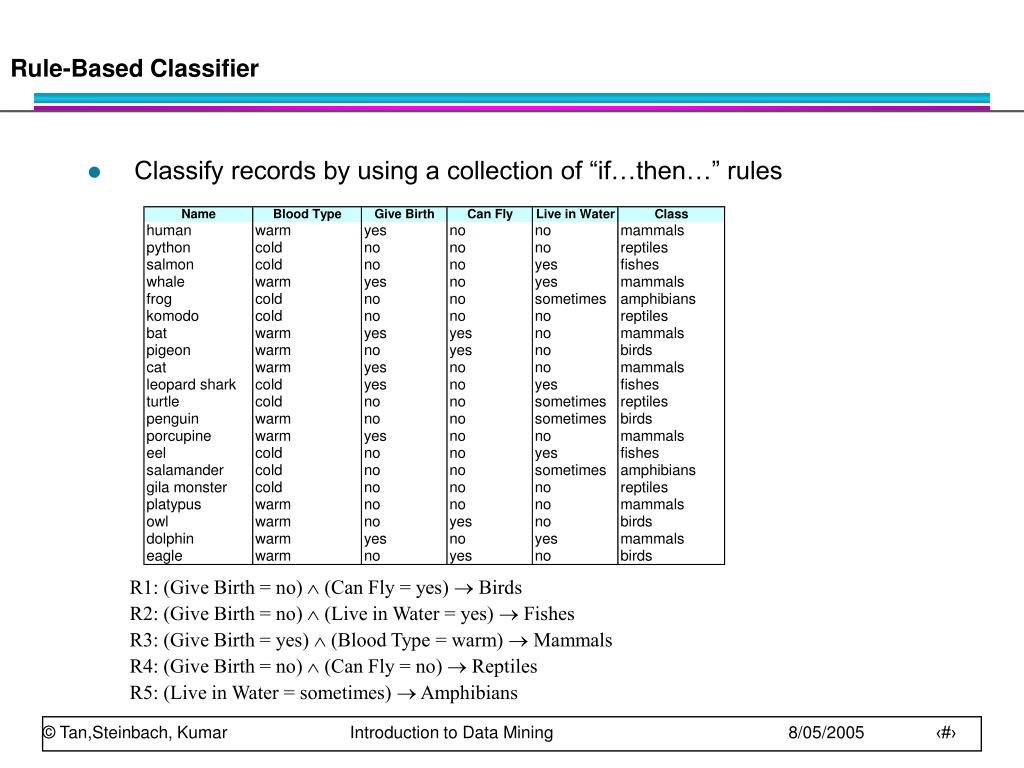

  19. Rule-Based Classifier Classify records by using a collection of “if…then…” rules R1: (Give Birth = no)  (Can Fly = yes)  Birds R2: (Give Birth = no)  (Live in Water = yes)  Fishes R3: (Give Birth = yes)  (Blood Type = warm)  Mammals R4: (Give Birth = no)  (Can Fly = no)  Reptiles R5: (Live in Water = sometimes)  Amphibians

  20. Nearest Neighbor Classifiers Basic idea: If it walks like a duck, quacks like a duck, then it’s probably a duck Compute Distance Test Record Training Records Choose k of the “nearest” records

  21. Bayes Classifier A probabilistic framework for solving classification problems Key idea is that certain attribute values are more likely (probable) for some classes than for others Example: Probability an individual is a male or female if the individual is wearing a dress Conditional Probability: Bayes theorem:

  22. Confusion Matrix: Evaluating Classifiers a: TP (true positive) b: FN (false negative) c: FP (false positive) d: TN (true negative)

  23. Most widely-used metric: Accuracy

  24. Holdout Reserve k% for training and (100-k)% for testing Random subsampling Repeated holdout Cross validation Partition data into k disjoint subsets k-fold: train on k-1 partitions, test on the remaining one Leave-one-out: k=n Bootstrap Sampling with replacement .632 bootstrap: Methods for Classifier Evaluation

  25. Consider a 2-class problem Number of Class 0 examples = 9990 Number of Class 1 examples = 10 If a model predicts everything to be class 0, accuracy is 9990/10000 = 99.9 % This is misleading because the model does not detect any class 1 example Detecting the rare class is usually more interesting (e.g., frauds, intrusions, defects, etc) Problem with Accuracy

  26. Example of classification accuracy measures Accuracy = 0.8 For Yes class: precision = 87.5, recall = 87.5, F-measure = 87.5 For No class: precision = 0.5, recall = 0.5, F-measure = 0.5 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 26

  27. Example of classification accuracy measures Accuracy = 0.9450 Sensitivity = 0.99 Specificity = 0.90 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 27

  28. Measures of Classification Performance  is the probability that we reject the null hypothesis when it is true. This is a Type I error or a false positive (FP).  is the probability that we accept the null hypothesis when it is false. This is a Type II error or a false negative (FN). 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 28

  29. ROC (Receiver Operating Characteristic) A graphical approach for displaying trade-off between detection rate and false alarm rate Developed in 1950s for signal detection theory to analyze noisy signals ROC curve plots True Positive Rate (TPR) against (False Positive Rate) FPR Performance of a model represented as a point in an ROC curve Changing the threshold parameter of classifier changes the location of the point http://commonsenseatheism.com/wp-content/uploads/2011/01/Swets-Better-Decisions-Through-Science.pdf 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 29

  30. ROC Curve (TPR,FPR): • (0,0): declare everything to be negative class • (1,1): declare everything to be positive class • (1,0): ideal • Diagonal line: • Random guessing • Below diagonal line: • prediction is opposite of the true class 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 30

  31. Using ROC for Model Comparison • No model consistently outperforms the other • M1 is better for small FPR • M2 is better for large FPR • Area Under the ROC curve • Ideal: Area = 1 • Random guess: Area = 0.5 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 31

  32. ROC (Receiver Operating Characteristic) To draw ROC curve, classifier must produce continuous-valued output Outputs are used to rank test records, from the most likely positive class record to the least likely positive class record Many classifiers produce only discrete outputs (i.e., predicted class) Approaches to get ROC curve for other types of classifiers such as decision trees WEKA gives you ROC curves 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 32

  33. ROC Curve Example - 1-dimensional data set containing 2 classes (positive and negative) - Any points located at x > t is classified as positive At threshold t: TPR=0.5, FNR=0.5, FPR=0.12, FNR=0.88 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 33

  34. How to Construct an ROC curve • Use classifier that produces continuous-valued output for each test instance score(+|A) • Sort the instances according to score(+|A) in decreasing order • Apply threshold at each unique value of score(+|A) • Count the number of TP, FP, TN, FN at each threshold • TPR = TP/(TP+FN) • FPR = FP/(FP + TN) 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 34

  35. How to construct an ROC curve Threshold >= ROC Curve: 02/14/2011 CSCI 8980: Spring 2011: Mining Biomedical Data 35
