Discovering Employment Tribes: Analyzing Job Patterns through Graph Mining Techniques

This presentation by Nick Mattei explores the identification of close-knit "tribes" within employment patterns, as researched by Lisa Friedland and David Jensen. Using advanced graph mining techniques, the study uncovers the connections among individuals in various organizations, revealing underlying group structures and anomalies in job transitions. The analysis covers over 4.8 million records and discusses factors such as multiemployment, time series analysis, and collusion detection. Findings lead to insights on employee networking and organizational dynamics, emphasizing the necessity for ongoing research in this area.

maxima
Télécharger la présentation

Discovering Employment Tribes: Analyzing Job Patterns through Graph Mining Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Finding Tribes: Identifying Close-Knit Individuals fromEmployment Patterns Lisa Friedland and David Jensen Presented by Nick Mattei

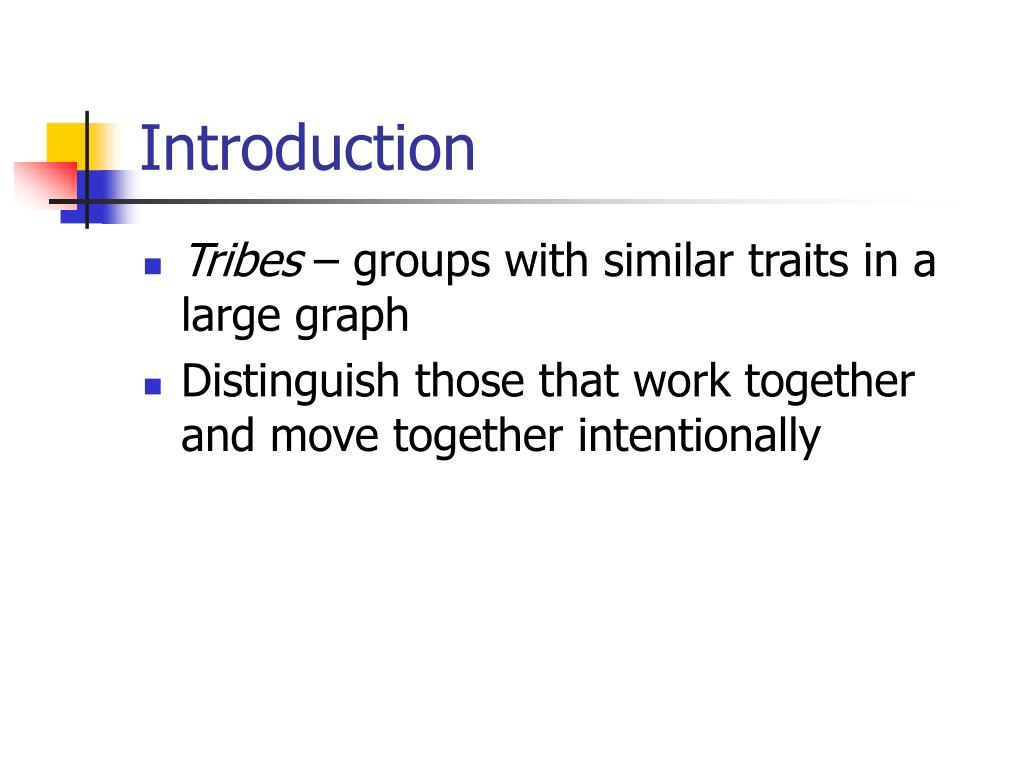

  2. Introduction • Tribes – groups with similar traits in a large graph • Distinguish those that work together and move together intentionally

  3. Relationship Knowledge Discovery • Exploit connections among individuals to identify patterns and make predictions • Discover underlying dependencies • Links must be inferred

  4. Graph Mining • Discover Hidden Group Structures • Animal Herds, Webpages, Employees • Time Series Analysis • Co-integration (Economics) • Security and Intrusion Detection • Dynamic Networks

  5. Motivation • National Association of Securities Dealers • Fraud • Collusion • 4.8 Million Records • 2.5 Million Reps at 560,000 Firms • 100 Years of Data

  6. Complications • Jobs not necessarily in order (or singletons) • 20% of employees hold more than one job at a time • 10% begin multiple jobs (up to 16) on one day • Leave gaps between employment • Mergers and acquisitions

  7. Model

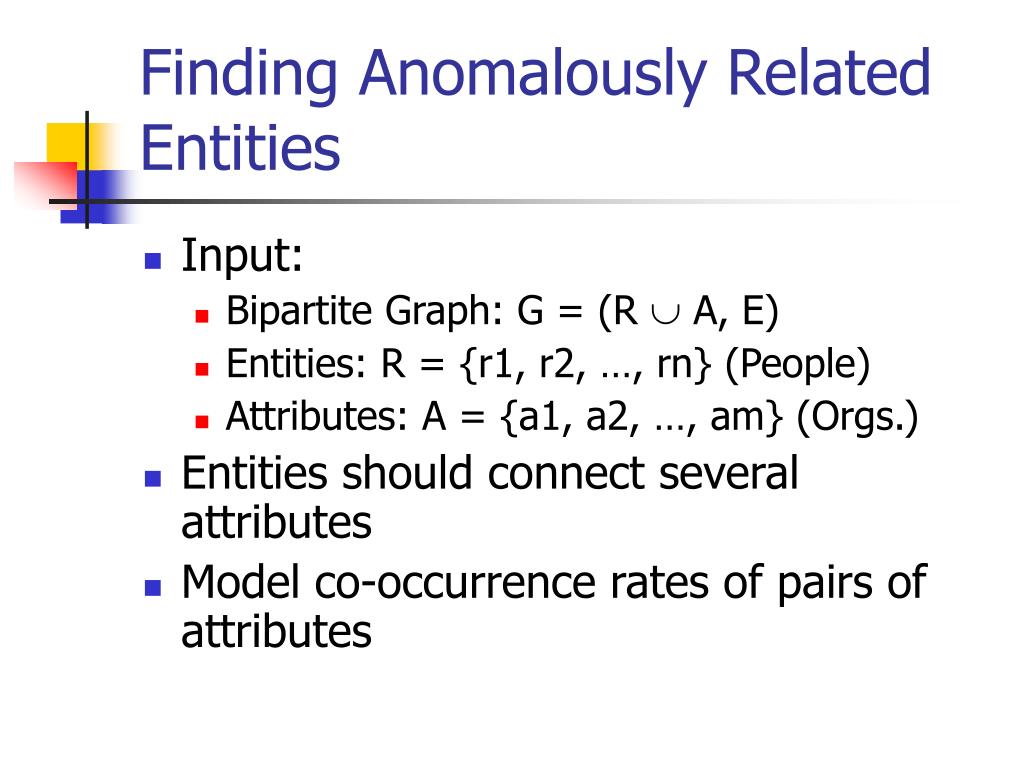

  8. Finding Anomalously Related Entities • Input: • Bipartite Graph: G = (R  A, E) • Entities: R = {r1, r2, …, rn} (People) • Attributes: A = {a1, a2, …, am} (Orgs.) • Entities should connect several attributes • Model co-occurrence rates of pairs of attributes

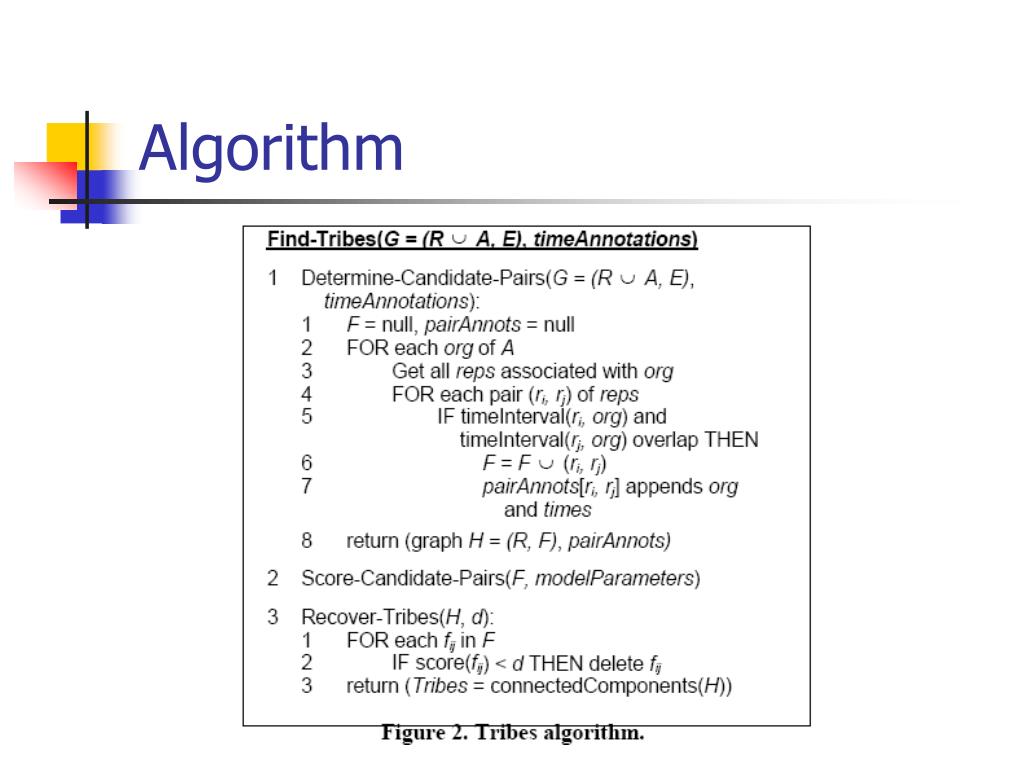

  9. Algorithm

  10. Simple Model Measures • JOBS = (Number of shared Jobs in the sequence) • YEARS = (Number of Years of overlap)

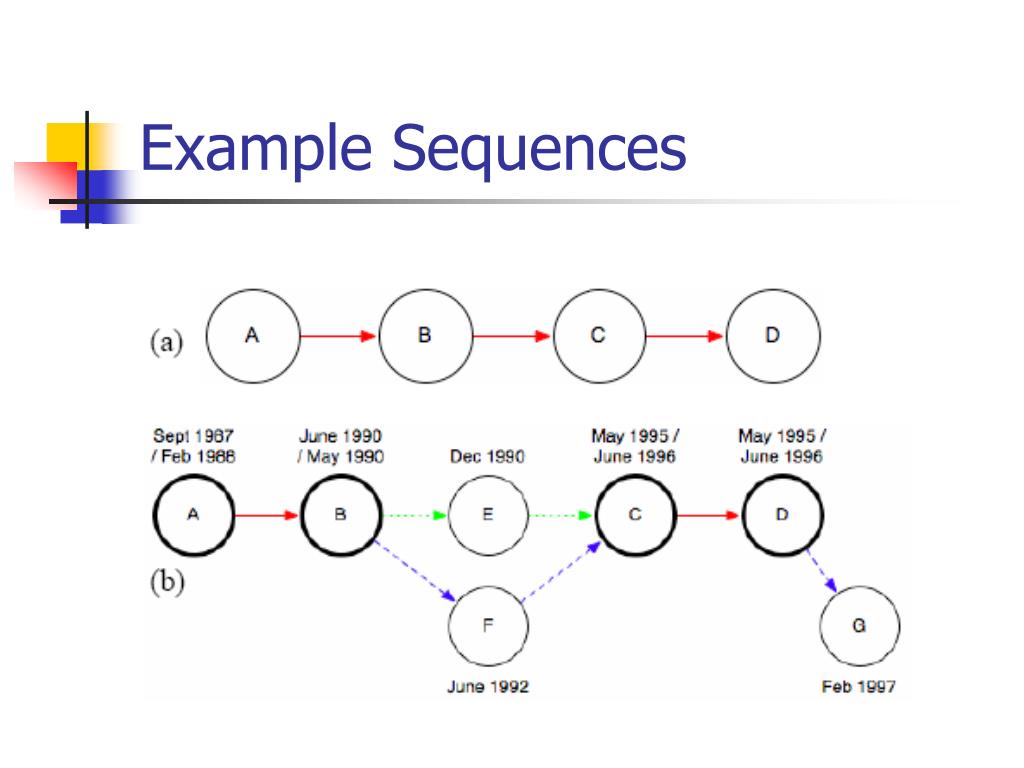

  11. Example Sequences

  12. Probabilistic Model • X = P(BrA -> BrB -> BrC -> BrD) • = pa * tAB * tBC * tCD • Estimate: • P(start branch i) • =(#reps ever at i) / (#reps in database) • Tij = P(reps from i to j | #ever at i) • =(#reps leave i to go to j) / (ever at i)

  13. Probabilistic Model • Null Hypothesis of Independent Movement • Movement Not Random • Split and Merge • Markov Chains

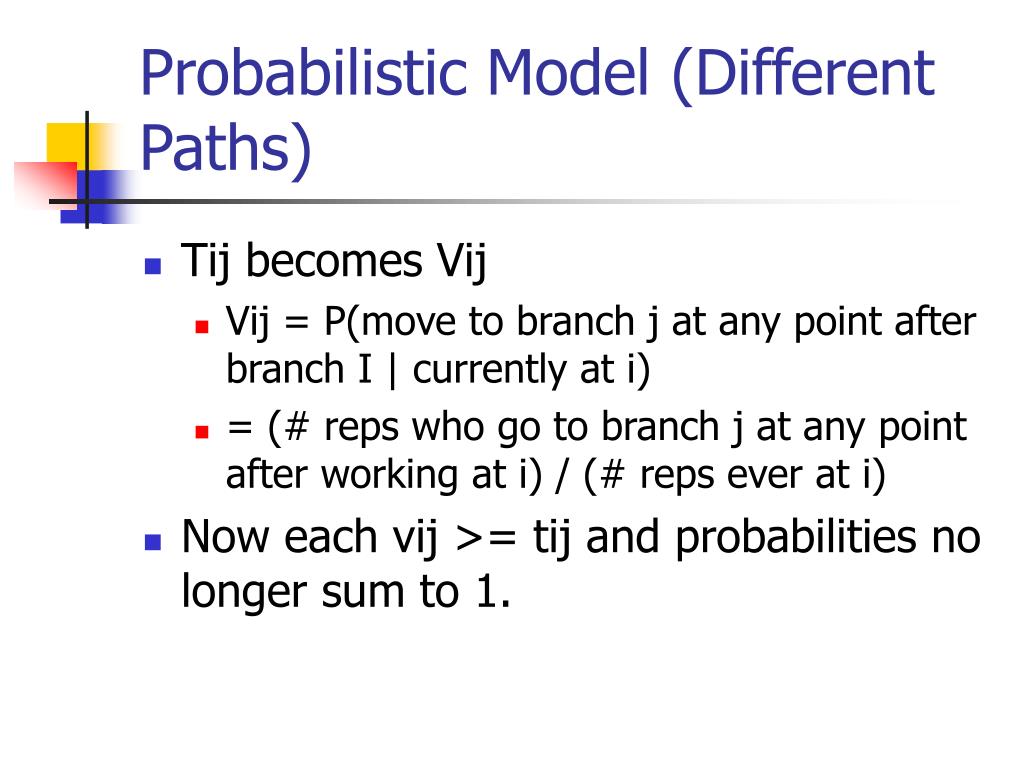

  14. Probabilistic Model (Different Paths) • Tij becomes Vij • Vij = P(move to branch j at any point after branch I | currently at i) • = (# reps who go to branch j at any point after working at i) / (# reps ever at i) • Now each vij >= tij and probabilities no longer sum to 1.

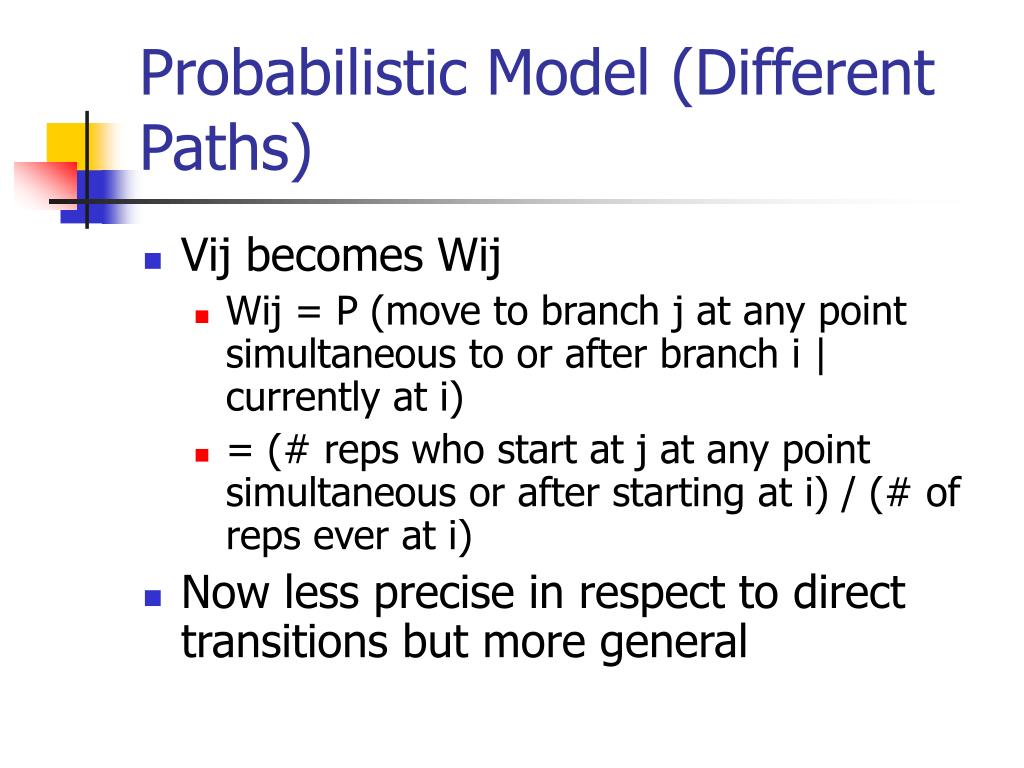

  15. Probabilistic Model (Different Paths) • Vij becomes Wij • Wij = P (move to branch j at any point simultaneous to or after branch i | currently at i) • = (# reps who start at j at any point simultaneous or after starting at i) / (# of reps ever at i) • Now less precise in respect to direct transitions but more general

  16. PROB - TIMEBINS • Bins of 1 year or more • 10 people worked at each branch in a bin period • PiX = # reps ever at i during time X / # reps in DB • yiXjY = # reps ever at I during time X and at j during time Y, where Y >= X / # reps ever at i during time X

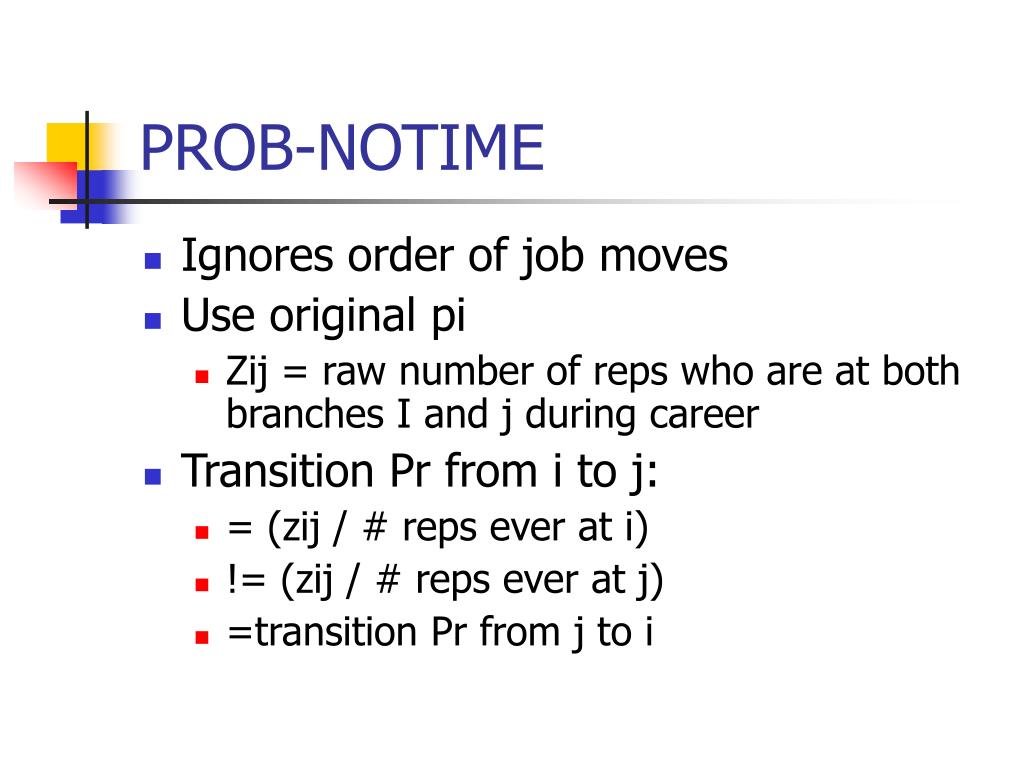

  17. PROB-NOTIME • Ignores order of job moves • Use original pi • Zij = raw number of reps who are at both branches I and j during career • Transition Pr from i to j: • = (zij / # reps ever at i) • != (zij / # reps ever at j) • =transition Pr from j to i

  18. Tribe Size

  19. Pairs

  20. Commonality of Job Sequence

  21. Disclosure Scores

  22. Homogenaity and Mobility

  23. Discussion • JOBS, PROB, PROB-TIME, PROB-NOTIME create tribes with higher than average disclosure scores • PROB creates more cross zip code results • PROB-TIME has higher phi-squared than all others • PROB favors large firms

  24. Discussion • JOBS and YEARS compute larger connected components • JOBS and PROB find same number of tribes but pick different groups as tribes

  25. Conclusions • With no explicit knowledge we can discover: • Job transitions • Geography • Career track

  26. Conclusions • Needed: • Ongoing process • Multiple affiliations • Arbitrary times • Time is a paradox in domain

  27. Thanks! • Time for: • Questions • Comments • Smart Remarks
