  1. Discovery Flow 18 September 2014

  2. Client Requests DiscoveryRPC or Notification GUI <<client>> Identification <<provider>> Device Type A <<provider>> RPC Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> POST: restconf/existance:discover-network-element 200 ok { “input” : { “network-element-ip” : “1.2.3.4” } } { “output”: { “transaction-id”: “2167e651-78cf-42e7-a9d5- 942d42753114”, “result”: true } }

  3. RPC Converted To Notification Notification GUI <<client>> Identification <<provider>> Device Type A <<provider>> Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> NewNetworkElement { “transaction-id” : “2167e651-78cf-42e7-a9d5- 942d42753114”, “network-element-ip” : “1.2.3.4”, “network-element-type” : null }

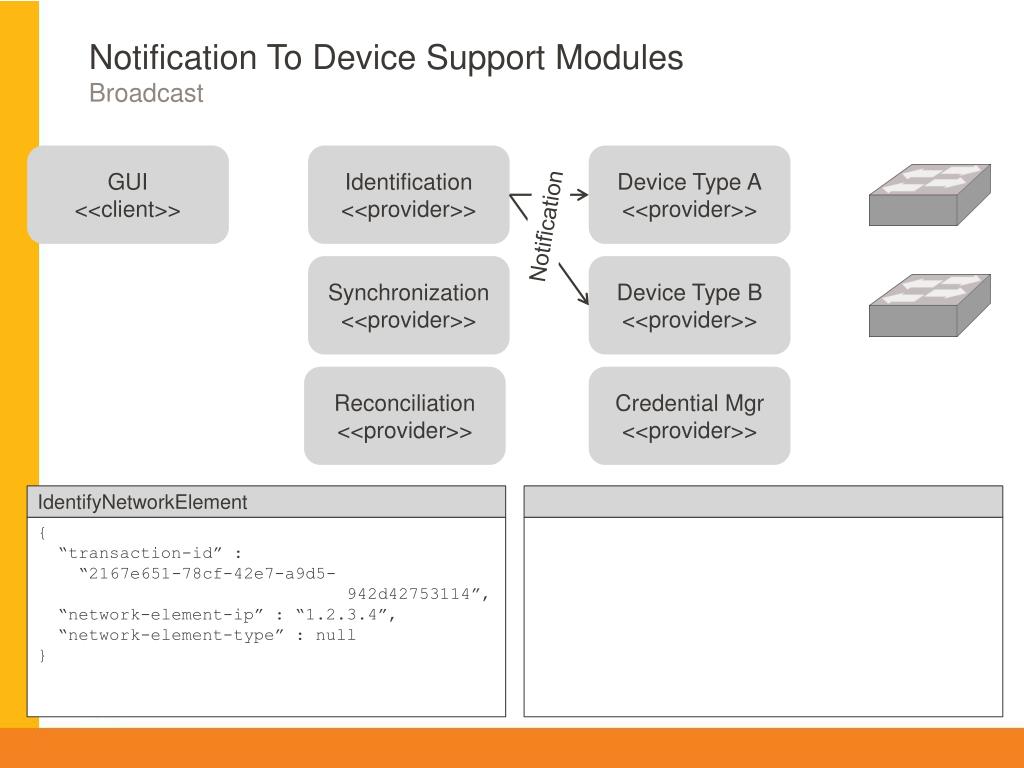

  4. Notification To Device Support ModulesBroadcast GUI <<client>> Identification <<provider>> Device Type A <<provider>> Notification Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> IdentifyNetworkElement { “transaction-id” : “2167e651-78cf-42e7-a9d5- 942d42753114”, “network-element-ip” : “1.2.3.4”, “network-element-type” : null }

  5. Device Support Modules Attempt To ConnectOr Otherwise Attempt To Identify Device GUI <<client>> Identification <<provider>> Device Type A <<provider>> Connect Query Credentials Synchronization <<provider>> Device Type B <<provider>> Connect Reconciliation <<provider>> Credential Mgr <<provider>>

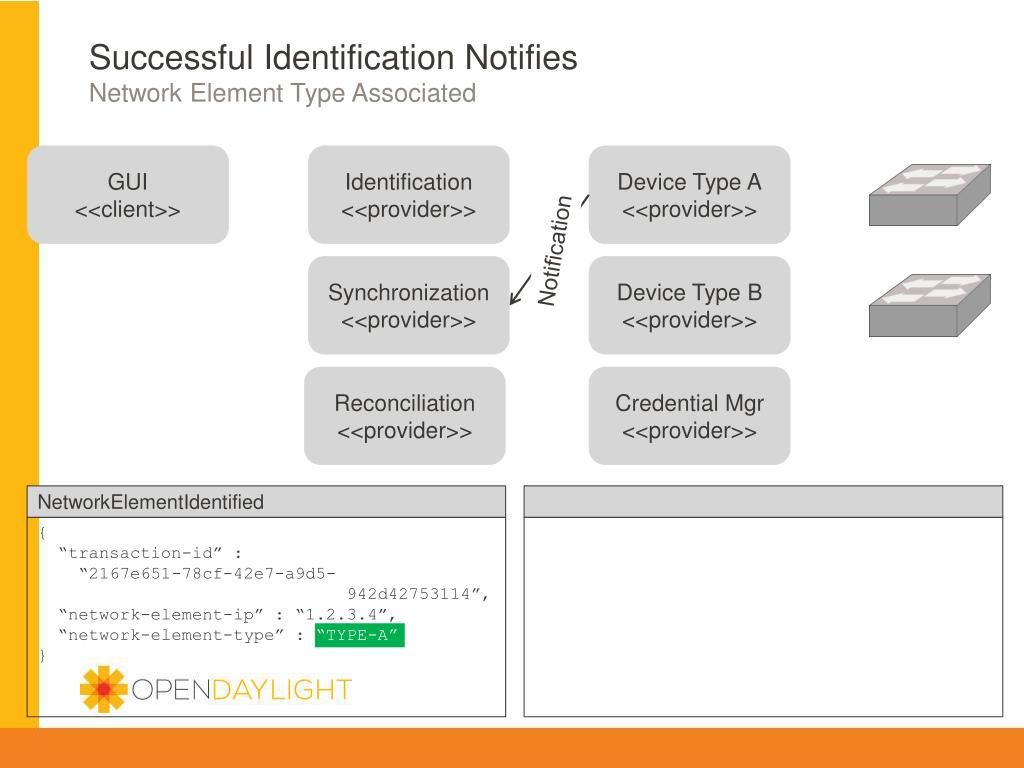

  6. Successful Identification NotifiesNetwork Element Type Associated GUI <<client>> Identification <<provider>> Device Type A <<provider>> Notification Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> NetworkElementIdentified { “transaction-id” : “2167e651-78cf-42e7-a9d5- 942d42753114”, “network-element-ip” : “1.2.3.4”, “network-element-type” : “TYPE-A” }

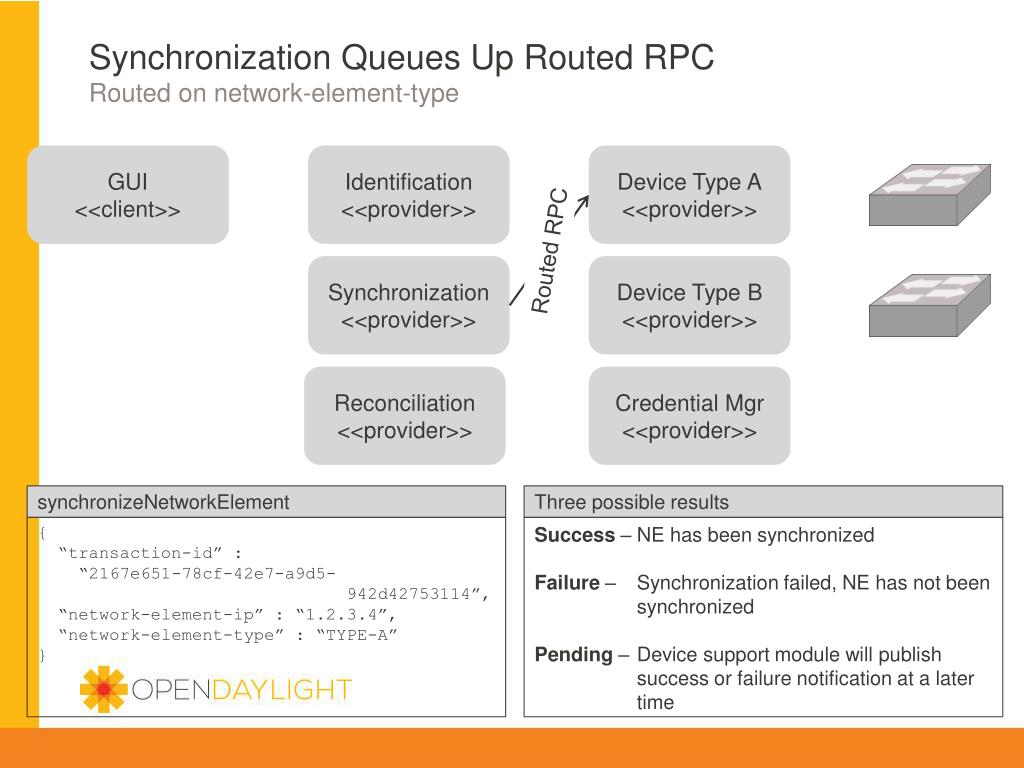

  7. Synchronization Queues Up Routed RPCRouted on network-element-type GUI <<client>> Identification <<provider>> Device Type A <<provider>> Routed RPC Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> synchronizeNetworkElement Three possible results { “transaction-id” : “2167e651-78cf-42e7-a9d5- 942d42753114”, “network-element-ip” : “1.2.3.4”, “network-element-type” : “TYPE-A” } Success – NE has been synchronized Failure – Synchronization failed, NE has not been synchronized Pending – Device support module will publish success or failure notification at a later time

  8. Successful Synchronization NotificationCould come from synchronization provider or device module GUI <<client>> Identification <<provider>> Device Type A <<provider>> Synchronization <<provider>> Device Type B <<provider>> Notification Reconciliation <<provider>> Credential Mgr <<provider>> NetworkElementedSynchronized { “transaction-id” : “2167e651-78cf-42e7-a9d5- 942d42753114”, “network-element-ip” : “1.2.3.4”, “network-element-type” : “TYPE-A” }

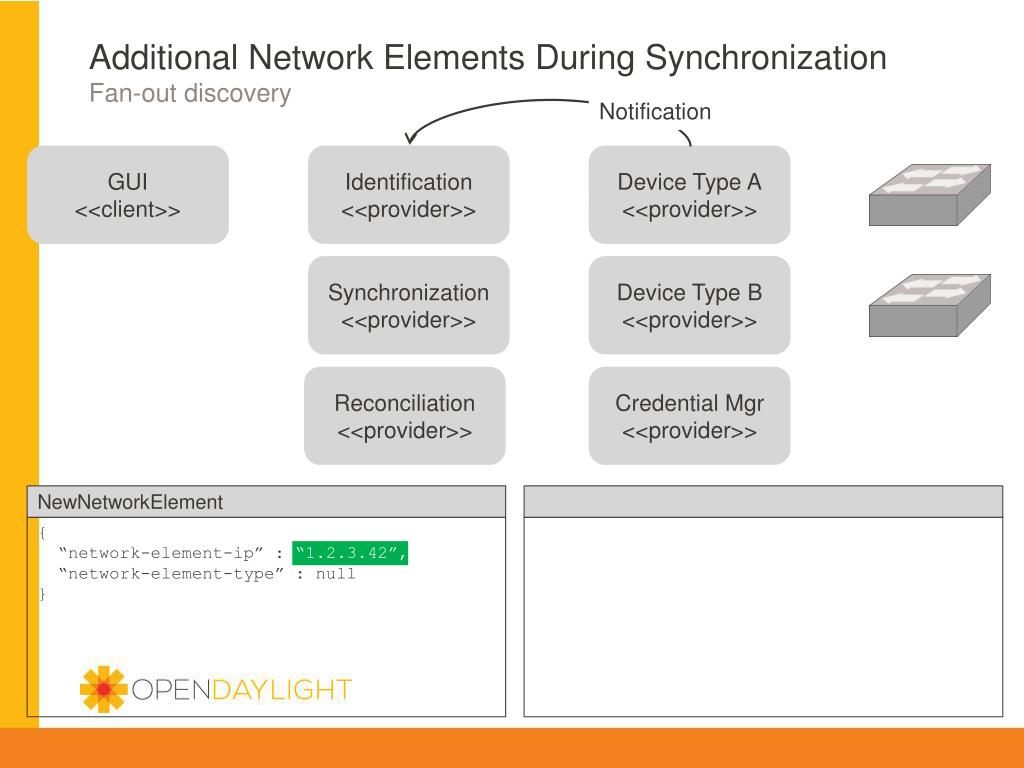

  9. Additional Network Elements During SynchronizationFan-out discovery Notification GUI <<client>> Identification <<provider>> Device Type A <<provider>> Routed RPC Synchronization <<provider>> Device Type B <<provider>> Reconciliation <<provider>> Credential Mgr <<provider>> NewNetworkElement { “network-element-ip” : “1.2.3.42”, “network-element-type” : null }
