  1. Blackfin BF52x / Low Power

  2. BF522 • 400MHz • 132 KB RAM • HDMA • BF523 • 600MHz • 132 KB RAM • HDMA • BF525 • 600MHz • 132 KB RAM • USB • BF527 • 600MHz • 132 KB RAM • USB • 10/100 Ethernet • BF525 • 533MHz • 132 KB RAM • USB • BF527 • 533MHz • 132 KB RAM • USB • 10/100 Ethernet • BF523 • 533MHz • 132 KB RAM • HDMA • BF524 • 300MHz • 132 KB RAM • USB • BF522 • 300MHz • 132 KB RAM • HDMA • BF526 • 400MHz • 132 KB RAM • USB • 10/100 Ethernet • BF524 • 400MHz • 132 KB RAM • USB • BF526 • 300MHz • 132 KB RAM • USB • 10/100 Ethernet ADSP-BF52x Portfolio 90nm G Process • BF527C • 600MHz • USB • 10/100 Ethernet • SiP CODEC • BF527C • 533MHz • USB • 10/100 Ethernet • SiP CODEC 90nm LP Process • BF525C • 600MHz • USB • SiP CODEC • BF525C • 533MHz • USB • SiP CODEC 12 x 12 mBGA • BF526C • 300MHz • USB • 10/100 Ethernet • SiP CODEC • BF526C • 400MHz • USB • 10/100 Ethernet • SiP CODEC • BF523C • 600MHz • HDMA • SiP CODEC • BF523C • 533MHz • HDMA • SiP CODEC Power mW • BF524C • 400MHz • USB • SiP CODEC • BF524C • 300MHz • USB • SiP CODEC 12 x 12 mBGA ` • BF522C • 400MHz • HDMA • SiP CODEC • BF522C • 300MHz • HDMA • SiP CODEC FEATURES 12 x 12 mBGA / 17 x 17 mBGA 12 x 12 mBGA / 17 x 17 mBGA Performance MHz

  3. Test and Emulate InterruptController Watchdog Timer RTC PLL & PowerManagement 8 kB OTP 600 MHz Blackfin Processor Core EBIU SDRAMController L1 Memory Instruction Memory48 kB SRAM16 kB SRAM/Cache Data Memory 32 + 4 kB Data SRAM32 kB SRAM/Cache MemoryController DMA Controller Ethernet 10/100, NAND/HOST HS USB OTG TWI, TMR0-7, CNT, SPORT0-1, UART0-1, SPI0, PPI 48 GPIOs ADSP-BF523/BF525/BF527 - Up to 600 MHz Low power embedded processor • BF52x Up to 600 MHz family • MIPS/$ leadership • Flexible peripheral options • Low dynamic power • Fully software compatible with existing BF53x family • X-Grade Now

  4. BF52x - 600 MHz Product Comparison

  5. Test and Emulate InterruptController Watchdog Timer RTC PLL & PowerManagement 8 kB OTP Up to 400 MHz Blackfin Processor Core EBIU SDRAMController L1 Memory Instruction Memory48 kB SRAM16 kB SRAM/Cache Data Memory 32 + 4 kB Data SRAM32 kB SRAM/Cache MemoryController 32 kB ROM DMA Controller Ethernet 10/100, NAND/HOST FS/HS USB OTG TWI, TMR0-7, CNT, SPORT0-1, UART0-1, SPI0, PPI 48 GPIOs ADSP-BF522/524/526 - 400 MHz Ultra-low power embedded processor • BF52x 300/400 MHz family • Flexible peripheral options • Less than 1 mA static current • Pin compatible to BF52x • Fully software compatible with BF52x and existing BF536, BF532/1 • Samples March 2008

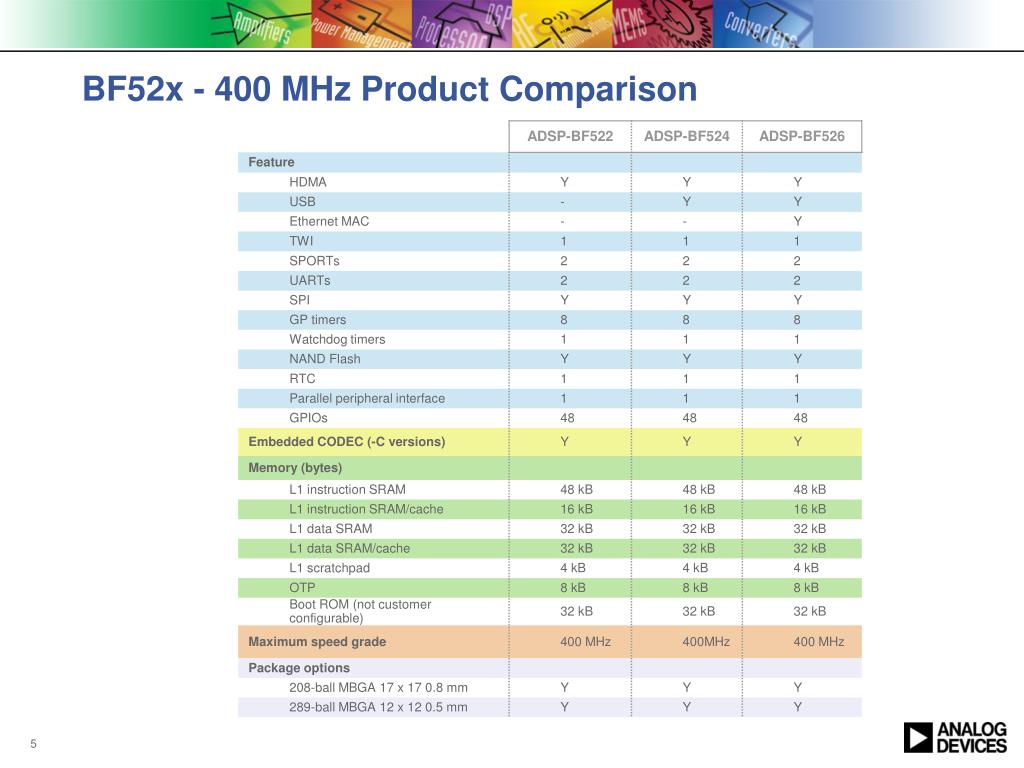

  6. BF52x - 400 MHz Product Comparison

  7. Embedded CODEC CSB SDIN SCLK MODE Control Interface AVDD HPVDD VMID HPGND AGND MCBIAS RHPOUT BF52xC • HS USB OTG/NAND interface • Embedded low power CODEC supports a System in Package (SiP) • Versions available with 300 through 600 MHz BF52x CODEC • The BF52xC supports a SiP implementation of a low power stereo CODEC with integrated headphone driver • The CODEC is designed specifically for low power applications including MP3 audio and speech players and recorders • Further information on the CODEC specification and features can be provided under NDA MUX ADC DAC RLINEIN ROUT MICIN LOUT MUX ADC DAC LLINEIN LHPOUT Audio Interface XTO XTI/MCLK CLKOUT DACDAT DACLRC BCLK ADCLRC ADCAT DCVDD DBVDD DGND Test and Emulate InterruptController Watchdog Timer RTC PLL & PowerManagement 8 kB OTP 600 MHz Blackfin Processor Core EBIU SDRAMController L1 Memory Instruction Memory48 kB SRAM16 kB SRAM/Cache Data Memory 32 + 4 kB Data SRAM32 kB SRAM/Cache MemoryController 32 kB ROM DMA Controller Ethernet 10/100, NAND/HOST HS USB OTG TWI, TMR0-7, CNT, SPORT0-1, UART0-1, SPI0, PPI 48 GPIOs

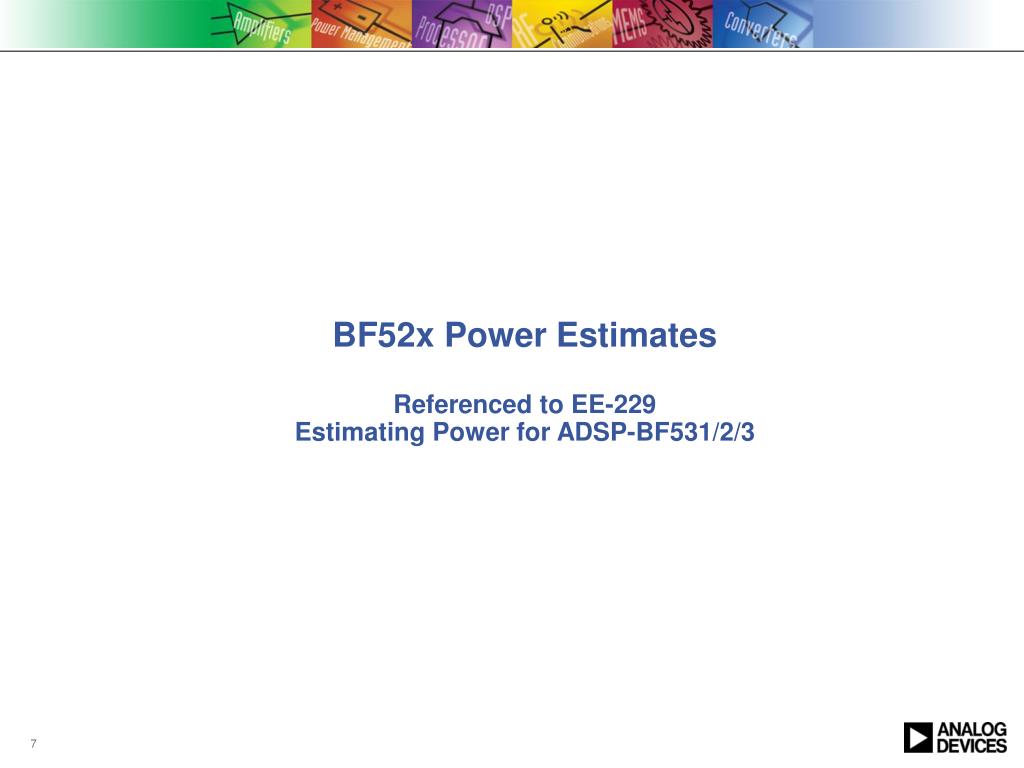

  8. BF52x Power Estimates Referenced to EE-229Estimating Power for ADSP-BF531/2/3

  9. Power Comparison“A Blackfin device depending on your needs”

  10. Tools&Reference Platforms

  11. Software VisualDSP++ 5.0 Schedule uClinux Kernel is working and checked in on BF527 EZ-KIT Lite http://blackfin.uclinux.org/gf/project/uclinux-dist/ uClinux

  12. BF527 EZ-KIT LiteSAP M/N ADZS-BF527-EZLITE Available since Mid-July – released platform available mid-March 08

  13. AD7142 AD9387 AD1854 AD7993 ADXL Class D AMP Video DAC Reference Platform Connectivity: Critical Requirement in Portable Applications CX53121 Optional SIP Stereo CODEC CX53121 BF52xC Capacitive Sensor Analog Video Serial Flash SDRAM Analog Audio 10/100
