  1. EMC VNXe for VMware Virtualization Workshop <Name> <Title>

  2. Workshop Agenda • Introduction and Welcome • VNXe Product Overview • VNXe for VMware • Live demonstration • VNXe and VMWare • Server and application consolidation reference configurations • Question and Answer

  3. Platform Overview

  4. Introducing VNXe Series Optimized for your virtual applications VNXe3300 Simple Efficient World's Simplest Storage Array • Automated diagnosis and one-click tech support • Save up to 50% in upfront storage costs • Provision 1TB VMware datastore in 10 min • Provision 100’s of Exchange mailboxes in less than 10 clicks VNXe3100 Affordable VNXe3300 • Real-world configs starting at under $10K • Start small, scale large – same platform for all your applications

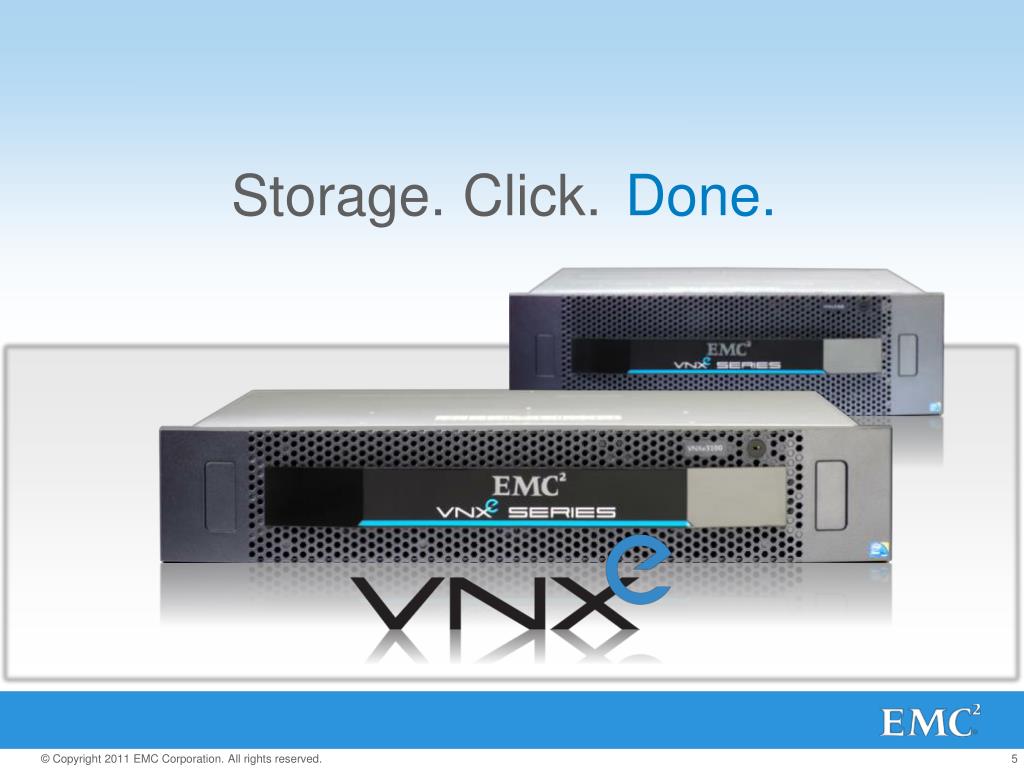

  5. More Storage. Less Effort. The easiest, most-efficient array ever Storage. Click. Done. • Next-generation architecture • Advanced multi-core platform • No-single-point-of-failure design • Multi-protocol: CIFS, NFS, and iSCSI • Powerful 6 Gb/s SAS back end • Compact 2U and 3U design • Streamlined for ease of use • Designed for the IT generalist • Application-optimized wizards • Configurable with just a few clicks • Built-in snapshots and replication • Perfect for small or remote offices

  6. “Simple” Meets “Solid” High Availability No single point of failure Designed for 5x9s Simplified Installation Wizards for setup and configuration Integrated Data Protection Data recovery, disaster recovery, and more… Smart Provisioning Application-centric and simple provisioning Designed for the IT generalist Advanced features + Flexibility and Scale File (CIFS, NFS) Block (iSCSI) 4 - 8 GbE ports -- I/O module scaling Smart Management Centralized and simple GUI Monitoring and Alerting Unique value proposition Simplified Support and Self-help Integrated access to product ecosystem and online community Advanced Features Thin Provisioning File-level Retention File De-duplication with compression Simplicity combined with enterprise-class features

  7. VNXe SeriesHardware Simple. Efficient. Affordable. * Future Availability

  8. VNXe 3100/3300 High Availability Platform • No single point of failure • n + 1 power and battery backup • Redundant, hot-pluggable components Function • RAID protection • Active/Active controllers • Data cache mirroring between controllers • Battery-backed cache for single SP configs • Dynamic failover/failback • Automatic management control failover • Vault-to-Flash technology Service • Non-disruptive upgrades • Hot-swap CRU and drive replacement • Remote maintenance, call-home, automatic diagnostics

  9. Storage Management

  10. Instant Expertise • Best-practice wizards configure storage with just a few clicks E-Mail Wizard Setup  hundreds of Exchange mailboxes in fewer than 10 clicks Hyper-V Wizard VMware Wizard Setup 1TB VMware datastore in 10 minutes Setup 1TB Hyper-V datastore in 10 minutes Share Wizard Volume Wizard Setup NFS and CIFS shares in minutes Setup iSCSI volumes in minutes

  11. Unisphere - Simplified Storage Management Navigate all common tasks via an easy dashboard

  12. View System Health Visually drill down to individual components

  13. Simplified Troubleshooting Failed component easily identified and serviced

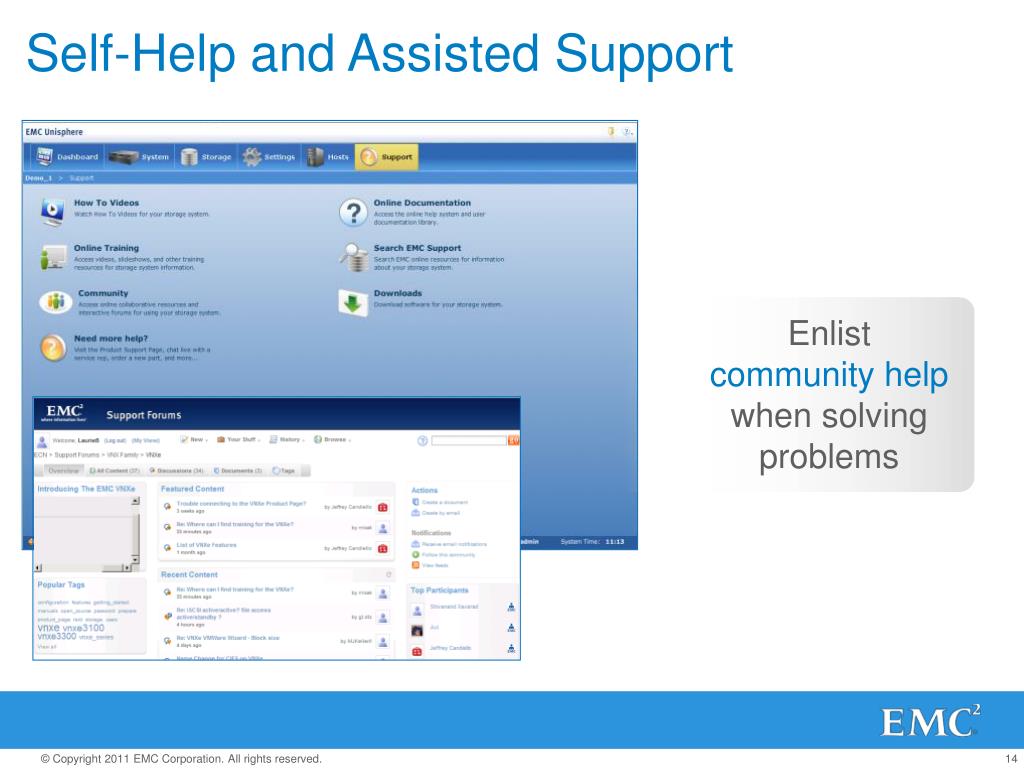

  14. Self-Help and Assisted Support Enlist community help when solving problems

  15. Software Options

  16. Total Data Management and Protection Peace of mind without the complexity Software Packs Total Protection Pack TotalValue Pack Software Suites VNXe3300 VNXe3100 Security and Compliance SuiteVersion integrity and audit readiness Local Protection SuiteFile and block snapshots * Remote Protection Suite Disaster recovery and business continuity Application Protection SuiteApplication-driven data protection * Included in the VNXe3100 base software

  17. Live Demonstration

  18. Virtualization Changes Everything Pooled data center paradigm demands new storage solutions Homogenous Clients HeterogeneousClients Virtual ServerPool Discrete Servers RAIDGroup 1 RAIDGroup 2 RAIDGroup 3 Virtual Optimized Storage Pool High Perf.HDDs High Cap.HDDs

  19. Seamless VMware Experience Tight virtualization management integration Each Administrator has: • The ability to manage from their own familiar toolset • Visibility into physical and virtual resources • Transparent provisioning functionality • Integrated replication • Access to and offload of storage functions vCenter integration Virtual Server Administrator Unisphere Storage Administrator

  20. Sample Reference Bundles

  21. Scalability Performance and Capacity Automation Advanced Features and automation Availability Cost Efficiency / High Availability Consolidation Server and Storage Consolidation IT as a Service Development and IT Production Business Production Critical Business Production

  22. EMC Support Options for VNXe3100 • Base warranty: three-year Basic for hardware • Software warranty: 90 days; media defect only • Enhanced or Premium maintenance uplift available during warranty period

  23. EMC Support Options for VNXe3300 • Base warranty: three-year Enhanced for hardware • Software warranty: 90 days; mediadefect only • Premium maintenance uplift available during warranty period

  24. VNXe3100 2U Platform Overview • Chassis • 2U DPE (Disk Processor Enclosure) • 6Gb SAS-2 drive interface • Max 12, 3.5” Drives per enclosure • Dual Energy Star Gold Power Supplies • Power Consumption ~ 330W • 1 or 2 SPs - CPU Module Canisters • Battery-backed Write Cache (BBWC) for single SP configurations • Dimensions: 20in d x 3.5in h x ~19in w • 2 CPU Modules, each containing • Intel, Dual Core Processor • 2, DDR3 1066MHz DIMM slots • Integrated, 3-cell Li-ion BBU • Solid State Disk (SSD), eFLASH uSSD • I/O Technology per SP • One Back End SAS-2 Port ( 6 Gb/s x4) • Two Embedded GbE Host Ports • One I/O Slot per CPU module • 4 x 1GbE • GbE Management Port • Serial Console and USB Port Front View 12 x 3.5” Disks Rear Storage Processor

  25. VNXe3300 3U Platform Overview • Chassis • 3U, DPE (Disk Processor Enclosure) • 6Gb SAS-2 drive interface • Max 15, 3.5” Disks per enclosure • Holds 2 SP “Suitcases” with Integrated Cooling • Dual Energy Star Gold Power Supplies • Power Consumption ~ 500W with 15 drives • Battery Backup Module in Power Supply • Dimensions: 24in d x 5.25in h x ~19in w • NEBS Level 3 • DC Power option * • 2 CPU Modules, each containing • Quad Core Processors • 3 DIMM Slots with 3 channels @ 800MHz • PCI-E x4 CMI Path • Solid State Disk (for persistence) • I/O Technology per SP • One Back End SAS-2 Port (6 Gb/s x4) • Four Embedded GbE Host Ports • Two I/O Slots per CPU module * • 4 x 1GbE, 2 x 10GbE • GbE Management Port • Serial Console and USB Port Front View 15 x 3.5” Disks Rear Storage Processor * Future Availability

  26. VNXe 3100/3300 Serviceability Enables self-service by partners or customers • Modular system design • All major components are customer replaceable units (CRU) • Easy to identify and access • Simple to service and upgrade • Clear visual repair instructions • “How-to” videos • Tool-less component replacement • Minimal component sparing • Point/Click ordering of replacements

  27. Flexible Storage Options Flexible Storage Capacity • Disk Options, 3.5” Drives • SAS Performance: 300GB, 600GB, 15K RPM • Nearline SAS Capacity: 1TB, 2TB, 7.2K RPM • Flash (Tier 0): 100GB (VNXe3300 only) • Scale • Up to 7 additional disk enclosures per system • Max 120 drives in VNXe3300 • Max 96 drives in VNXe3100 • Mix drive types within an enclosure • Optional “disk pack” offerings • Pre-configured RAID sets that simplify provisioning and expansion • SAS Performance pack: RAID 5 or RAID 10 • SAS Capacity pack: RAID 6 • Flash pack: RAID 5 • Scale to 240 Terabytes with 2TB drive

  28. VNXe Feature Highlights Entry-level storage with easy-to-use enterprise features Networking and Protocols CIFS, NFS, iSCSI DNS, NTP Link aggregation Jumbo Frames Data Protection RAID Snapshot/Restore NDMP Backup Remote Replication Storage Efficiency Virtual Provisioning Data De-duplication Compression • Security • EMC Product Security Policy • Role-based administration • Security audit and logging • Anti-virus server integration • File-level Retention • Active directory • LDAP • Setup and Installation • Customer installable • Color-coded cable connections • Preloaded software • Quick start guides for easy setup • Simple, configuration wizards • Unique online support ecosystem • Helpful “how-to” videos

  29. VNXe Interoperability and Standards • US Dept of Defense • Common Criteria • DISA STIG • Telecom • Telcordia NEBS Level 3 • Host Operating Systems • Microsoft Windows • Linux: SUSE, Red Hat, AsiaNUX • UNIX: AIX, HP-UX, Solaris • VMWare • Hyper-V • Storage Applications • NDMP Backup Software • Anti-Virus Scanning Software
