Chapter 4 Atomic Structure

Chapter 4 Atomic Structure. Early Models of the Atom. This is the Greek philosopher Democritus who began the search for a description of matter more than 2400 years ago.

mea
Télécharger la présentation

Chapter 4 Atomic Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

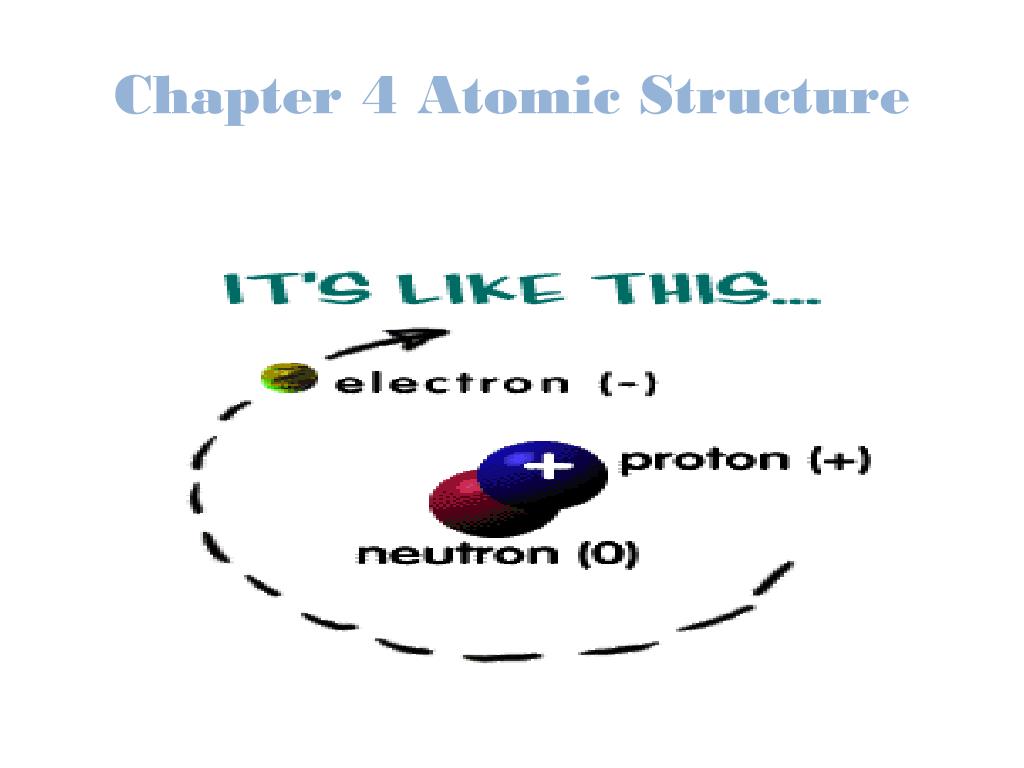

  1. Chapter 4 Atomic Structure

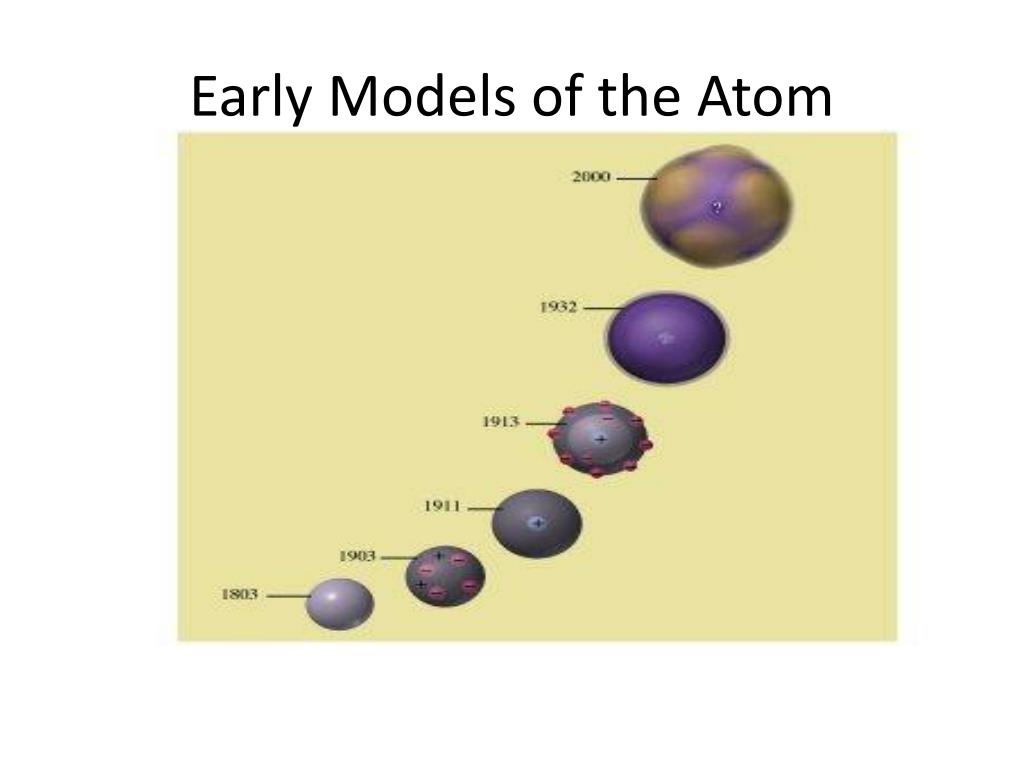

  2. Early Models of the Atom

  3. This is the Greek philosopher Democritus who began the search for a description of matter more than 2400 years ago. • He asked: Could matter be divided into smaller and smaller pieces forever, or was there a limit to the number of times a piece of matter could be divided?

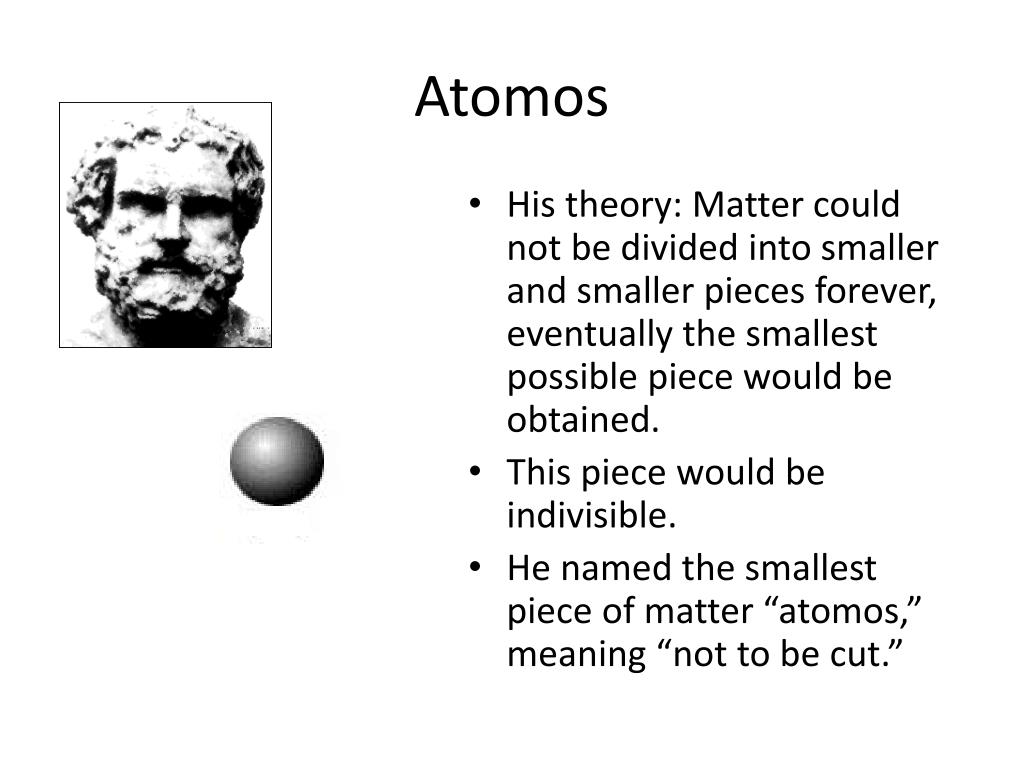

  4. Atomos • His theory: Matter could not be divided into smaller and smaller pieces forever, eventually the smallest possible piece would be obtained. • This piece would be indivisible. • He named the smallest piece of matter “atomos,” meaning “not to be cut.”

  5. This theory was ignored and forgotten for more than 2000 years!

  6. 4.1 Dalton’s Atomic Theory • All elements are composed of tiny indivisible particles called atoms.

  7. 4.1 Dalton’s Atomic Theory • Atoms of the same element are identical. The atoms of any one element are different from those of any other element.

  8. 4.1 Dalton’s Atomic Theory • Atoms of different elements can physically mix together or can chemically combine in simple whole-number ratios to form compounds.

  9. 4.1 Dalton’s Atomic Theory • Chemical reactions occur when atoms are separated, joined, or rearranged.

  10. Nobel Laureates Heinrich Rohrer and Gerd Binnig and a scanning tunneling microscope • Blue NickelThe unreconstructed surface of Nickel.

  11. Cathode Ray Tube • U-tube video • http://www.cleanvideosearch.com/media/action/yt/watch?videoId=XBqHkraf8iE • http://www.cleanvideosearch.com/media/action/yt/watch?videoId=c-HPFaBtwvI

  12. 4.3 Atomic Mass • The atomic mass of an element is a weighted average mass of the atoms in a naturally occurring sample of the element. • A weighted average mass reflects both the mass and the relative abundance of the isotopes as they occur in nature.

  13. for Conceptual Problem 4.3

  14. 4.3 Atomic Mass • To calculate the atomic mass of an element, multiply the mass of each isotope by its natural abundance, expressed as a decimal, and then add the products.

  15. 4.3 Atomic Mass • For example, carbon has two stable isotopes: • Carbon-12, which has a natural abundance of 98.89%, and • Carbon-13, which has a natural abundance of 1.11%.

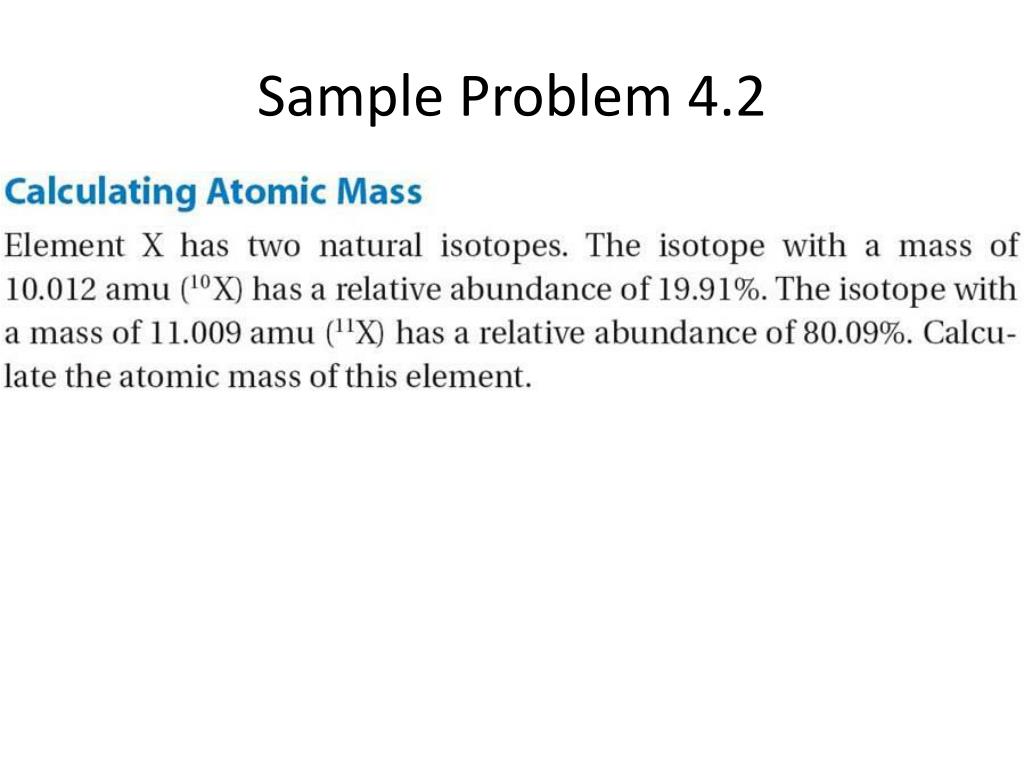

  16. Sample Problem 4.2

  17. Practice Problem 23 • The element copper has naturally occurring isotopes with mass numbers of 63 and 65. The relative abundance and atomic masses are 69.2% for mass = 62.93 amu, and 30.8% for mass = 64.93 amu. Calculate the average atomic mass for copper.

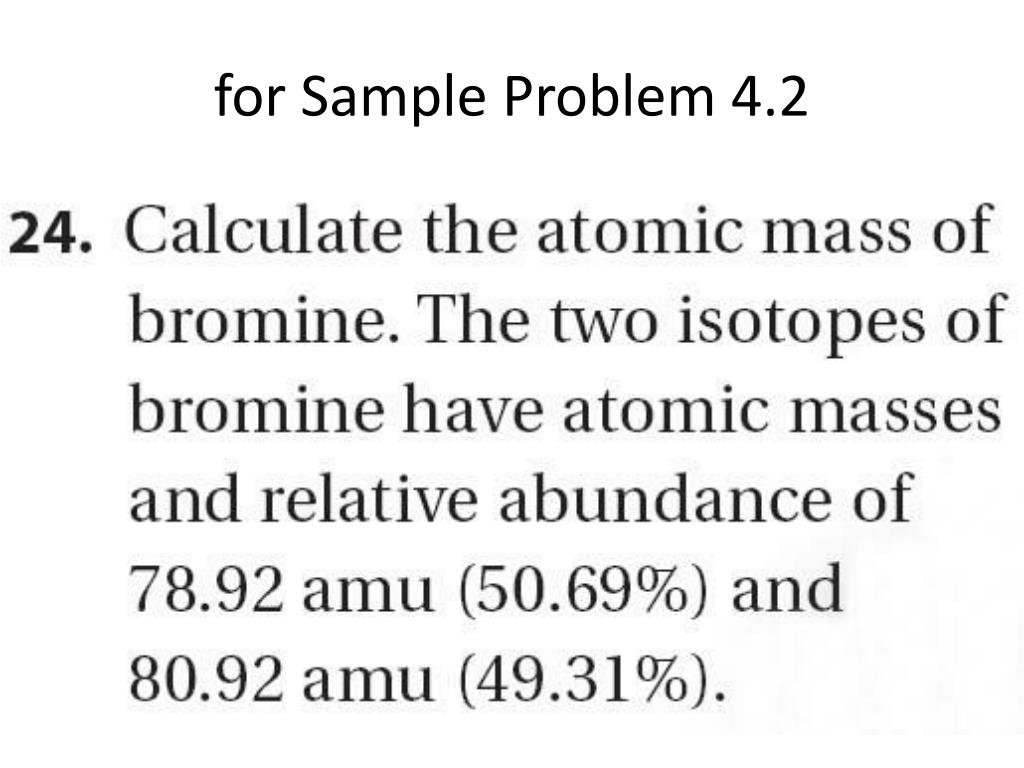

  18. for Sample Problem 4.2

  19. 4.3 The Periodic Table—A Preview • A periodic table is an arrangement of elements in which the elements are separated into groups based on a set of repeating properties. • A periodic table allows you to easily compare the properties of one element (or a group of elements) to another element (or group of elements).

  20. 4.3 The Periodic Table—A Preview • Each horizontal row of the periodic table is called a period. • Within a given period, the properties of the elements vary as you move across it from element to element.

  21. 4.3 The Periodic Table—A Preview • Each vertical column of the periodic table is called a group, or family. • Elements within a group have similar chemical and physical properties.
