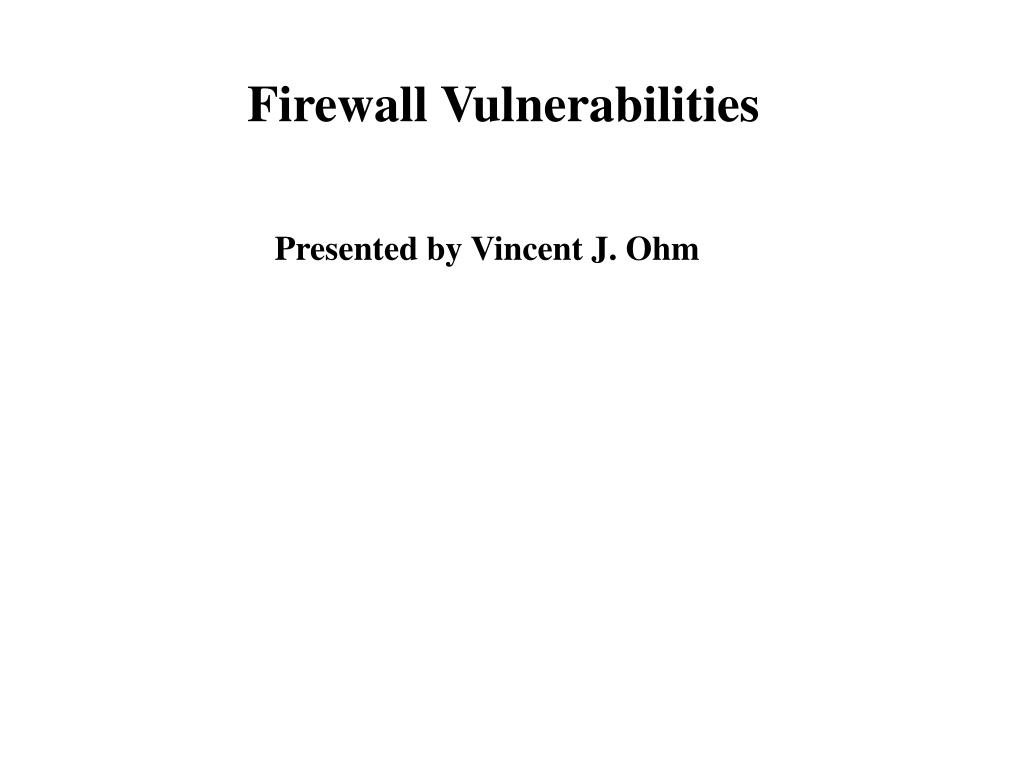

1. Firewall Vulnerabilities Presented by Vincent J. Ohm

2. Topics • Firewall design • (Stateful) Packet Filter, Application proxy, Personal Firewall • OSI Stack Layer • IP, TCP spoofing • Applications • sendmail • Firewall implementation • broad permissions, overflows, etc.

3. Firewalls • Network gateway • handles incoming & outgoing traffic • Access manager • blocks/grants access to services, networks

4. Firewall Design(The benefits) • Packet Filter • scans IP address, port number • block specific adresses, ports • Stateful: adds connection filtering • Application Proxy • scans packet payload • filter harmful data, program commands • Personal • combination of filter & proxy

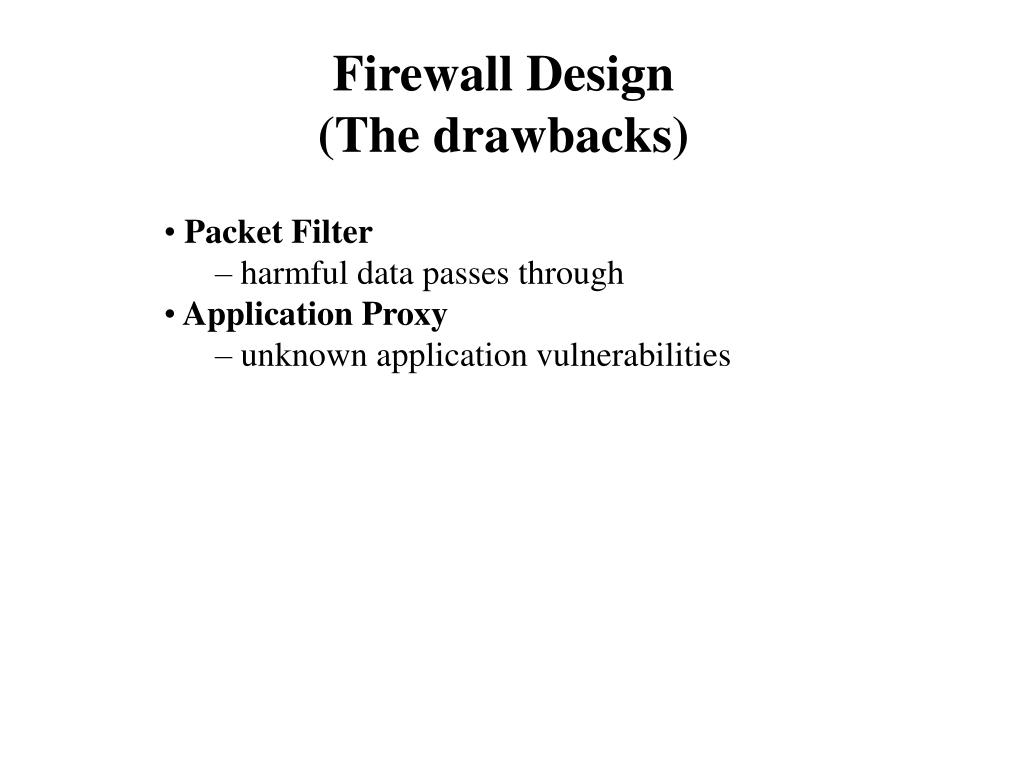

5. Firewall Design(The drawbacks) • Packet Filter • harmful data passes through • Application Proxy • unknown application vulnerabilities

6. OSI Stack • Network – I.P. • no address authentication • address is spoofable • Transport – T.C.P. • sequence number enforces exclusivity • spoof I.P. address and guess seq. number... • T.C.P. spoofing

7. Applications • Applications with vulnerabilities • sendmail ‘WIZ’  debugging command creates root shell access on remote server • Methods of exploitation • crafted data (overflows) • commands (sendmail) • Packet Filters can block some • Application Proxies can block more

8. Firewall Implementation • Symantec Firewall/VPN Appliance • Password leak • Pyramid BenHur • Active FTP • Kerio Personal Firewall • Rules bypassable • Cisco PIX • SNMPv3, VPNC IPsec • Check Point Firewall-1 & DeleGate application proxy • overflows

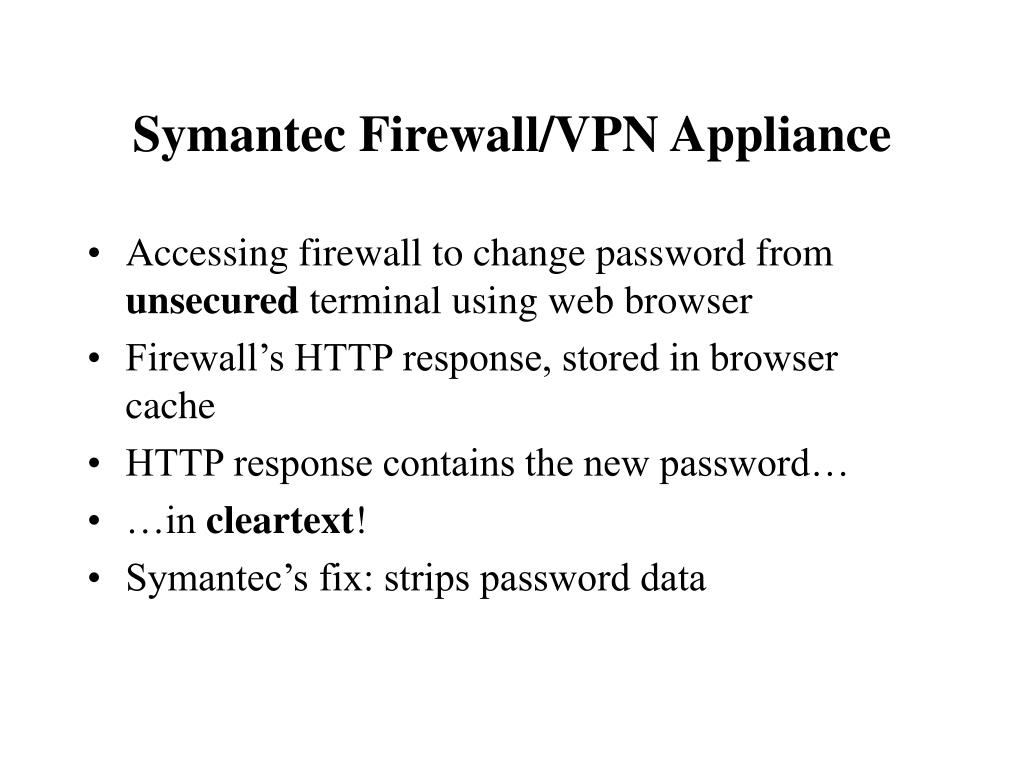

9. Symantec Firewall/VPN Appliance • Accessing firewall to change password from unsecured terminal using web browser • Firewall’s HTTP response, stored in browser cache • HTTP response contains the new password… • …in cleartext! • Symantec’s fix: strips password data

10. Pyramid BenHur Firewall • Firewall access rules can be bypassed… • …by sending connect request with source port = 20  FTP data port • Can connect to any port • Workaround: block all outside access from port 20 OR apply patch

11. Kerio Personal Firewall • Problem with default configuration • Firewall would allow any UDP packet through if source port = 53  DNS port • Intention: allow DNS responses • Fix: allow packet only if DNS request precedes the response

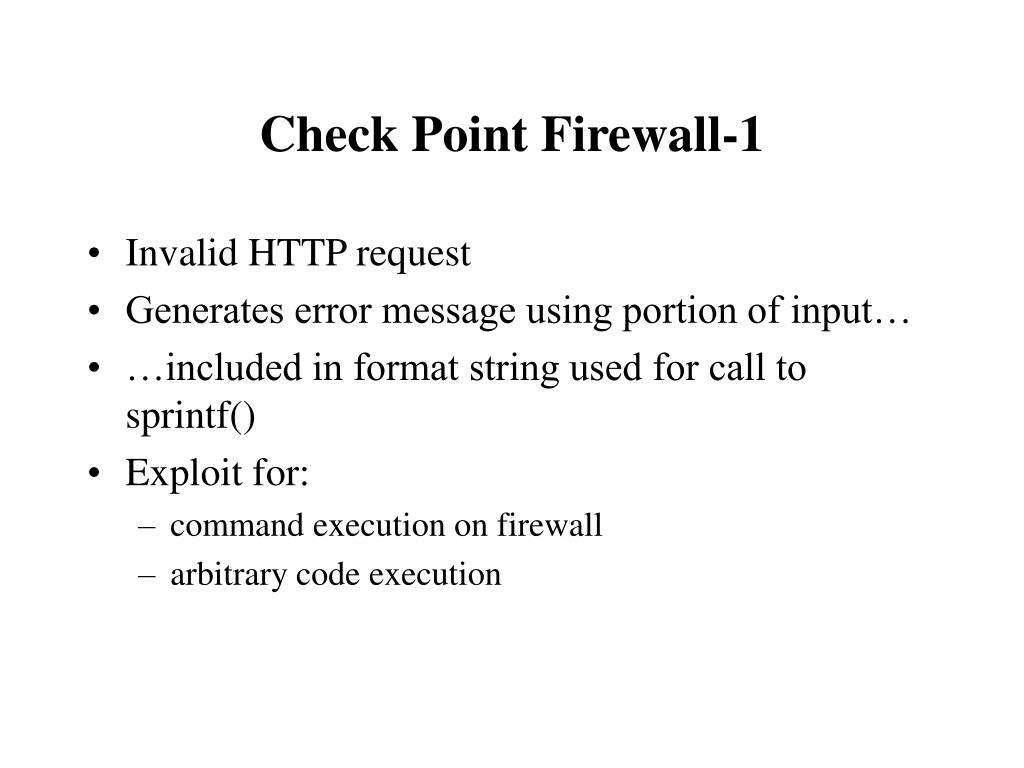

12. Check Point Firewall-1 • Invalid HTTP request • Generates error message using portion of input… • …included in format string used for call to sprintf() • Exploit for: • command execution on firewall • arbitrary code execution

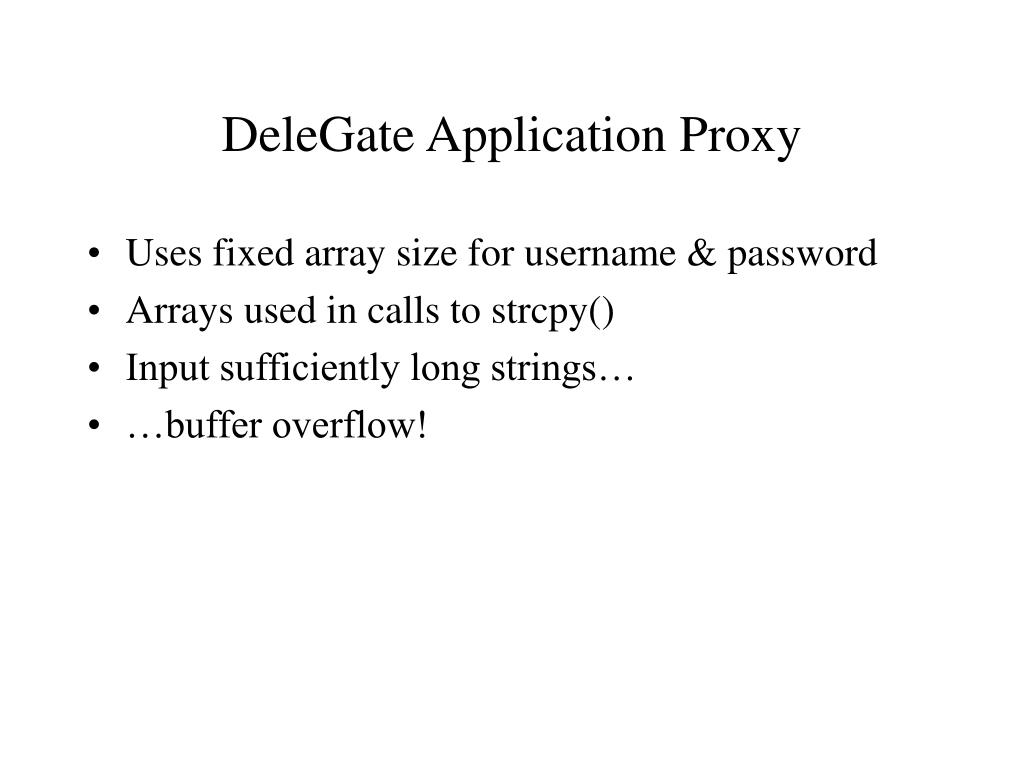

13. DeleGate Application Proxy • Uses fixed array size for username & password • Arrays used in calls to strcpy() • Input sufficiently long strings… • …buffer overflow!

14. Conclusion • Firewalls are not invulnerable • Vulnerable by … • Design • Other O.S.I. Layers vulnerabilities • Implementation flawes flaws
