1. Generic Language Technology andModel Driven SW Engineering Prof. Dr. Mark van den Brand Software Engineering and Technology Faculteit Wiskunde en Informatica Technische Universiteit Eindhoven

2. GLT and MDE • Generic Language Technology • Program Generators • ATerms • ApiGen • Model Driven SW Engineering

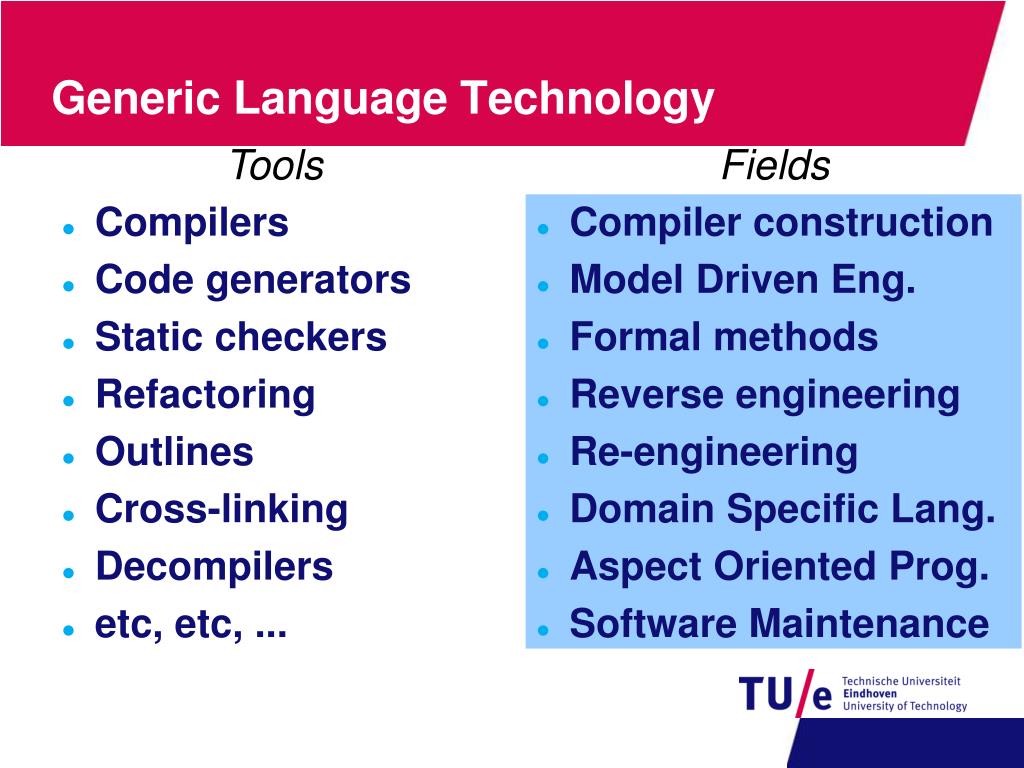

3. Compiler construction Model Driven Eng. Formal methods Reverse engineering Re-engineering Domain Specific Lang. Aspect Oriented Prog. Software Maintenance Generic Language Technology Tools Fields • Compilers • Code generators • Static checkers • Refactoring • Outlines • Cross-linking • Decompilers • etc, etc, ...

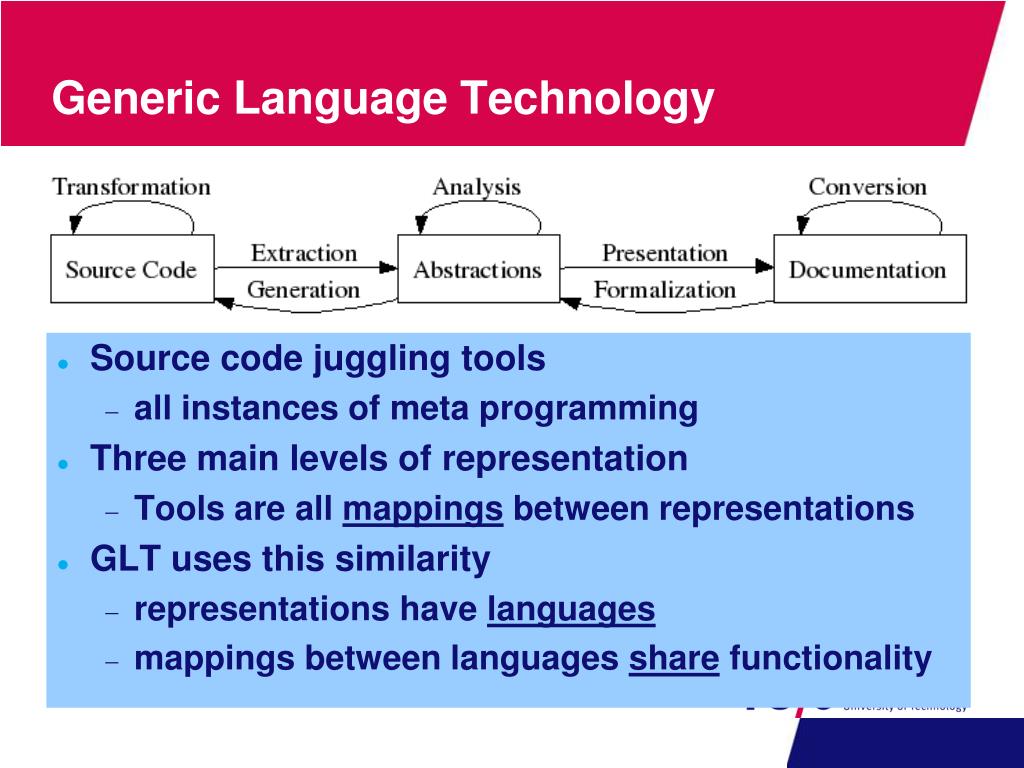

4. Generic Language Technology • Source code juggling tools • all instances of meta programming • Three main levels of representation • Tools are all mappings between representations • GLT uses this similarity • representationshave languages • mappings between languages share functionality

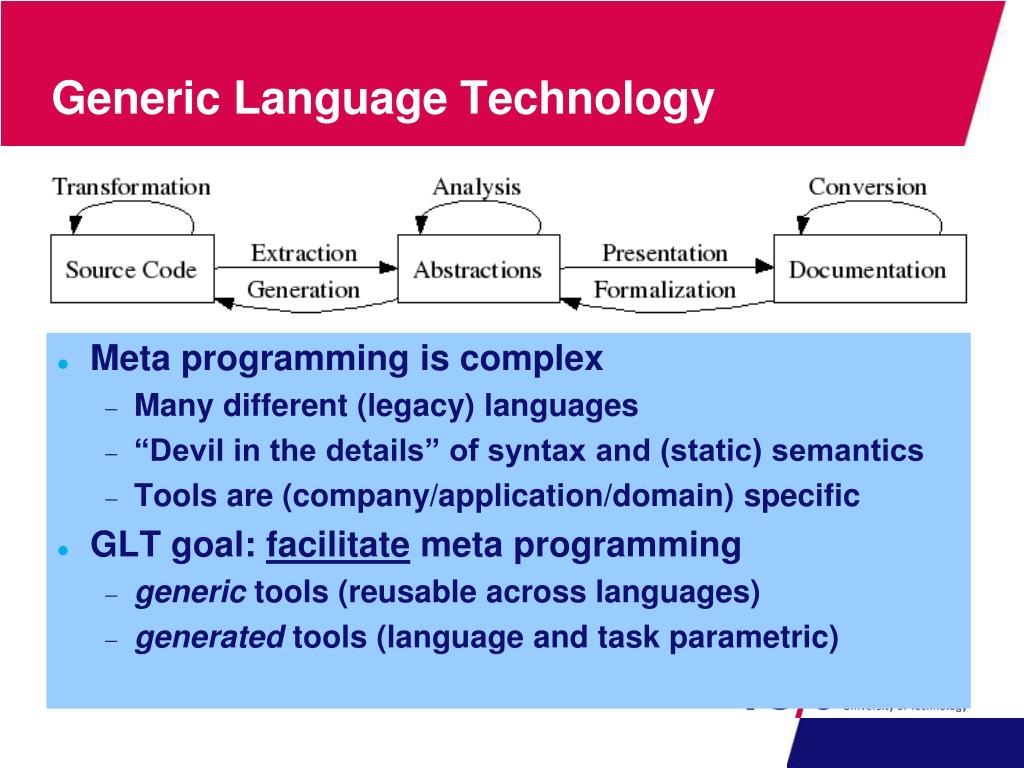

5. Generic Language Technology • Meta programming is complex • Many different (legacy) languages • “Devil in the details” of syntax and (static) semantics • Tools are (company/application/domain) specific • GLT goal: facilitate meta programming • generic tools (reusable across languages) • generated tools (language and task parametric)

6. Syntax highlighters Structure editors Source browsers Fact visualizers Debugging interfaces Un-parsers Generic Language Technology Examples of tools • Parsers • Pretty printers • Tree transformers • Tree fact extractors • Fact analyzers Generated tools Generic tools

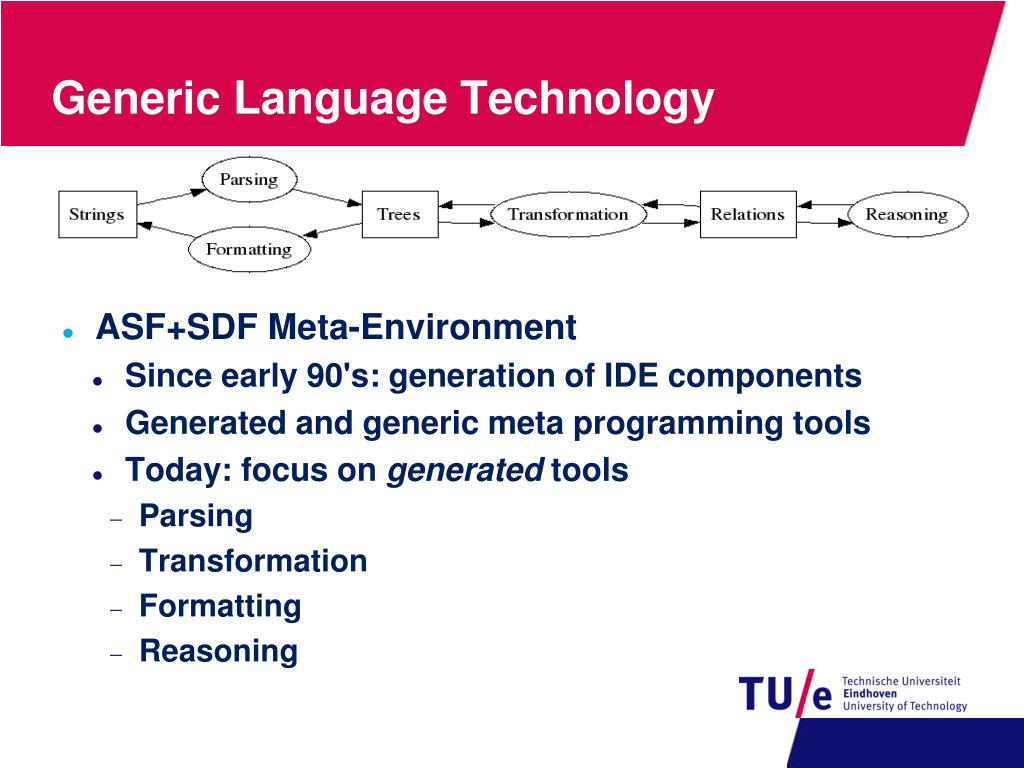

7. Generic Language Technology • ASF+SDF Meta-Environment • Since early 90's: generation of IDE components • Generated and generic meta programming tools • Today: focus on generated tools • Parsing • Transformation • Formatting • Reasoning

8. Generic Language Technology • ASF+SDF Meta-Environment • A domain specific language for each task • SDF: parser generation context-free grammars • ASF: tree transformation term rewriting • BOX: formatting box 2D layout • RScript: reasoning relational calculus • Meta-environment: generic (parameterized) IDE

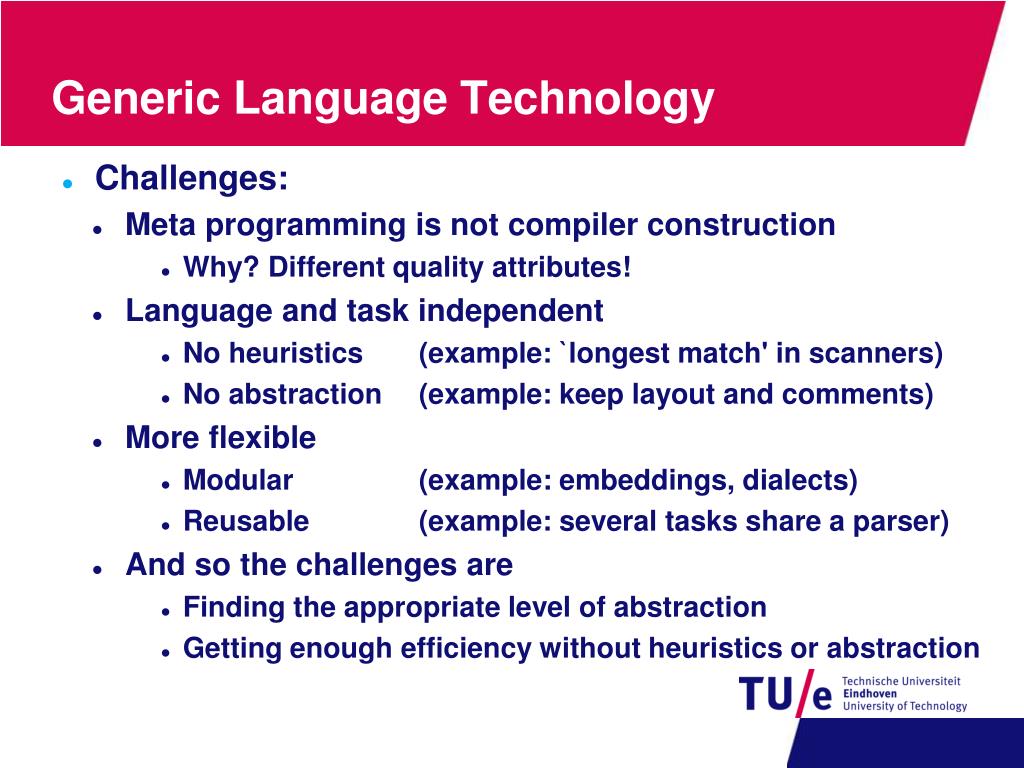

9. Generic Language Technology • Challenges: • Meta programming is not compiler construction • Why? Different quality attributes! • Language and task independent • No heuristics (example: `longest match' in scanners) • No abstraction (example: keep layout and comments) • More flexible • Modular (example: embeddings, dialects) • Reusable (example: several tasks share a parser) • And so the challenges are • Finding the appropriate level of abstraction • Getting enough efficiency without heuristics or abstraction

10. GLT and MDE • Generic Language Technology • Program Generators • ATerms • ApiGen • Model Driven SW Engineering

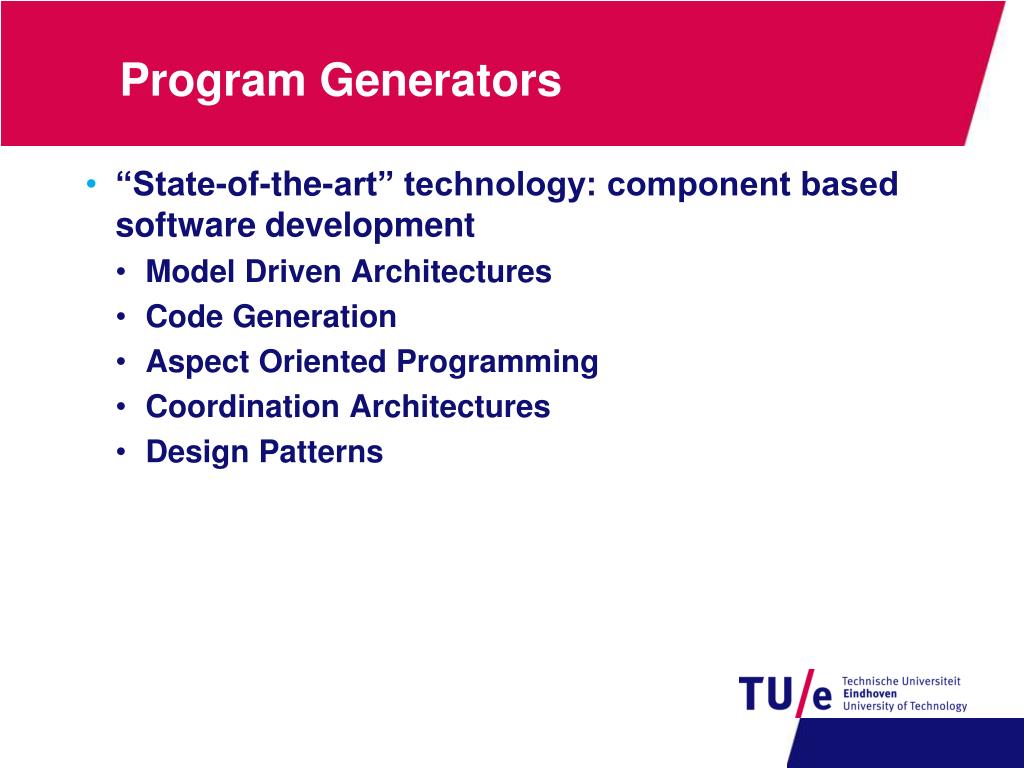

11. Program Generators • “State-of-the-art” technology: component based software development • Model Driven Architectures • Code Generation • Aspect Oriented Programming • Coordination Architectures • Design Patterns

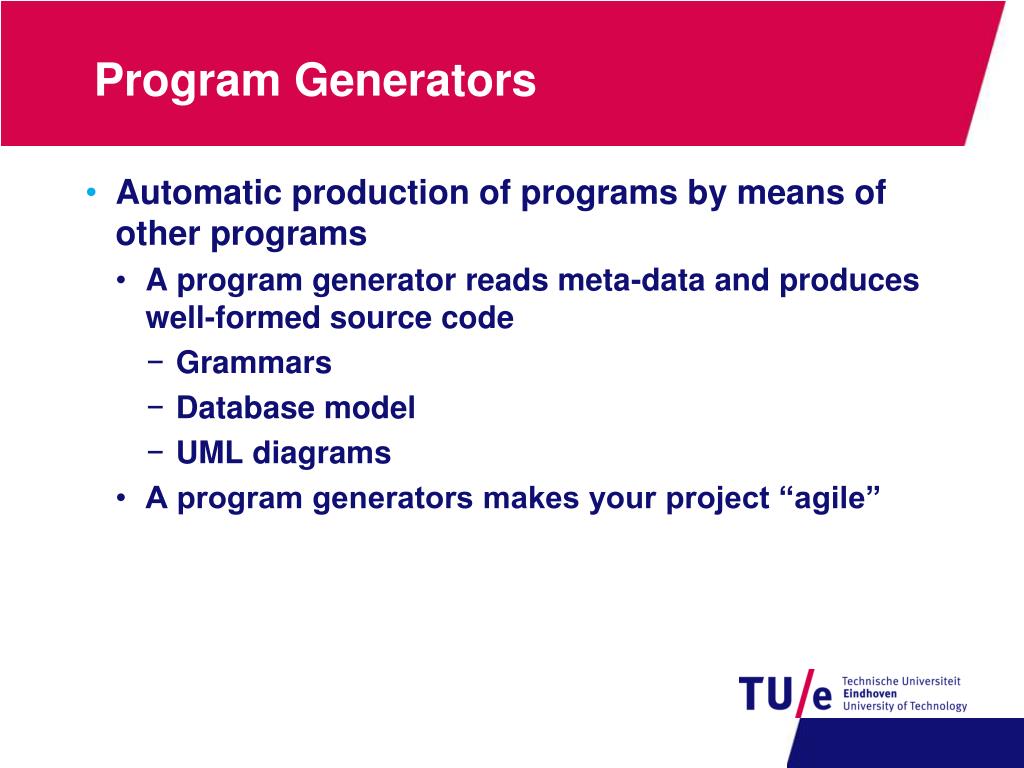

12. Program Generators • Automatic production of programs by means of other programs • A program generator reads meta-data and produces well-formed source code • Grammars • Database model • UML diagrams • A program generators makes your project “agile”

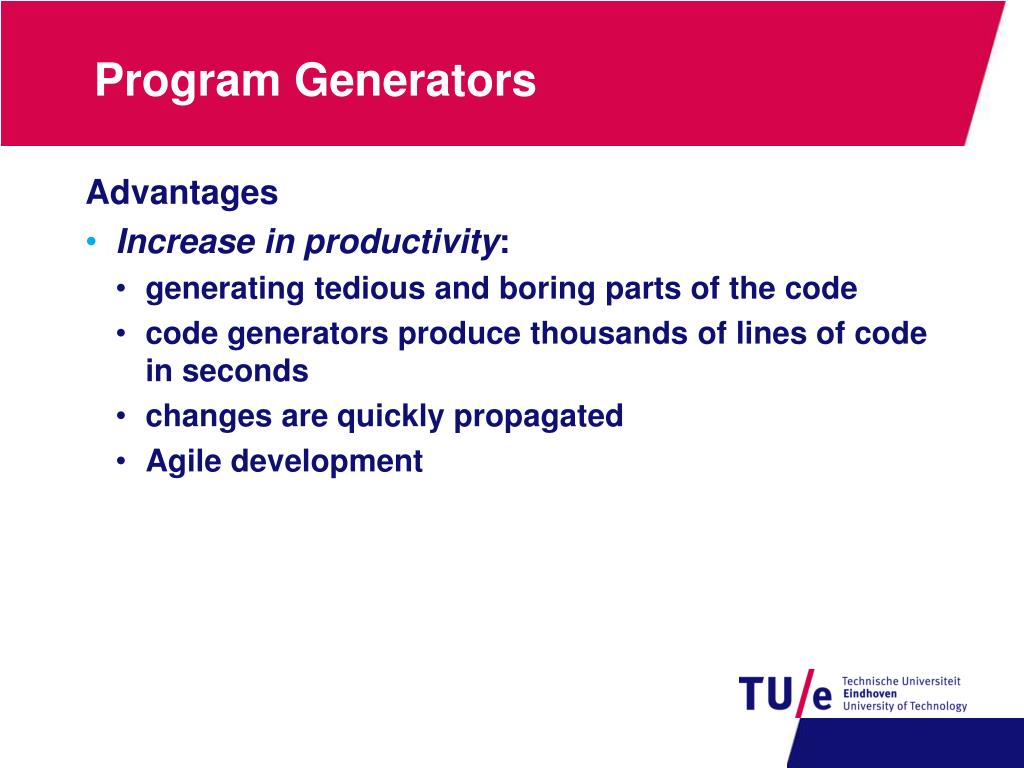

13. Program Generators Advantages • Increase in productivity: • generating tedious and boring parts of the code • code generators produce thousands of lines of code in seconds • changes are quickly propagated • Agile development

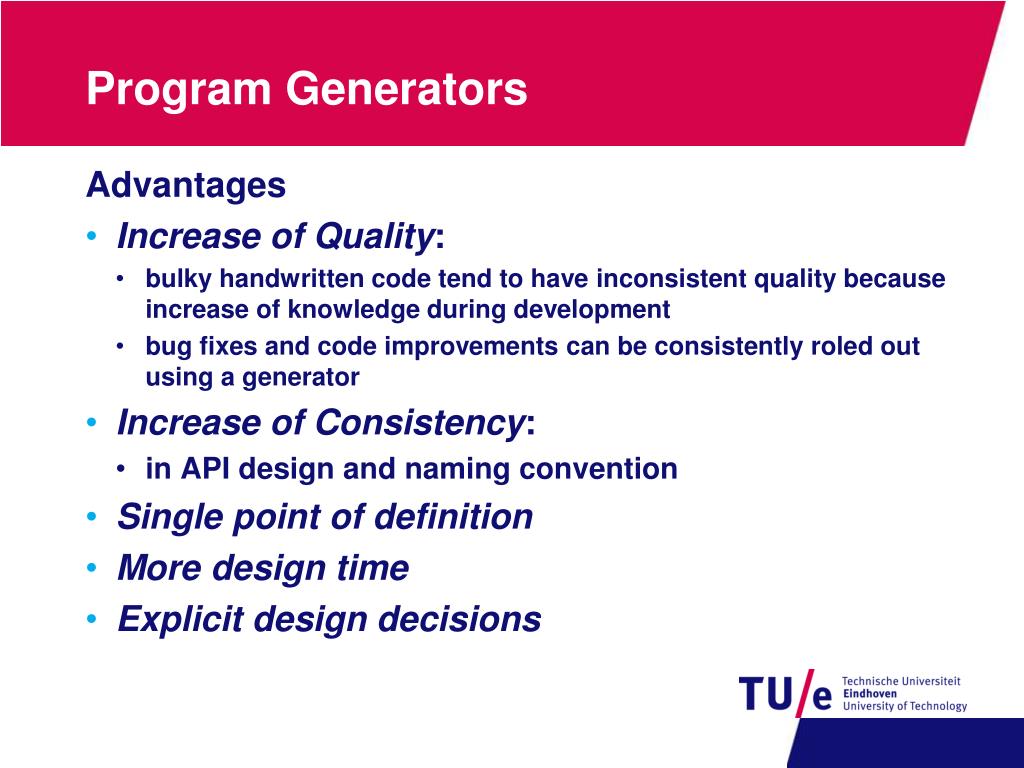

14. Program Generators Advantages • Increase of Quality: • bulky handwritten code tend to have inconsistent quality because increase of knowledge during development • bug fixes and code improvements can be consistently roled out using a generator • Increase of Consistency: • in API design and naming convention • Single point of definition • More design time • Explicit design decisions

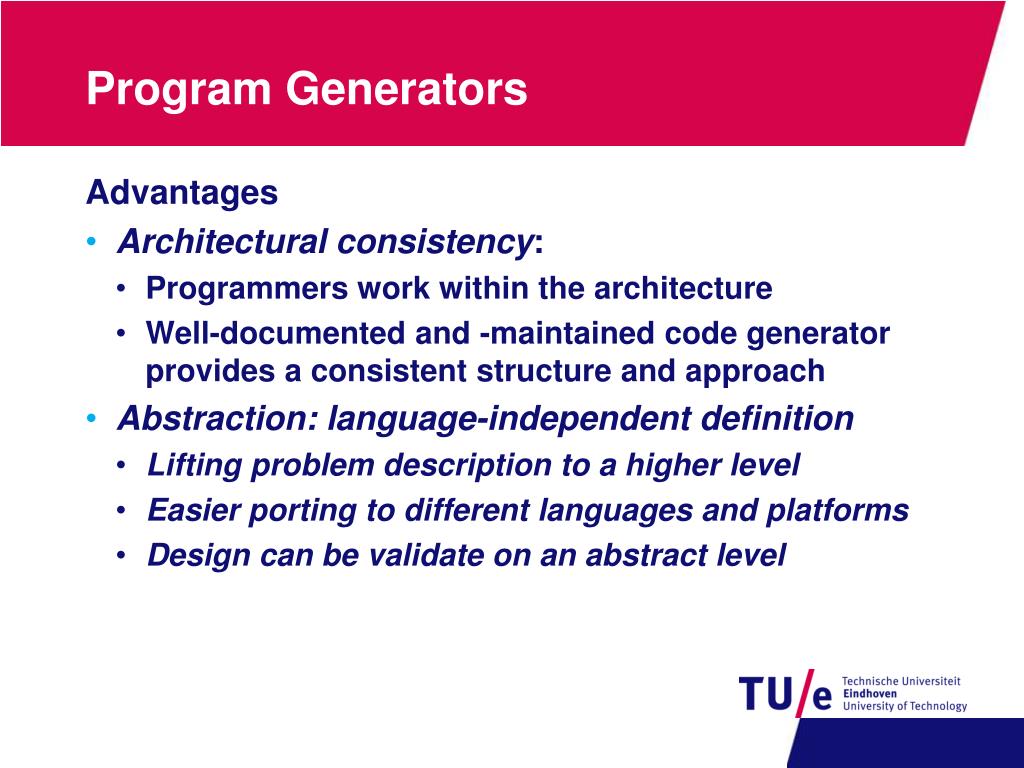

15. Program Generators Advantages • Architectural consistency: • Programmers work within the architecture • Well-documented and -maintained code generator provides a consistent structure and approach • Abstraction: language-independent definition • Lifting problem description to a higher level • Easier porting to different languages and platforms • Design can be validate on an abstract level

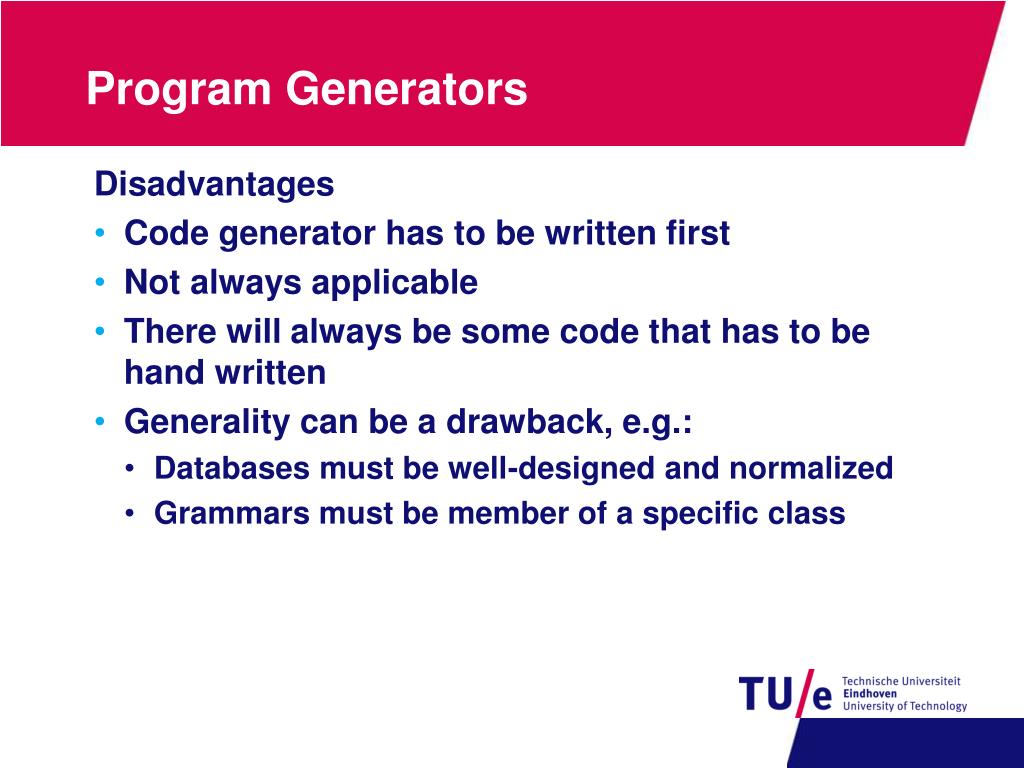

16. Program Generators Disadvantages • Code generator has to be written first • Not always applicable • There will always be some code that has to be hand written • Generality can be a drawback, e.g.: • Databases must be well-designed and normalized • Grammars must be member of a specific class

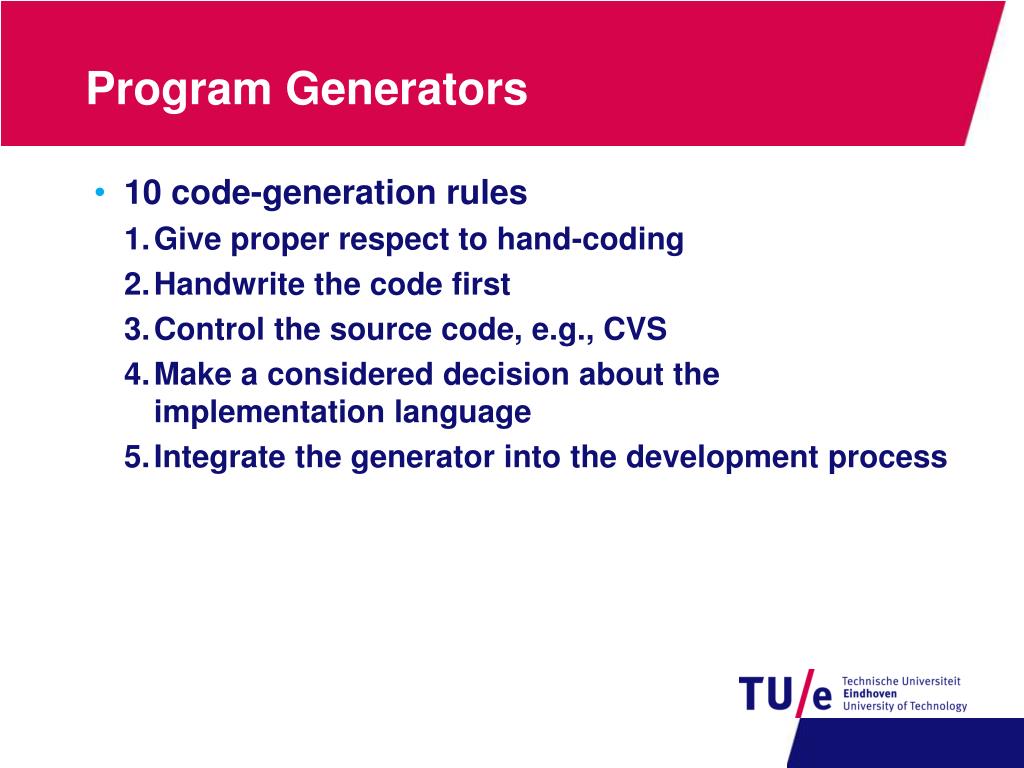

17. Program Generators • 10 code-generation rules • Give proper respect to hand-coding • Handwrite the code first • Control the source code, e.g., CVS • Make a considered decision about the implementation language • Integrate the generator into the development process

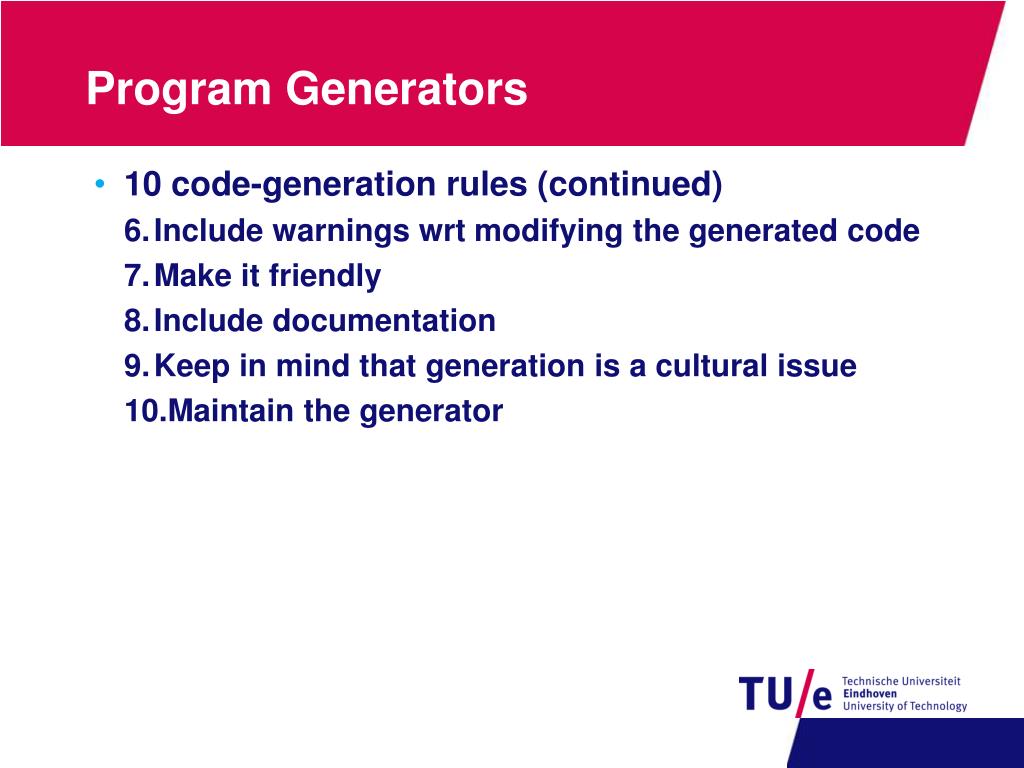

18. Program Generators • 10 code-generation rules (continued) • Include warnings wrt modifying the generated code • Make it friendly • Include documentation • Keep in mind that generation is a cultural issue • Maintain the generator

19. Program Generators Models of program generators: • Code munging: given information in some input code, one or more output files are generated, e.g., scanner or parser • Inline-code expander: take source code with special mark-up code as input and creates production code in separate output file, e.g., imbedded SQL is replaced by C • Mixed-code generation: take source code with special mark-up code as input and replace this inline

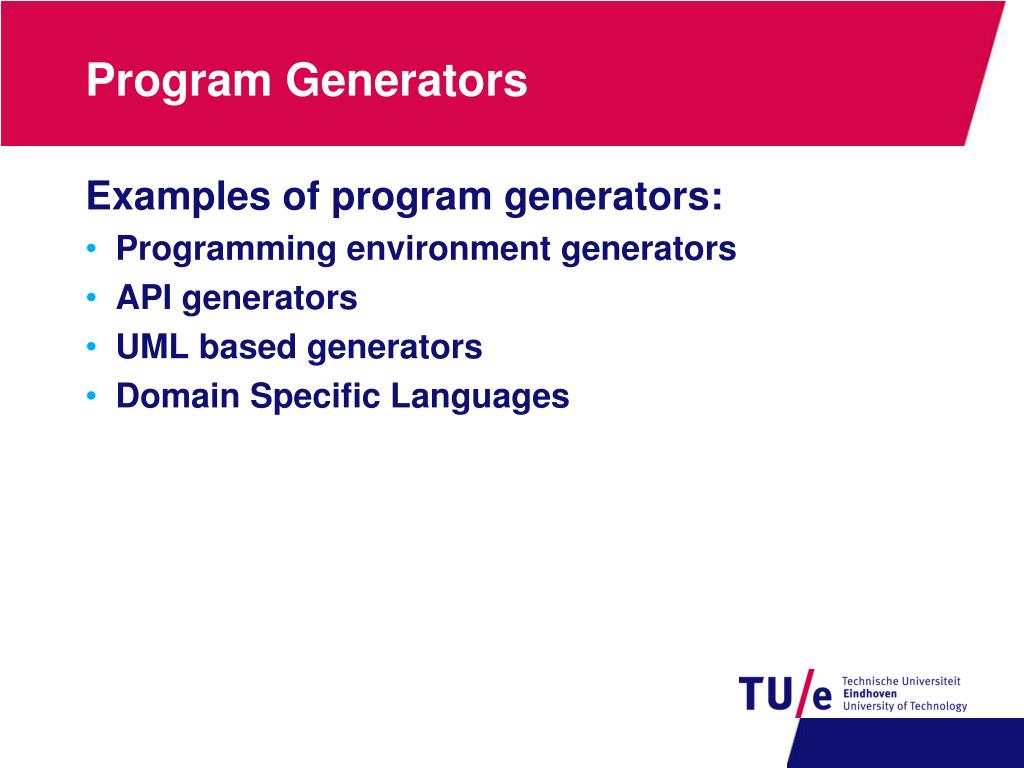

20. Program Generators Examples of program generators: • Programming environment generators • API generators • UML based generators • Domain Specific Languages

21. Program Generators • Template based program generators • Legal code clones • Focus on code templates • Template validation: syntax

22. Program Generators Software templates: • Object code with holes • Holes contain instructions for an evaluator • meta code • Separate treatment of object code and evaluator code • interpretation meta language construct is invisible • Meta-Programming in concrete object code (WYSIWYG)‏ • template is skeleton of resulting code

23. Template validation public class<%class/name%>{ <%foreachclass/attribute do%> private <%type%> <%name%>; public<%type%> <%”get”||name%>(){ return<%name%> } publicvoid<%”set”||name%> (<%type%> <%name%>){ this.<%name%>=<%name%>; } <%od%> } class( name(“Customer”), attribute( name( “address” ), type( “String” )‏ ), attribute( name( “age” ), type( “int” )‏ )‏ ) Template Input data

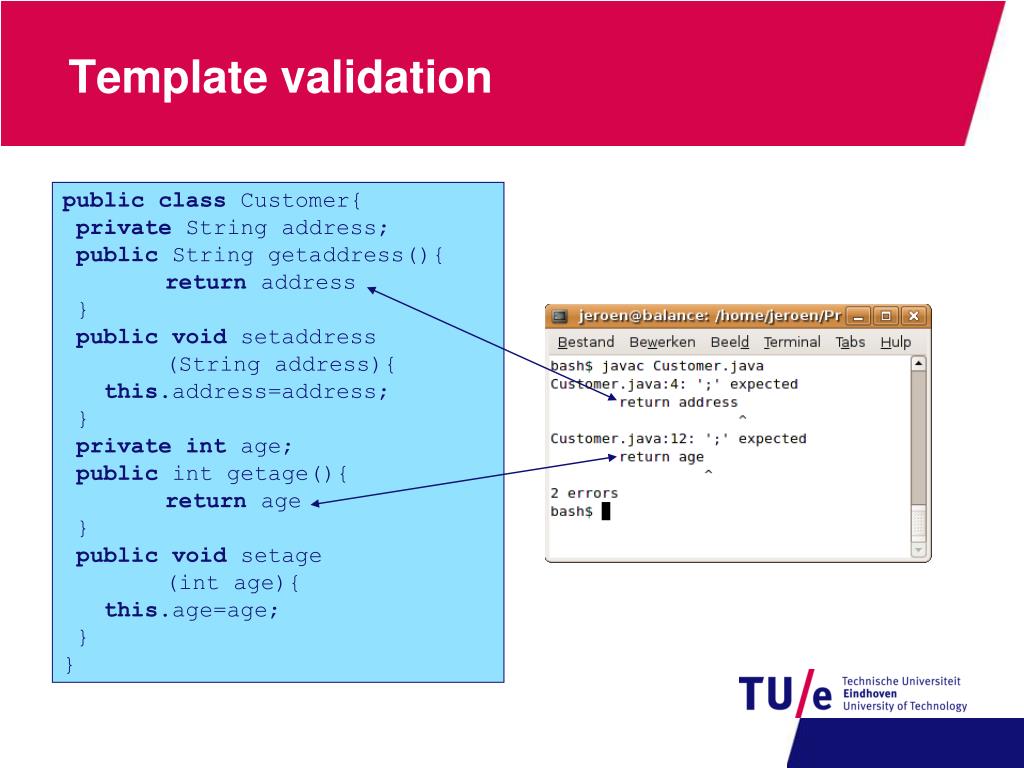

24. Template validation public classCustomer{ private Stringaddress; publicStringgetaddress(){ returnaddress } publicvoidsetaddress (Stringaddress){ this.address=address; } private intage; public int getage(){ returnage } publicvoidsetage (int age){ this.age=age; } }

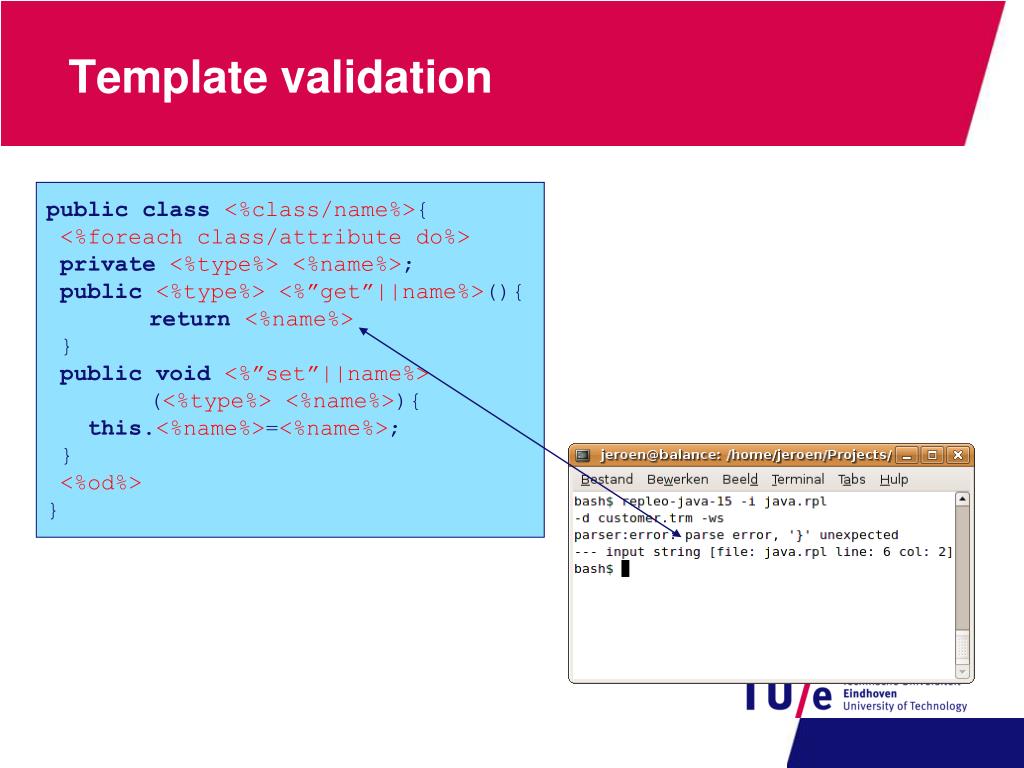

25. Template validation public class<%class/name%>{ <%foreachclass/attribute do%> private <%type%> <%name%>; public<%type%> <%”get”||name%>(){ return<%name%> } publicvoid<%”set”||name%> (<%type%> <%name%>){ this.<%name%>=<%name%>; } <%od%> }

26. Template validation • Better than using the compiler errors • detection of syntax errors in branches • more accurate error message • Generation of code not necessary • syntax checking without input data • However, can this technology be applied to other languages?

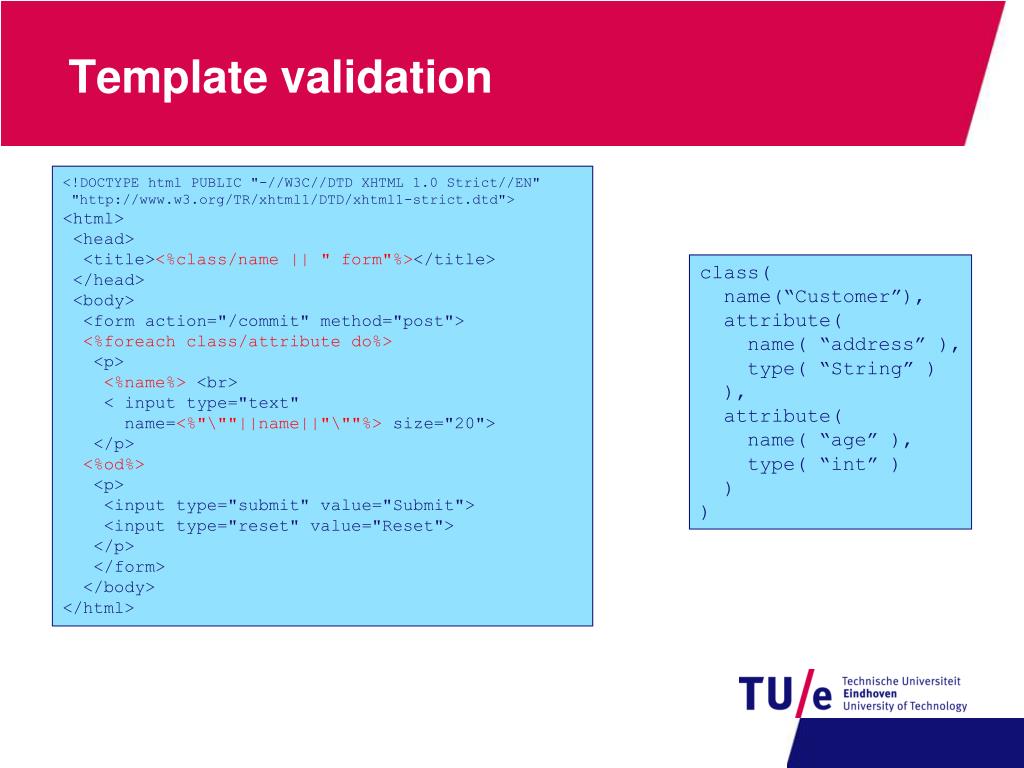

27. Template validation <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <head> <title><%class/name || " form"%></title> </head> <body> <formaction="/commit" method="post"> <%foreachclass/attribute do%> <p> <%name%> <br> < input type="text" name=<%"\""||name||"\""%>size="20"> </p> <%od%> <p> <input type="submit" value="Submit"> <input type="reset" value="Reset"> </p> </form> </body> </html> class( name(“Customer”), attribute( name( “address” ), type( “String” )‏ ), attribute( name( “age” ), type( “int” )‏ )‏ )‏

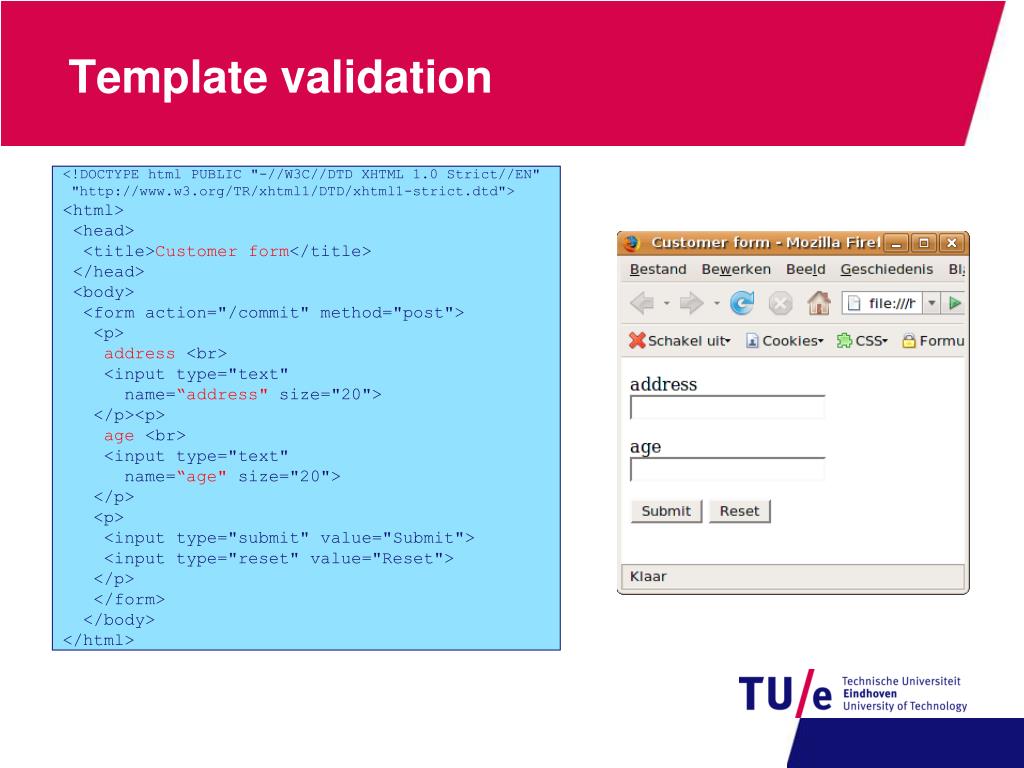

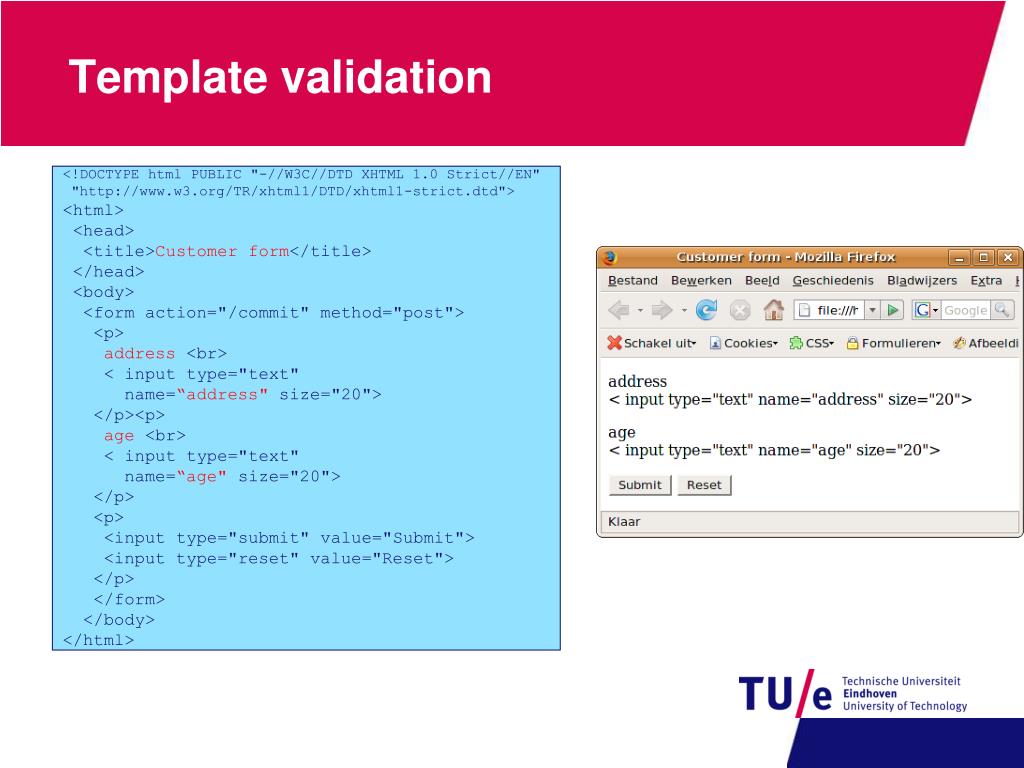

28. Template validation <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <head> <title>Customerform</title> </head> <body> <formaction="/commit" method="post"> <p> address <br> < input type="text" name=“address"size="20"> </p><p> age <br> < input type="text" name=“age"size="20"> </p> <p> <input type="submit" value="Submit"> <input type="reset" value="Reset"> </p> </form> </body> </html>

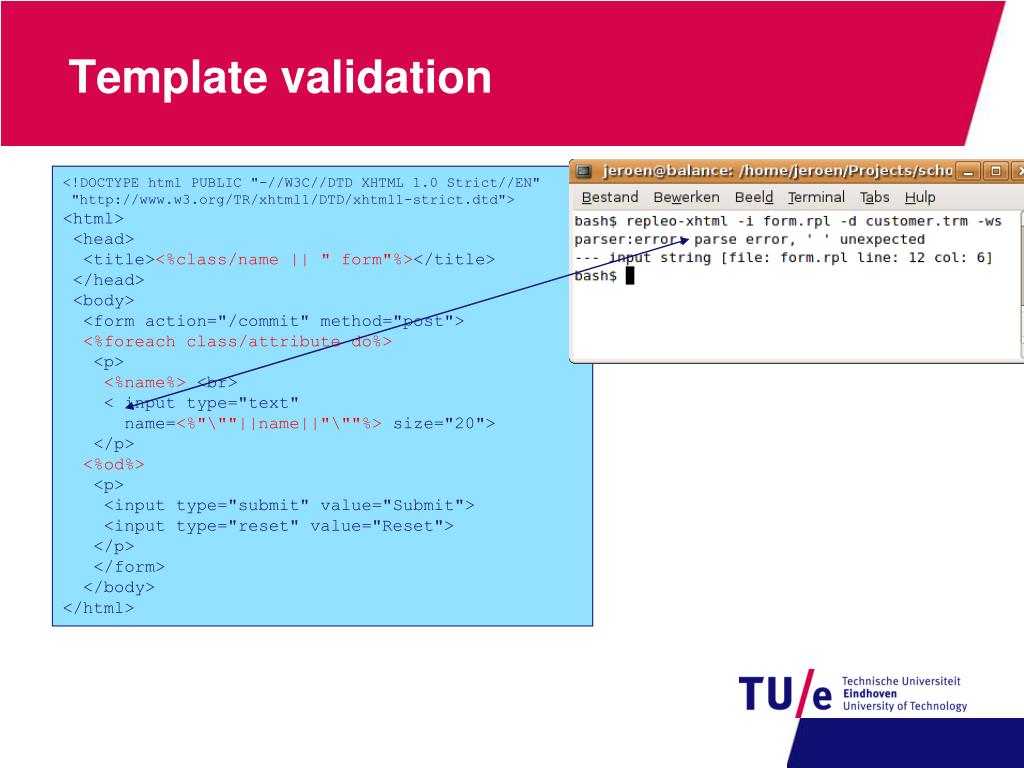

29. Template validation <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <head> <title>Customerform</title> </head> <body> <formaction="/commit" method="post"> <p> address <br> <input type="text" name=“address"size="20"> </p><p> age <br> <input type="text" name=“age"size="20"> </p> <p> <input type="submit" value="Submit"> <input type="reset" value="Reset"> </p> </form> </body> </html>

30. Template validation <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <head> <title><%class/name || " form"%></title> </head> <body> <formaction="/commit" method="post"> <%foreachclass/attribute do%> <p> <%name%> <br> < input type="text" name=<%"\""||name||"\""%>size="20"> </p> <%od%> <p> <input type="submit" value="Submit"> <input type="reset" value="Reset"> </p> </form> </body> </html>

31. Template validation • First parse the template and obtain the parse tree public class<%class/name%>{ <%foreachclass/attribute do%> private <%type%> <%name%>; public<%type%> <%”get”||name%>(){ return<%name%>; } publicvoid<%”set”||name%> (<%type%> <%name%>){ this.<%name%>=<%name%>; } <%od%> }

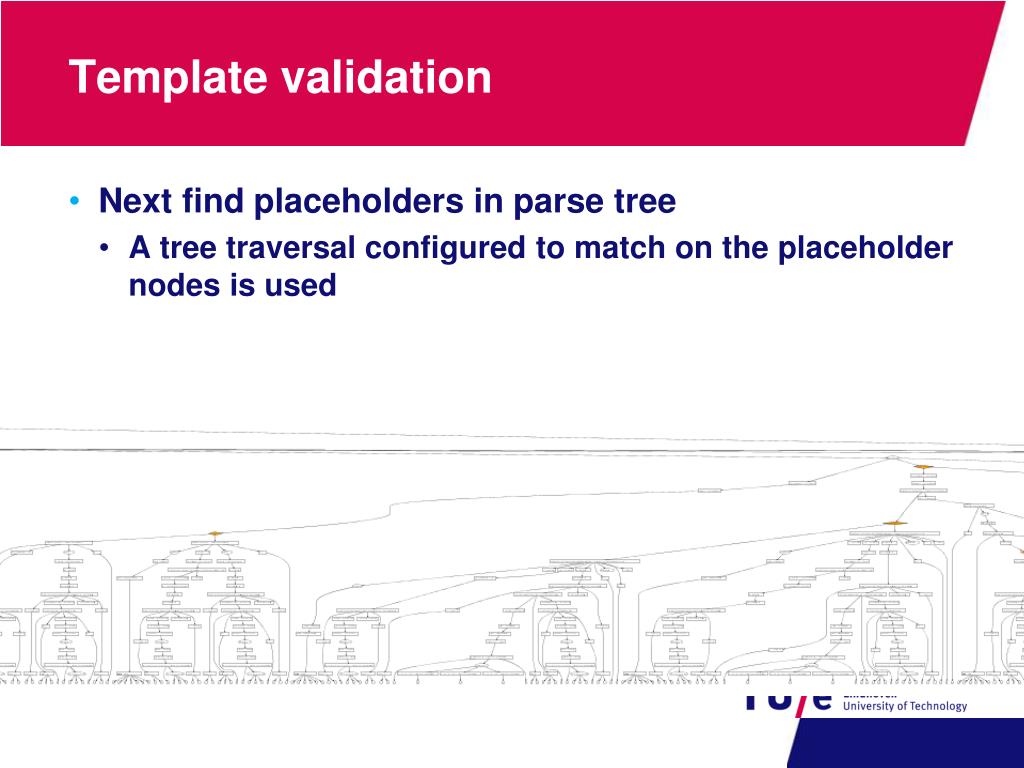

32. Template validation • Next find placeholders in parse tree • A tree traversal configured to match on the placeholder nodes is used

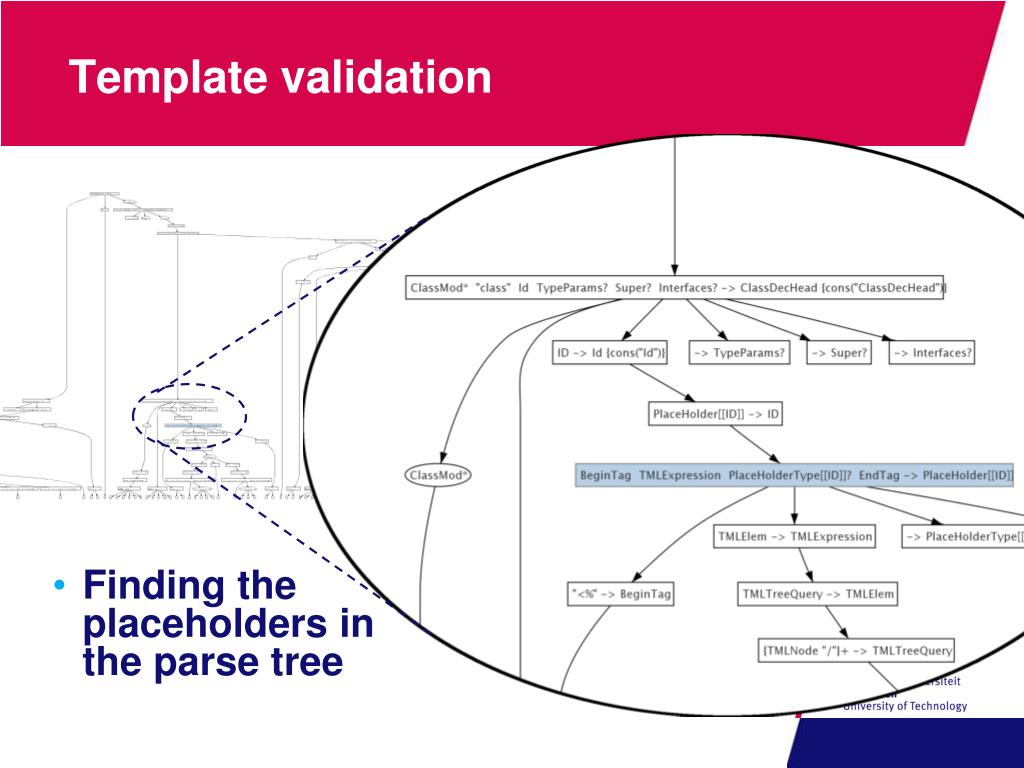

33. Template validation • Finding the placeholders in the parse tree

34. Template validation • Evaluation of placeholders public class <%class/name%>{ • Evaluate expression class/name • lookup in data specification • return value: “Customer” class( name(“Customer”), attribute( name( “address” ), type( “String” )‏ ), attribute( name( “age” ), type( “int” )‏ )‏ )

35. Template validation • Replace placeholder • Parse result of expression as ID • If parse error return error message • Otherwise, replace placeholder with parse tree of the result of the expression

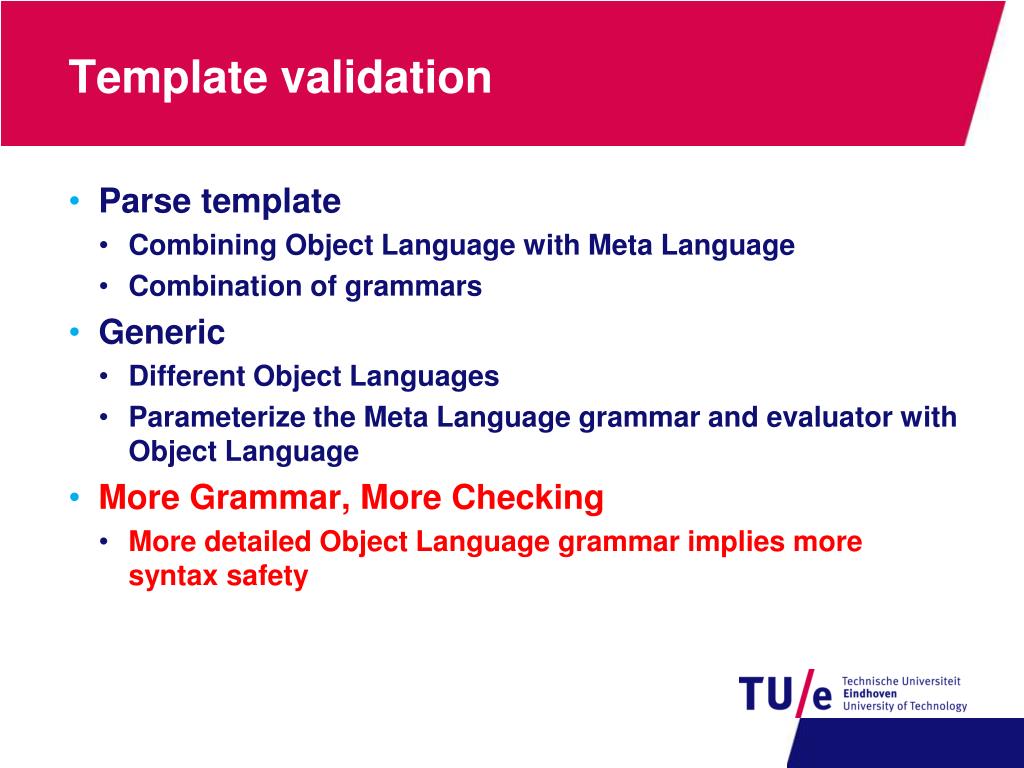

36. Template validation • Parse template • Combining Object Language with Meta Language • Combination of grammars • Generic • Different Object Languages • Parameterize the Meta Language grammar and evaluator with Object Language • More Grammar, More Checking • More detailed Object Language grammar implies more syntax safety

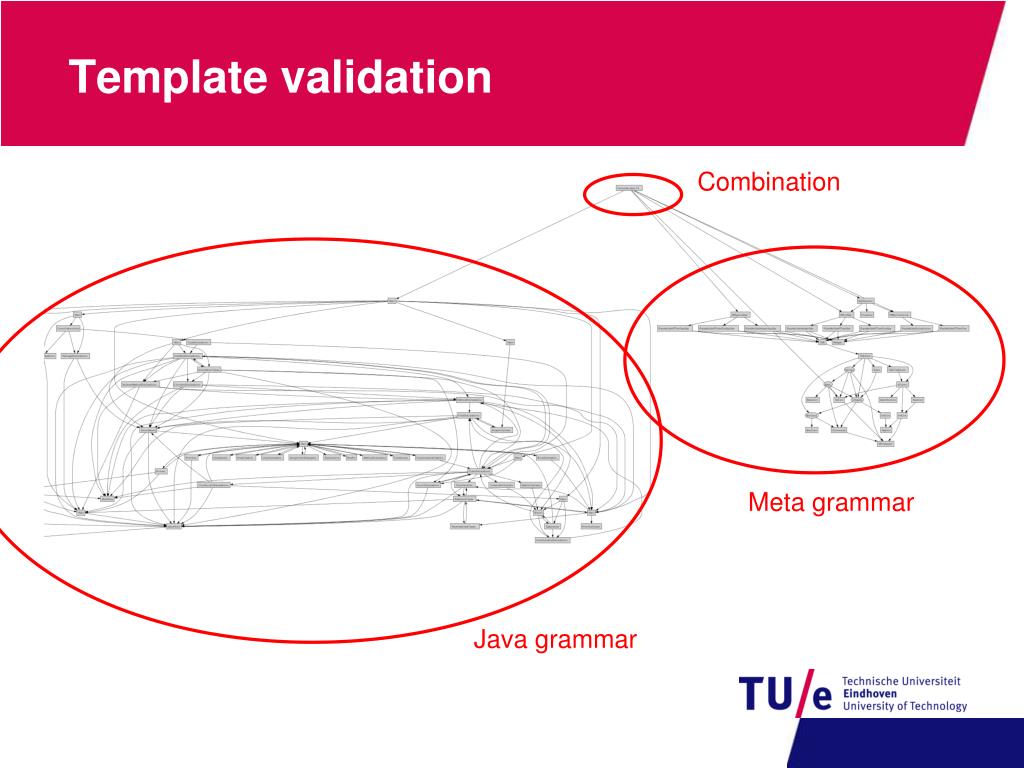

37. Template validation Combination Meta grammar Java grammar

38. Literature on Program Generators • “Code Generation in Action” by Jach Herrington • First and fourth chapter available at: http://www.codegeneration.net/cgia/download.html • Arnoldus, J., Bijpost, J., Brand, M.G.J. van den (2007). Repleo: a syntax-safe template engine. Proceedings of the 6th International Conference on Generative Programming and Component Engineering (GPCE 2007) 1-3 October 2007, Salzburg, Austria.(pp. 25-32). New York, New York: ACM.

39. GLT and MDE • Generic Language Technology • Program Generators • ATerms • ApiGen • Model Driven SW Engineering

40. ATerms • Generic Term representation • Applicative, prefix terms • Maximal subterm sharing • Cheap equality test • Automatic generational garbage collection • Annotations (text coordinates, dataflow information, ...) • Concise and sharing preserving encoding for shipping: • yextual • binary

41. ATerms • ATerms are used to represent and exchange (tree-like) data structures: • parse trees • abstract syntax trees • parse tables • ATerm-library: • C version • JAVA version

42. ATerms • The ATerm data type is defined as: • INT: (32-bits) integers • REAL: (64-bits) reals • APPL: function application, function symbol with zero or more ATerms as arguments • LIST: a list of zero or more ATerms • PLACEHOLDER: an ATerm representing the type of the placeholder, used for matching and constructing

43. ATerms • The ATerm data type is defined as (continued): • BLOB: Binary Large data Objects, a length indication and a byte array of arbitrary (very large) binary data • a list of ATerm pairs (label, annotation)may be associated with an ATerm

44. ATerms • Examples of ATerms: • Unquoted and quoted function application: a, f(a), “x'”, f(“Hello World\n”) • Integers and Reals: 1, 2, 3.14, 1E-10 • Lists: [1,2.2,f(“greetings”)],[] • Placeholders: <int>, <f(1,2)> • Annotations: or(true,false){[color,white]}

45. ATerms • Simple match-and-make paradigm: • make a new ATerm by providing a pattern, “and(<int>,<appl>)”, and filling in the holes • match an existing ATerm by comparing it with a pattern and decompose it according to the pattern • most important operations: • ATerm ATmake(String p, ATerm a1,..., ATerm an) • ATerm ATmatch(ATerm t, String p, ATerm *a1,..., ATerm *an) • ATbool ATisEqual(ATerm t1, Aterm t2) • Integer ATgetType(ATerm t)

46. ATerms • Previous operations level one operations: • simple to use • high-level • inefficient • Efficient level-two operations: • advanced usage • efficient • ATgetArgument, ATmakeAppl, ATmakeInt, etc.

47. ATerms • Applications: • ASF+SDF Meta-Environment: an IDE for developing programming language definitions • mCRL2: a protocol verification tool uses ATerms to represent the state space. • Stratego compiler uses ATerms to represent abstract syntax trees. • TOM, a pattern matching compiler. • Semantic web ontology

48. ATerms • More information: • www.aterm.org • More reading: • M.G.J. van den Brand, H.A. de Jong, P. Klint, and P.A. Olivier (2000). "Efficient Annotated Terms" Software -- Practice & Experience 30:259--291

49. GLT and MDE • Generic Language Technology • Program Generators • ATerms • ApiGen • Model Driven SW Engineering

50. Application Programmers Interface (Library) ApiGen • Good properties of ATerms: • Simple concept • Simple and complete API • make and match • read and write • Efficient • Bad properties of ATerms • not typed (APPL, LIST, INT, REAL, BLOB)
