Friction Testing - Finite Element Modeling

This study focuses on comparing two real-life friction tests—the Inclined Plane Test and the Dragging Friction Test—with finite element models. We aim to determine theoretical friction values for three cases: Steel on Steel (coefficient = 0.80), Delrin on Steel (coefficient = 0.27), and Delrin on Delrin (coefficient = 0.38). Using nonlinear 2D quasi-static explicit analysis, we explore finite element model results against theoretical values for three mesh densities. The analysis involves a block on a flat plate rotated at constant angular velocity to assess when the block begins to move.

megan-kerr
Télécharger la présentation

Friction Testing - Finite Element Modeling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

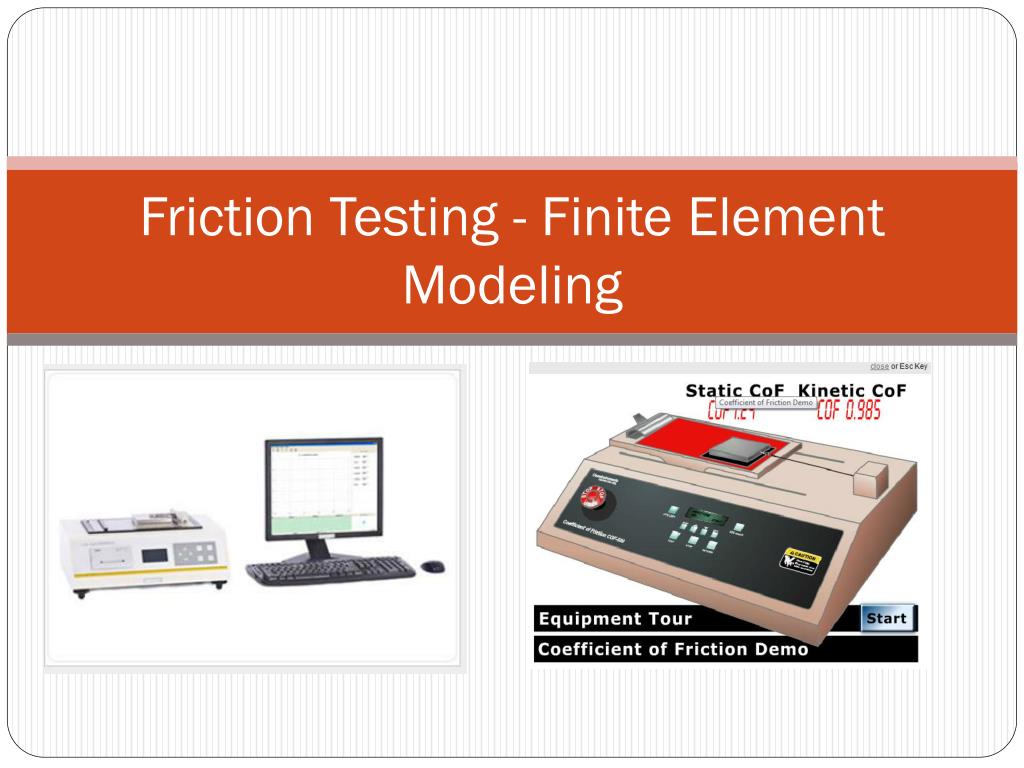

  1. Friction Testing - Finite Element Modeling

  2. Comparing Two Real Life Friction Tests to Finite Element Models • Inclined Plane Test and Dragging Friction Test • Determine Theoretical Values for Three Friction Cases • Steel on Steel (coefficient = .80) • Delrin on Steel (coefficient = .27) • Delrin on Delrin (coefficient = .38) • Compare Finite Element Model Results to Theoretical Results for 3 Mesh Densities

  3. Inclined Plane Test • Nonlinear 2D Quasi-Static Explicit Analysis • 2D Block on Flat Plate • Rotate Plate with Constant Angular Velocity, Measure When Block Starts Moving
