  1. 802.11 Link Layer Performance Test Authors: Date: 2008-05-12 Sudheer Matta, Trapeze Networks

  2. NOTE • PLEASE GO THRU THIS PRESENTATION IN MICROSOFT POWERPOINT “SLIDESHOW MODE” • FOR THE ANIMATION TO SHOW PROPERLY Sudheer Matta, Trapeze Networks

  3. Abstract This is a proposal to enable an on demand, throughput test on a 802.11 link, with no dependence on higher layer protocols. Sudheer Matta, Trapeze Networks

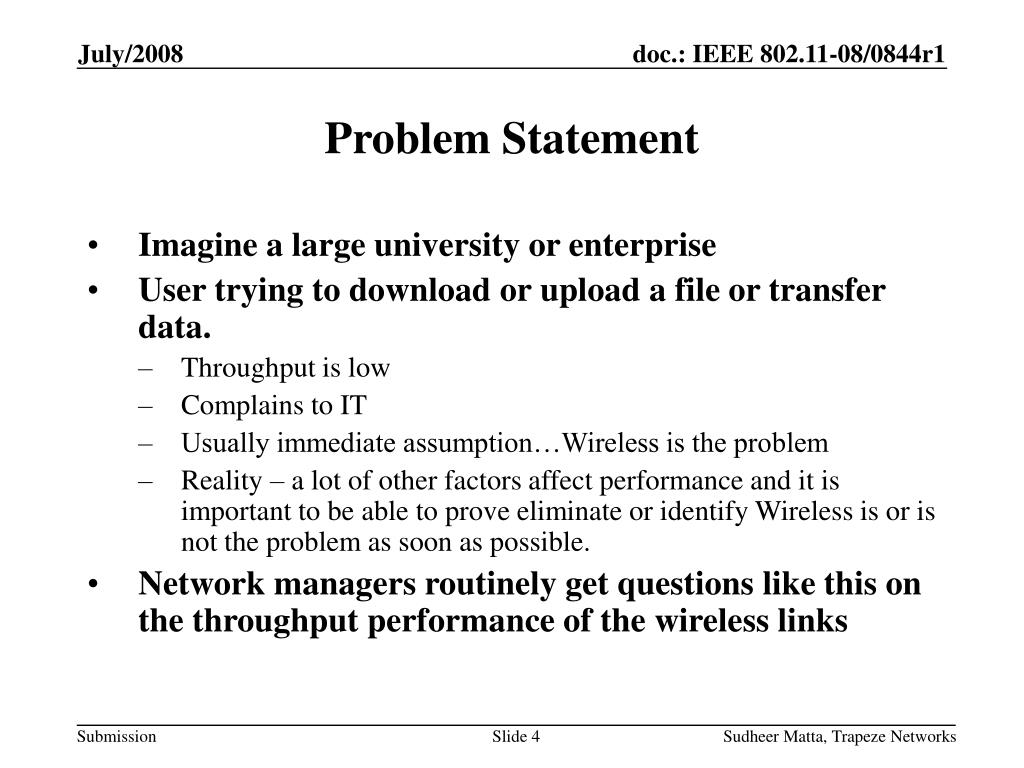

  4. Problem Statement • Imagine a large university or enterprise • User trying to download or upload a file or transfer data. • Throughput is low • Complains to IT • Usually immediate assumption…Wireless is the problem • Reality – a lot of other factors affect performance and it is important to be able to prove eliminate or identify Wireless is or is not the problem as soon as possible. • Network managers routinely get questions like this on the throughput performance of the wireless links Sudheer Matta, Trapeze Networks

  5. Building 1 Building 2 Building 3 Typical Enterprise or Campus Network Wireless LAN Controller Redundant Wireless LAN Controller Redundant WLAN Management Server WLAN Management Server Sudheer Matta, Trapeze Networks

  6. Building 1 Building 2 Building 3 Typical Enterprise or Campus Network Wireless LAN Controller Redundant Wireless LAN Controller IT Manager located in a central location needs to figure out where the problem is Redundant WLAN Management Server WLAN Management Server • Probable causes… • Wireless could in fact be the problem • OR • User laptop has an issue • Wired network in his building has an issue. • Core network has an issue • File server has an issue • Application being used by the user has a problem • ..etc etc.. Most likely blame… Wireless doesn’t work User complains file downloads/ uploads are slow…. Sudheer Matta, Trapeze Networks

  7. Problem Statement (contd) • No current standards based mechanism • To measure the current achievable throughput across an 802.11 link without including Layer 3 or other higher layers on the end devices. • To simply run a L2 only test to quickly eliminate/establish wireless as the problem • In most cases IT administrators don’t have access to the laptop (to run, iperf or FTP tests) and so requires significant time to get access to the end devices setup in exactly the same setup and retest. • It costs time and money! Sudheer Matta, Trapeze Networks

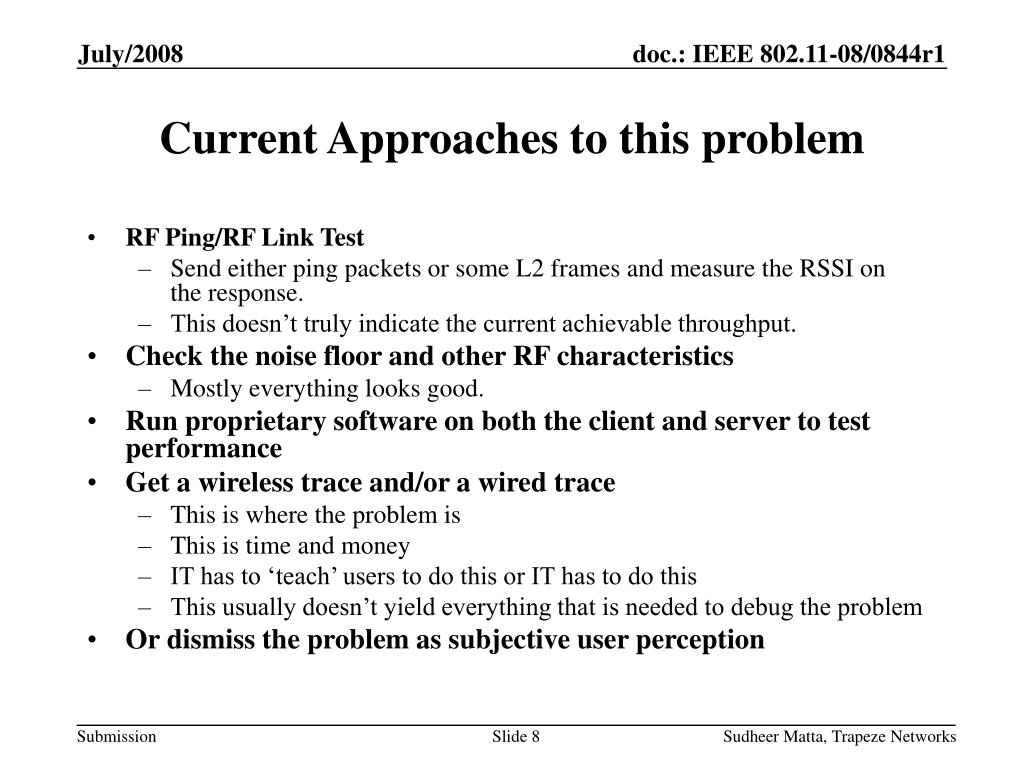

  8. Current Approaches to this problem • RF Ping/RF Link Test • Send either ping packets or some L2 frames and measure the RSSI on the response. • This doesn’t truly indicate the current achievable throughput. • Check the noise floor and other RF characteristics • Mostly everything looks good. • Run proprietary software on both the client and server to test performance • Get a wireless trace and/or a wired trace • This is where the problem is • This is time and money • IT has to ‘teach’ users to do this or IT has to do this • This usually doesn’t yield everything that is needed to debug the problem • Or dismiss the problem as subjective user perception Sudheer Matta, Trapeze Networks

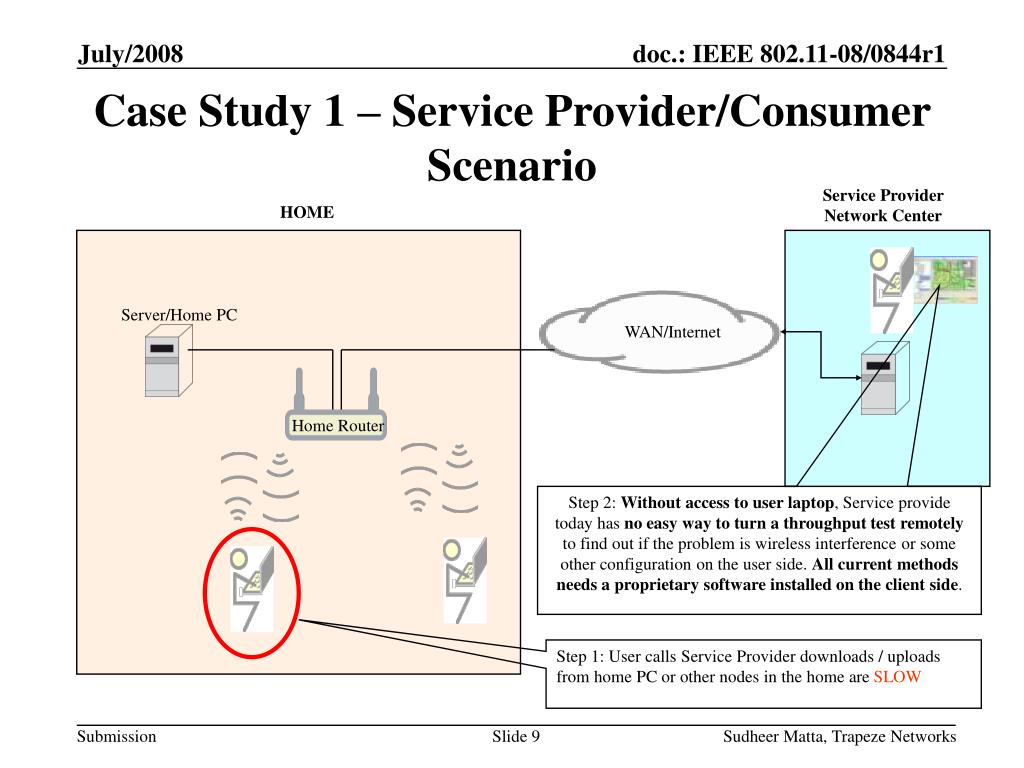

  9. Case Study 1 – Service Provider/Consumer Scenario Service Provider Network Center HOME Server/Home PC WAN/Internet Home Router Step 2: Without access to user laptop, Service provide today has no easy way to turn a throughput test remotely to find out if the problem is wireless interference or some other configuration on the user side. All current methods needs a proprietary software installed on the client side. Step 1: User calls Service Provider downloads / uploads from home PC or other nodes in the home are SLOW Sudheer Matta, Trapeze Networks

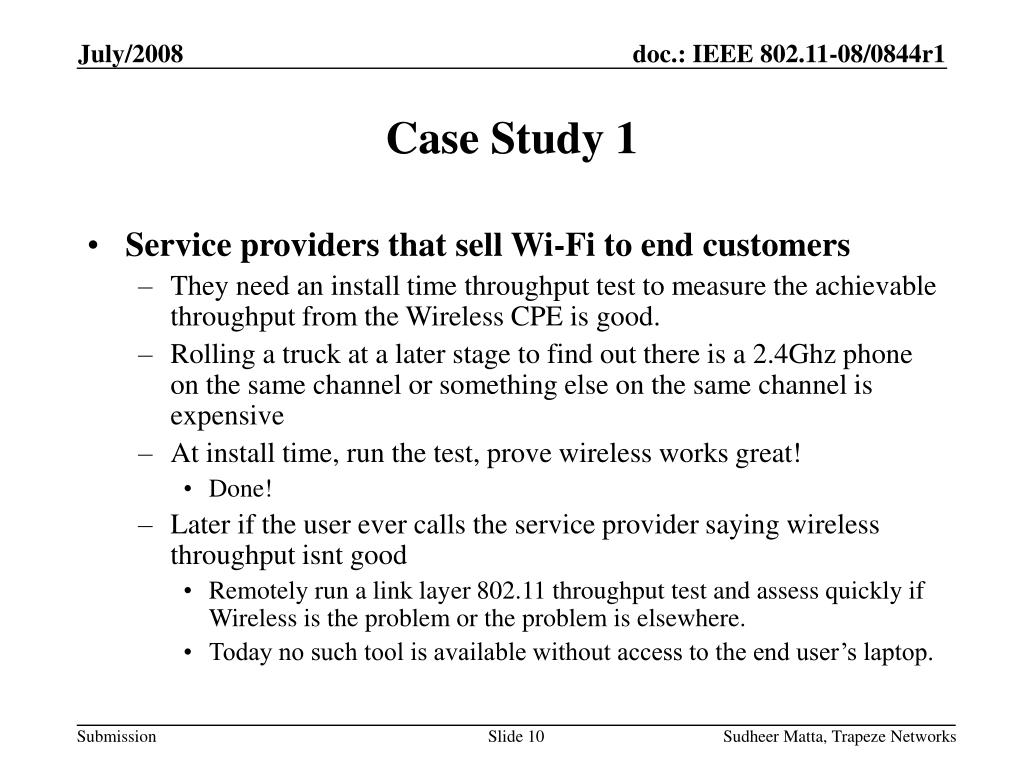

  10. Case Study 1 • Service providers that sell Wi-Fi to end customers • They need an install time throughput test to measure the achievable throughput from the Wireless CPE is good. • Rolling a truck at a later stage to find out there is a 2.4Ghz phone on the same channel or something else on the same channel is expensive • At install time, run the test, prove wireless works great! • Done! • Later if the user ever calls the service provider saying wireless throughput isnt good • Remotely run a link layer 802.11 throughput test and assess quickly if Wireless is the problem or the problem is elsewhere. • Today no such tool is available without access to the end user’s laptop. Sudheer Matta, Trapeze Networks

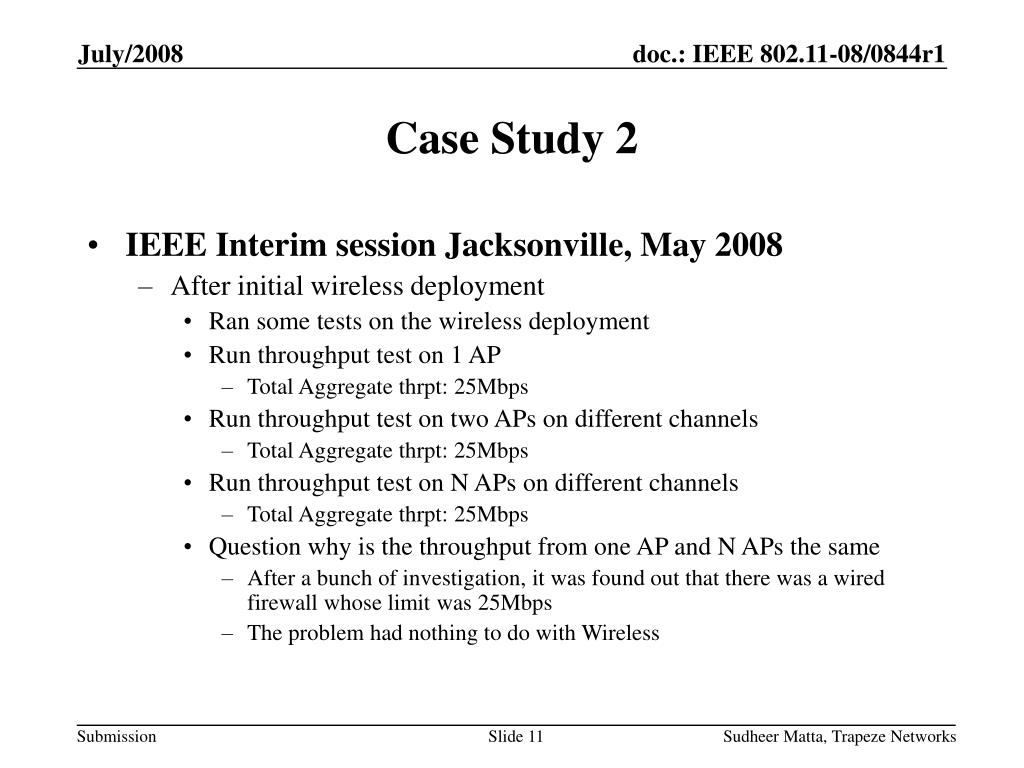

  11. Case Study 2 • IEEE Interim session Jacksonville, May 2008 • After initial wireless deployment • Ran some tests on the wireless deployment • Run throughput test on 1 AP • Total Aggregate thrpt: 25Mbps • Run throughput test on two APs on different channels • Total Aggregate thrpt: 25Mbps • Run throughput test on N APs on different channels • Total Aggregate thrpt: 25Mbps • Question why is the throughput from one AP and N APs the same • After a bunch of investigation, it was found out that there was a wired firewall whose limit was 25Mbps • The problem had nothing to do with Wireless Sudheer Matta, Trapeze Networks

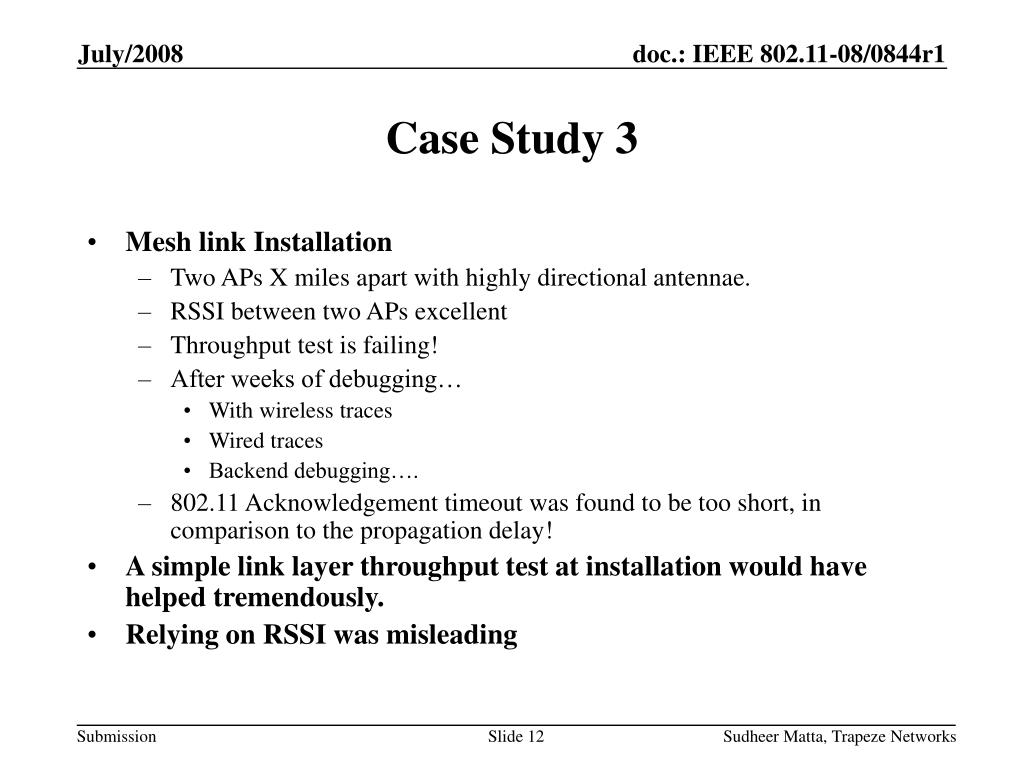

  12. Case Study 3 • Mesh link Installation • Two APs X miles apart with highly directional antennae. • RSSI between two APs excellent • Throughput test is failing! • After weeks of debugging… • With wireless traces • Wired traces • Backend debugging…. • 802.11 Acknowledgement timeout was found to be too short, in comparison to the propagation delay! • A simple link layer throughput test at installation would have helped tremendously. • Relying on RSSI was misleading Sudheer Matta, Trapeze Networks

  13. Proposed Solution • We are proposing an L2 throughput test that could be run between any two 802.11 STA’s that can be run without the need for higher layer protocols. • This enables on-demand L2 throughput test, for network administrators and installers to test network quality and throughput with a simple 802.11 only setup • This enables radio compatibility tests. • This takes all L3 and other layer factors out of the equation Sudheer Matta, Trapeze Networks

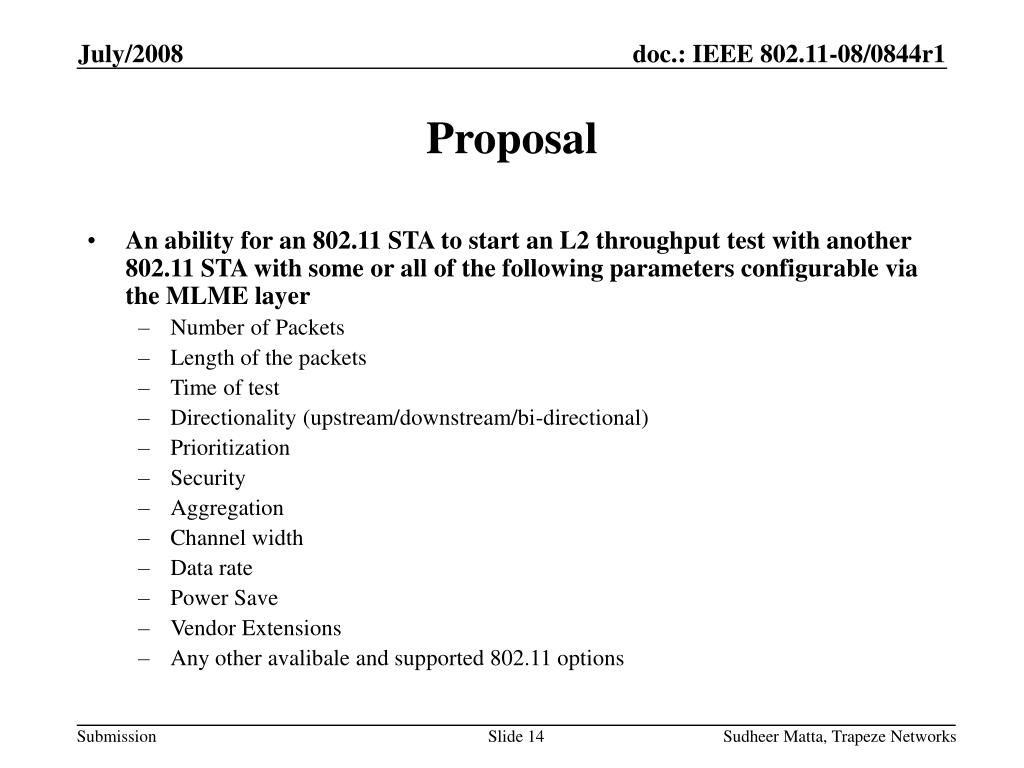

  14. Proposal • An ability for an 802.11 STA to start an L2 throughput test with another 802.11 STA with some or all of the following parameters configurable via the MLME layer • Number of Packets • Length of the packets • Time of test • Directionality (upstream/downstream/bi-directional) • Prioritization • Security • Aggregation • Channel width • Data rate • Power Save • Vendor Extensions • Any other avalibale and supported 802.11 options Sudheer Matta, Trapeze Networks

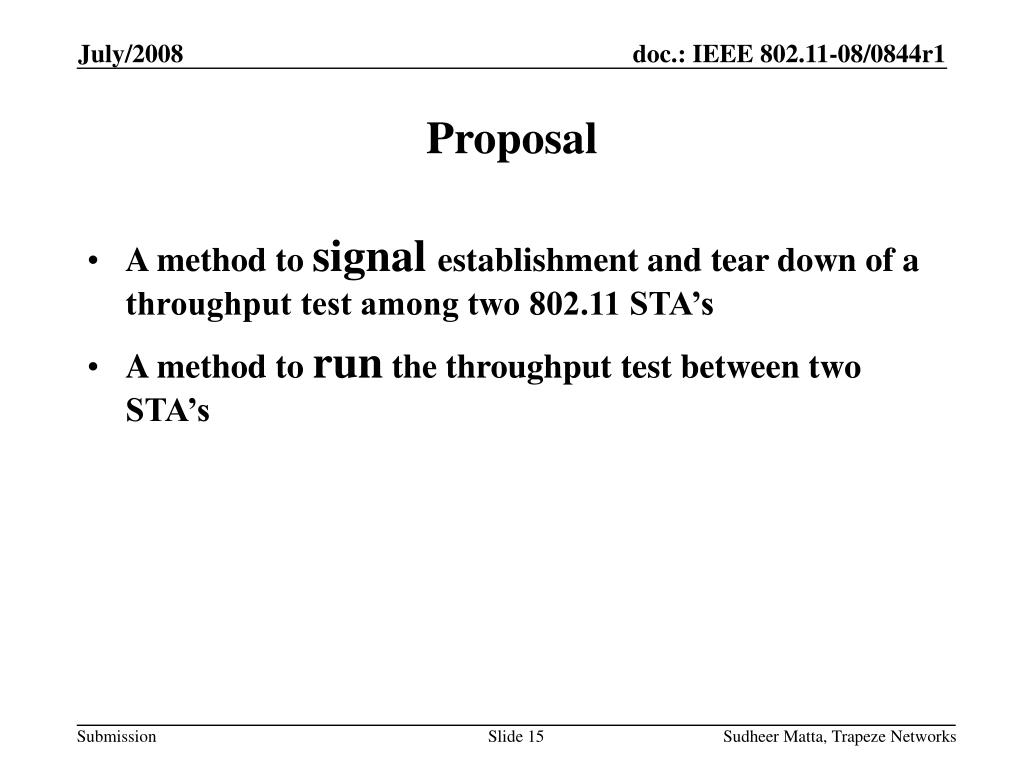

  15. Proposal • A method to signal establishment and tear down of a throughput test among two 802.11 STA’s • A method to run the throughput test between two STA’s Sudheer Matta, Trapeze Networks

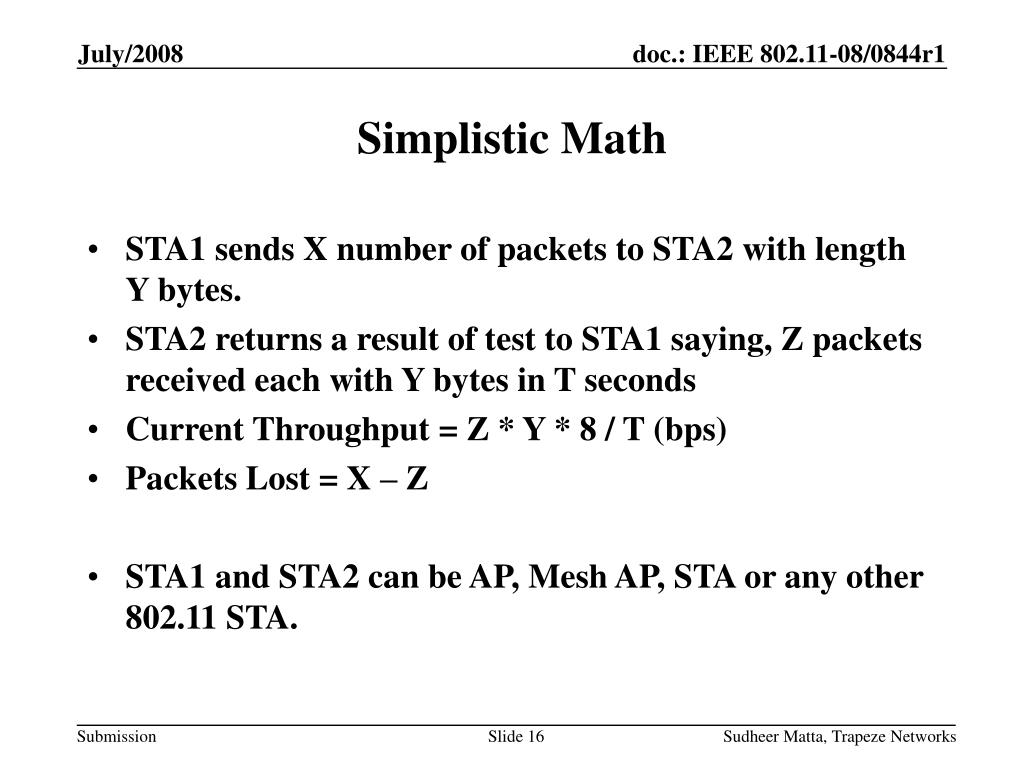

  16. Simplistic Math • STA1 sends X number of packets to STA2 with length Y bytes. • STA2 returns a result of test to STA1 saying, Z packets received each with Y bytes in T seconds • Current Throughput = Z * Y * 8 / T (bps) • Packets Lost = X – Z • STA1 and STA2 can be AP, Mesh AP, STA or any other 802.11 STA. Sudheer Matta, Trapeze Networks

  17. Example transaction Step 0: User requests an on demand throughput test between AP and client device Access Point Step 5: STA sends Y packets to AP (with all appropriate signaling like in the previous case) with start and stop frames Step 3.2: AP sends the rest of the test packets to STA Step 1: AP signals to station that it needs to run a throughput test to the STA Step 6: AP sends throughput report to STA Step 3.2: AP sends a end of test pkt to the STA, indicating the test is over, send me the report. Step 2: Station Acknowledges and get’s ready for thrpt test Step 7: AP sends both the throughput reports via MLME to IT manager Step 4: STA sends throughput report to AP Step 3.1: AP sends a start of test pkt to STA (this help the station recognize the test started) Sudheer Matta, Trapeze Networks

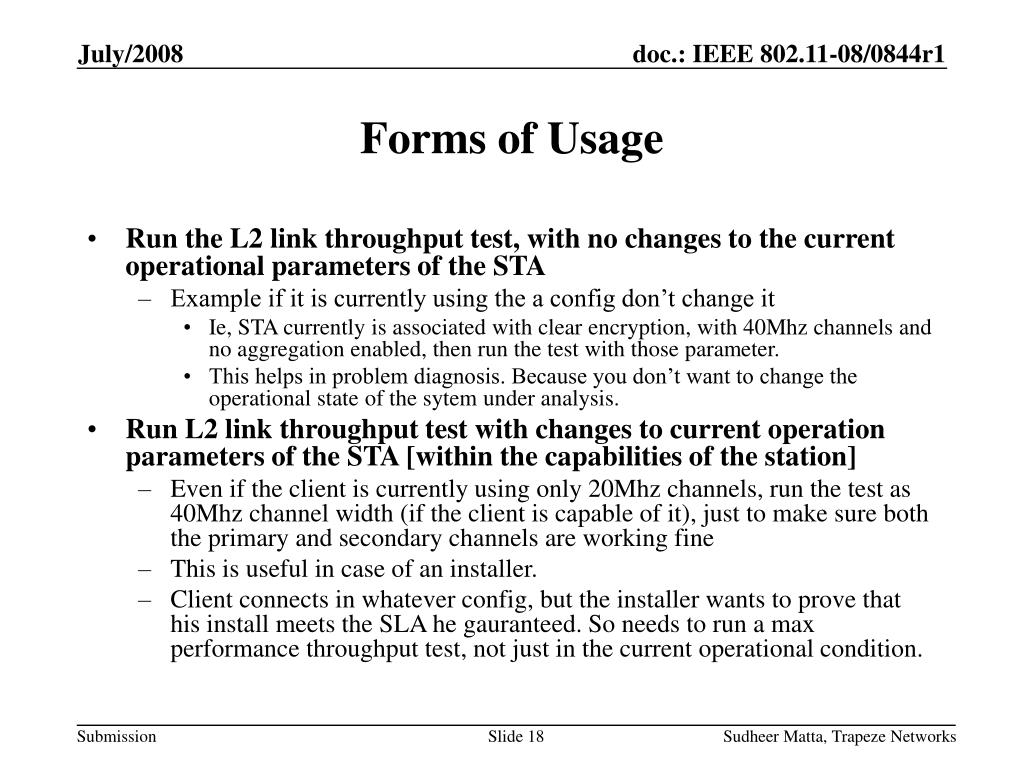

  18. Forms of Usage • Run the L2 link throughput test, with no changes to the current operational parameters of the STA • Example if it is currently using the a config don’t change it • Ie, STA currently is associated with clear encryption, with 40Mhz channels and no aggregation enabled, then run the test with those parameter. • This helps in problem diagnosis. Because you don’t want to change the operational state of the sytem under analysis. • Run L2 link throughput test with changes to current operation parameters of the STA [within the capabilities of the station] • Even if the client is currently using only 20Mhz channels, run the test as 40Mhz channel width (if the client is capable of it), just to make sure both the primary and secondary channels are working fine • This is useful in case of an installer. • Client connects in whatever config, but the installer wants to prove that his install meets the SLA he gauranteed. So needs to run a max performance throughput test, not just in the current operational condition. Sudheer Matta, Trapeze Networks

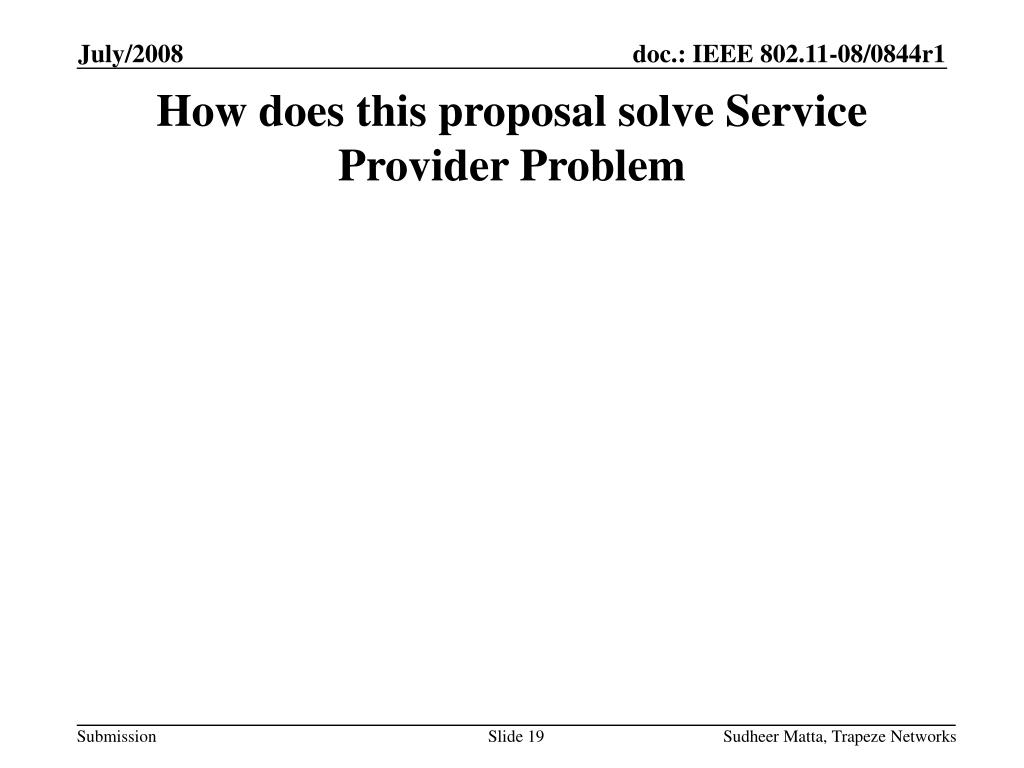

  19. How does this proposal solve Service Provider Problem Sudheer Matta, Trapeze Networks

  20. Service Provider Network Center HOME Server/Home PC WAN/Internet Home Router Case Study 1 – Service Provider/Consumer Scenario -- SOLUTION Step 3: Tech Support from Service Provider issues a command for the Router to run a throughput test between Router and the associated 802.11 station Wireless Throughput test Step 2: Without access to user laptop, Service provide today has no easy way to turn a throughput test remotely to find out if the problem is wireless interference or some other configuration on the user side. All current methods needs a proprietary software installed on the client side. Step 1: User calls Service Provider downloads / uploads from home PC or other nodes in the home are SLOW Sudheer Matta, Trapeze Networks

  21. Case Study 1 – Service Provider/Consumer Scenario -- SOLUTION • Now Tech support has the following option based on the result of the test • Result is positive – Wireless throughput is good • Focus the debugging on wired side or laptop or application or server or any number of other things. • Result is negative – Wireless throughput is infact bad • Focus the debugging further on the Wireless Sudheer Matta, Trapeze Networks

  22. Questions and Answers • Are we duplicating the L3 functionality in L2 • Absolutely not. • This is not about running a TCP style test. • No state is requested to be kept. • This mechanism will be a really simplistic measure of packets transmitted and packets received and the time in which they were received. And all associated statistics with the test. • Will this test be accurate enough • Given that L2 times are far more accurate than L3 and higher layer timing, that wouldn’t be an issue • What about interference and how it affects the test • That is the point of this test. • If there is interference we want to find out • Packet loss is key. Regular CRC checks shall apply. Sudheer Matta, Trapeze Networks

  23. Questions and Answers • Does this method tell us what is the problem? • No. However it helps draw a very hard line whether Wireless is the issue or if the issue is somewhere else. • Eg: Let us say a user runs a L2 throughput test on an 802.11n AP and the result is 150Mbps. • Immediately we know there isn’t an interference issue. • The channel selection is not a issue. • Raw channel bandwidth is not an issue. • Channel contention is not an issue. • There is no white noise preventing access to the medium. • On the flip side if the throughput is 2Mbps on an 802.11n AP that means, it does present a real possiblity that Wireless is infact the problem. • Eg: Channel selection is bad. • There is microwave or other co-channel interference..etc. • This method gives a quick and dirty opinion of where to start. Sudheer Matta, Trapeze Networks

  24. Questions and Answers • What happens to the normal traffic while test is being run? • Remember the test is being run, because there is an active issue with the network. • However during the actual run of the test, all other packets from the two STA’s under test shall not interleave in the test packets. They shall be held in queues or tail dropped or purged, based on implementation. This is beyond the scope of the standard to define. • However it shall be recognized this test is a service interrupting event from a user perspective. • Other packets could interfere and eat channel time….Well exactly… and that could be what we are trying to find out. Sudheer Matta, Trapeze Networks

  25. Straw Poll • I would like to see normative text created from 11-08-0844/r1? • Yes 14 • No 2 • Abstain 9 Sudheer Matta, Trapeze Networks
