  1. Acids & bases

  2. Acids and Bases reactions occur in everyday life and are essential for understanding our world. How does pH value affect our environment?

  3. Why is it important to monitor and maintain the pH of the water in aquariums, soil and our blood? What exactly is pH? How is it measured?

  4. Milk of magnesia is a medicine that usually relieves uncomfortable gastrointestinal symptoms within 30 minutes and constipation within six hours.Why is the milk of magnesia an antacid?

  5. Keywords • Acidity • Basicity (Monoprotic, diprotic, triprotic) • Bronsted-Lowry Theory - Proton donor/acceptor • Acid-base Conjugate pair • Amphiprotic • Lewis Theory - Lone pair electrons • Dative/Coordinate bond • Dissociation constant(Ka) • Enthalpy of neutralisation

  6. What is an acid? hydrogen A solution that contains __________ ions (protons). OLD THEORY ethanoic acid Weak acid like ____________does not have the power to neutralise strong acid like sodium hydroxide.

  7. What is a base/alkali? metal oxide • A base is a substance like ___________ and ______________that react with acid to form salt and water only. • An alkali is a soluble base which in solution produces ________ ions. • Most bases are insoluble in water. 3 soluble bases are NaO/NaOH, KO/KOH, CaO/Ca(OH)2 metal hydroxide hydroxide Both acids and alkalis are _______. soluble

  8. What causes acidity? hydrogen ions • It is the _____________that give an acid its acidic • properties when they dissolve in water and _________ • into ions. • E.g. HCl gas is a _________ compound. • When dissolves in water, it forms HCl acid which dissociate • to form ions. dissociate covalent

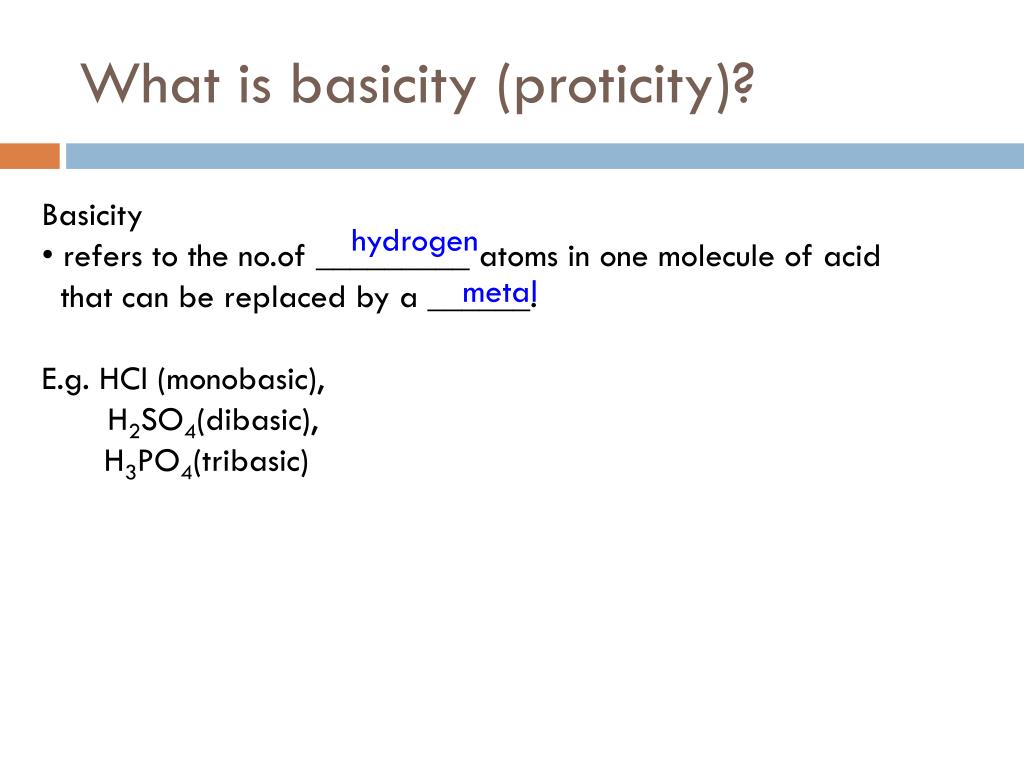

  9. What is basicity (proticity)? • Basicity • refers to the no.of _________ atoms in one molecule of acid • that can be replaced by a ______. • E.g. HCl (monobasic), • H2SO4(dibasic), • H3PO4(tribasic) hydrogen metal

  10. Bronsted-Lowry theory An acid is defined as a molecule or ion that acts as a proton ______. A base is defned as a molecule or ion that acts as a proton ________. donor acceptor

  11. Types of acids • Acids that have single proton to donate – ___________. E.g. HCl(aq), HNO3(aq), HNO2(aq) • Acids that have 2 protons to donate – __________ . E.g. H2SO4(aq), H2SO3(aq), H2CO3(aq) • H3PO4(aq) is _________. monobasic dibasic tribasic

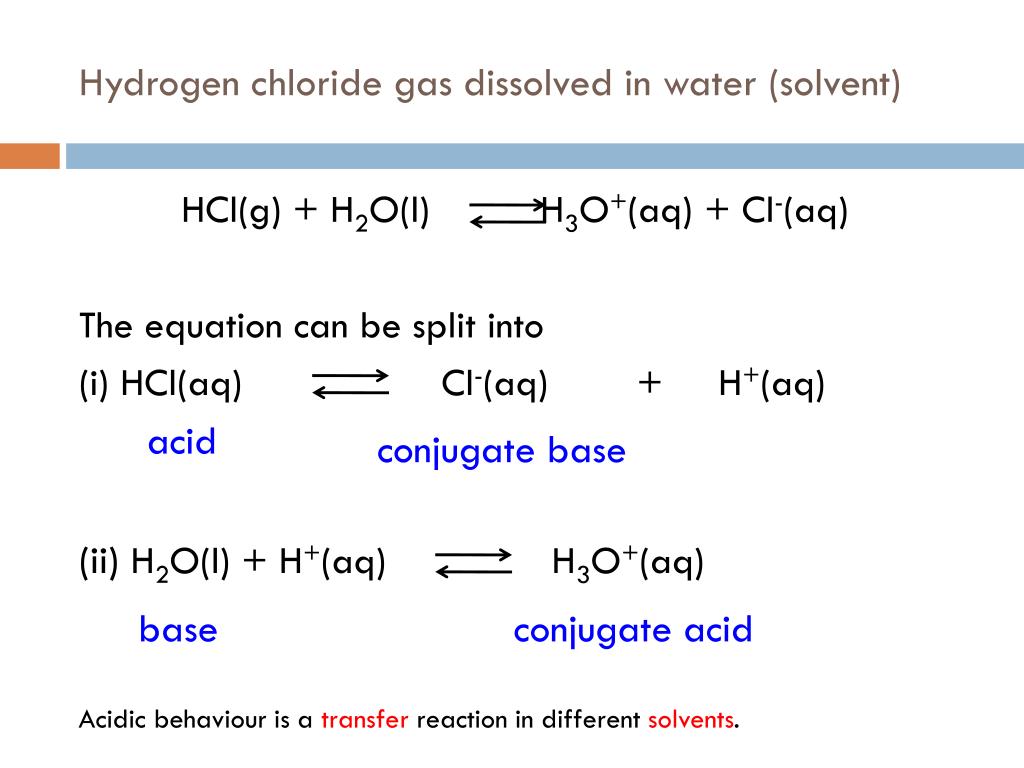

  12. Hydrogen chloride gas dissolved in water (solvent) HCl(g) + H2O(l) H3O+(aq) + Cl-(aq) The equation can be split into (i) HCl(aq) Cl-(aq) + H+(aq) (ii) H2O(l) + H+(aq) H3O+(aq) acid conjugate base base conjugate acid Acidic behaviour is a transfer reaction in different solvents.

  13. Acid-base conjugate pair CH3COOH(l) + H2O(l) H3O+ (aq) + CH3OOO-(aq) conjugate acid conjugate base acid base donates H+ donates H+ NH3(g) + H2O(l) NH4+(aq) + OH-(aq) amphiprotic Water is sometimes described as _______________ because it can accept or donate a proton.

  14. Acid Strength & pKa Acid strength is the tendency of an acid to donate a proton. The more readily a compound donates a proton, the stronger is an acid.

  15. Acidity Acidity is measured by an equilibrium constant, Keq. When a Bronsted-Lowry acid H-A is dissolved in water, an acid-base reaction occurs, and an equilibrium constant can be written for the reaction. H H-A + H-O-H A- + H-O-H [H3O+][A -] [products] : Keq= = [HA][H2 O] [reactants]

  16. Acidity and pKa The concentration of the solvent H2O is essentially constant, More convenient when describing acid strength to use “pKa” values than Ka. [H3O+][A -] Dissociation constant, Ka =[H2 O]Keq = [HA]

  17. Competition between acid/base and its conjugate (i) HCl(g) + H2O(l) H3O+(aq) + Cl-(aq) acid base conjugate acid conjugate base (ii) CH3COOH(l) + H2O(l) H3O+ (aq) + CH3OOO-(aq) acid base conjugate acid conjugate base • Water is a much stronger base than chloride ion and has a stronger tendency to accept _______.The equilibrium shifts more to the _______. • Ethanote ion (CH3OOO-) is a much stronger base than water molecule. The equilbrium shifts to the _______. protons right left

  18. Strong acids have weak conjugate bases. • Weak acids have strong conjugate bases. (i) HCl(g) + H2O(l) H3O+(aq) + Cl-(aq) acid base conjugate acid conjugate base (ii) CH3COOH(l) + H2O(l) H3O+ (aq) + CH3OOO-(aq) acid base conjugate acid conjugate base

  19. If HA is a strong acid in water, • HA is a successful donor of H+ in water • the reverse reaction hardly happens • A- is a poor acceptor of H+ • Ka (dissociation constant) is big HA + H2O H3O + + A- Equilibrium lies to the right. Strong acid , weak conjugate base Weak acid , strong conjugate base. Equilibrium lies to the left

  20. Common acids & conjugate bases in order of strengths

  21. Lewis theory • A Lewis acid is defined as a substance that can accept a pair of _________ from another atom to form a _______(coordinate) covalent bond. • A Lewis base is defined as a substance that can __________ a pair of electrons to another atom to form a dative covalent bond. electrons dative donate B: H+ +BH base acid Lewis _____ Lewis ______

  22. Lewis theory • Boroader definition that include compounds that do not have protons but exhibit acid/base behaviour. E.g. AlCl3(aq) + Cl-(aq) AlCl4-(aq) Lewis acid Lewis base Electron rich species react with electron poor species. All Bronsted Lowry acids are also Lewis acids

  23. Examples • Reaction between ammonia, NH3 and proton H3N: H+ +NH4 • Reaction between NH3 and BF3. H F H F H N B  H N B H F F H F F acid 6 BF3 is a good Lewis ______ as there are _______electrons around the central boron atom which leaves room for 2 more electrons. Other common Lewis acid includes AlCl 3 and transition metal ions in aqueous solution.

  24. Reaction between a water molecule and proton H2O: H+ H3O+

  25. Lewis bonding In complex ions formed by transition metals The 6 water molecules, each donate a lone pair electrons from oxygen of their water molecules to (the empty 3d orbitals of) iron. What does each water molecule and iron(III) ion act as in the reaction above? Water acts as Lewis base. Fe(III) acts as Lewis acid

  26. Dative (Coordinate) bond • A dative covalent bond is always formed in a Lewis acid-base reaction. • For a substance to act as a base, it must have space to accept the _________of electrons. lone pair

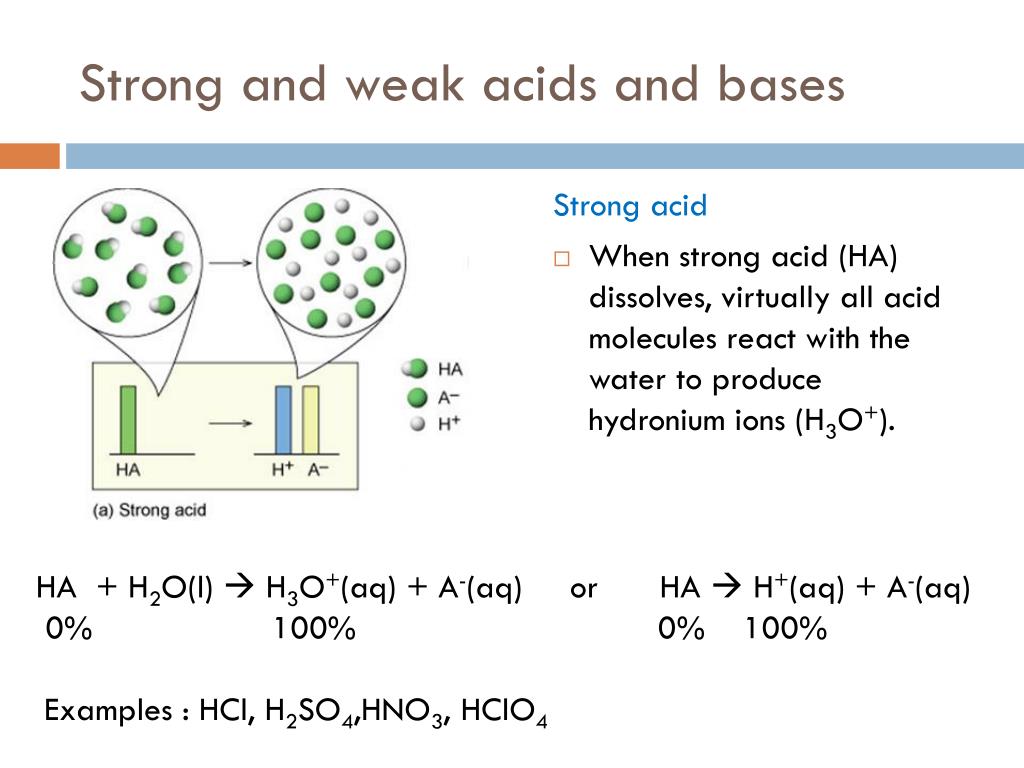

  27. Strong and weak acids and bases Strong acid • When strong acid (HA) dissolves, virtually all acid molecules react with the water to produce hydronium ions (H3O+). HA + H2O(l)  H3O+(aq) + A-(aq) or HA  H+(aq) + A-(aq) 0% 100% 0% 100% Examples : HCl, H2SO4,HNO3, HClO4

  28. Strong and weak acids and bases Weak acid • When a weak acid dissolves in water, only a small % of its molecules (typically 1%) react with water molecules to release hydrogen or hydronium ions. The equilibrium lies on the ________ side of the equation. left HA + H2O(l) H3O+(aq) + A-(aq) or HA H+(aq) + A-(aq) 99% 1% 99% 1% Examples : CH3COOH, aqueous carbon dioxide

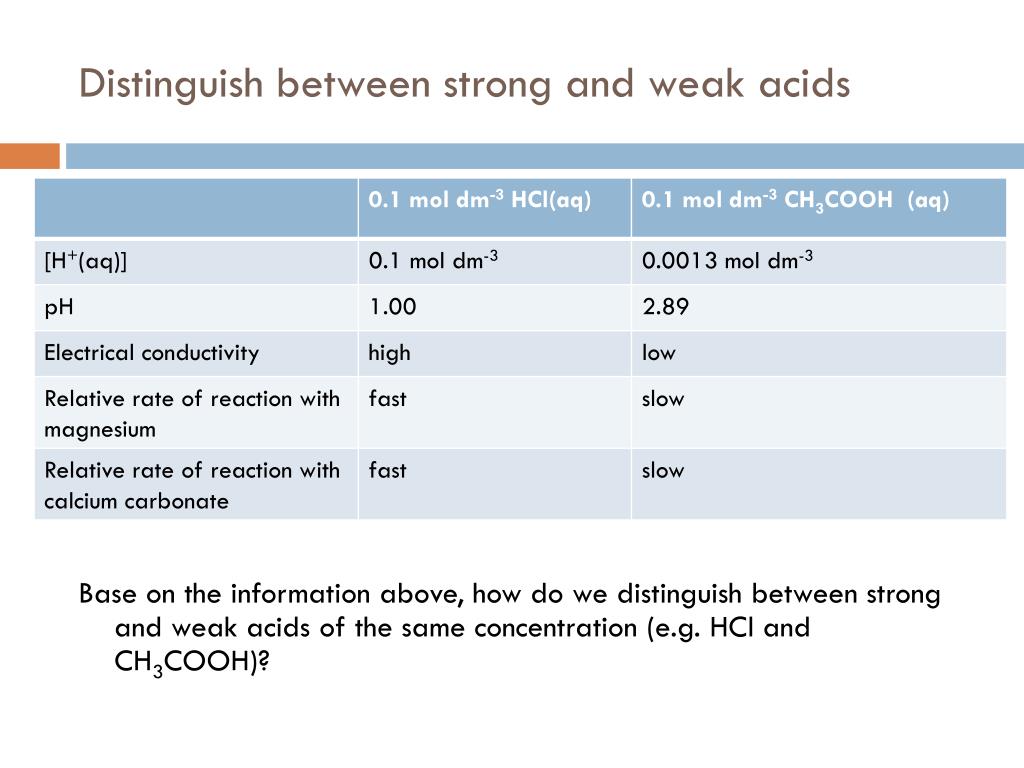

  29. Distinguish between strong and weak acids Base on the information above, how do we distinguish between strong and weak acids of the same concentration (e.g. HCl and CH3COOH)?

  30. How to distinguish between strong and weak acids? H+ • A weak acid has a lower concentration of ___ and hence a higher _____ than a stronger acid of the same concentration. • Due to the lower concentration of hydrogen ions, a weak acid has poorer ___________________ than a stronger acid of the same concentration (equimolar). • Weak acids react more _______ with reactive metals, metal oxides, metal carbonates and metal hydrogencarbonates than strong acids of the same concentration. • Strong and weak acids can also be distnguished by measuring and comparing their enthalpies of neutralisation. pH electrical conductivity slowly What is the difference between the strength (strong and weak) and the concentrated (concentrated or dilute)?

  31. Strong and weak acids and bases Strong base • A strong base undergoes almost 100% ____________________ when in dilute aqueous solution. dissociation / ionisation BOH  B+(aq) + OH-(aq) 0% 100% Examples : NaOH, KOH, Ba(OH)2

  32. Strong and weak acids and bases Weak base • All bases are weak except the hydroxides of groups _______ in the Periodic Table. • In general for a weak molecular base, BOH • The equiibrium lies on the _____ side of the equation. 1 and 2 BOH + (aq) B+(aq) + OH-(aq) left Examples : aqueous ammonia, ethylamine, caffeine, bases of nuclei acids

  33. The pH (power of hydrogen) indicator strength • scale that measures the ________ of an acid and alkali. • pH of a substance is measured when it is dissolved in water. • [H+] = 1 x 10-n moldm-3 ( n = pH number)

  34. The pH Scale

  35. pH probe and meter An accurate method of measuring pH value. A pH probe is dipped into the solution being tested and the pH value is then read directly from the meter.

  36. pH Calculation • pH is a measure of the concentration of H+ ions in a solution. • pH = -log10[H+(aq)] Example: If the concentration of H+ is (a) 1.0 x 10-3 moldm-3 (b) 1.0 x 10-2 moldm-3 (c) 2.50 x 10-3 moldm-3 , what is the pH? Compare (a) & (b) 2.60

  37. Example: Calculate the concentration of H+ of a solution that has a pH = 3.2. 6.31 x 10-4

  38. Example: Calculate the concentration of H+ and hence the pH of a 1.00 x 10-3 moldm-3 NaOH

  39. Example: • (a) What is the pH of 10cm3 of 0.1 moldm-3 HCl? (b) If 90cm3 of water is added to the acid, what happens to the pH? • (c) If the solution from (b) is diluted by a factor of 105 , what is the approximate pH? [(a)1,(b)2,(c)7]

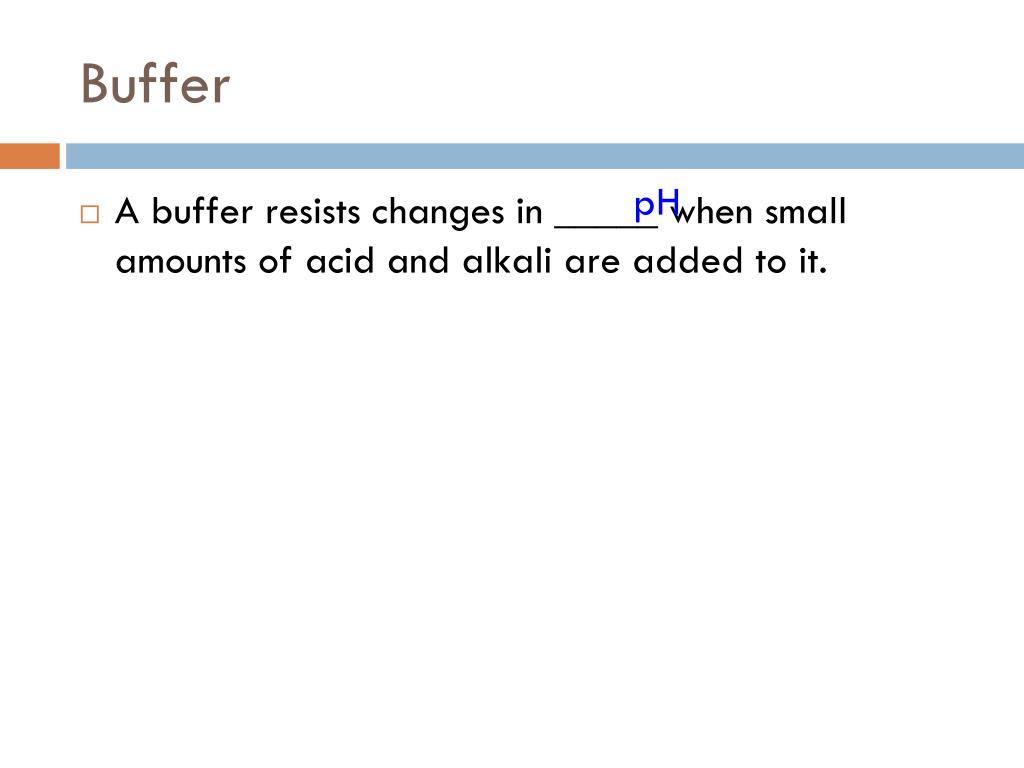

  40. Buffer pH • A buffer resists changes in _____ when small amounts of acid and alkali are added to it.

  41. Acidic Buffer • An acidic buffer solution can be made by mixing a weak ______ together with the _______ of the weak acid and a strong _______. (1) CH3COOH(aq) H +(aq) + CH3COO-(aq) (2) CH3COONa(aq) Na+(aq) + CH3COO-(aq) acid salt base

  42. Acidic Buffer • If an acid is added, the extra H+ from the acid react with the excess ethanoate ions in (2) and are _________ from the solution as ethanoic acid molecules (these have no effect on the pH). Hence the pH stays the same. CH3COO-(aq) + H +(aq) CH3COOH(aq) removed new

  43. Acidic Buffer • If an alkali is added, the OH- from the alkali react with the ________ions from (1) removing them from the right hand side. There is, however, a large reservoir of ethanoic acid on the left hand side of this equilibrium able to dissociate and make more hydrogen ions, restoring the pH. CH3COOH(aq)+OH-(aq) CH3COO-(aq)+H2O(l) hydrogen

  44. Alkali Buffer • An alkali buffer with a fixed pH greater than 7 can be made from a weak base together with the salt of the base with a strong acid. • E.g. Ammonia and ammonium chloride NH4Cl(aq)  NH4+(aq) +Cl-(aq) NH3(aq) + H2O(l) NH4+(aq) + OH-(aq)

  45. Alkali Buffer (1) NH4Cl(aq)  NH4+(aq) +Cl-(aq) (2) NH3(aq) + H2O(l) NH4+(aq) + OH-(aq) If H+ ions are added they will combine with _____ (from 2) to form water and more of the ammonia will dissociate to replace them Adding more OH- ions that can react with the free ____(from 1) producing more ammonia (as in 2) and effectively being removed from the system. The ammonia molecules have no effect on ____ an therefore the pH remains the same. In both cases, the hydroxide ion concentration and the hydrogen ion concentration remain constant. OH- NH+ pH
