Optimization of X-Axis Sweep for Full Adder Critical Path Analysis

This study focuses on the X-axis sweep measurements, utilizing 20 points to analyze the critical path of a full adder circuit within an inverter load scenario. By systematically evaluating the transfer characteristics influenced by varying X-axis parameters, we can delineate the optimal configurations for enhancing performance. The outcome aims to define the critical path defined by inputs (a, b, cin) and pinpoint the interdependencies that affect speed and efficiency, ultimately contributing to the design of more effective digital circuits.

megara
Télécharger la présentation

Optimization of X-Axis Sweep for Full Adder Critical Path Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INVERTER LOAD

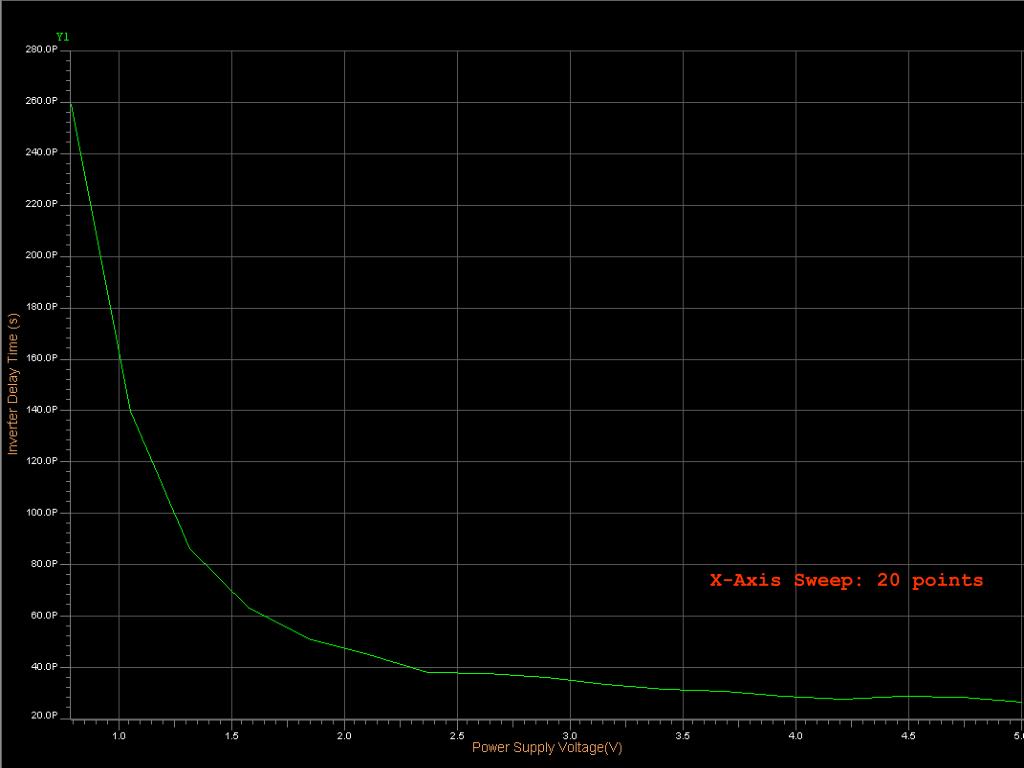

  2. X-Axis Sweep: 20 points

  3. X-Axis Sweep: 20 points

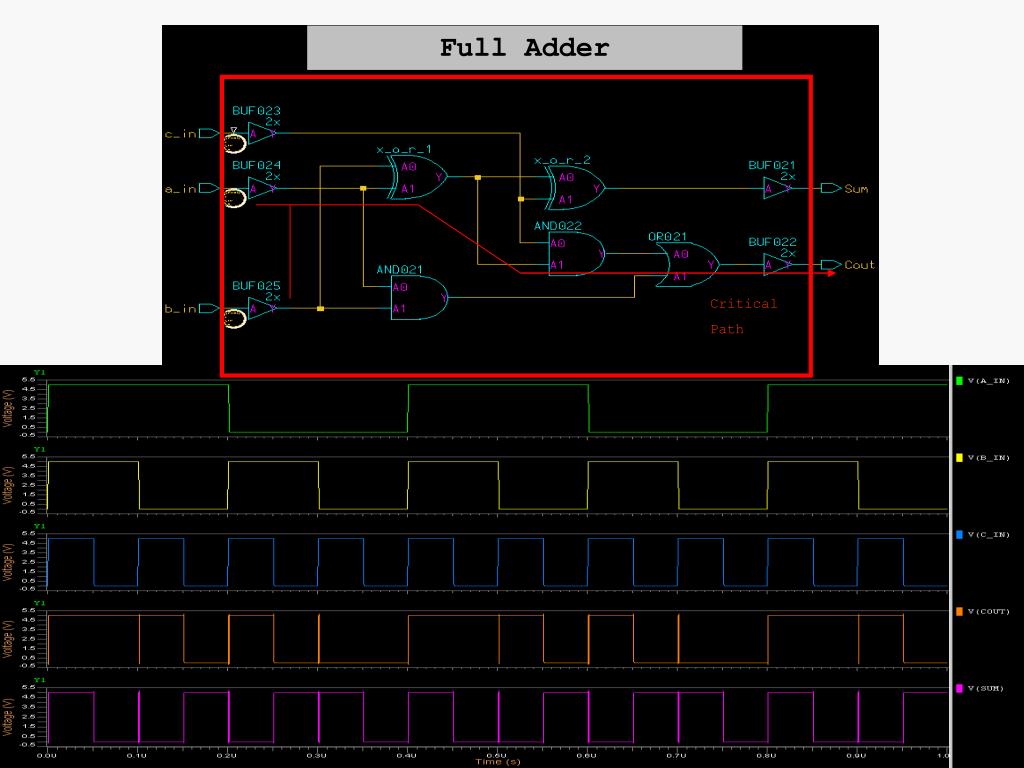

  4. Full Adder Critical Path

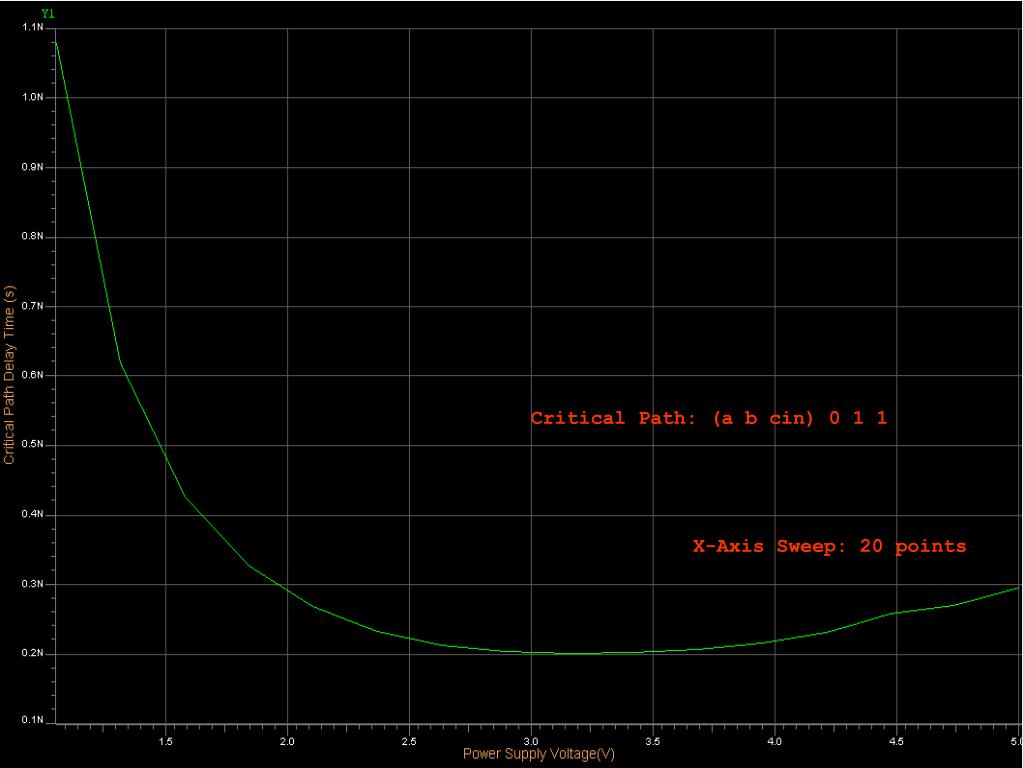

  5. Critical Path: (a b cin) 0 1 1 X-Axis Sweep: 20 points
