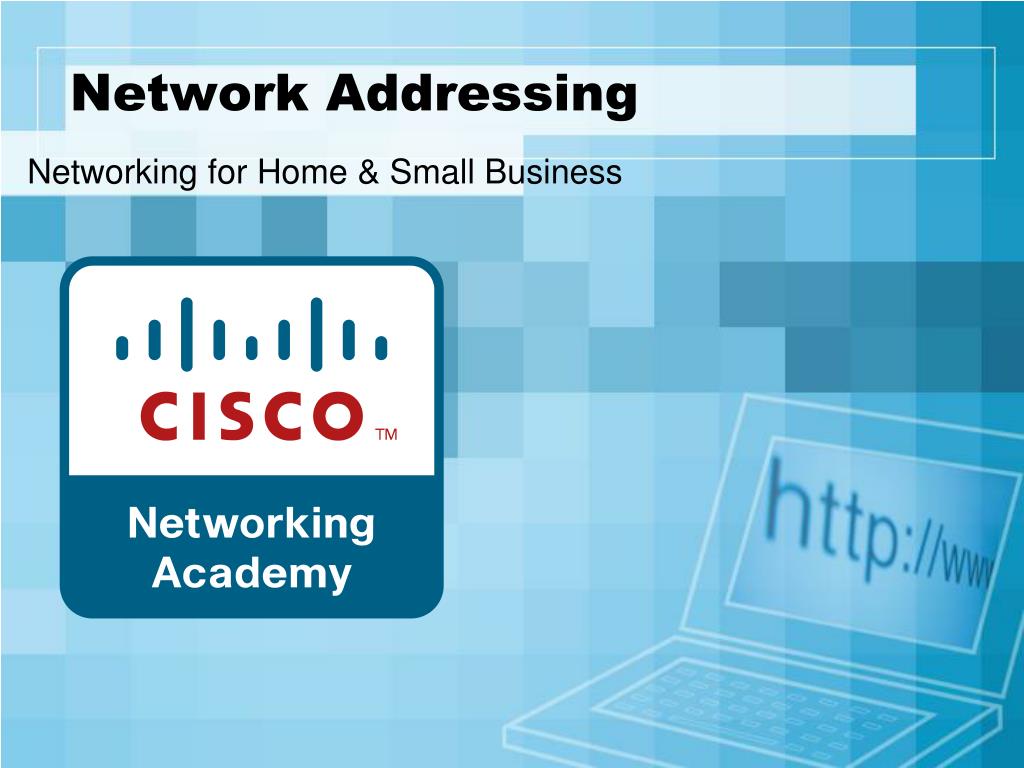

  1. Network Addressing Networking for Home & Small Business

  2. Objectives

  3. IP Addresses & Subnet Masks

  4. Purpose of an IP Address • Each host needs IP to communicate • Assigned to the NIC • Computers, network printer, router interfaces • Remember • Packet has source & destination IP

  5. Everything is IP

  6. IP Address Facts • Logical (not physical like MAC) • IPv4 • 32 bits, 4 octets • 8 bits in each octet • 11111111.10101010.11001100.00100101 • Written in decimal • 192.101.28.36 • Value in each octet from 0-255 • That’s a total of 256 numbers.

  7. Convert binary to decimal • Add up the values of the binary 1’s • 128 64 32 16 8 4 2 1 • 1 0 0 1 1 1 0 0 • 156 • 11100101 • 229

  8. Binary/Decimal Conversions • How to Do Conversions Handout • Binary & Decimal Conversions Practice • Binary Game in Curriculum

  9. Parts of an IP Address • Network portion • Identifies network to the router • Router cares about this part • Host portion • Identifies the specific host • Router doesn’t care about this part • 192.175.36.9

  10. Activity

  11. IP & Subnet Mask • Subnet Mask • Helps router decide which network packet is on • Helps show which part of IP is network & host • 32 bits • 192.168.6.5 255.255.255.0 • Binary 1’s - ID the network portion • Binary 0’s - ID the host portion

  12. What network are these on?ANDing

  13. ANDing- What network? • 199.81.210.17 • 255.255.255.240 • What network does this belong to?

  14. How many hosts- Unsubnetted? • SM helps tells us how many hosts are on that network • 255.255.255.0 • Binary 0= identifies # of hosts on that network • 28=256 • Subtract 2 for useable number • Unusable: • 00000000 (.0) is the network ID • 11111111 (.255) is the broadcast address for a network • Total Useable is 254

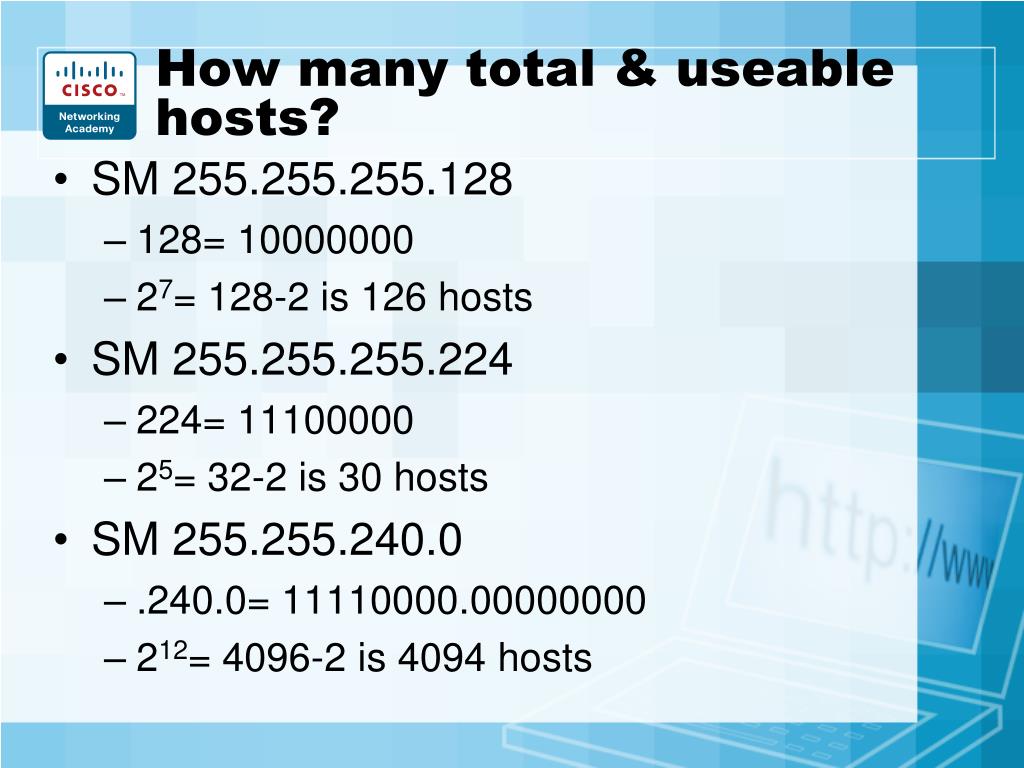

  15. How many total & useable hosts? • SM 255.255.255.128 • 128= 10000000 • 27= 128-2 is 126 hosts • SM 255.255.255.224 • 224= 11100000 • 25= 32-2 is 30 hosts • SM 255.255.240.0 • .240.0= 11110000.00000000 • 212= 4096-2 is 4094 hosts

  16. Figure It Out • One PC is 192.168.18.107 255.255.255.0 • What is network does it belong to? • How many useable hosts? • Give PC’s addresses.

  17. Binary/Dec/Hex • Hex= MAC address • 0-9, A-F (10-15) • AB

  18. Handout & Lab • 5.1.4 Lab (No Calculator) • Homework- Decimal/Hex/Binary Conversion

  19. Review • Which version IP addresses are we dealing with? • IPv4 • How many bits in an IP address? • 32 • How many octets in an IP address? • 4 • Which part of this address is the host portion? 199.81.71.6 • 6

  20. Review • Which network does this belong on? 201.14.6.5 255.255.255.0 • 201.14.6.0 network • How many total hosts can be on that network? Useable? • 256 • 254, why?

  21. Types of IP Addresses

  22. IP Classes & Default SM • Class A • Large organizations • 1-127 • Default SM= 255.0.0.0 • One octet for network, 3 octets for hosts • How many hosts available? • 224= over 16 million • 10.52.33.7 • N.H.H.H • 255.0.0.0 • 120.111.99.87

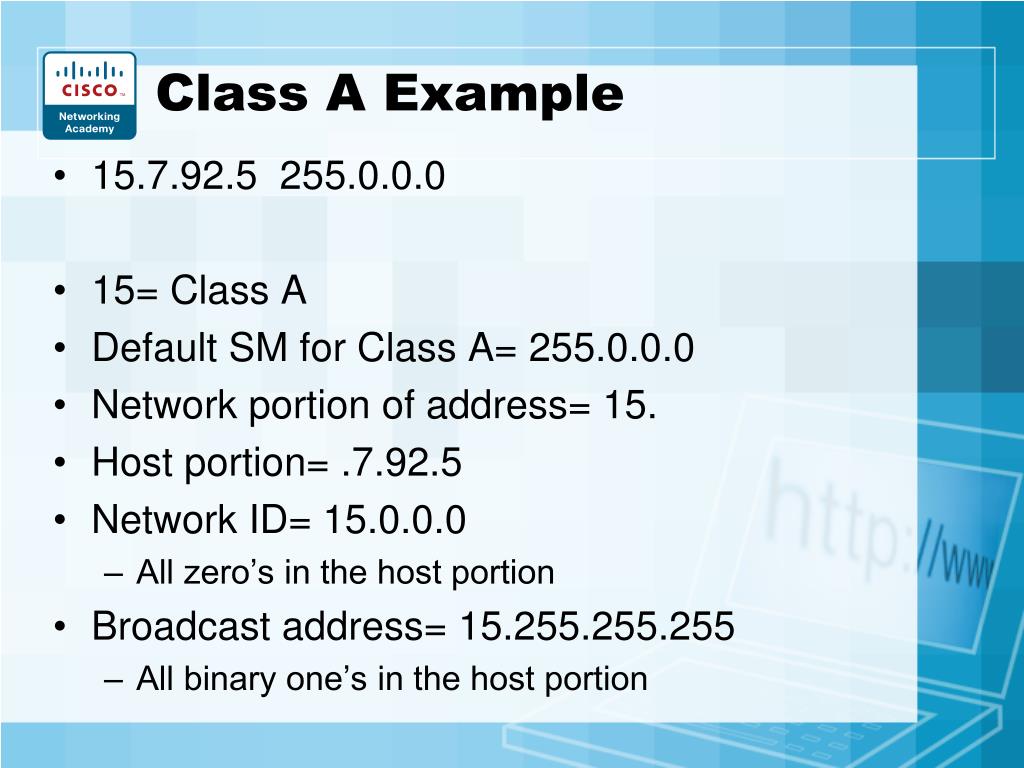

  23. Class A Example • 15.7.92.5 255.0.0.0 • 15= Class A • Default SM for Class A= 255.0.0.0 • Network portion of address= 15. • Host portion= .7.92.5 • Network ID= 15.0.0.0 • All zero’s in the host portion • Broadcast address= 15.255.255.255 • All binary one’s in the host portion

  24. IP Classes & Default SM • Class B • Medium organizations • 128-191 • Default SM= 255.255.0.0 • Two octets for network, 2 octets for hosts • How many hosts available? • 216= over 65,000 • 130.52.33.7 • N.N.H.H • 255.255.0.0 • 185.111.99.87

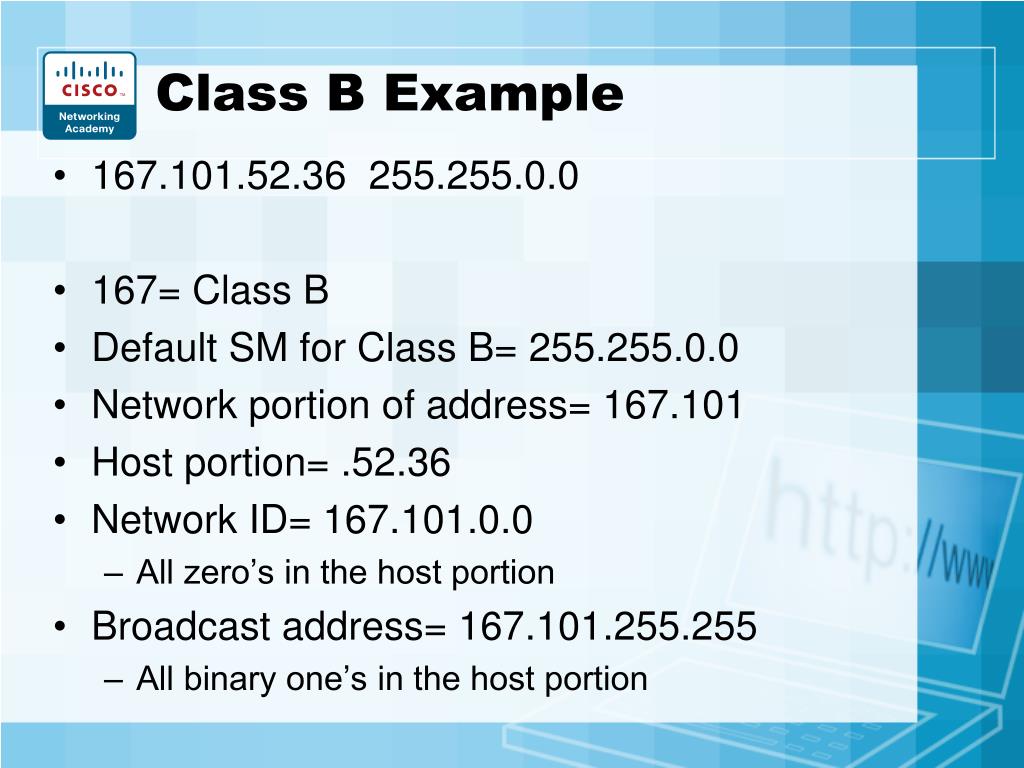

  25. Class B Example • 167.101.52.36 255.255.0.0 • 167= Class B • Default SM for Class B= 255.255.0.0 • Network portion of address= 167.101 • Host portion= .52.36 • Network ID= 167.101.0.0 • All zero’s in the host portion • Broadcast address= 167.101.255.255 • All binary one’s in the host portion

  26. IP Classes & Default SM • Class C • Small organizations • 192-223 • Default SM= 255.255.255.0 • Three octets for network, 1 octet for hosts • How many hosts available? • 28= 256-2 (254 useable) • 199.52.33.7 • N.N.N.H • 255.255.255.0 • 220.111.99.87

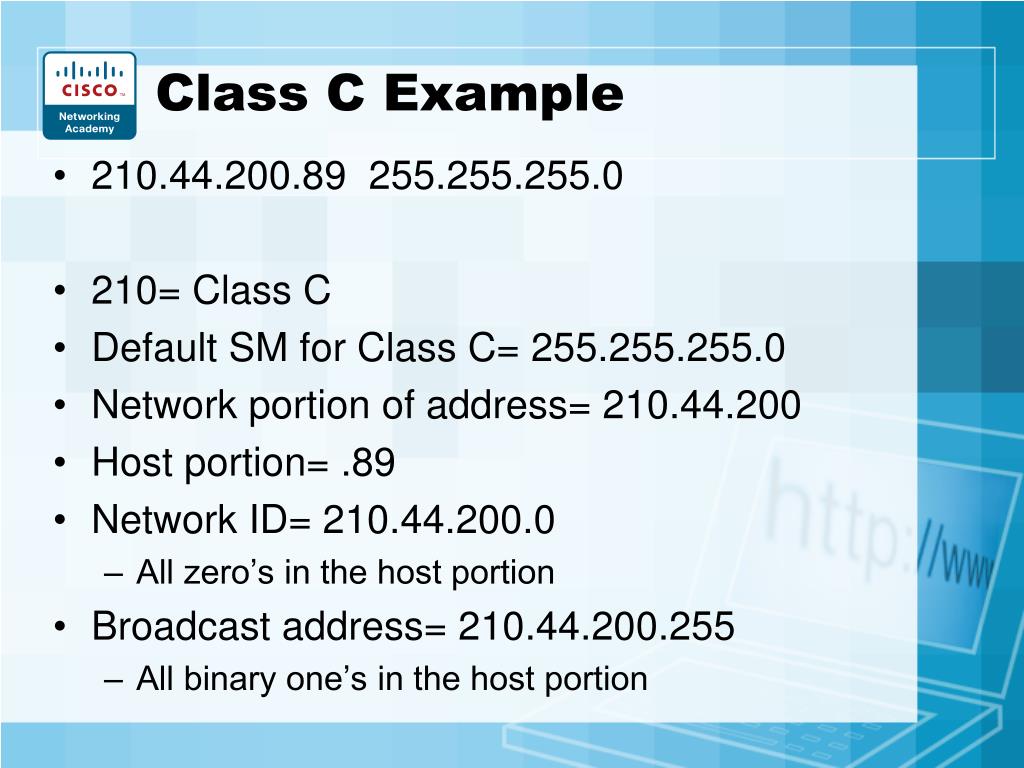

  27. Class C Example • 210.44.200.89 255.255.255.0 • 210= Class C • Default SM for Class C= 255.255.255.0 • Network portion of address= 210.44.200 • Host portion= .89 • Network ID= 210.44.200.0 • All zero’s in the host portion • Broadcast address= 210.44.200.255 • All binary one’s in the host portion

  28. Other IP Classes & More • Class D & E not for commercial use • D is multicast (one to a group) • 224.0.0.0- 239.255.255.255 • All 0’s in host portion(s) = network ID • All 1’s in host portion(s)= broadcast • CAN NOT USE THOSE FOR HOSTS! • Activity on 5.2.1

  29. IP Cheat Sheet

  30. Handouts • Lots of Practice!

  31. Public/Private IP’s • Some addresses are reserved & can not be routed across Internet • You can have a public IP for network/servers & private for hosts inside • Saves IP addresses

  32. Private IP’s • If host does not connect DIRECTLY to Internet, it can have a private IP • Router BLOCKS private IP’s • Security!!! • Private IP’s can not be seen from Internet • 127.0.0.0 range is reserved for loopback testing

  33. Private Nets- 5.2.2 Activity

  34. Unicast Communication • One-to-one or Source to destination

  35. Broadcast Communication • One-to-all or Source to all in segment • All hosts will look at it • All 1’s in host portion(s) of address • Broadcast IP & MAC • Default Broadcasts • A- 10.255.255.255 255.0.0.0 • B- 172.16.255.255 255.255.0.0 • C- 192.168.1.255 255.255.255.0

  36. Broadcast Communication

  37. Multicast Communication • One-to-group • Class D 224.0.0.0- 239.255.255.255 • Multicast MAC begins with 01-00-5E • Where is it used? • Gaming • Distance learning

  38. Multicast Communication

  39. Which one? • Unicast • Multicast • Broadcast

  40. Activity & Handout • 5.2.3.4 • Handout • DOS • Netstat –e • Do this every 10 seconds • Pay attention to non-unicast packets

  41. Review • 160.50.23.6 255.255.0.0; What network is this on? • 160.50.0.0 • Which default SM has the most hosts? • Class A 255.0.0.0 • Over 16 million! • How many useable hosts in a Class C? • 254 • 220.101.5.90 255.255.255.0; What network is this on? • 220.101.5.0

  42. Review • What are the private IP addresses? • 10, 172.16-172.31, 192.168. • What is the MAC broadcast frame in hex? • FF-FF-FF-FF-FF-FF • What is the MAC for a multicast? • 01-00-5E • One to one communication is… • Unicast • To send a unicast message, which addresses do you need? • Source & dest. IP & MAC

  43. How IP Addresses Are Obtained

  44. Assigning IP Addresses • Static • Manually type in IP Address • Good for printers or servers • Devices people access all the time • You wouldn’t want their address changing! • Good documentation!!!!

  45. Assigning IP Addresses • Dynamic • Assigned auto by DHCP server • Assigns IP, SM, DG, more • Good for larger networks or with mobile/new devices • Leased addresses

  46. Assigning IP Addresses • Admins have a pool of IP addresses • DHCP assigns from the pool • SOHO routers usually have DHCP • Medical field- • Legal requirement • Must track who is on machine • DHCP server assigns & keeps log of users

  47. DHCP Servers • How you get on the net in a hotel, Starbucks, or BK • Either dedicated server or mixed in another device • From ISP or on your ISR

  48. How DHCP Works

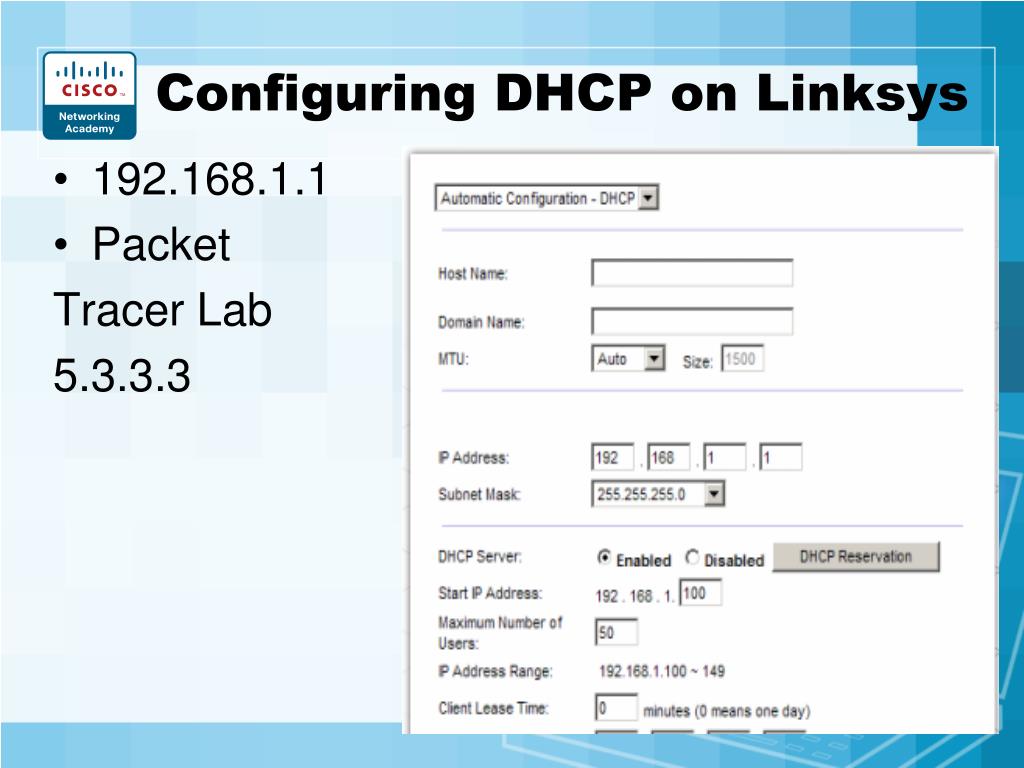

  49. Configuring DHCP on Linksys • 192.168.1.1 • Packet Tracer Lab 5.3.3.3

  50. Review • Which addresses does a host use to discover a DHCP server? • 255.255.255.255 • FF-FF-FF-FF-FF-FF • Who sees that? Who responds? • All on the segment • The DHCP server • What happens to a PC’s IP when you shut down? • Goes back to the DHCP pool of addresses
