Presentation Transcript

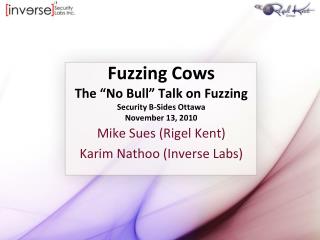

  1. Fuzzing CowsThe “No Bull” Talk on FuzzingSecurity B-Sides OttawaNovember 13, 2010 Mike Sues (Rigel Kent) Karim Nathoo (Inverse Labs)

  2. Objectives • We can’t cover fuzzing in-depth in 50 minutes • Raise awareness of fuzzing as an option in higher assurance/product evaluations/more focused assessments • Go over challenges/experiences from the field • Provide real examples • Get you thinking about how you can start fuzzing • Expose the scan monkey • Collect free chicken wings honorarium

  3. What’s With The Title An inside joke that went wrong It is Mike’s fault

  4. WTF is Fuzzing • Pass malicious input to interfaces • Interfaces to target are attacker accessible ones (either direct or indirect) • Detect anomalous conditions that might be exploitable • Usually there is some form of automation • All the kewl people are doing it

  5. Fuzzing History • Manual & custom scripts • Unintelligent • i.e. cat /dev/random | service to 0wn • It worked! • A bit more intelligent • Modeling protocols • Block-based modeling • Frameworks

  6. Fuzzing History • Tool integration • Inline fuzzing • Fuzzing and root cause analysis • Process stalking • Fuzzing and code coverage • Commercialization • Fuzzing support • Reverse engineering of protocols and code

  7. Limits of the Scan Monkey • The Scan Monkey uses nmap and Nessus without discrimination in a failed attempt at world domination • Good Stuff: • Tools determine presence of known vulnerabilities • Audit configurations • Verify patches • Highly automatable • You can get co-op students to do this • For some situations this is perfectly fine (low assurance environments, operational audits, time constrained etc.) • Co-op students will work for Twizzlers • Bad Stuff: • For new technologies, Scan Monkey tools don’t have signatures • Aside from getting lucky on occasion, effectiveness limited for product or new technology evaluation • It is boring, contributions to the human condition are limited

  8. When to Fuzz • New product/technology • Old product but a high level of assurance is required • Internal QA as part of SDLC if you are a product vendor • If you are a bug hunter • If you don’t really have a lot going on in your life

  9. When Not to Fuzz • If you actually have a life • When you’re testing systems/products in production • THIS IS NOT A VULNERABILITY ASSESSMENT!!

  10. Different Types of Fuzzing • Network • Server perspective (example: fuzz web server) • Client perspective (example: fuzz web browser) • Protocol (example: fuzz IPv6 stack) • Local • File format • API • Driver

  11. Different Types of Fuzzing • Wireless • 802.11x • Bluetooth • IR • Zigbee • RFID

  12. Generating Payloads/Tests • Generation Based • Reverse engineer, • Protocol • API • Field encoding • MIME/BER … • Manually • Your brain and many test communications • Wireshark • Strace • Time-intensive

  13. Generating Payloads/Tests • Generation Based • Semi-automatic protocol analysis • Proprietary and open protocols • Open protocols still have grey areas • Analyze or proxy network communications • Wireshark • Research & tools • Discoverer • PI (Protocol Informatics) • PDB (Protocol Debugger)

  14. Generating Payloads/Tests • Generation Based • Modeling input to generate test cases in their entirety • Block-based modeling s_string ("USER "); s_string_variable("bob"); s_string("\r\n"); s_string("PASS "); s_string_variable("bob"); s_string("\r\n");

  15. Generating Payloads/Tests • Mutation Based • Use existing valid payload and perturb it • Re-writing proxy • PDB (Protocol Debugger) • Taof (The Art of Fuzzing) • Modify stock client if you have source code (ex: openSSL)

  16. Target Observability and Traceability • Need to be able to observe anomalies as the target is being stressed • Not only detect an anomalous condition/state but CORRELATE to test case • Absolutely key to effective fuzzing • If you do it wrong you will waste lots of time and FAIL

  17. Methods for Target Observability • Process monitoring (Debugger) • Usually the best way • Network Heartbeats • Log Files • Test Case Timing

  18. Beware the State Machine • If you don’t setup protocols properly, all you do is fuzz the crap out of the error state • perl –e ‘print “A” x 41’ is not always enough • You may also just fuzz decoder code • MIME/BER encoded fields

  19. Beware the State Machine

  20. Fuzzing Work Flow • Rough methodology, • Reverse/research target • Prioritize areas/inputs to stress • Code coverage • Model inputs • Create test cases • Automate • Analyze results • Root cause analysis • Determine exploitability • Develop proof of concept/full exploit • Iterate!

  21. Prioritizing • Fuzzing takes a long time, might not be able to cover everything within engagement scope • Lots of ways to approach, lots of tradeoffs • Obscure versus common functionality (commercial development experience teaches not everything is QA’d) • Level of access (ex: kernel mode versus user mode) • May be trade off in terms of level of access or probability of finding a bug versus affected user base (ex: bug in IE versus Safari)

  22. Prioritizing Cont’d • Embedded RTOS as an example: • Servers – probably best vendor coverage • Setuid programs - privilege escalation • Regular user programs -limited privileges • Drivers – very target specific • System call API – might find bug that is not attacker accessible

  23. Root Cause Analysis Challenges • Difficulties: • Black box: all you have is raw crash data and assembly code • Bug could be triggered before it becomes apparent using fault detection technique, examples: • simple stack based overflow triggered early in function but not raise exception till function return. • heap overflow: corrupted memory location might not be used until well after function return, making it even harder • Analyst needs knowledge of different vulnerability classes (stack overflows, heap overflows, integer overflows, format string, etc.) to do thorough RCA

  24. Network Fuzzing Challenges • Binary protocols • Checksums/verifiers, state machine challenges • Closed systems (appliances) • Limited debug support • Target side instrumentation difficult or impossible • Multi-threaded/multi-process servers • Test case throughput limited by network

  25. Network Fuzzing Demo 1 • The traditional FTP server example

  26. Network Fuzzing Demo 1 • Summary: • State machine – needed to properly setup authenticated session to find vulnerability • Fault detection based on network heart beat works in this example • Correlating test case to exception avoids search space nightmare • Needed to switch to target debugger view to determine exact target state and exploitability • Exception is an access violation, fits pattern standard for stack based buffer overflows • Demonstrated how some analysis is required to get to root cause and formulate an exploit (quick) • It’s not always this easy :)

  27. Network Fuzzing Demo 2 • Physical security system • Found in field in a real assessment

  28. Network Fuzzing Demo 2 • Summary • Target observability – relying on a network heartbeat in this case would have resulted in missing the bug • Multiple threads • Server doesn’t crash when one thread generates exception • We need a debugger/ deployed agent in this case • Root Cause Analysis – does not appear exploitable for remote code exec, unhandled C++ exception with no opportunity to overwrite exception handler • We can DoS the crap out of the alarm system console and web server though :) • Amount of root cause analysis depends on target, in this case alarm DoS as interesting as remote code execution

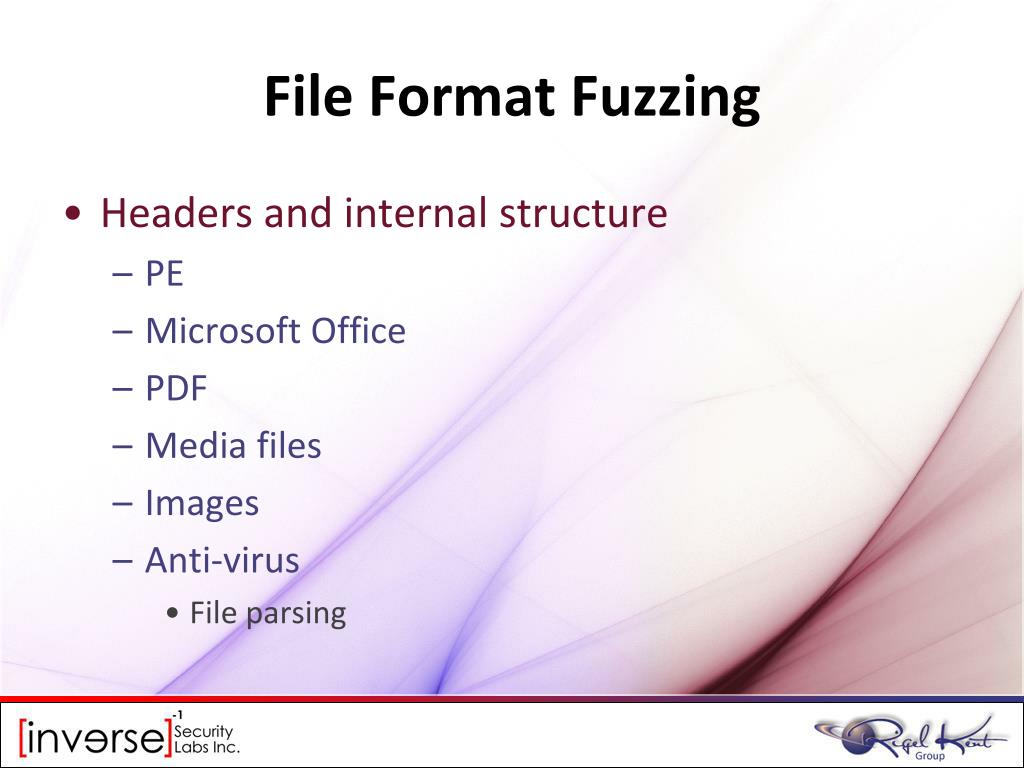

  29. File Format Fuzzing • Headers and internal structure • PE • Microsoft Office • PDF • Media files • Images • Anti-virus • File parsing

  30. File Format Fuzzing • Software reads and interprets these formats • Client or supporting library (e.g. image library) • Model input structure and fields • Launch client on fuzzed input file • Look for crash • Process monitoring • Integration of launch and detection in one tool

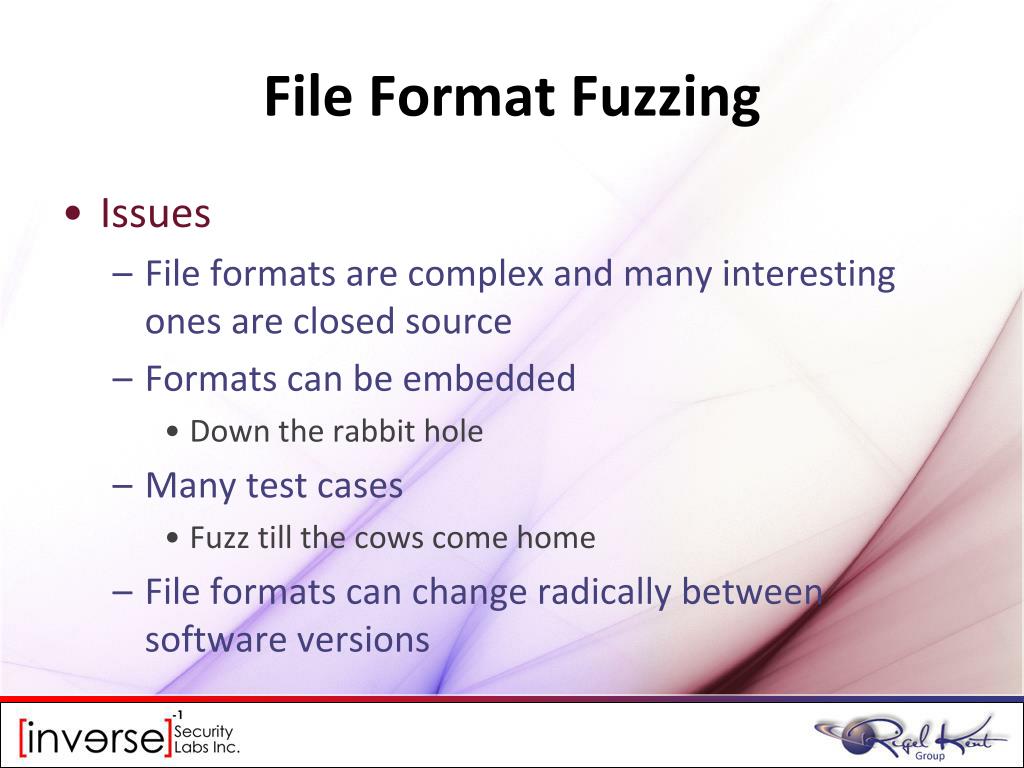

  31. File Format Fuzzing • Issues • File formats are complex and many interesting ones are closed source • Formats can be embedded • Down the rabbit hole • Many test cases • Fuzz till the cows come home • File formats can change radically between software versions

  32. File Format Fuzzing • Tools • FileFuzzer • FuzzyWuzzy • SPIKEfile • notSPIKEfile • Distributed fuzzing ….

  33. Client-side Fuzzing • Why do we like clients? • They pay my bills • They are fun to work with • They have interesting work • Exploiting them gets me right on an internal workstation • Mike is happy

  34. Client-side Fuzzing • Coordinated approach • Fuzzing server and test client • Fuzzing model resides on server • Client connects • Server delivers fuzzed input • Client goes boom

  35. Client-side Fuzzing • Issues • Server maintains state of fuzzing cases • Distributed fuzzing considerations • Maintaining state across clients • Client must be activated and pointed to fuzzing server • Detection of client crash • Process monitoring on client machine • Client or support library?

  36. Client-side Fuzzing • Issues • Complex client inputs • Client inputs • Support library inputs • Many test cases • Distributed fuzzing!

  37. Client-side Fuzzing • Tools • Peach • Sulley • Condenomicon • COM and ActiveX fuzzers

  38. Driver Fuzzing • Diving into Ring0 • Different approaches • Remote protocol fuzzing (e.g. stack fuzzing) • Local API fuzzing

  39. Driver Fuzzing • Local API fuzzing • User mode -> kernel mode • Privilege escalation • Important for multi stage attacks • Application specific • User land components • Driver components

  40. Driver Fuzzing • Issues • Identify the interface and inputs • Device name/Link • IOCTL • Header files • Reversing user-land components • Identifying a crash • Blue screen in Windows • Slow down testing

  41. Driver Fuzzing • Tools • Immunity Debugger • Driverlib • Discover driver names/links • pyCommand script • Proxy IOCTL calls • Mutation-based fuzzer • Direct fuzzing • Generation-based fuzzer • Kartoffel

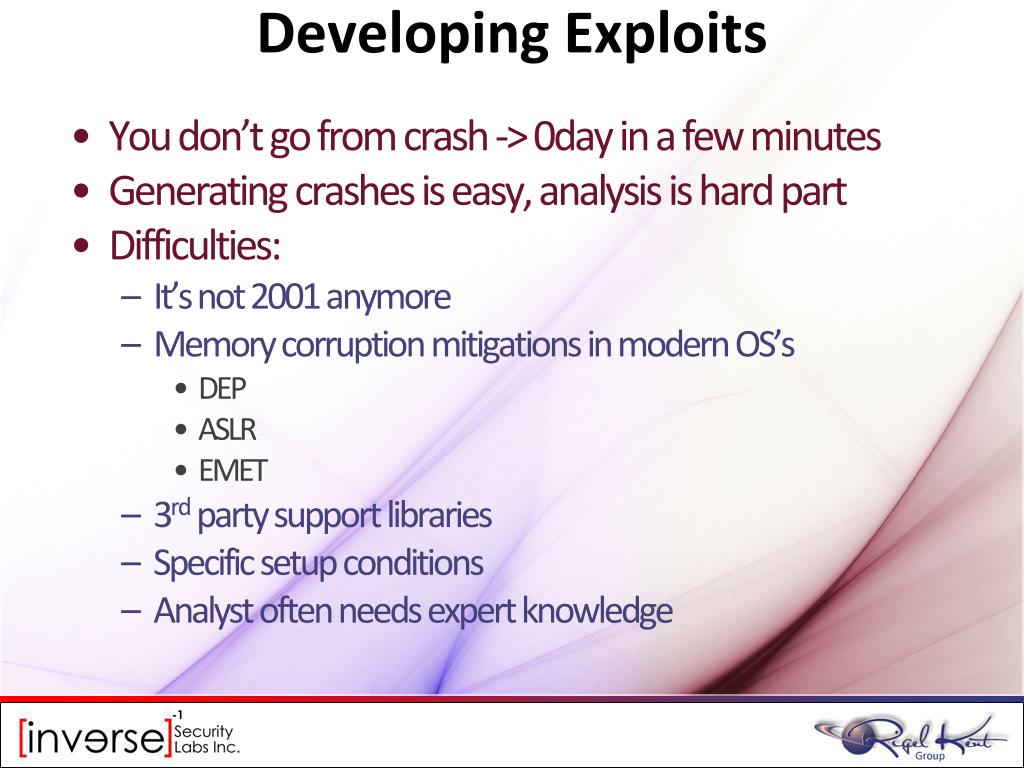

  42. Developing Exploits • You don’t go from crash -> 0day in a few minutes • Generating crashes is easy, analysis is hard part • Difficulties: • It’s not 2001 anymore • Memory corruption mitigations in modern OS’s • DEP • ASLR • EMET • 3rd party support libraries • Specific setup conditions • Analyst often needs expert knowledge

  43. Developing Exploits • Goal of engagement • Exploit development might not be in scope • Working with developers/vendor • Clients might not want to fund you to develop an exploit • Customers paying for gaps in vendor development practices? • Smells like a buck is being passed

  44. The Evolution of Cows • Driver fuzzing tools/techniques continuing to improve and becoming more accessible • Continued integration of fuzzers and RCA tools • File format fuzzing continuing to increase and a blurring of file-format and client-side fuzzing • More device fuzzing (e.g. smart device stuff) • Better automated tools for developing our models • Distributed fuzzing frameworks and tools

  45. Fuzzing Cows • Questions?

  46. Moo Mike Sues: msues@rigelksecurity.com www.rigelksecurity.com KarimNathoo: knathoo@inverselabs.com www.inverselabs.com
