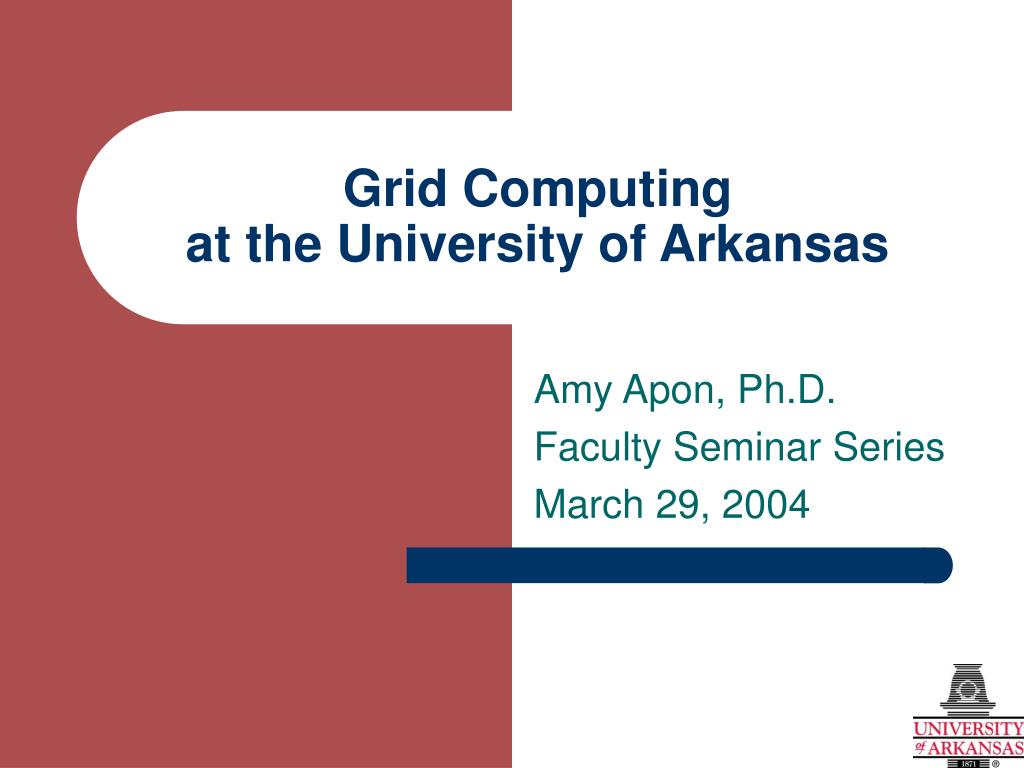

1. Grid Computing at the University of Arkansas Amy Apon, Ph.D. Faculty Seminar Series March 29, 2004

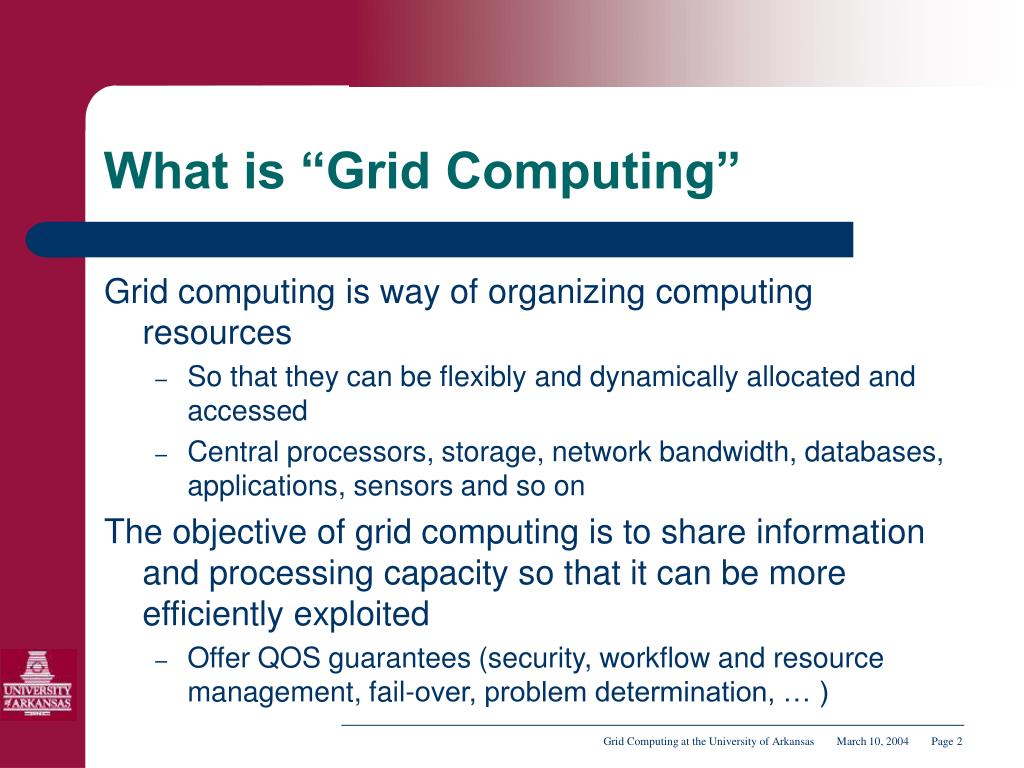

2. What is “Grid Computing” Grid computing is way of organizing computing resources • So that they can be flexibly and dynamically allocated and accessed • Central processors, storage, network bandwidth, databases, applications, sensors and so on The objective of grid computing is to share information and processing capacity so that it can be more efficiently exploited • Offer QOS guarantees (security, workflow and resource management, fail-over, problem determination, … ) Grid Computing at the University of Arkansas March 10, 2004 Page 2

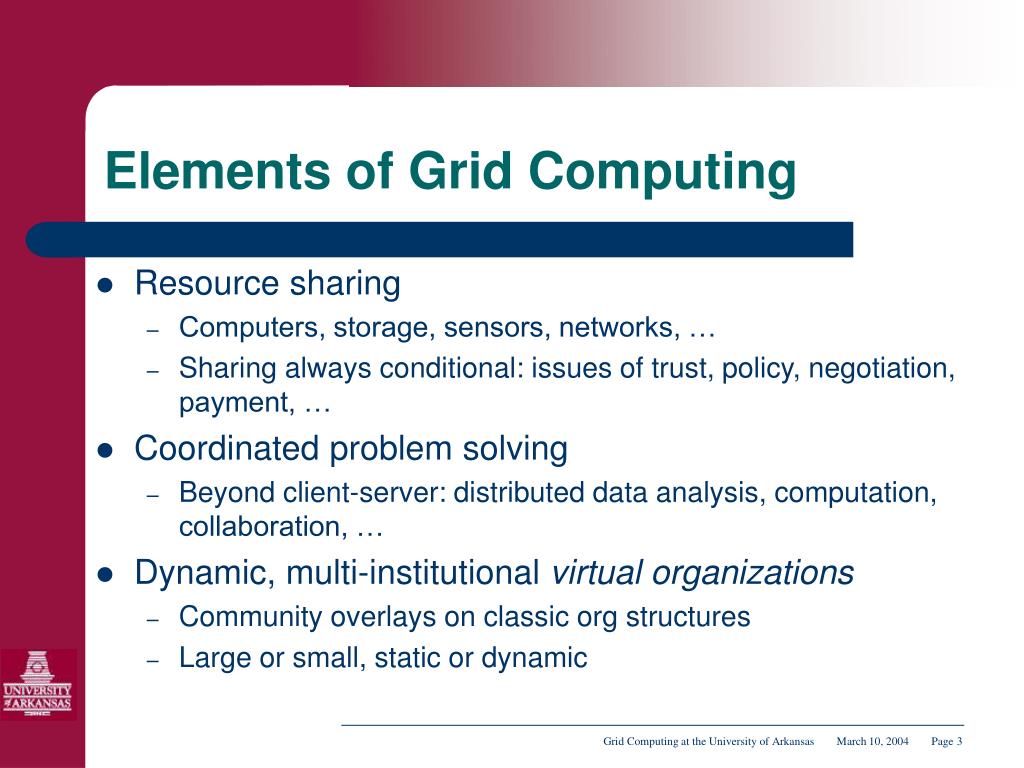

3. Elements of Grid Computing • Resource sharing • Computers, storage, sensors, networks, … • Sharing always conditional: issues of trust, policy, negotiation, payment, … • Coordinated problem solving • Beyond client-server: distributed data analysis, computation, collaboration, … • Dynamic, multi-institutional virtual organizations • Community overlays on classic org structures • Large or small, static or dynamic Grid Computing at the University of Arkansas March 10, 2004 Page 3

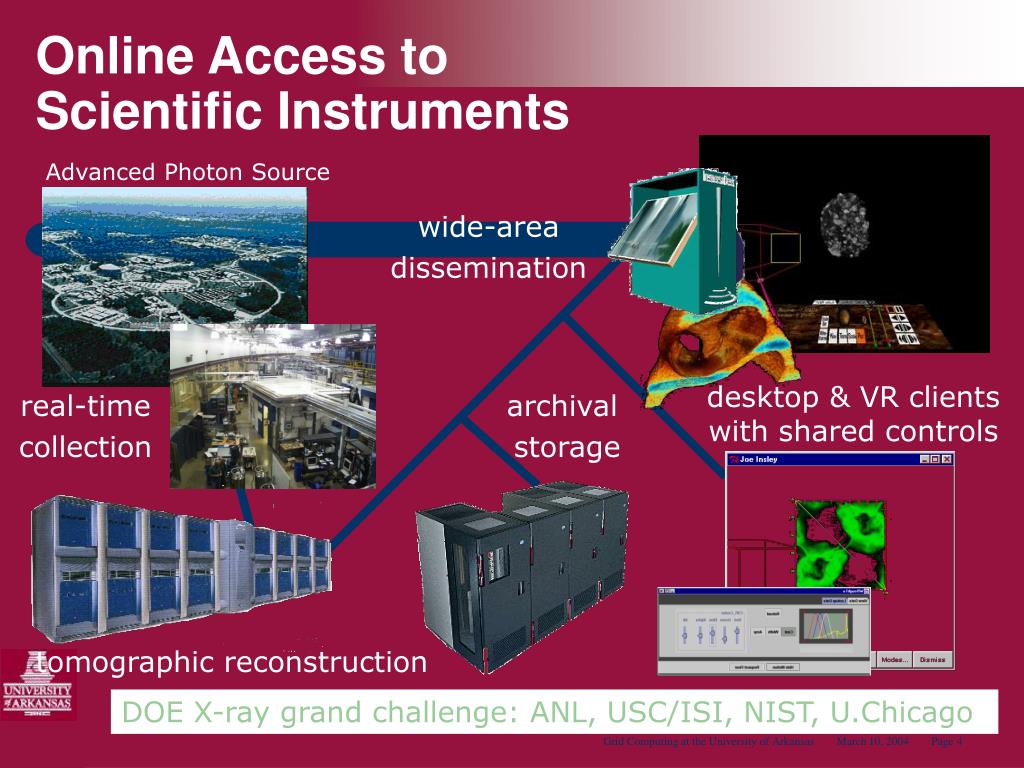

4. Online Access to Scientific Instruments Advanced Photon Source wide-area dissemination desktop & VR clients with shared controls real-time collection archival storage tomographic reconstruction DOE X-ray grand challenge: ANL, USC/ISI, NIST, U.Chicago Grid Computing at the University of Arkansas March 10, 2004 Page 4

5. ~PBytes/sec ~100 MBytes/sec Offline Processor Farm ~20 TIPS There is a “bunch crossing” every 25 nsecs. There are 100 “triggers” per second Each triggered event is ~1 MByte in size ~100 MBytes/sec Online System Tier 0 CERN Computer Centre ~622 Mbits/sec or Air Freight (deprecated) Tier 1 FermiLab ~4 TIPS France Regional Centre Germany Regional Centre Italy Regional Centre ~622 Mbits/sec Tier 2 Tier2 Centre ~1 TIPS Caltech ~1 TIPS Tier2 Centre ~1 TIPS Tier2 Centre ~1 TIPS Tier2 Centre ~1 TIPS HPSS HPSS HPSS HPSS HPSS ~622 Mbits/sec Institute ~0.25TIPS Institute Institute Institute Physics data cache ~1 MBytes/sec 1 TIPS is approximately 25,000 SpecInt95 equivalents Physicists work on analysis “channels”. Each institute will have ~10 physicists working on one or more channels; data for these channels should be cached by the institute server Pentium II 300 MHz Pentium II 300 MHz Pentium II 300 MHz Pentium II 300 MHz Tier 4 Physicist workstations Data Grids forHigh Energy Physics Image courtesy Harvey Newman, Caltech Grid Computing at the University of Arkansas March 10, 2004 Page 5

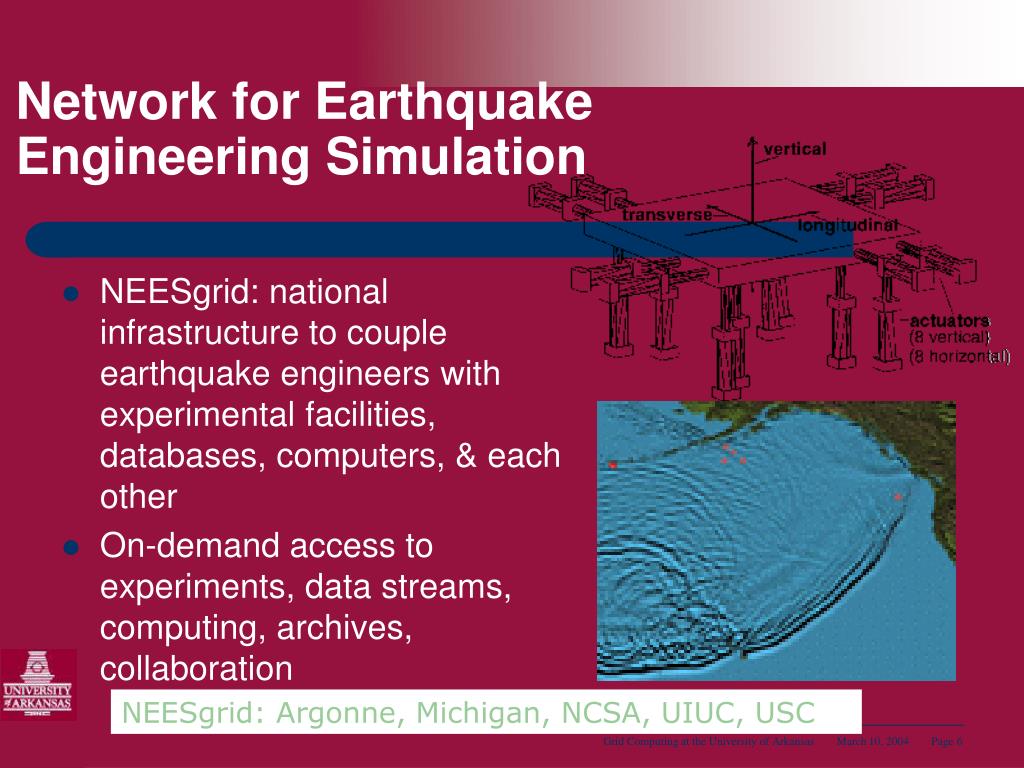

6. Network for EarthquakeEngineering Simulation • NEESgrid: national infrastructure to couple earthquake engineers with experimental facilities, databases, computers, & each other • On-demand access to experiments, data streams, computing, archives, collaboration NEESgrid: Argonne, Michigan, NCSA, UIUC, USC Grid Computing at the University of Arkansas March 10, 2004 Page 6

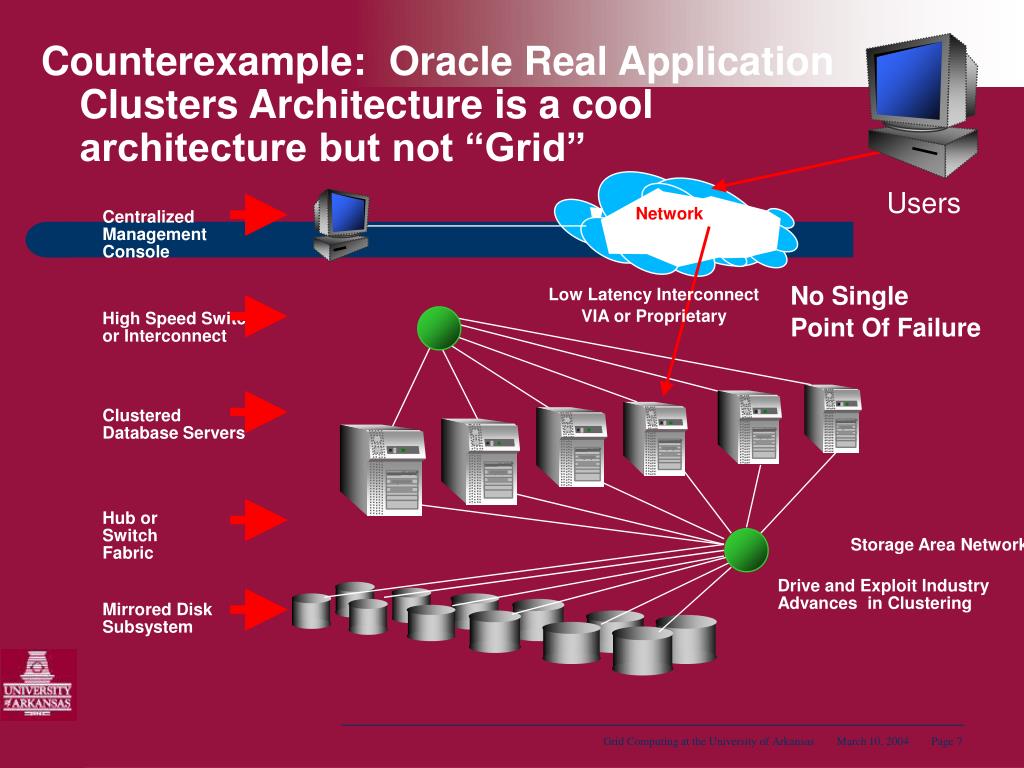

7. Counterexample: Oracle Real Application Clusters Architecture is a cool architecture but not “Grid” Users Network Centralized Management Console No Single Point Of Failure Low Latency Interconnect VIA or Proprietary High Speed Switch or Interconnect ClusteredDatabase Servers Hub or Switch Fabric Storage Area Network Drive and Exploit Industry Advances in Clustering Mirrored Disk Subsystem Grid Computing at the University of Arkansas March 10, 2004 Page 7

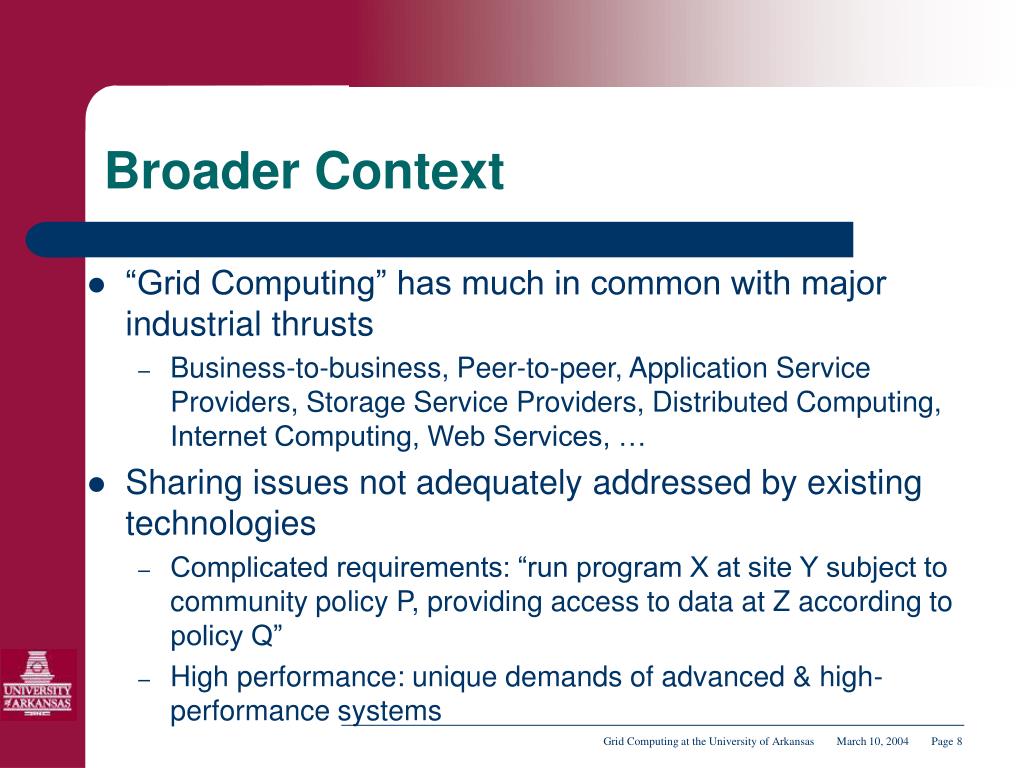

8. Broader Context • “Grid Computing” has much in common with major industrial thrusts • Business-to-business, Peer-to-peer, Application Service Providers, Storage Service Providers, Distributed Computing, Internet Computing, Web Services, … • Sharing issues not adequately addressed by existing technologies • Complicated requirements: “run program X at site Y subject to community policy P, providing access to data at Z according to policy Q” • High performance: unique demands of advanced & high-performance systems Grid Computing at the University of Arkansas March 10, 2004 Page 8

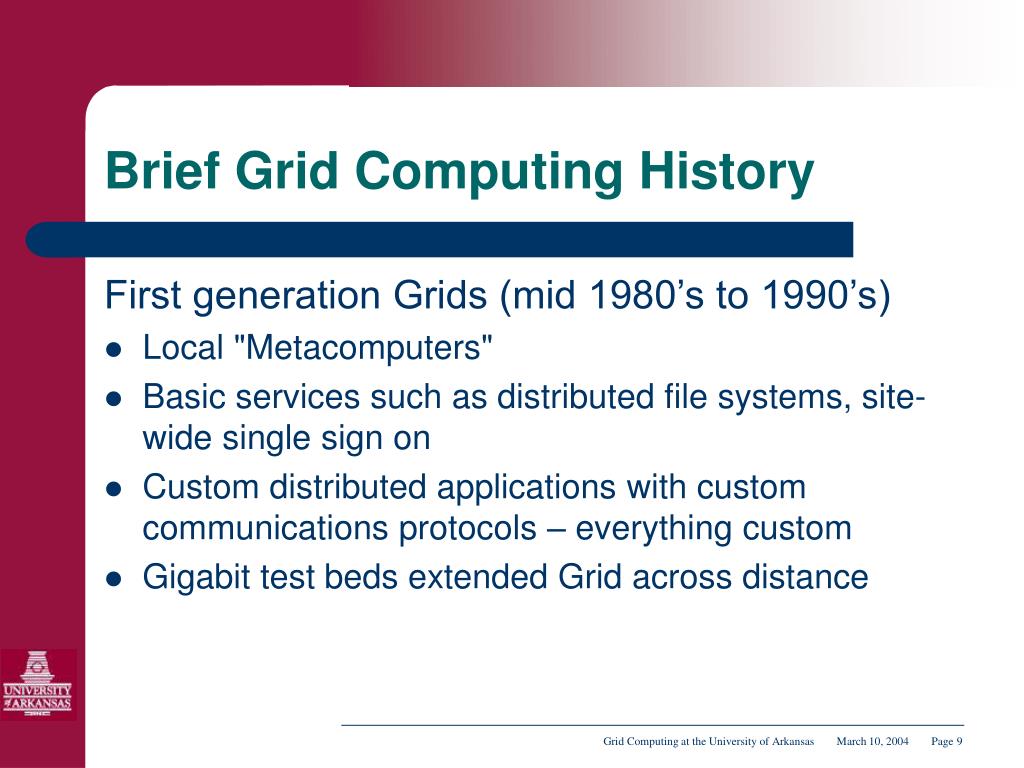

9. Brief Grid Computing History First generation Grids (mid 1980’s to 1990’s) • Local "Metacomputers" • Basic services such as distributed file systems, site-wide single sign on • Custom distributed applications with custom communications protocols – everything custom • Gigabit test beds extended Grid across distance Grid Computing at the University of Arkansas March 10, 2004 Page 9

10. Brief Grid Computing History Second generation Grids (late 1990’s to now) • Condor, I-WAY (the origin of Globus) and Legion (origin of Avaki) • Underlying software services and communications protocols are basis for developing distributed applications and services • Basic building blocks, but deployment involves significant customization and filling in lots of gaps. • No standards, no interoperability • Standards don’t seem to matter (enough) to the developers – Europe is crazy over this stuff, Acxiom, … Grid Computing at the University of Arkansas March 10, 2004 Page 10

11. Brief Grid Computing History Third Generation Grids (recent past and present) • Global Grid Forum begins working on standards, 1999 • Open Grid Services Architecture (OGSA) published in June, 2002 • Open Grid Services Infrastructure (OGSI), Version 1.0 published in July, 2003 • Globus Toolkit 3 (GT3) – first reference implementation of OGSI, available June, 2003, based on Java • Several other implementations have been developed in Python, Perl, Microsoft .NET, … Grid Computing at the University of Arkansas March 10, 2004 Page 11

12. Grid Computing at the University of Arkansas March 10, 2004 Page 12

13. Grid Services • Common interface specification supports the interoperability of discrete, independently developed services • Concept similar to Remote Procedure Call (RPC), Remote Method Invocation (RMI), only applied over HTTP • Based on extensions of Web Services Grid Computing at the University of Arkansas March 10, 2004 Page 13

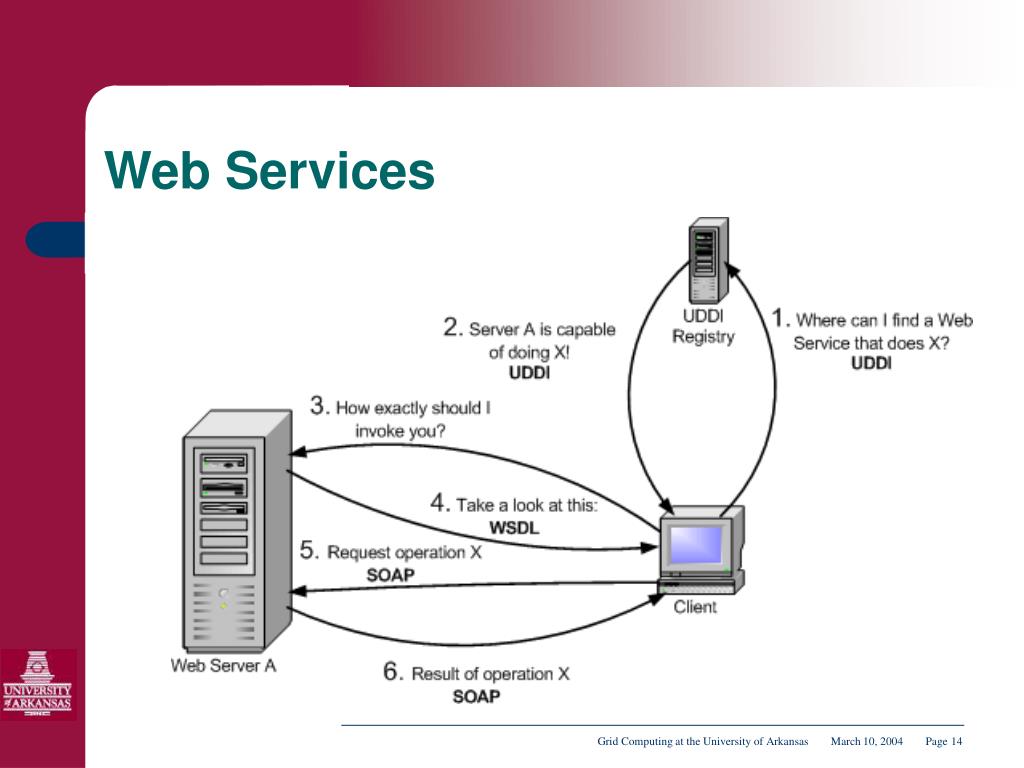

14. Web Services Grid Computing at the University of Arkansas March 10, 2004 Page 14

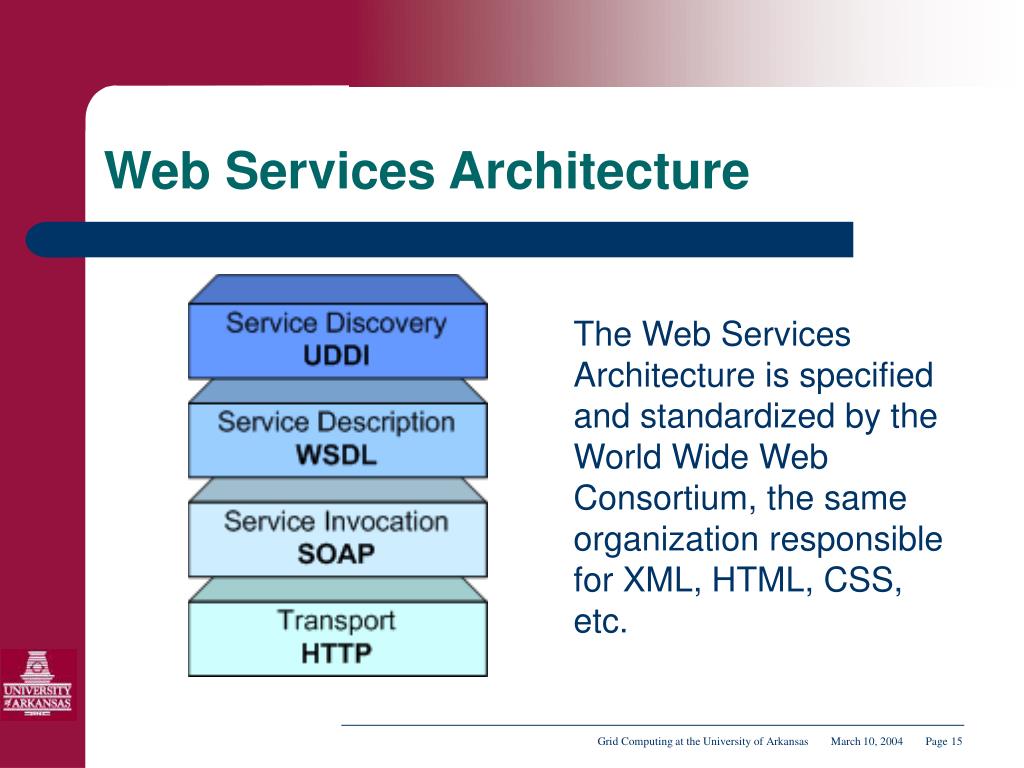

15. Web Services Architecture The Web Services Architecture is specified and standardized by the World Wide Web Consortium, the same organization responsible for XML, HTML, CSS, etc. Grid Computing at the University of Arkansas March 10, 2004 Page 15

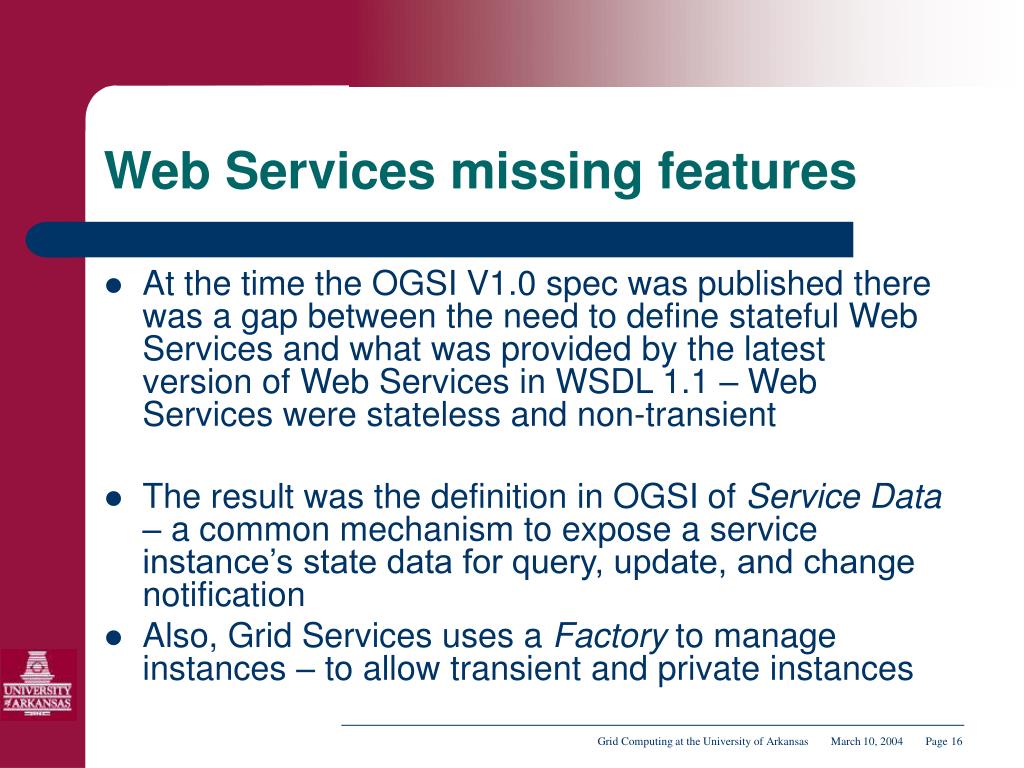

16. Web Services missing features • At the time the OGSI V1.0 spec was published there was a gap between the need to define stateful Web Services and what was provided by the latest version of Web Services in WSDL 1.1 – Web Services were stateless and non-transient • The result was the definition in OGSI of Service Data – a common mechanism to expose a service instance’s state data for query, update, and change notification • Also, Grid Services uses a Factory to manage instances – to allow transient and private instances Grid Computing at the University of Arkansas March 10, 2004 Page 16

17. Grid Services Factory Grid Computing at the University of Arkansas March 10, 2004 Page 17

18. Grid Services • The declared state of a service is accessed only though service operations that are defined as a part of the service interface (For those who know JavaBeans, Service Data is similar to JavaBean properties) I will show an example using GT3. Since GT3 uses Java, the whole example is in Java. Grid Computing at the University of Arkansas March 10, 2004 Page 18

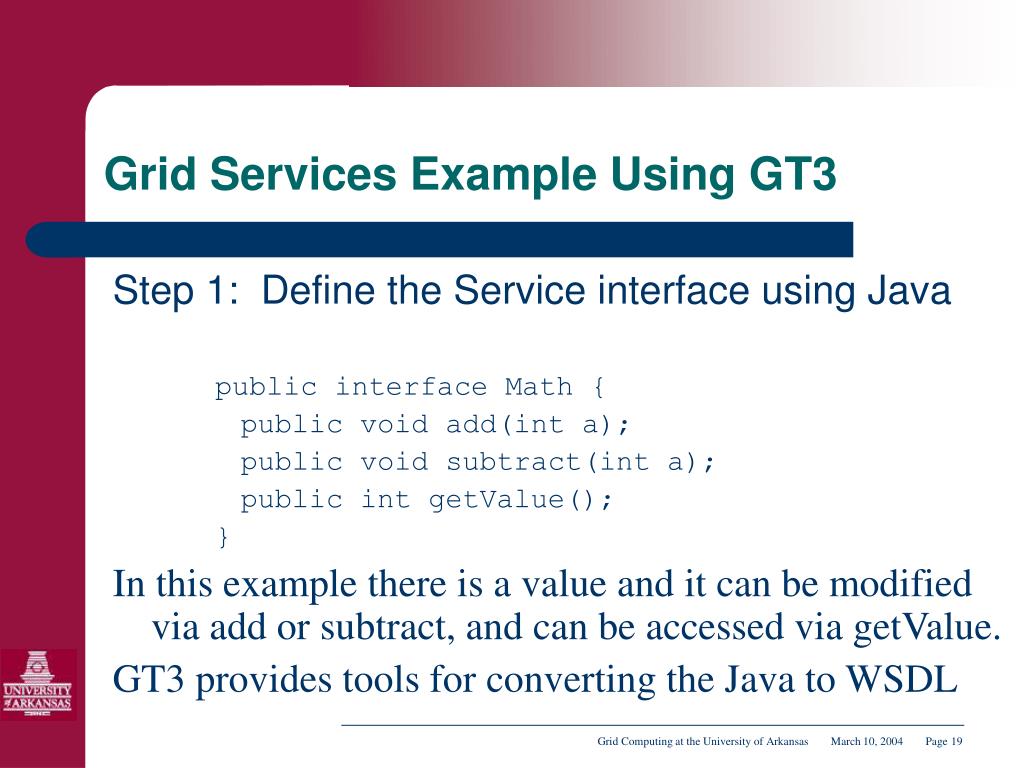

19. Grid Services Example Using GT3 Step 1: Define the Service interface using Java public interface Math { public void add(int a); public void subtract(int a); public int getValue(); } In this example there is a value and it can be modified via add or subtract, and can be accessed via getValue. GT3 provides tools for converting the Java to WSDL Grid Computing at the University of Arkansas March 10, 2004 Page 19

20. Step 2: Implement the Service public class MathImpl extends GridServiceImpl implements MathPortType { private int value = 0; public MathImpl() { super(“Math Factory Service”); } public void add(int a) throws RemoteException { value = value + a; } public void subtract(int a) throws RemoteException { value = value - a; } public int getValue() throws RemoteException { return value; } } Grid Computing at the University of Arkansas March 10, 2004 Page 20

21. Step 3: Write the Deployment Descriptor using Web Service Deployment Descriptor (WSDD) format <?xml version="1.0"?> <deployment name="defaultServerConfig" xmlns="http://xml.apache.org/axis/wsdd/" xmlns:java="http://xml.apache.org/axis/wsdd/providers/java"> <service name="tutorial/core/factory/MathFactoryService" provider="Handler" style="wrapped"> <parameter name="name" value="MathService Factory"/> <parameter name="instance-name" value="MathService Instance"/> <parameter name="instance-schemaPath" value="schema/gt3tutorial.core.factory/Math/MathService.wsdl"/> <parameter name="instance-baseClassName" value="gt3tutorial.core.factory.impl.MathImpl"/> <!-- Start common parameters --> <parameter name="allowedMethods" value="*"/> <parameter name="persistent" value="true"/> <parameter name="className" value="org.gridforum.ogsi.Factory"/> <parameter name="baseClassName" value="org.globus.ogsa.impl.ogsi.PersistentGridServiceImpl"/> <parameter name="schemaPath" value="schema/ogsi/ogsi_factory_service.wsdl"/> <parameter name="handlerClass" value="org.globus.ogsa.handlers.RPCURIProvider"/> <parameter name="factoryCallback" value="org.globus.ogsa.impl.ogsi.DynamicFactoryCallbackImpl"/> <parameter name="operationProviders" value="org.globus.ogsa.impl.ogsi.FactoryProvider"/> </service> </deployment> Grid Computing at the University of Arkansas March 10, 2004 Page 21

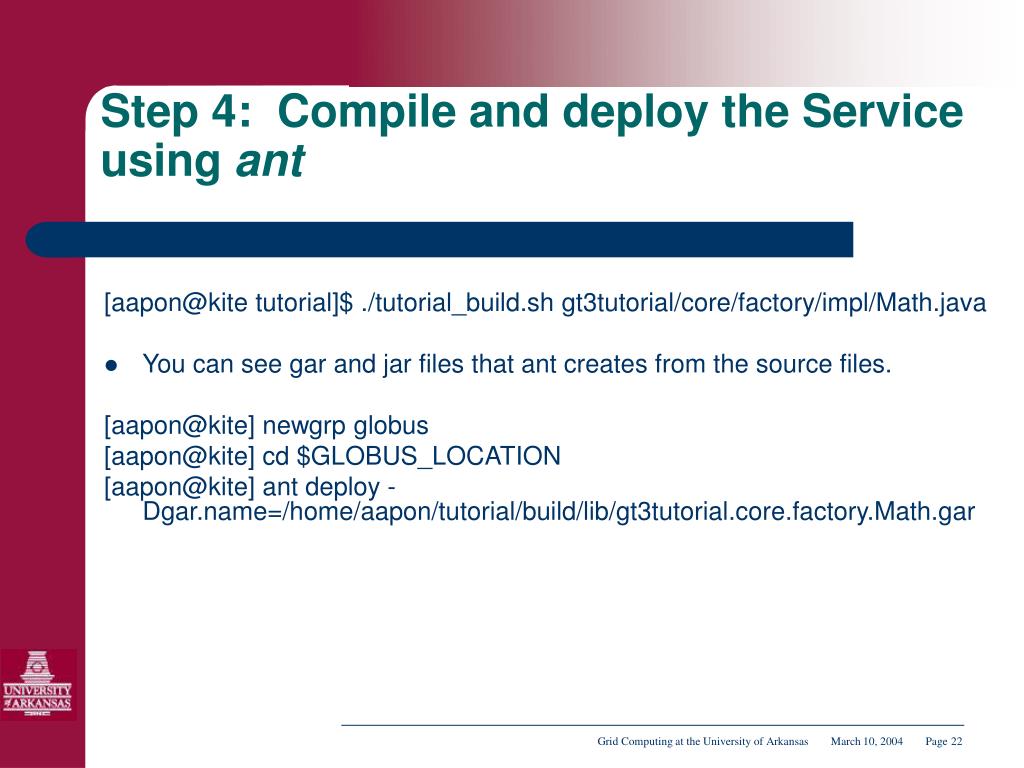

22. Step 4: Compile and deploy the Service using ant [aapon@kite tutorial]$ ./tutorial_build.sh gt3tutorial/core/factory/impl/Math.java • You can see gar and jar files that ant creates from the source files. [aapon@kite] newgrp globus [aapon@kite] cd $GLOBUS_LOCATION [aapon@kite] ant deploy -Dgar.name=/home/aapon/tutorial/build/lib/gt3tutorial.core.factory.Math.gar Grid Computing at the University of Arkansas March 10, 2004 Page 22

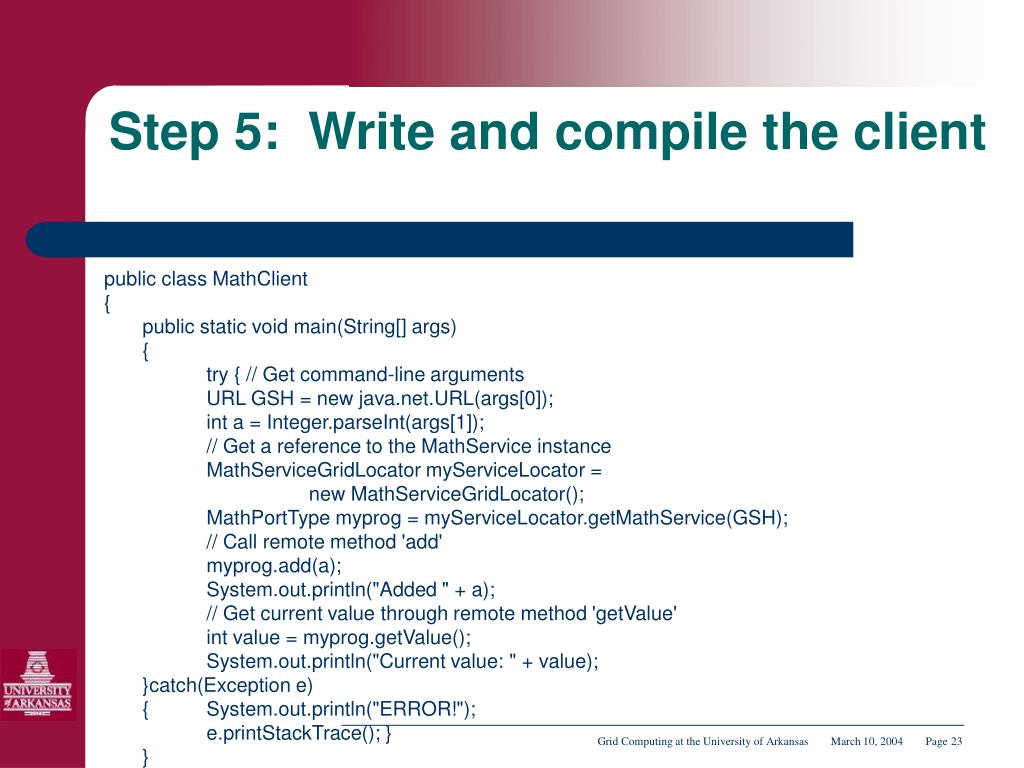

23. Step 5: Write and compile the client public class MathClient { public static void main(String[] args) { try { // Get command-line arguments URL GSH = new java.net.URL(args[0]); int a = Integer.parseInt(args[1]); // Get a reference to the MathService instance MathServiceGridLocator myServiceLocator = new MathServiceGridLocator(); MathPortType myprog = myServiceLocator.getMathService(GSH); // Call remote method 'add' myprog.add(a); System.out.println("Added " + a); // Get current value through remote method 'getValue' int value = myprog.getValue(); System.out.println("Current value: " + value); }catch(Exception e) { System.out.println("ERROR!"); e.printStackTrace(); } } } Grid Computing at the University of Arkansas March 10, 2004 Page 23

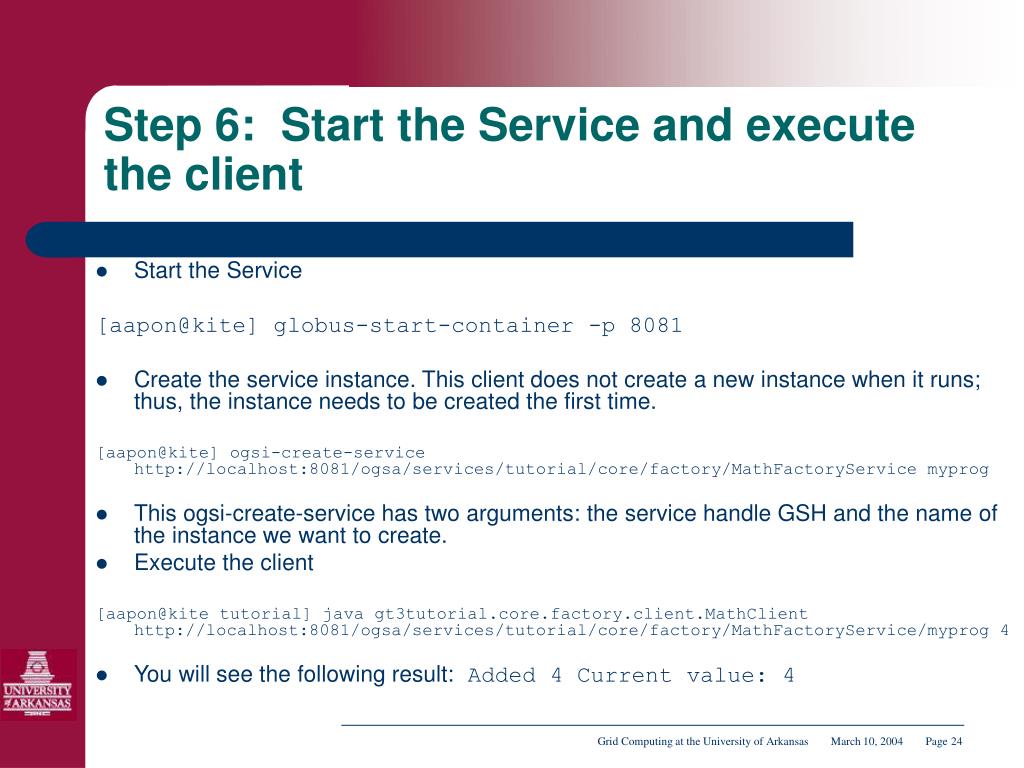

24. Step 6: Start the Service and execute the client • Start the Service [aapon@kite] globus-start-container -p 8081 • Create the service instance. This client does not create a new instance when it runs; thus, the instance needs to be created the first time. [aapon@kite] ogsi-create-service http://localhost:8081/ogsa/services/tutorial/core/factory/MathFactoryService myprog • This ogsi-create-service has two arguments: the service handle GSH and the name of the instance we want to create. • Execute the client [aapon@kite tutorial] java gt3tutorial.core.factory.client.MathClient http://localhost:8081/ogsa/services/tutorial/core/factory/MathFactoryService/myprog 4 • You will see the following result: Added 4 Current value: 4 Grid Computing at the University of Arkansas March 10, 2004 Page 24

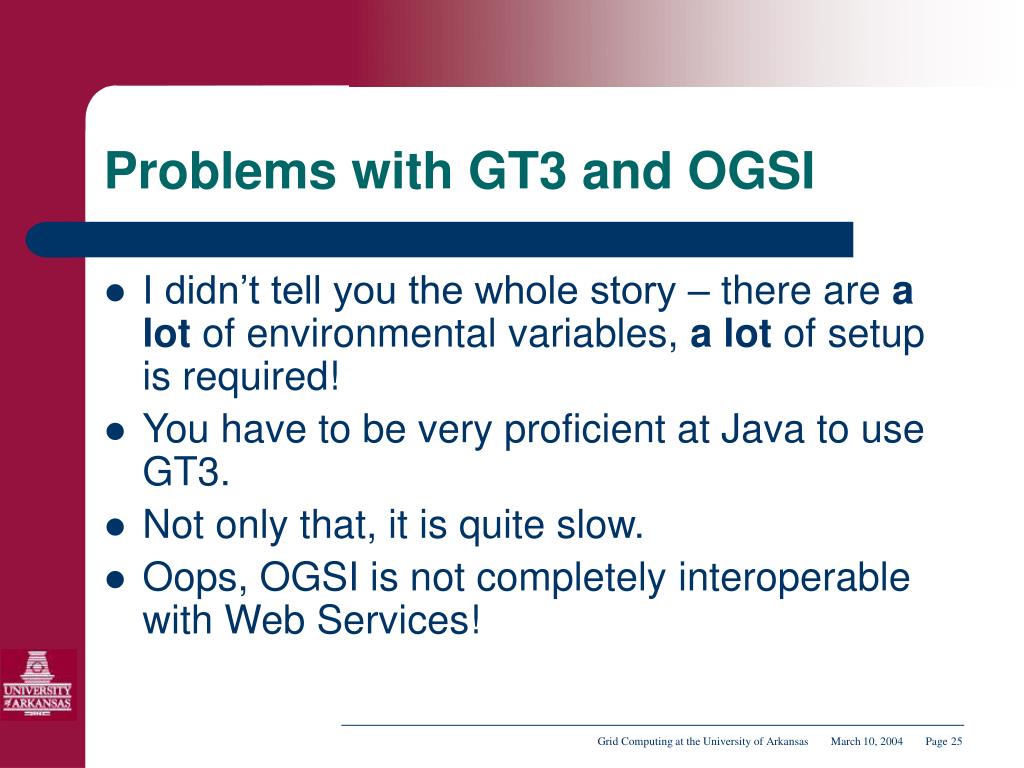

25. Problems with GT3 and OGSI • I didn’t tell you the whole story – there are a lot of environmental variables, a lot of setup is required! • You have to be very proficient at Java to use GT3. • Not only that, it is quite slow. • Oops, OGSI is not completely interoperable with Web Services! Grid Computing at the University of Arkansas March 10, 2004 Page 25

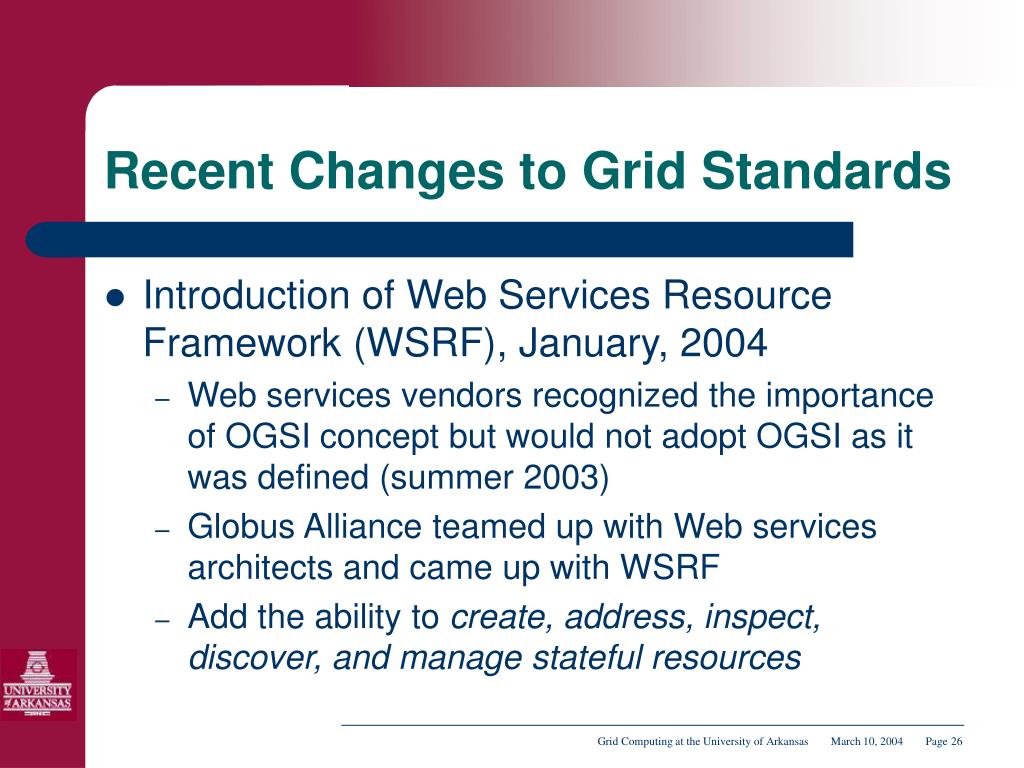

26. Recent Changes to Grid Standards • Introduction of Web Services Resource Framework (WSRF), January, 2004 • Web services vendors recognized the importance of OGSI concept but would not adopt OGSI as it was defined (summer 2003) • Globus Alliance teamed up with Web services architects and came up with WSRF • Add the ability to create, address, inspect, discover, and manage stateful resources Grid Computing at the University of Arkansas March 10, 2004 Page 26

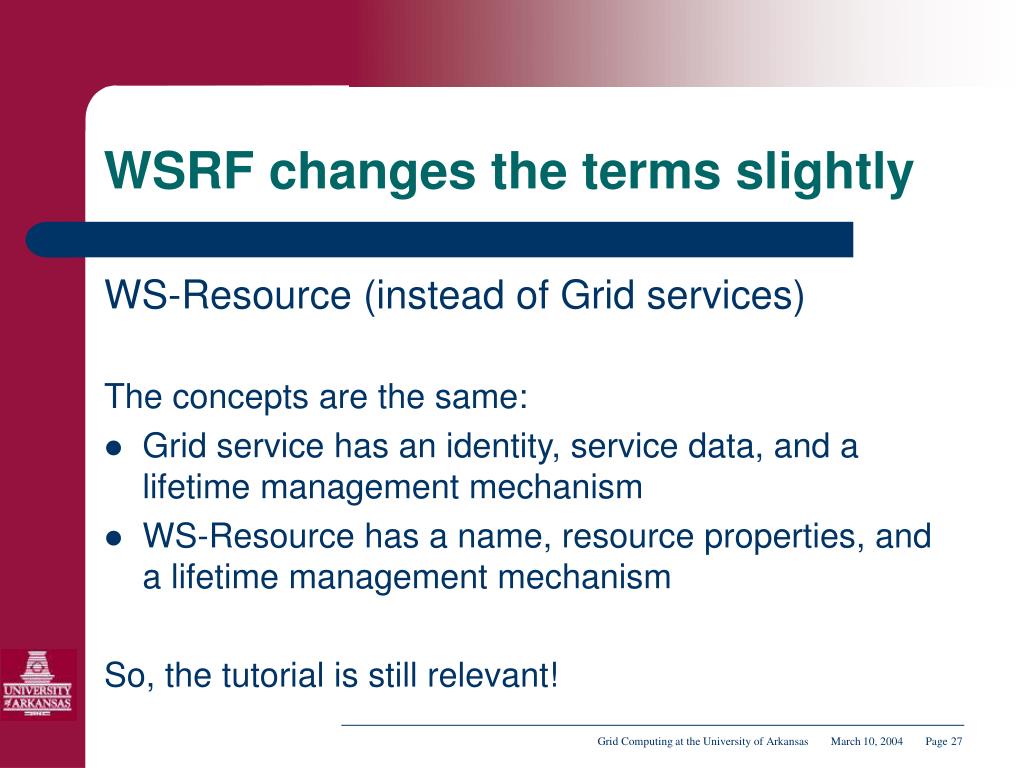

27. WSRF changes the terms slightly WS-Resource (instead of Grid services) The concepts are the same: • Grid service has an identity, service data, and a lifetime management mechanism • WS-Resource has a name, resource properties, and a lifetime management mechanism So, the tutorial is still relevant! Grid Computing at the University of Arkansas March 10, 2004 Page 27

28. Distributed computing is complex • There are many advantages to working within a standard framework • Single sign-on • Remote deployment of executables • Computation management, data movement • Benefits of working with an international community of developers and users • A framework enables the definition of higher-level services Grid Computing at the University of Arkansas March 10, 2004 Page 28

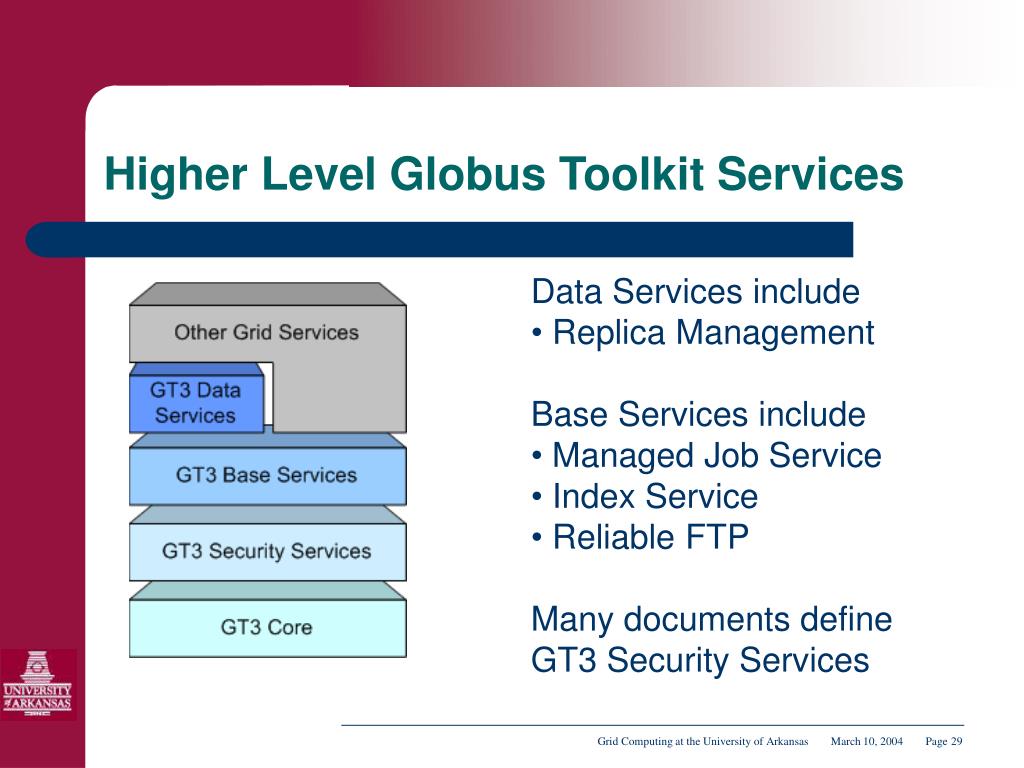

29. Higher Level Globus Toolkit Services • Data Services include • Replica Management • Base Services include • Managed Job Service • Index Service • Reliable FTP • Many documents define GT3 Security Services Grid Computing at the University of Arkansas March 10, 2004 Page 29

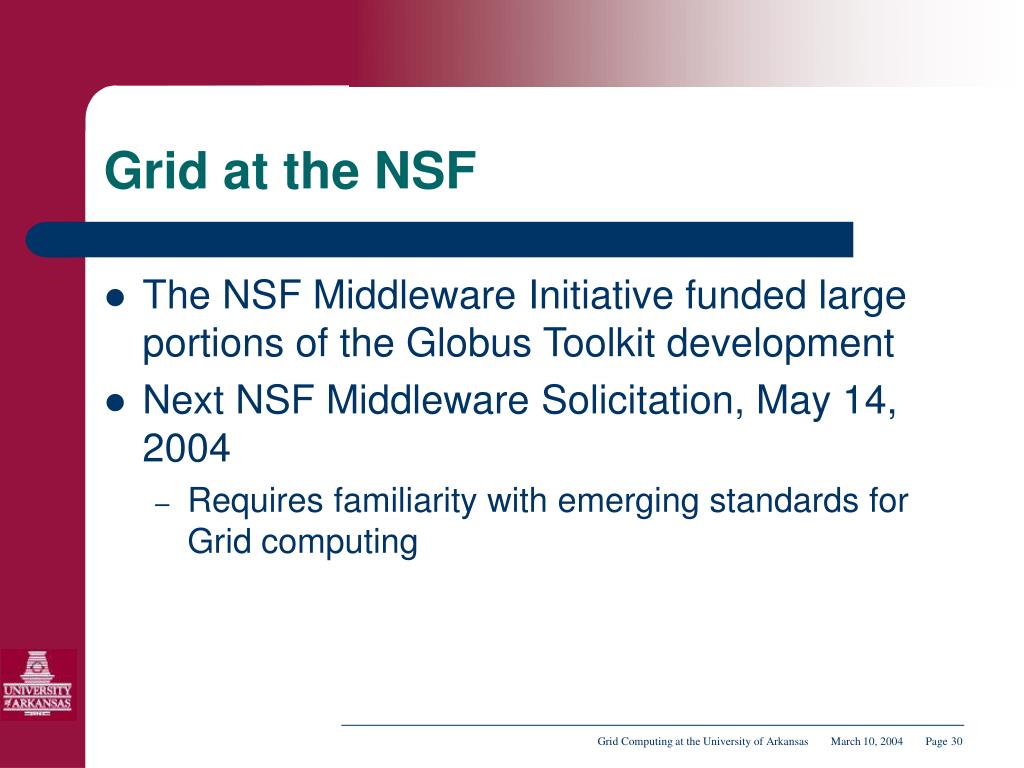

30. Grid at the NSF • The NSF Middleware Initiative funded large portions of the Globus Toolkit development • Next NSF Middleware Solicitation, May 14, 2004 • Requires familiarity with emerging standards for Grid computing Grid Computing at the University of Arkansas March 10, 2004 Page 30

31. UofA Grid Computing Possibilities • CLEANER Proposal, submitted January, 2004 • Cyberinfrastructure for Environmental Water Resource Management Building on the Resources of the Great Plains Network – Planning Grant Proposal • Ralph Davis, UA Geosciences, is PI, large collaboration • The vision is a grid computing system that allows various users access at multiple levels, and facilitates large-scale database management, rapid processing of image data, and seamless integration of complex, dispersed data sets and model applications. • Real-time measurement, accurate modeling, effective decision support systems Grid Computing at the University of Arkansas March 10, 2004 Page 31

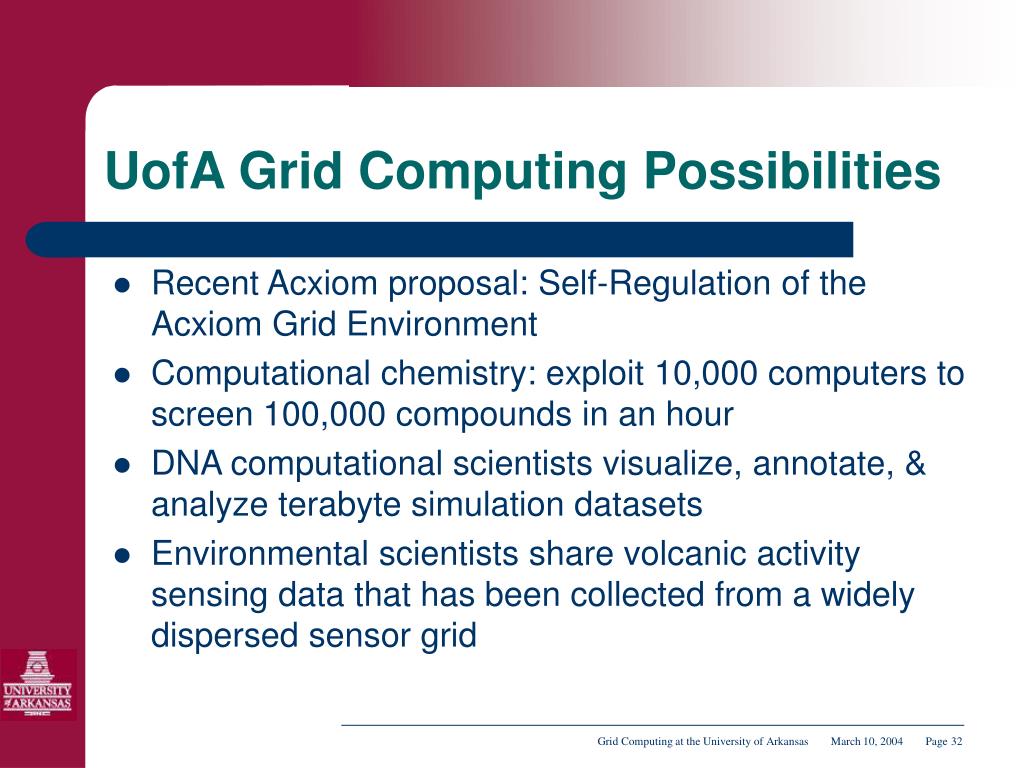

32. UofA Grid Computing Possibilities • Recent Acxiom proposal: Self-Regulation of the Acxiom Grid Environment • Computational chemistry: exploit 10,000 computers to screen 100,000 compounds in an hour • DNA computational scientists visualize, annotate, & analyze terabyte simulation datasets • Environmental scientists share volcanic activity sensing data that has been collected from a widely dispersed sensor grid Grid Computing at the University of Arkansas March 10, 2004 Page 32

33. UofA “Grid” for Sharing Digital Map Data • GeoStor digital map data delivery system • http://www.cast.uark.edu/cast/geostor/ • Contains all publicly available geographic data for the state of Arkansas • Oracle database is used for access to metadata and some maps Grid Computing at the University of Arkansas March 10, 2004 Page 33

34. UofA “Grid” for Sharing Digital Map Data GeoSurf • A Java based product • User queries and downloads data from GeoStor • User specifies geographic clip boundaries, projection, data format • Current system asks user to submit email address to system for processing – an online link is emailed to the user • Could be a Grid service Grid Computing at the University of Arkansas March 10, 2004 Page 34

35. UofA Grid Education Efforts • D. Thompson, A. Apon, Y. Yara, J. Mache, and R. Deaton, “Training a Grid Workforce” Oklahoma Supercomputing Symposium, Sept, 2004. • A. Apon, J. Mache, Y. Yara, K. Landrus, “Classroom Exercises for Grid Services”, Linux Cluster Institute Conference on High Performance Computing, May, 2004 (to appear). • CSCE 490 Cluster and Grid Computing, Fall, 2004 Grid Computing at the University of Arkansas March 10, 2004 Page 35

36. More Grid Education Efforts • International Workshop on Grid Education, http://csce.uark.edu/~aapon/grid.edu2004, A. Apon and J. Mache, Co-Chairs, Chicago, April, 2004. • I would like to see the development of ARCHIE – ARkansas Center for High End Computing • Modeled after the Oklahoma Supercomputing Center for Education and Research (OSCER) • Focal point for research collaboration and education in all aspects of high-end computing, including high-performance parallel, cluster, and grid computing Grid Computing at the University of Arkansas March 10, 2004 Page 36

37. User-level Globus commands globusrun - submits jobs specified in Resource Specification Language (RSL) globus-job-run - used for running short “interactive” jobs in the foreground globus-job-submit - used for running batch programs. It is a batch interface to the GRAM server. globus-job-status - gets status of a job previously started with globus-job-submit globus-job-output - collects output of a job started with globus-job-submit globus-job-clean - stops jobs and cleans up cached output Using gridFTP globus-url-copy <sourceURL> <destinationURL> %globus-url-copy gsiftp://node1/home/USERNAME/file \ file:/home/USERNAME/file Training a Grid Workforce Dale R. Thompson*, Amy Apon*, Yuriko Yara*, Jens Mache$, and Russell Deaton* *University of Arkansas, $Lewis & Clark College Diagram of Experimental System Motivation The growing capability of Grids as viable compute resource brokers is largely responsible for their acceptance beyond the traditional high performance computing (HPC) research community. As applications become more grid-enabled, the business community is expected to increase significantly its investments in Grid Computing over the next decade. These increasing demands for Grid Computing, coupled with continued advancements in middleware and networking technologies, have raised concerns about the availability of a qualified workforce to build and use the Grid. • What is the Grid? • The Grid allows sharing of computational and data resources across diverse platforms and • different organizations. • The Grid uses the Internet for worldwide communications. • The Grid provides worldwide • computation. Four levels of Grid • Approach • An experiment to connect two institutions on the grid • Ingredients: • One undergraduate from Lewis and Clark College • One graduate student from the University of Arkansas • Funding to support the students from Lewis & Clark College and the University of Arkansas • Four eager faculty not on summer support • Several PC’s and some Fast Ethernet switches • One month of time • Free software packages • Encouragement • Goal – connect the two institutions using Grid protocols, and run a Grid service and an MPI program across the Grid in one month. • Result – a much better understanding of the knowledge and training required to build and use the Grid! Future Grid workers must have knowledge in several specialized areas • Knowledge of Linux Administration • the ability to configure the network • the location of various configuration files • software installation and setting up permissions • the use of tools such as ifconfig, iptables/ipchains for firewall configuration, rpm, make, and ant. • Knowledge of Order for Installing Software • ANT • jakarta-oro • jdk • bison • Junit • Globus 3 • SimpleCA • CA and add trust • Request Host certificate • Sign user certificates • Ability and Knowledge for Solving Common Difficulties • Establishing trust at the host level and the user level • Synchronizing clocks - clocks should be within 5 minutes or else “handshake failed” is obtained • Configuring firewall to permit Globus port numbers • Software Packages Used • The Globus 3.0 Toolkit (version 3.0.1) • Java 2 Platform Standard Edition (j2sdk-1.4.2) • OSCAR (version 2.2.1) • MPICH-G2 (version 1.2.5-1) • RedHat Linux 7.3, with default configurations • At the time of this work, these tools were the latest releases that would interoperate with each other. • Activities that Build Knowledge • Install Linux on a PC • Install the Globus Toolkit • Build and use a Grid Service • Build a cluster using PC’s and OSCAR • Run a simple MPI program across the Grid User-level Initialization Instructions Initialize environment %cd $GLOBUS_LOCATION % source setenv.sh %$GLOBUS_LOCATION/etc/globus-user-env.sh Request user certificate %grid-cert-request Sign user certificate (you must be administrator or CA) %grid-ca-sign -in usercert_request.pem -out usercert.pem Start a valid proxy %grid-proxy-init Delete a proxy %grid-proxy-destroy Grid Computing at the University of Arkansas March 10, 2004 Page 37 A website is being developed for Grid training and access to Grid training activities and materials at http://gotgrid.uark.edu/

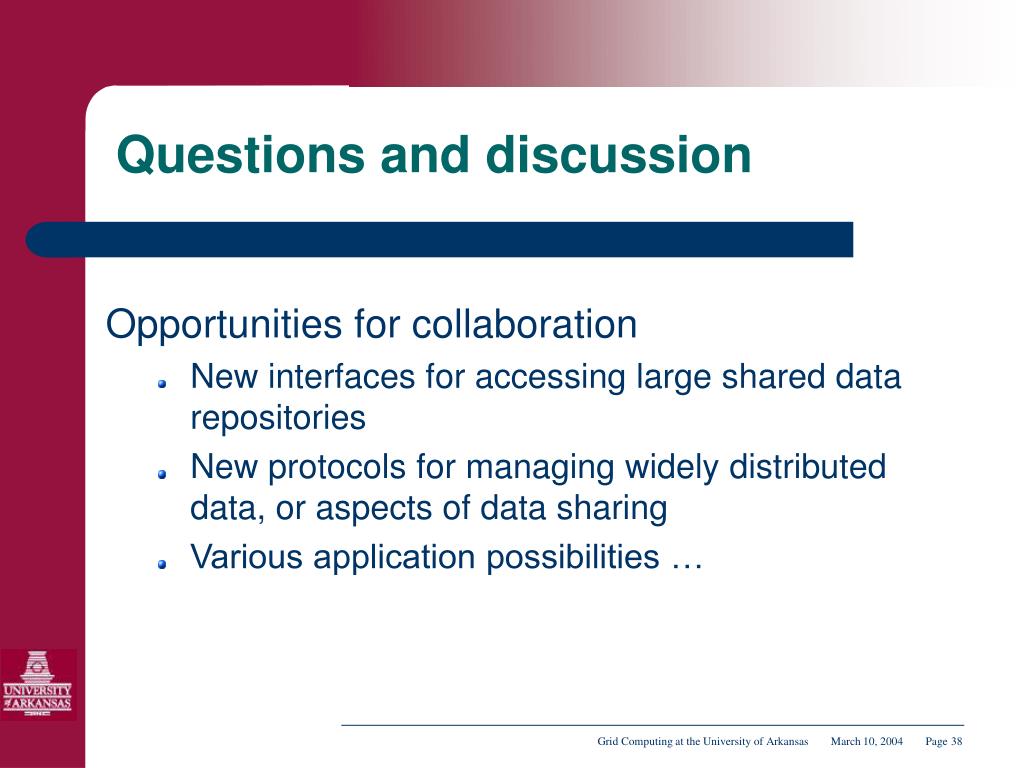

38. Questions and discussion Opportunities for collaboration • New interfaces for accessing large shared data repositories • New protocols for managing widely distributed data, or aspects of data sharing • Various application possibilities … Grid Computing at the University of Arkansas March 10, 2004 Page 38
