  1. Chapter 5DoS & DDoS Hoon Ko hoon.ko@ujep.cz Office# 460, Department of Informatics, J. E. Purkinje University

  2. Learning Objectives • Denial-Of-Service (DoS) attacks • Distributed Denial-Of-Service (DDoS) attacks • How to protect

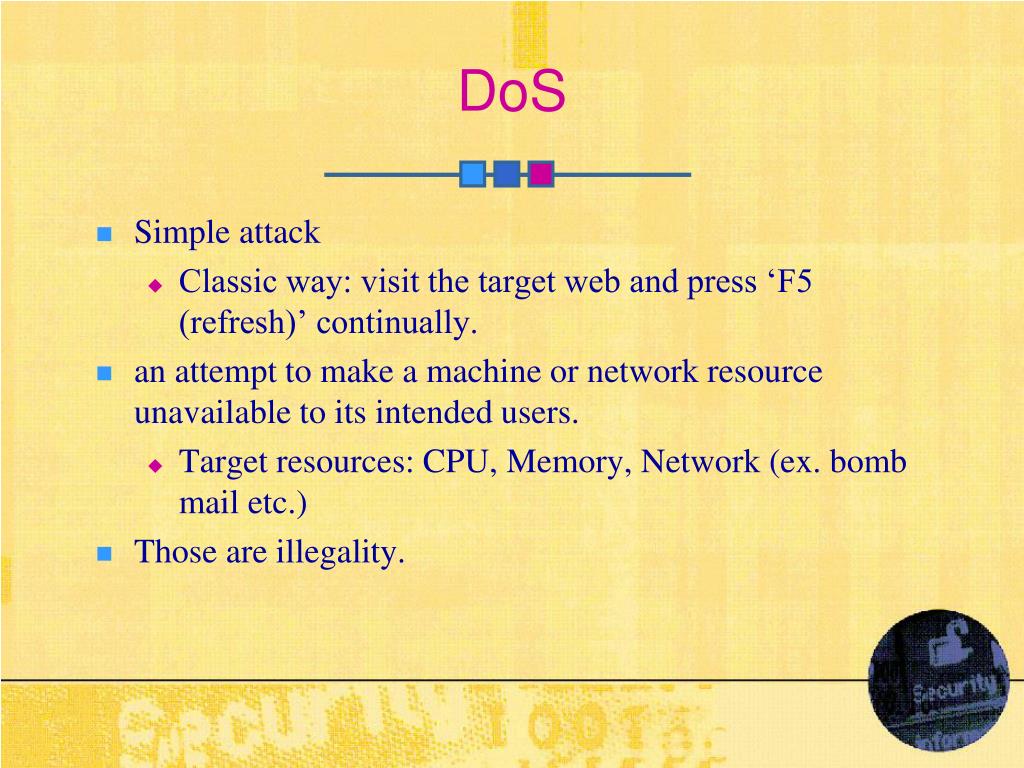

  3. DoS • Simple attack • Classic way: visit the target web and press ‘F5 (refresh)’ continually. • an attempt to make a machine or network resource unavailable to its intended users. • Target resources: CPU, Memory, Network (ex. bomb mail etc.) • Those are illegality.

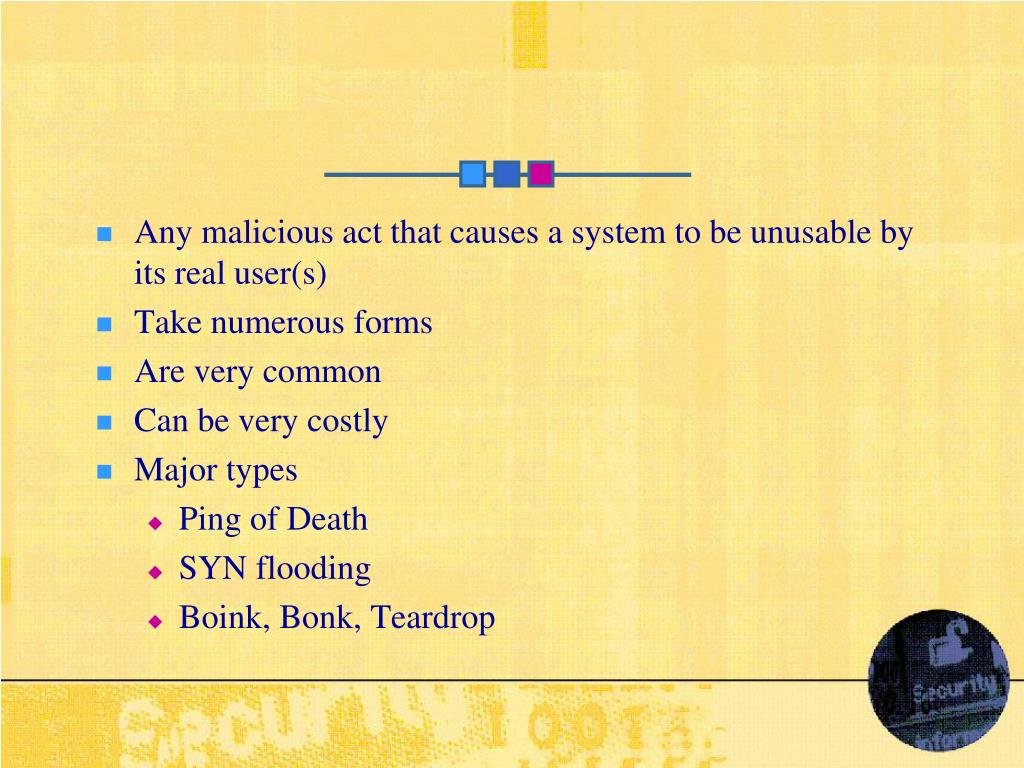

  4. Any malicious act that causes a system to be unusable by its real user(s) • Take numerous forms • Are very common • Can be very costly • Major types • Ping of Death • SYN flooding • Boink, Bonk, Teardrop

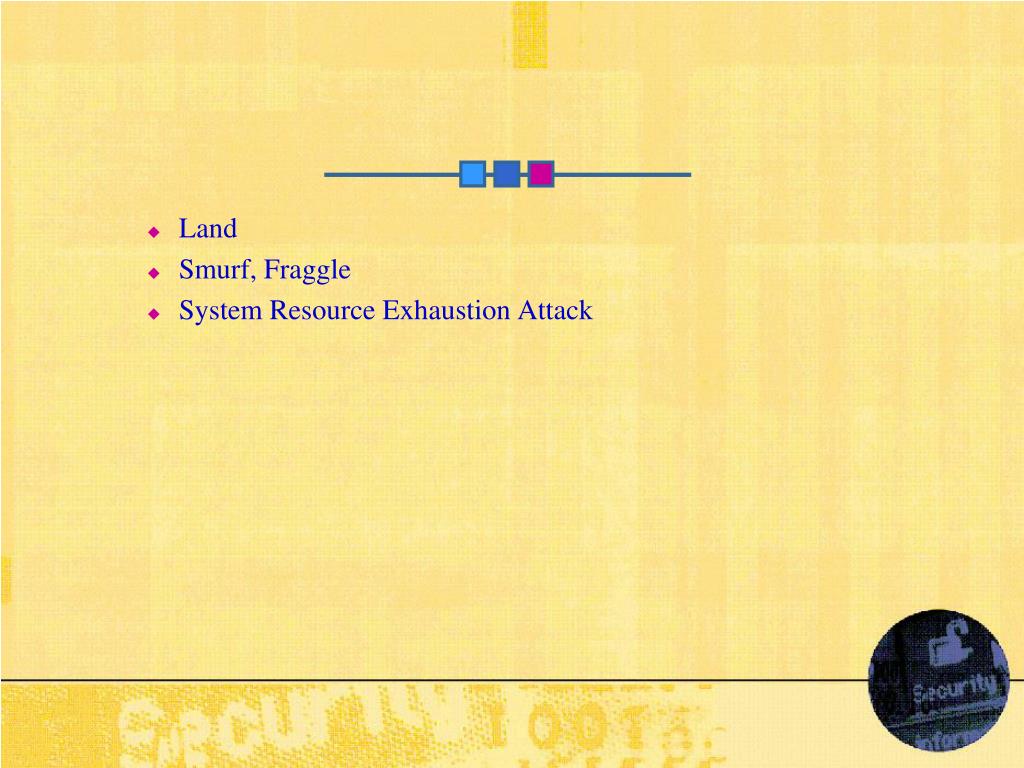

  5. Land • Smurf, Fraggle • System Resource Exhaustion Attack

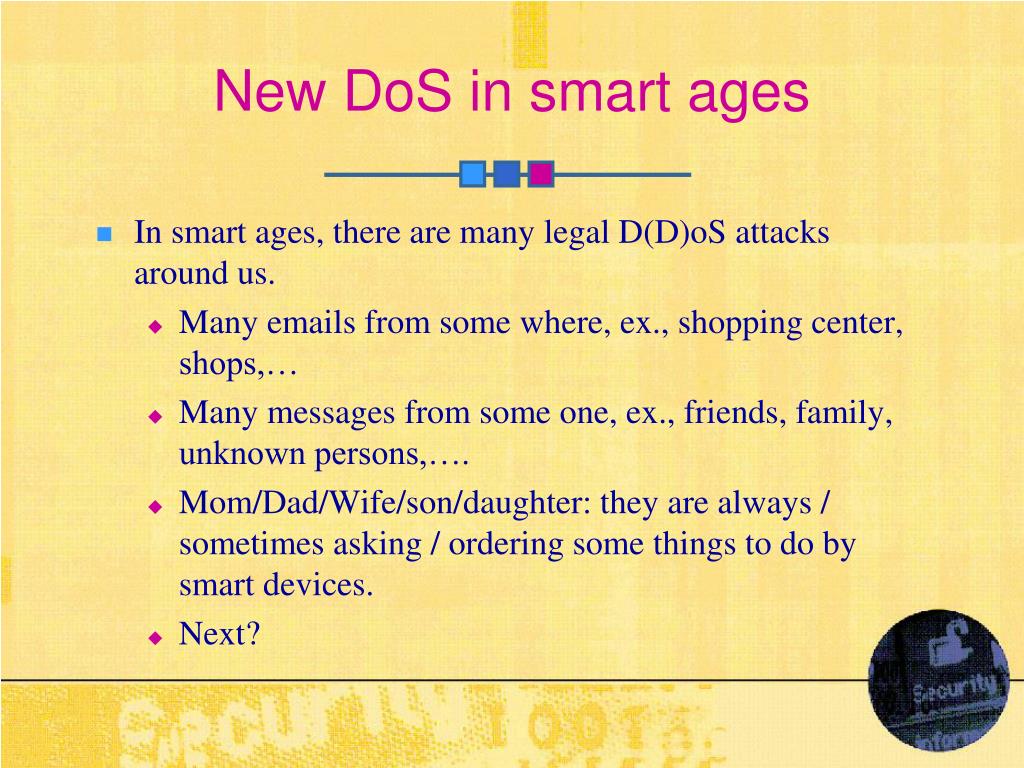

  6. New DoS in smart ages • In smart ages, there are many legal D(D)oS attacks around us. • Many emails from some where, ex., shopping center, shops,… • Many messages from some one, ex., friends, family, unknown persons,…. • Mom/Dad/Wife/son/daughter: they are always / sometimes asking / ordering some things to do by smart devices. • Next?

  7. Ping of death attack • To make big size of ICMP packet • To route big ICMP, it has to do the fragment. It makes them to be delayed.

  8. ping –n 100 –l 65500 target_computer

  9. SYN Flooding attack • Exploits the TCP three-way handshake • Inhibits server’s ability to accept new TCP connections

  10. gcc –o synk synk.c • ./synk 0 target_computer 80 80 • tcpdump eth0 • netstat -an

  11. Boink, Bonk, Teardrop • Protocol reliablity: it depends on next; • packet ordering • packet lose • packet re-send request • BBT attacks three issues to decrease the protocol reliablity.

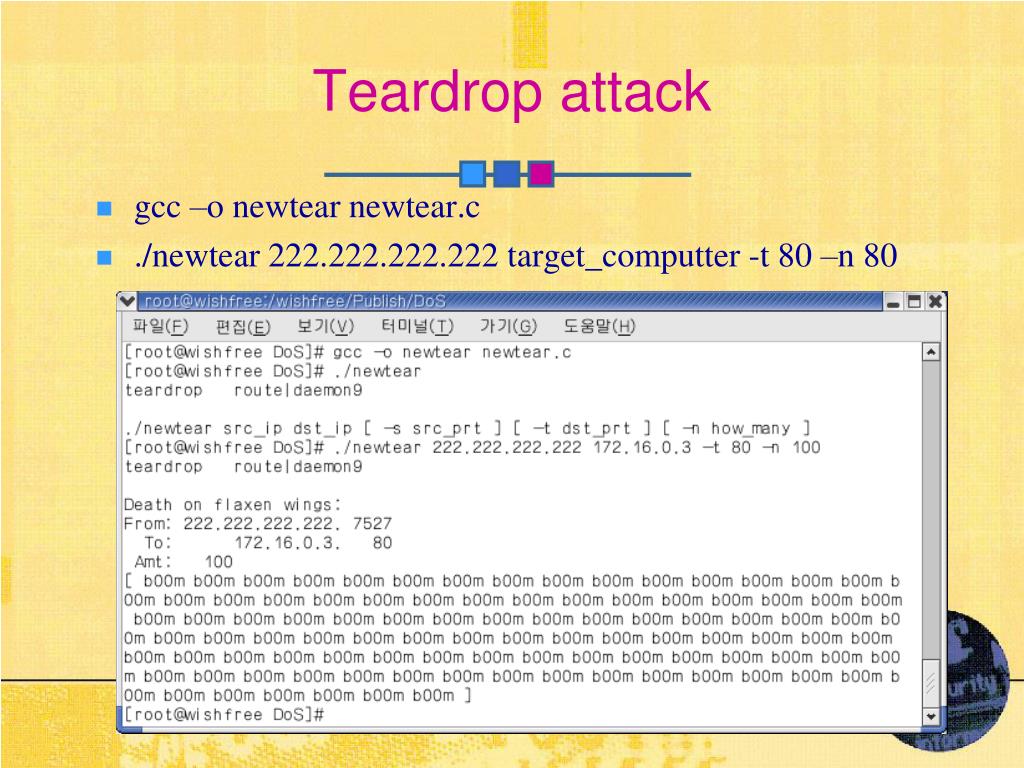

  12. Teardrop attack • gcc –o newtear newtear.c • ./newtear 222.222.222.222 target_computter -t 80 –n 80

  13. netstat –an : now it is under attacking.

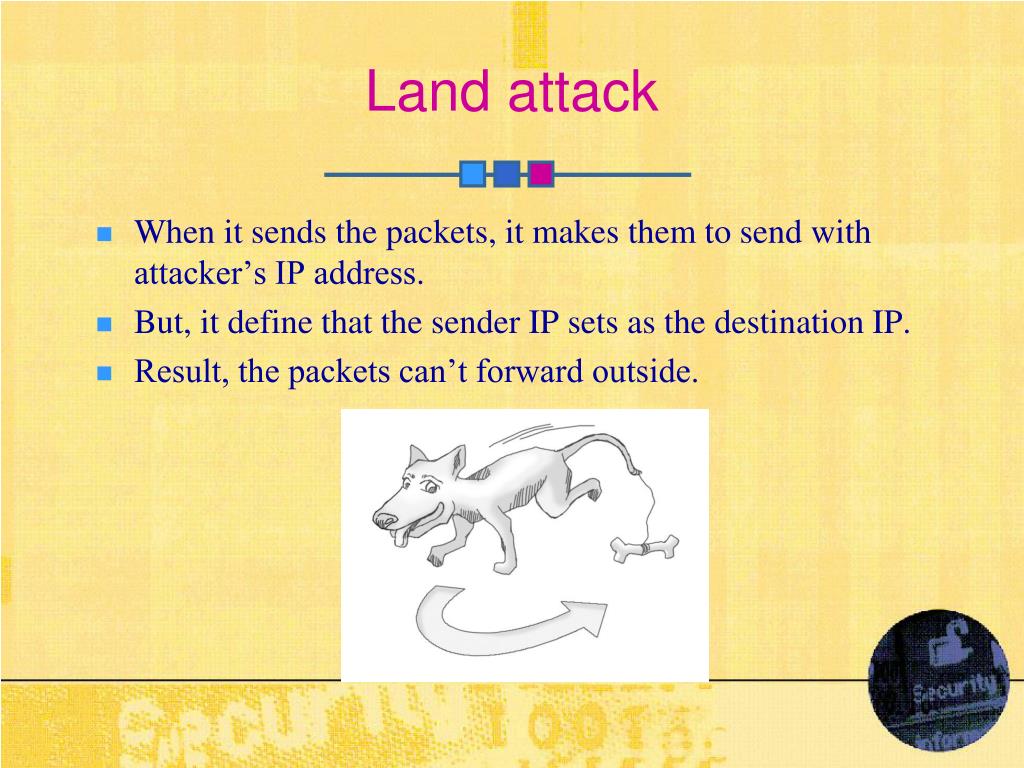

  14. Land attack • When it sends the packets, it makes them to send with attacker’s IP address. • But, it define that the sender IP sets as the destination IP. • Result, the packets can’t forward outside.

  15. Smurf, Fraggle • Non-OS specific attack that uses the network to amplify its effect on the victim • Floods a host with ICMP • Saturates Internet connection with bogus traffic and delays/prevents legitimate traffic from reaching its destination

  16. System Resource Exhaustion Attacks • Available Disk Resource Exhaustion

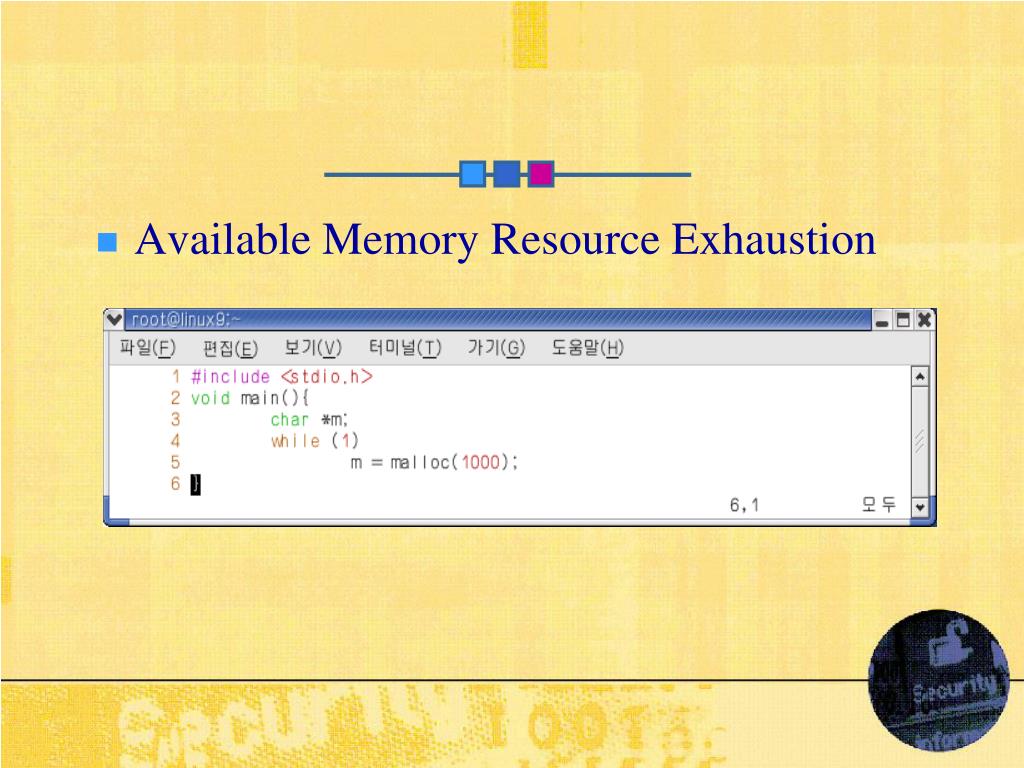

  17. Available Memory Resource Exhaustion

  18. Available Process Resource Exhaustion

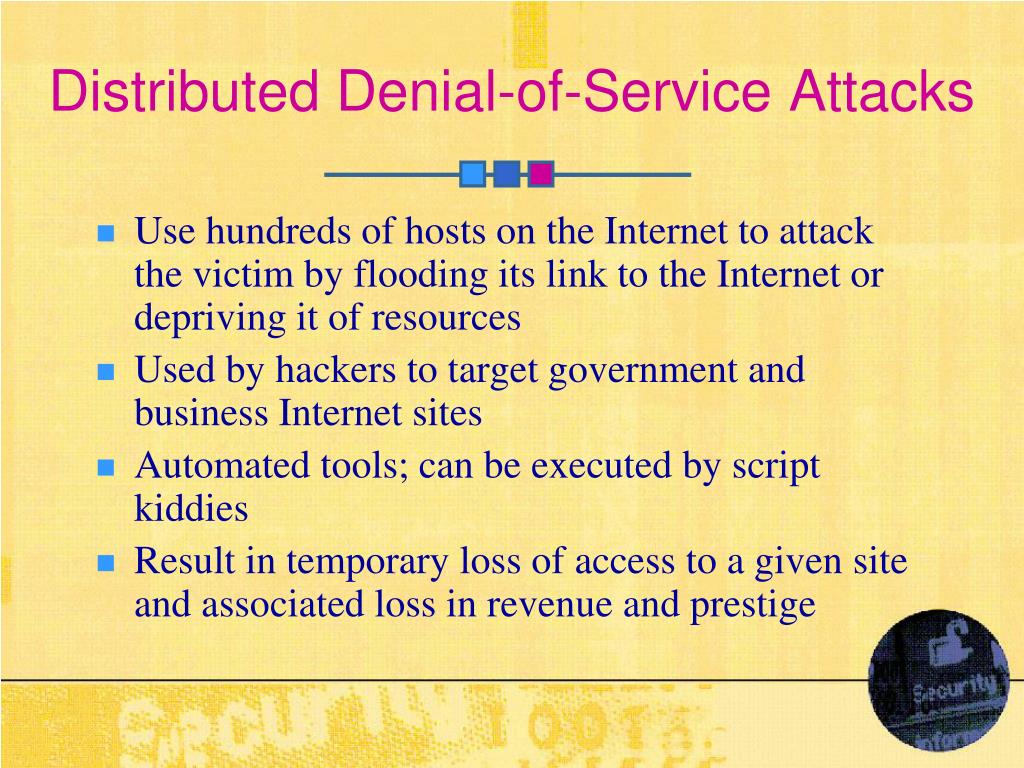

  19. Distributed Denial-of-Service Attacks • Use hundreds of hosts on the Internet to attack the victim by flooding its link to the Internet or depriving it of resources • Used by hackers to target government and business Internet sites • Automated tools; can be executed by script kiddies • Result in temporary loss of access to a given site and associated loss in revenue and prestige

  20. Conducting DDoS Attacks

  21. How to protect • Firewall • IDS • Secure Network set • System patch • Scanning • Set bandwidth to each searvice
