  1. Software Defined Networking & OpenFlow • Matt Davy • Network Architect, Indiana University • Director, InCNTRE • July 7th, 2011 • GENI Workshop

  2. Today’s Networks are Defined by the “Box” • Hardware, Operating System, and Applications Built Into a “Box”. • Cannot Mix and Match • Mainframe Mentality • Lack of Competition at Each Layer • Barrier to Entry

  3. Challenges • Rapid Innovation in Computing Technology • Massively Diverse User Groups • Demand for Bandwidth Growing Rapidly • Increasing Costs - CAPEX & OPEX • Increasing Complexity - 5400 RFCs

  4. Software Defined Networks

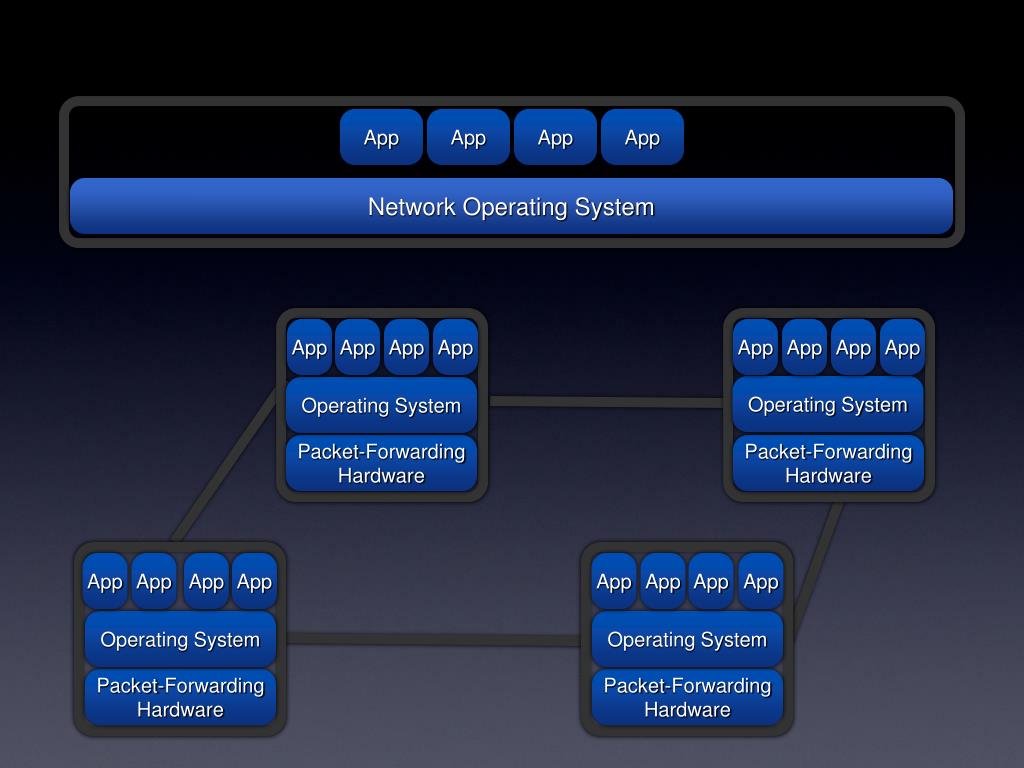

  5. App App App App Network Operating System App App App App App App App App Operating System Operating System Packet-Forwarding Hardware Packet-Forwarding Hardware App App App App App App App App Operating System Operating System Packet-Forwarding Hardware Packet-Forwarding Hardware

  6. The “Software-Defined Network” App App App App Open API Network Operating System Open Interface to Hardware (OpenFlow) Openflow Firmware Openflow Firmware Packet-Forwarding Hardware Packet-Forwarding Hardware Openflow Firmware Openflow Firmware Packet-Forwarding Hardware Packet-Forwarding Hardware

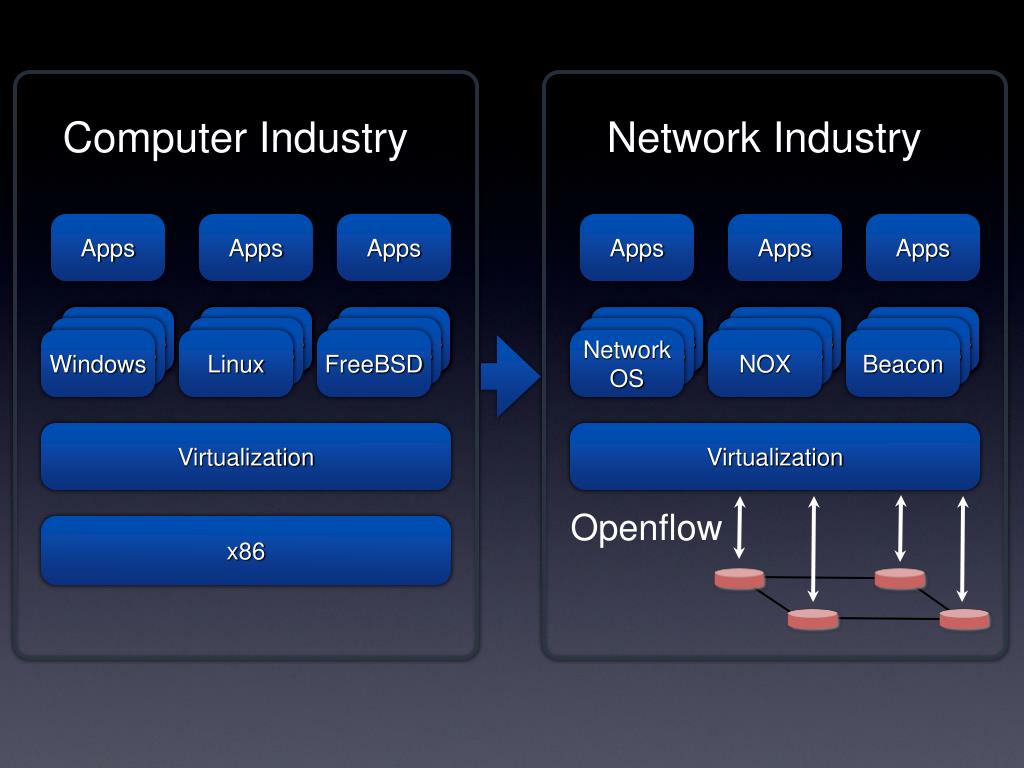

  7. Computer Industry Network Industry Apps Apps Apps Apps Apps Apps Windows Windows Windows Windows Windows Windows Windows Windows Windows Windows Windows Windows Windows Linux FreeBSD Network OS NOX Beacon Virtualization Virtualization Openflow x86

  8. Status • Open Networking Foundation (ONF) • Board: Deutche Telekom, Facebook, Google, Microsoft, Verizon, Yahoo • 36 Members • 14 Vendors Demonstrating Interoperability at Interop 2011 • SDN Interop Lab Established at IU

  9. Impacts • Ability to Innovate through Software • Decreased Cycle from Lab to Production • Less Complex Networks that are Easier to Manage and More Secure • Cost Reductions through Increased Competition, Hardware Commoditization & Open-Source Software

  10. openflow.org • opennetworkingfoundation.org • incntre.iu.edu • Blog: iunetworking.blogspot.com • Twitter: @mpdavyiu • packetpushers.net/show-40-upending-networking

  11. Questions ?
