  1. Internet Bandwidth Measurement Techniques Muhammad Ali Dec 17th 2005

  2. Passive vs. Active Monitoring • Active injects traffic on demand • Passive watches things as they happen • Network device records information • Packets, bytes, errors … kept in MIBs retrieved by SNMP • Devices (e.g. probe) capture/watch packets as they pass • Router, switch, sniffer, host in promiscuous (tcpdump) • Complementary to one another: • Passive: • does not inject extra traffic, measures real traffic • Polling to gather data generates traffic, also gathers large amounts of data • Active: • provides explicit control on the generation of packets for measurement scenarios • testing what you want, when you need it. • Injects extra artificial traffic • Can do both, e.g. start active measurement and look at passively

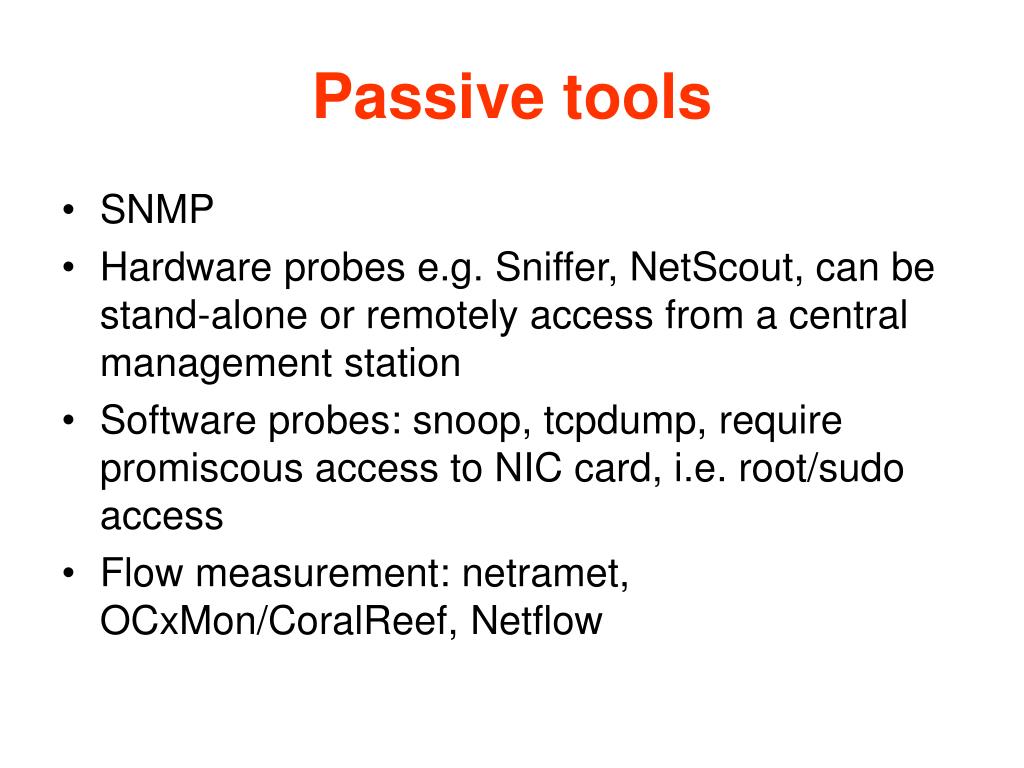

  3. Passive tools • SNMP • Hardware probes e.g. Sniffer, NetScout, can be stand-alone or remotely access from a central management station • Software probes: snoop, tcpdump, require promiscous access to NIC card, i.e. root/sudo access • Flow measurement: netramet, OCxMon/CoralReef, Netflow

  4. Some Active Measurement Tools • Ping connectivity, RTT & loss • flavors of ping, fping, Linux vs Solaris ping • Alternative synack, but can look like DoS attack • Sting: measures one way loss • Traceroute • Combining ping & traceroute, • traceping, pingroute • Pathchar, pchar, pipechar, bprobe, abing etc. • Iperf, netperf, ttcp, FTP …

  5. Ping • ICMP client/server application built on IP • Client send ICMP echo request, server sends reply • Server usually in kernel, so reliable & fast • User can specify number of data bytes. Client puts timestamp in data bytes. Compares timestamp with time when echo comes back to get RTT • Many flavors (e.g. fping) and options • packet length, number of tries, timeout, separation … • Ping localhost (127.0.0.1) first, then gateway IP address etc.

  6. Ping example Repeat count Packet size Remote host RTT syrup:/home$ ping -c 6 -s 64 thumper.bellcore.com PING thumper.bellcore.com (128.96.41.1): 64 data bytes 72 bytes from 128.96.41.1: icmp_seq=0 ttl=240 time=641.8 ms 72 bytes from 128.96.41.1: icmp_seq=2 ttl=240 time=1072.7 ms 72 bytes from 128.96.41.1: icmp_seq=3 ttl=240 time=1447.4 ms 72 bytes from 128.96.41.1: icmp_seq=4 ttl=240 time=758.5 ms 72 bytes from 128.96.41.1: icmp_seq=5 ttl=240 time=482.1 ms --- thumper.bellcore.com ping statistics --- 6 packets transmitted, 5 packets received, 16% packet loss round-trip min/avg/max = 482.1/880.5/1447.4 ms Missing seq # Summary

  7. Traceroute Remote host • UDP/ICMP tool to show route packets take from local to remote host 17cottrell@flora06:~>traceroute -q 1 -m 20 lhr.comsats.net.pk traceroute to lhr.comsats.net.pk (210.56.16.10), 20 hops max, 40 byte packets 1 RTR-CORE1.SLAC.Stanford.EDU (134.79.19.2) 0.642 ms 2 RTR-MSFC-DMZ.SLAC.Stanford.EDU (134.79.135.21) 0.616 ms 3 ESNET-A-GATEWAY.SLAC.Stanford.EDU (192.68.191.66) 0.716 ms 4 snv-slac.es.net (134.55.208.30) 1.377 ms 5 nyc-snv.es.net (134.55.205.22) 75.536 ms 6 nynap-nyc.es.net (134.55.208.146) 80.629 ms 7 gin-nyy-bbl.teleglobe.net (192.157.69.33) 154.742 ms 8 if-1-0-1.bb5.NewYork.Teleglobe.net (207.45.223.5) 137.403 ms 9 if-12-0-0.bb6.NewYork.Teleglobe.net (207.45.221.72) 135.850 ms 10 207.45.205.18 (207.45.205.18) 128.648 ms 11 210.56.31.94 (210.56.31.94) 762.150 ms 12 islamabad-gw2.comsats.net.pk (210.56.8.4) 751.851 ms 13 * 14 lhr.comsats.net.pk (210.56.16.10) 827.301 ms Max hops Probes/hop No response: Lost packet or router ignores

  8. Pingroute • Run traceroute, then ping each router n times • helps identify where in route the problems start to occur • Routers may not respond to pings, or may treat pings directed at them, differently to other packets

  9. Path characterization • Pathchar • sends multiple packets of varying sizes to each router along route • measures minimum response time • plot min RTT vs packet size to get bandwidth • calculate differences to get individual hop characteristics • measures for each hop: BW, queuing, delay/hop • can take a long time • Pipechar/abing • Also sends back-to-back packets and measures separation on return • Much faster • Finds bottleneck Bottleneck Min spacing At bottleneck Spacing preserved On higher speed links

  10. Network throughput • Iperf • Client generates & sends UDP or TCP packets • Server receives receives packets • Can select port, maximum window size, port , duration, Mbytes to send etc. • Client/server communicate packets seen etc. • Reports on throughput • Requires sever to be installed at remote site, i.e. friendly administrators or logon account and password

  11. Iperf example 3 parallel streams Max window size Remote host TCP port 5006 25cottrell@flora06:~>iperf -p 5008 -w 512K -P 3 -c sunstats.cern.ch ------------------------------------------------------------ Client connecting to sunstats.cern.ch, TCP port 5008 TCP window size: 512 KByte ------------------------------------------------------------ [ 6] local 134.79.16.101 port 57582 connected with 192.65.185.20 port 5008 [ 5] local 134.79.16.101 port 57581 connected with 192.65.185.20 port 5008 [ 4] local 134.79.16.101 port 57580 connected with 192.65.185.20 port 5008 [ ID] Interval Transfer Bandwidth [ 4] 0.0-10.3 sec 19.6 MBytes 15.3 Mbits/sec [ 5] 0.0-10.3 sec 19.6 MBytes 15.3 Mbits/sec [ 6] 0.0-10.3 sec 19.7 MBytes 15.3 Mbits/sec • Total throughput =3*15.3Mbits/s = 45.9Mbits/s

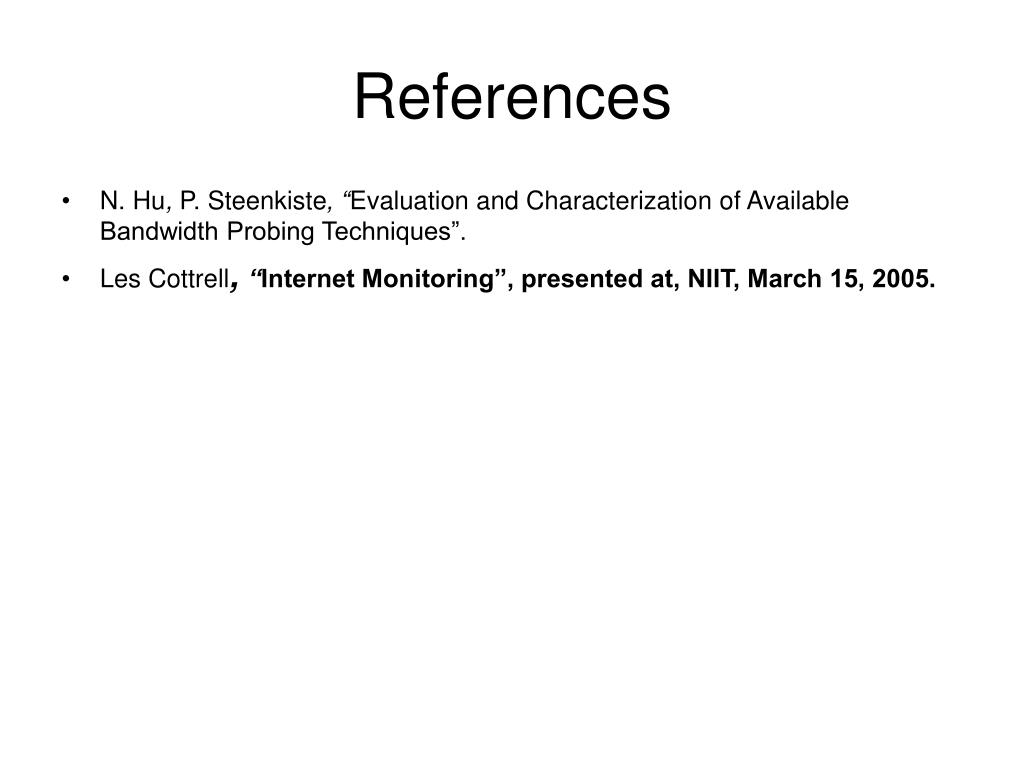

  12. References • N. Hu, P. Steenkiste, “Evaluation and Characterization of Available Bandwidth Probing Techniques”. • Les Cottrell, “Internet Monitoring”, presented at, NIIT, March 15, 2005.
