  1. FEC Software R.Stone Rutgers University Pixel FEC Workshop 21 April 2004

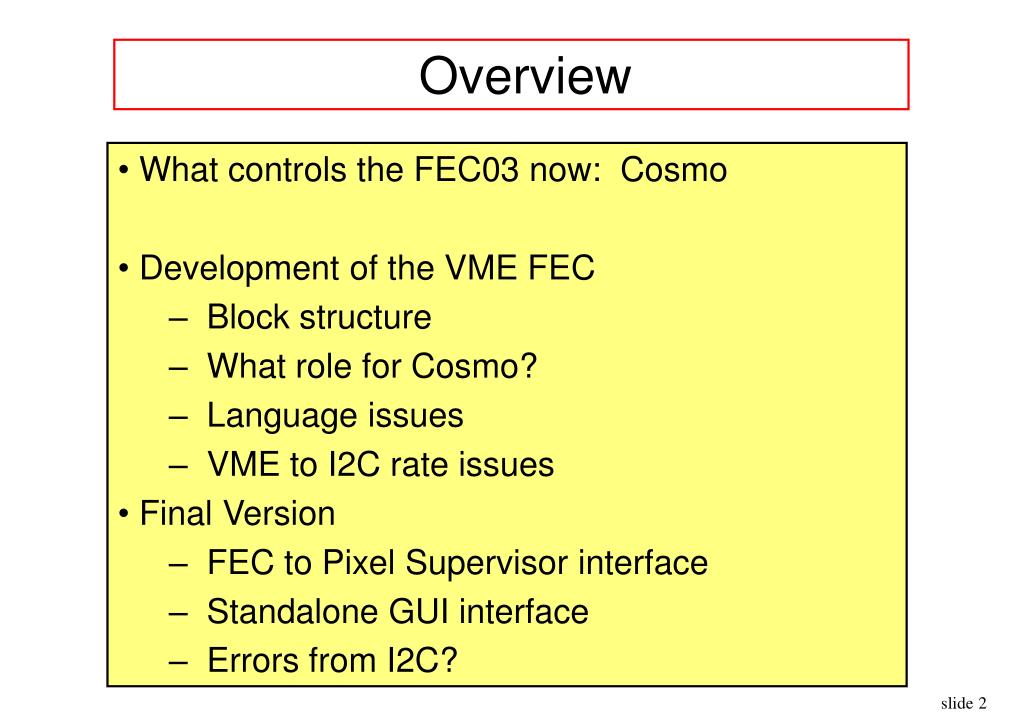

  2. Overview • What controls the FEC03 now: Cosmo • Development of the VME FEC • Block structure • What role for Cosmo? • Language issues • VME to I2C rate issues • Final Version • FEC to Pixel Supervisor interface • Standalone GUI interface • Errors from I2C?

  3. Cosmo - Hardware: PSI 46

  4. Cosmo and FEC02 (now) • Transition from PSI43 to 46 complete • Stores and loads settings for entire module(s): • DACs and Pixel thresh, enable • Generates normal, synch or cal triggers • Controls Aout digitization • Addresses 32 ports • Complex scripting of commands, calibration • USB interface to Ed’s FEC02 / TBM03,4 • A general purpose tool: • Bench testing, testbeam, system testing • Can easily debug Aout (using scope or ADC) • Can easily debug I2C (data return from TBM)

  5. FEC Software Block Diagram

  6. Cosmo GUI for VME FEC • Permanent role as diagnostic mode supervisor: • Useful for initial FPGA mFEC development • Initial system tests, Burnin • During Pixel installation: system check out tool • Cosmo mode available via S/A FEC or in Pixel Supervisor • Until automatic tools fully debugged, Cosmo may be the preferred way to set up and make changes to the pixel system.

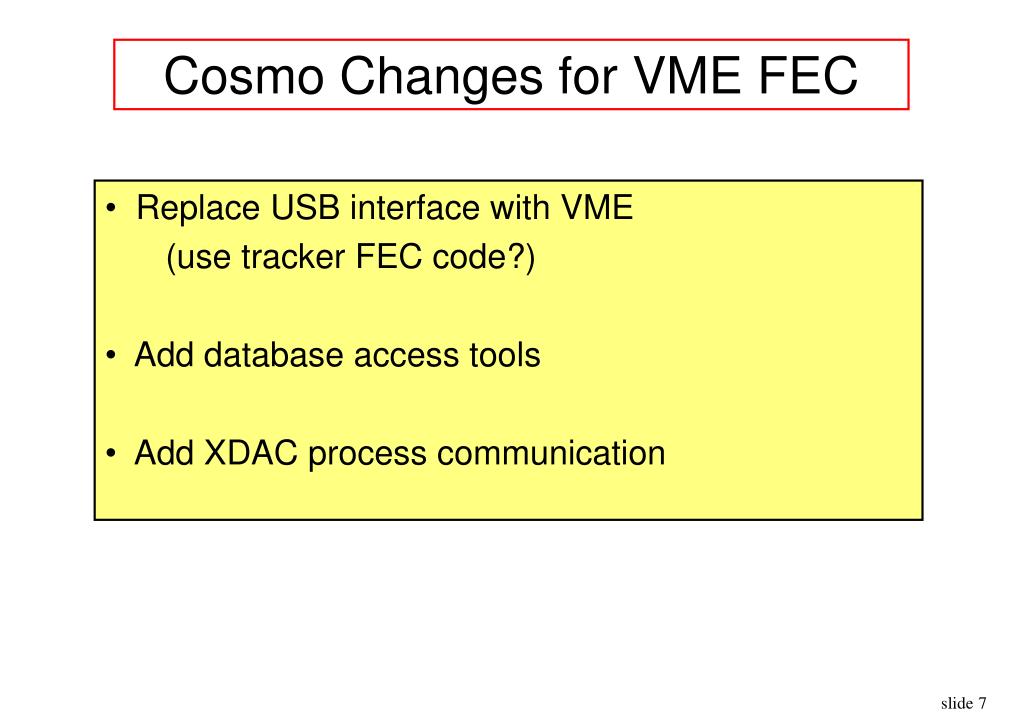

  7. Cosmo Changes for VME FEC • Replace USB interface with VME • (use tracker FEC code?) • Add database access tools • Add XDAC process communication

  8. FEC Language Issues • Cosmo now a mix of C, XML, TCL/TK, and ? • Prefer to leave GUI in TCL • Can easily fold the rest into C++ • Use Tracker FEC software for dealing with VME?

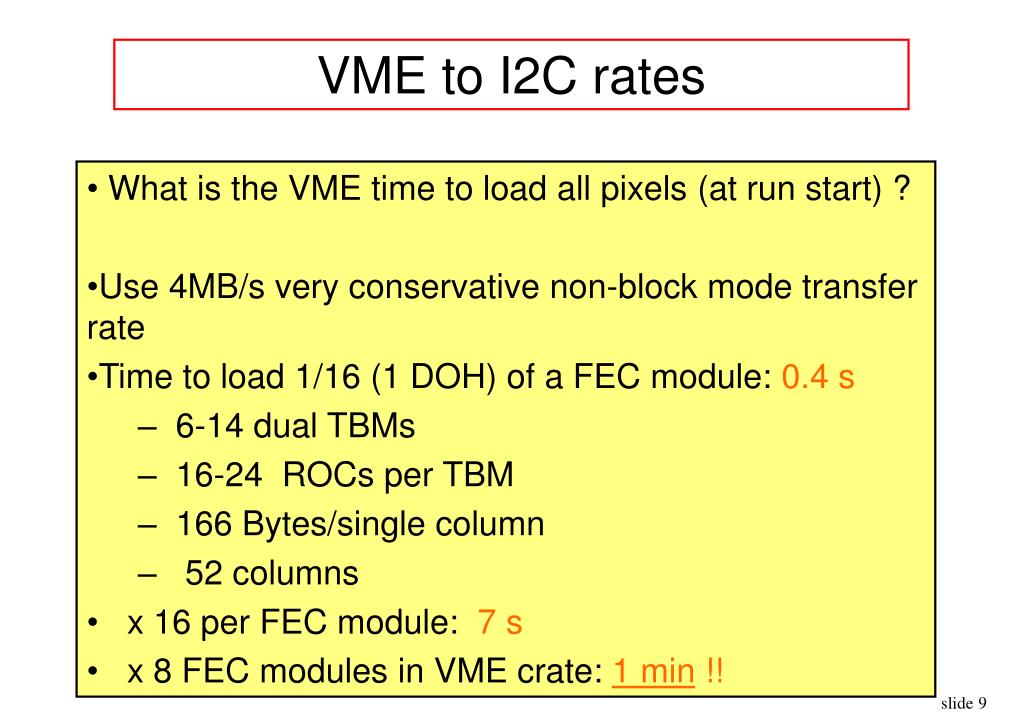

  9. VME to I2C rates • What is the VME time to load all pixels (at run start) ? • Use 4MB/s very conservative non-block mode transfer rate • Time to load 1/16 (1 DOH) of a FEC module: 0.4 s • 6-14 dual TBMs • 16-24 ROCs per TBM • 166 Bytes/single column • 52 columns • x 16 per FEC module: 7 s • x 8 FEC modules in VME crate: 1 min !!

  10. VME to I2C rates for Private Orbit • What is the VME time to load all FECs for private orbit refresh ? • Use 4MB/s very conservative non-block mode rate • Time to load 1/16 (1 DOH) of a FEC module: 8 ms • 6-14 dual TBMs • 16-24 ROCs per TBM • 166 Bytes/single column • x 16 per FEC module: 0.1 s • x 8 FEC modules in VME crate: 1 s • Implication: there may be VME limits to rate of private orbit refresh

  11. I2C Error Check • How to know if an I2C link is alive and well? • Can look at I2C readback from the TBM Hub • Should have the correct HUB address • Can compare command sent with command reflected back • But not in mFEC hardware?, only in FEC soft? • Maybe only have enough VME bandwidth to look at Hub address and # of bytes returned • Perhaps these last two word comparisons can be squeezed into FEC FPGA??

  12. Towards Final FEC Software • FEC to Pixel Supervisor Interface: • Define calling standard • FEC to Database Interface: • Define calling standard • Define switching between “normal” mode and “diagnostic” mode • How to handle I2C error reporting?

  13. Special FEC03 applications

  14. Burnin Testing Goals • Readout 20 plaquettes for ~3 days • up to 200 ROCs per teststand • multiple test stands? • looking for infant ROC mortality • Temp cycling: slowly between room T and –25C • Time stamp the Aout data---when is the failure? • Also readout Temp and module current • Interface to/from DB: critical • Will be ready by Sep 2005

  15. Mods to Cosmo for Burnin • Need to implement 10-fold Aout switch • one board with a few chips • Parallel port interface (doesn’t need to be fast) • coordinate Aout data with switch setting • Hooks to/from DB • details of this interface currently under study • what to store, what to load? • Write the testing script • Backend Aout data analysis • how to identify failing ROCs

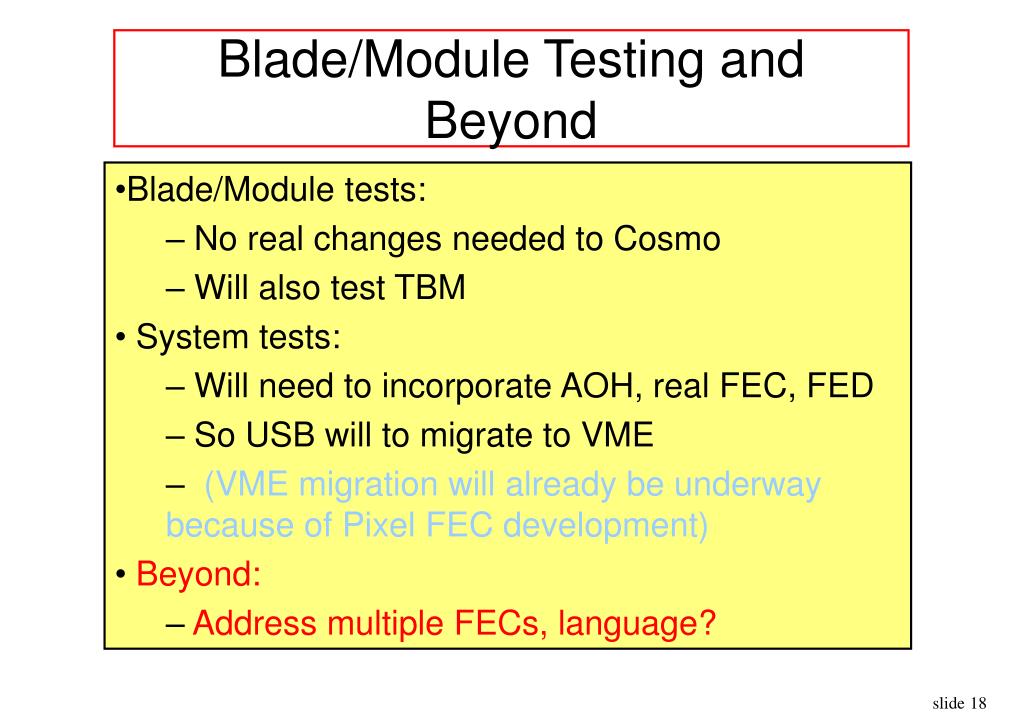

  16. Blade/Module Testing and Beyond • Blade/Module tests: • No real changes needed to Cosmo • Will also test TBM • System tests: • Will need to incorporate AOH, real FEC, FED • So USB will to migrate to VME • (VME migration will already be underway because of Pixel FEC development) • Beyond: • Address multiple FECs, language?
