LEIR controls Hardware and FEC software

LEIR controls Hardware and FEC software. Layout Solutions Systems Open points. Software solutions. Existing solutions when possible Configuration Timing Most VME modules PLC (F. Locci, TC 42) Developments under FESA FC and eqp specialist. Systems. Power supplies

kass
Télécharger la présentation

LEIR controls Hardware and FEC software

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LEIR controls Hardware and FEC software • Layout • Solutions • Systems • Open points

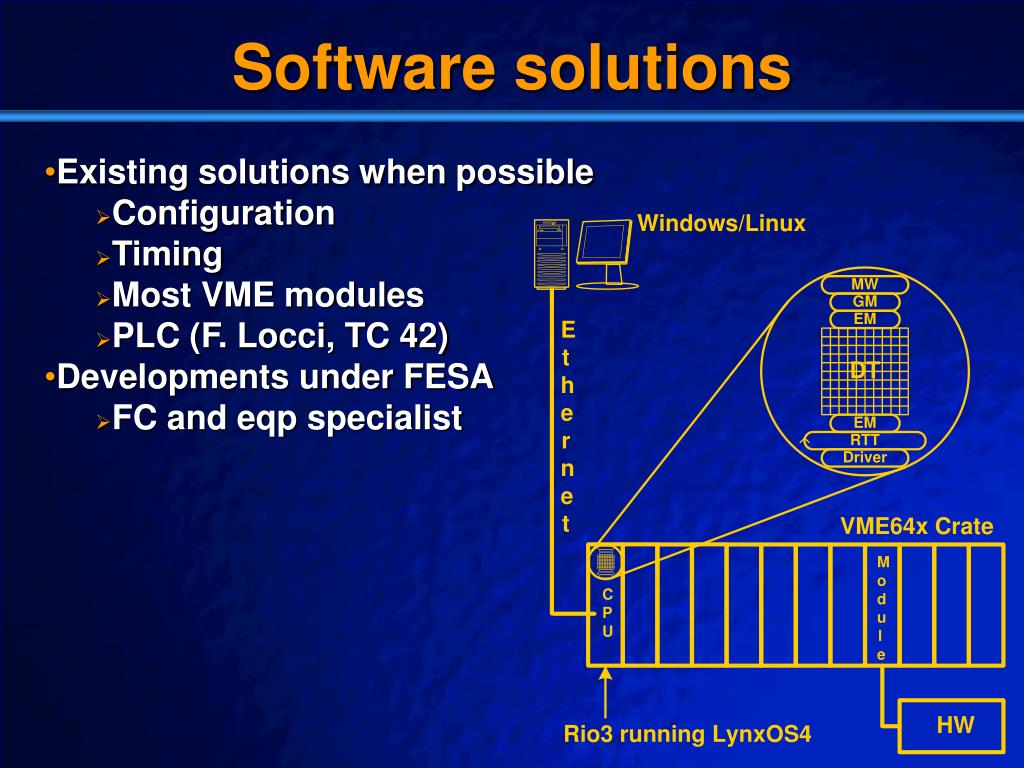

  2. Software solutions • Existing solutions when possible • Configuration • Timing • Most VME modules • PLC (F. Locci, TC 42) • Developments under FESA • FC and eqp specialist

  3. Systems • Power supplies • RF (Low level and Power) • Beam Transfer • Electron Cooling • Beam Instrumentation • Vacuum

  4. PO New • PC (RS422) • FEC software • Fast Sampler • Optical interface Existing • Mil1553/G64 • GFAS • VIPC610 • DPRAM

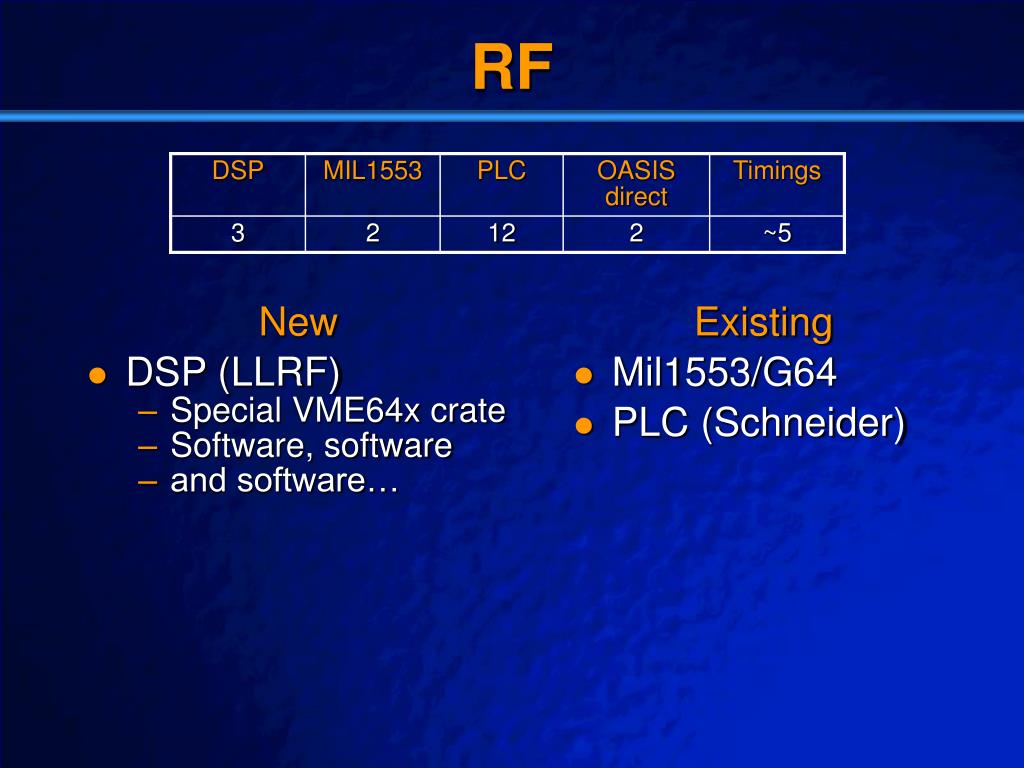

  5. RF New • DSP (LLRF) • Special VME64x crate • Software, software • and software… Existing • Mil1553/G64 • PLC (Schneider)

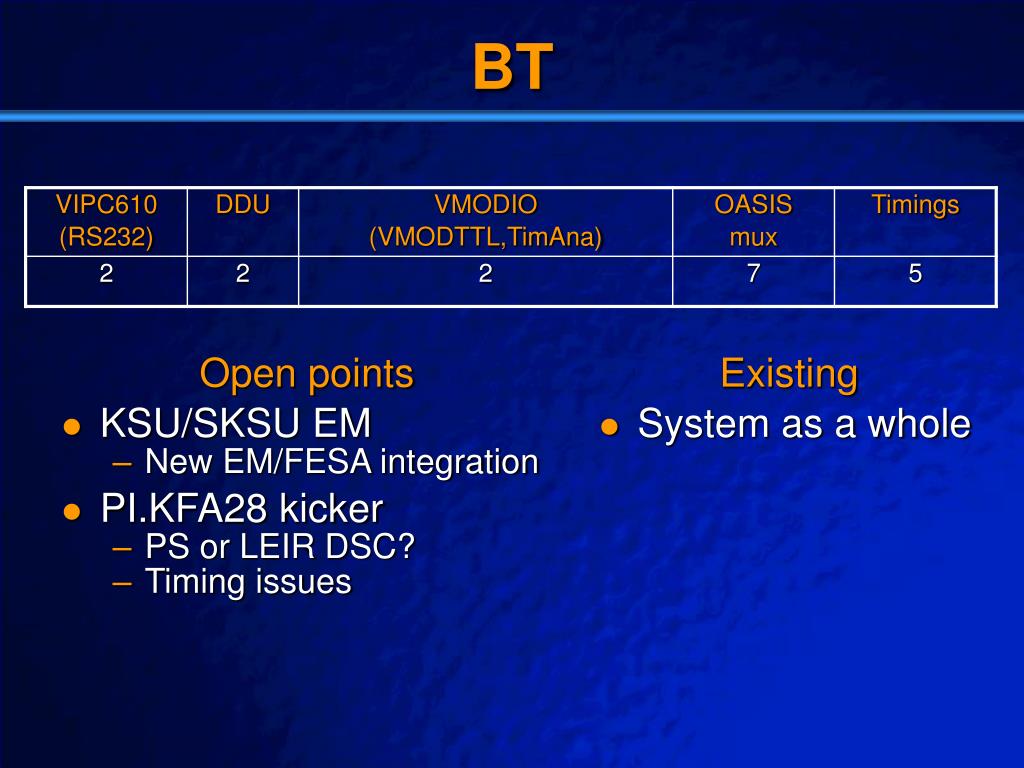

  6. BT Open points • KSU/SKSU EM • New EM/FESA integration • PI.KFA28 kicker • PS or LEIR DSC? • Timing issues Existing • System as a whole

  7. EC New • PC (RS422) • FEC software • Fast Sampler • Optical interface Existing • Mil1553 • GFAS + DAC • VIPC610 • PLC (Schneider)

  8. BI New • MTV • Specs • Software (BDI?) Open points • Scraper motors • RS232 or PLC • Analyzer/scope • Ethernet or GPIB • Signal monitoring • Operator needs • OASIS/ADC? • DSP • As for RF? Existing • PLC • SIS3300 • DPRAM • ICV196

  9. VAC LEIR vacuum is under LHC/VAC responsibility and will be PLC/PVSS based New • CMW/PVSS gateway Open points • PVSS acq rate <= 1Hz • OP requires 100Hz for 8 eqp => OASIS/MPV908

  10. Conclusions • Hardware layout defined (minor open points) • Cabling needs being identified • Quite some software development

  11. Open points • DSP Software (FC, LLRF, BI) • OASIS plug-in (LLRF?) • Scraper motors RS232 ? (BI) • MTV integration (FC, BI) • RS422 PC Software (PO?) • KSU/SKSU new EM/FESA migration ? • PI.KFA28 controls ? (BT) • Fast Sampler optical interface (HT) • Cable ordering for GFAS, GFAS-DAC ?
