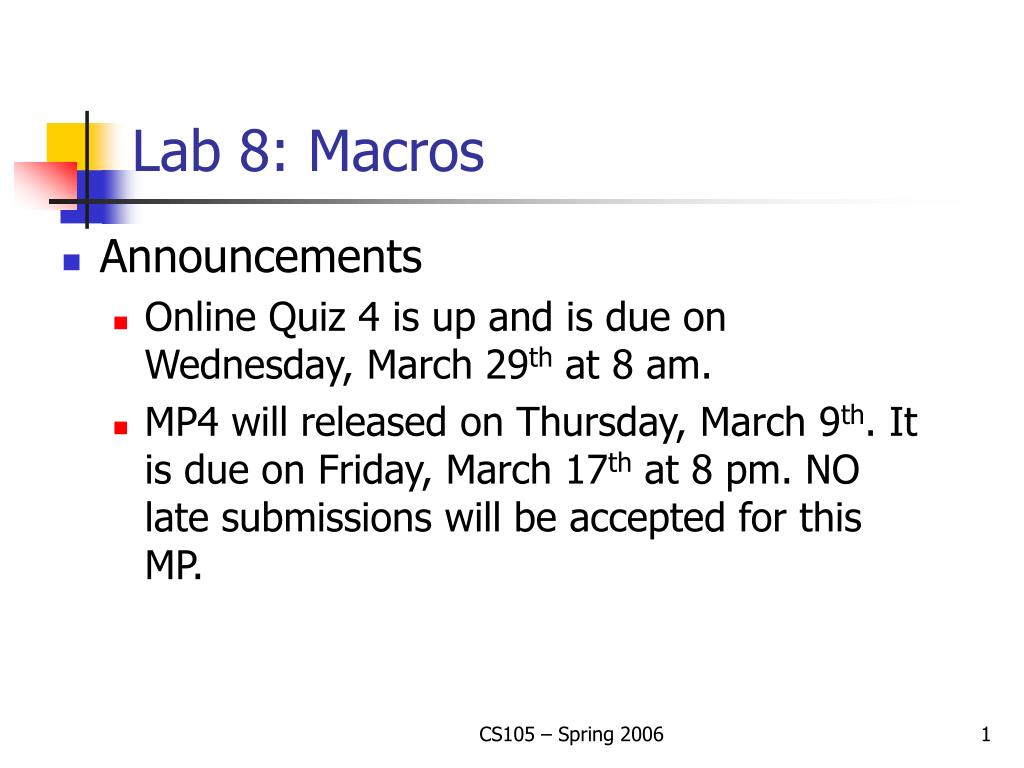

  1. Lab 8: Macros • Announcements • Online Quiz 4 is up and is due on Wednesday, March 29th at 8 am. • MP4 will released on Thursday, March 9th. It is due on Friday, March 17th at 8 pm. NO late submissions will be accepted for this MP. CS105 – Spring 2006

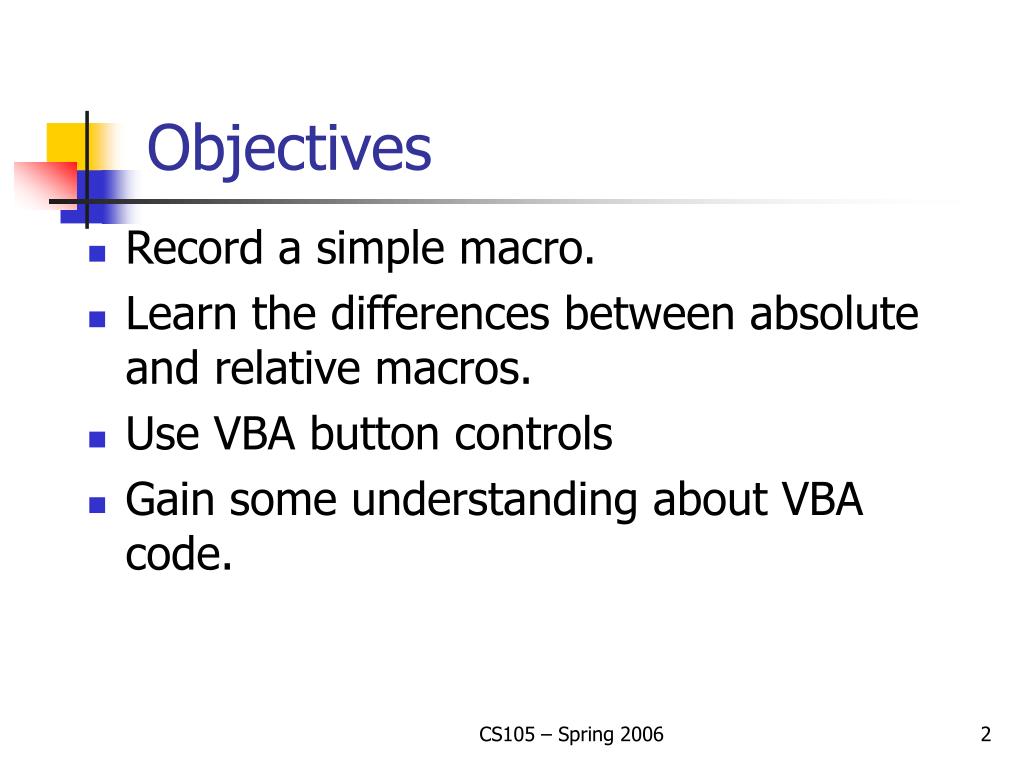

  2. Objectives • Record a simple macro. • Learn the differences between absolute and relative macros. • Use VBA button controls • Gain some understanding about VBA code. CS105 – Spring 2006

  3. Downloading the file • Go to the course website and download the Excel Worksheet for Lab 8. http://www.cs.uiuc.edu/class/cs105 • Click "Enable Macros" when the warning message appears. • If you did not see a message, you need to change the security level in Excel. Go to Tools > Macro > Security and select the Medium Security Level. Click "OK", and restart Excel. CS105 – Spring 2006

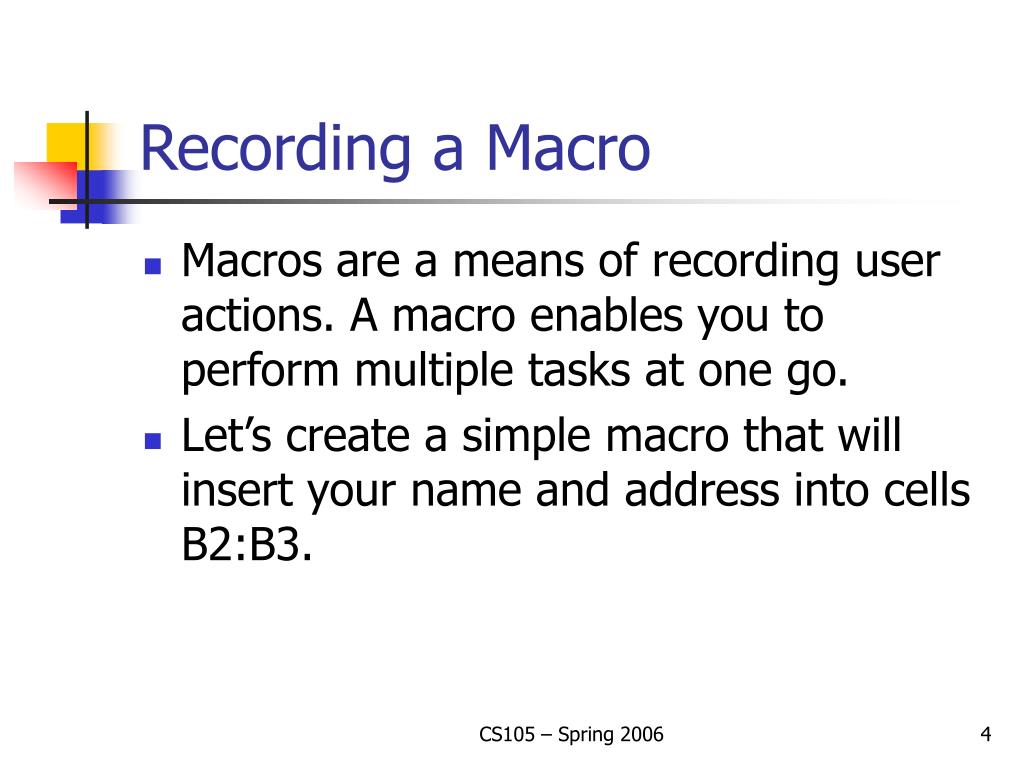

  4. Recording a Macro • Macros are a means of recording user actions. A macro enables you to perform multiple tasks at one go. • Let’s create a simple macro that will insert your name and address into cells B2:B3. CS105 – Spring 2006

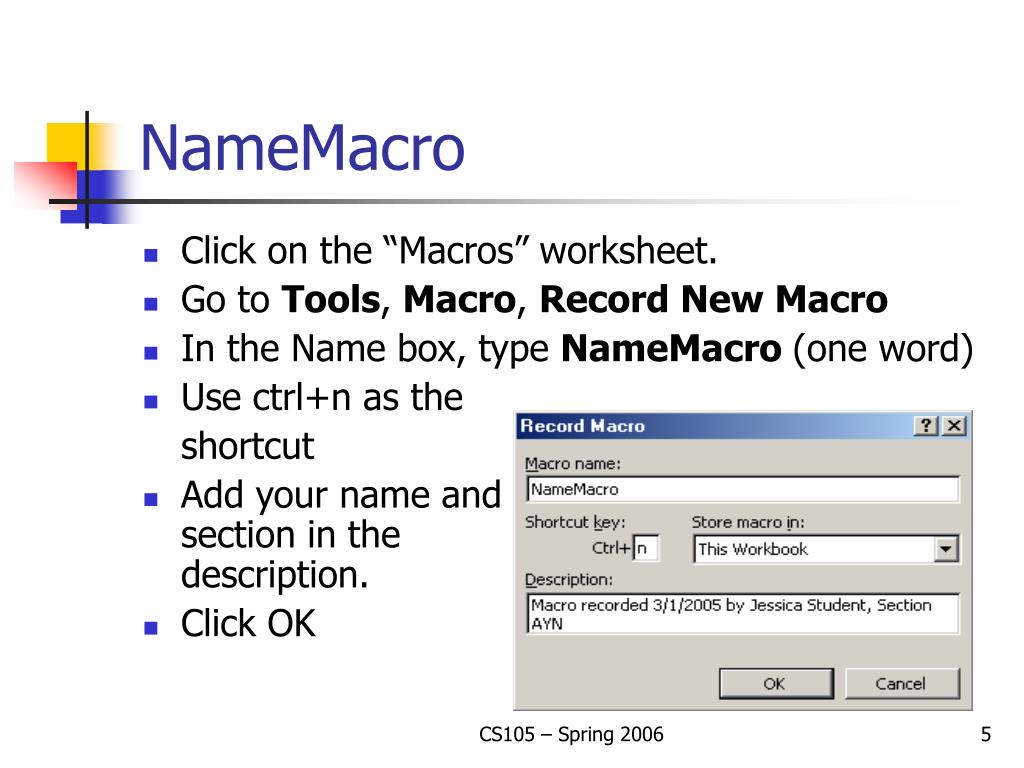

  5. NameMacro • Click on the “Macros” worksheet. • Go to Tools, Macro, Record New Macro • In the Name box, type NameMacro (one word) • Use ctrl+n as the shortcut • Add your name and section in the description. • Click OK CS105 – Spring 2006

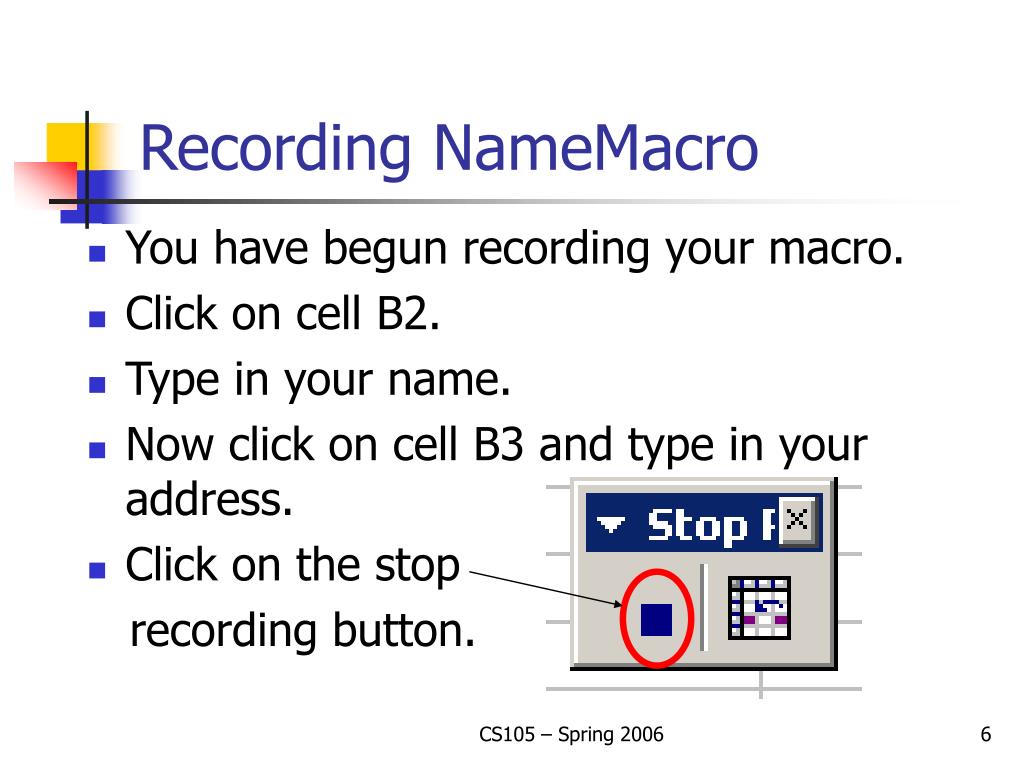

  6. Recording NameMacro • You have begun recording your macro. • Click on cell B2. • Type in your name. • Now click on cell B3 and type in your address. • Click on the stop recording button. CS105 – Spring 2006

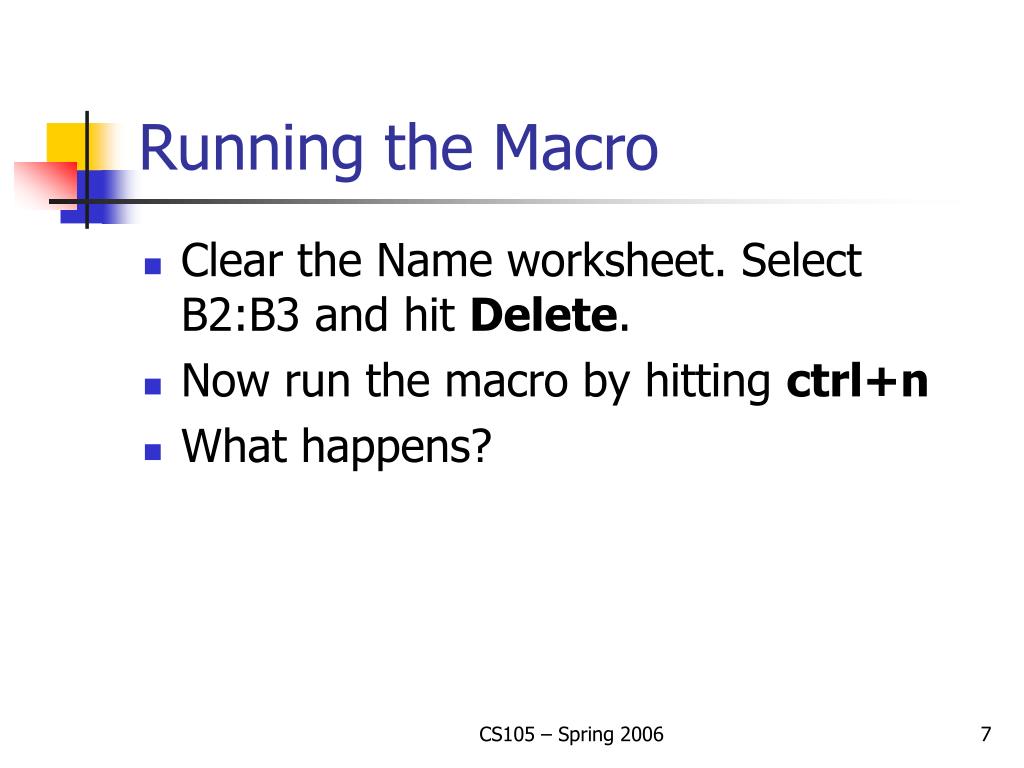

  7. Running the Macro • Clear the Name worksheet. Select B2:B3 and hit Delete. • Now run the macro by hitting ctrl+n • What happens? CS105 – Spring 2006

  8. Find your macro code • To see what Excel recorded, go to Tools, Macro, Macros. • In the dialog box, choose NameMacro and click on Edit. • This will bring up the Project Explorer with the NameMacro in the VBA code window. • Notice the cell references: Range("B2").Select ActiveCell.FormulaR1C1 = "Kevin Johnn" Range("B3").Select ActiveCell.FormulaR1C1 = "1234 Main Street" • What two cells are always referenced? What type of Macro is this? CS105 – Spring 2006

  9. Relative Macros • Clear the Name worksheet. • Select cellB2. • Record a new Macro with the name NameRelative and shortcut key ctrl+r. • Click on the relative reference icon so that it is depressed. CS105 – Spring 2006

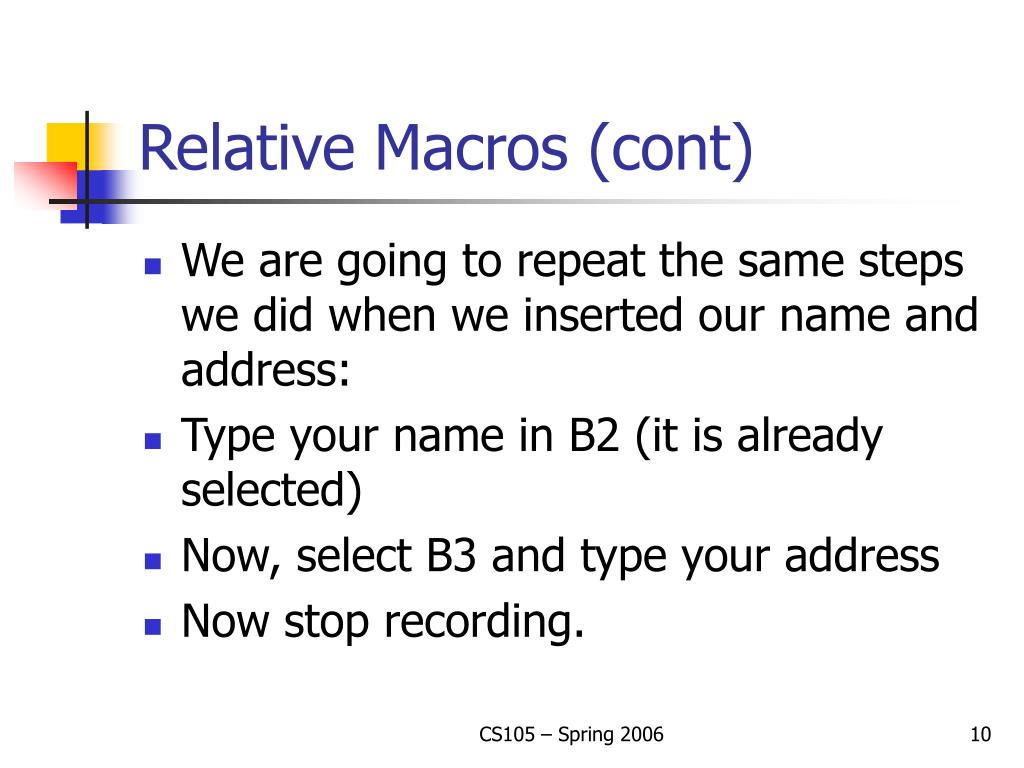

  10. Relative Macros (cont) • We are going to repeat the same steps we did when we inserted our name and address: • Type your name in B2 (it is already selected) • Now, select B3 and type your address • Now stop recording. CS105 – Spring 2006

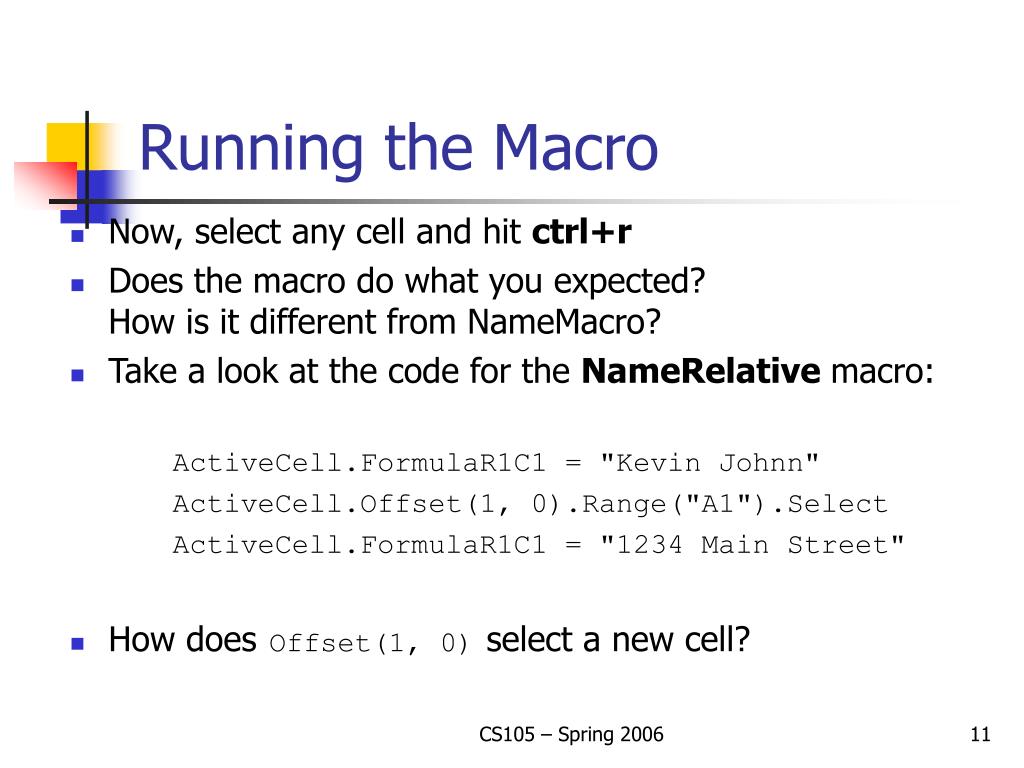

  11. Running the Macro • Now, select any cell and hit ctrl+r • Does the macro do what you expected?How is it different from NameMacro? • Take a look at the code for the NameRelative macro: ActiveCell.FormulaR1C1 = "Kevin Johnn" ActiveCell.Offset(1, 0).Range("A1").Select ActiveCell.FormulaR1C1 = "1234 Main Street" • How doesOffset(1, 0)select a new cell? CS105 – Spring 2006

  12. Command Buttons • Instead of using the Ctrl-shortcut to call a macro, we can also create a button on the Excel worksheet which, when pressed, will invoke the macro. • To do this, we’ll start by creating the macro we want to call. CS105 – Spring 2006

  13. Top 10 Movies of the Week • We want to create a macro to format the Top 10 Movies table. First select the Movies worksheet. • Name your macro FormatMacro (This name is case sensitive!). Pick the letter “f” for your shortcut key. • This should be an absolute macro. Make sure the relative reference icon is not depressed. • Format the movie data to be visually pleasing. CS105 – Spring 2006

  14. Stop Recording • When the formatting is to your satisfaction, press the “Stop Recording” button on the “Stop Recording” toolbar. CS105 – Spring 2006

  15. Clear Formatting Button • Clear your formatting by clicking on the “Clear Formatting” button already on your worksheet. You may also use the Alt-c shortcut. CS105 – Spring 2006

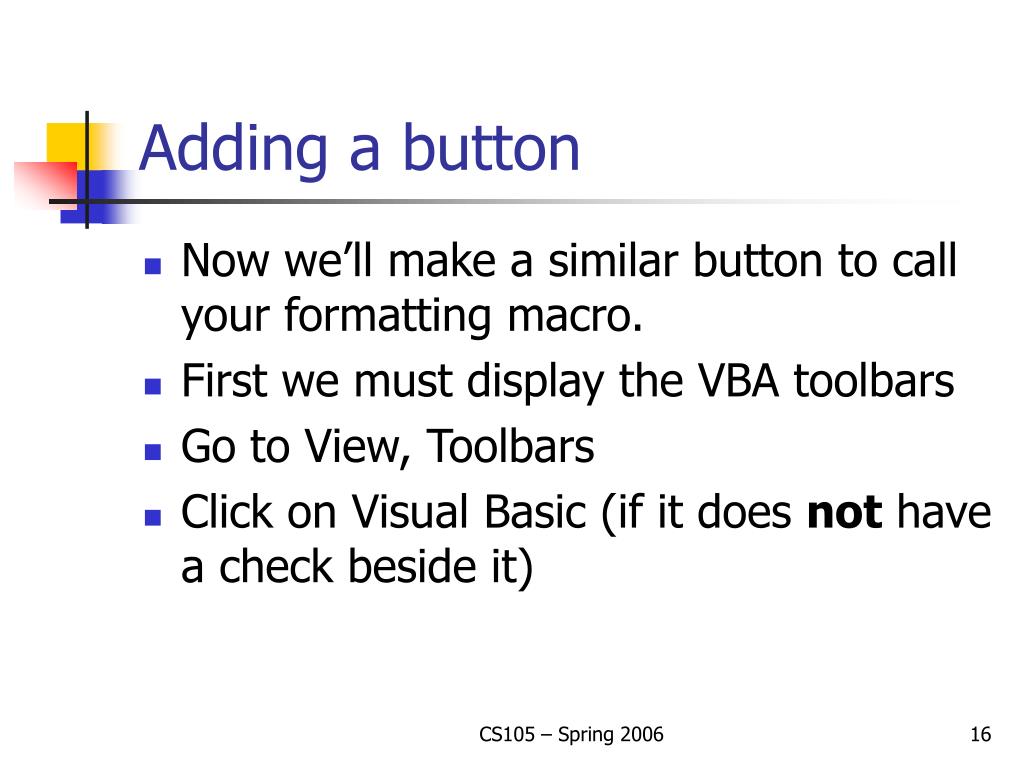

  16. Adding a button • Now we’ll make a similar button to call your formatting macro. • First we must display the VBA toolbars • Go to View, Toolbars • Click on Visual Basic (if it does not have a check beside it) CS105 – Spring 2006

  17. Displaying the VBA Controls • Now click on the hammer/wrench icon on the VB toolbar • The VB controls toolbox should appear CS105 – Spring 2006

  18. Adding a button • We want to make a button. • Click on the button icon from the VB controls toolbox. • Click and drag on the spreadsheet to create a button. CS105 – Spring 2006

  19. Set the button properties • Now that you have a button, we want to set the Properties for this button • Right Click on the button and select properties. A box will appear with lots of properties that you can change • Change the Name property of the button to cmdFormat CS105 – Spring 2006

  20. More properties • Change the Caption property of the button to Format • Change the Accelerator property to m • Change the background color, the foreground color and the font. CS105 – Spring 2006

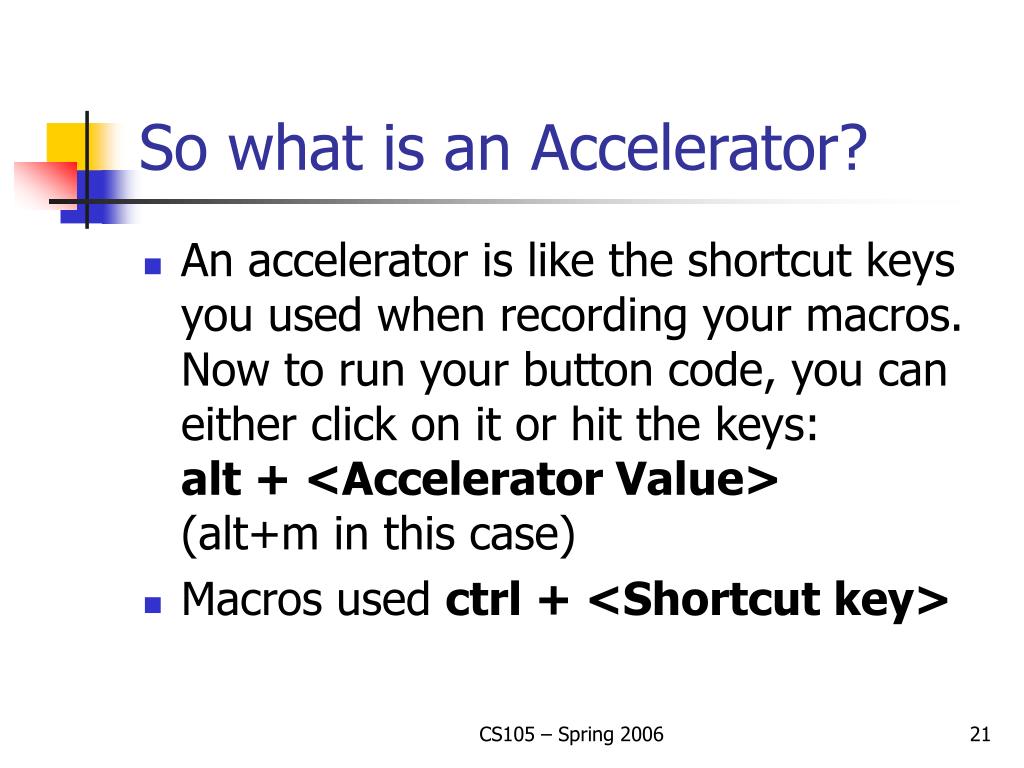

  21. So what is an Accelerator? • An accelerator is like the shortcut keys you used when recording your macros. Now to run your button code, you can either click on it or hit the keys: alt + <Accelerator Value>(alt+m in this case) • Macros used ctrl + <Shortcut key> CS105 – Spring 2006

  22. Writing Code • In design mode double-click on your button to bring up the code window. • Between Sub cmdFormat_Click() and End Sub, type the name of your macro: FormatMacro • Now when you click the Format button it will call (i.e. run) this macro CS105 – Spring 2006

  23. Running the Code • Go back to the Excel window. • Click on the design mode (triangle) button to get out of design mode • You are now in run mode: click on your button. Does it work? CS105 – Spring 2006

  24. Modifying the Macros • We want to change the code so that the user can only click on the Clear button after the Format button has been clicked. • In design mode, double-click on the Clear Formatting button and add the following line of code at the end: cmdClear.Enabled = False • Now, in the cmdFormat code add: cmdClear.Enabled = True • Try it out. CS105 – Spring 2006
