Example of 4 sector model

Example of 4 sector model. Let’s say we start with a linear model with a consumption function (or “schedule”): C = 100 + 0.75(Y – T) Let’s use a 4 sector model of AE with: I = 80 G = 60 T = 40 NX = 30. Firstly graph the consumption function.

mervyn
Télécharger la présentation

Example of 4 sector model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

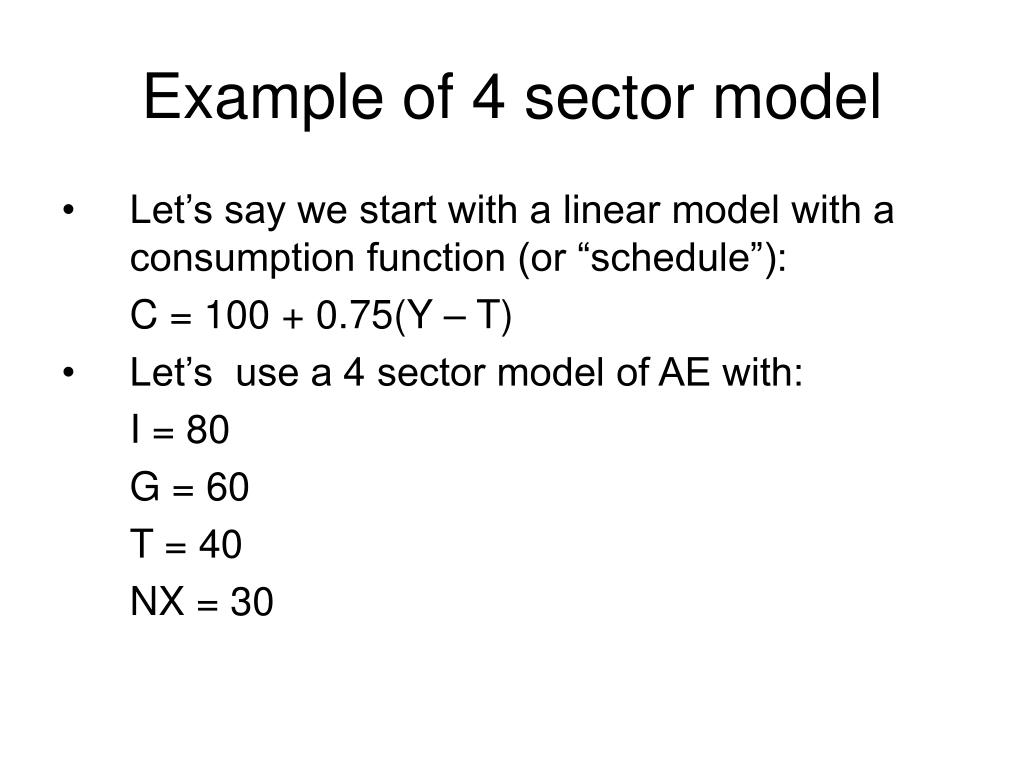

  1. Example of 4 sector model • Let’s say we start with a linear model with a consumption function (or “schedule”): C = 100 + 0.75(Y – T) • Let’s use a 4 sector model of AE with: I = 80 G = 60 T = 40 NX = 30

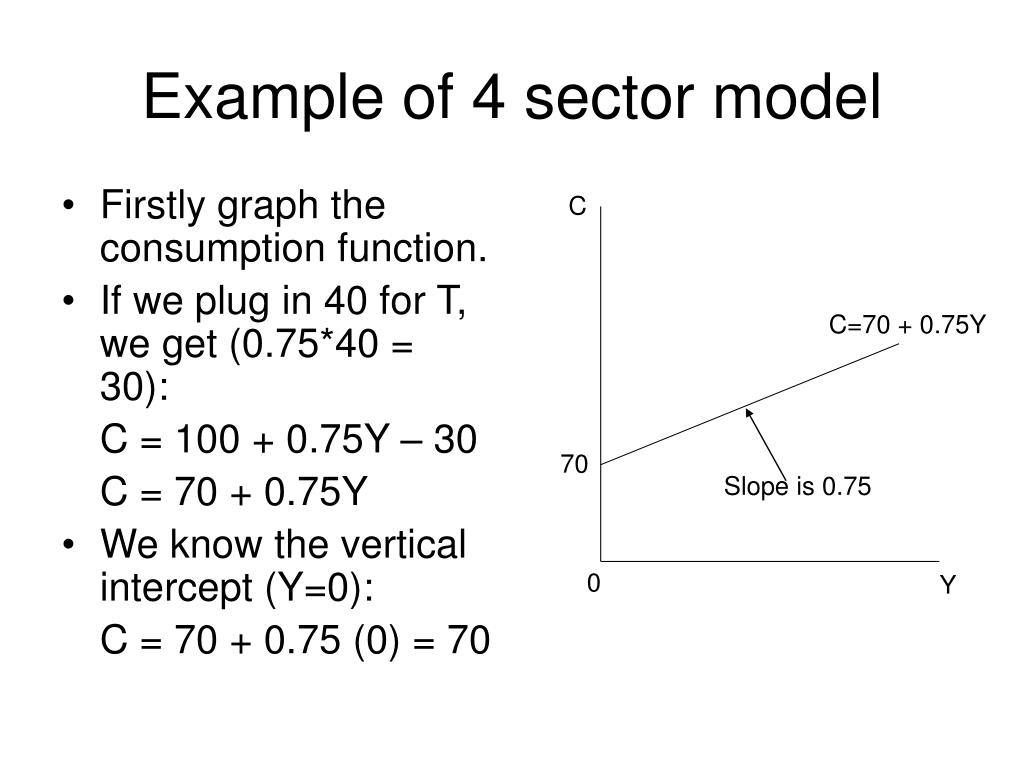

  2. Firstly graph the consumption function. If we plug in 40 for T, we get (0.75*40 = 30): C = 100 + 0.75Y – 30 C = 70 + 0.75Y We know the vertical intercept (Y=0): C = 70 + 0.75 (0) = 70 Example of 4 sector model C C=70 + 0.75Y 70 Slope is 0.75 0 Y

  3. Example of a 4 sector model • From the C function, we know our MPC is 0.75- a fact we will use later. • Now we need to derive our AE curve. We use the 4 sector AE equation: AE = C + I + G + NX • Plugging in the facts above, we get AE = 70 + 0.75Y + 80 + 60 + 30 I G NX C

  4. Adding all those together, we get: AE = 240 + 0.75 Y Just like we did with the C function, we can graph this AE function: Example of a 4 sector model C, AE AE=240 + 0.75Y 240 C=70 + 0.75Y 70 0 Y

  5. Example of a 4 sector model • Now we need to find the equilibrium of this model. This occurs where goods demand, AE, is equal to goods supply, Y. • Note that AE is a function of income, Y, and we are also requiring that in equilibrium goods supply, Y, is equal to AE. We are using Y in two different senses, as income and as output. But remember from the first lecture, we can calculate GDP either from income or from production and get the same value. • We are looking for an income level, Y*, that produces an AE level equal to Y*.

  6. Using our equation for AE, we get: AE = 240 + 0.75Y* Y* = AE = 240 + 0.75Y* 0.25Y* = 240 Y* = 960 Example of a 4 sector model AE 45 deg line AE = 240 + 0.75Y 960 240 0 Y 960

  7. Example of a 4 sector model • Since our MPC = 0.75, we know that the multiplier for autonomous expenditure is: Multiplier = 1/(1-MPC) = 1/(1-0.75) = 4 • So a $1 change in I or G or NX would lead to a $4 change in equilibrium GDP, Y*.
