EDM Model Server Installation and Startup Guide for IFC Users

This comprehensive guide outlines the steps for installing and starting up the EDMModelServer and ModelServerManagerIFC. It includes details on downloading necessary files, setting up user credentials, configuring connections (TCP, HTTP), and performing client upgrades. The guide also covers the trial setup for single PC use, ensuring proper installation of server software, and managing connections to a local server. Additionally, it highlights the importance of configuring default schemas for optimal performance in Octaga Modeller and provides troubleshooting tips.

meryl
Télécharger la présentation

EDM Model Server Installation and Startup Guide for IFC Users

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

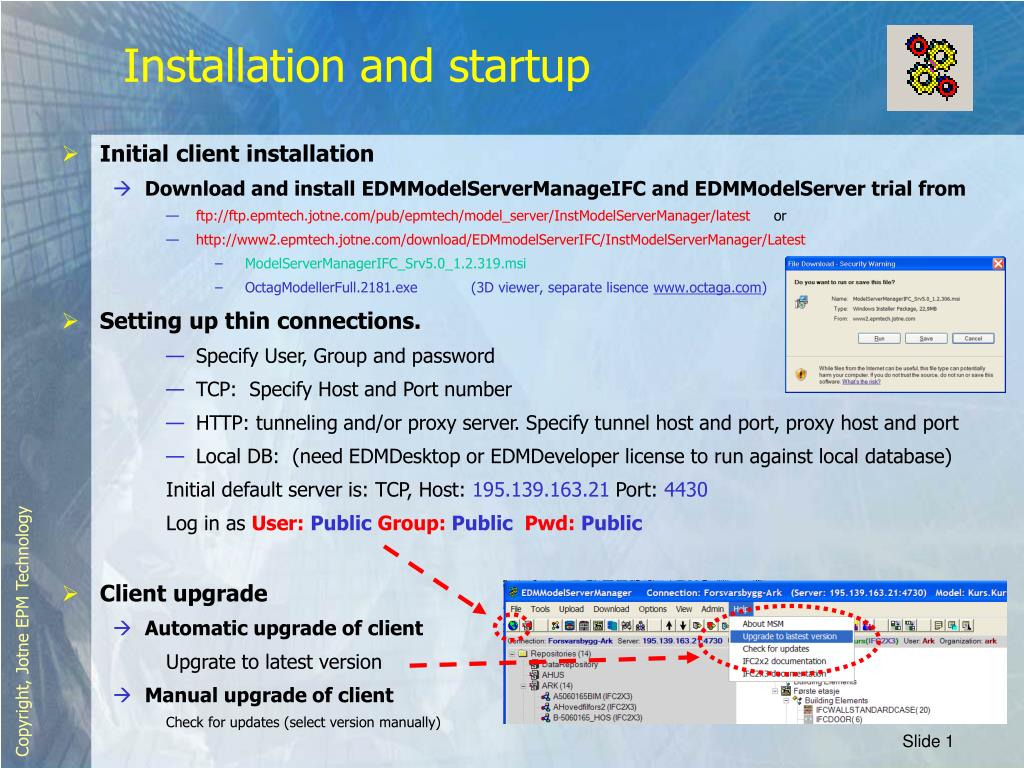

  1. Installation and startup • Initial client installation • Download and install EDMModelServerManageIFC and EDMModelServer trial from • ftp://ftp.epmtech.jotne.com/pub/epmtech/model_server/InstModelServerManager/latest or • http://www2.epmtech.jotne.com/download/EDMmodelServerIFC/InstModelServerManager/Latest • ModelServerManagerIFC_Srv5.0_1.2.319.msi • OctagModellerFull.2181.exe (3D viewer, separate lisence www.octaga.com) • Setting up thin connections. • Specify User, Group and password • TCP: Specify Host and Port number • HTTP: tunneling and/or proxy server. Specify tunnel host and port, proxy host and port • Local DB: (need EDMDesktop or EDMDeveloper license to run against local database) Initial default server is: TCP, Host: 195.139.163.21 Port: 4430 Log in as User: Public Group: Public Pwd: Public • Client upgrade • Automatic upgrade of client Upgrate to latest version • Manual upgrade of client Check for updates (select version manually)

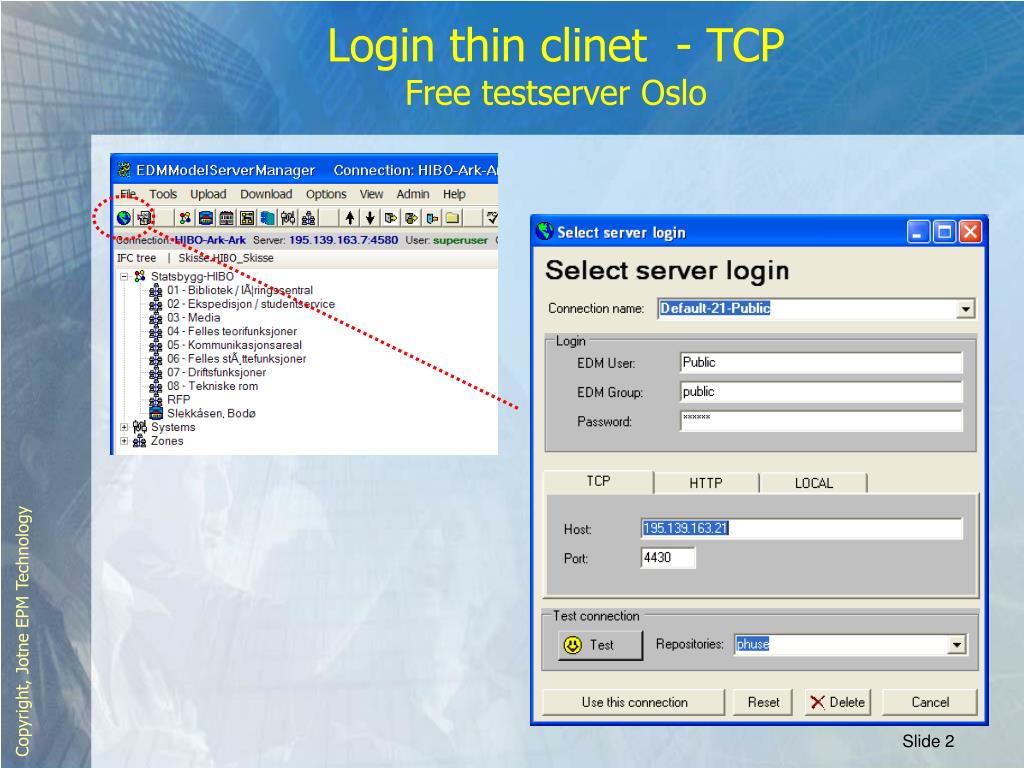

  2. Login thin clinet - TCP Free testserver Oslo

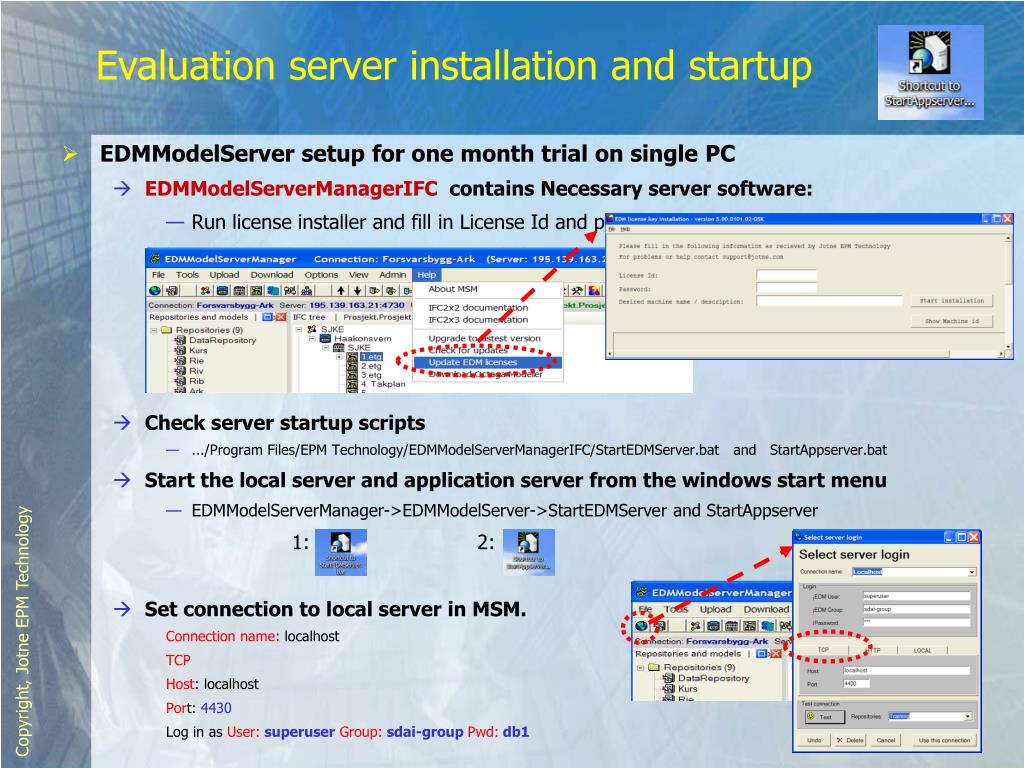

  3. Evaluation server installation and startup • EDMModelServer setup for one month trial on single PC • EDMModelServerManagerIFC contains Necessary server software: • Run license installer and fill in License Id and password • Check server startup scripts • .../Program Files/EPM Technology/EDMModelServerManagerIFC/StartEDMServer.bat and StartAppserver.bat • Start the local server and application server from the windows start menu • EDMModelServerManager->EDMModelServer->StartEDMServer and StartAppserver 1: 2: • Set connection to local server in MSM. Connection name: localhost TCP Host: localhost Port: 4430 Log in as User:superuserGroup:sdai-groupPwd:db1

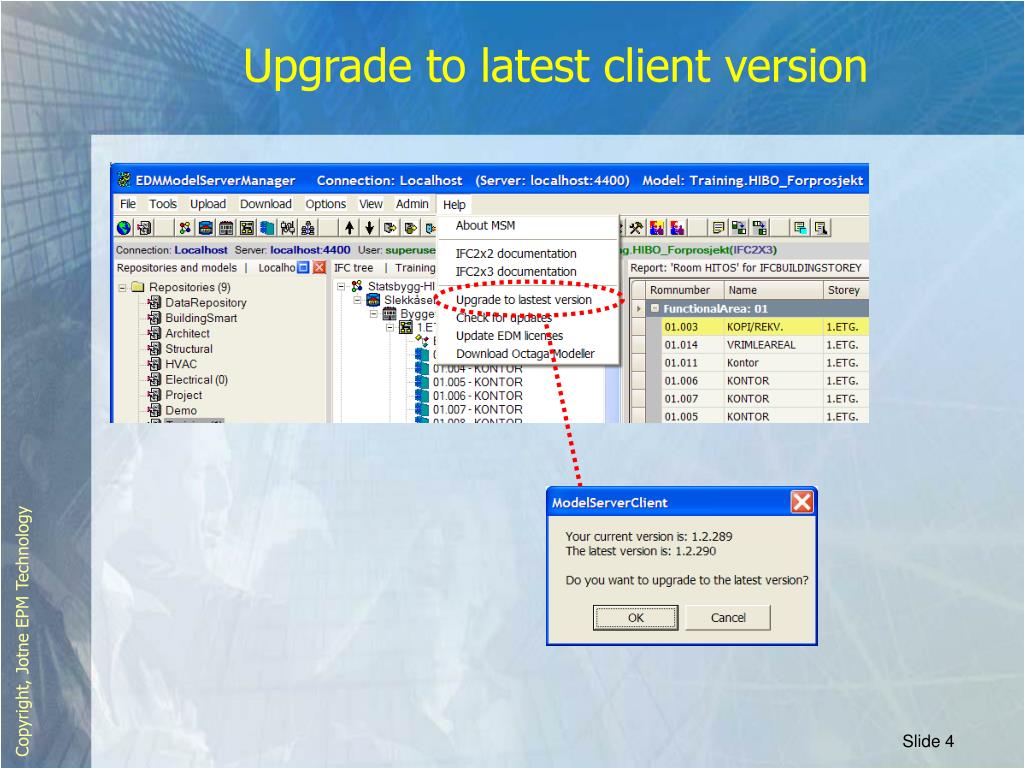

  4. Upgrade to latest client version

  5. Re-install client - manual procedure • Check for updates • Download correct version to PC • Uninstall previous version

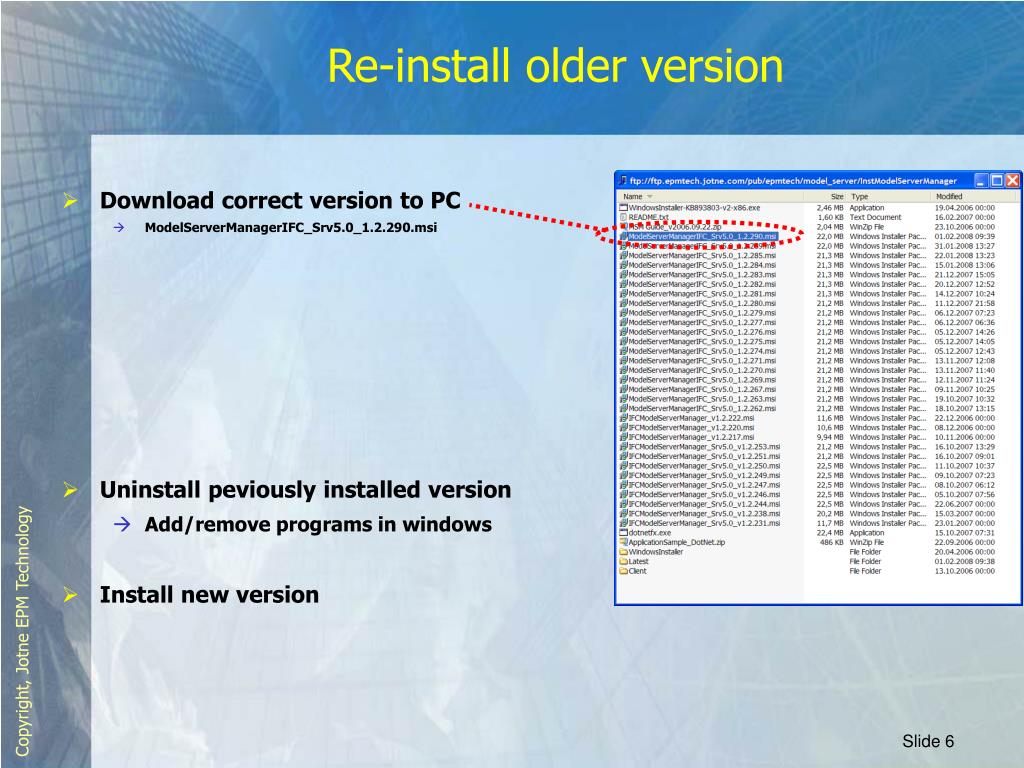

  6. Re-install older version • Download correct version to PC • ModelServerManagerIFC_Srv5.0_1.2.290.msi • Uninstall peviously installed version • Add/remove programs in windows • Install new version

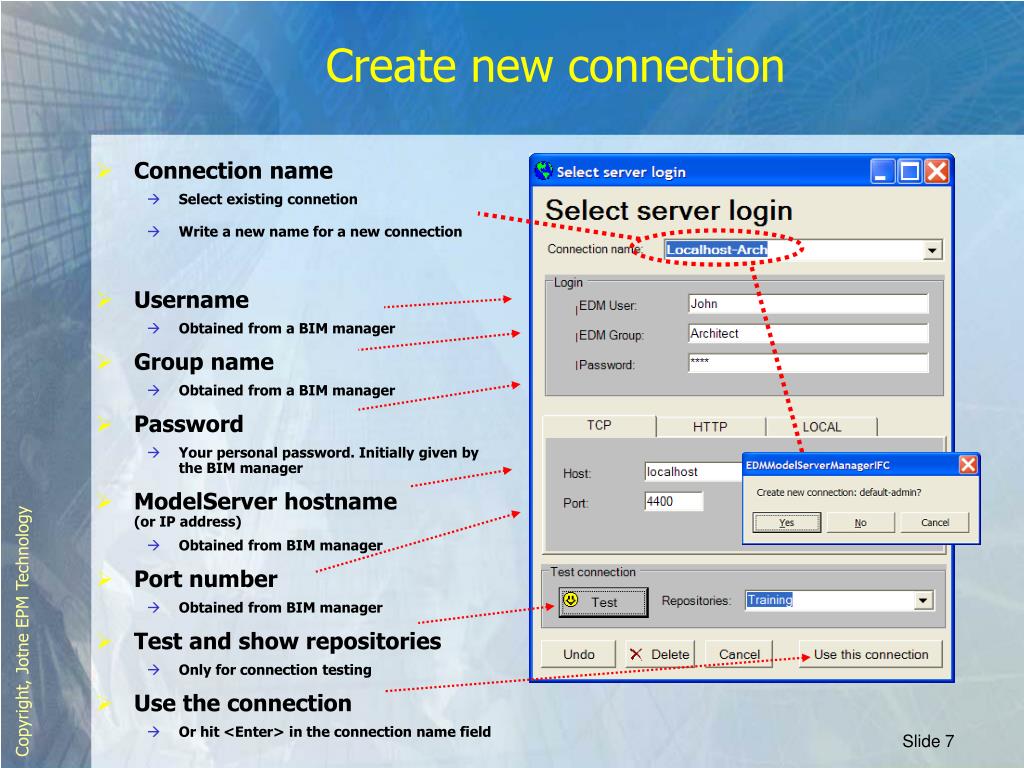

  7. Create new connection • Connection name • Select existing connetion • Write a new name for a new connection • Username • Obtained from a BIM manager • Group name • Obtained from a BIM manager • Password • Your personal password. Initially given by the BIM manager • ModelServer hostname (or IP address) • Obtained from BIM manager • Port number • Obtained from BIM manager • Test and show repositories • Only for connection testing • Use the connection • Or hit <Enter> in the connection name field

  8. Important settingDefault schema • Default schema when creatinig new models. • Set to the IFC schema version you prefer to work with

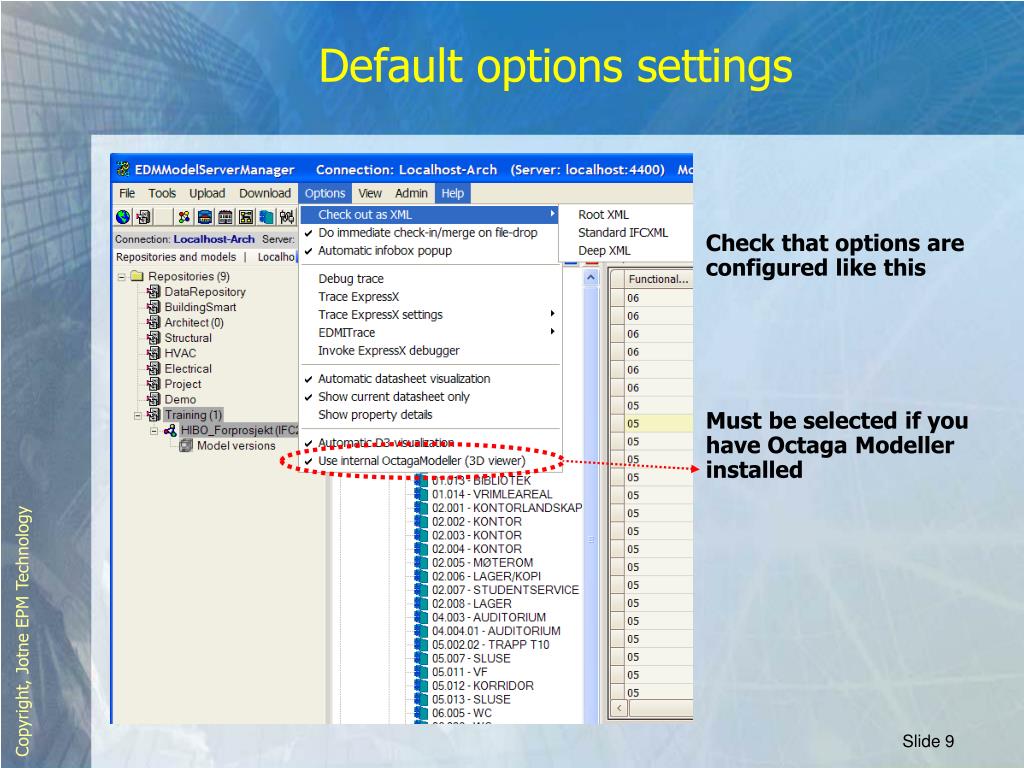

  9. Default options settings • Check that options are configured like this • Must be selected if you have Octaga Modeller installed
