PTCS Observing Scenarios

This talk by Richard Prestage and Kim Constantikes presents an in-depth overview of cutting-edge beamswitching techniques, particularly utilizing subreflector and tertiary systems. Key areas include checking subreflector collimation and maintaining fixed primary-subreflector distances. Attendees will learn how the Antenna Manager interprets commands and generates demands for azimuth and elevation tracking, ensuring desired motion of the beam without affecting target positioning. The PTCS control strategy will also be explored, detailing how it influences the response of various optical elements.

meryl
Télécharger la présentation

PTCS Observing Scenarios

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PTCS Observing Scenarios Richard Prestage/Kim Constantikes

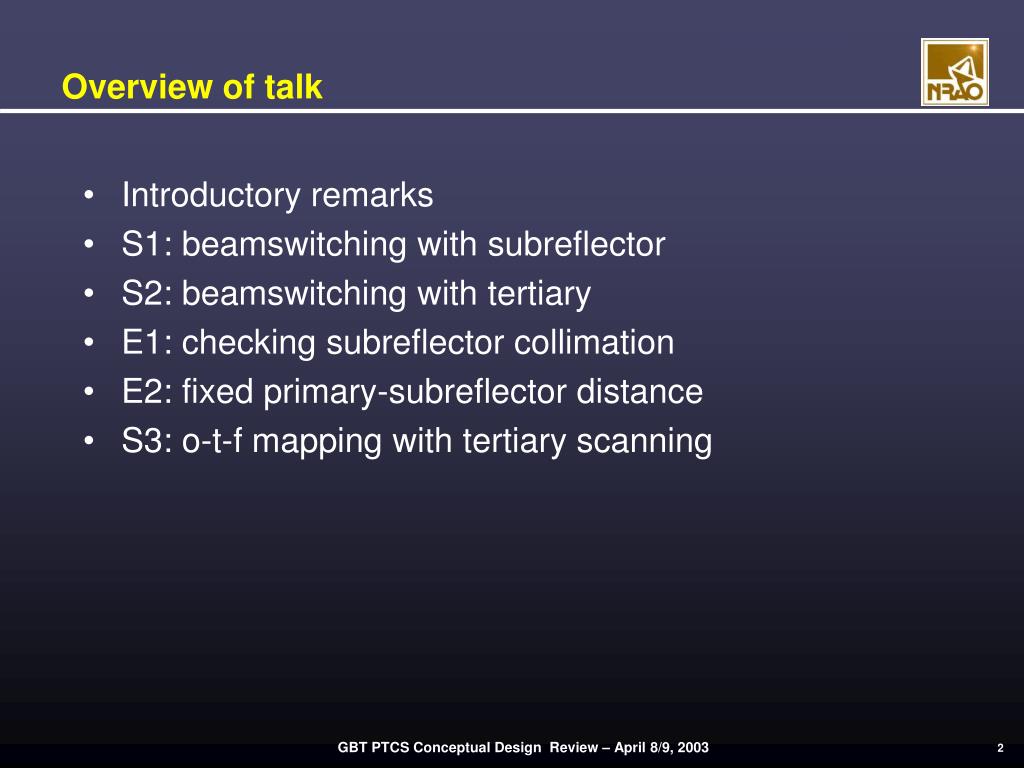

  2. Overview of talk • Introductory remarks • S1: beamswitching with subreflector • S2: beamswitching with tertiary • E1: checking subreflector collimation • E2: fixed primary-subreflector distance • S3: o-t-f mapping with tertiary scanning

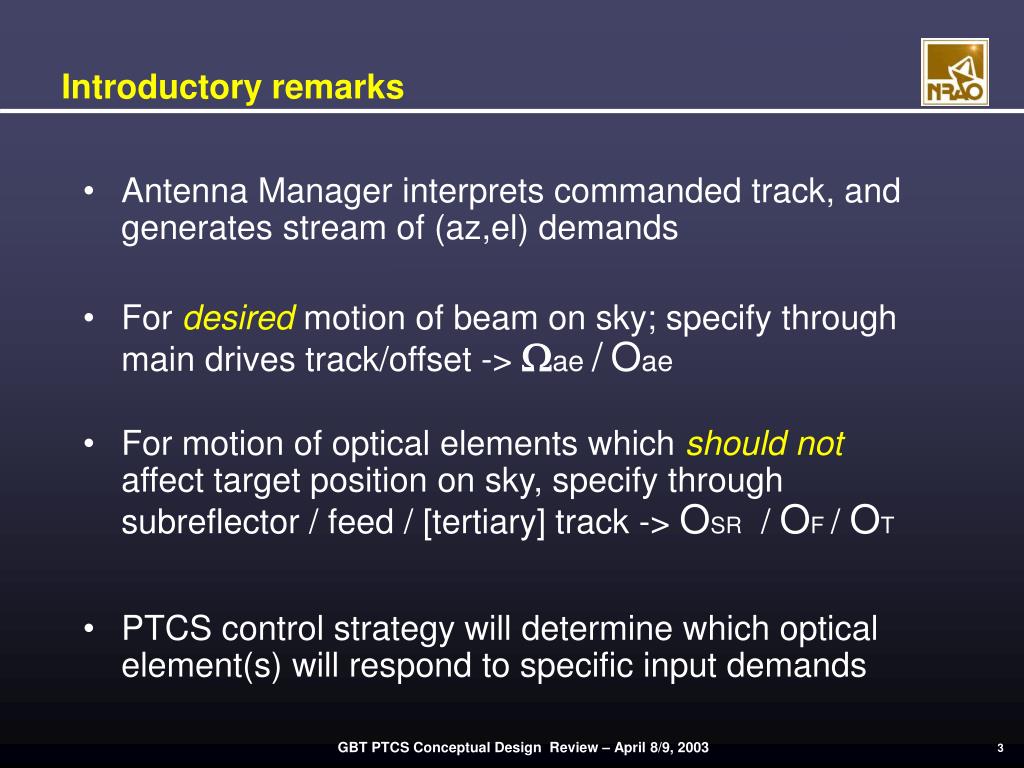

  3. Introductory remarks • Antenna Manager interprets commanded track, and generates stream of (az,el) demands • For desired motion of beam on sky; specify through main drives track/offset -> Wae /Oae • For motion of optical elements which should not affect target position on sky, specify through subreflector / feed / [tertiary] track -> OSR / OF / OT • PTCS control strategy will determine which optical element(s) will respond to specific input demands

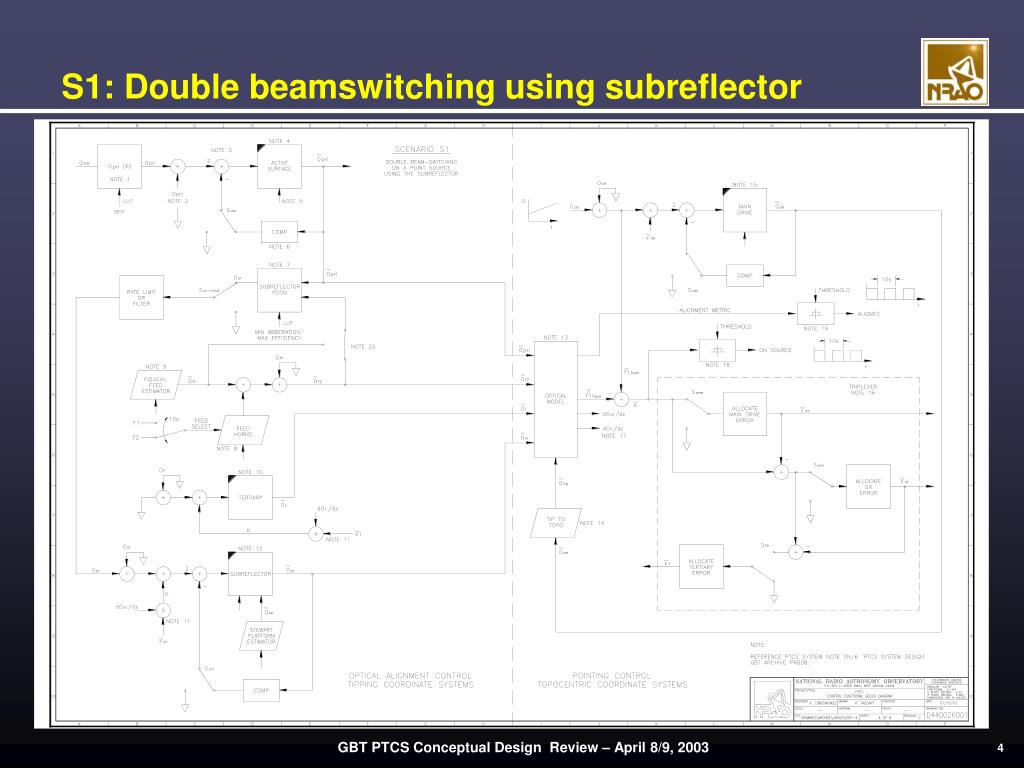

  4. S1: Double beamswitching using subreflector

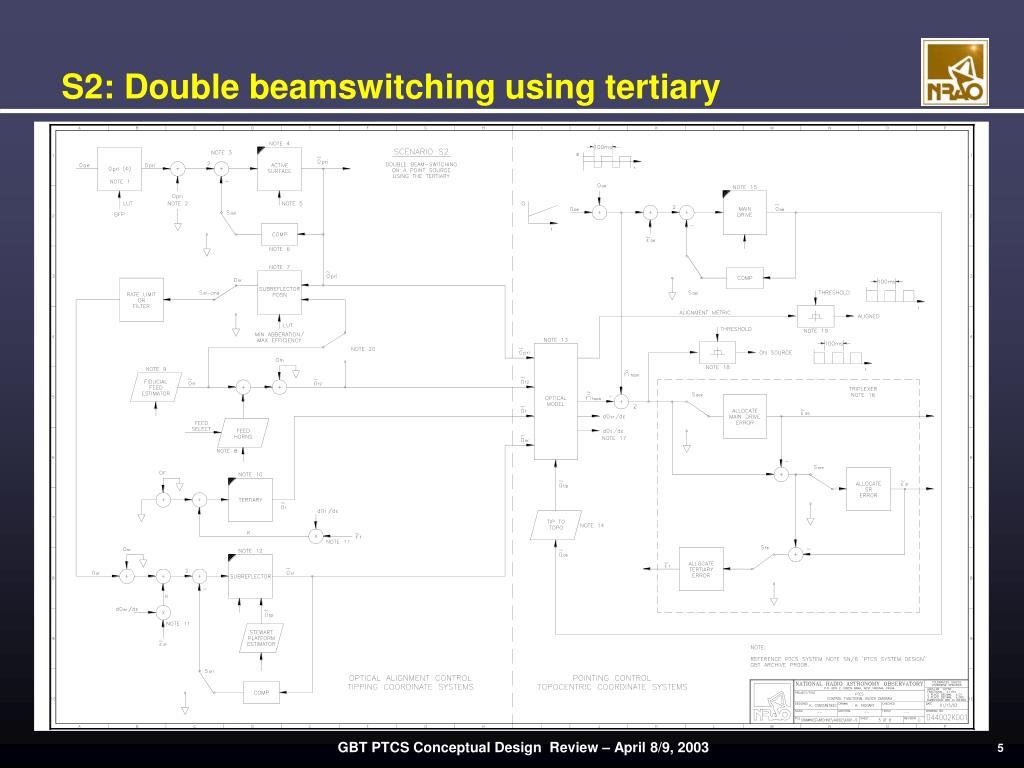

  5. S2: Double beamswitching using tertiary

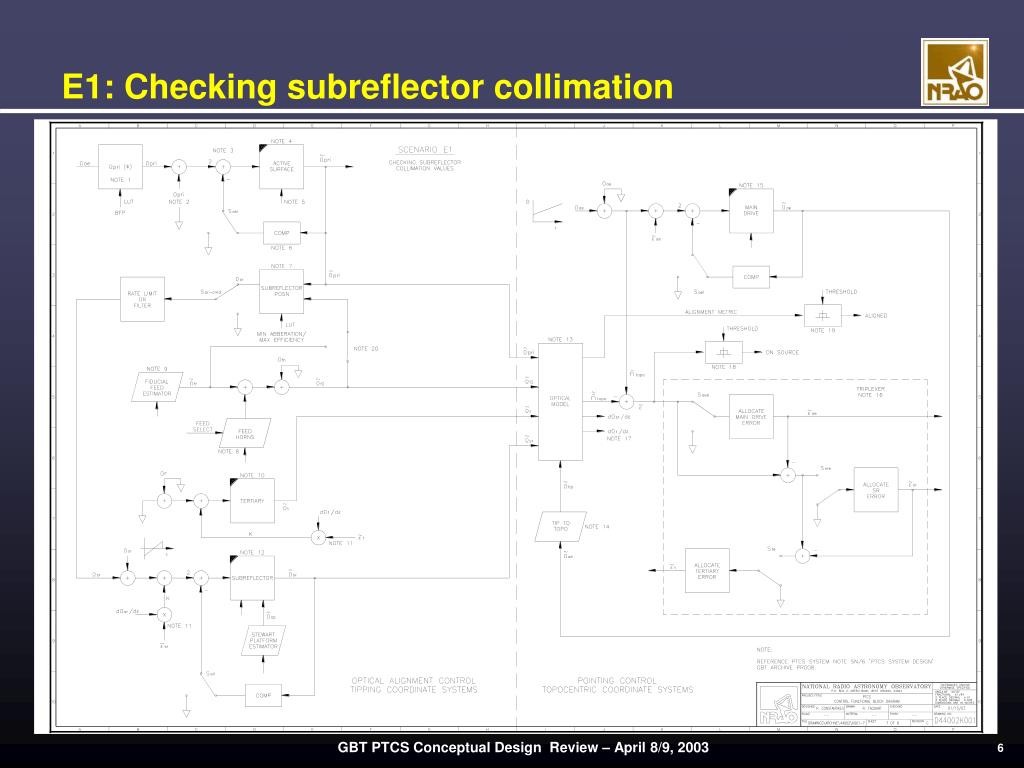

  6. E1: Checking subreflector collimation

  7. E2: fixed primary-subreflector distance

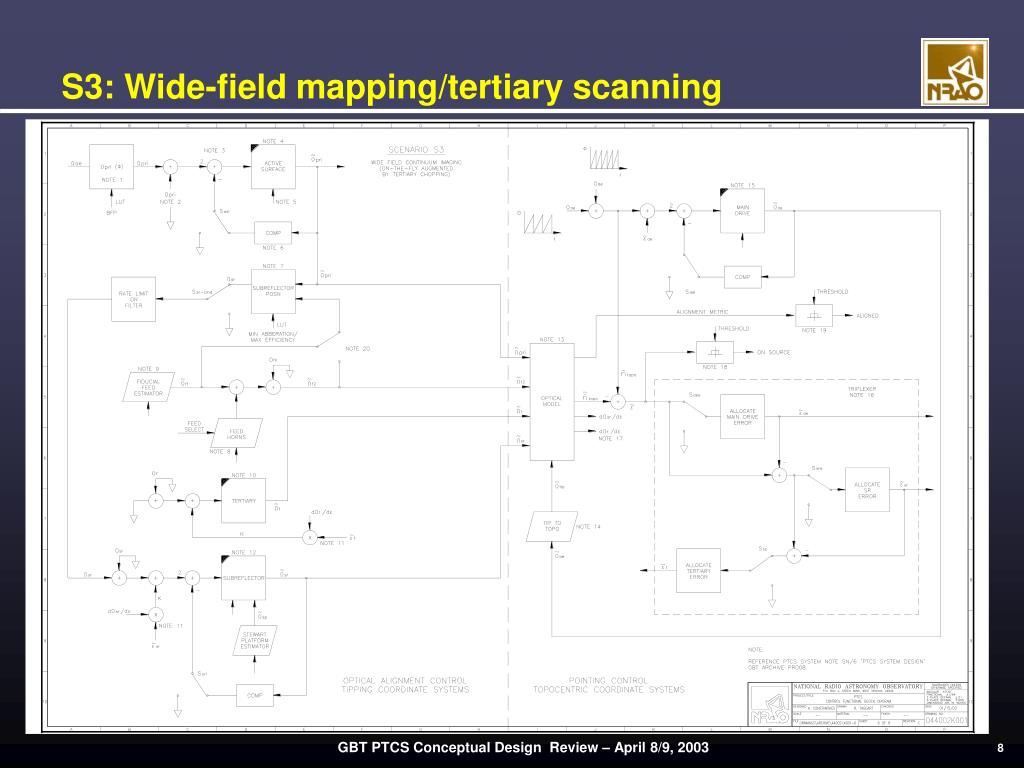

  8. S3: Wide-field mapping/tertiary scanning
