  1. PVSS SCADA SYSTEMS USED DURING HCC OVERVIEW OF THE NEW FEATURES MP3 - Frédéric BERNARD

  2. Outline • The PVSS systemsinvolved in the hardware commissioning • The Circuit Synoticswith CRYO data • The QPS & nQPS applications • The PIC application MP3 - Frédéric BERNARD

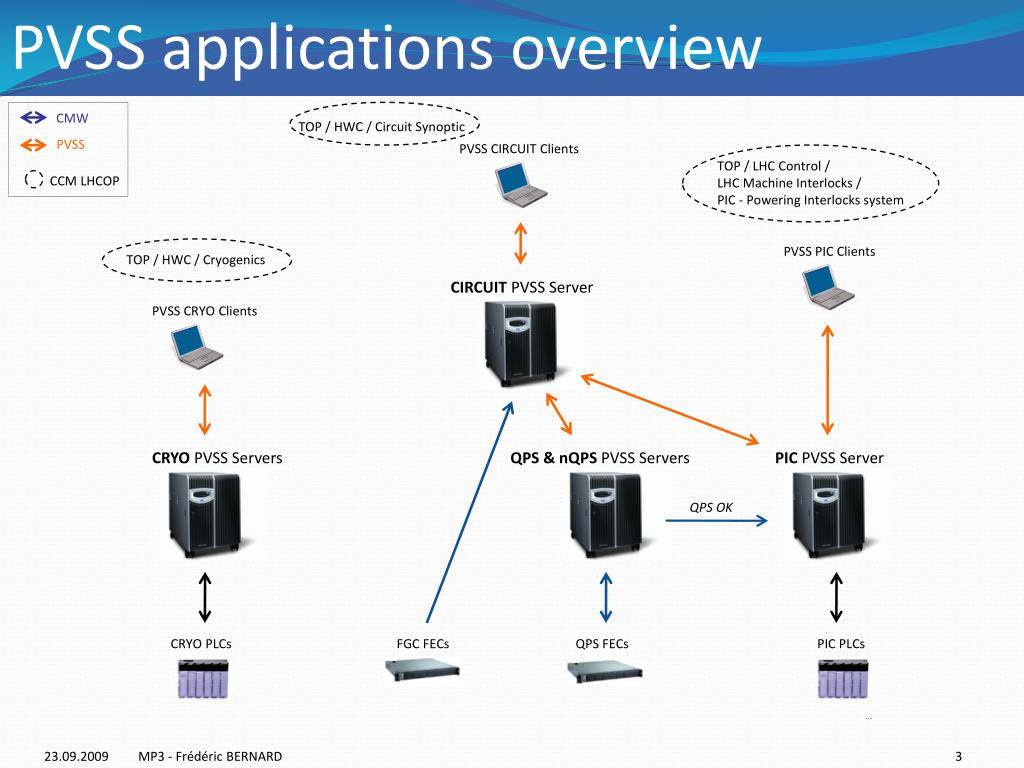

  3. PVSS applications overview QPS FECs CMW PVSS CIRCUIT Clients • TOP / LHC Control / • LHC Machine Interlocks / • PIC - Powering Interlocks system PVSS CRYO Clients PVSS PIC Clients • TOP / HWC / Circuit Synoptic PVSS CCM LHCOP • TOP / HWC / Cryogenics CIRCUIT PVSS Server QPS & nQPS PVSS Servers CRYO PVSS Servers PIC PVSS Server QPS OK PIC PLCs CRYO PLCs FGC FECs … MP3 - Frédéric BERNARD

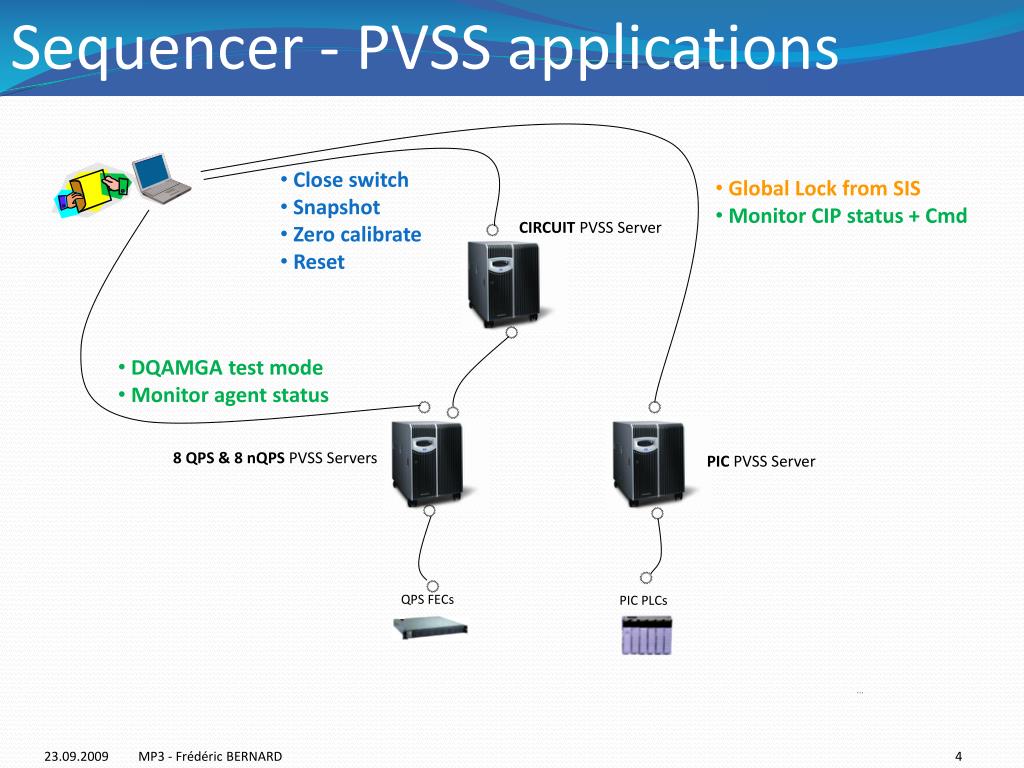

  4. Sequencer - PVSS applications QPS FECs CIRCUIT PVSS Server 8 QPS & 8 nQPS PVSS Servers PIC PVSS Server … • Close switch • Snapshot • Zero calibrate • Reset • Global Lock from SIS • Monitor CIP status + Cmd • DQAMGA test mode • Monitor agent status PIC PLCs MP3 - Frédéric BERNARD

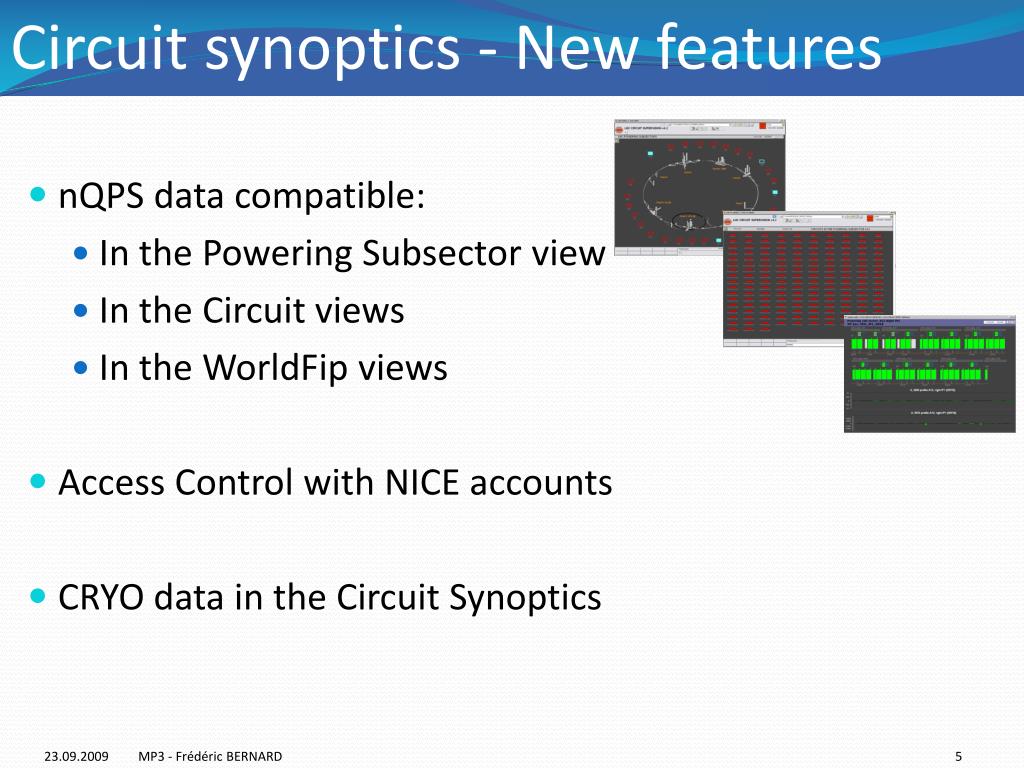

  5. Circuit synoptics - New features • nQPS data compatible: • In the PoweringSubsectorview • In the Circuit views • In the WorldFipviews • Access Control with NICE accounts • CRYO data in the Circuit Synoptics MP3 - Frédéric BERNARD

  6. Circuit synoptics - CRYO data Get the essential cryogenic signals for each electrical circuit to make available all information required for circuit powering in one single application. • It willprovide: • For eachelectrical circuit (monitoring only):  • Cryo Start status • Cryo Maintain status • CV891 valve sensor for eachcurrentlead • TT893 for each current lead = temperature at top of CL   • TT891A for each current lead = temperature at bottom of CL  • Liquid level LT83x of the DFB  • Pressure PT83x inside the DFB  • Temperature TT83x  inside the DFB • Online trends and correlations of FGC data vs QPS, PIC & CRYO • Cryoequipment information (e.g. thresholdsetc…) MP3 - Frédéric BERNARD

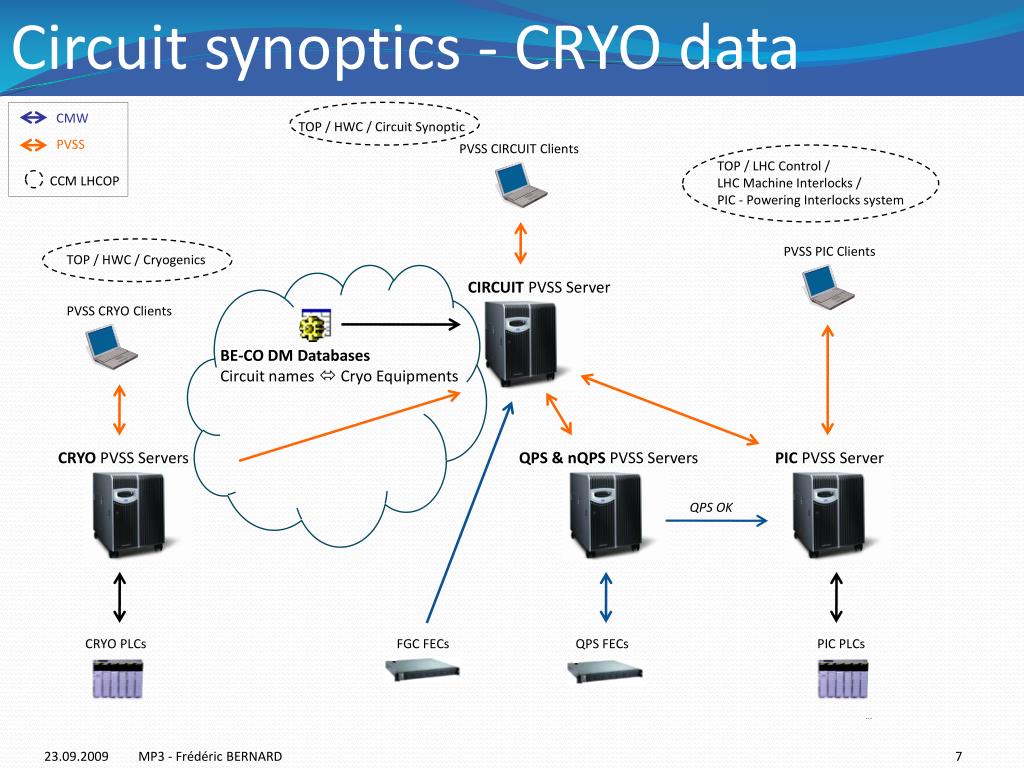

  7. Circuit synoptics - CRYO data QPS FECs CMW PVSS CIRCUIT Clients • TOP / LHC Control / • LHC Machine Interlocks / • PIC - Powering Interlocks system PVSS CRYO Clients PVSS PIC Clients • TOP / HWC / Circuit Synoptic PVSS CCM LHCOP • TOP / HWC / Cryogenics CIRCUIT PVSS Server BE-CO DM Databases Circuit names  Cryo Equipments QPS & nQPS PVSS Servers CRYO PVSS Servers PIC PVSS Server QPS OK PIC PLCs CRYO PLCs FGC FECs … MP3 - Frédéric BERNARD

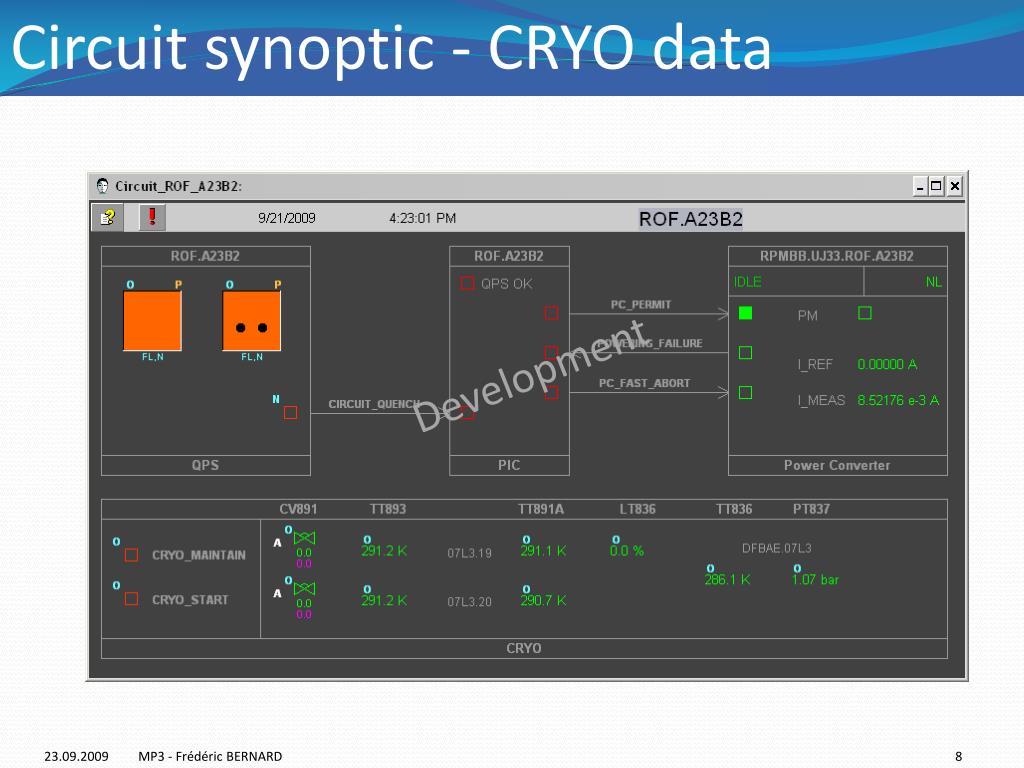

  8. Circuit synoptic - CRYO data Development MP3 - Frédéric BERNARD

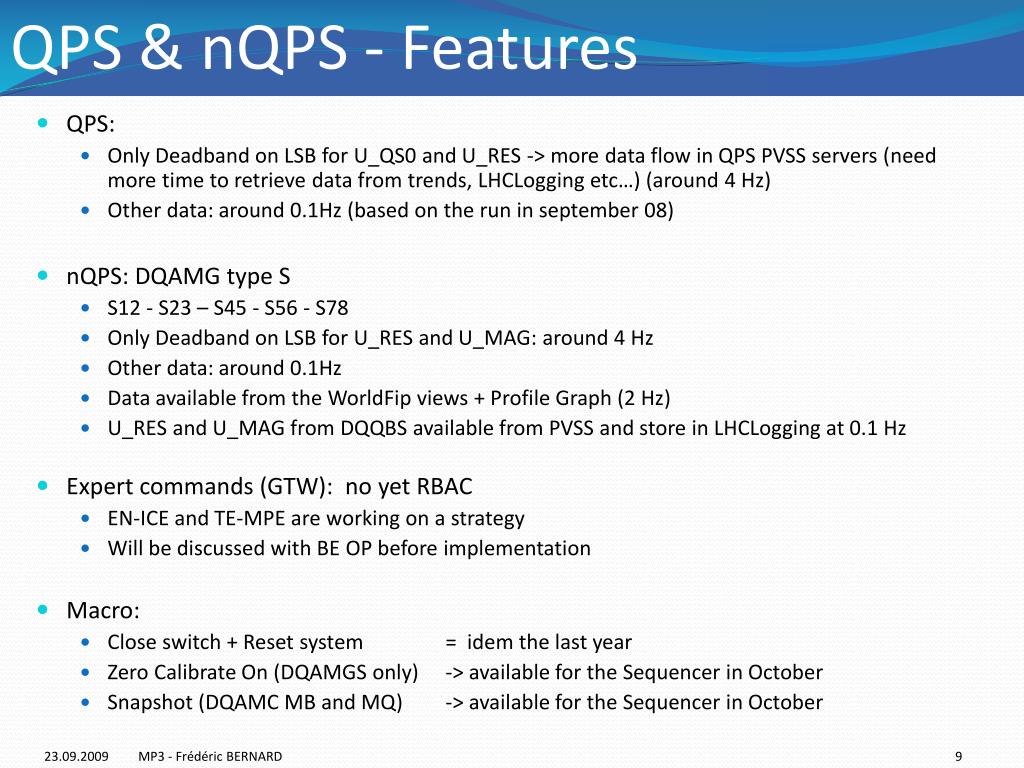

  9. QPS & nQPS - Features • QPS: • OnlyDeadband on LSB for U_QS0 and U_RES -> more data flow in QPS PVSS servers (need more time to retrieve data from trends, LHCLoggingetc…) (around 4 Hz) • Other data: around 0.1Hz (based on the run in september 08) • nQPS: DQAMG type S • S12 - S23 – S45 - S56 - S78 • OnlyDeadband on LSB for U_RES and U_MAG: around 4 Hz • Other data: around 0.1Hz • Data availablefrom the WorldFipviews + Profile Graph (2 Hz) • U_RES and U_MAG from DQQBS availablefrom PVSS and store in LHCLoggingat 0.1 Hz • Expert commands (GTW): no yet RBAC • EN-ICE and TE-MPE are working on a strategy • Will bediscussedwith BE OP beforeimplementation • Macro: • Close switch + Reset system = idem the last year • ZeroCalibrate On (DQAMGS only) -> available for the Sequencer in October • Snapshot (DQAMC MB and MQ) -> available for the Sequencer in October MP3 - Frédéric BERNARD

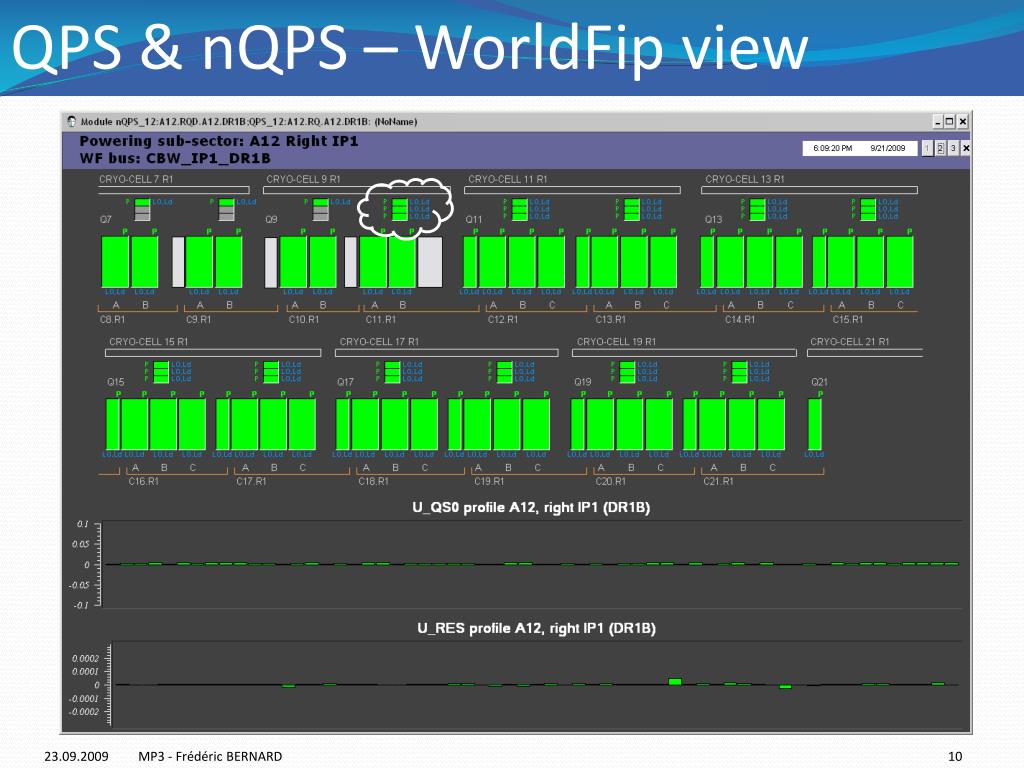

  10. QPS & nQPS – WorldFipview MP3 - Frédéric BERNARD

  11. nQPS - Trends The trend parameters have to bedefined MP3 - Frédéric BERNARD

  12. PIC – Features • New permission definition (remove the interlock generic accounts) • RBAC configuration (Sequencer + SIS + Timing) • Maskingof signals (e.g. CRYO_START, QPS_OK etc…) • Post Mortem from PIC PVSS • PIC Super-locks • Summary of Locking/Super-locking • Global Locking/Unlocking of circuits • Automatic Locks from SIS • PP60 A MP3 - Frédéric BERNARD

  13. PIC PVSS – main panel MP3 - Frédéric BERNARD

  14. PIC PVSS – PP60A panel MP3 - Frédéric BERNARD

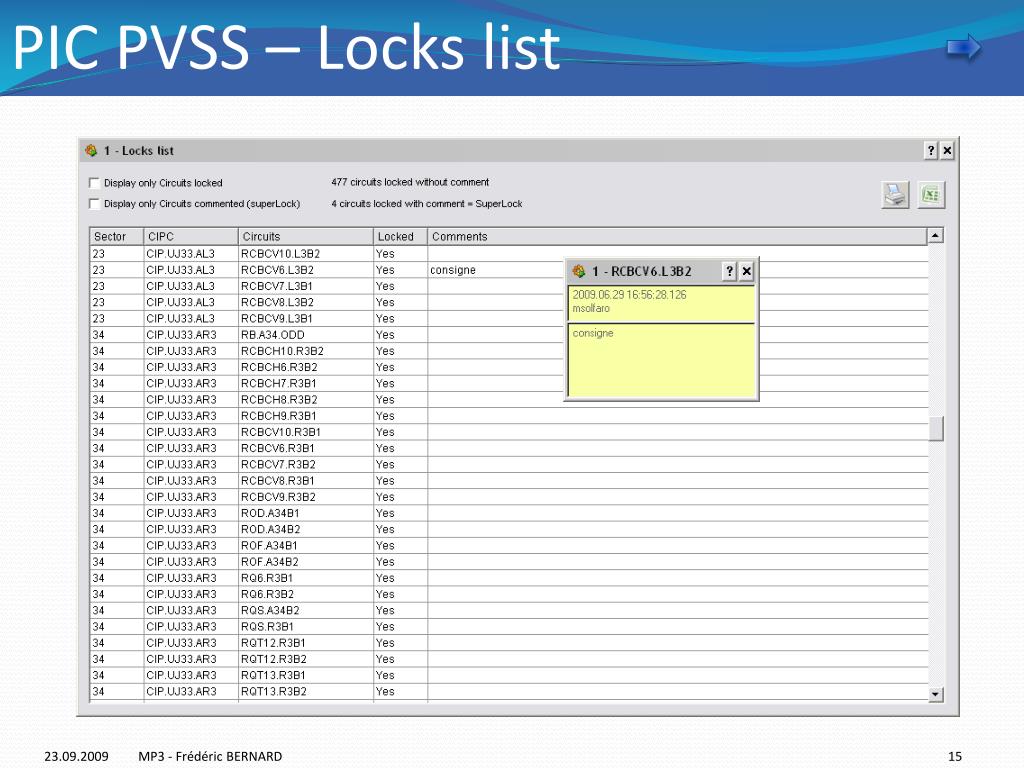

  15. PIC PVSS – Lockslist MP3 - Frédéric BERNARD

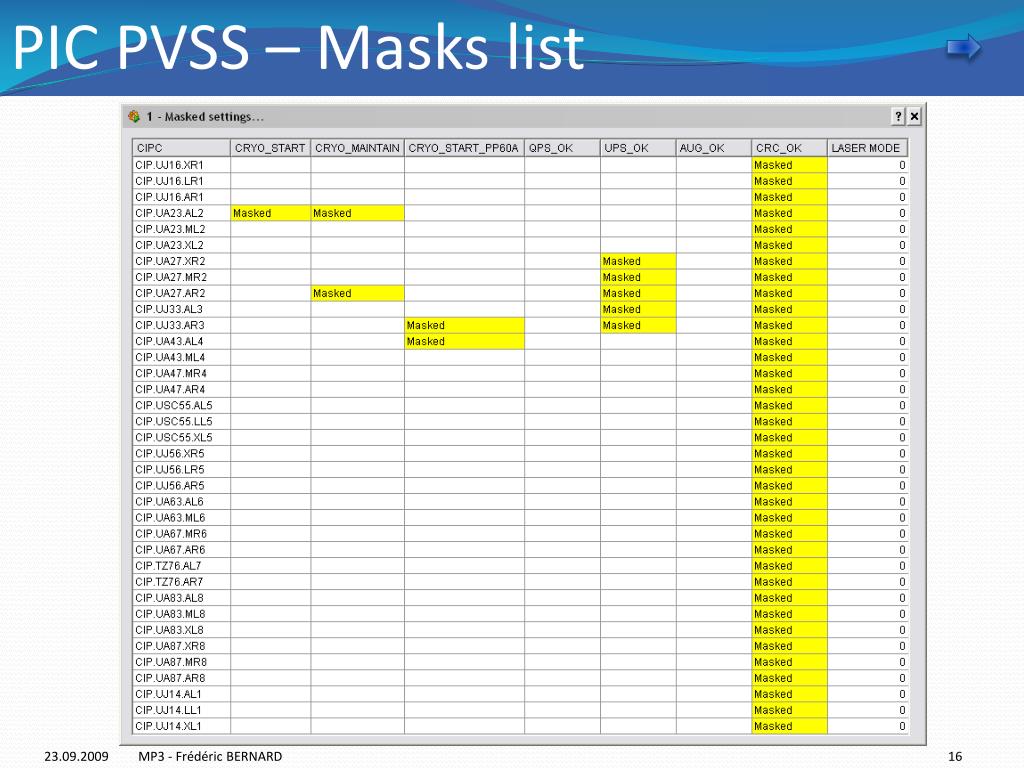

  16. PIC PVSS – Maskslist MP3 - Frédéric BERNARD

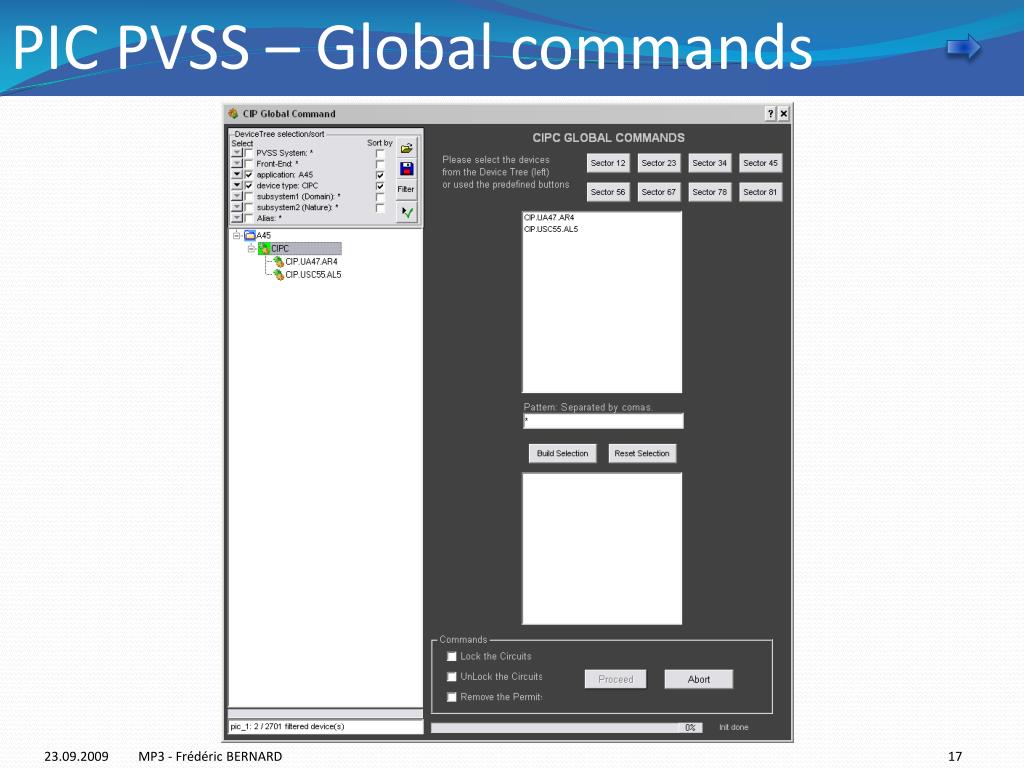

  17. PIC PVSS – Global commands MP3 - Frédéric BERNARD

  18. PIC – Post Mortem MP3 - Frédéric BERNARD

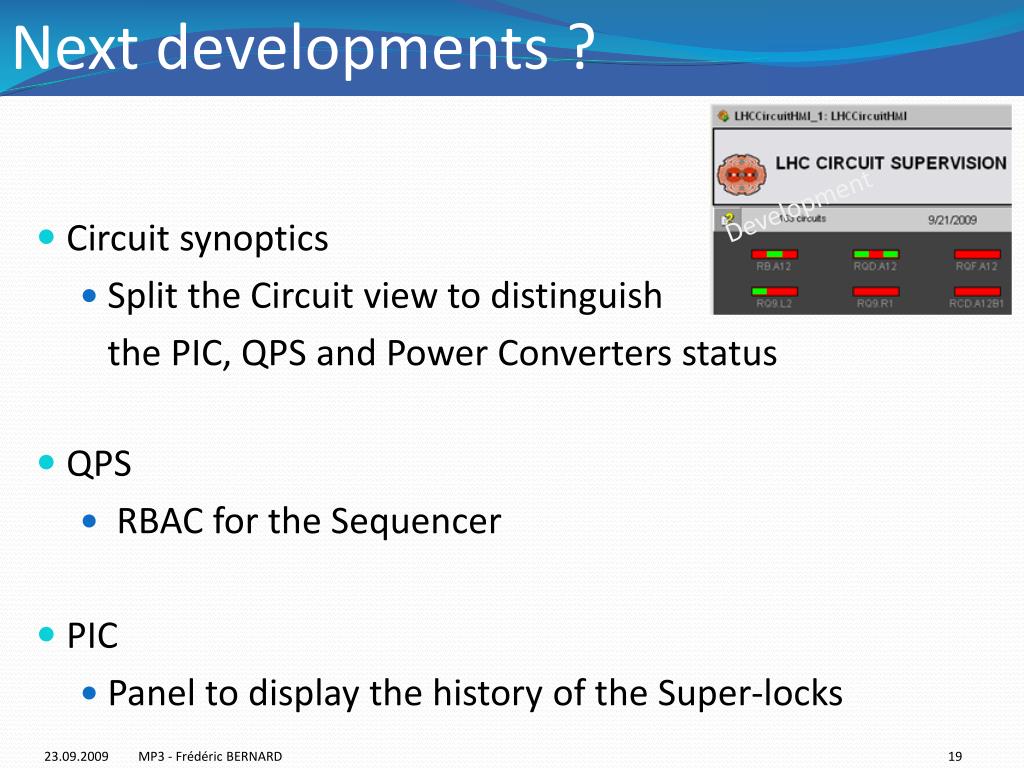

  19. Nextdevelopments ? • Circuit synoptics • Split the Circuit view to distinguish the PIC, QPS and Power Convertersstatus • QPS • RBAC for the Sequencer • PIC • Panel to display the history of the Super-locks Development MP3 - Frédéric BERNARD

  20. PVSS applications in DIAMON MP3 - Frédéric BERNARD
