  1. A tool for alerting of large Dst variations C. Cid, E. Saiz and Y. Cerrato Space Research Group-Science, Universidad de Alcala, Spain

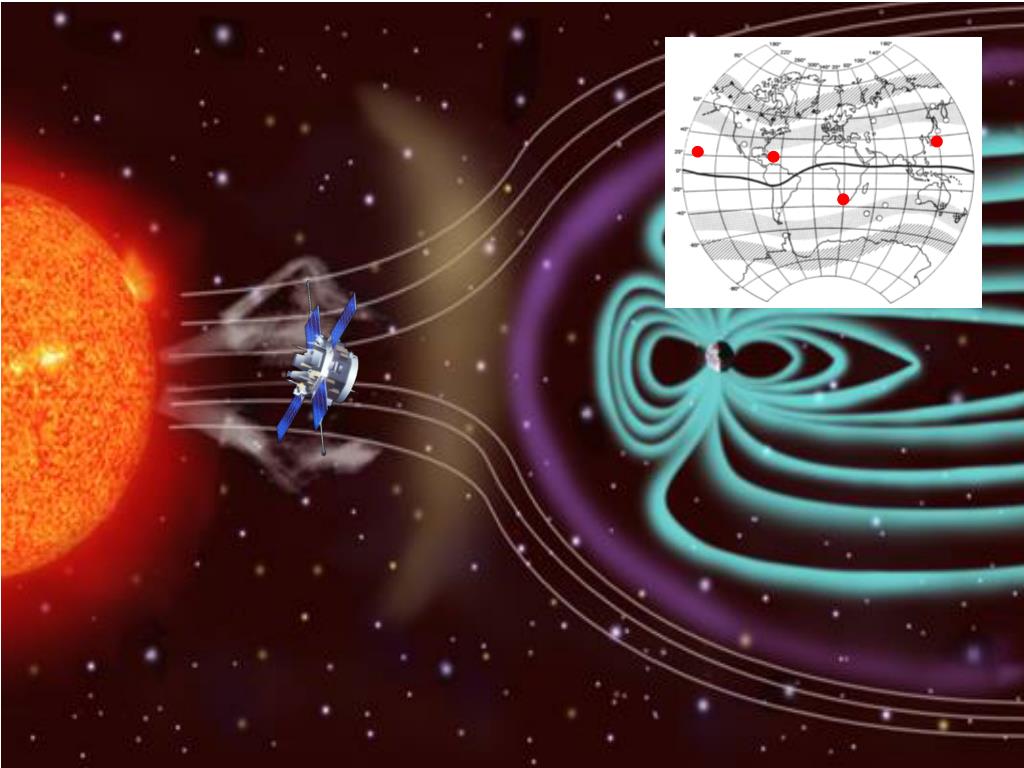

  2. ASTROCAM

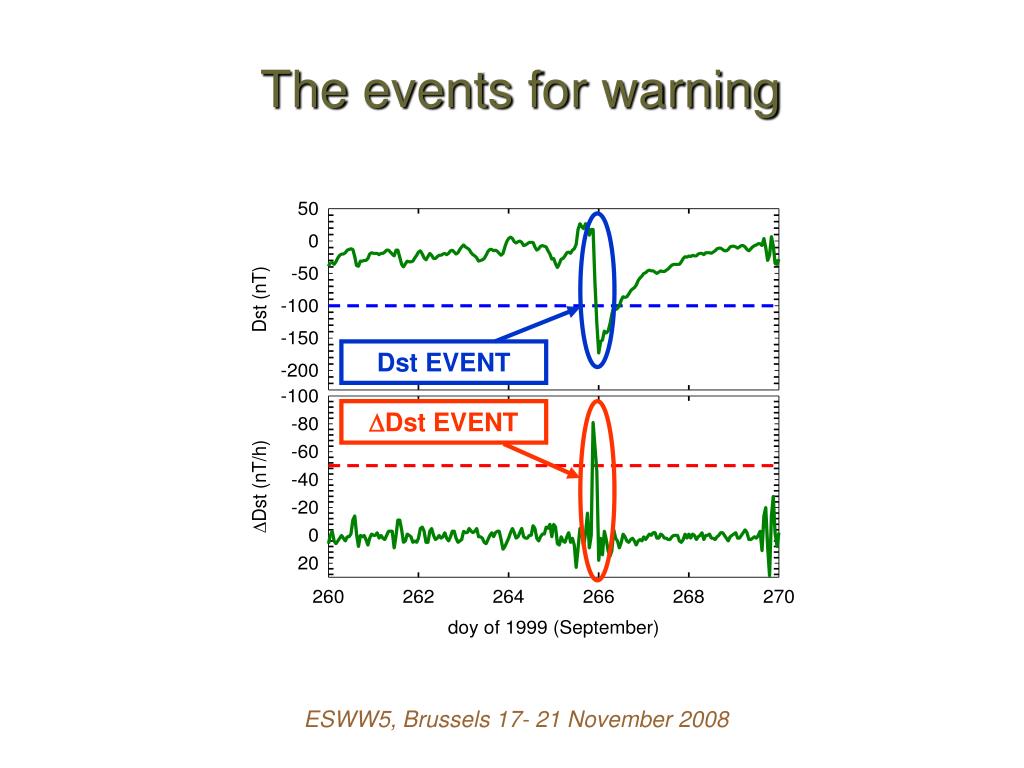

  3. Theeventsforwarning Dst EVENT DDst EVENT ESWW5, Brussels 17- 21 November 2008

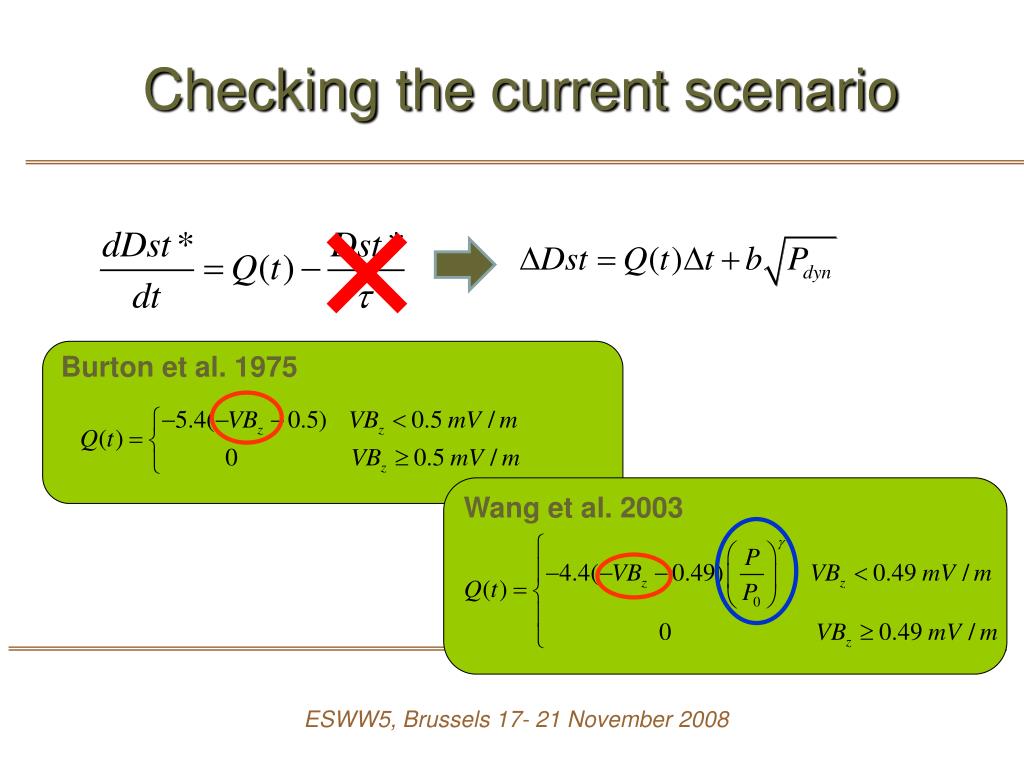

  4. Checkingthecurrentscenario Burton et al. 1975 Wang et al. 2003 ESWW5, Brussels 17- 21 November 2008

  5. Resultsfor 1963-2006 (100 events) ESWW5, Brussels 17- 21 November 2008

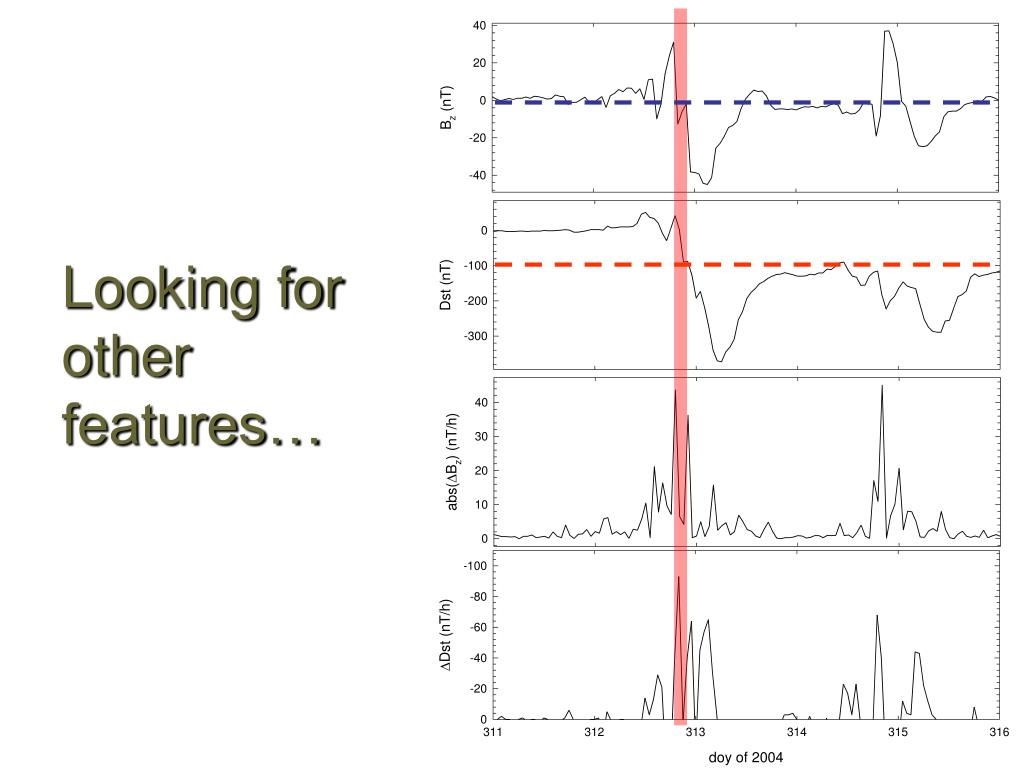

  6. Looking for other features…

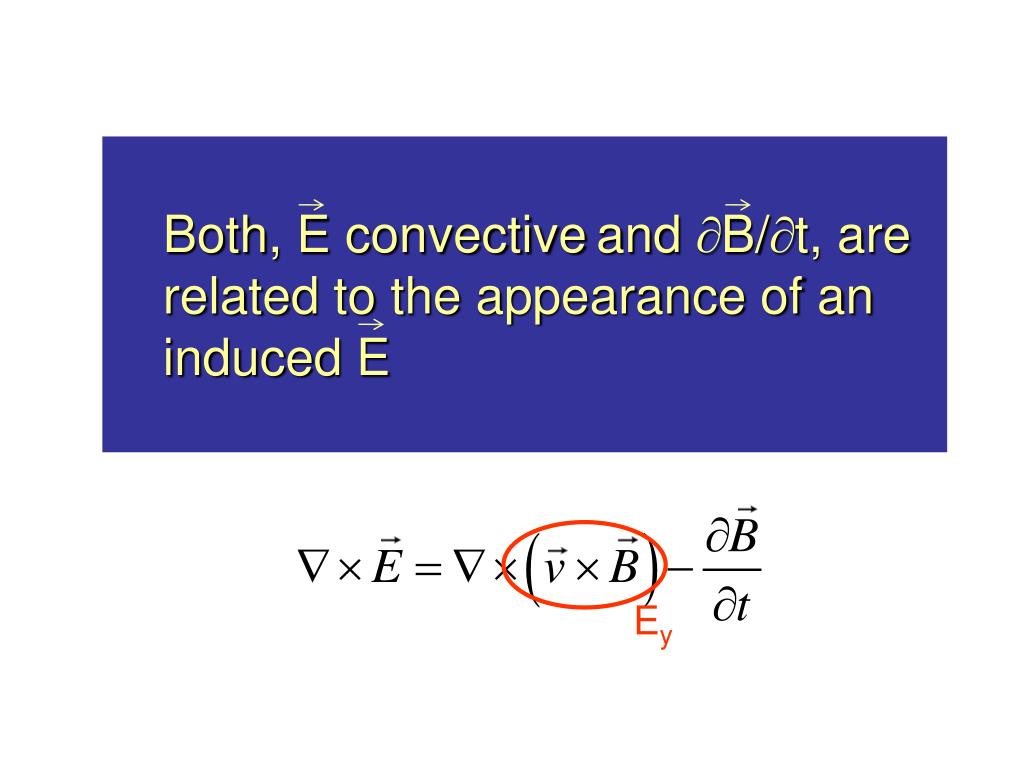

  7. Both, E convectiveand B/t, are relatedtotheappearance of aninduced E Ey

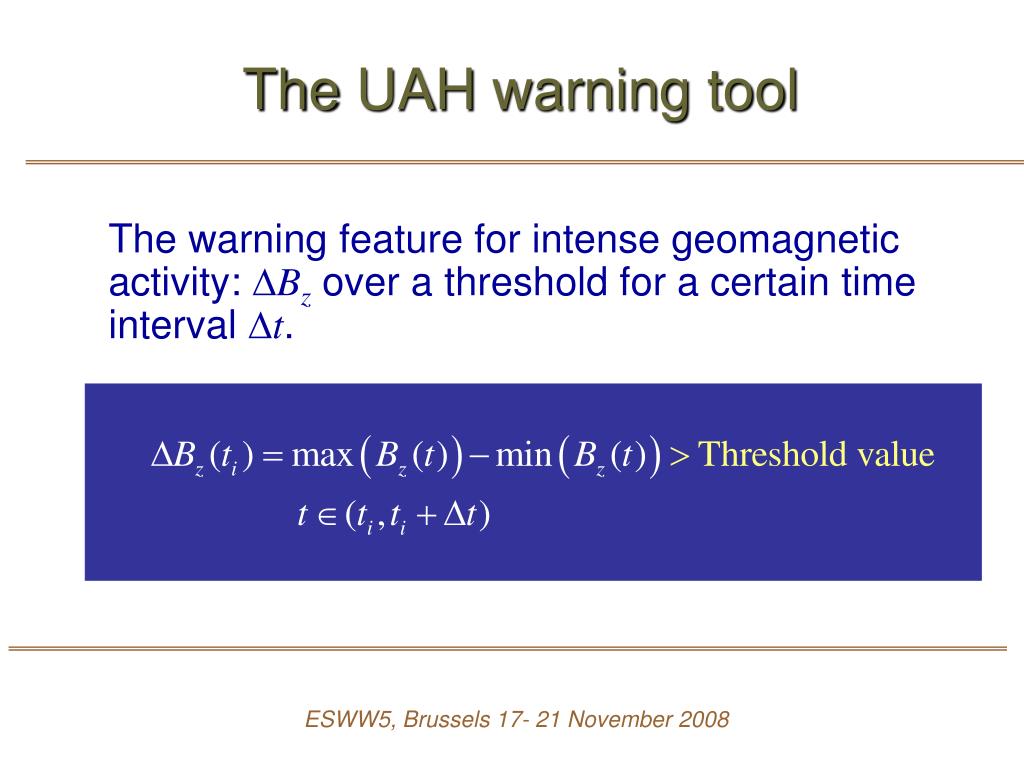

  8. The UAH warningtool The warning feature for intense geomagnetic activity: DBz over a threshold for a certain time interval Dt. ESWW5, Brussels 17- 21 November 2008

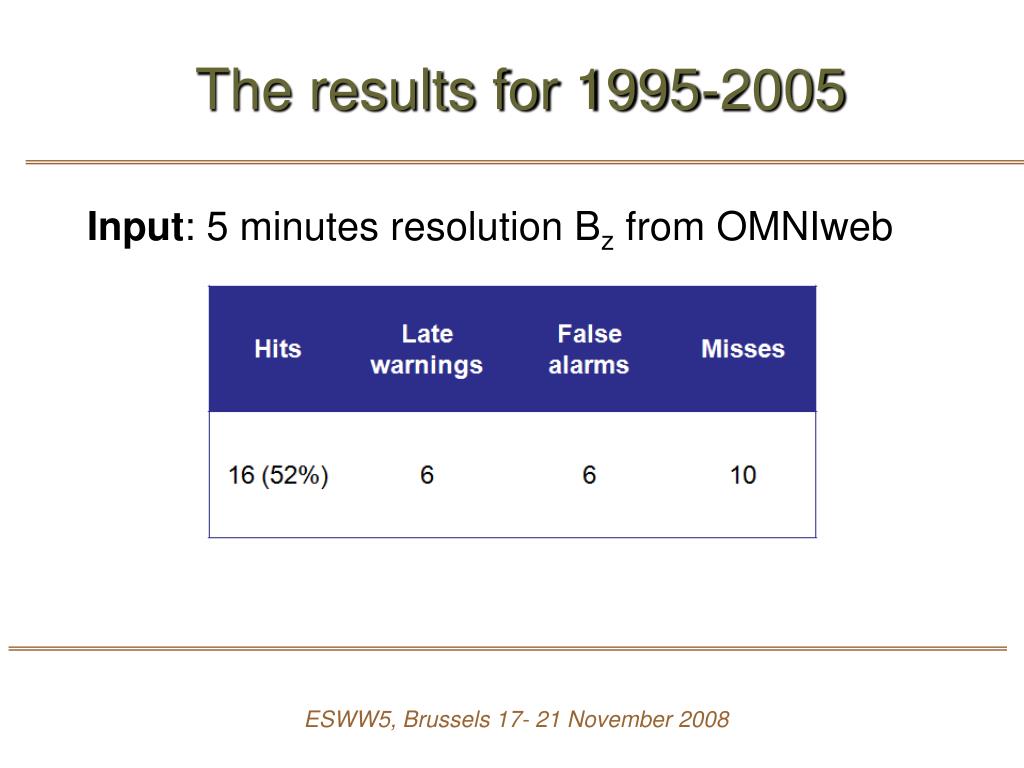

  9. The results for 1995-2005 Input: 5 minutes resolution Bz from OMNIweb ESWW5, Brussels 17- 21 November 2008

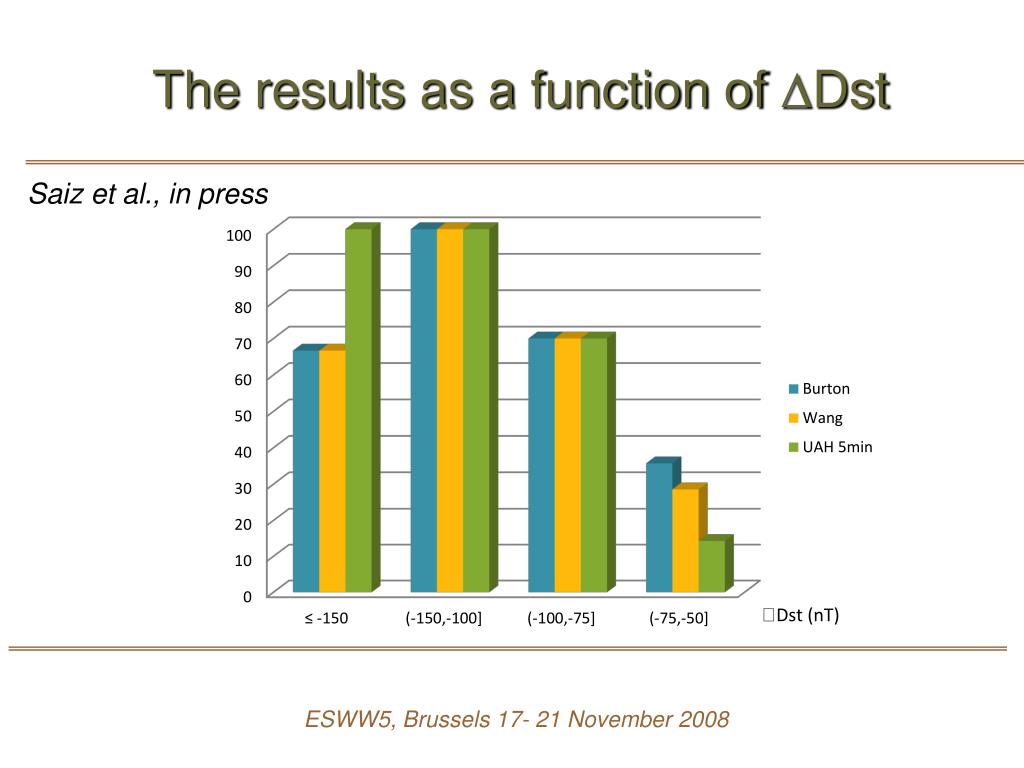

  10. Theresults as a function of Dst Saiz et al., in press ESWW5, Brussels 17- 21 November 2008

  11. www2.uah.es/srg_spaceweather/forecasting.html

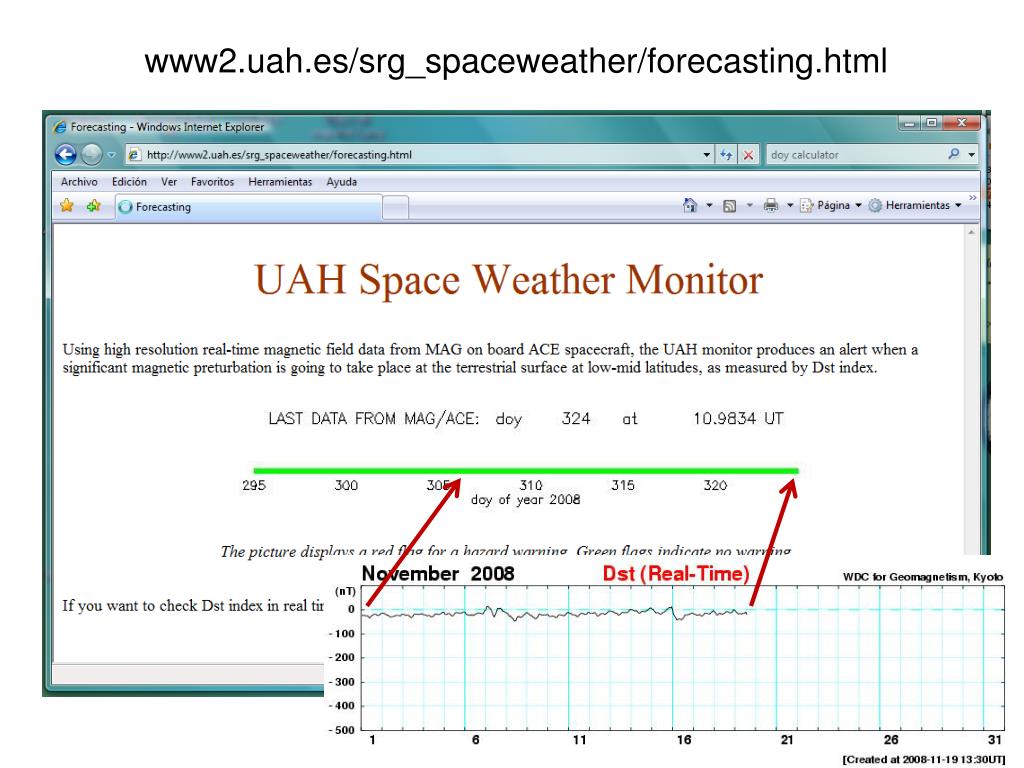

  12. www2.uah.es/srg_spaceweather/forecasting.html

  13. Conclusions • We have developed a new tool for warning of large Dst variations based on Bz only • Large Dst are related to significant Bz variations • The use of long time data series hides the effect of Bz variations in Dst modeling ESWW5, Brussels 17- 21 November 2008
