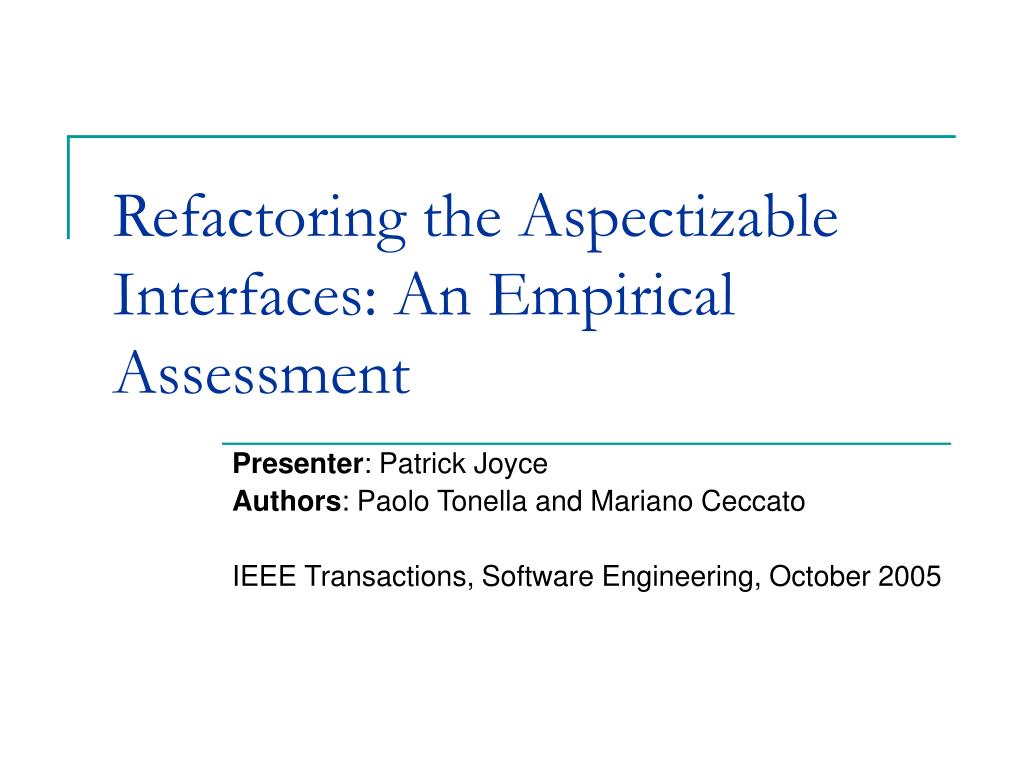

  1. Refactoring the Aspectizable Interfaces: An Empirical Assessment Presenter: Patrick Joyce Authors: Paolo Tonella and Mariano Ceccato IEEE Transactions, Software Engineering, October 2005

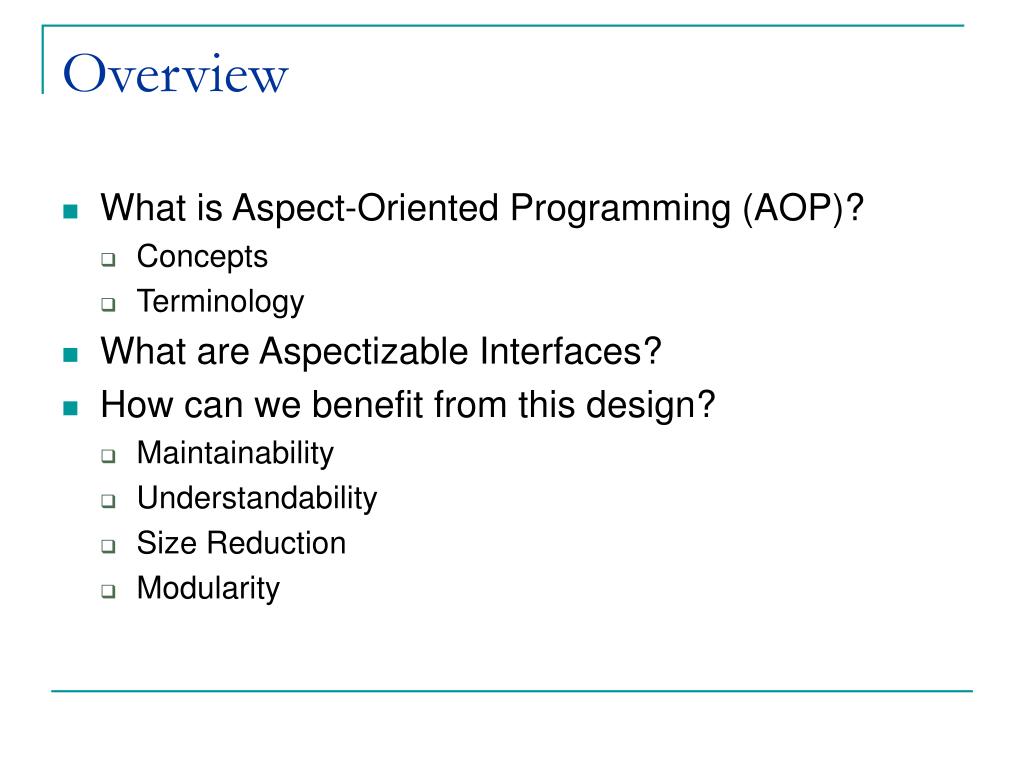

  2. Overview • What is Aspect-Oriented Programming (AOP)? • Concepts • Terminology • What are Aspectizable Interfaces? • How can we benefit from this design? • Maintainability • Understandability • Size Reduction • Modularity

  3. Aspect-Oriented Programming • Goal: Separate orthogonal and principle concerns • Benefits • Collect “scattered” code into one maintainable unit • No original source code required to add/remove aspects • Example: class BarChart • Principle Concerns • LoadChart() • DisplayChart() • SaveChart() • Orthogonal Concern • Logging

  4. Aspect-Oriented Programming • Aspect • Primary modularization unit • Represents an orthogonal concern • Joinpoint • A specific area of execution in an application • E.g., object instantiation, method call, variable declaration, etc. • Pointcut • A collection of joinpoints; specifies where the concern applies • E.g., (AspectJ) - pointcut callSetMethods(): call(void set*(..)); • Advice • The implementation of the aspects; defines how and where to implements the concern • Weaving • The process of combining the aspect code with the original application

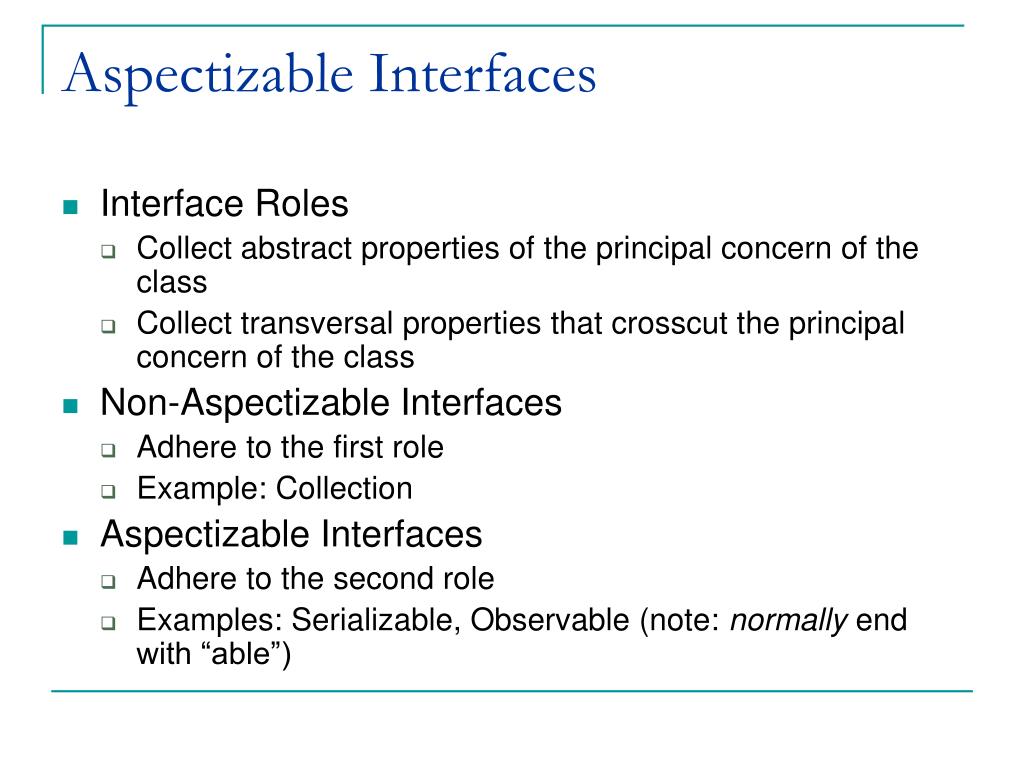

  5. Aspectizable Interfaces • Interface Roles • Collect abstract properties of the principal concern of the class • Collect transversal properties that crosscut the principal concern of the class • Non-Aspectizable Interfaces • Adhere to the first role • Example: Collection • Aspectizable Interfaces • Adhere to the second role • Examples: Serializable, Observable (note: normally end with “able”)

  6. Refactoring Aspectizable Interfaces • Move interface properties to aspect • Attributes • Methods • Inner Classes • UNPLUG • Input: A.java, I.java • Output: A’.java, IA.aj

  7. Refactoring Example: Observable • See Eclipse Project

  8. Refactoring Analysis • Hypotheses • AOP code for aspectizable interfaces: • Is easier to maintain. • Is easier to understand. • Is significantly smaller in size. • Improves modularity. • Application • Refactor a large proportion of the standard Java library • Refactor three open source programs • Analysis Methods • (1,2) Empirical Maintenance Study • (3,4) Customized Metrics (UCLOC, OP, OCOH, ACOH, ICOUPL)

  9. Refactoring Results • Class cohesion increased • Extracted methods are loosely connection with other class operations • Interface coupling decreased • Size remained untouched • Understandability increased • Maintainability remained similar • Possibly due to the relative size

  10. Conclusion • Questions?
