User Interfaces for Information Access

1. User Interfaces for Information Access Marti Hearst IS202, Fall 2006

2. Outline • What do people search for? • Why is supporting search difficult? • What works in search interfaces? • When does search result grouping work? • What about social tagging and search?

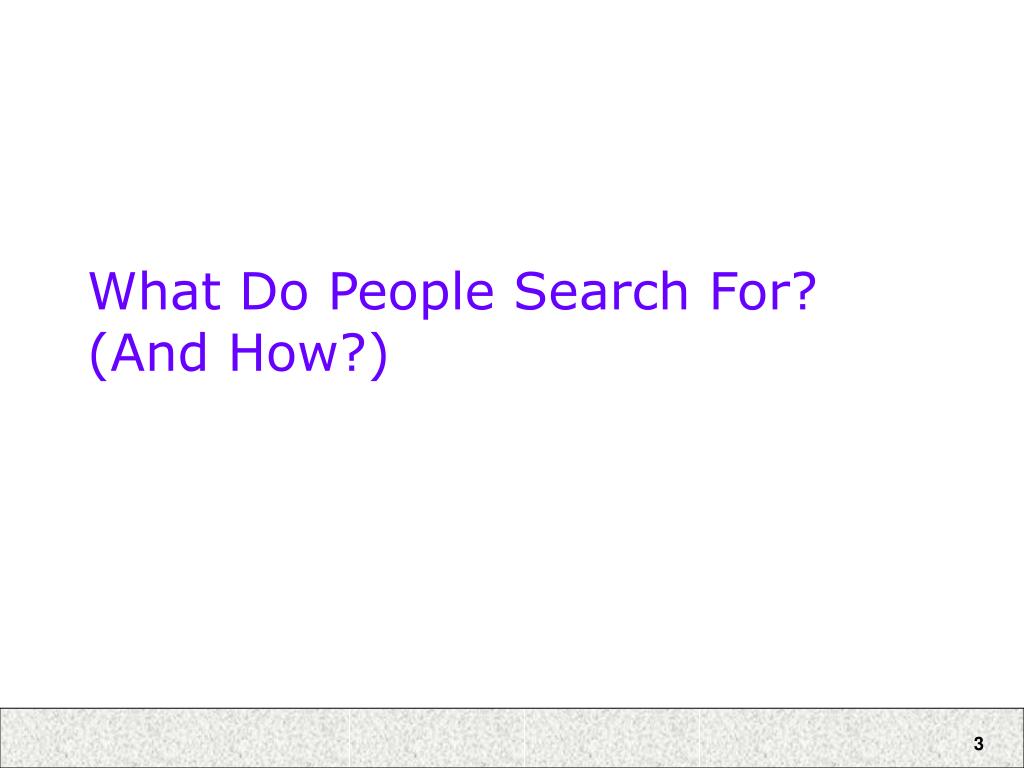

3. What Do People Search For?(And How?)

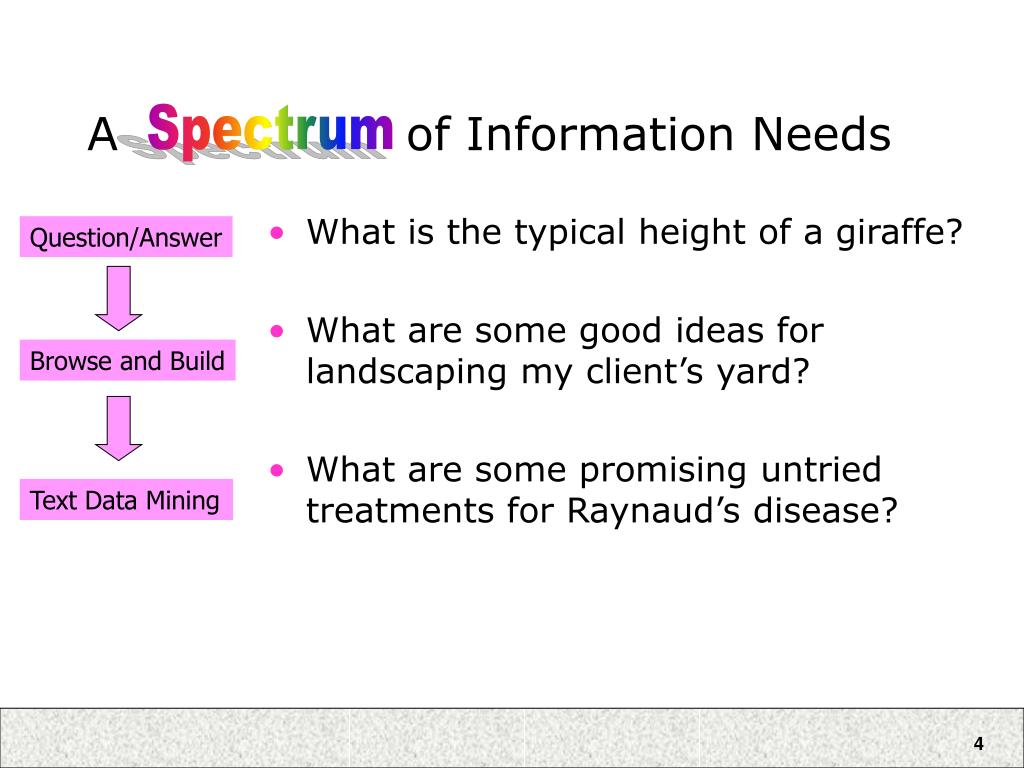

4. Question/Answer Browse and Build Text Data Mining A of Information Needs Spectrum • What is the typical height of a giraffe? • What are some good ideas for landscaping my client’s yard? • What are some promising untried treatments for Raynaud’s disease?

5. Questions and Answers • What is the height of a typical giraffe? • The result can be a simple answer, extracted from existing web pages. • Can specify with keywords or a natural language query • However, most search engines are not set up to handle questions properly. • Get different results using a question vs. keywords

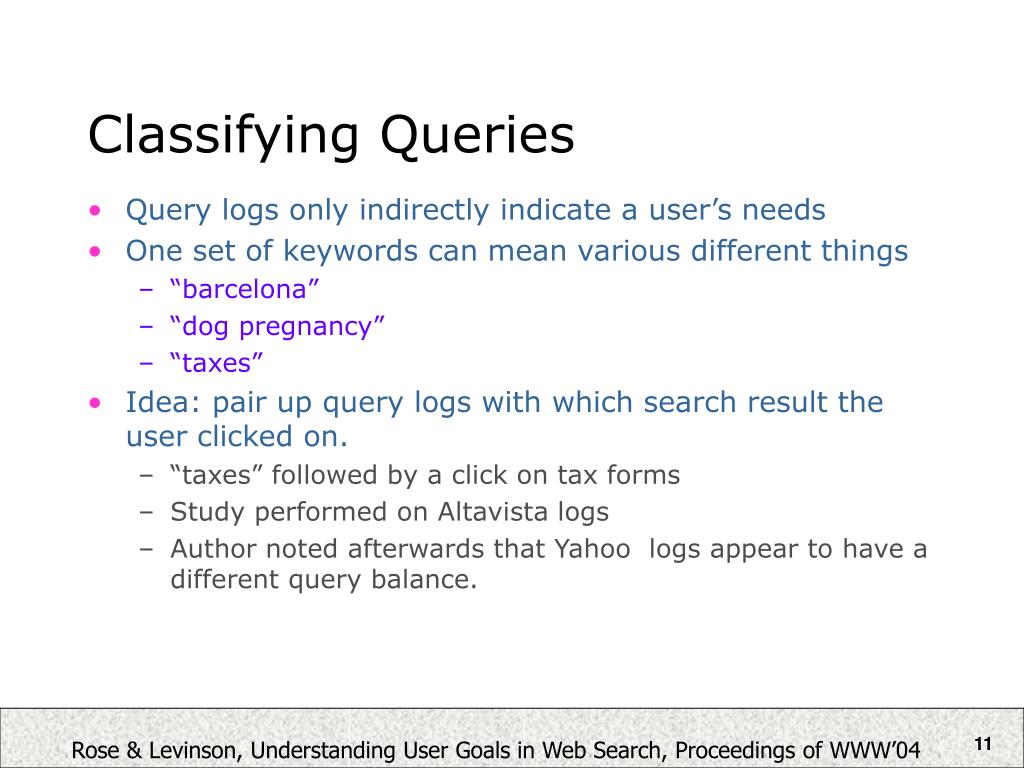

11. Classifying Queries • Query logs only indirectly indicate a user’s needs • One set of keywords can mean various different things • “barcelona” • “dog pregnancy” • “taxes” • Idea: pair up query logs with which search result the user clicked on. • “taxes” followed by a click on tax forms • Study performed on Altavista logs • Author noted afterwards that Yahoo logs appear to have a different query balance. Rose & Levinson, Understanding User Goals in Web Search, Proceedings of WWW’04

12. Classifying Web Queries Rose & Levinson, Understanding User Goals in Web Search, Proceedings of WWW’04

13. What are people looking for?Check out Google Answers

16. Why is Supporting Search Difficult?

17. Why is Supporting Search Difficult? • Everything is fair game • Abstractions are difficult to represent • The vocabulary disconnect • Users’ lack of understanding of the technology

18. Everything is Fair Game • The scope of what people search for is all of human knowledge and experience. • Other interfaces are more constrained (word processing, formulas, etc) • Interfaces must accommodate human differences in: • Knowledge / life experience • Cultural background and expectations • Reading / scanning ability and style • Methods of looking for things (pilers vs. filers)

19. Abstractions Are Hard to Represent • Text describes abstract concepts • Difficult to show the contents of text in a visual or compact manner • Exercise: • How would you show the preamble of the US Constitution visually? • How would you show the contents of Joyce’s Ulysses visually? How would you distinguish it from Homer’s TheOdyssey or McCourt’s Angela’s Ashes? • The point: it is difficult to show text without using text

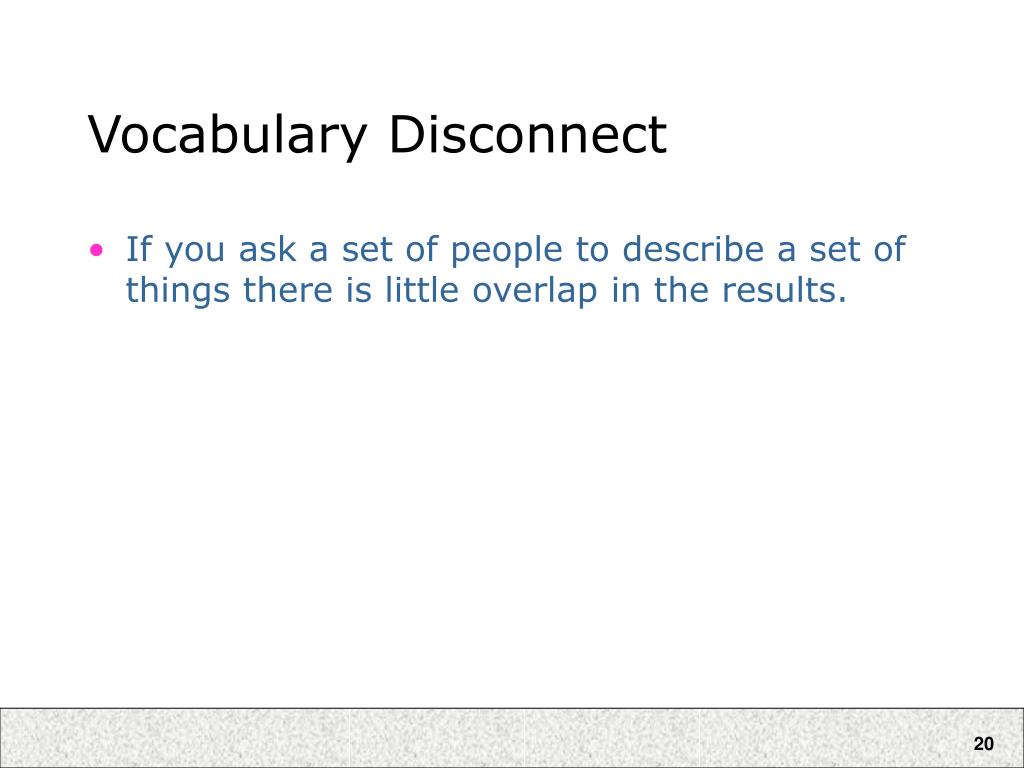

20. Vocabulary Disconnect • If you ask a set of people to describe a set of things there is little overlap in the results.

21. Lack of Technical Understanding • Most people don’t understand the underlying methods by which search engines work.

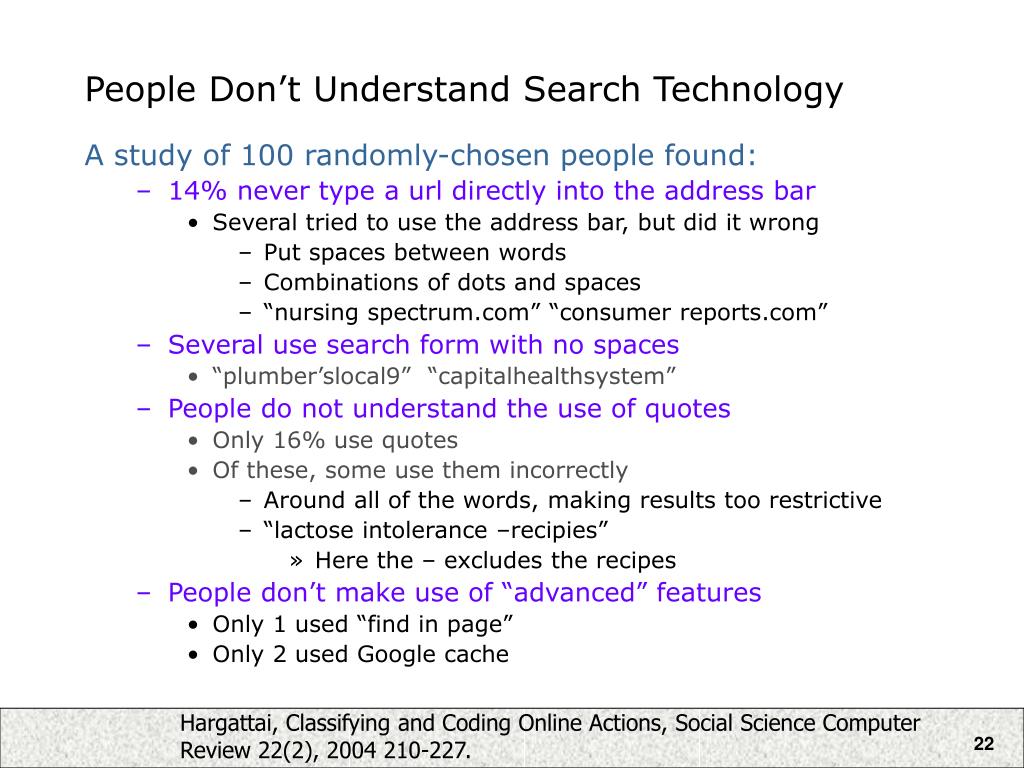

22. People Don’t Understand Search Technology A study of 100 randomly-chosen people found: • 14% never type a url directly into the address bar • Several tried to use the address bar, but did it wrong • Put spaces between words • Combinations of dots and spaces • “nursing spectrum.com” “consumer reports.com” • Several use search form with no spaces • “plumber’slocal9” “capitalhealthsystem” • People do not understand the use of quotes • Only 16% use quotes • Of these, some use them incorrectly • Around all of the words, making results too restrictive • “lactose intolerance –recipies” • Here the – excludes the recipes • People don’t make use of “advanced” features • Only 1 used “find in page” • Only 2 used Google cache Hargattai, Classifying and Coding Online Actions, Social Science Computer Review 22(2), 2004 210-227.

23. People Don’t Understand Search Technology Without appropriate explanations, most of 14 people had strong misconceptions about: • ANDing vs ORing of search terms • Some assumed ANDing search engine indexed a smaller collection; most had no explanation at all • For empty results for query “to be or not to be” • 9 of 14 could not explain in a method that remotely resembled stop word removal • For term order variation “boat fire” vs. “fire boat” • Only 5 out of 14 expected different results • Understanding was vague, e.g.: • “Lycos separates the two words and searches for the meaning, instead of what’re your looking for. Google understands the meaning of the phrase.” Muramatsu & Pratt, “Transparent Queries: Investigating Users’ Mental Models of Search Engines, SIGIR 2001.

24. What Works in Search Interfaces?

25. What Works for Search Interfaces? • Query term highlighting • in results listings • in retrieved documents • Sorting of search results according to important criteria (date, author) • Grouping of results according to well-organized category labels (see Flamenco) • DWIM only if highly accurate: • Spelling correction/suggestions • Simple relevance feedback (more-like-this) • Certain types of term expansion • So far: not really visualization Hearst et al: Finding the Flow in Web Site Search, CACM45(9), 2002.

26. Highlighting Query Terms • Boldface or color • Adjacency of terms with relevant context is a useful cue.

29. found! found! don’t know don’t know Highlighted query term hits using Google toolbar Microso US Blackout PGA Microsoft

30. Small Details Matter • UIs for search especially require great care in small details • In part due to the text-heavy nature of search • A tension between more information and introducing clutter • How and where to place things important • People tend to scan or skim • Only a small percentage reads instructions

31. Small Details Matter • UIs for search especially require endless tiny adjustments • In part due to the text-heavy nature of search • Example: • In an earlier version of the Google Spellchecker, people didn’t always see the suggested correction • Used a long sentence at the top of the page: “If you didn’t find what you were looking for …” • People complained they got results, but not the right results. • In reality, the spellchecker had suggested an appropriate correction. • Interview with Marissa Mayer by Mark Hurst: http://www.goodexperience.com/columns/02/1015google.html

32. Small Details Matter • The fix: • Analyzed logs, saw people didn’t see the correction: • clicked on first search result, • didn’t find what they were looking for (came right back to the search page • scrolled to the bottom of the page, did not find anything • and then complained directly to Google • Solution was to repeat the spelling suggestion at the bottom of the page. • More adjustments: • The message is shorter, and different on the top vs. the bottom • Interview with Marissa Mayer by Mark Hurst: http://www.goodexperience.com/columns/02/1015google.html

34. Using DWIM • DWIM – Do What I Mean • Refers to systems that try to be “smart” by guessing users’ unstated intentions or desires • Examples: • Automatically augment my query with related terms • Automatically suggest spelling corrections • Automatically load web pages that might be relevant to the one I’m looking at • Automatically file my incoming email into folders • Pop up a paperclip that tells me what kind of help I need. • THE CRITICAL POINT: • Users love DWIM when it really works • Users DESPISE it when it doesn’t

35. DWIM that Works • Amazon’s “customers who bought X also bought Y” • And many other recommendation-related features

36. DWIM Example: Spelling Correction/Suggestion • Google’s spelling suggestions are highly accurate • But this wasn’t always the case. • Google introduced a version that wasn’t very accurate. People hated it. They pulled it. (According to a talk by Marissa Mayer of Google.) • Later they introduced a version that worked well. People love it. • But don’t get too pushy. • For a while if the user got very few results, the page was automatically replaced with the results of the spelling correction • This was removed, presumably due to negative responses • Information from a talk by Marissa Mayer of Google

37. Query Reformulation • Query reformulation: • After receiving unsuccessful results, users modify their initial queries and submit new ones intended to more accurately reflect their information needs. • Web search logs show that searchers often reformulate their queries • A study of 985 Web user search sessions found • 33% went beyond the first query • Of these, ~35% retained the same number of terms while 19% had 1 more term and 16% had 1 fewer Use of query reformulation and relevance feedback by Excite users, Spink, Janson & Ozmultu, Internet Research 10(4), 2001

38. Query Reformulation • Many studies show that if users engage in relevance feedback, the results are much better. • In one study, participants did 17-34% better with RF • They also did better if they could see the RF terms than if the system did it automatically (DWIM) • But the effort required for doing so is usually a roadblock. Koenemann & Belkin, A Case for Interaction: A Study of Interactive Information Retrieval Behavior and Effectiveness, CHI’96

39. Query Reformulation • What happens when the web search engines suggests new terms? • Web log analysis study using the Prisma term suggestion system: Anick, Using Terminological Feedback for Web Search Refinement – A Log-based Study, SIGIR’03.

40. Query Reformulation Study • Feedback terms were displayed to 15,133 user sessions. • Of these, 14% used at least one feedback term • For all sessions, 56% involved some degree of query refinement • Within this subset, use of the feedback terms was 25% • By user id, ~16% of users applied feedback terms at least once on any given day • Looking at a 2-week session of feedback users: • Of the 2,318 users who used it once, 47% used it again in the same 2-week window. • Comparison was also done to a baseline group that was not offered feedback terms. • Both groups ended up making a page-selection click at the same rate. Anick, Using Terminological Feedback for Web Search Refinement – A Log-based Study, SIGIR’03.

41. Query Reformulation Study Anick, Using Terminological Feedback for Web Search Refinement – A Log-based Study, SIGIR’03.

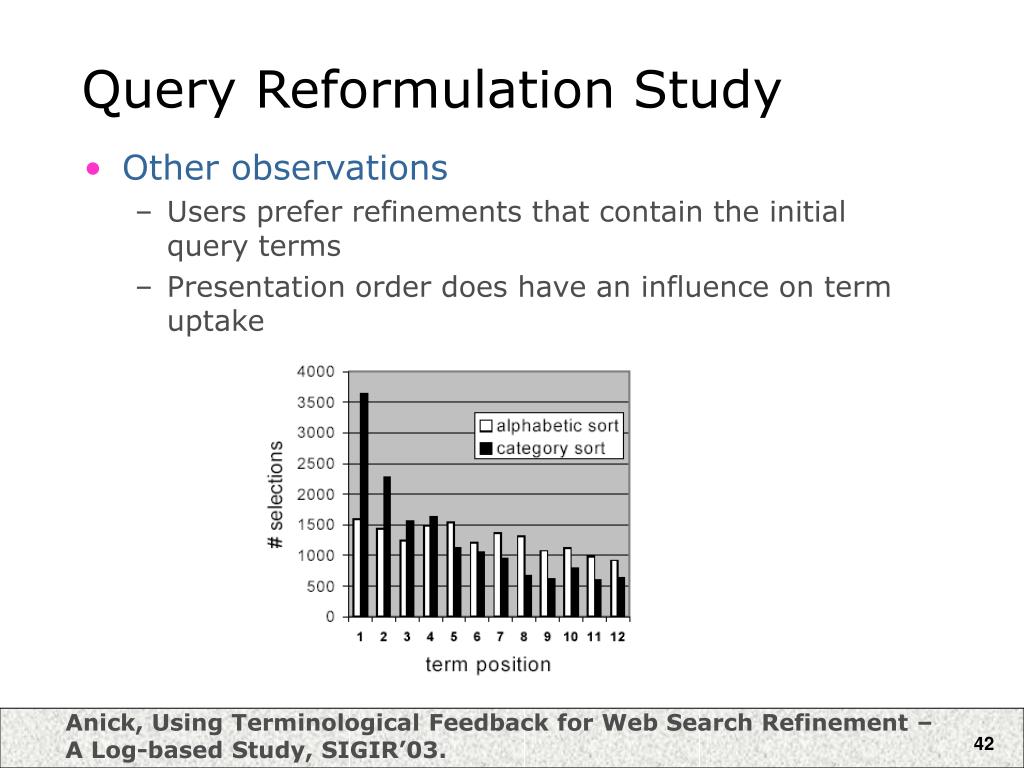

42. Query Reformulation Study • Other observations • Users prefer refinements that contain the initial query terms • Presentation order does have an influence on term uptake Anick, Using Terminological Feedback for Web Search Refinement – A Log-based Study, SIGIR’03.

43. Query Reformulation Study • Types of refinements Anick, Using Terminological Feedback for Web Search Refinement – A Log-based Study, SIGIR’03.

44. Prognosis: Query Reformulation • Researchers have always known it can be helpful, but the methods proposed for user interaction were too cumbersome • Had to select many documents and then do feedback • Had to select many terms • Was based on statistical ranking methods which are hard for people to understand • Indirect Relevance Feedback can improve general ranking (see section on social search)

45. Usability of Grouping Search Results

46. The Need to Group • Interviews with lay users often reveal a desire for better organization of retrieval results • Useful for suggesting where to look next • People prefer links over generating search terms* • But only when the links are for what they want *Ojakaar and Spool, Users Continue After Category Links, UIETips Newsletter, http://world.std.com/~uieweb/Articles/, 2001
