  1. Mitch Krishna Satellite VoIP - IP80 SIP Trunks

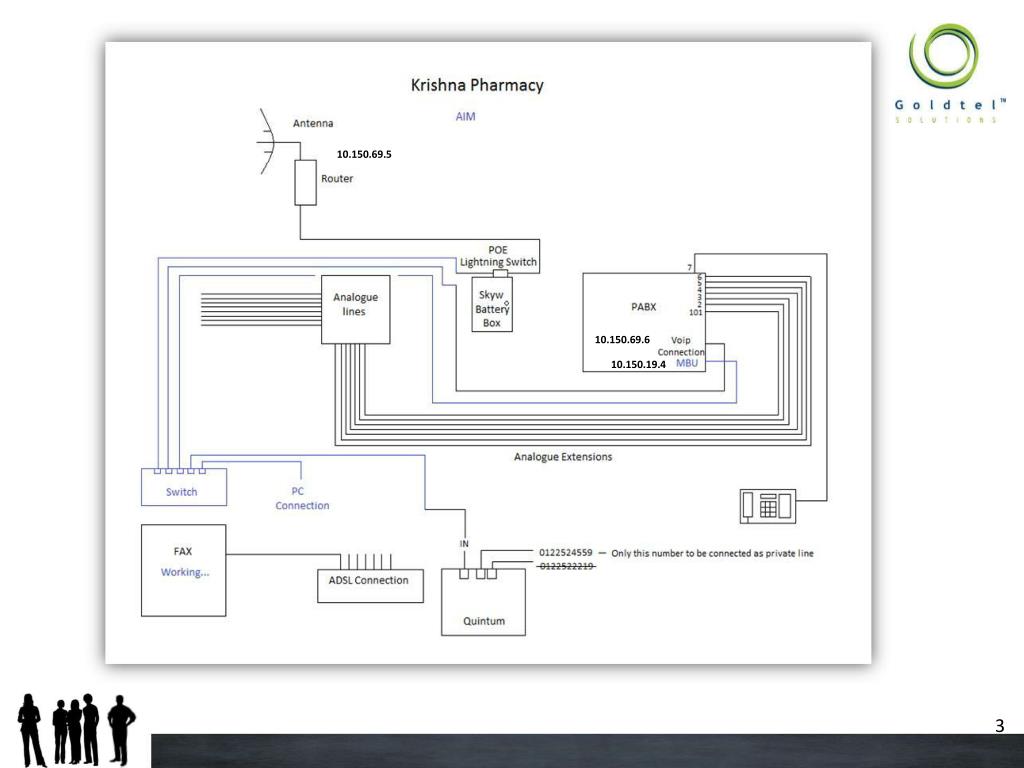

  2. 10.150.69.5 10.150.69.6 10.150.19.4

  3. Mode 104 & 108

  4. VoIP Introduction Aria IP-60 VoIP Setup This document explains the configuration that is required on LG LDK – Ericsson PBX systems when SIP trunks are configured using Sip trunks. Incoming and outgoing calls were tested. Test set-up configuration The following information was received from the service provider (Goldtel): • SIP / PROXY Register IP : 196.7.219.35 • SIP Port no.: 5060 • User name: 27876300184 • Password: XXXXXXXXXX • Codec: G.729 PBX system tested • LG LDK60 • Extension range = 100 – 147 • VOIM module = Slot 10 • SIP trunks = lines 4 – 11 • MPB Firmware = GS88P – XC.8Af April/11 • VOIB Firmware = GS88H-B – VOIB_B3Da • PC admin = GSNAD – C.9EH 2011.04.06

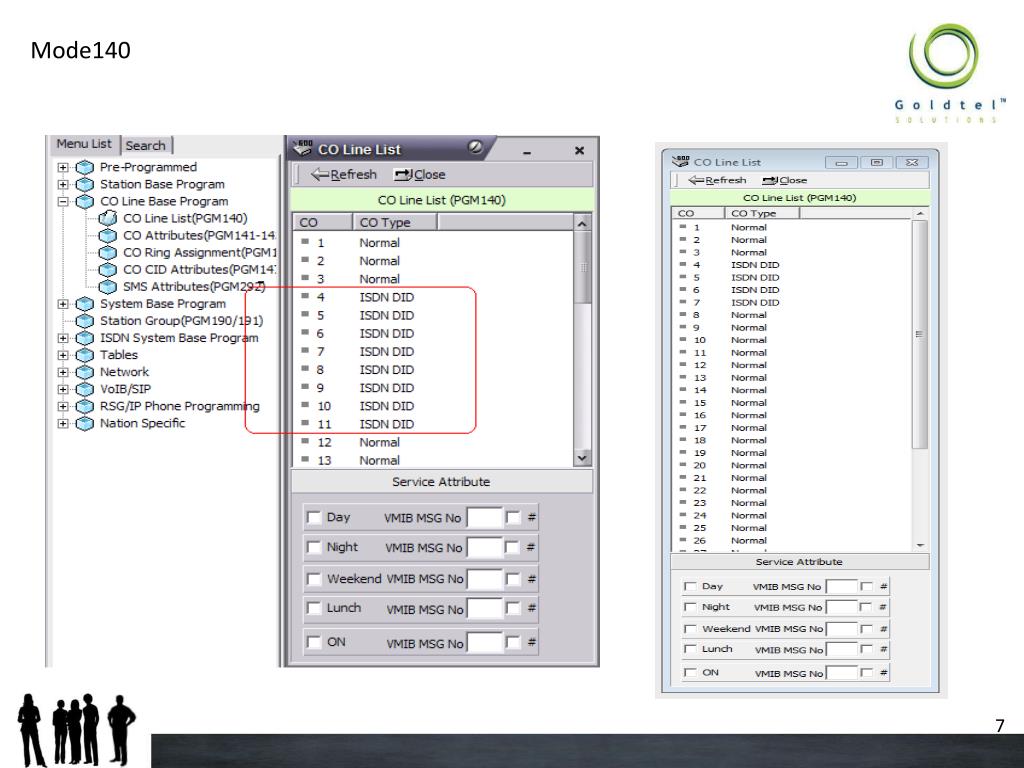

  5. Mode140

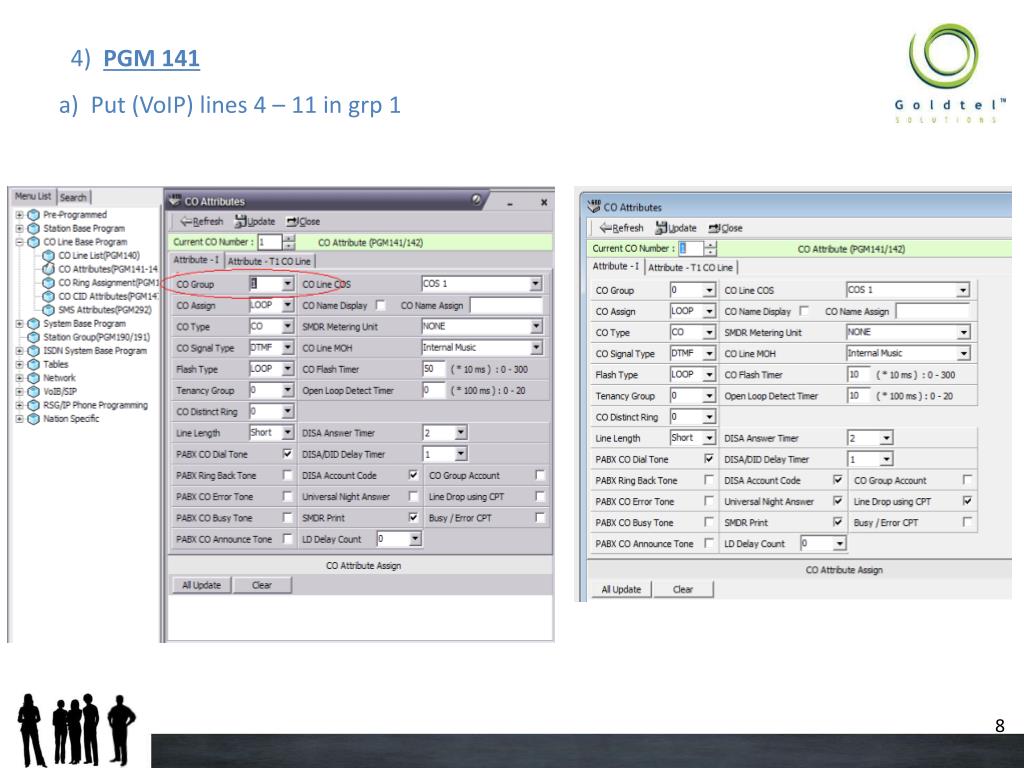

  6. 4) PGM 141 a) Put(VoIP) lines 4 – 11 in grp 1

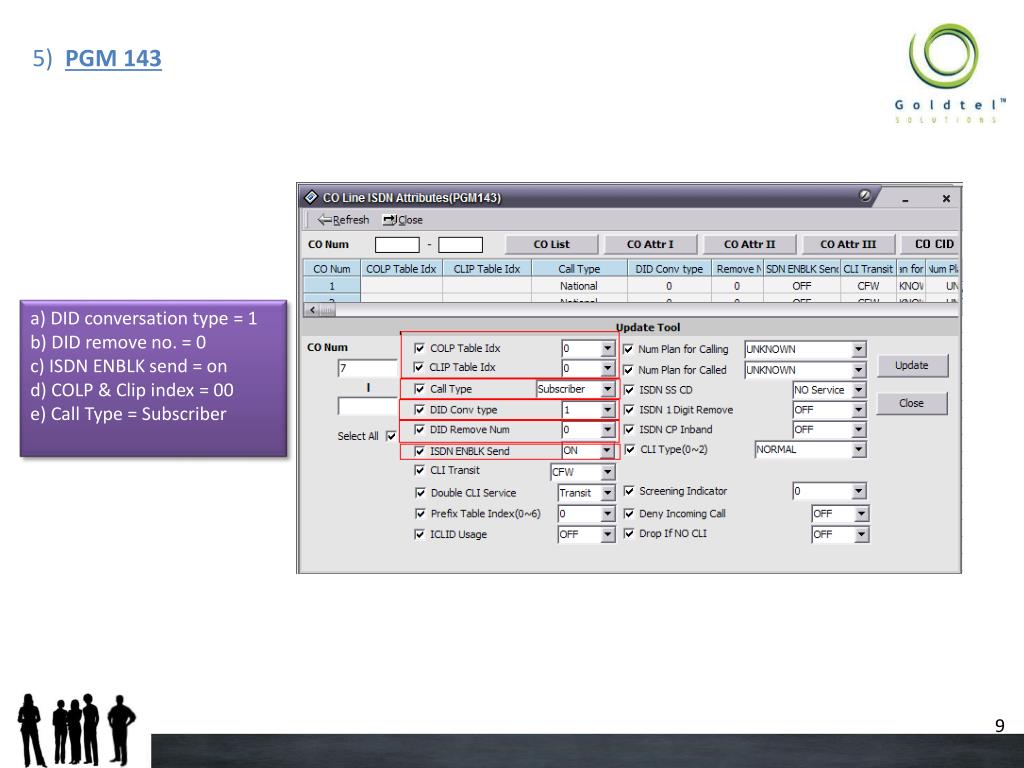

  7. 5) PGM 143 • a) DID conversation type = 1 • b) DID remove no. = 0 • c) ISDN ENBLK send = on • d) COLP & Clip index = 00 • e) Call Type = Subscriber

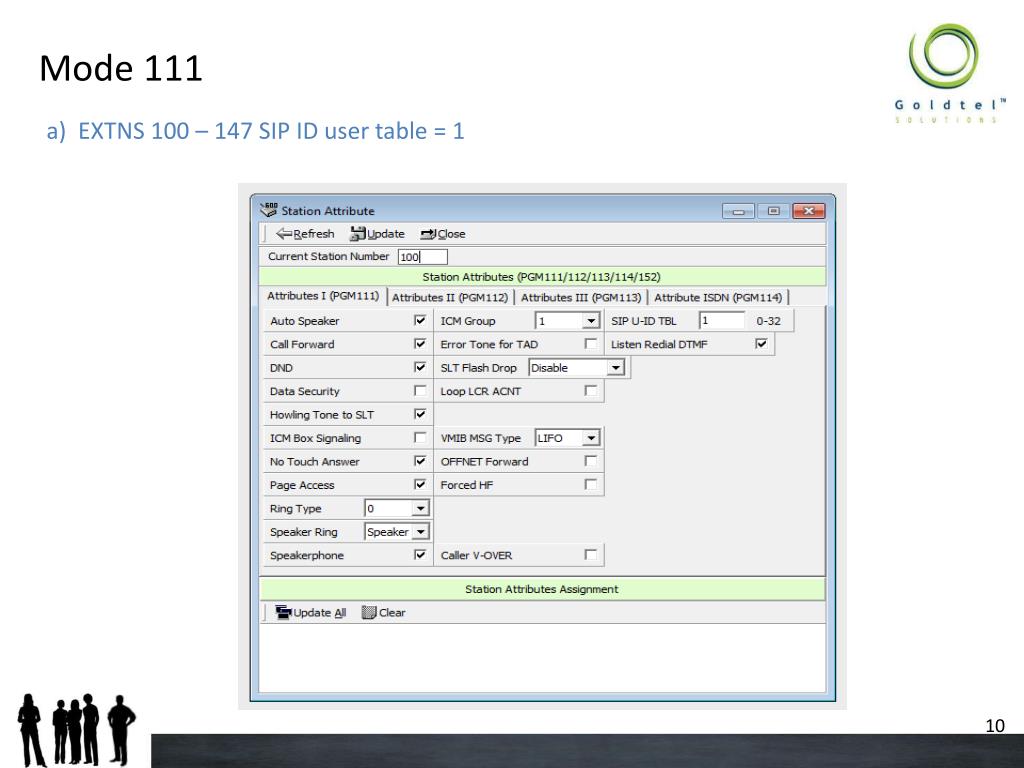

  8. Mode 111 a) EXTNS 100 – 147 SIP ID user table = 1

  9. PGM 114 • Clip LCD display = on

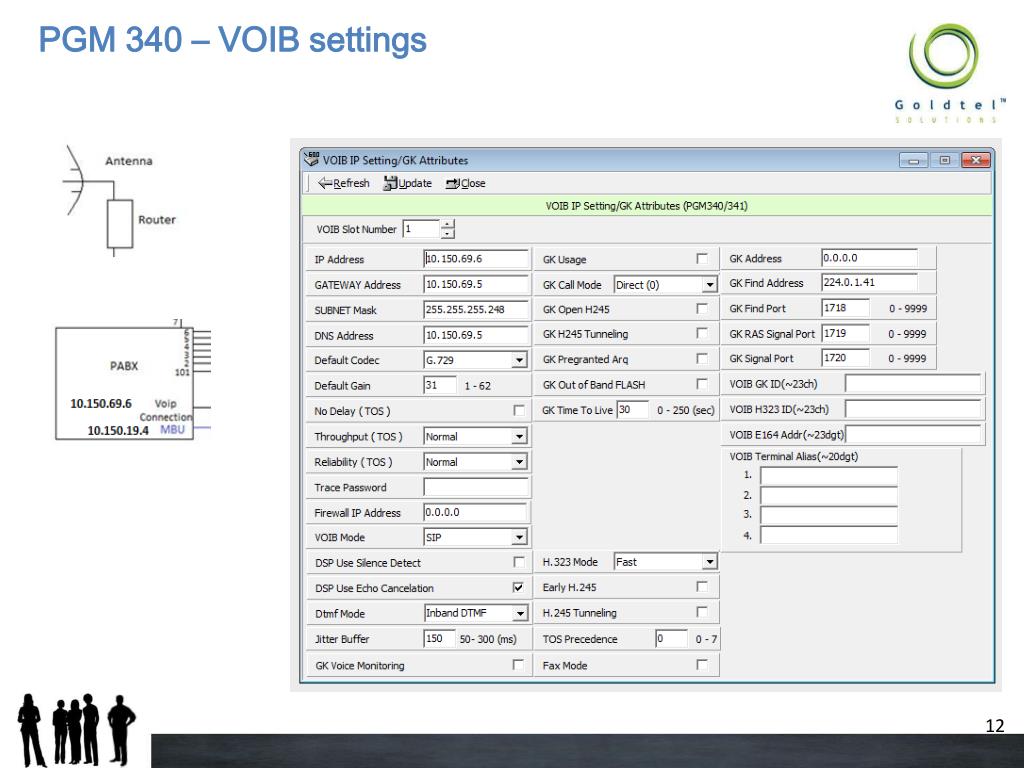

  10. PGM 340 – VOIB settings

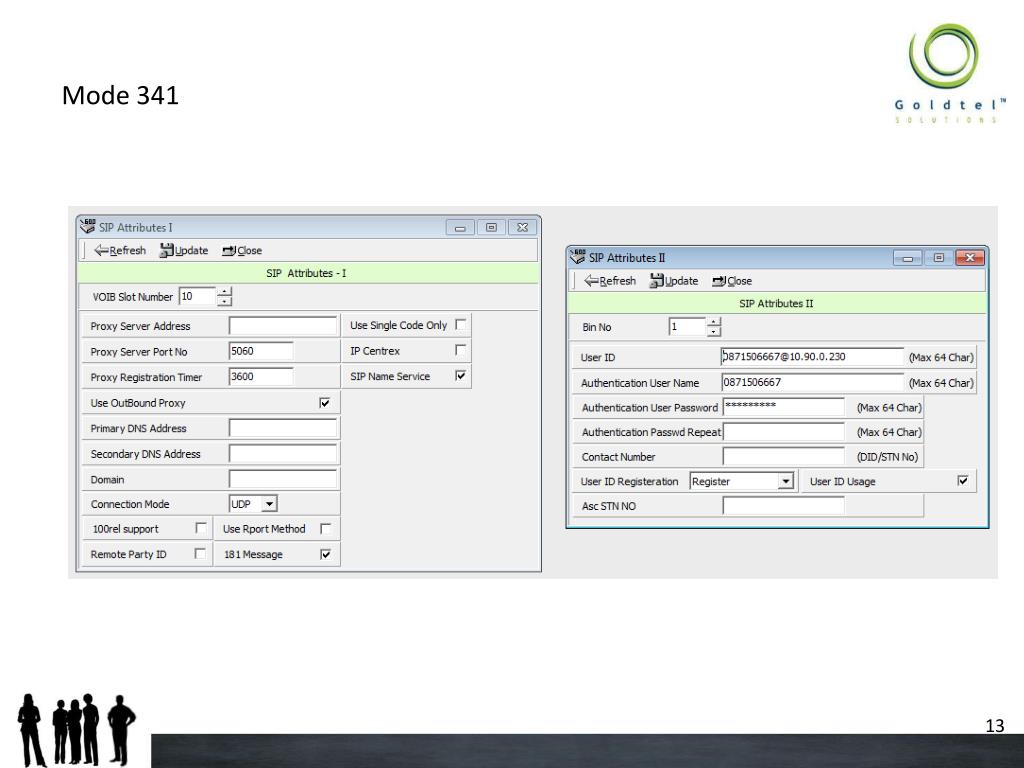

  11. Mode 341
