Fast and Secure Universal Roaming Service for Mobile Internet

mikkel avatar
mikkel
18 diapositives · 356 Views · Sep 03, 2014

Fast and Secure Universal Roaming Service for Mobile Internet. Yeali S. Sun, Yu-Chun Pan, Meng-Chang Chen. Outline. Introduction AAA-enabled Mobile IP Architecture Forming an AAA-enabled Roaming Alliance U-Mobile Token Conclusion Future Work. 1. Introduction.

Fast and Secure Universal Roaming Service for Mobile Internet - slide 1
01 / 18Fast and Secure Universal Roaming Service for Mobile Internet
1 / 17

Télécharger la présentation

Fast and Secure Universal Roaming Service for Mobile Internet
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

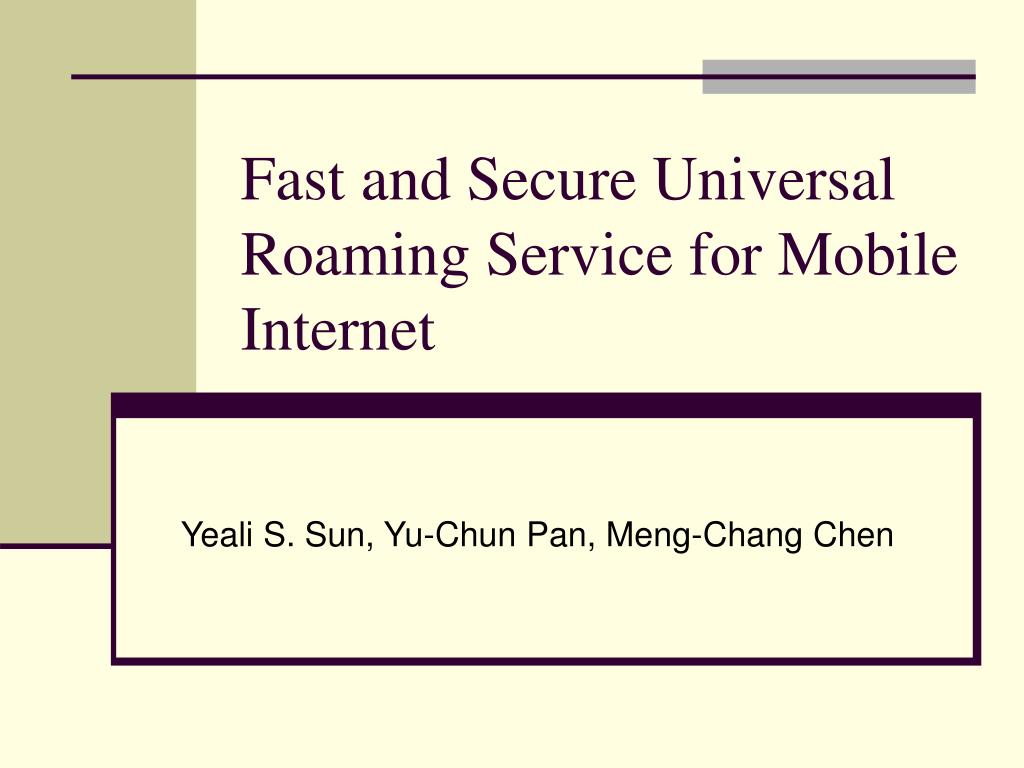

  1. Fast and Secure Universal Roaming Service for Mobile Internet Yeali S. Sun, Yu-Chun Pan, Meng-Chang Chen

  2. Outline • Introduction • AAA-enabled Mobile IP Architecture • Forming an AAA-enabled Roaming • Alliance U-Mobile Token • Conclusion • Future Work

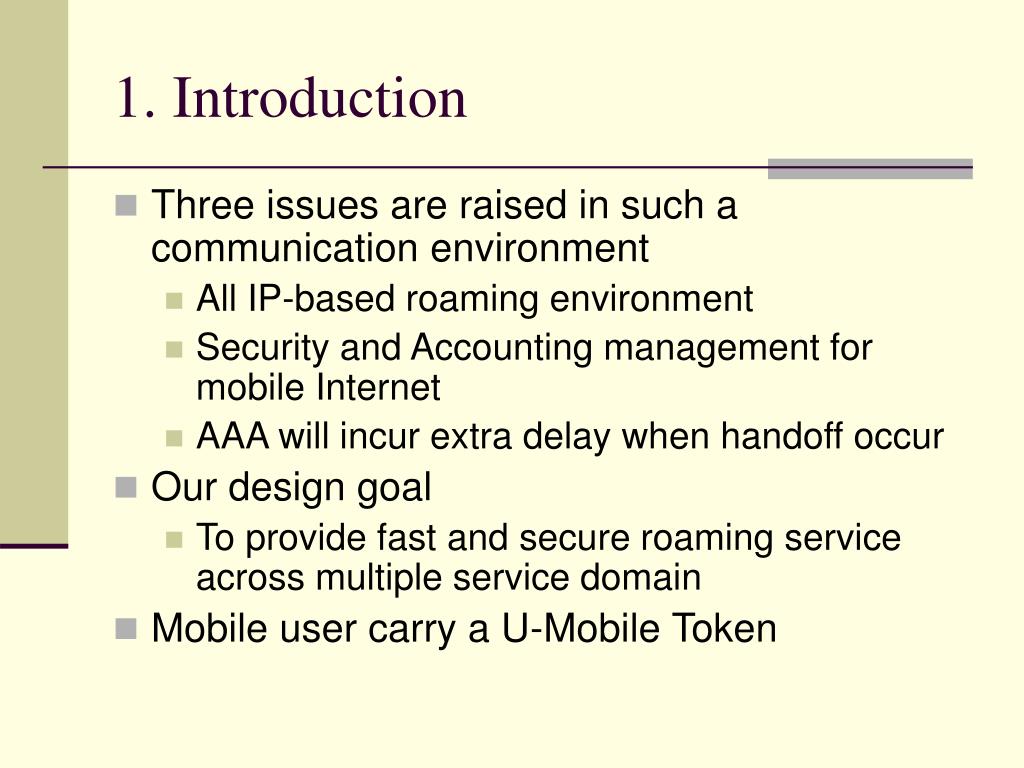

  3. 1. Introduction • Three issues are raised in such a communication environment • All IP-based roaming environment • Security and Accounting management for mobile Internet • AAA will incur extra delay when handoff occur • Our design goal • To provide fast and secure roaming service across multiple service domain • Mobile user carry a U-Mobile Token

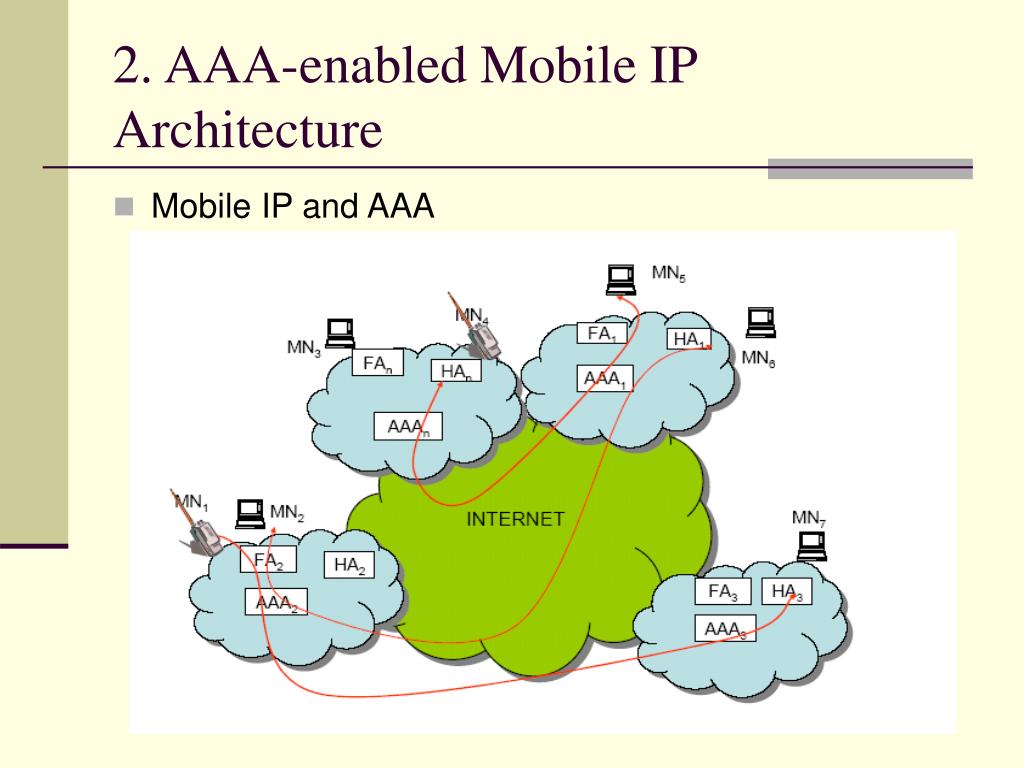

  4. 2. AAA-enabled Mobile IP Architecture • Mobile IP and AAA

  5. A simple AAA+ Mobile IP Protocol (1)

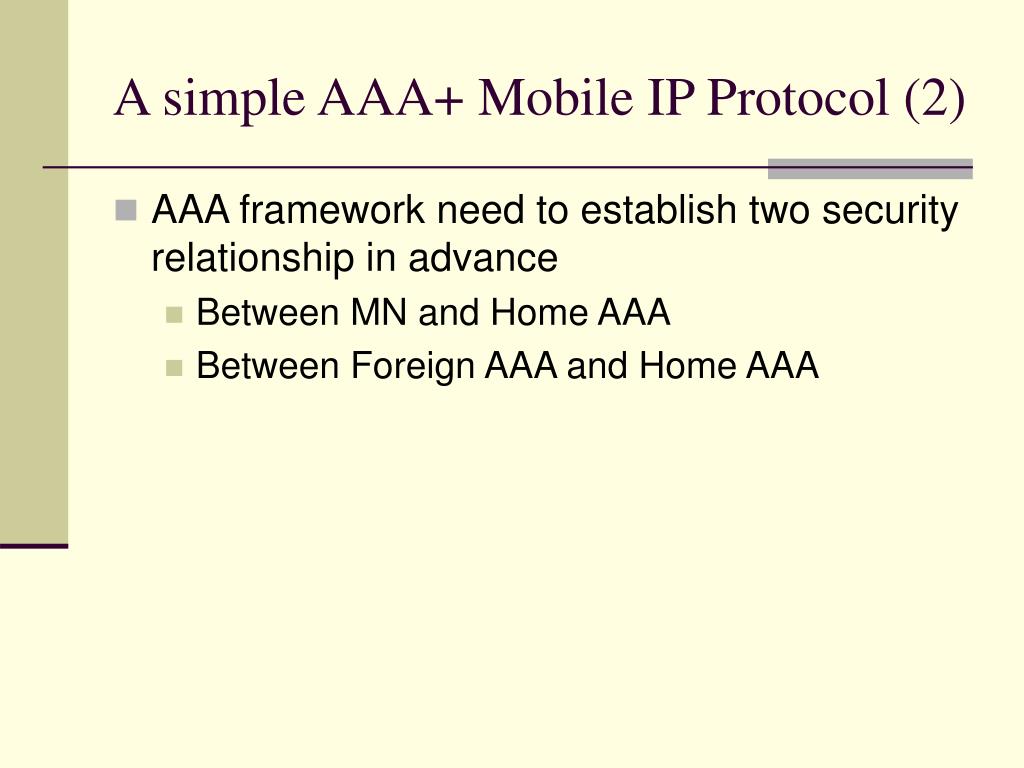

  6. A simple AAA+ Mobile IP Protocol (2) • AAA framework need to establish two security relationship in advance • Between MN and Home AAA • Between Foreign AAA and Home AAA

  7. 3. Forming an AAA-enabled Roaming • Roaming alliance is pre-configured to share administratively created security associations • Roaming alliance have two actors • Master domain • Creator of the alliance • Alliance membership management • Member domain • Master invite to join the alliance

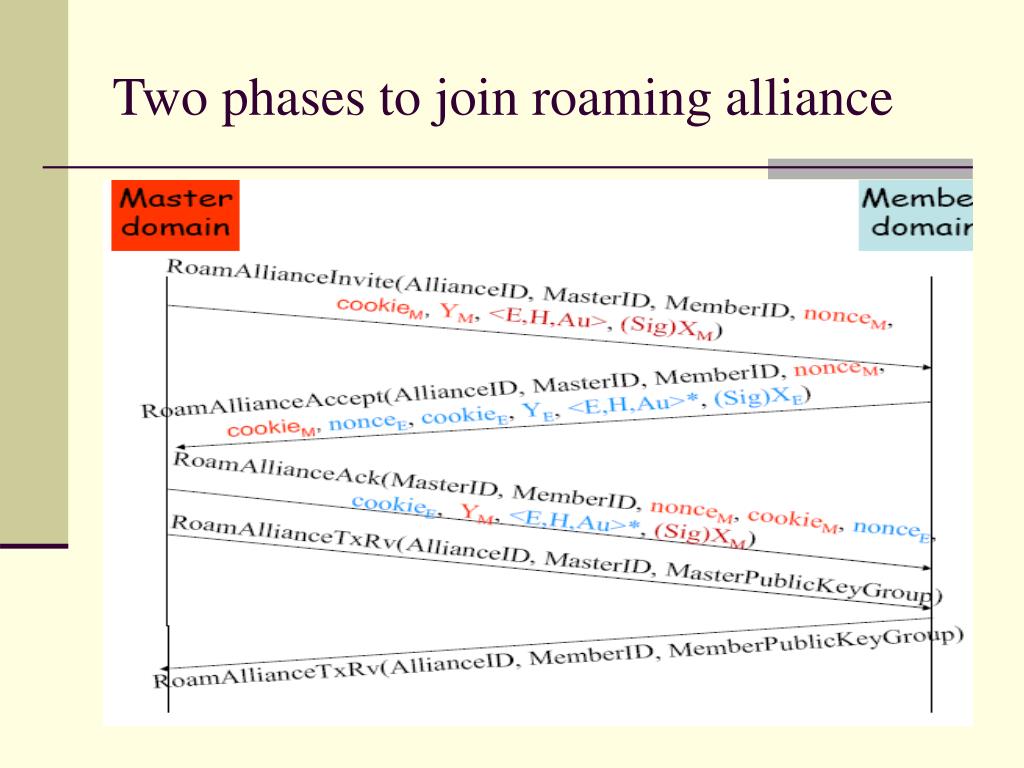

  8. Two phases to join roaming alliance

  9. 4. Alliance U-Mobile Token • MN will get the authentication package from its home AAA • U-Mobile token • U-Mobile token has three tasks • Authentication of the issuing party • Authentication of the token holder • Integrity check

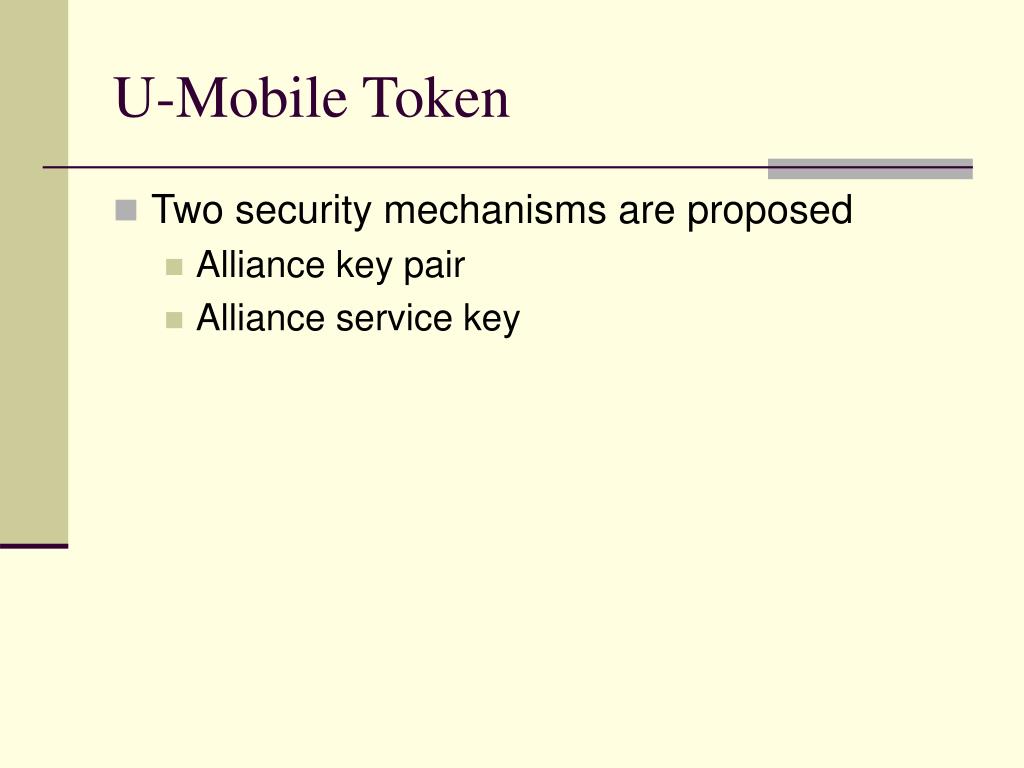

  10. U-Mobile Token • Two security mechanisms are proposed • Alliance key pair • Alliance service key

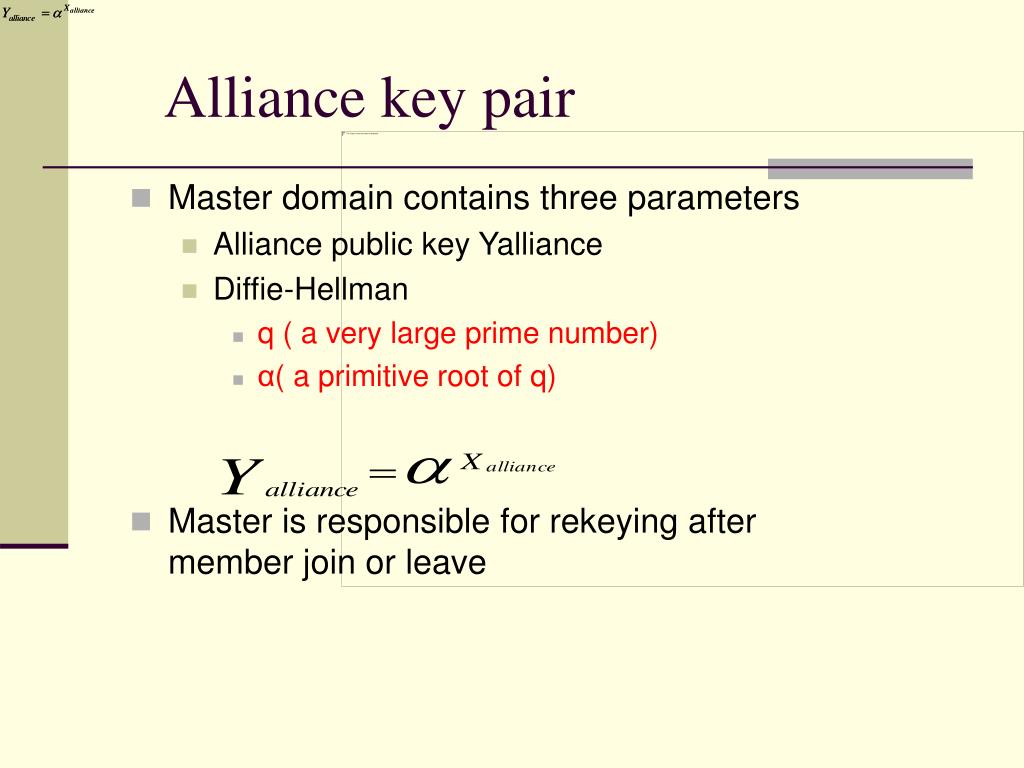

  11. Alliance key pair Master domain contains three parameters Alliance public key Yalliance Diffie-Hellman q ( a very large prime number) α( a primitive root of q) Master is responsible for rekeying after member join or leave

  12. Alliance Service key • Mobile User get the fast roaming authentication package • Xalliance and q and α • AAA server determines a random integer XAAA as private key and YAAA as public key • send YAAA out in the route advertisement message • In the AAA server side • KallianceSvckey = (Yalliance)XAAA mod q • In the Mobile User side • KallianceSvckey = (YAAA)Xalliance mod q

  13. U-Mobile Token content design • U-Mobile Token = (roamAllianceID, YAAA, homeDomainID, nonce, {userID, serviceClass,homeDomainID,{userID}homedomainKey, {serviceClass, servieLifeTime, alliancePrivateKey,allianceSvcIndex}userPrivateKey}allianceSvcKey)

  14. Fast Roaming Authentication

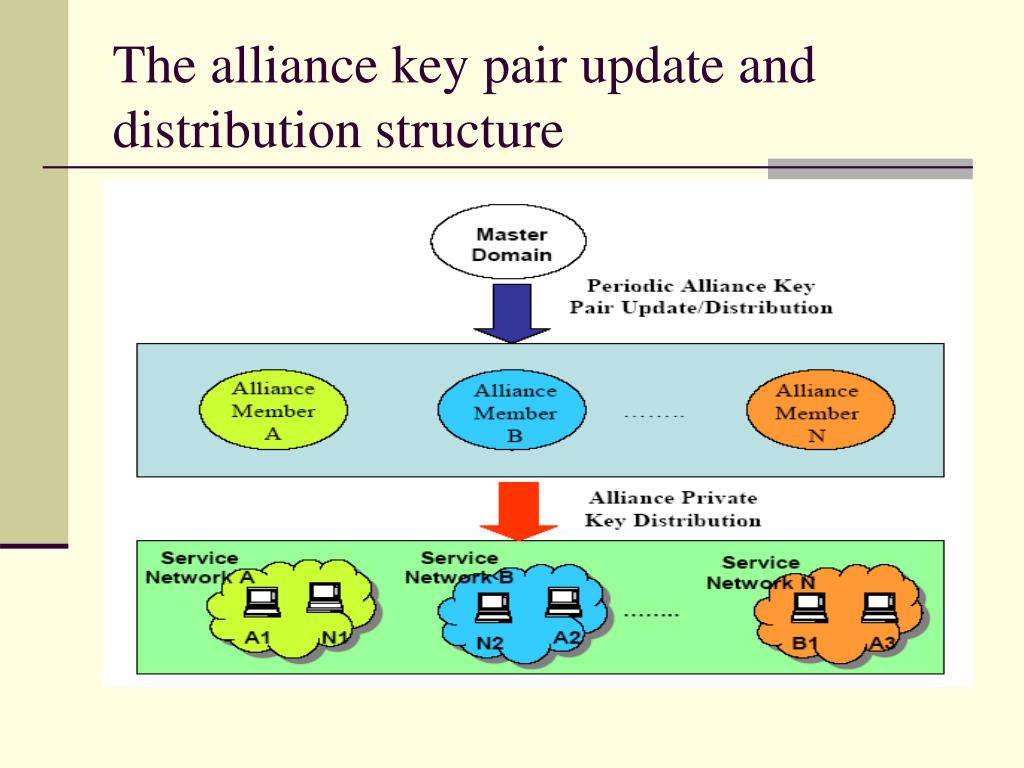

  15. The alliance key pair update and distribution structure

  16. How to distribute alliance private key to mobile nodes • MN’s alliance private key is out of date, when first time to login service • AAAF forward the token to MN’s AAAH for update • MN periodically send an alliance private key update request to AAAH • AAA server keep a window of the valid alliance key pair

  17. Conclusions • We proposed a service model called universal roaming service • Mobile users belonging to different service operators can fast and securely access network resource with U-Mobile token • U-Mobile token successfully achieves the authentication of the AAA server(AAAF,AAAH) and token holder(MN)

  18. 6. Future Works • Simulation
