Dry Cell Battery

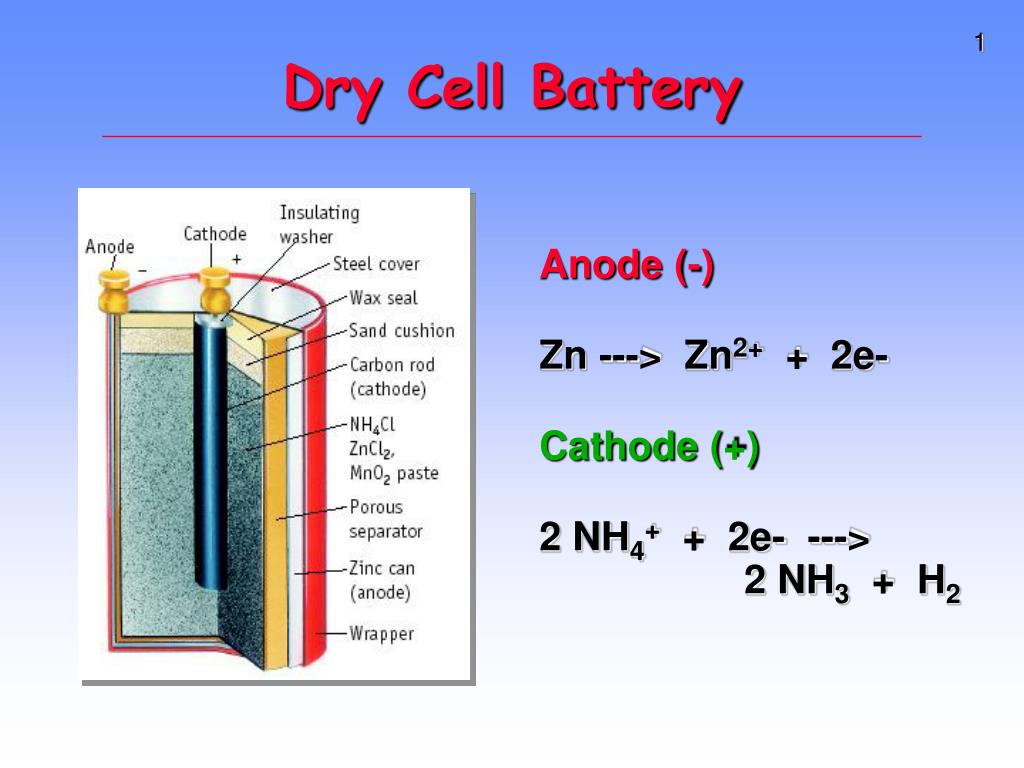

Dry Cell Battery. Anode (-) Zn ---> Zn 2+ + 2e- Cathode (+) 2 NH 4 + + 2e- ---> 2 NH 3 + H 2. Alkaline Battery. Nearly same reactions as in common dry cell, but under basic conditions. Anode (-): Zn + 2 OH - ---> ZnO + H 2 O + 2e-

millie
Télécharger la présentation

Dry Cell Battery

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Dry Cell Battery Anode (-) Zn ---> Zn2+ + 2e- Cathode (+) 2 NH4+ + 2e- ---> 2 NH3 + H2

  2. Alkaline Battery Nearly same reactions as in common dry cell, but under basic conditions. Anode (-): Zn + 2 OH- ---> ZnO + H2O + 2e- Cathode (+): 2 MnO2 + H2O + 2e- ---> Mn2O3 + 2 OH-

  3. Mercury Battery Anode: Zn is reducing agent under basic conditions Cathode: HgO + H2O + 2e- ---> Hg + 2 OH-

  4. Lead Storage Battery Anode (-) Eo = +0.36 V Pb + HSO4- ---> PbSO4 + H+ + 2e- Cathode (+) Eo = +1.68 V PbO2 + HSO4- + 3 H+ + 2e- ---> PbSO4 + 2 H2O

  5. Ni-Cad Battery Anode (-) Cd + 2 OH- ---> Cd(OH)2 + 2e- Cathode (+) NiO(OH) + H2O + e- ---> Ni(OH)2 + OH-

  6. H2 as a Fuel Cars can use electricity generated by H2/O2 fuel cells. H2 carried in tanks or generated from hydrocarbons

  7. Hydrogen—Air Fuel Cell Figure 20.9

  8. Ballard Power Systemshttp://www.ballard.com/ A H2-based fuel cell Car using a H2 fuel cell

  9. Hybrid fuel car, page 847
