Presentation Transcript

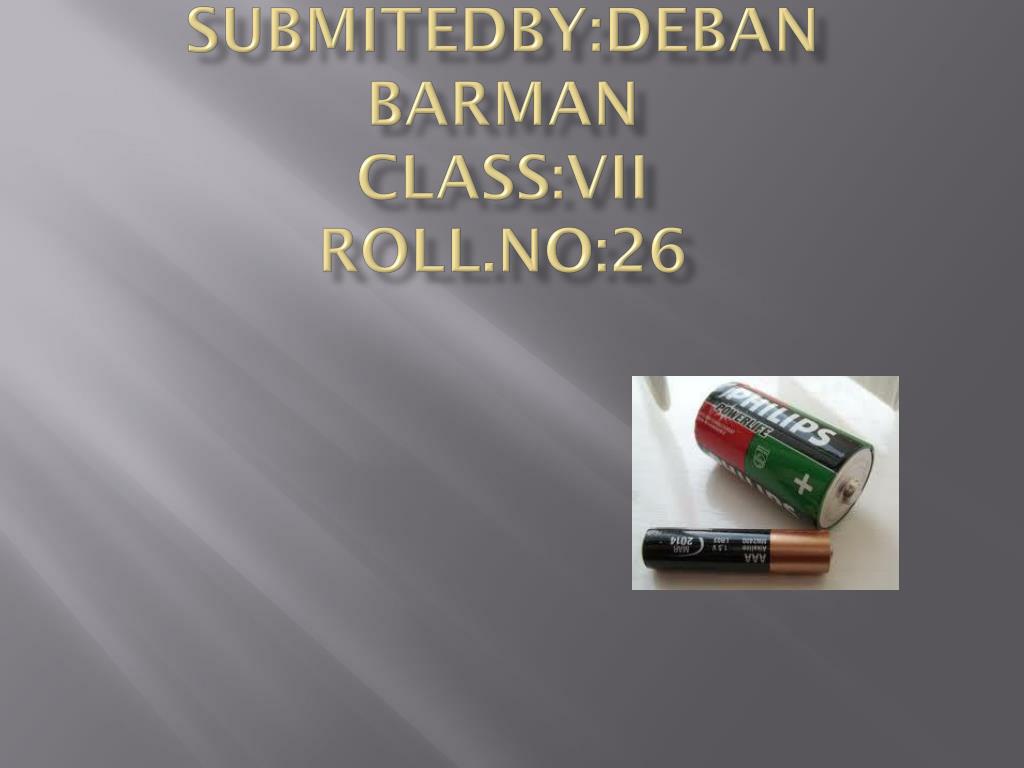

  1. Kendriavidyalaya.miss cantttopic:cell and batterysubject:w.es.u.p.wsubmitedto:sanjaysrivastav sirsubmitedby:deban barmanclass:viiroll.no:26

  2. CELL AND BATTERY • Q:WHAT IS CELL? • ANS:A CELL IS A DIVICE WHICH CONVERTS CHEMICAL ENERGY INTO ELECTRICAL ENERGY.

  3. ADVANTAGES OF CELL • .A CELL CAN STORE ELECTRICAL ENERGY. • .A CELL CAN RECHARGEBLE. • .A CELL HAVE 1.5 VOLT. • .THERE ARE MANY TYPES OF CELL LIKE PENCIL CELL,SOLER CELL, BUTTON CELL ,AND ETC. • .A CELL CAN PROVIDE EMERGENCY ELECTRIC SUPPLY.

  4. TERMINALS OF CELL • A CELL HAVE 2 TRRMINALS. • POSITIVE TERMINAL AND NAGITIVE TERMINAL.

  5. SERIES COMBINATION • :THE COMBINATION OF CELL IS WHICH THE POSITIVE TERMINAL OF 1 CELL GETS CONNECTED WITH THE NEGITIVE TERMINAL OF NEXT CELL, • THIS COMBINATION FORMS A HAIR TYPE STRUCTURE. • IN THIS COMBINATION THE TOTAL VOLTAGE IS TAKEN OR CALCULATED ACRESS FOR TERMINAL OF THE CELL1 AND FOR TERMINAL.
