  1. ABAC and GPO Clearinghouse Authorization Marshall Brinn, GPO GEC20: June 22, 2014

  2. Overview • The GPO Clearinghouse (CHAPI) adheres to the Federation Services API v2 • Including Registry, Member Authority and Slice Authority services • The calls are like AM API calls in that they are: • Communicated via XMLRPC/SSL • Authenticated against a set trust root certs • We use ABAC as the mechanism to Authorize calls: Specifying policies as well as determining authorization • This presentation provides some detail on how this works

  3. ABAC Essentials • ABAC (Attribute-based Access Control) provides a mechanism for creating assertions and proving queries against these assertions • In order to authorize calls in CHAPI, we consider two kinds of assertions • Attributes: Claims about some entity • “Joe is a member of project FOO” • Policies: Claims about members of sets • “The lead or admins or members of a given project may create slices in that project” • By gathering and reasoning on proper sets of assertions and policies, we can make authorization decisions • “May Joe create slices in project FOO?”

  4. ABAC-Guard Authorization • For a given method invocation • Determine the “subjects” (unique identities) on which the method seeks to operate (e.g. a list of slices or projects or members) • Gather the ‘context-free’ assertions about the caller • E.g. “AUTHORITY.IS_OPERATORCALLER” • For each subject, • Gather the assertions that are true in the context of that subject • E.g. “AUTHORITY.IS_MEMBER_$SLICECALLER” • Instantiate the policies for this method and subject • Try to prove either: • “AUTHORITY.MAY_$METHODCALLER” • “AUTHORITY.MAY_$METHOD_$SUBJECTCALLER” • The call is authorized iffeither proof succeeds for each subject

  5. Externalized Policies • CHAPI authorization rules (what policies and attributes to try to assert) are stored externally • In a set of JSON files that are parsed at service initialization time • We can edit these policies and modify ongoing Service behavior • NOT requiring a restart of the given (MA, SA) service • This capability has been ‘live’ since GEC19.

  6. Example Consider the SA method create_slice: defcreate_slice(self, credentials, options): The following JSON represents the ABAC policies applied to authorize an invocation of create_slice: "create_slice" : { "__DOC__" : "Operators, project Leads, members, admins may create slice", "assertions" : [ "ME.IS_$ROLE_$PROJECT<-CALLER" ], "policies" : [ "ME.MAY_$METHOD<-ME.IS_OPERATOR", "ME.MAY_$METHOD_$PROJECT<-ME.IS_LEAD_$PROJECT", "ME.MAY_$METHOD_$PROJECT<-ME.IS_ADMIN_$PROJECT", "ME.MAY_$METHOD_$PROJECT<-ME.IS_MEMBER_$PROJECT" ] } Each of these is asserted IF TRUE Think of these as “OR”ed. We seek any path leading to a proof.

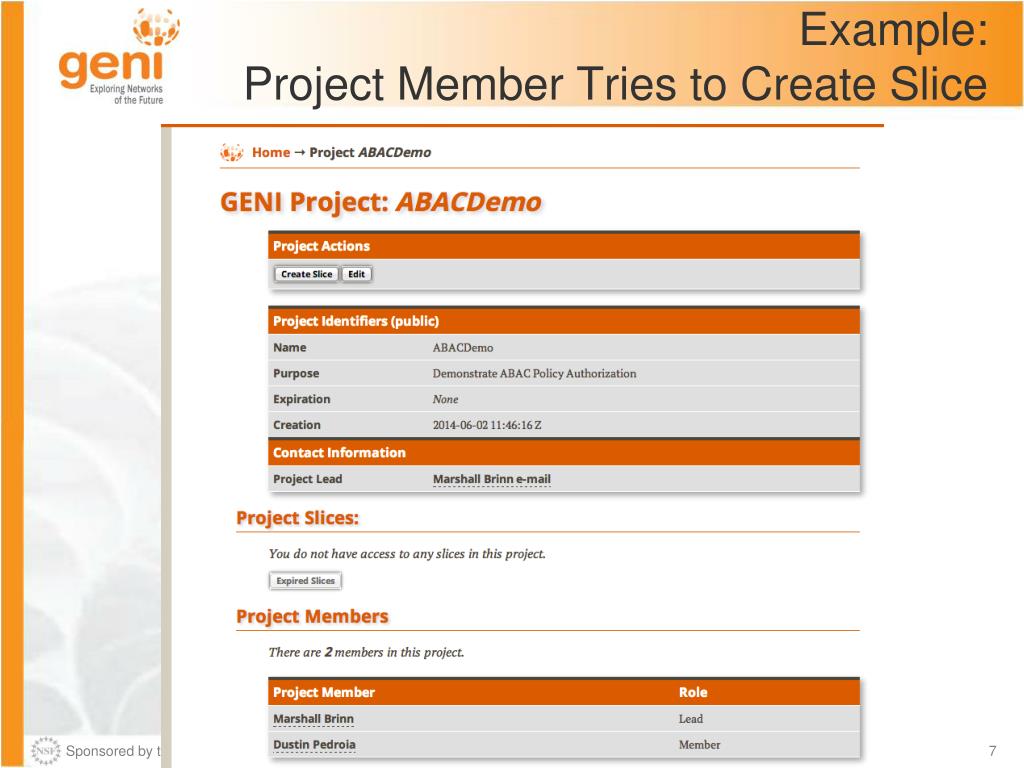

  7. Example: Project Member Tries to Create Slice

  8. Editing Policy (from slice_authority_policy.json) "create_slice" : { "__DOC__" : "Operators, project Leads, members, admins may create slice", "assertions" : [ "ME.IS_$ROLE_$PROJECT<-CALLER" ], "policies" : [ "ME.MAY_$METHOD<-ME.IS_OPERATOR", "ME.MAY_$METHOD_$PROJECT<-ME.IS_LEAD_$PROJECT", "ME.MAY_$METHOD_$PROJECT<-ME.IS_ADMIN_$PROJECT” ] } INFO:chapi:SA: Policy File Changed: /etc/geni-chapi/slice_authority_policy.json "create_slice" : { "__DOC__" : "Operators, project Leads, members, admins may create slice", "assertions" : [ "ME.IS_$ROLE_$PROJECT<-CALLER" ], "policies" : [ "ME.MAY_$METHOD<-ME.IS_OPERATOR", "ME.MAY_$METHOD_$PROJECT<-ME.IS_LEAD_$PROJECT", "ME.MAY_$METHOD_$PROJECT<-ME.IS_ADMIN_$PROJECT", "ME.MAY_$METHOD_$PROJECT<-ME.IS_MEMBER_$PROJECT" ] }

  9. Before Policy Edit

  10. After Policy Edit

  11. A few details… • Due to ABAC syntax rules, entities are referenced in these ABAC rules by a ‘flattened’ version of their URN • Determining the ‘subjects’ of a given call requires searching both • ‘options’ argument (‘match’ and ‘fields’ elements) • ‘arguments’ dictionary composed of other API call arguments, e.g. {‘project_urn’ : “urn:publicid:IDN+ch.geni.net+project+MYPROJ”} urn:publicid:IDN+ch.geni.net+user+mbrinn urn_publicid_IDN_ch_geni_net_user_mbrinn

  12. Summary • ABAC is a powerful and efficient mechanism to express and enforce AuthN policies • Our experience using ABAC in CHAPI has shown that it is sufficiently expressive and performant for our needs • ABAC also allows for a common representation of signed assertions • Enabling coordinated/distributed policy management by passing asserts among trusted partners • We encourage others (Services, Aggregates) to explore using ABAC for their respective AuthN needs • For more information about • ABAC: http://abac.deterlab.net • Federation API:http://groups.geni.net/geni/wiki/CommonFederationAPIv2 • GPO Clearinghouse: help@geni.net
