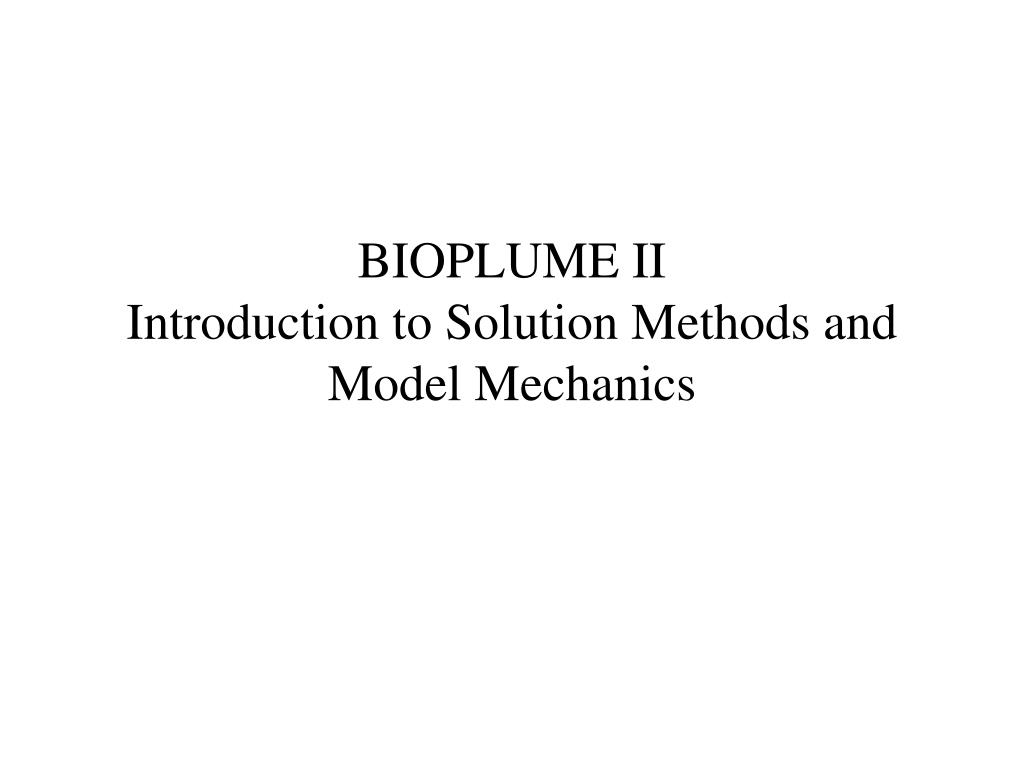

  1. BIOPLUME IIIntroduction to Solution Methods and Model Mechanics

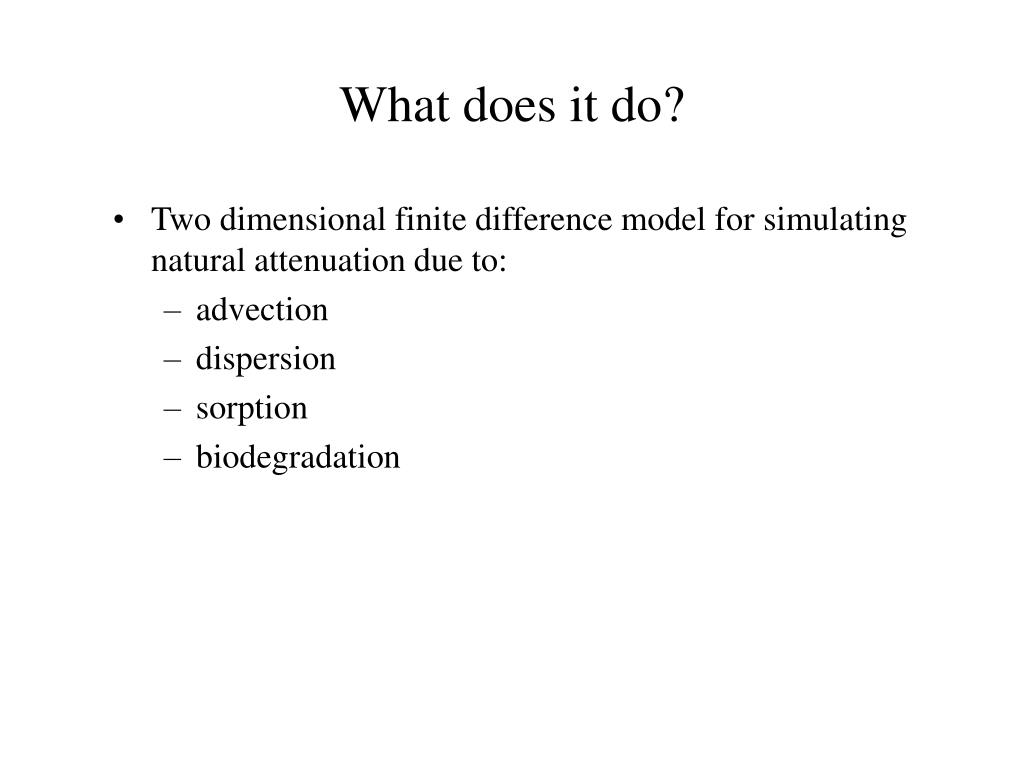

  2. What does it do? • Two dimensional finite difference model for simulating natural attenuation due to: • advection • dispersion • sorption • biodegradation

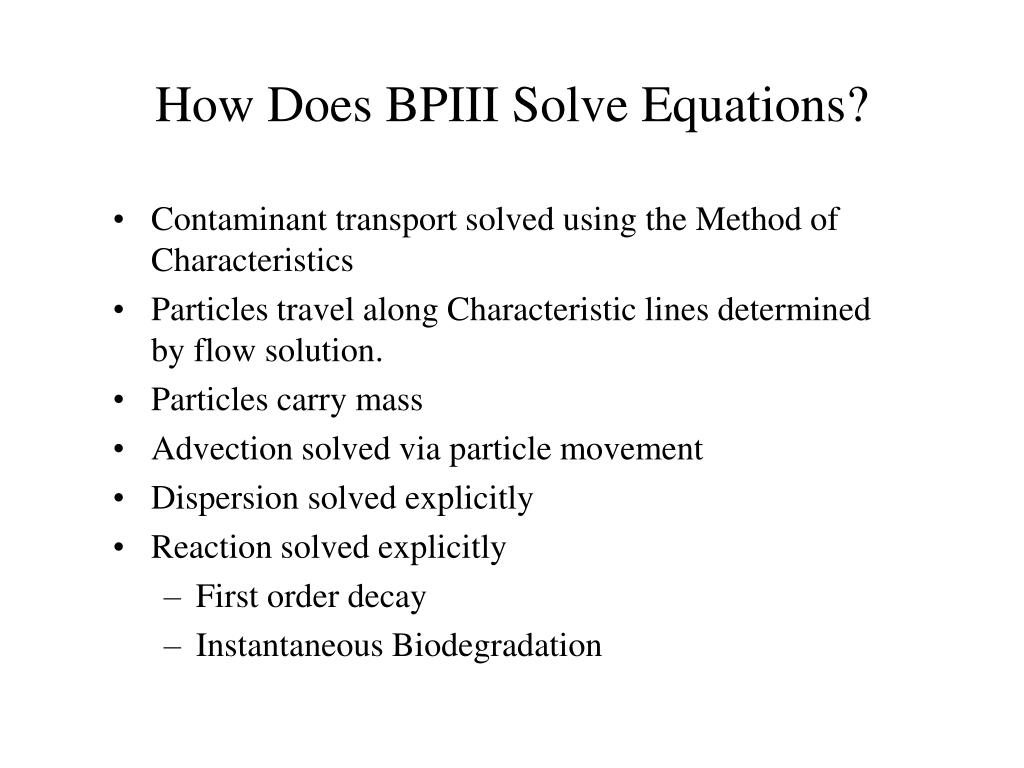

  3. How Does BPIII Solve Equations? • Contaminant transport solved using the Method of Characteristics • Particles travel along Characteristic lines determined by flow solution. • Particles carry mass • Advection solved via particle movement • Dispersion solved explicitly • Reaction solved explicitly • First order decay • Instantaneous Biodegradation

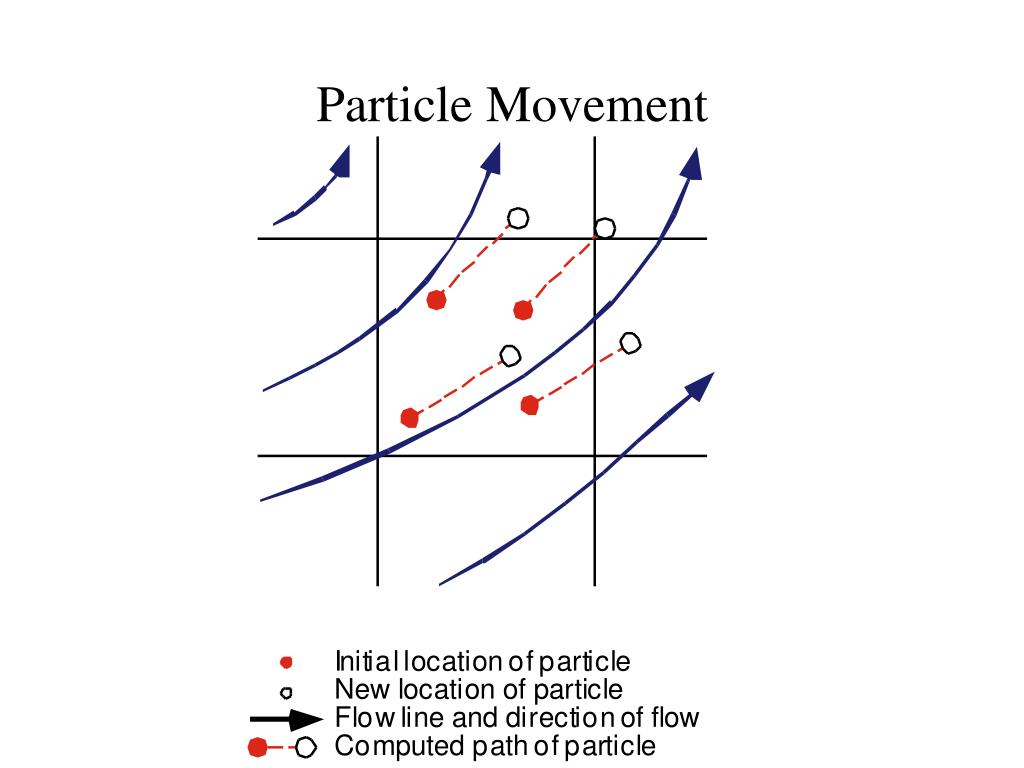

  4. Particle Movement

  5. Limitations/Assumptions • Darcy’s Law is valid • Porosity and hydraulic conductivity constant in time, porosity constant in space • Fluid density, viscosity and temperature have no effect on flow velocity • Reactions do not affect fluid or aquifer properties • Ionic and molecular diffusion negligible • Vertical variations in head/concentration negligible • Homogeneous, isotropic longitudinal and transverse dispersivity

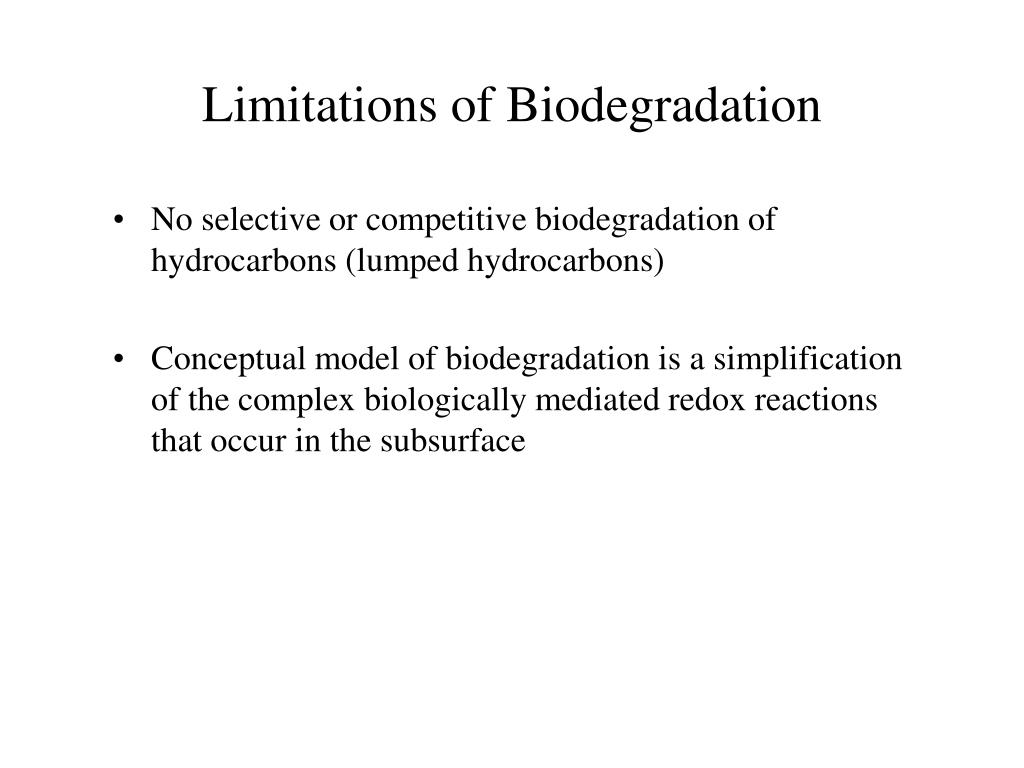

  6. Limitations of Biodegradation • No selective or competitive biodegradation of hydrocarbons (lumped hydrocarbons) • Conceptual model of biodegradation is a simplification of the complex biologically mediated redox reactions that occur in the subsurface

  7. BIOPLUME II Flowchart

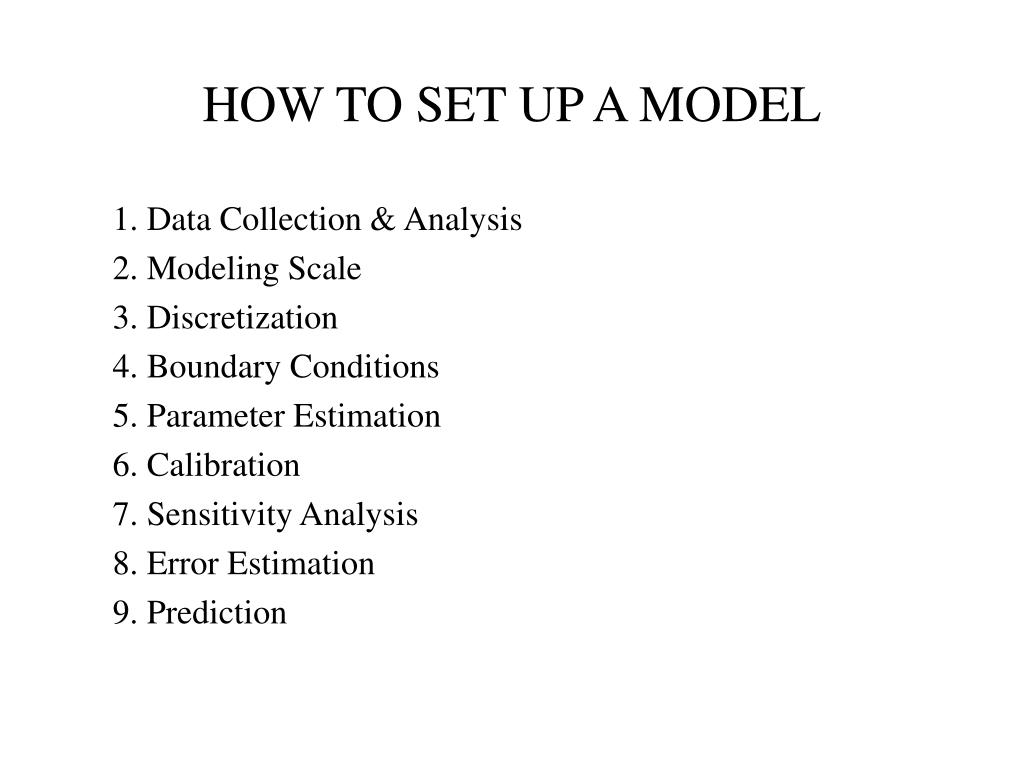

  8. HOW TO SET UP A MODEL 1. Data Collection & Analysis 2. Modeling Scale 3. Discretization 4. Boundary Conditions 5. Parameter Estimation 6. Calibration 7. Sensitivity Analysis 8. Error Estimation 9. Prediction

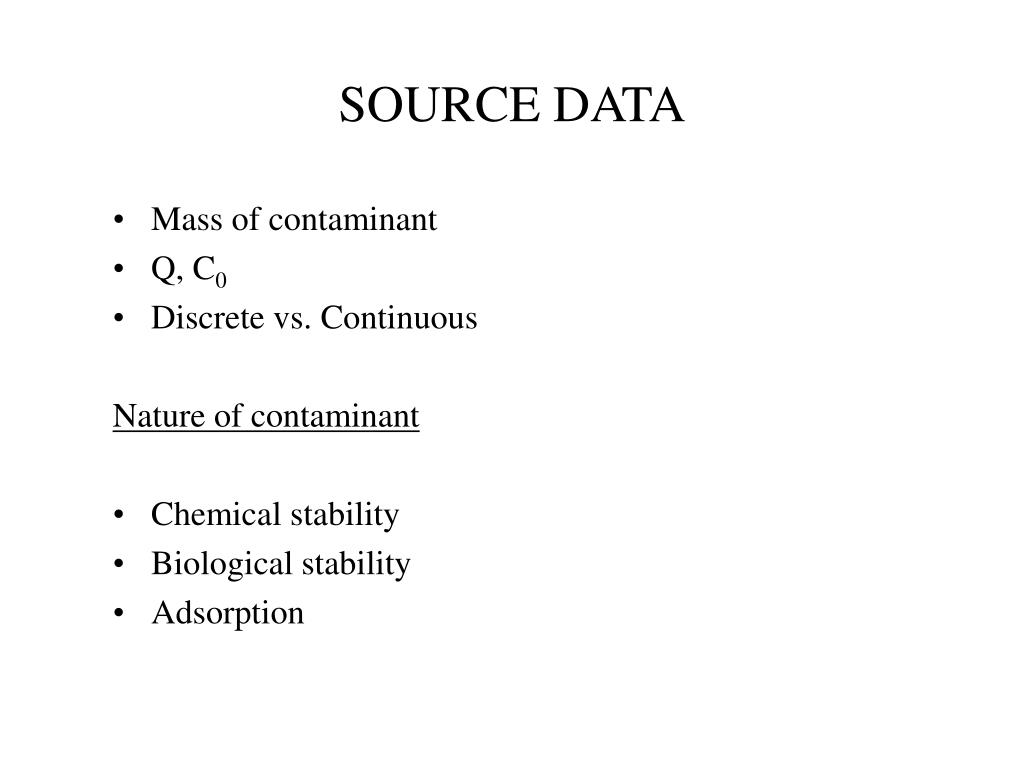

  9. SOURCE DATA • Mass of contaminant • Q, C0 • Discrete vs. Continuous Nature of contaminant • Chemical stability • Biological stability • Adsorption

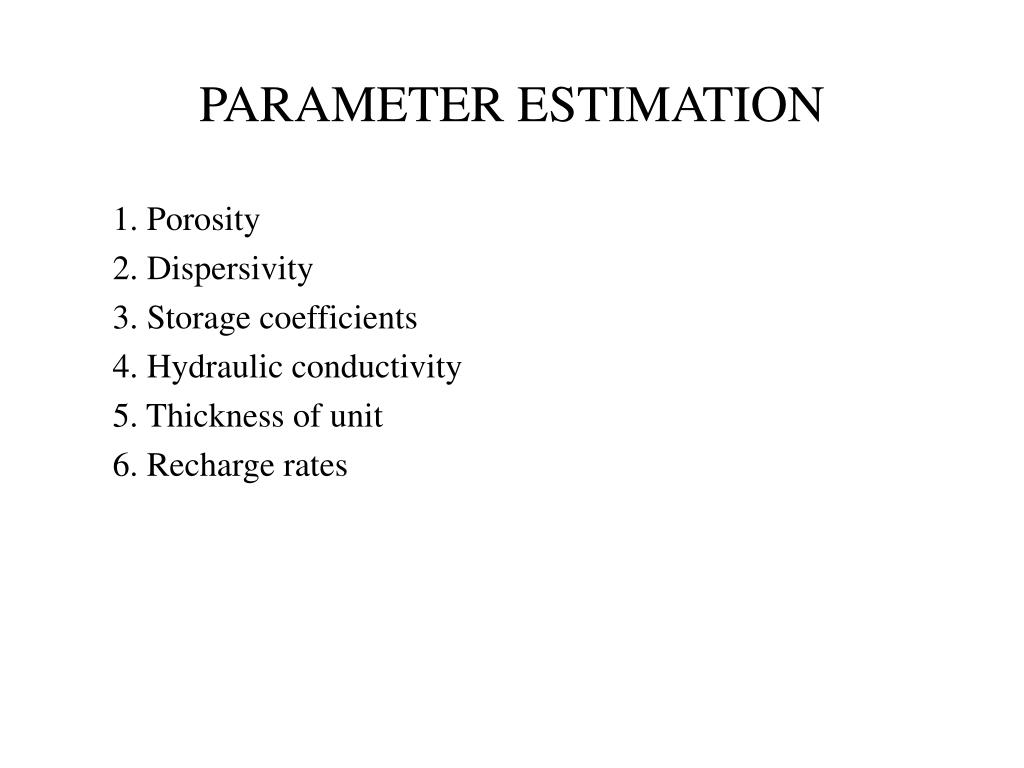

  10. PARAMETER ESTIMATION 1. Porosity 2. Dispersivity 3. Storage coefficients 4. Hydraulic conductivity 5. Thickness of unit 6. Recharge rates

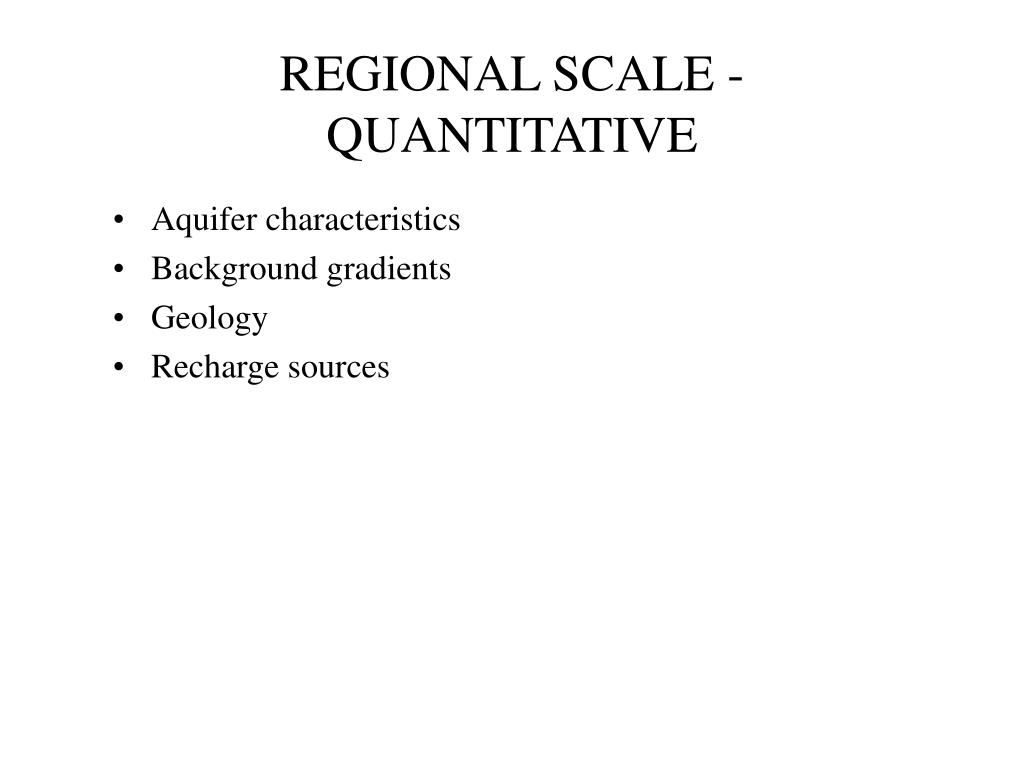

  11. REGIONAL SCALE - QUANTITATIVE • Aquifer characteristics • Background gradients • Geology • Recharge sources

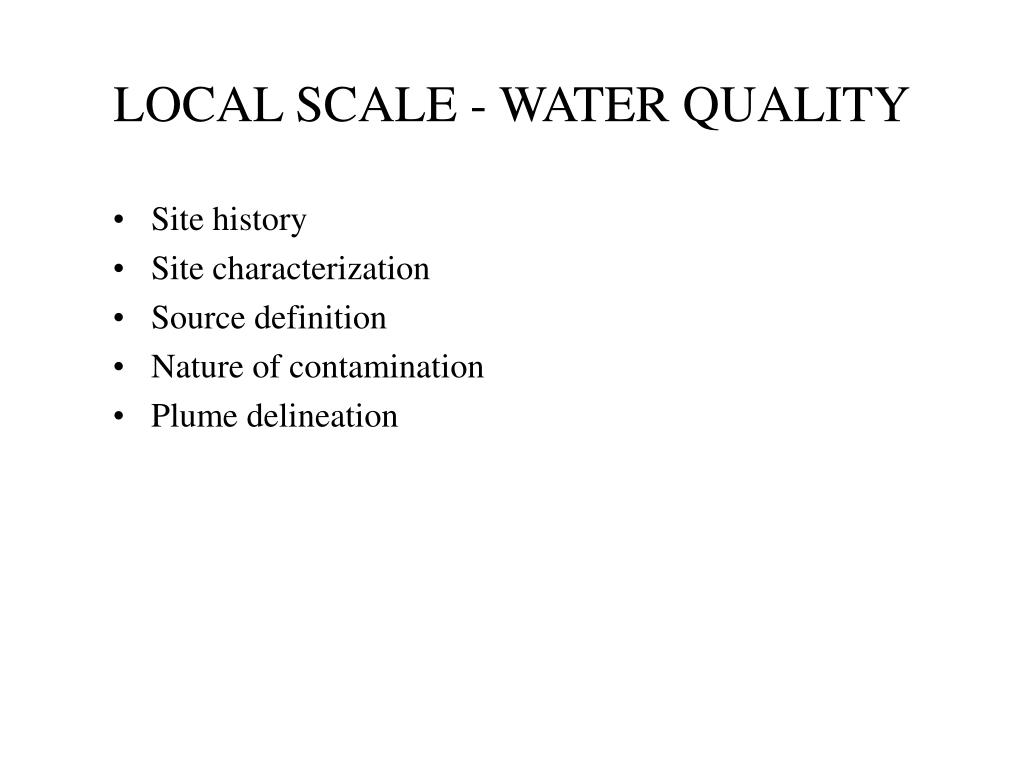

  12. LOCAL SCALE - WATER QUALITY • Site history • Site characterization • Source definition • Nature of contamination • Plume delineation

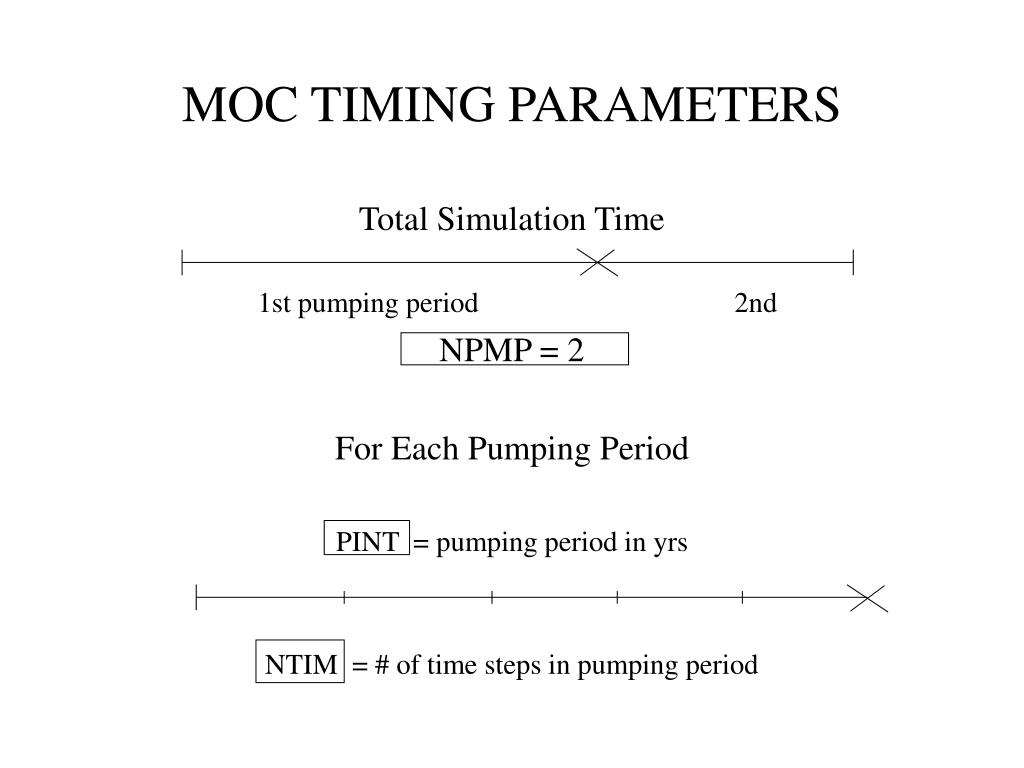

  13. MOC TIMING PARAMETERS Total Simulation Time 1st pumping period 2nd NPMP = 2 For Each Pumping Period PINT = pumping period in yrs NTIM = # of time steps in pumping period

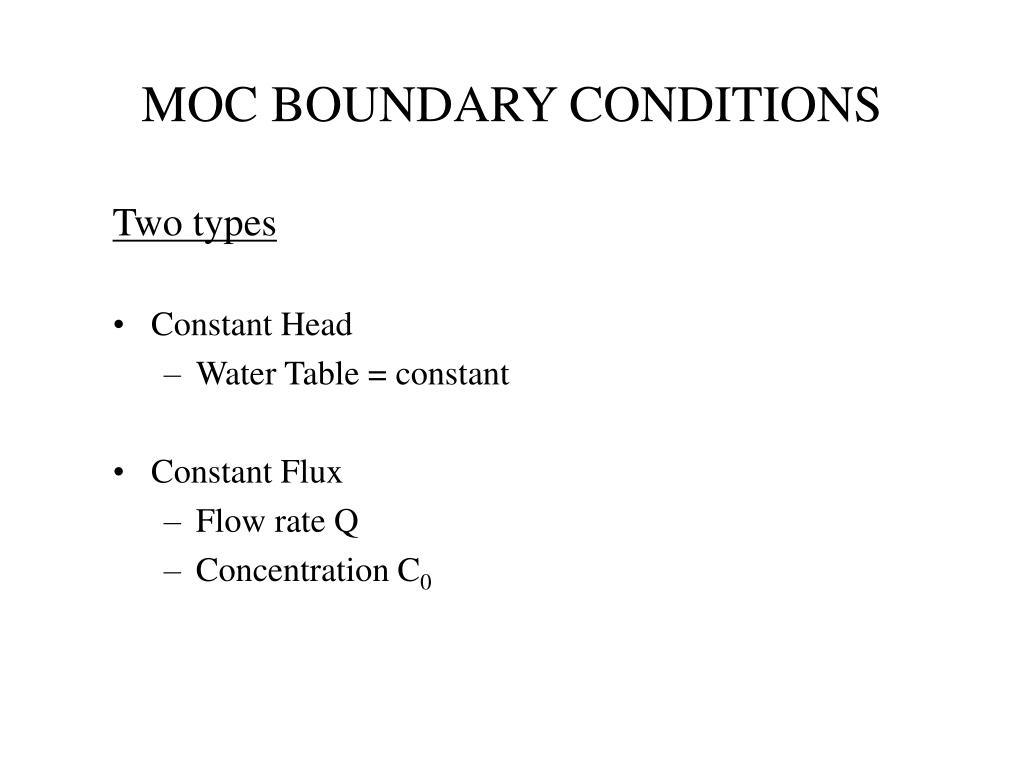

  14. MOC BOUNDARY CONDITIONS Two types • Constant Head • Water Table = constant • Constant Flux • Flow rate Q • Concentration C0

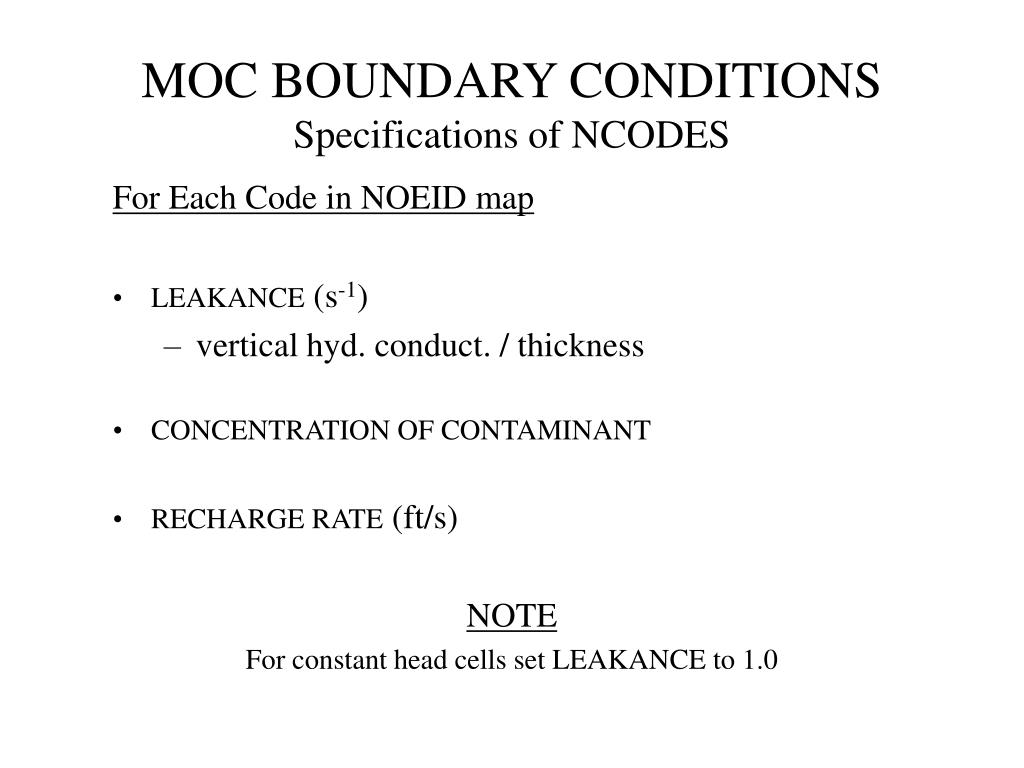

  15. MOC BOUNDARY CONDITIONSSpecifications of NCODES For Each Code in NOEID map • LEAKANCE (s-1) • vertical hyd. conduct. / thickness • CONCENTRATION OF CONTAMINANT • RECHARGE RATE (ft/s) NOTE For constant head cells set LEAKANCE to 1.0

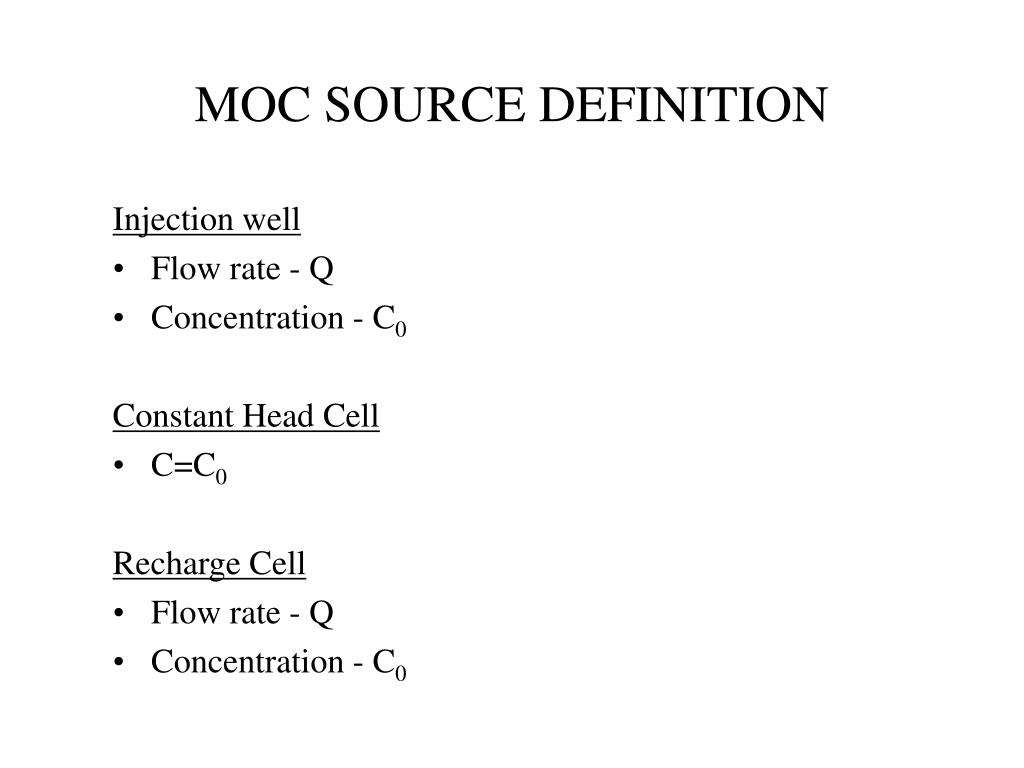

  16. MOC SOURCE DEFINITION Injection well • Flow rate - Q • Concentration - C0 Constant Head Cell • C=C0 Recharge Cell • Flow rate - Q • Concentration - C0

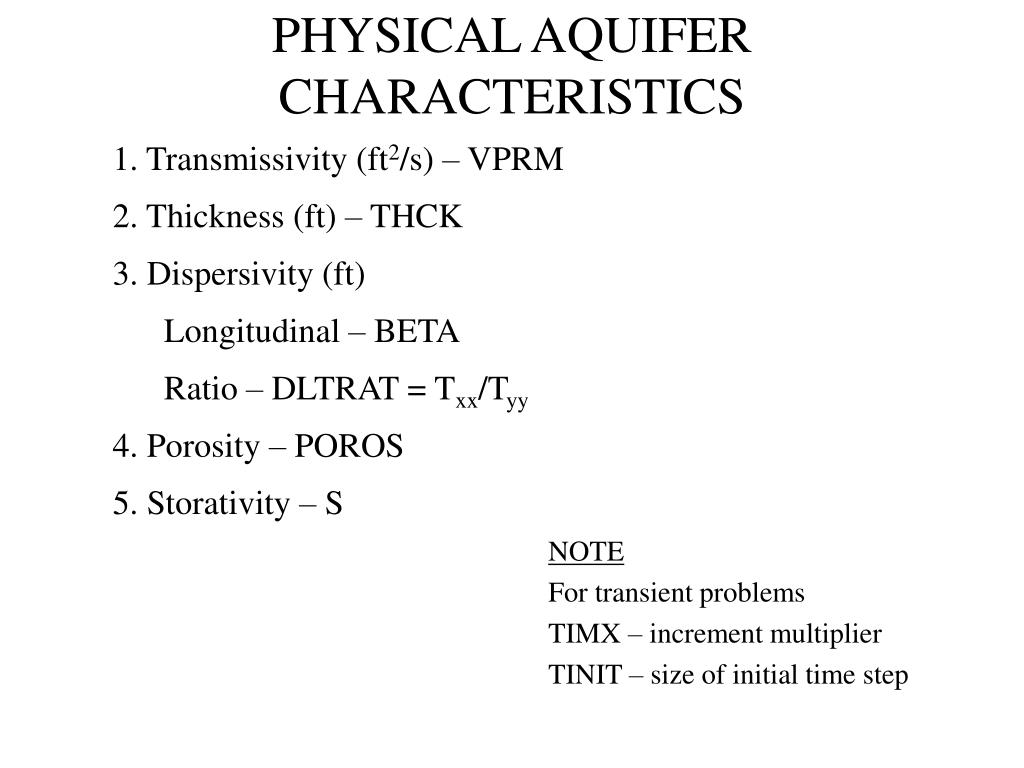

  17. PHYSICAL AQUIFER CHARACTERISTICS 1. Transmissivity (ft2/s) – VPRM 2. Thickness (ft) – THCK 3. Dispersivity (ft) Longitudinal – BETA Ratio – DLTRAT = Txx/Tyy 4. Porosity – POROS 5. Storativity – S NOTE For transient problems TIMX – increment multiplier TINIT – size of initial time step

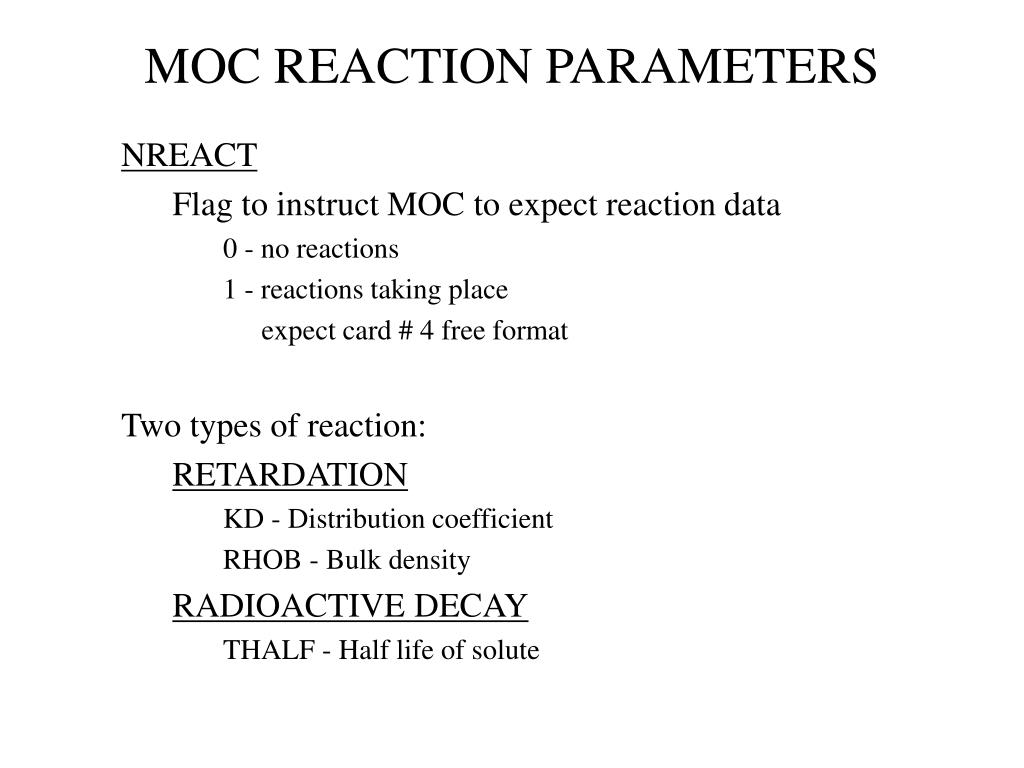

  18. MOC REACTION PARAMETERS NREACT Flag to instruct MOC to expect reaction data 0 - no reactions 1 - reactions taking place expect card # 4 free format Two types of reaction: RETARDATION KD - Distribution coefficient RHOB - Bulk density RADIOACTIVE DECAY THALF - Half life of solute

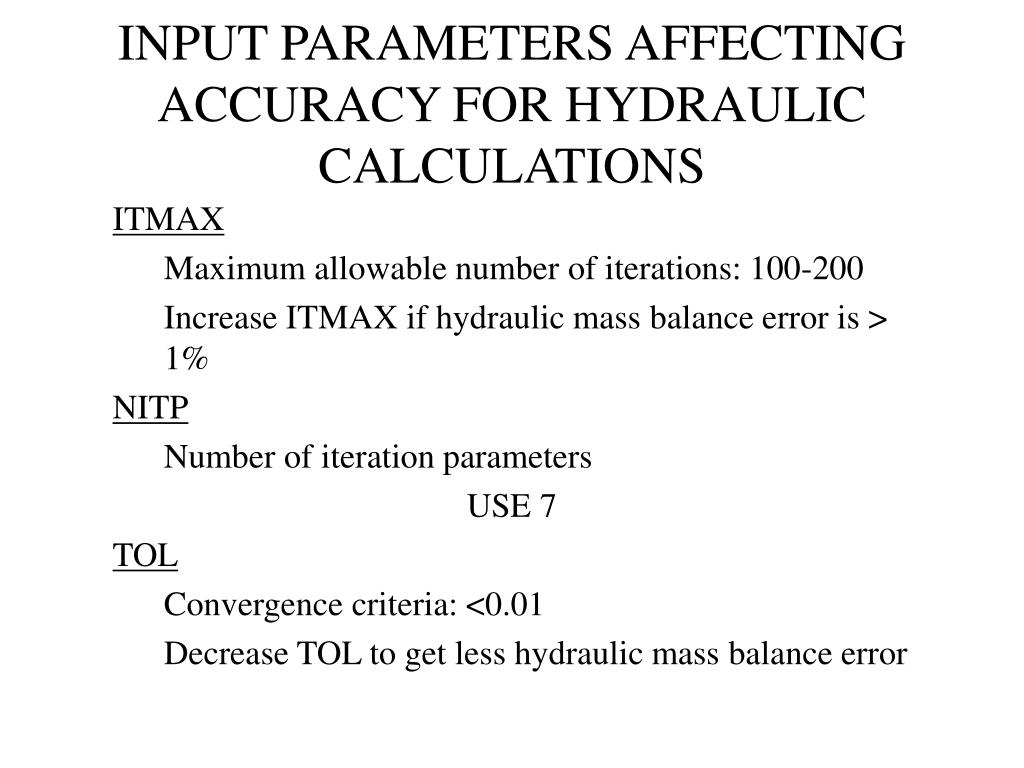

  19. INPUT PARAMETERS AFFECTING ACCURACY FOR HYDRAULIC CALCULATIONS ITMAX Maximum allowable number of iterations: 100-200 Increase ITMAX if hydraulic mass balance error is > 1% NITP Number of iteration parameters USE 7 TOL Convergence criteria: <0.01 Decrease TOL to get less hydraulic mass balance error

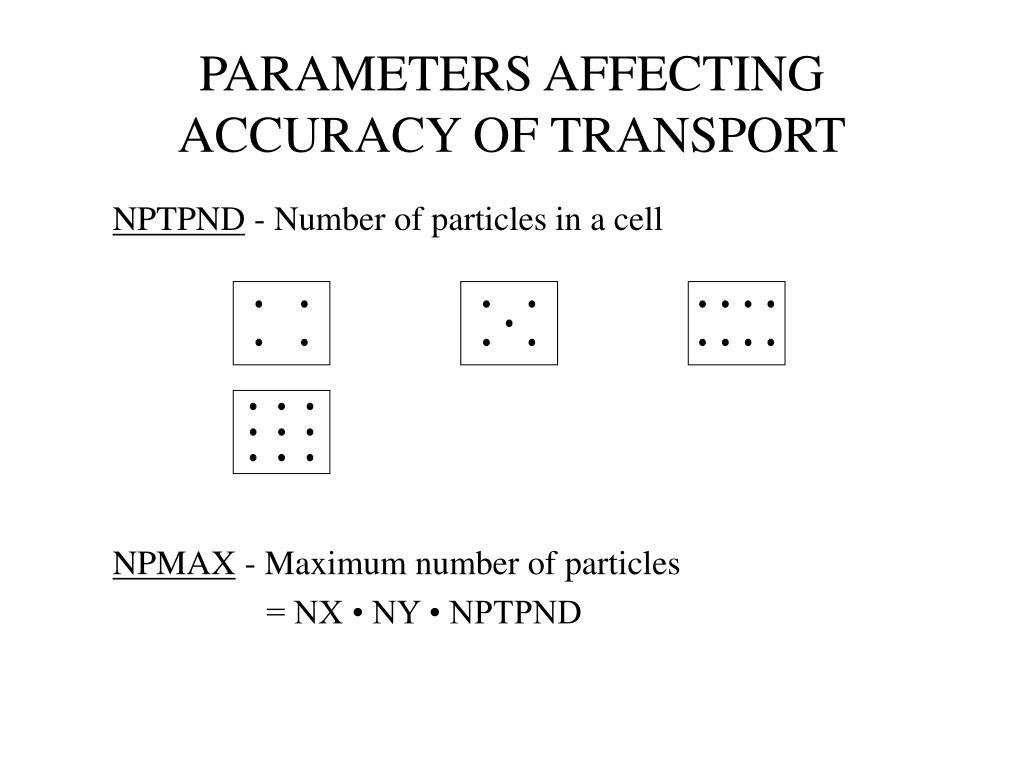

  20. PARAMETERS AFFECTING ACCURACY OF TRANSPORT NPTPND - Number of particles in a cell NPMAX - Maximum number of particles = NX • NY • NPTPND

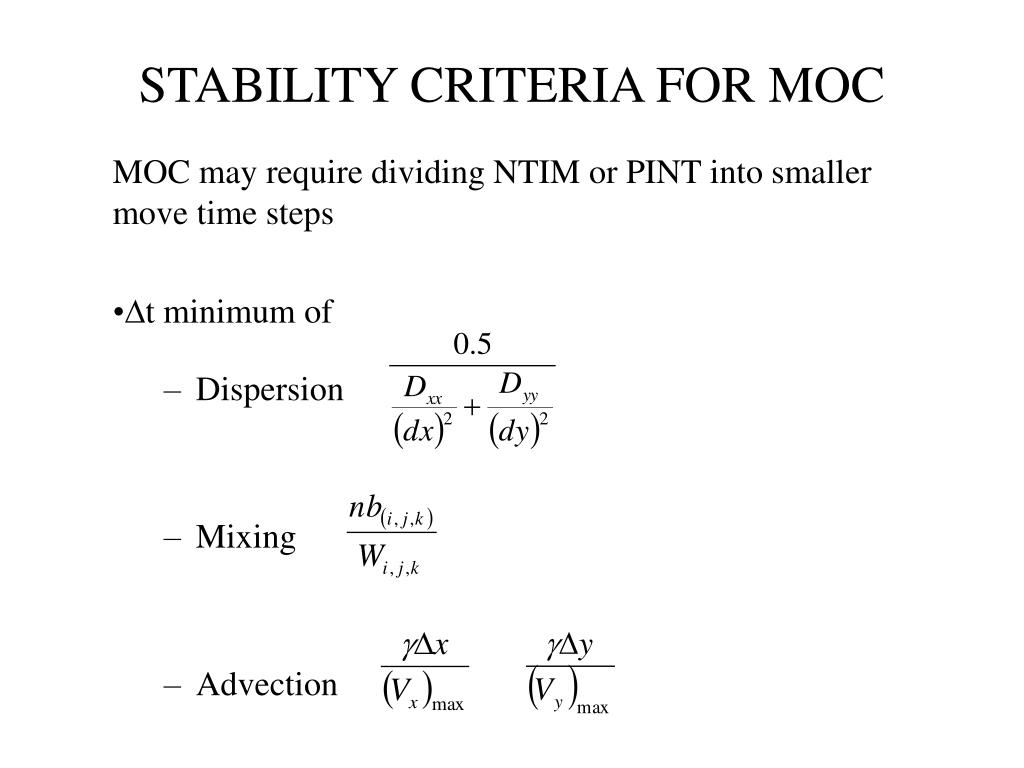

  21. STABILITY CRITERIA FOR MOC MOC may require dividing NTIM or PINT into smaller move time steps • t minimum of • Dispersion • Mixing • Advection

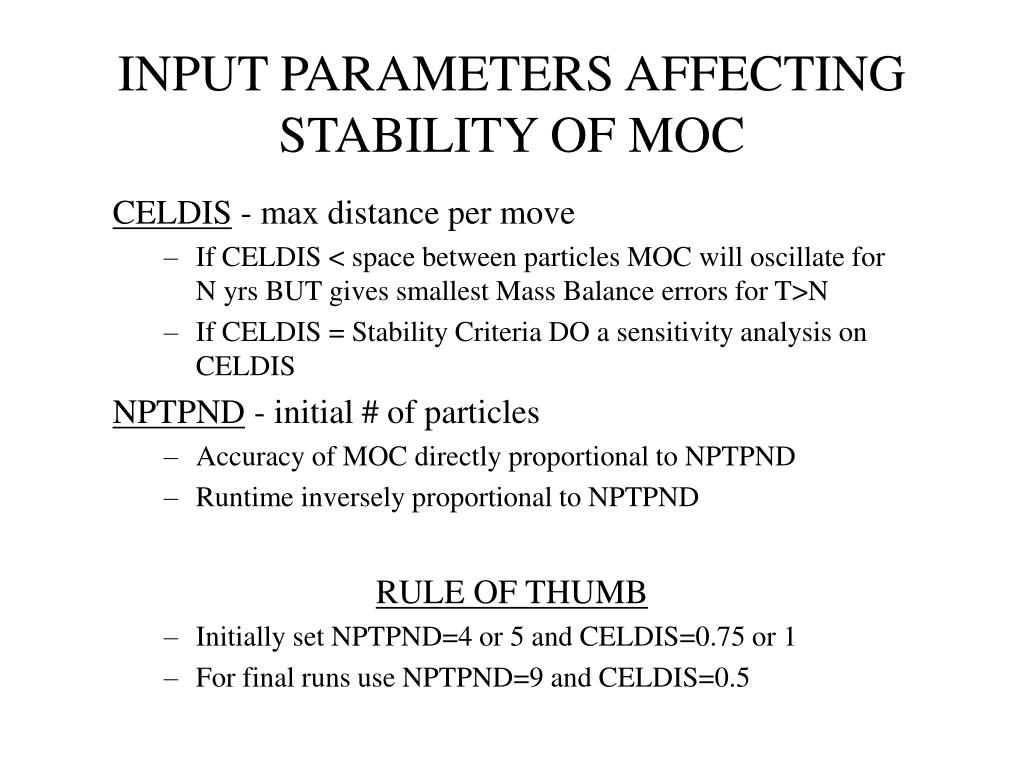

  22. INPUT PARAMETERS AFFECTING STABILITY OF MOC CELDIS - max distance per move • If CELDIS < space between particles MOC will oscillate for N yrs BUT gives smallest Mass Balance errors for T>N • If CELDIS = Stability Criteria DO a sensitivity analysis on CELDIS NPTPND - initial # of particles • Accuracy of MOC directly proportional to NPTPND • Runtime inversely proportional to NPTPND RULE OF THUMB • Initially set NPTPND=4 or 5 and CELDIS=0.75 or 1 • For final runs use NPTPND=9 and CELDIS=0.5

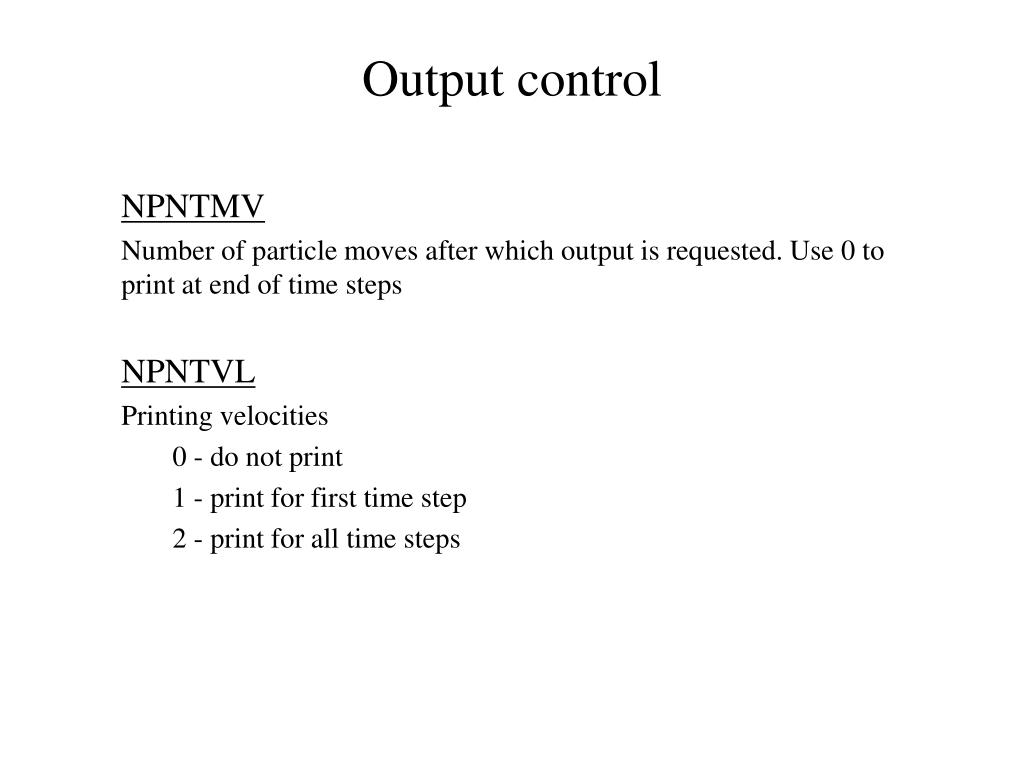

  23. Output control NPNTMV Number of particle moves after which output is requested. Use 0 to print at end of time steps NPNTVL Printing velocities 0 - do not print 1 - print for first time step 2 - print for all time steps

  24. Output control (cont.) NPNTD Print dispersion equation coefficients NPDELC Print changes in concentration NPNCHV Do not use this option. Always set to 0. It is used to request cards to be punched.
