  1. Total HVAC Control from anywhere Easy control that can save a fortune

  2. General Maxinet is a web based, Mini BMS application for controlling Central HVAC System. It enables a secured monitoring & control of the HVAC system at site by multi-users from anywhere in the world, via access to the intranet/internet. Maxinet is suitable for small to medium size buildings and can save 20%-30% of HVAC electricity costs.

  3. General • Energy saving solution • Reduces HVAC electricity costs by 20-30% • Simple, generic and affordable Software • Suitable for small to medium applications • Allows gradual expansion of your network; additional thermostats can be added later • Compatible with standard 220Vac/24Vac Thermostats with built in communication • Routers include display & buttons to control network • Controls also other energy consuming devices/systems by I/O Card (CTU1601)

  4. Features • Works with all HVAC applications – F/C, DX, VAV, Multi Zone • End-users have limited control by: • Programming set point limits • Locking end units • Different weekly programs for each unit or zones • Cost & usage reports and graphs • General purpose I/O card with 8 digital outputs, 8 digital inputs and 3 Temperature readings, to control other energy consuming systems thru the software • Easy to operate and manage. “Last operation rules” – end user or system • Access & Control from a remote location

  5. CTU+Panel (IRP-X500) Basic HVAC control structureLayout 1 / 2 / 3 Floor X Floor 2 Floor 2 Up to 60 units MCU CTU+Panel (ETN-X500) CTU+Panel (FMH-X500) Floor 1 Floor 1 Up to 60 units MCU PS1601 I/O card ETNC FMHC Adaptor RS232/ RS485 WWW Firewall

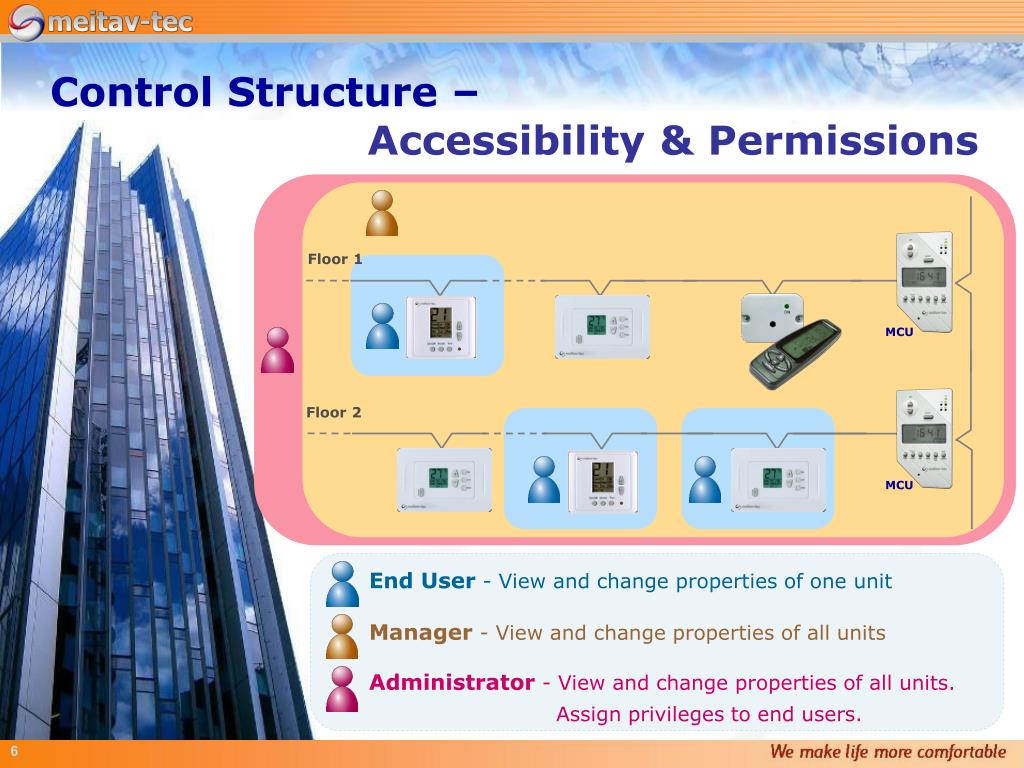

  6. Control Structure – Accessibility & Permissions Floor 1 MCU Floor 2 MCU End User - View and change properties of one unit Manager - View and change properties of all units Administrator - View and change properties of all units. Assign privileges to end users.

  7. Controlling the units remote computer WWW Wall Mount – MCU Master Unit Control Local computer Panel / Remote control

  8. Installation – Options Option 1 Option 2 Option 3 Local server/ computer in customer’s Ethernet – Easy CD installation Remote installation* at customer’s site via the Internet by Meitav-tec’s technician Remote hosting server - (option) * Requires permission for internet access

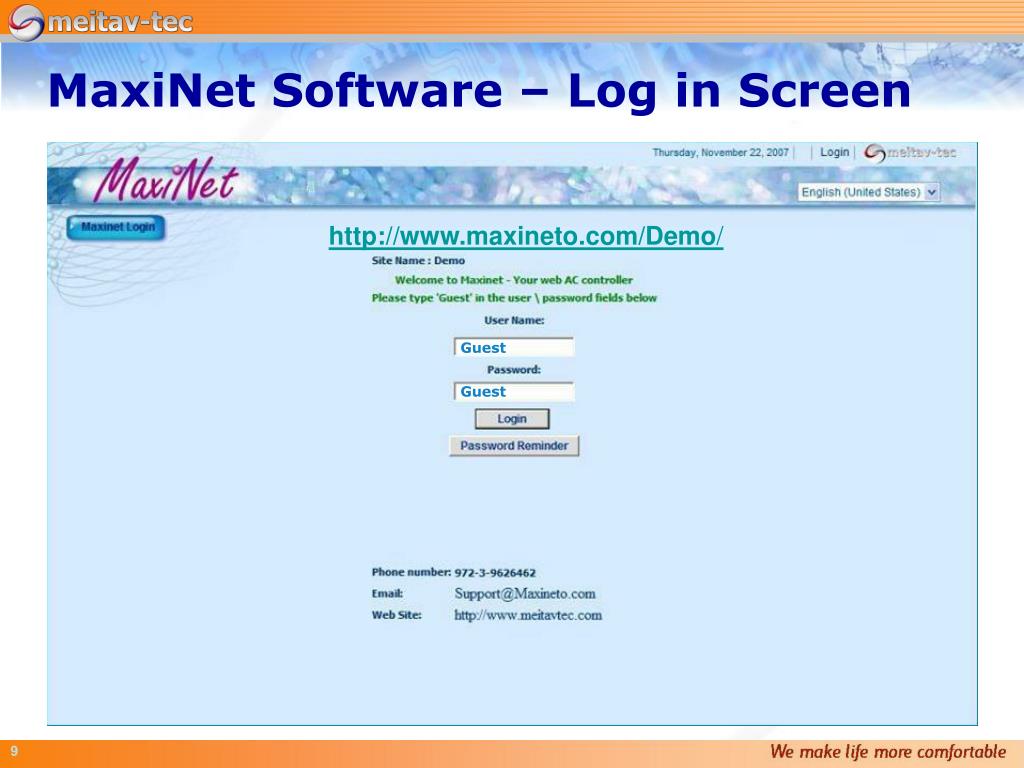

  9. MaxiNet Software – Log in Screen http://www.maxineto.com/Demo/ Guest Guest

  10. MaxiNet Software – Main Screen

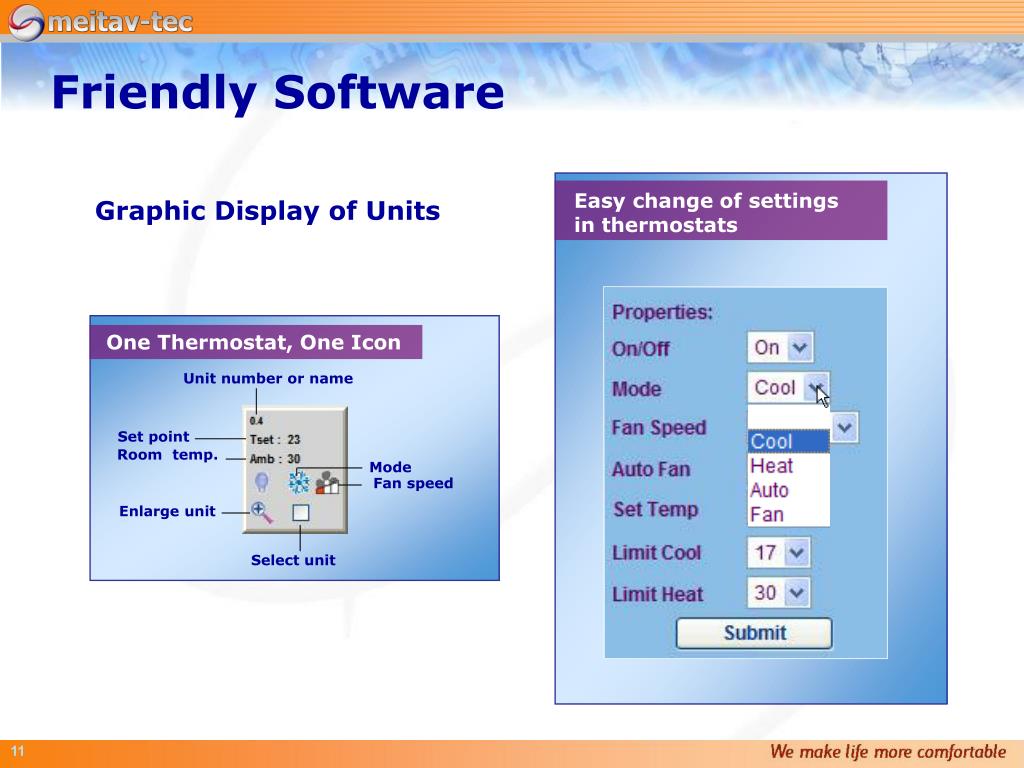

  11. Friendly Software Graphic Display of Units Easy change of settings in thermostats One Thermostat, One Icon Unit number or name Set point Room temp. Mode Fan speed Enlarge unit Select unit

  12. Enlarge Unit Seen by Maintenance Controller or Administrator ONLY Tset: 22°C Tset: 21°C Tset: 23°C Amb: 28°C

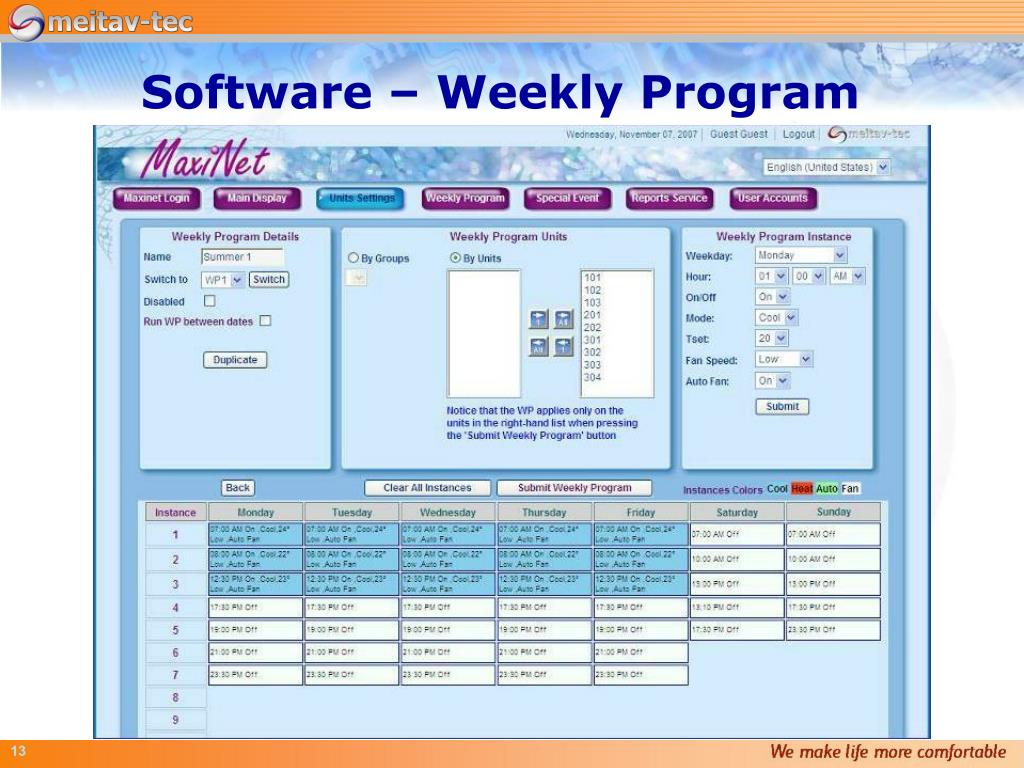

  13. Software – Weekly Program

  14. Software – Temp Per Time Graph

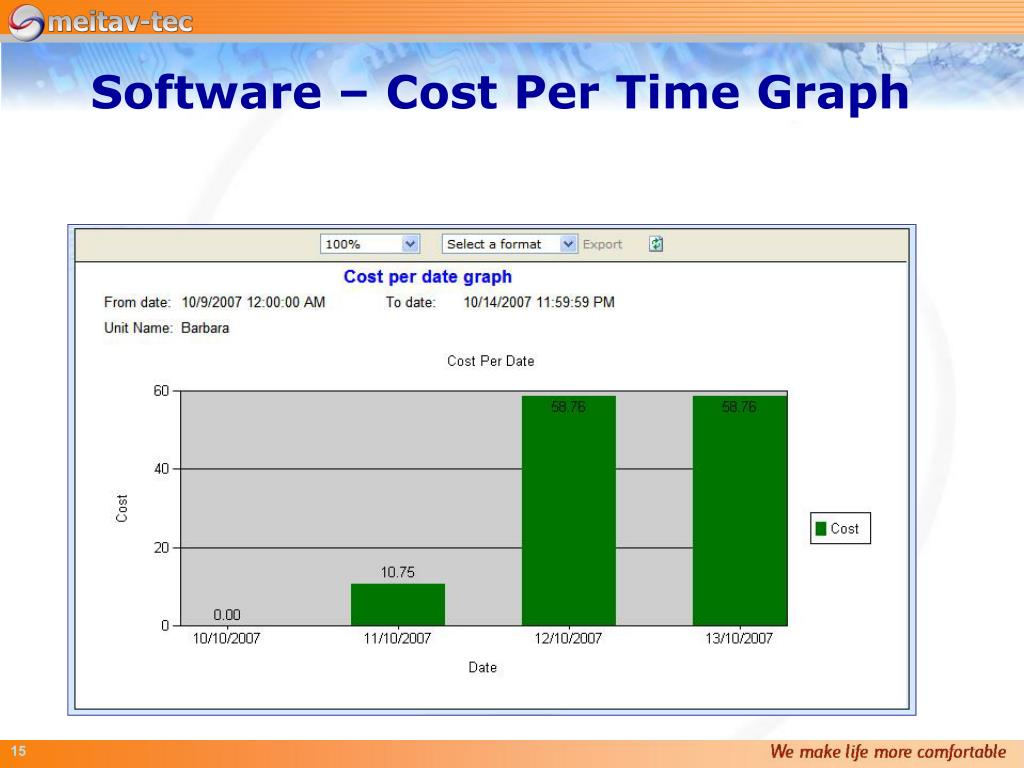

  15. Software – Cost Per Time Graph

  16. Software – Exceptions Per Unit Graph

  17. Software – Energy Control

  18. Components for Software • CD install • Adaptor RS232-RS485 • Cable for Com connection • Transformer for Adaptor • All components are supplied with the software Easy to install and connect – Plug & Play 2 wires to thermostats

  19. Maxinetis an advanced, user friendly, web based program for cost effective & easy HVAC control & monitoring

  20. MCU - Master Control Unit • Optional unit for networks, up to 60 units • Perfect solution for FLOOR applications • to view locally the units in the sub network • Easy to view and make changes • - Mode • - Fan speeds • - Set temperature • - Set temperature limit • - On/Off • Broadcast for all sub network • Emergency weekly program is activated • automatically when software is not working • The most simple router to use in the market

  21. Network Thermostats & Controllers Different choices for Thermostats Controller PS 1800-FC-Super (Commercial) Controller PS 1800-AC-Super (Commercial) Flush-mount Wall-mount Controller CTU X500-FC-Super (Commercial)

  22. Wall & Flush Mount Panels Wall-mount - ETN Flush-mount - FMH or

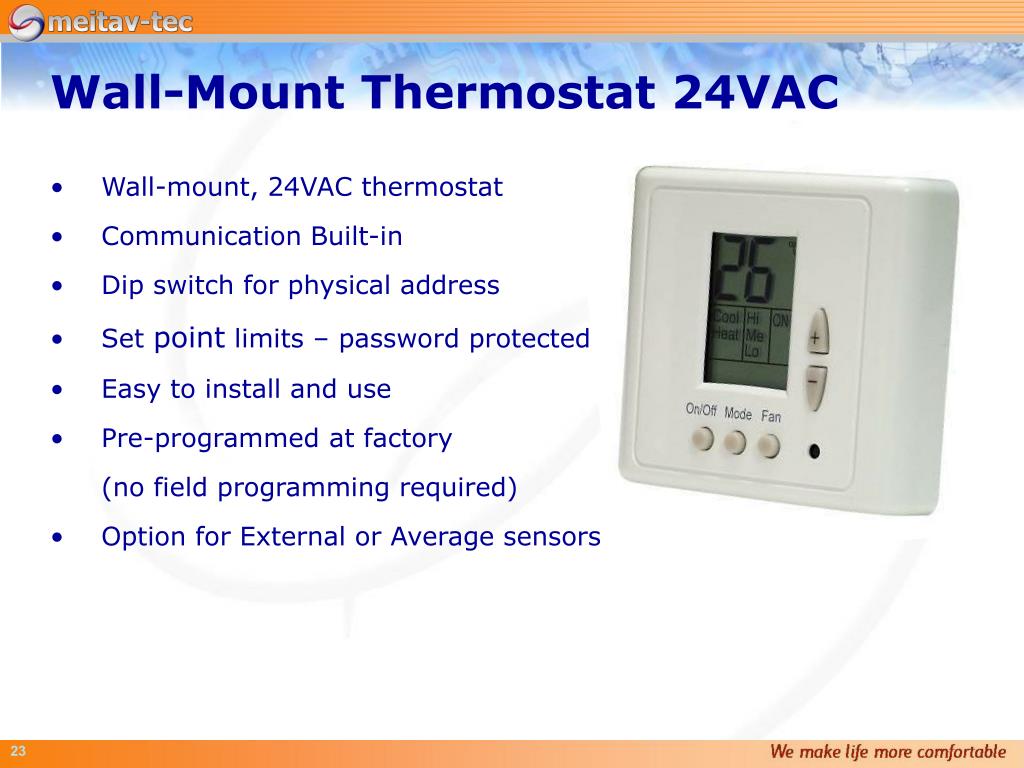

  23. Wall-Mount Thermostat 24VAC • Wall-mount, 24VAC thermostat • Communication Built-in • Dip switch for physical address • Set point limits – password protected • Easy to install and use • Pre-programmed at factory • (no field programming required) • Option for External or Average sensors

  24. Flush-Mount Thermostat 220VAC • Flush-mount - 220VAC thermostat • Communication built-in • Dip switch for physical address • Set point limits – password • protected • Easy to install and use • Pre-programmed at factory • (no field programming required) • External sensor option • Fits into Standard Gewiss Box • (GW00001481VR)

  25. Controller PS1800-AC-Super • A robust, energy saving controller with Maxinet communication protocol • Offers various A/C applications – field selectable • Heat/Cool or Heat Pump, 3 speeds – 1 speed • Wall or Flush mount thermostats - complete optional • Enables viewing temperature sensors in Software – Indoor/Outdoor coil • Includes cost efficient capabilities, such as occupancy sensor & cooling stages • Pre-programmed at factory (no field programming required) 220VAC input 220VAC outputs RS-485 Communication

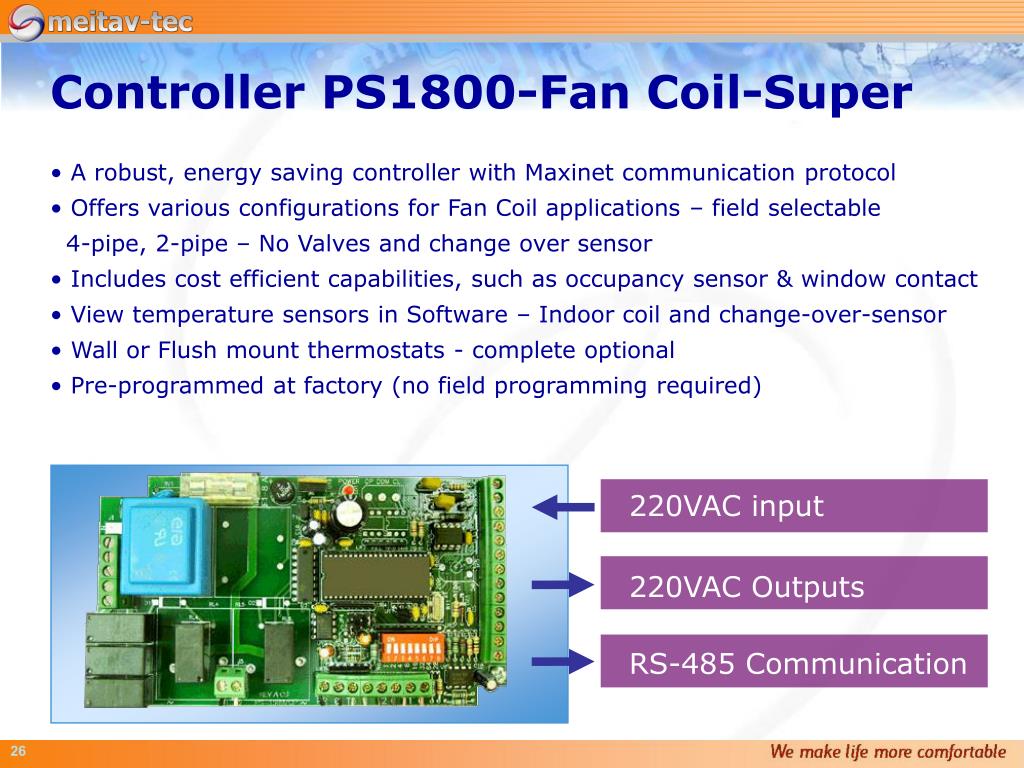

  26. Controller PS1800-Fan Coil-Super • A robust, energy saving controller with Maxinet communication protocol • Offers various configurations for Fan Coil applications – field selectable • 4-pipe, 2-pipe – No Valves and change over sensor • Includes cost efficient capabilities, such as occupancy sensor & window contact • View temperature sensors in Software – Indoor coil and change-over-sensor • Wall or Flush mount thermostats - complete optional • Pre-programmed at factory (no field programming required) 220VAC input 220VAC Outputs RS-485 Communication

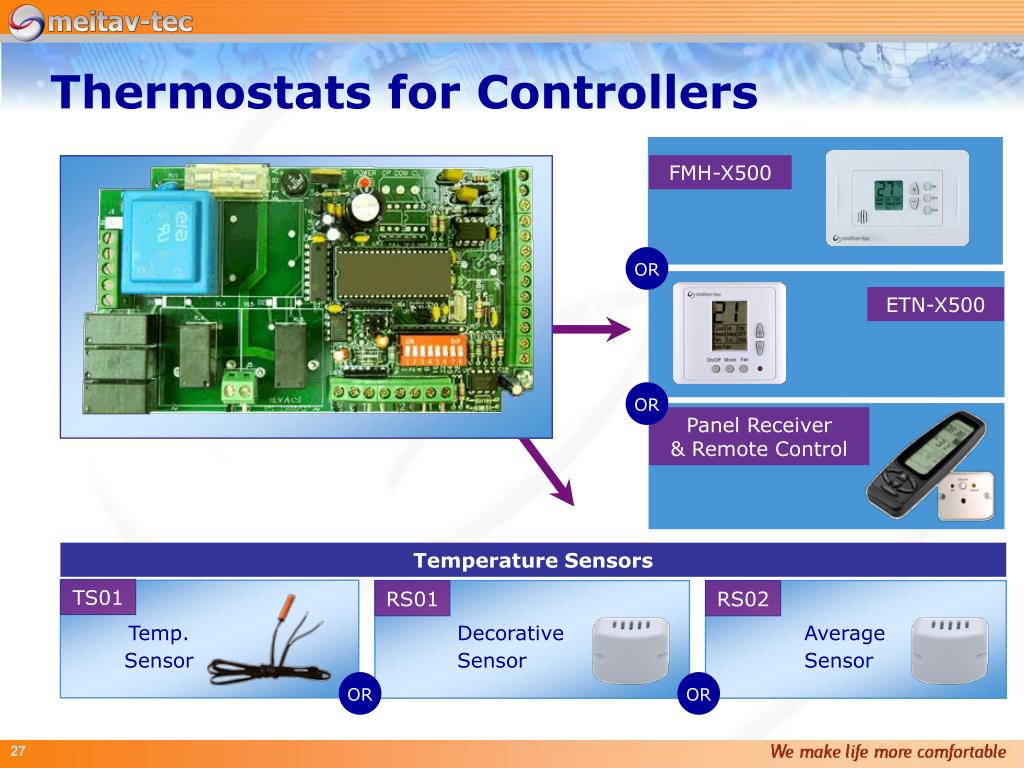

  27. Panel Receiver & Remote Control OR OR OR OR Thermostats for Controllers FMH-X500 ETN-X500 Temperature Sensors TS01 RS01 RS02 Temp. Sensor Decorative Sensor Average Sensor

  28. I/O Card CTU1601 Controls through software other devices, such as: Extractors, Fan, Fresh Air Dampers, Chiller, Lights, Air compressors, etc. • 8 Outputs – 220 Volts 0.5A – Controlled through the software • 8 Inputs – Dry Contact – Voltage Free – Viewed in the software • 3 Temperature readings – Viewed in the software

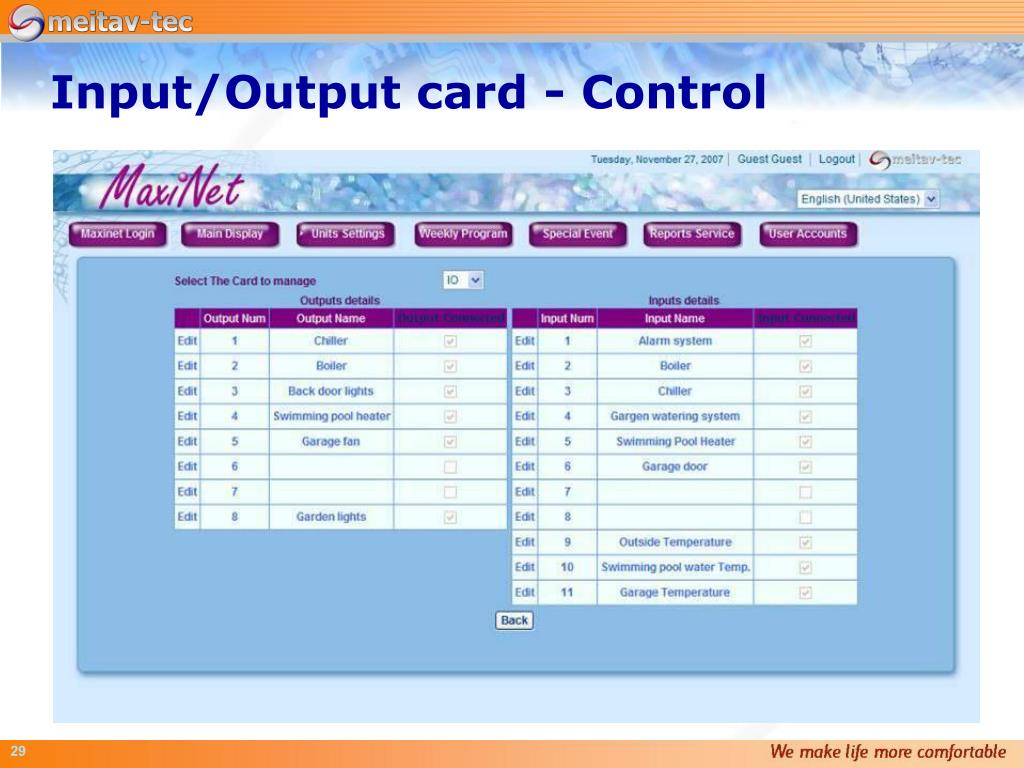

  29. Input/Output card - Control
