  1. Week 6 - Friday CS221

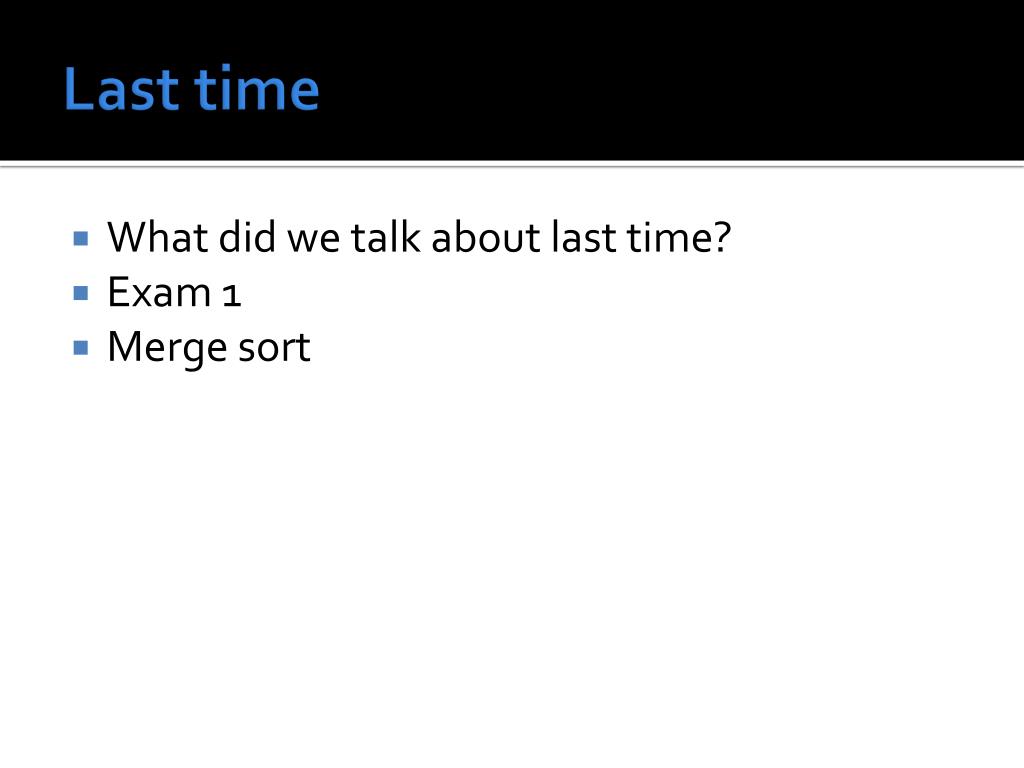

  2. Last time • What did we talk about last time? • Exam 1 • Merge sort

  3. Questions?

  4. Assignment 3 Recursion

  5. Project 2 Infix to Postfix Converter

  6. Master Theorem

  7. Master Theorem • Has a great name… • Allows us to determine the Big Oh running time of many recursive functions that would otherwise be difficult to determine

  8. Basic form that recursion must take where • a is the number of recursive calls made • b is how much the quantity of data is divided by each recursive call • f(n) is the non-recursive work done at each step

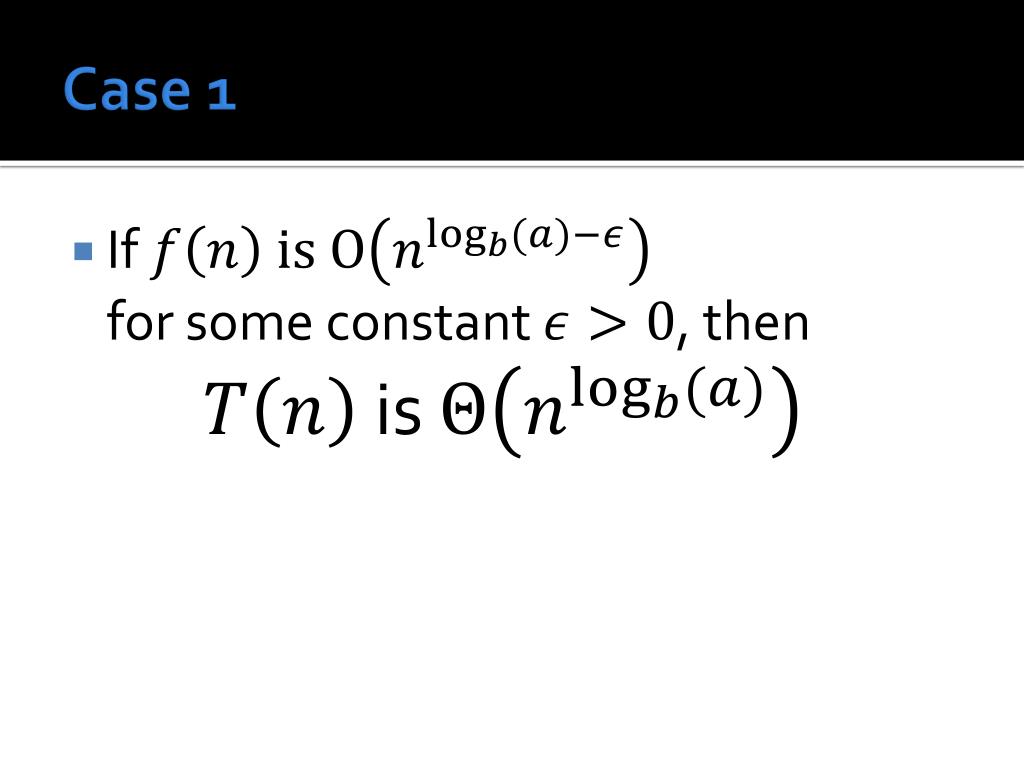

  9. Case 1 • If for some constant , then

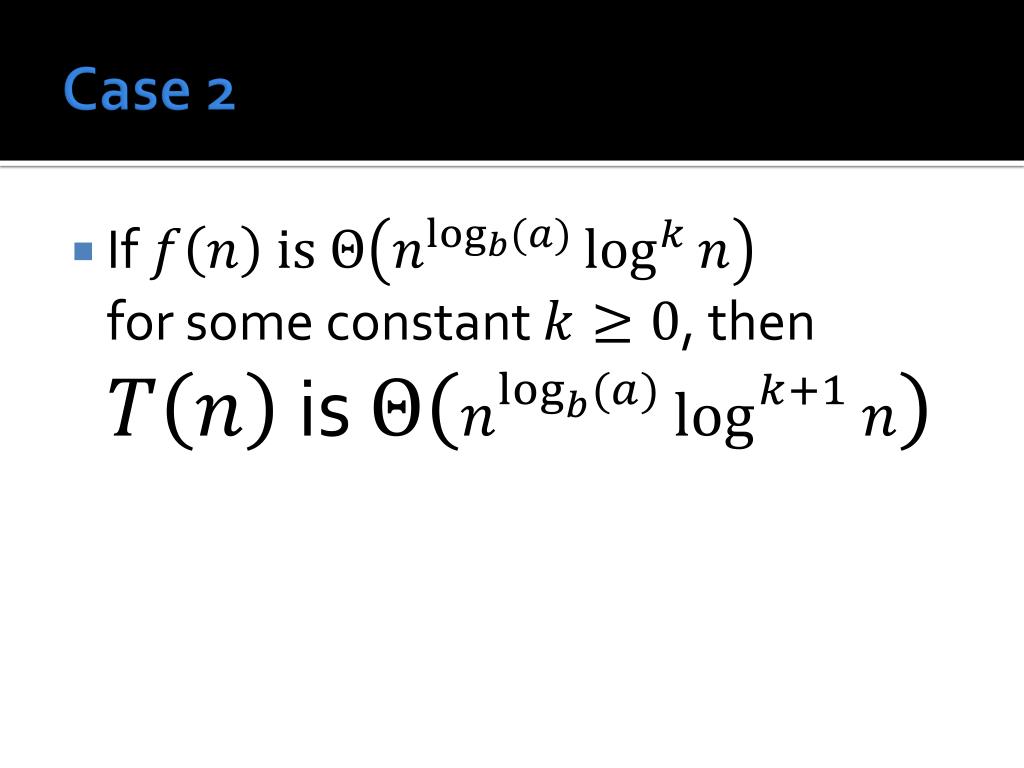

  10. Case 2 • If for some constant , then

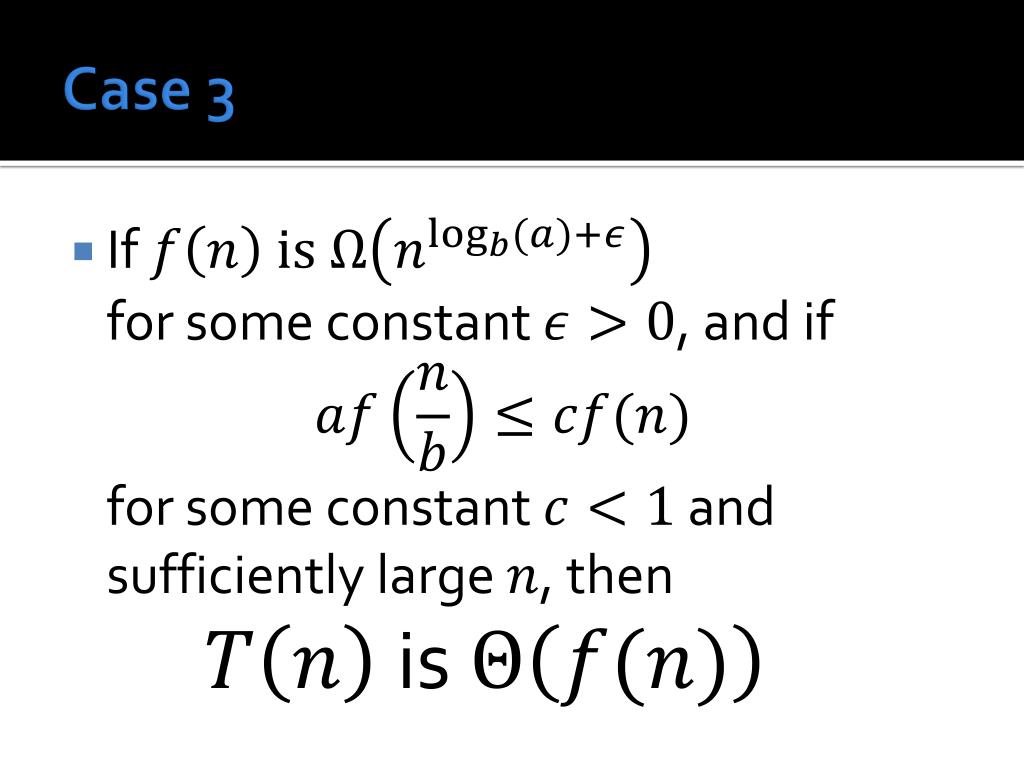

  11. Case 3 • If for some constant , and if for some constant and sufficiently large , then

  12. Stupid Sort

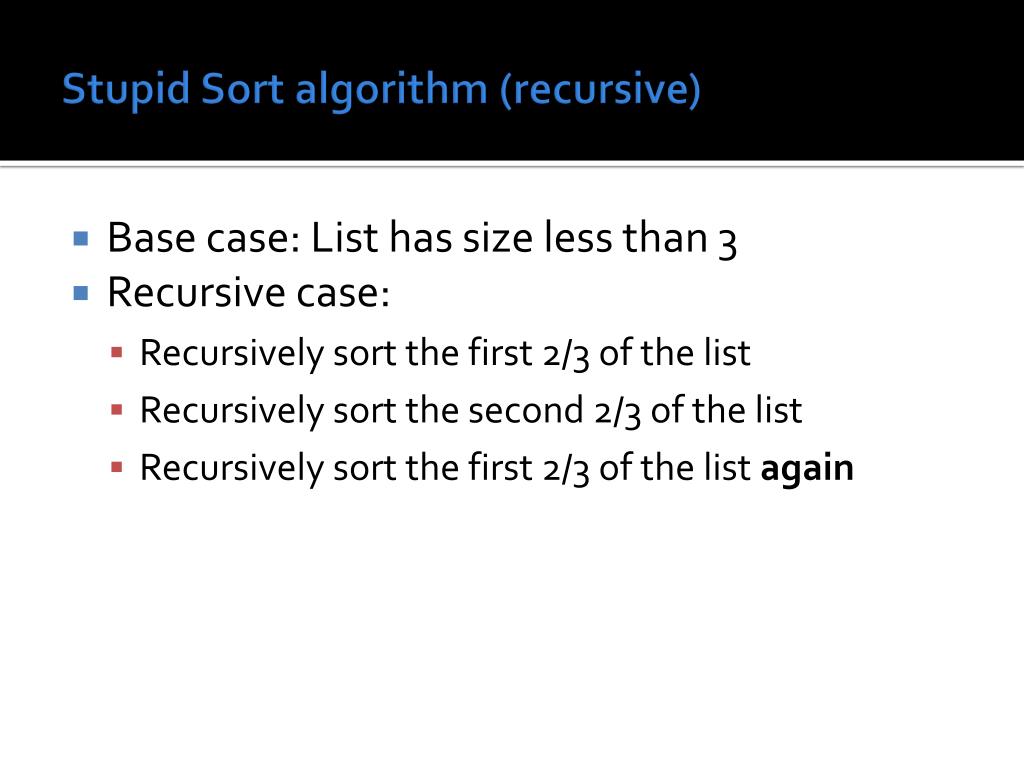

  13. Stupid Sort algorithm (recursive) • Base case: List has size less than 3 • Recursive case: • Recursively sort the first 2/3 of the list • Recursively sort the second 2/3 of the list • Recursively sort the first 2/3 of the list again

  14. Let's code up Stupid Sort!

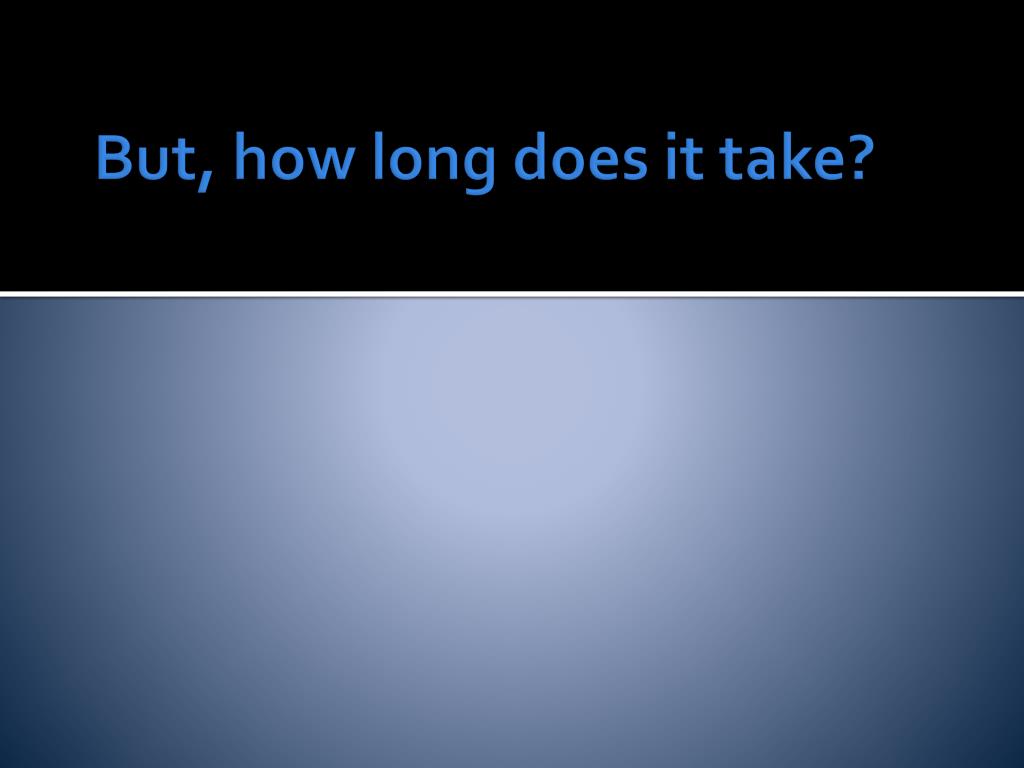

  15. But, how long does it take?

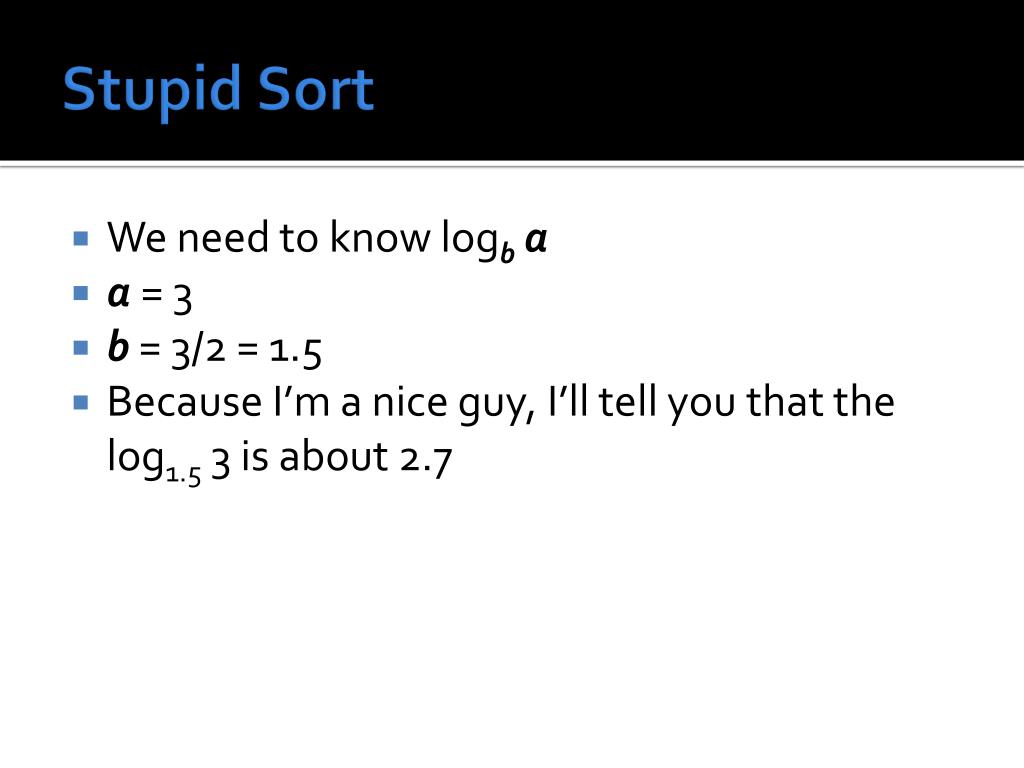

  16. Stupid Sort • We need to know logba • a = 3 • b = 3/2 = 1.5 • Because I’m a nice guy, I’ll tell you that the log1.5 3 is about 2.7

  17. Binary Search • We know that binary search takes O(log n) time • Can we use the Master Theorem to check that?

  18. Student Lecture: Binary Trees

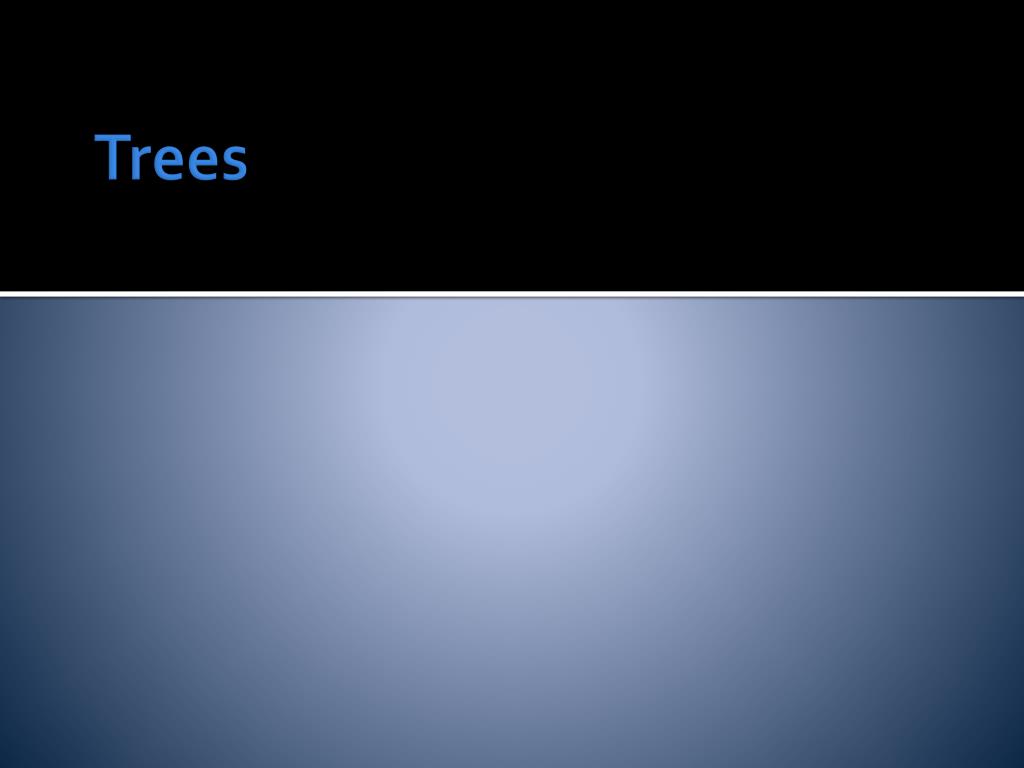

  19. Trees

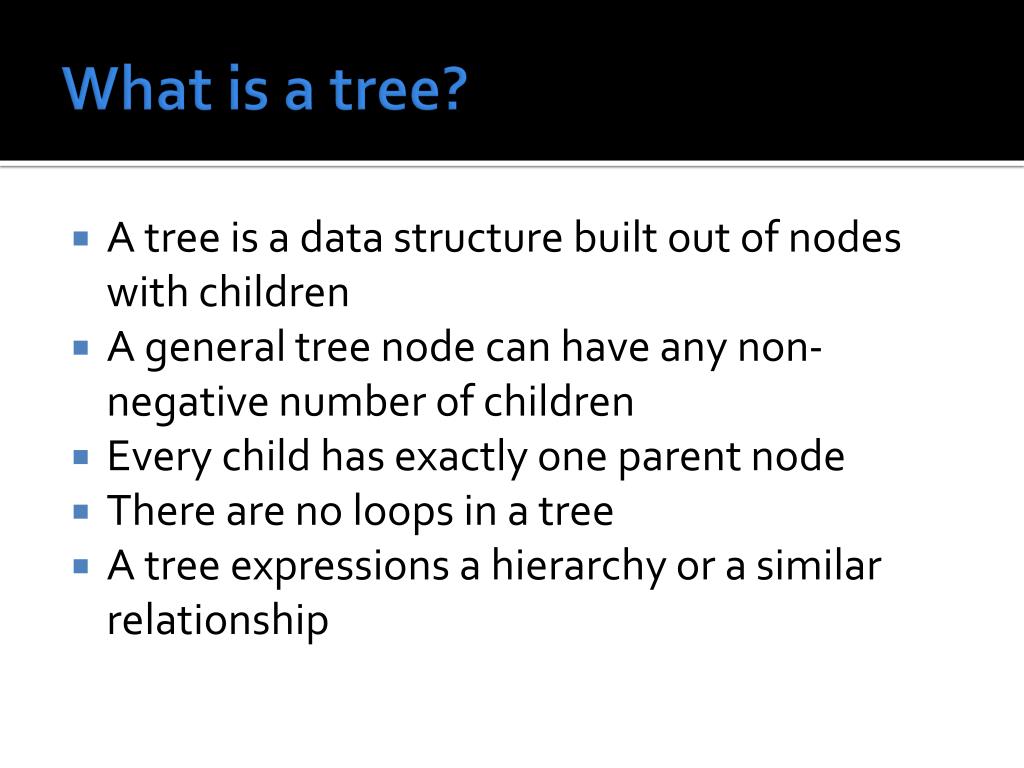

  20. What is a tree? • A tree is a data structure built out of nodes with children • A general tree node can have any non-negative number of children • Every child has exactly one parent node • There are no loops in a tree • A tree expressions a hierarchy or a similar relationship

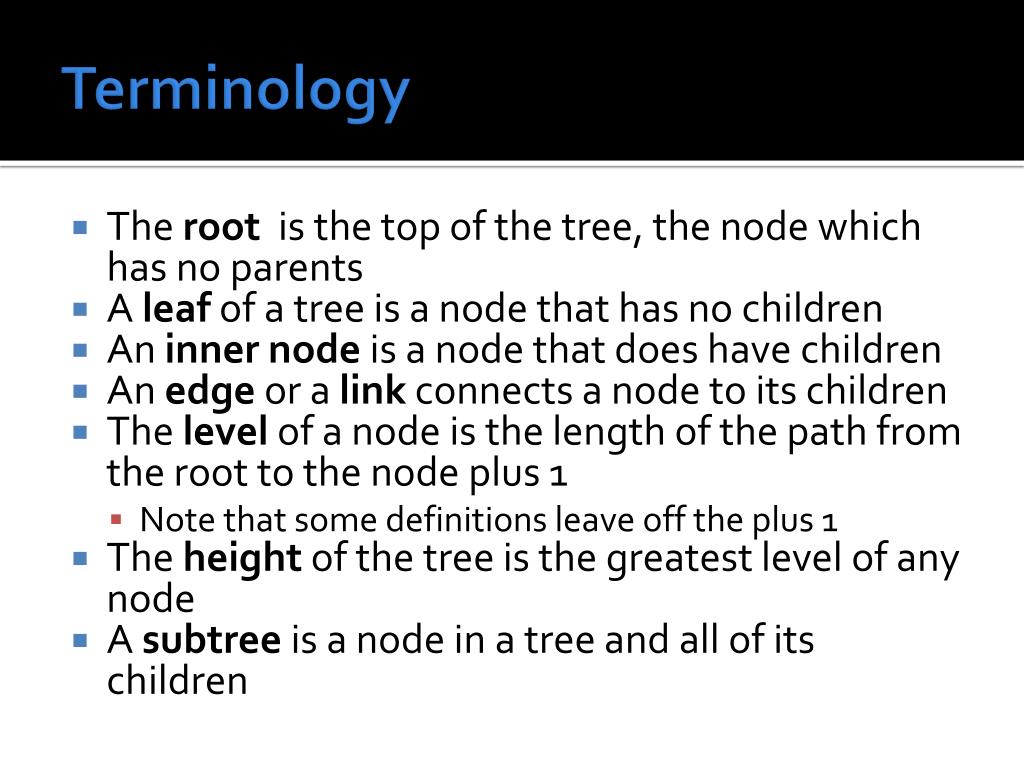

  21. Terminology • The root is the top of the tree, the node which has no parents • A leaf of a tree is a node that has no children • An inner node is a node that does have children • An edge or a link connects a node to its children • The level of a node is the length of the path from the root to the node plus 1 • Note that some definitions leave off the plus 1 • The height of the tree is the greatest level of any node • A subtree is a node in a tree and all of its children

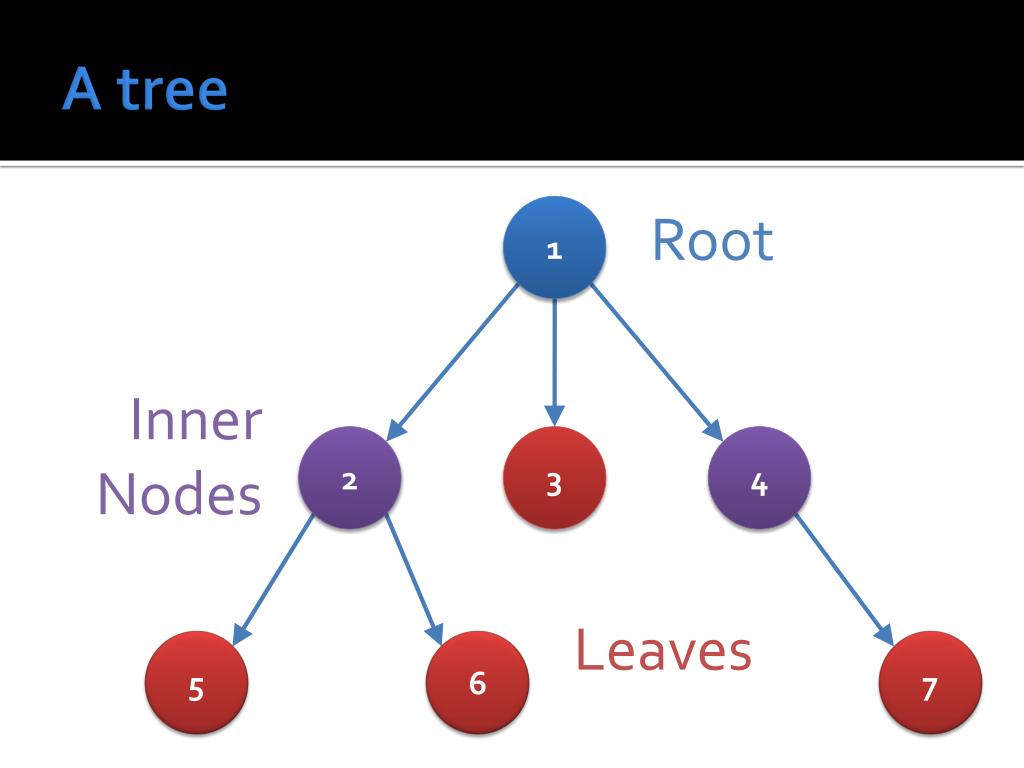

  22. A tree 1 Root Inner Nodes 2 3 4 Leaves 5 6 7

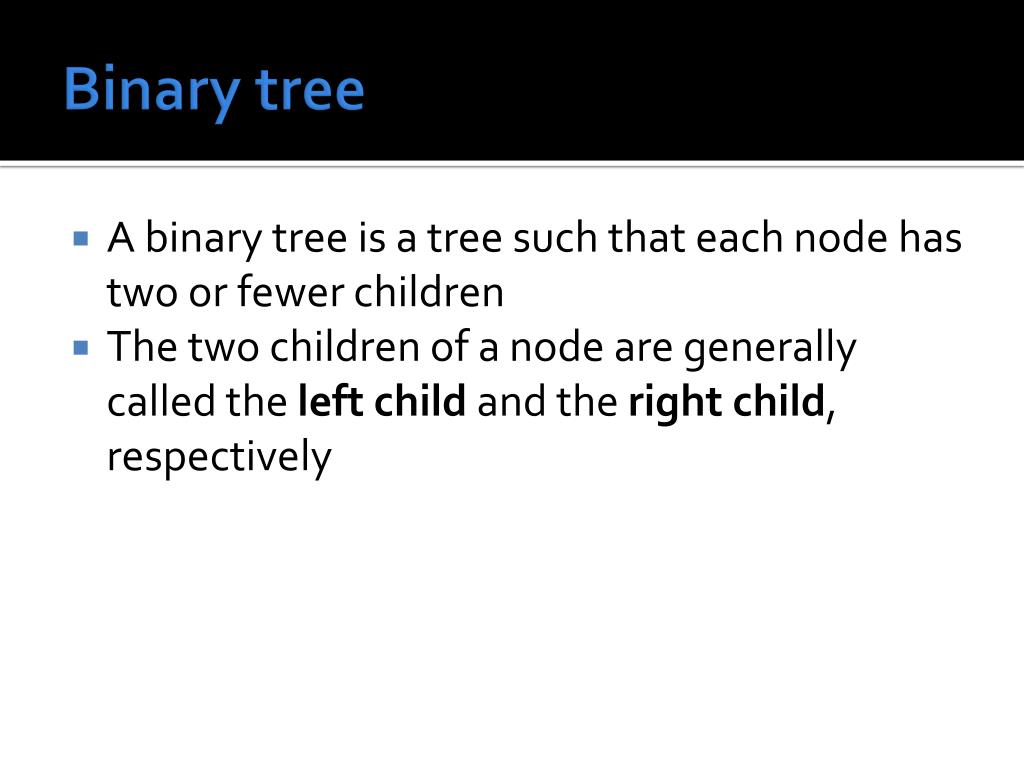

  23. Binary tree • A binary tree is a tree such that each node has two or fewer children • The two children of a node are generally called the left child and the right child, respectively

  24. Binary tree 1 2 3 4 5 6

  25. Binary tree terminology • Full binary tree: every node other than the leaves has two children • Perfect binary tree: a full binary tree where all leaves are at the same depth • Complete binary tree: every level, except possibly the last, is completely filled, with all nodes to the left • Balanced binary tree: the depths of all the leaves differ by at most 1

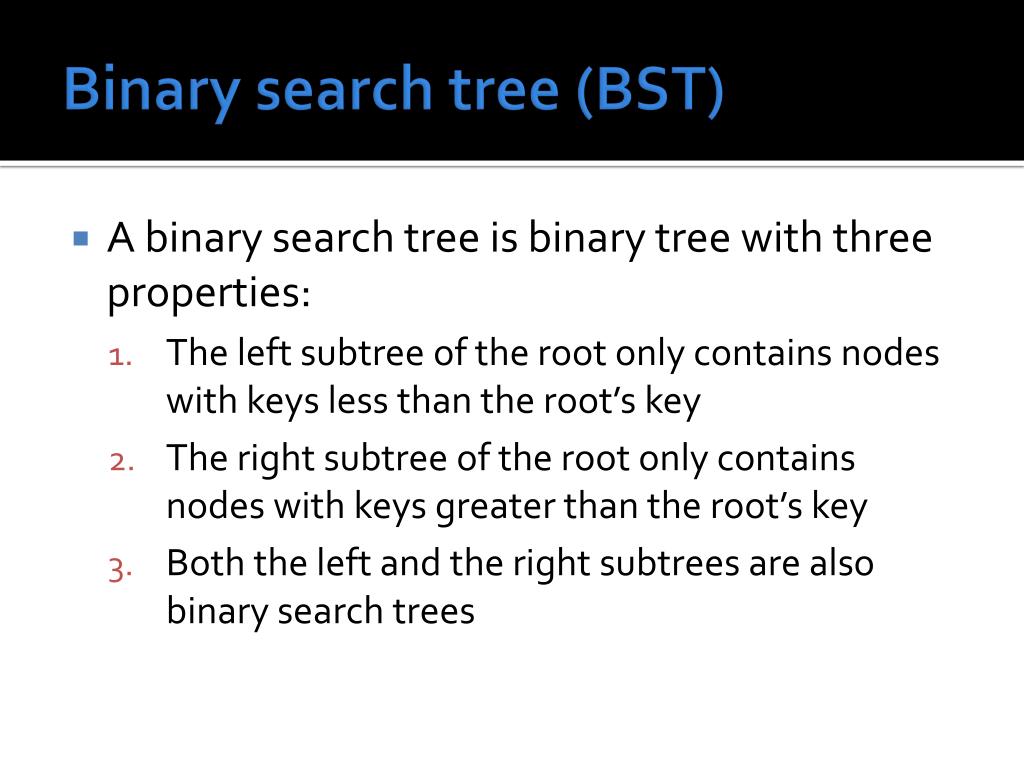

  26. Binary search tree (BST) • A binary search tree is binary tree with three properties: • The left subtree of the root only contains nodes with keys less than the root’s key • The right subtree of the root only contains nodes with keys greater than the root’s key • Both the left and the right subtrees are also binary search trees

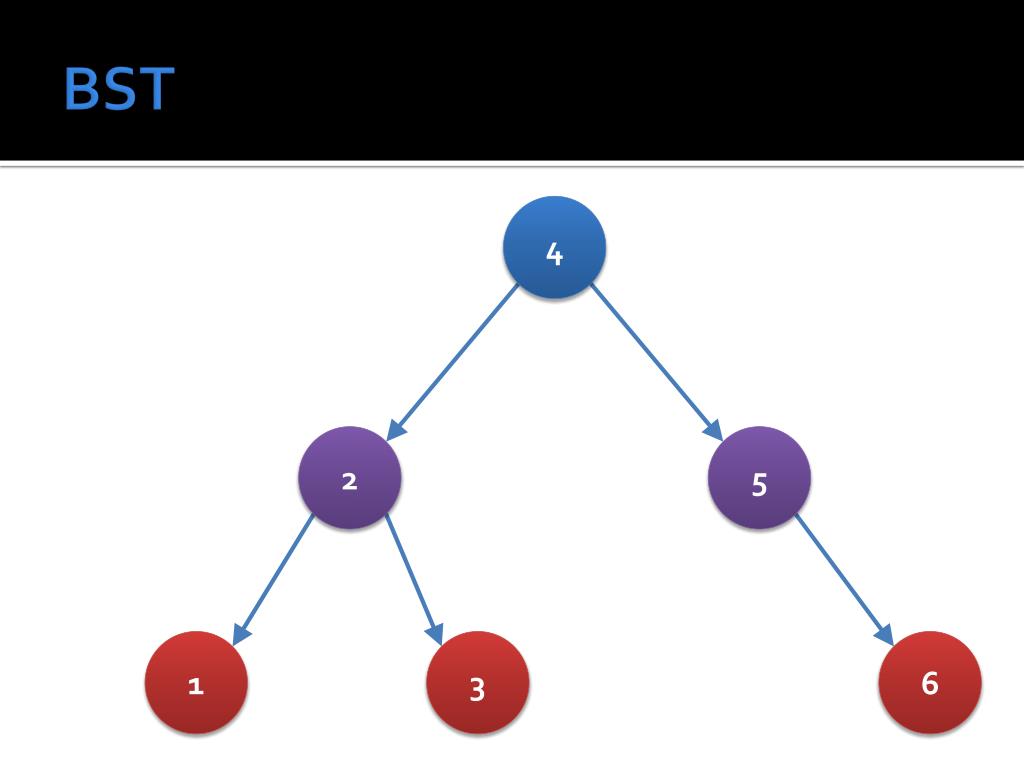

  27. BST 4 2 5 1 3 6

  28. Upcoming

  29. Next time… • More on binary trees

  30. Reminders • Finish Assignment 3 • Due tonight! • Keep working on Project 2 • Due next Friday • No class on Monday!
