Logic databases

1. Logic databases

2. Overview • motivation and informal introduction of deductive databases • components of deductive databases • domains and axioms • queries • updates • integrity constraints • further issues

3. Required result Data Relational databases select / filter by evaluating a (relational algebra) formula relations specified extensionally

4. Example - database (extension) Person Parent

5. Example - query #1 Find who is Dean Kent’s mother SELECT Person.Name FROM Person, Parent WHERE Person.Sex = ‘F’ AND Person.Name = Parent.Name AND Parent.Child = ‘Dean Kent’ ;

6. Example - query #2 Find who is Dean Kent’s grandmother, on his mother’s side SELECT Person.Name FROM Person, Parent WHERE Person.Sex = ‘F’ AND Person.Name = Parent.Name AND Parent.Child IN (SELECT Person.Name FROM Person, Parent WHERE Person.Sex = ‘F’ AND Person.Name = Parent.Name AND Parent.Child = ‘Dean Kent’);

7. Example - query #3 Find all mothers (and their addresses) who have at least one daughter SELECT Name, Address FROM Person WHERE Sex = ‘F’ AND EXISTS (SELECT * FROM Parent WHERE Person.Name = Parent.Name AND Parent.Child IN (SELECT * FROM Person WHERE Sex = ‘F’)) ;

8. Example - query #4 Find all grandmothers (and their addresses) who have at least one grand daughter homework

9. Example #1 - conclusion • the answer to ‘grandmother’ queries would have been easier if a ‘Grandparent’ relation had existed • improper solution if the relation would have been defined extensionally - redundancies (exemplified in the following slides) • therefore intensional definitions are required (exemplified on the following slides) • could the query language be simpler? • yes; Datalog (Prolog like), for instance

10. ‘Grandparent’ relation - extensionally Parent Grandparent

11. not really a good solution

12. ‘Grandparent’ relation - intensionally Parent A is Grandparent of B IFF /* there is a C such that */ A is the Parent of C AND C is the Parent of B

13. Activity Reconsider the issues discussed so far on the Person’ relation below, which substitutes the previous (page 4) Person and Parent relations. Person’

14. Example - database (extension) #2 Person Parent

15. Example - query #5 Find who Bill Dyer’s ancestors are. • recursive query • not possible to answer in the relational model • another formalism is necessary - which allows recursive definitions

16. Recursive definition A is ancestor of P IFF A is parent of P A is ancestor of P IFF B (B is ancestor of P AND A is parent of B)

17. Intermediate conclusion • a mechanism is required to • allow relations to be intensionally defined • allow new facts to be deduced from the database • based on the defined facts and rules • by means of some reasoning methods • note • the motivation for deductive databases is more complex (i.e. not reduced to the above two aspects)

18. Deductive database - informal definition • a database that supports the definition of both facts (extensionally defined relations) and rules (intensionally defined relations) and which supplies a reasoning mechanism by means of which existing or new facts can be deduced from the database • a deductive database uses logic (first order predicate logic) as its representational formalism

19. Relational vs Deductive databases model theoretic extensionally defined relations evaluating a formula result proof theoretic ground axioms deductive axioms reasoning mechanism result

20. Deductive databases - domains name(‘Linda Fox’). name(‘John Fox’). name(‘Mary Fox’). name(‘June Dyer’). name(‘Bill Dyer’). name(‘John Hunt’). ... sex(m). sex(f). sex(other). month(1). month(2). ... month(12).

21. Deductive databases - ground axioms person(‘Linda Fox’, dob(10, 12, 1823), f). person(‘John Fox’, dob(2, 11, 1811, m). person(‘Mary Fox’, dob(12, 4, 1850), f). person(‘John Hunt’, dob(30, 1, 1875), m). person(‘Rose Hunt’, dob(25, 3, 1877), f). ... parent(‘Linda Fox’, ‘Mary Fox’). parent(‘John Fox’, ‘Mary Fox’). parent(‘Mary Fox’, ‘John Hunt’). parent(‘Mary Fox’, ‘Rose Hunt’). ... married_to(‘Linda Fox’, ‘John Fox’). %having a child together married_to(‘John Hunt’, ‘Christa Wolf’). %does not mean ‘married’ ... %powerful representation!

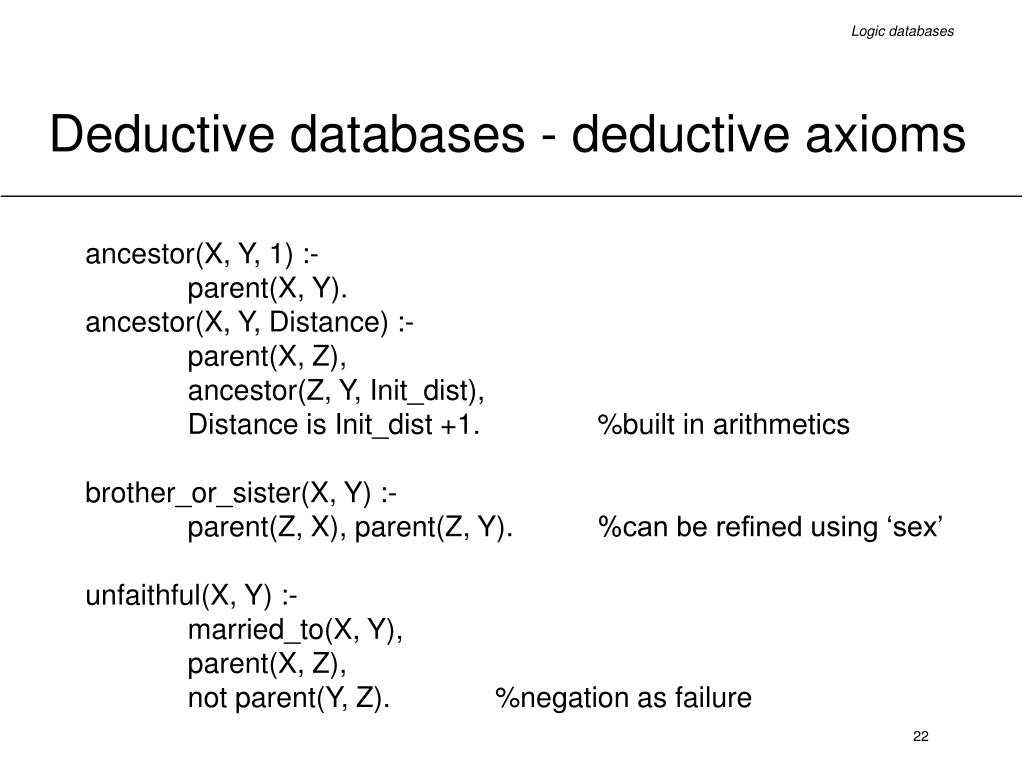

22. Deductive databases - deductive axioms ancestor(X, Y, 1) :- parent(X, Y). ancestor(X, Y, Distance) :- parent(X, Z), ancestor(Z, Y, Init_dist), Distance is Init_dist +1. %built in arithmetics brother_or_sister(X, Y) :- parent(Z, X), parent(Z, Y). %can be refined using ‘sex’ unfaithful(X, Y) :- married_to(X, Y), parent(X, Z), not parent(Y, Z). %negation as failure

23. Language elements • constants, terms (structured objects), variables • assertions (unnamed attributes) • definitions • generalised Horn clauses • closed world assumption • negation as finite failure • built in Arithmetic (scalar functions) • how to design the database? • depends on what we want to express • example: reification -> a more a powerful representation

24. Normal forms - CNF • conjunctive normal form (CNF) • a conjunction of disjunctions of literals • e.g. (A1A2A3)  (B1B2B3)  (C1 C2) • every formula can be brought to CNF

25. Normal forms - clausal • clausal form • equivalent to CNF • each disjunction (in CNF) is represented separately as an implication; e.g.: (A1A2A3)  (B1B2B3)  (C1 C2) • becomes A1, A2, A3(reads: it is true that A1A2A3) B1 B2, B3 (reads: B1 if B2  B3)  C1,C2 (reads: C1 C2 is false) • all literals are positive • every formula can be brought to the clausal form

26. Normal forms - Horn clauses • DEF1: a clause with just one literal (implicitly positive) in the conclusion • B1 B2, B3 is a Horn clause • B1, B2  B3 is not a Horn clause • DEF2: a disjunction with one positive literal only • B1 B2  B3 is a Horn clause • B1  B2  B3 is not a Horn clause

27. Logic database • In the rest of this lecture, a logic database is considered to be a set of Horn clauses enhanced with negation as finite failure (generalised Horn clauses)

28. Queries Yes/No queries Is Bill Dyer a man? :- person(‘Bill Dyer’, _, m). Find value(s) queries - use of only ground axioms Who is Linda Fox married to? :- married_to(‘Linda Fox’, X).

29. Queries Find value(s) queries - use of deductive axioms Who are the brothers and sisters of John Hunt? :- brother_or_sister(‘John Hunt’, X). %one sol at a time :- forall(brother_or_sister(John Hunt’, X)). %all sols Find value(s) queries - use of recursive deductive axioms Who are the ancestors of John Hunt? :- ancestor(‘John Hunt’, X). %one sol. at a time :- forall(ancestor(John Hunt’, X)). %all sols.

30. Reasoning mechanism • resolution • A1, A2, ... , An, B1, B2, ... , Bm are all positive or negative literals (X  A1  A2  ...  An) (X  B1  B2  ...  Bm) (A1  A2  ...  An B1  B2  ...  Bm)

31. Resolution for Horn clauses X  A1 , A2 , ... , Ak, ... , An Ak B1 , B2 , ... , Bm X  A1 , A2 , ... , B1 , ... , Bm, ..., An

32. Basic manipulation primitives assert(person(‘Brooklin Peckham’, dob(1, 3, 1899), m)). assert(parent(‘Brooklin Peckham’, ‘David Peckham’)). assert(parent(‘Brooklin Peckham’, ‘Gingy Spicy’)). assert(married_to(‘David Peckham’, Gingy Spicy’)). ... retract(person(‘Linda Fox’, _, _, _)). retract(married_to(‘Linda Fox’, ‘John Fox’)). ...

33. Updating the databse • via assert and retract • equivalent to delete / insert • note the same formalism for data definition and data manipulation

34. Integrity constraints • integrity constraints and rules in deductive databases are syntactically indistinguishable • rules - are sentences which define the data and are part of the database (Kowalski) • integrity constraints - are sentences which constrain the data and are not part of the database (Kowalski) • the same sentence can be regarded, in different contexts, as rule or integrity constraint

35. Sentence as rule person(‘Linda Fox’, dob(10, 12, 1823), f). person(‘John Fox’, dob(2, 11, 1811, m). ... parent(‘Linda Fox’, ‘Mary Fox’). parent(‘John Fox’, ‘Mary Fox’). ... %two different persons are married if they have a child together % parent(X, Z) parent(Y, Z)  different(X,Y) married_to(X, Y) %definition - part of the database (definition) married_to(X, Y) :- parent(X, Z), parent(Y, Z), not X = Y.

36. Sentence as a constraint person(‘Linda Fox’, dob(10, 12, 1823), f). ... parent(‘Linda Fox’, ‘Mary Fox’). parent(‘John Fox’, ‘Mary Fox’). ... married_to(‘Linda Fox’, ‘John Fox’). ... %if two different persons have a child together then they must be %married %constraint - not part of the database (definition) %parent(X, Z) parent(Y, Z)  different(X,Y)  married_to(X, Y) :- parent(X, Z), parent(Y, Z), not X = Y, not married_to(X, Y).

37. Constraints enforcement #1 %a simple checking mechanism at the time of update make_parent(X, Y) :- parent(X, Y). make_parent(X, Y) :- not parent(X, Y), %X is bound from the head; it is an update not (parent(Z, Y), not married_to(X, Z)), assert(parent(X, Y)).

38. Constraints enforcement #2 %automatic consistency maintenance is_parent_of(X, Y) :- parent(X, Y). is_parent_of(X, Y) :- not parent(X, Y), %X is bound from the head; it is an update parent(Z, Y), not married_to(X, Z), assert(married_to(X, Z)), % automatic consistency maintenance assert(parent(X, Y)). is_parent_of(X, Y) :- not parent(X, Y), %X is bound from the head; it is an update not (parent(Z, Y), not married_to(X, Z)), assert(parent(X, Y)).

39. Integrity constraints • what about ‘retract’? homework! • there are other mechanisms (even other logic models) of integrity maintenance • note the syntactic equivalence (same formalism) between data definition and integrity constraints definition (and data manipulation)

40. Constraints enforcement #3 %constraints declaration (part of the db); checked after every update % operation constraint(“:- parent(X, Z), parent(Y, Z), not X = Y, not married_to(X, Y).”). constraint(“…”). %constraints declaration (part of the db); constraints are linked to % update operations - their checking is triggered by corresponding updates trigger(make_parent(X, Y), “:- parent(X, Z), parent(Y, Z), not X = Y, not married_to(X, Y).”). %etc. %preconditions ...

41. Datalog and Prolog • we have used a combination of Datalog and Prolog • Datalog incorporates the ‘forall’ predicate - for set processing • Datalog is insensitive to the order of the clauses • special control predicates (e.g. ‘cut’) do not exist in Datalog • Datalog does not contain function symbols • however, extensions to pure Datalog exist that include: built in predicates (e.g. arithmetics), negation, functions (for complex objects).

42. Approaches to deductive databases • evolutionary approaches • add a Prolog like system to a relational database • revolutionary approaches • propose new architectures; e.g. Datalog

43. Further issues • persistency • transaction support • security / recovery / concurrency • ...

44. Advantages of deductive databases • representational uniformity • operational uniformity • semantic modelling • extended application

45. Conclusions • deductive databases • uniform representation formalism • powerful • still problems when dealing with large applications • terminology • knowledge base management systems - preferred
