  1. CREATING WEB PAGE FORM Faculty of Computer Science & Engineering

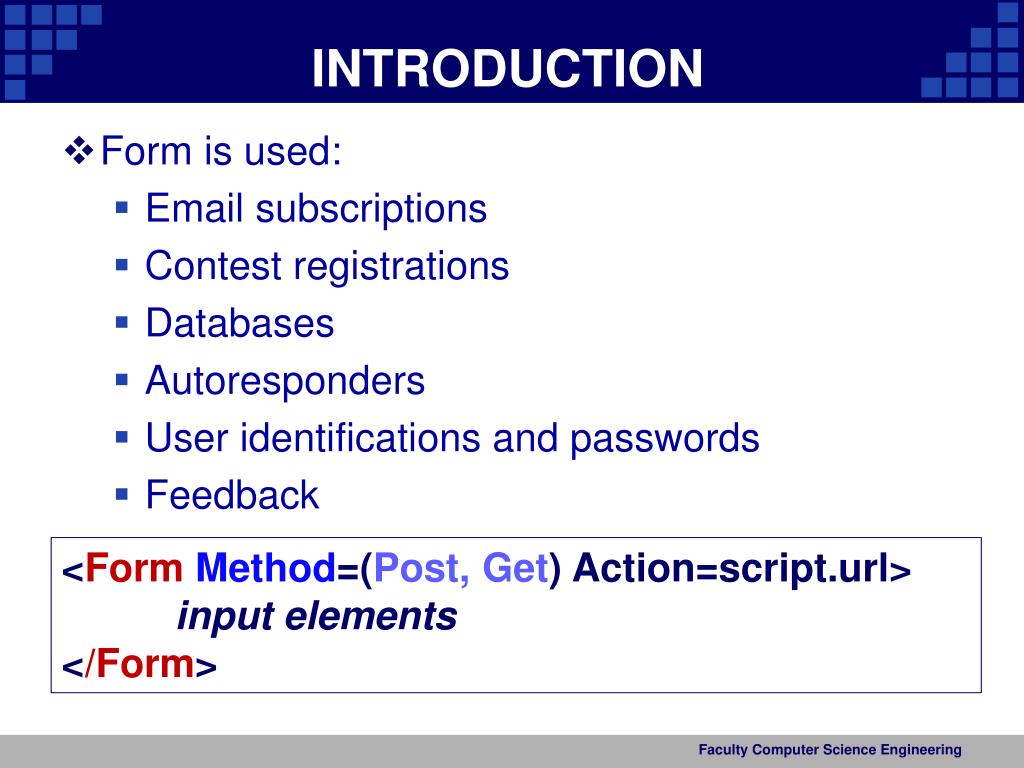

  2. INTRODUCTION • Form is used: • Email subscriptions • Contest registrations • Databases • Autoresponders • User identifications and passwords • Feedback <FormMethod=(Post, Get) Action=script.url> input elements </Form> Faculty Computer Science Engineering

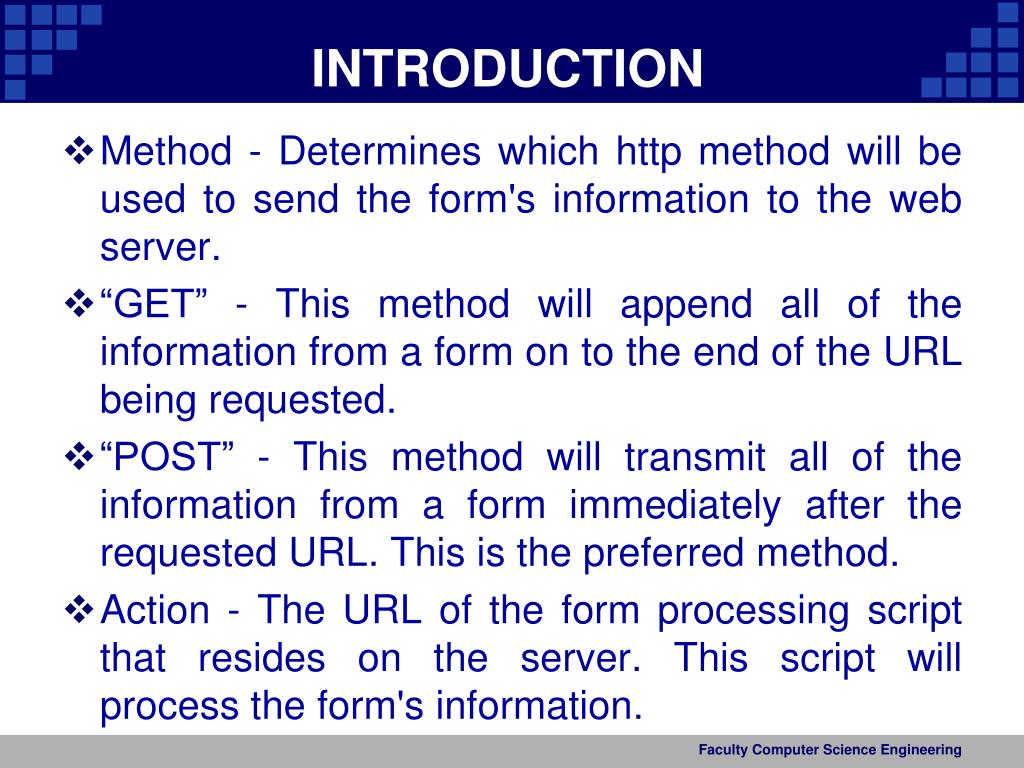

  3. INTRODUCTION • Method - Determines which http method will be used to send the form's information to the web server. • “GET” - This method will append all of the information from a form on to the end of the URL being requested. • “POST” - This method will transmit all of the information from a form immediately after the requested URL. This is the preferred method. • Action - The URL of the form processing script that resides on the server. This script will process the form's information. Faculty Computer Science Engineering

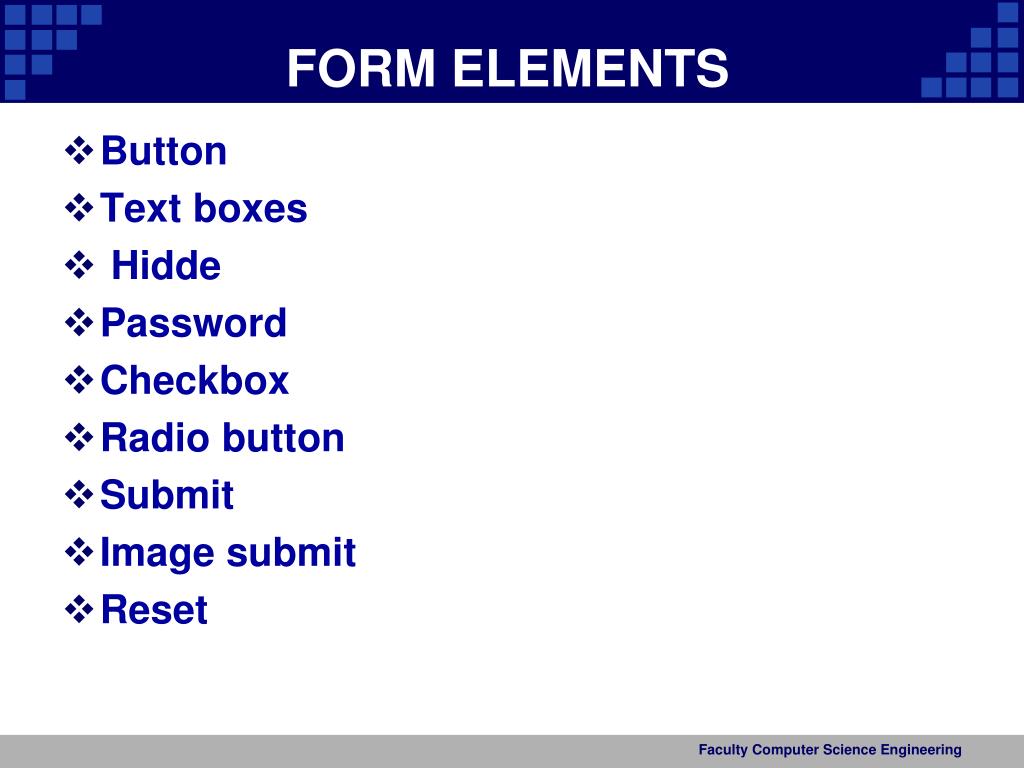

  4. FORM ELEMENTS • Button • Text boxes • Hidde • Password • Checkbox • Radio button • Submit • Image submit • Reset Faculty Computer Science Engineering

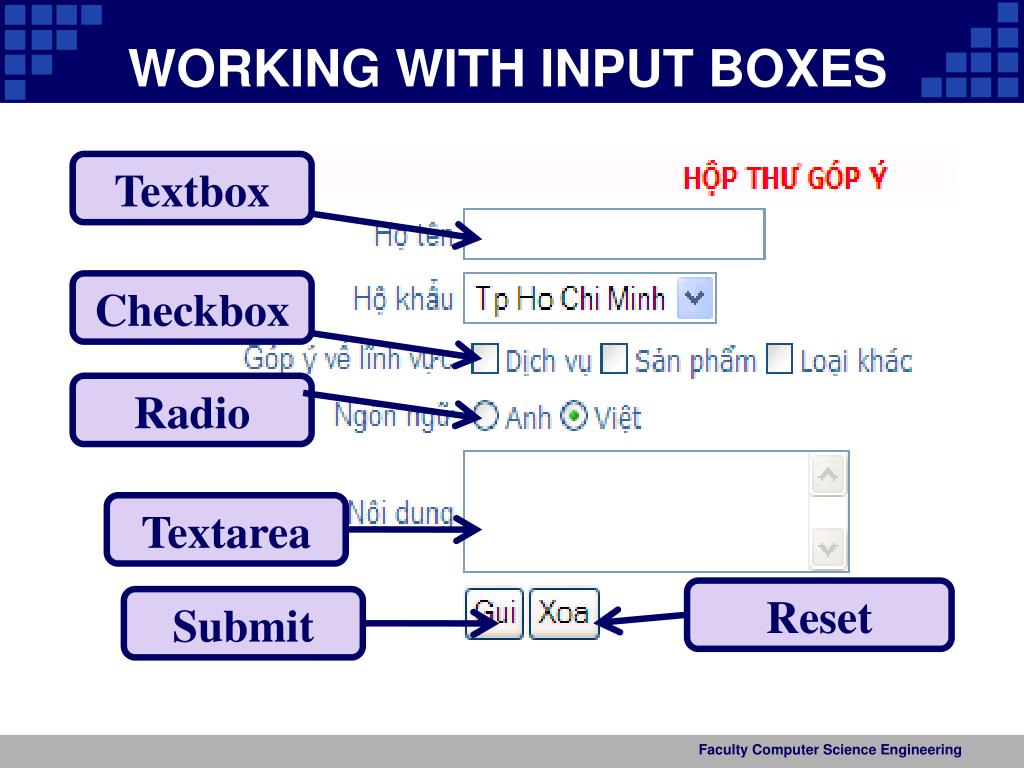

  5. WORKING WITH INPUT BOXES Textbox Radio Textarea Submit Reset Checkbox Faculty Computer Science Engineering

  6. WORKING WITH INPUT BOXES • The <INPUT> tagbe used for several other types of fields on form. The general syntax of the <INPUT> tag is: <INPUTTYPE= option NAME= text> • Option: is the type of input field. • Text: is the name assigned to the input field. • To use the <INPUT>tag for the many different kinds of form elements, you change the value of the TYPE property. • The NAME property is required with with the <INPUT> tag. Faculty Computer Science Engineering

  7. WORKING WITH INPUT BOXES • Controlling the size of an Input Box • By default, the browser made all of the input box in the form the same size 20 character wide. • The syntax for changing the size of an input box is: <INPUT SIZE=value> Example: <Input name= Username size =30> Faculty Computer Science Engineering

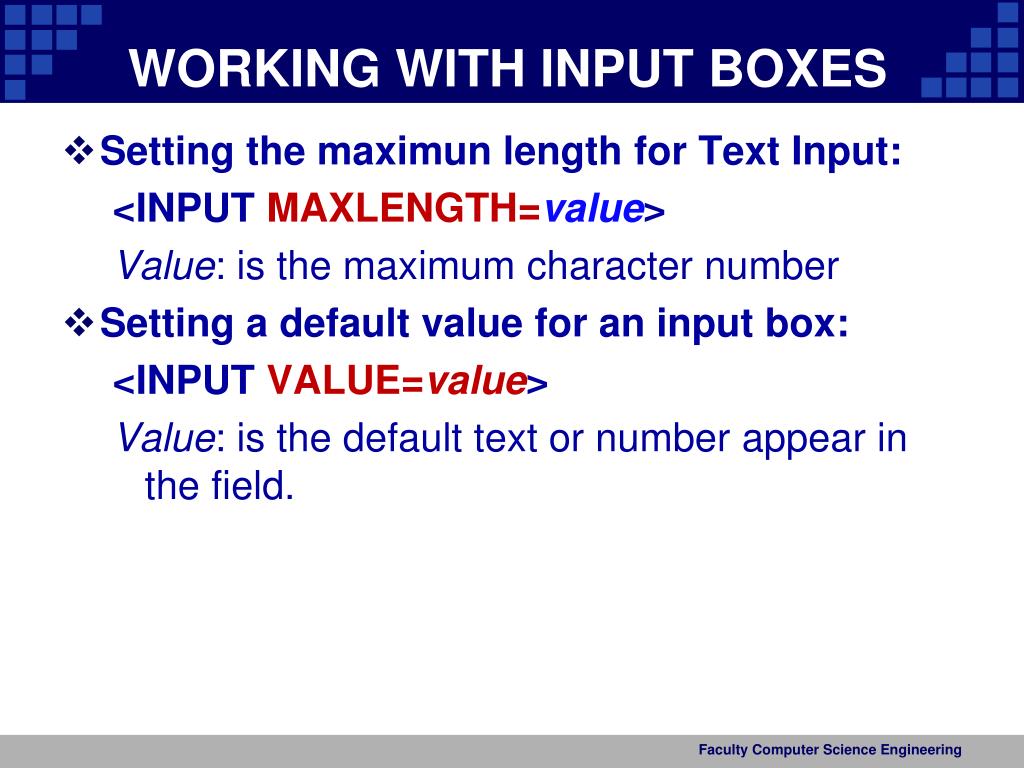

  8. WORKING WITH INPUT BOXES • Setting the maximun length for Text Input: <INPUT MAXLENGTH=value> Value: is the maximum character number • Setting a default value for an input box: <INPUT VALUE=value> Value: is the default text or number appear in the field. Faculty Computer Science Engineering

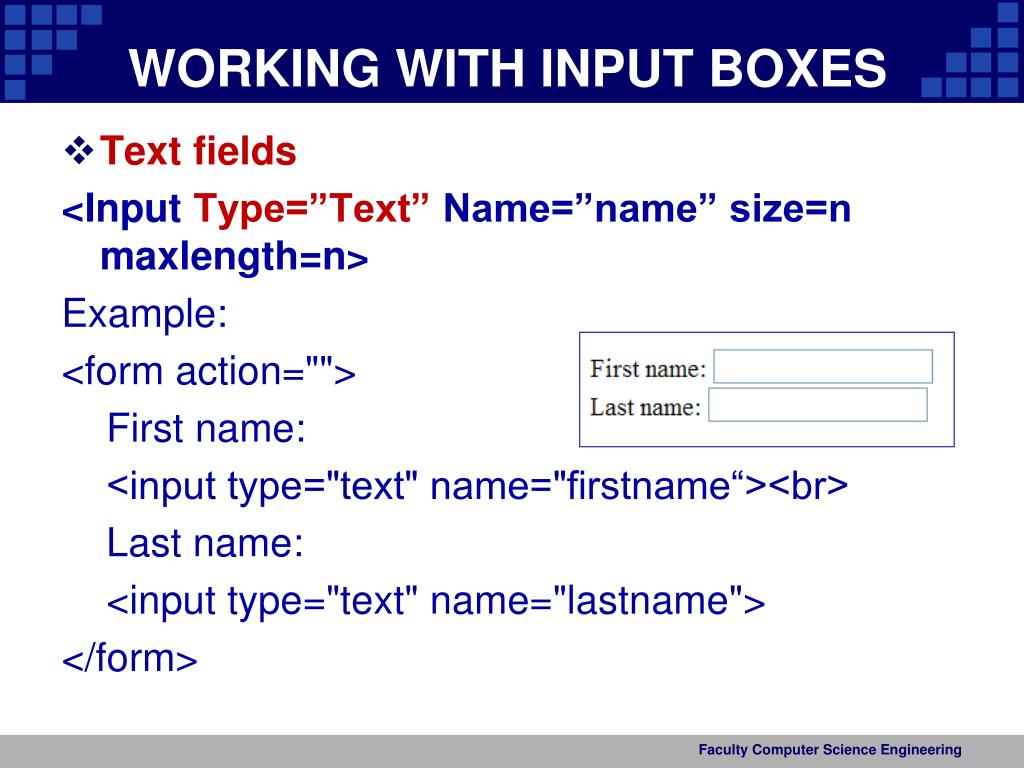

  9. WORKING WITH INPUT BOXES • Text fields <Input Type=”Text” Name=”name” size=n maxlength=n> Example: <form action=""> First name: <input type="text" name="firstname“><br> Last name: <input type="text" name="lastname"> </form> Faculty Computer Science Engineering

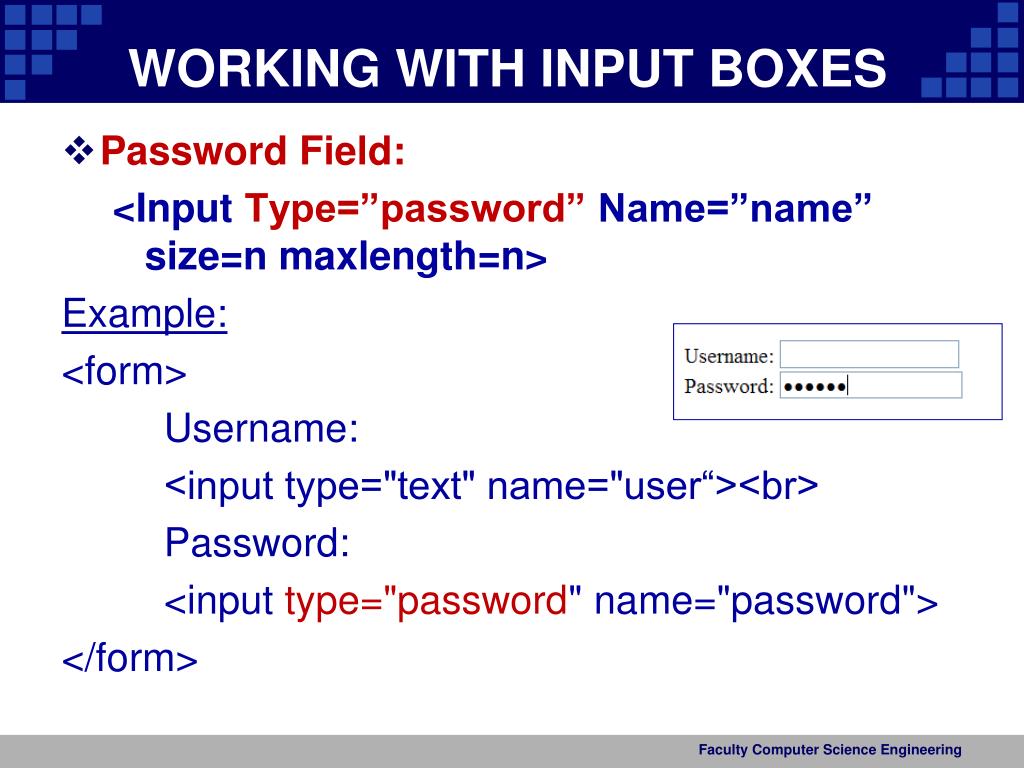

  10. WORKING WITH INPUT BOXES • Password Field: <Input Type=”password” Name=”name” size=n maxlength=n> Example: <form> Username: <input type="text" name="user“><br> Password: <input type="password" name="password"> </form> Faculty Computer Science Engineering

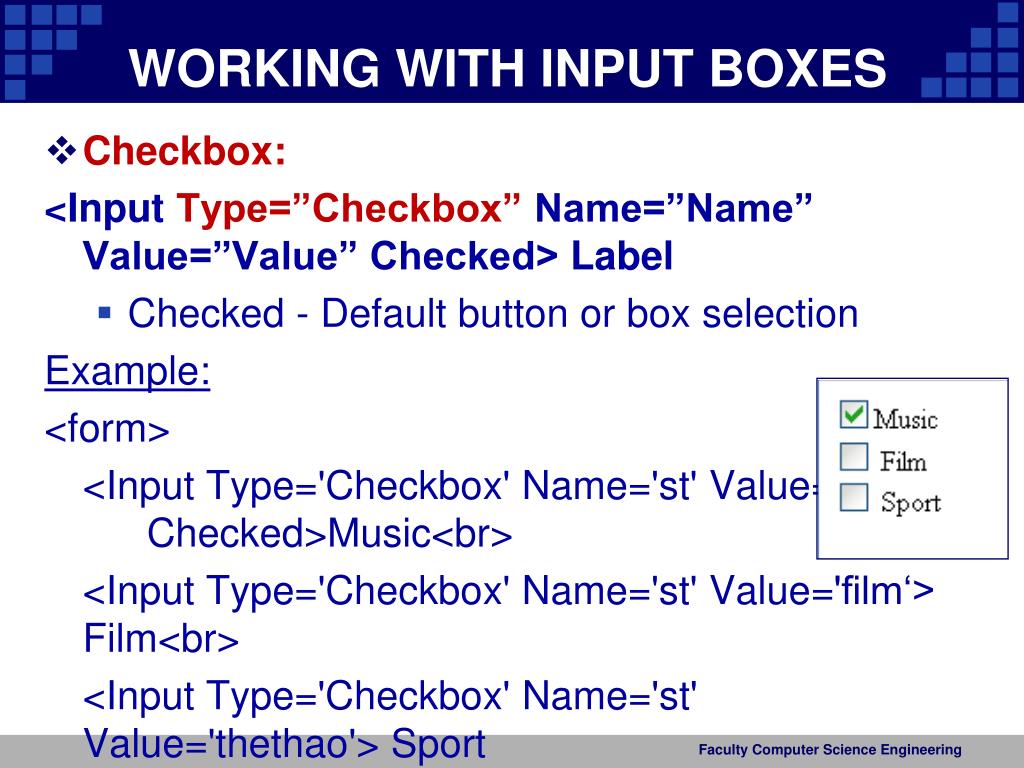

  11. WORKING WITH INPUT BOXES • Checkbox: <Input Type=”Checkbox” Name=”Name” Value=”Value” Checked> Label • Checked - Default button or box selection Example: <form> <Input Type='Checkbox' Name='st' Value='nhac' Checked>Music<br> <Input Type='Checkbox' Name='st' Value='film‘> Film<br> <Input Type='Checkbox' Name='st' Value='thethao'> Sport </form> Faculty Computer Science Engineering

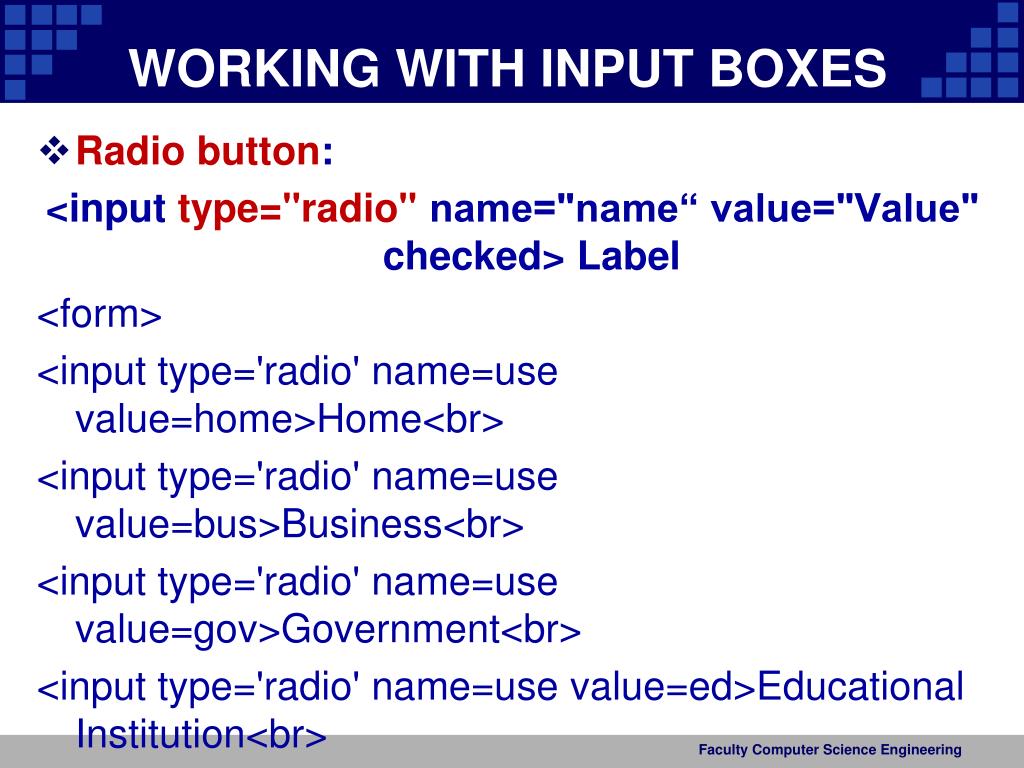

  12. WORKING WITH INPUT BOXES • Radio button: <input type="radio" name="name“ value="Value" checked> Label <form> <input type='radio' name=use value=home>Home<br> <input type='radio' name=use value=bus>Business<br> <input type='radio' name=use value=gov>Government<br> <input type='radio' name=use value=ed>Educational Institution<br> <input type='radio' name=use value=other>Other<br> </form> Faculty Computer Science Engineering

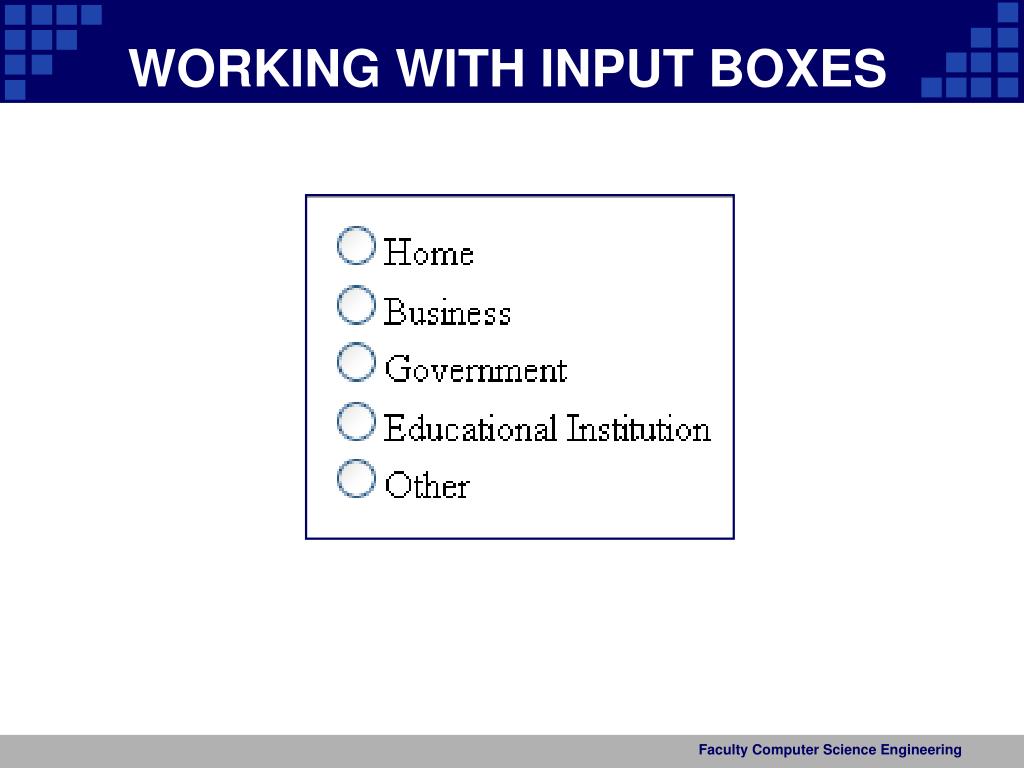

  13. WORKING WITH INPUT BOXES Faculty Computer Science Engineering

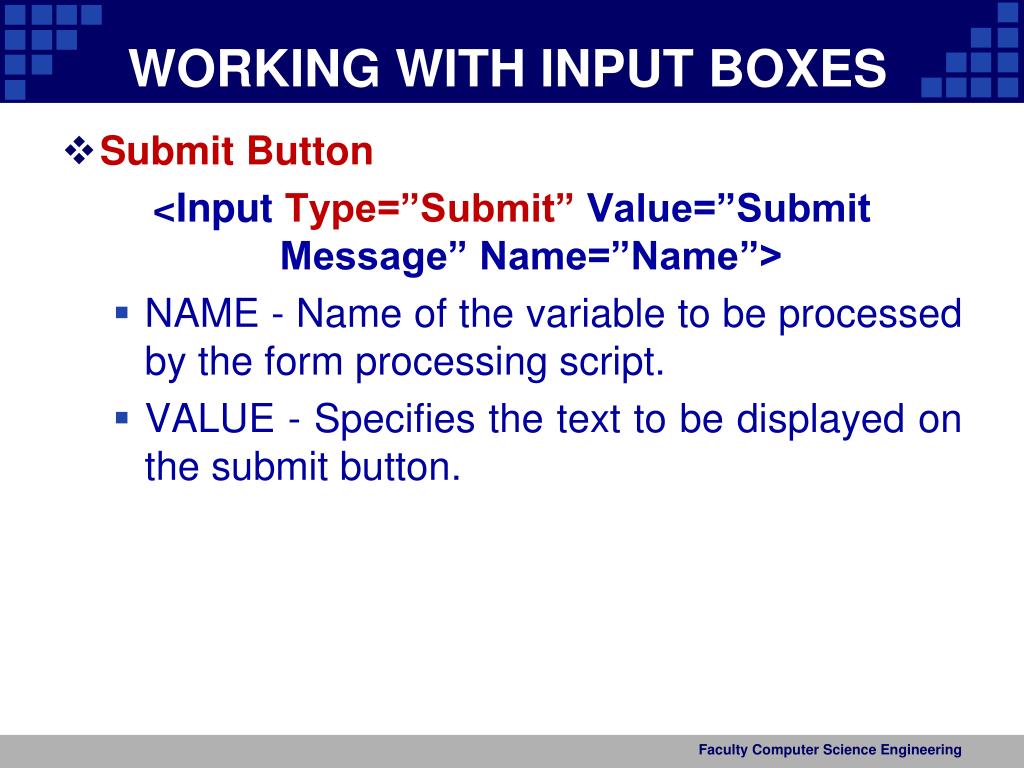

  14. WORKING WITH INPUT BOXES • Submit Button <Input Type=”Submit” Value=”Submit Message” Name=”Name”> • NAME - Name of the variable to be processed by the form processing script. • VALUE - Specifies the text to be displayed on the submit button. Faculty Computer Science Engineering

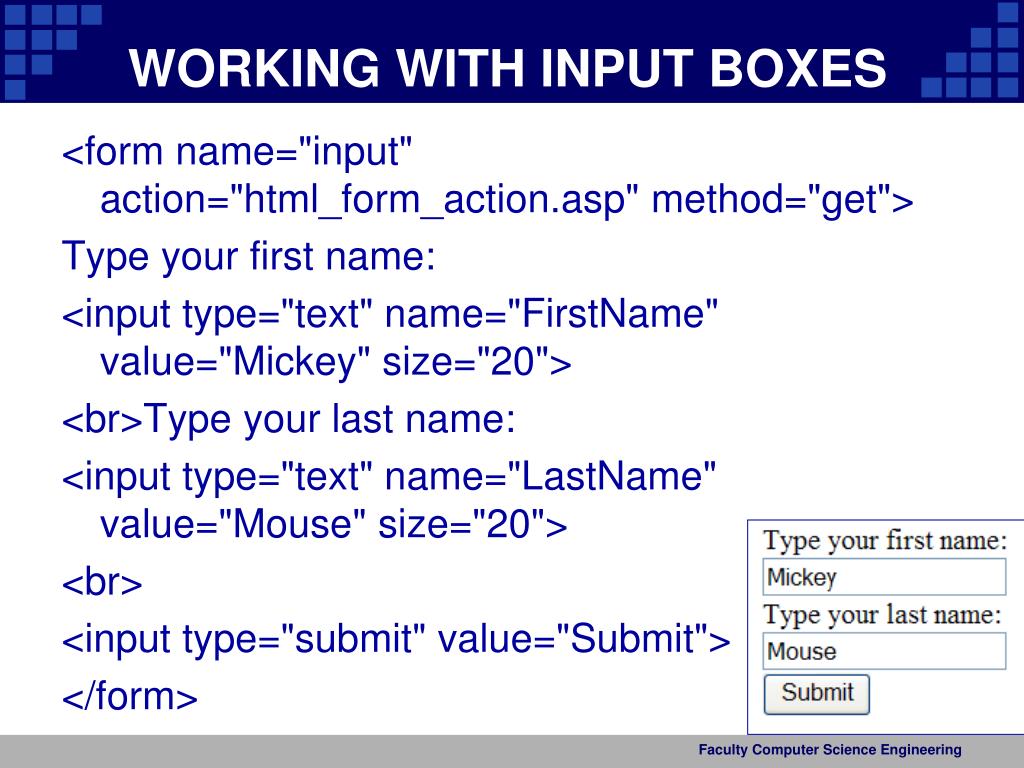

  15. WORKING WITH INPUT BOXES <form name="input" action="html_form_action.asp" method="get"> Type your first name: <input type="text" name="FirstName" value="Mickey" size="20"> <br>Type your last name: <input type="text" name="LastName" value="Mouse" size="20"> <br> <input type="submit" value="Submit"> </form> Faculty Computer Science Engineering

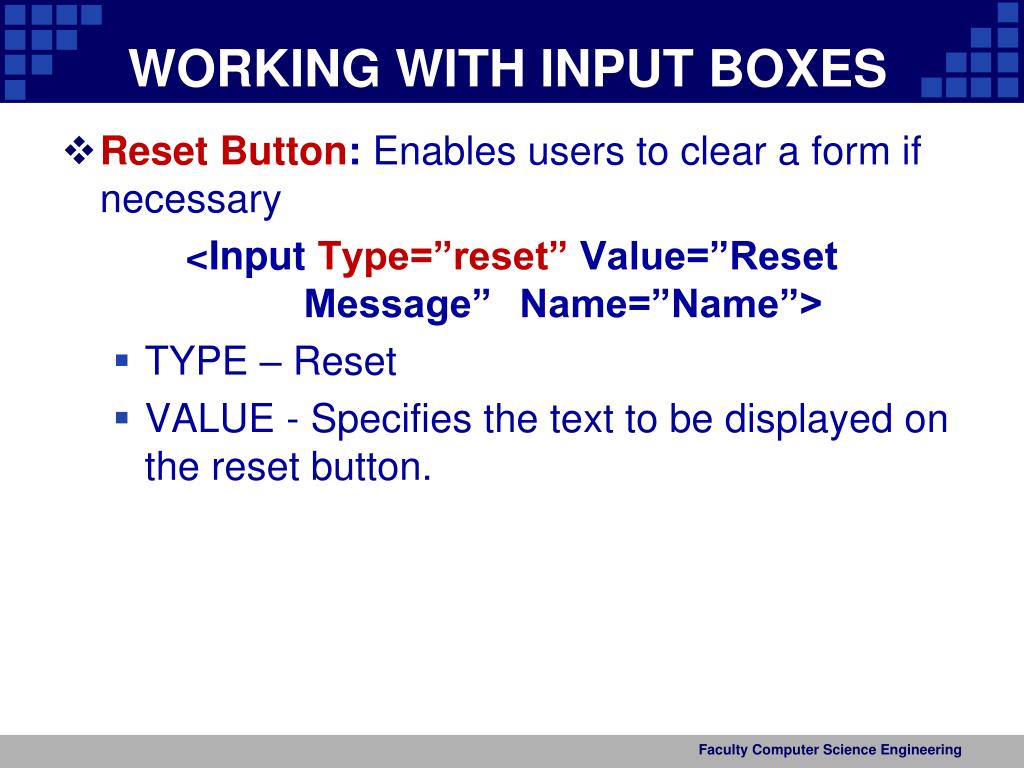

  16. WORKING WITH INPUT BOXES • Reset Button: Enables users to clear a form if necessary <Input Type=”reset” Value=”Reset Message” Name=”Name”> • TYPE – Reset • VALUE - Specifies the text to be displayed on the reset button. Faculty Computer Science Engineering

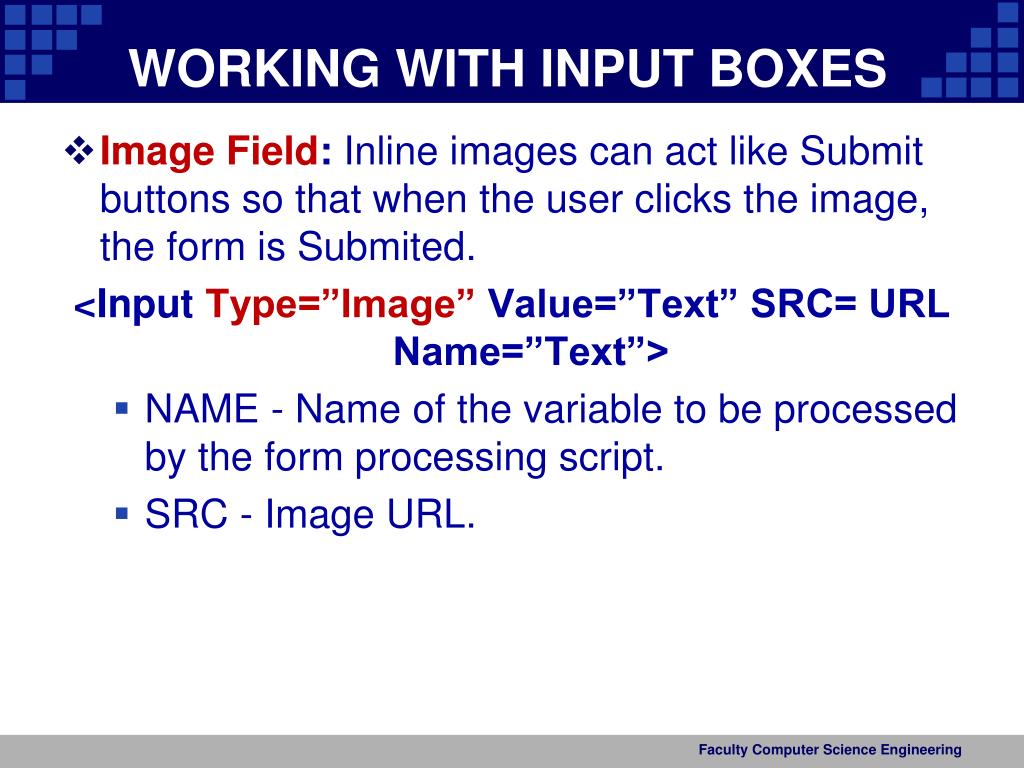

  17. WORKING WITH INPUT BOXES • Image Field: Inline images can act like Submit buttons so that when the user clicks the image, the form is Submited. <Input Type=”Image” Value=”Text” SRC= URL Name=”Text”> • NAME - Name of the variable to be processed by the form processing script. • SRC - Image URL. Faculty Computer Science Engineering

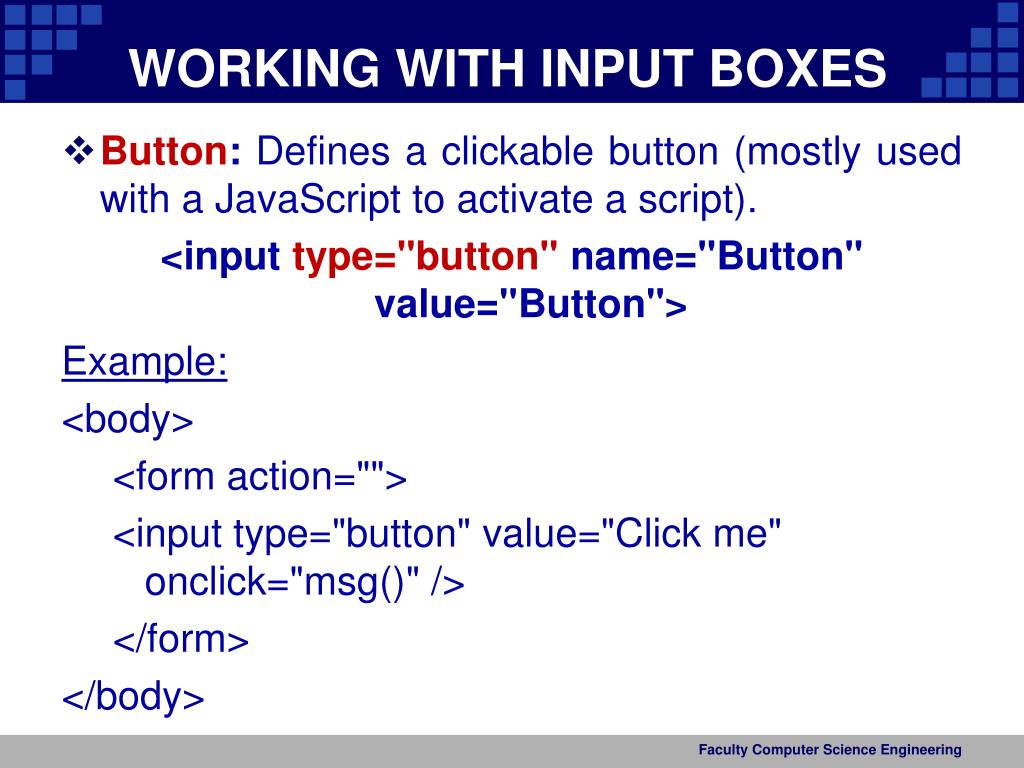

  18. WORKING WITH INPUT BOXES • Button: Defines a clickable button (mostly used with a JavaScript to activate a script). <input type="button" name="Button" value="Button"> Example: <body> <form action=""> <input type="button" value="Click me" onclick="msg()" /> </form> </body> Faculty Computer Science Engineering

  19. WORKING WITH INPUT BOXES • Hidden: Used to send information to the form processing script that you don't want your visitors to see. Nothing will show through the browser. <Input Type=”Hidden” Value=”Text” Name= ”Text”> • NAME - Name of the variable to be processed by the form processing script. • VALUE: The value of the hidden name expected by the form processing script. Faculty Computer Science Engineering

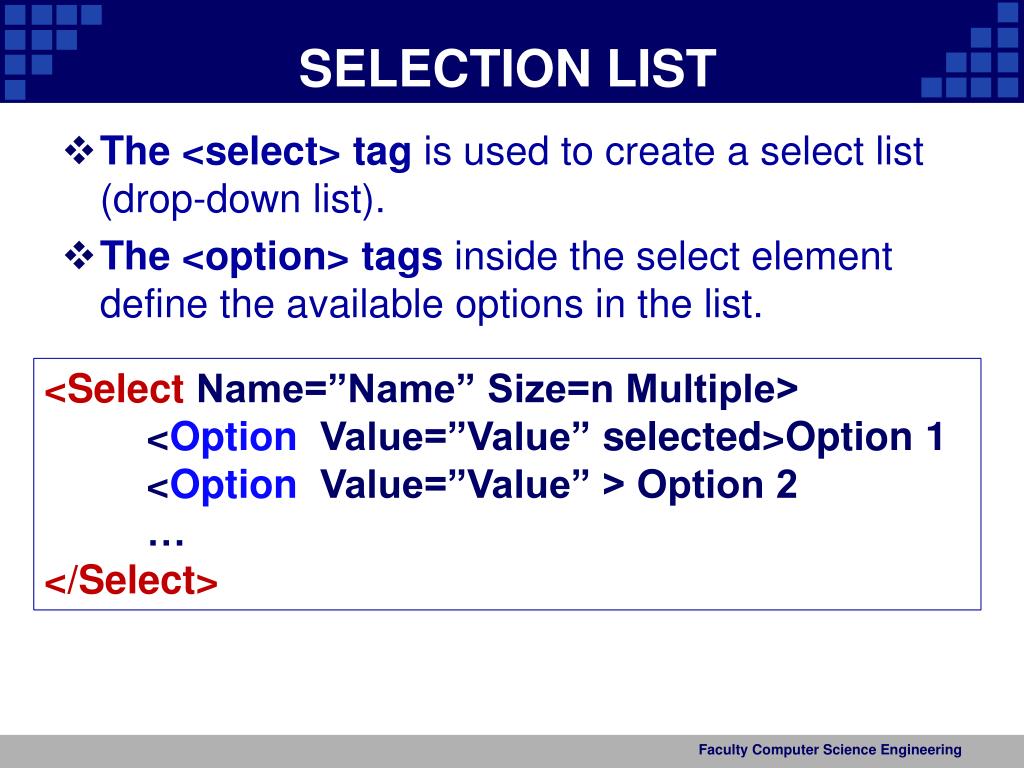

  20. SELECTION LIST • The <select> tag is used to create a select list (drop-down list). • The <option> tags inside the select element define the available options in the list. <Select Name=”Name” Size=n Multiple> <Option Value=”Value” selected>Option 1 <Option Value=”Value” > Option 2 … </Select> Faculty Computer Science Engineering

  21. SELECTION LIST • Select Attributes • NAME - Name of the variable to be processed by the form processing script. • SIZE - Specifies the number of visible selections. • MULTIPLE - Enables users to select multiple selections. • Option Attributes • SELECTED - Specifies a default selection. • VALUE - Specifies the value of the variable in the select element. Faculty Computer Science Engineering

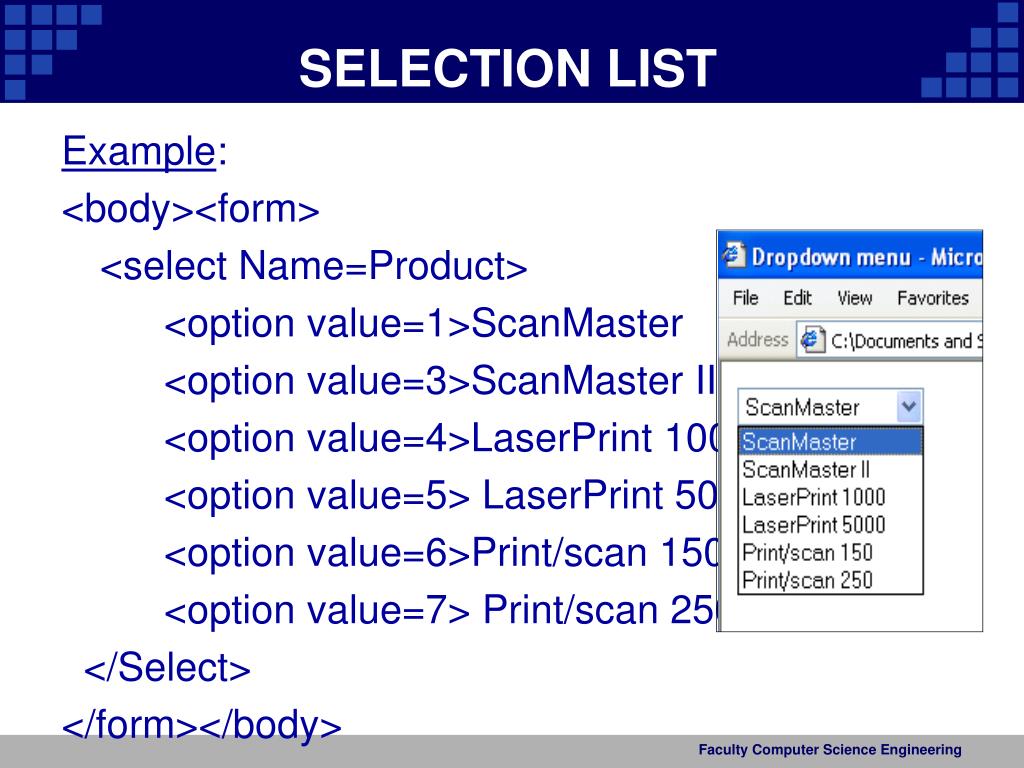

  22. SELECTION LIST Example: <body><form> <select Name=Product> <option value=1>ScanMaster <option value=3>ScanMaster II <option value=4>LaserPrint 1000 <option value=5> LaserPrint 5000 <option value=6>Print/scan 150 <option value=7> Print/scan 250 </Select> </form></body> Faculty Computer Science Engineering

  23. SELECTION LIST <form> <select Name=Product size=5 Multiple> <option value=1>ScanMaster <option value=3>ScanMaster II <option value=4>LaserPrint 1000 <option value=5> LaserPrint 5000 <option value=6>Print/scan 150 <option value=7> Print/scan 250 </Select> </form> Faculty Computer Science Engineering

  24. SELECTION LIST • OPTGROUP: is used to group the elements in selection list <SELECT name= “Text”> <OPTGROUP> <OPTION value= “value1”>option1 <OPTION value= “value2”> option2 …. </OPTGROUP> … </SELECT> Faculty Computer Science Engineering

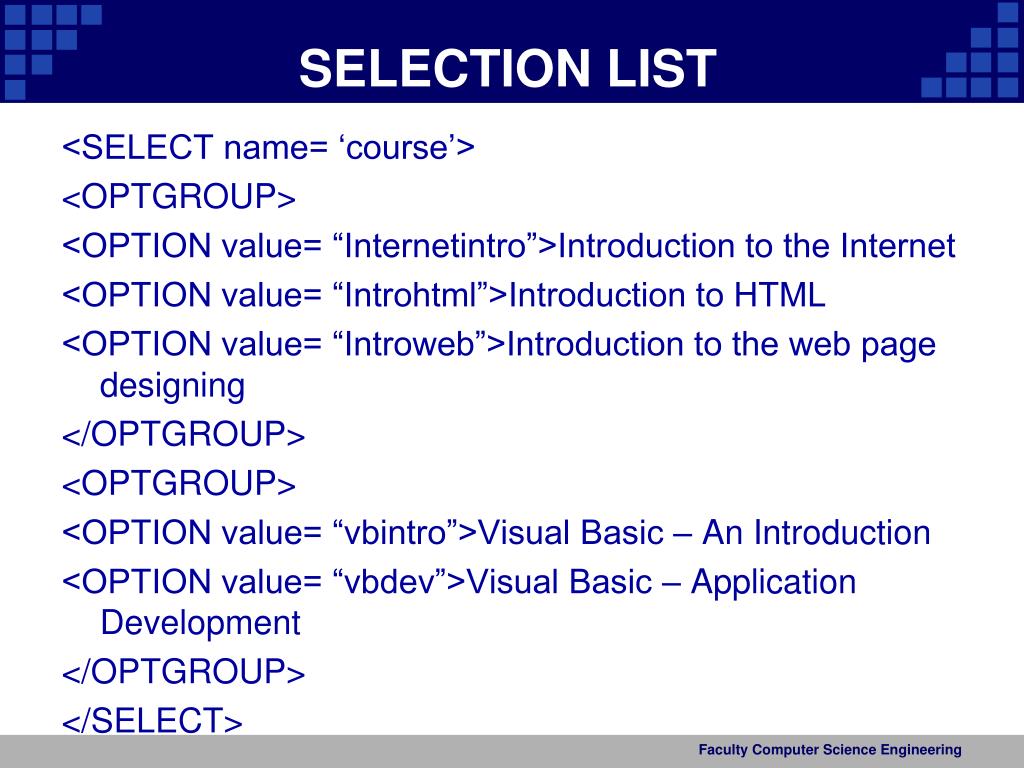

  25. SELECTION LIST <SELECT name= ‘course’> <OPTGROUP> <OPTION value= “Internetintro”>Introduction to the Internet <OPTION value= “Introhtml”>Introduction to HTML <OPTION value= “Introweb”>Introduction to the web page designing </OPTGROUP> <OPTGROUP> <OPTION value= “vbintro”>Visual Basic – An Introduction <OPTION value= “vbdev”>Visual Basic – Application Development </OPTGROUP> </SELECT> Faculty Computer Science Engineering

  26. optgroup SELECTION LIST Faculty Computer Science Engineering

  27. TEXTAREA • TextArea: is the Text box that user can input multi line. <TextArea Name=”name” Rows=n Cols=m Wrap>Default text </textarea> • Textarea Attributes • NAME - Name of the variable to be processed by the form processing script. • COLS - The number of columns within the text area. • ROWS - The number of rows within the text area. • Wrap: virtual,physical Faculty Computer Science Engineering

  28. TEXTAREA Example: <form> Comments ? <textarea rows=4 cols=50 name=comments> </textarea> </form> Faculty Computer Science Engineering

  29. FIELDSET • The <fieldset> Group related elements in a form. • The <fieldset>tag draws a box around the related form elements. <Fieldset> <Legend Align=”left, right”>Chú thích </Legend> The elements in group </Fieldset> • The <legend> tag defines a caption for the fieldset element. Faculty Computer Science Engineering

  30. FIELDSET <FORM > <FIELDSET> <LEGEND>Position</LEGEND> Application for the post of: <INPUT name= 'name' type= 'text' tabindex= '1'> </FIELDSET> <FIELDSET> <LEGEND>Educational Qualifications</LEGEND> <INPUT name= 'qualif' type='radio' value= 'grad' tabindex= '5'> Graduate <INPUT name= 'qualif' type='radio' value='postgrad' tabindex='5'> Postgraduate </FIELDSET></FORM> Faculty Computer Science Engineering

  31. Faculty Computer Science Engineering

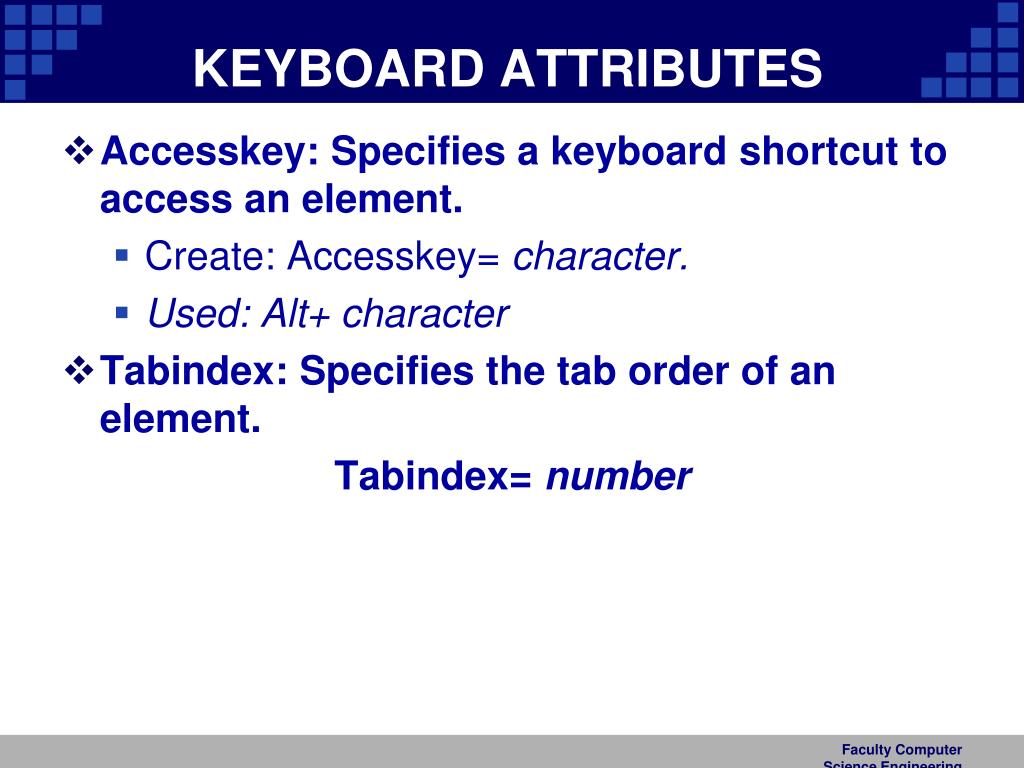

  32. KEYBOARD ATTRIBUTES • Accesskey: Specifies a keyboard shortcut to access an element. • Create: Accesskey= character. • Used: Alt+ character • Tabindex: Specifies the tab order of an element. Tabindex= number Faculty Computer Science Engineering
