High-Resolution Infrared Touchscreen Panel for Extreme Environments

DESCRIPTION

Introducing the 42TS-iRU/50TS-iRU with superior clarity, durability, and safety features. This touchscreen operates seamlessly in harsh conditions, with a vandal-proof design and fast scanning speed. Compatible with various operating systems and certified for quality.

1 / 4

Télécharger la présentation

High-Resolution Infrared Touchscreen Panel for Extreme Environments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

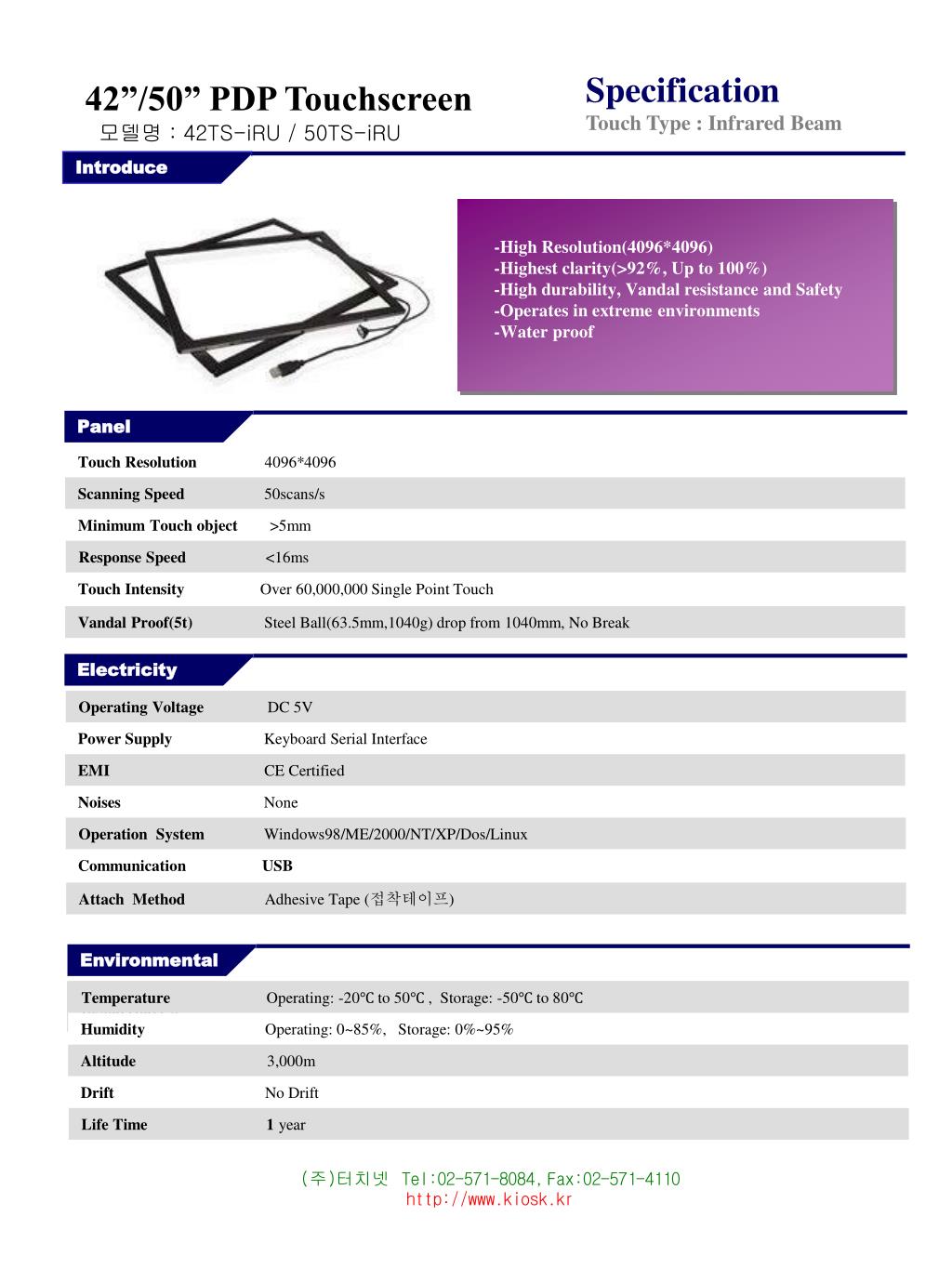

  1. Specification Touch Type : Infrared Beam 42”/50” PDP Touchscreen 모델명 : 42TS-iRU / 50TS-iRU Introduce -High Resolution(4096*4096) -Highest clarity(>92%, Up to 100%) -High durability, Vandal resistance and Safety -Operates in extreme environments -Water proof Panel Touch Resolution 4096*4096 Scanning Speed 50scans/s Minimum Touch object >5mm Response Speed <16ms Touch Intensity Over 60,000,000 Single Point Touch Vandal Proof(5t) Steel Ball(63.5mm,1040g) drop from 1040mm, No Break Electricity Operating Voltage DC 5V Power Supply Keyboard Serial Interface EMI CE Certified Noises None Operation System Windows98/ME/2000/NT/XP/Dos/Linux Communication USB Attach Method Adhesive Tape (접착테이프) Environmental Transmission >92%, Up to 100% AT42DC-M 42.0”PDP 5mm 930*530 1070*660*16.8 Temperature Operating: -20℃ to 50℃ , Storage: -50℃ to 80℃ Humidity Operating: 0~85%, Storage: 0%~95% Altitude 3,000m Drift No Drift Life Time 1 year

  2. 42”터치스크린 크기 50”터치스크린 크기 화면: 1107*623 사각테두리: 35

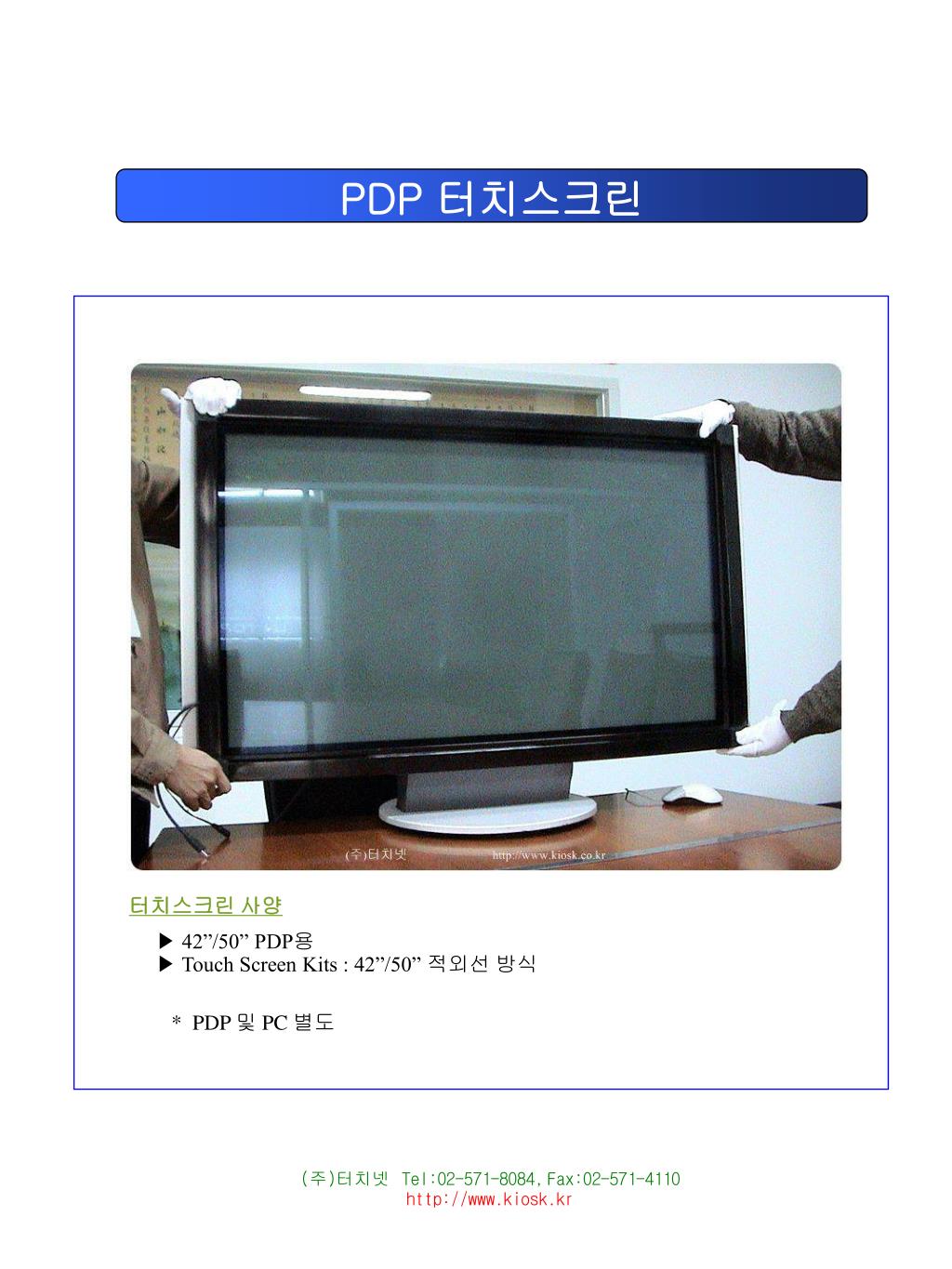

  3. PDP 터치스크린 터치스크린 사양      ▶ 42”/50” PDP용     ▶ Touch Screen Kits: 42”/50” 적외선 방식      * PDP 및 PC 별도

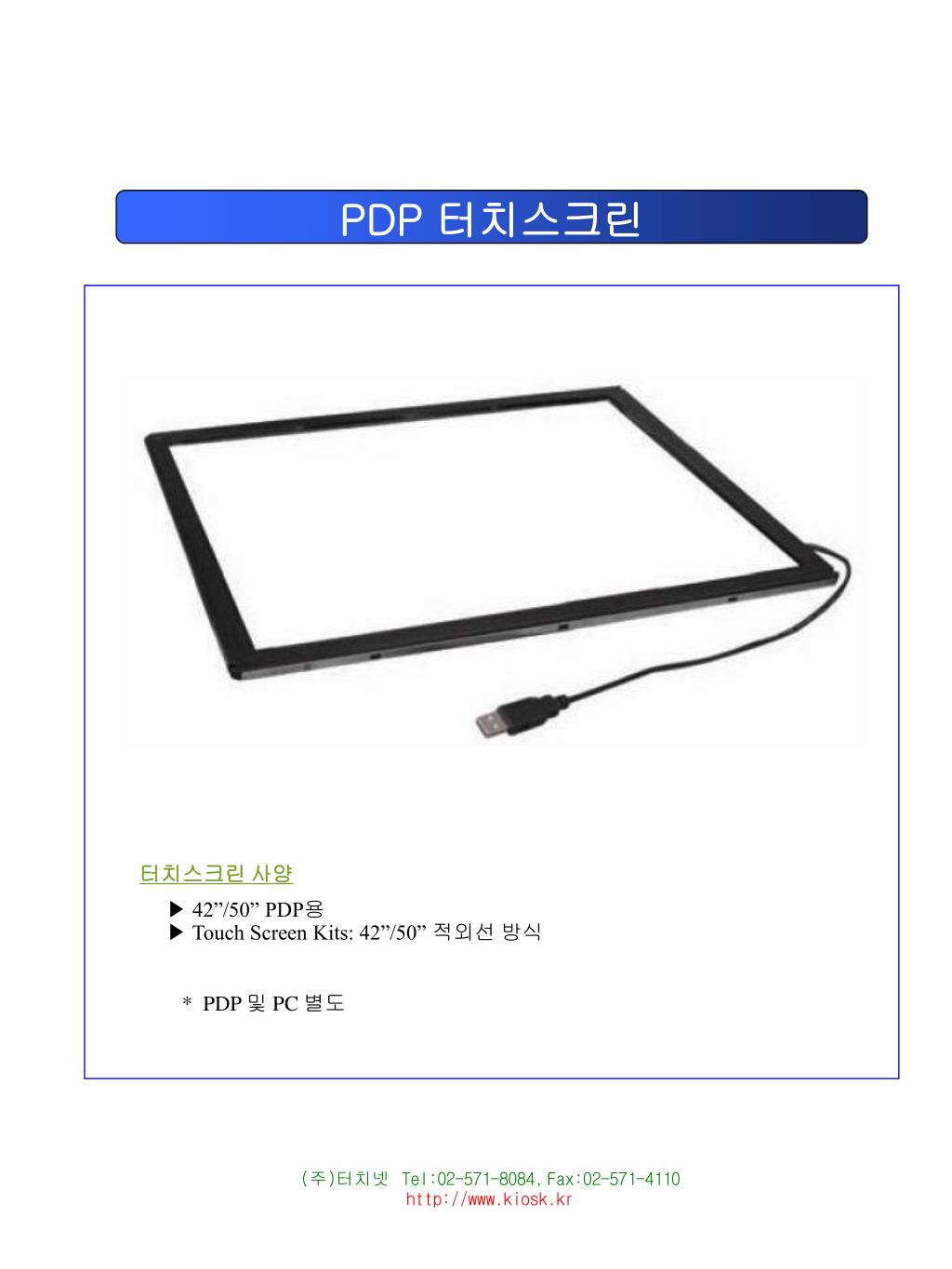

  4. PDP 터치스크린 터치스크린 사양      ▶ 42”/50” PDP용     ▶ Touch Screen Kits : 42”/50” 적외선 방식      * PDP 및 PC 별도
