1. ForSpec vs. Accellera Requirements Roy Armoni Intel roy.armoni@intel.com

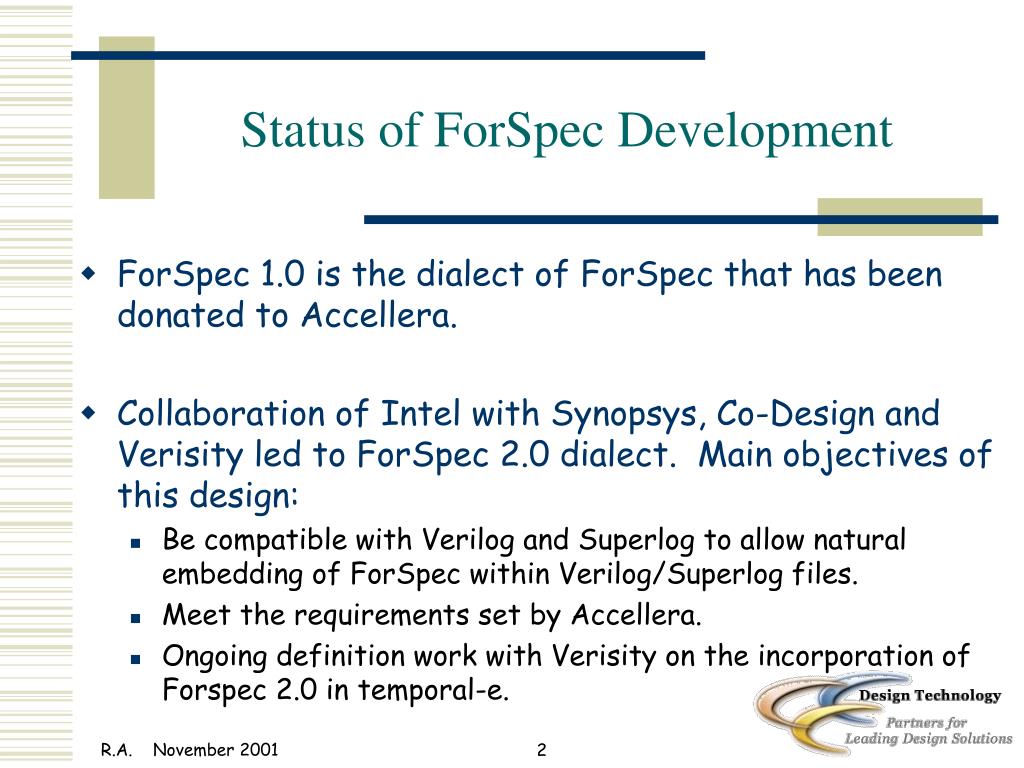

2. Status of ForSpec Development • ForSpec 1.0 is the dialect of ForSpec that has been donated to Accellera. • Collaboration of Intel with Synopsys, Co-Design and Verisity led to ForSpec 2.0 dialect. Main objectives of this design: • Be compatible with Verilog and Superlog to allow natural embedding of ForSpec within Verilog/Superlog files. • Meet the requirements set by Accellera. • Ongoing definition work with Verisity on the incorporation of Forspec 2.0 in temporal-e.

3. Overall Picture (Summery First) • ForSpec 1.0 meets all Accellera requirements, excluding the following three: • R2a – binding to Verilog Boolean expressions. • R20a – && between regular expressions. • R37a – Abstract clocks – end of sequential event. • ForSpec 2.0 meets ALL Accellera requirements. • Details in the sequel.

4. R2a – Verilog Syntax • In ForSpec 2.0, the Boolean expression layer has been replaced by Verilog expressions. • On top of them, we added (from ForSpec 1.0): past, future, posedge, negedge, edge, clock, same, mutex, strong_mutex. • future is the new name for the prime operator. • Posedge, negedge and edge correspond to b_rise, b_fall and b_change, respectively. • Also, regular operator’s syntax (of *,?,+,{n},{n,m}) has been changed to *[n..m] to allow embedding within Verilog and Superlog.

5. R20a – AND between REs • We have added AND to REs. The exact semantics was borrowed from TXP of Synopsys. In terms of regular languages, we defined: L(e1 && e2) = { (w1&&u1 … wm&&um wm+1 … wn) : mn, (w1 … wn)L(e1), (u1 … um)L(e2) }  { (w1&&u1 … wn&&un un+1 … um) : nm, (w1 … wn)L(e1), (u1 … um)L(e2) } • This operator is compatible with Boolean AND: ,i,c,a,r |= e1 && e2 if ,i,c,a,r |= e1 and ,i,c,a,r |= e2. • It is not the same operator as Sugar’s &&. Intel is willing to add an additional operator similar to Sugar’s if required by the committee.

6. R37a – end of events as clocks • We added the operator ended(e) that takes an extended regular event as parameter and returns a Boolean. Its semantics is: ,j,c,a,r |= ended(e) if there exists ij s.t. ,i,j,c,a,r | e • Any Boolean expression may be used as a clock. • Byproduct: • Latched end-of-event is also defined by the template: matched(e): ended(e)&&CLOCK || ended(ended(e)&&!CLOCK #1 any);
