CHAPTER SEVEN

1. CHAPTER SEVEN Creating Web Applications

2. Objectives • Create a Web application • Build a Web form using ASP.NET 4.0 • Set Web form properties • Use the full screen view • Add objects to a Web form • Add a DropDownList object Chapter 7: Creating Web Applications

3. Objectives • Add a Calendar object • Add a custom table for layout • Validate data on Web forms • Use the <br> tag in Visual Basic code • Use string manipulation methods in the String class Chapter 7: Creating Web Applications

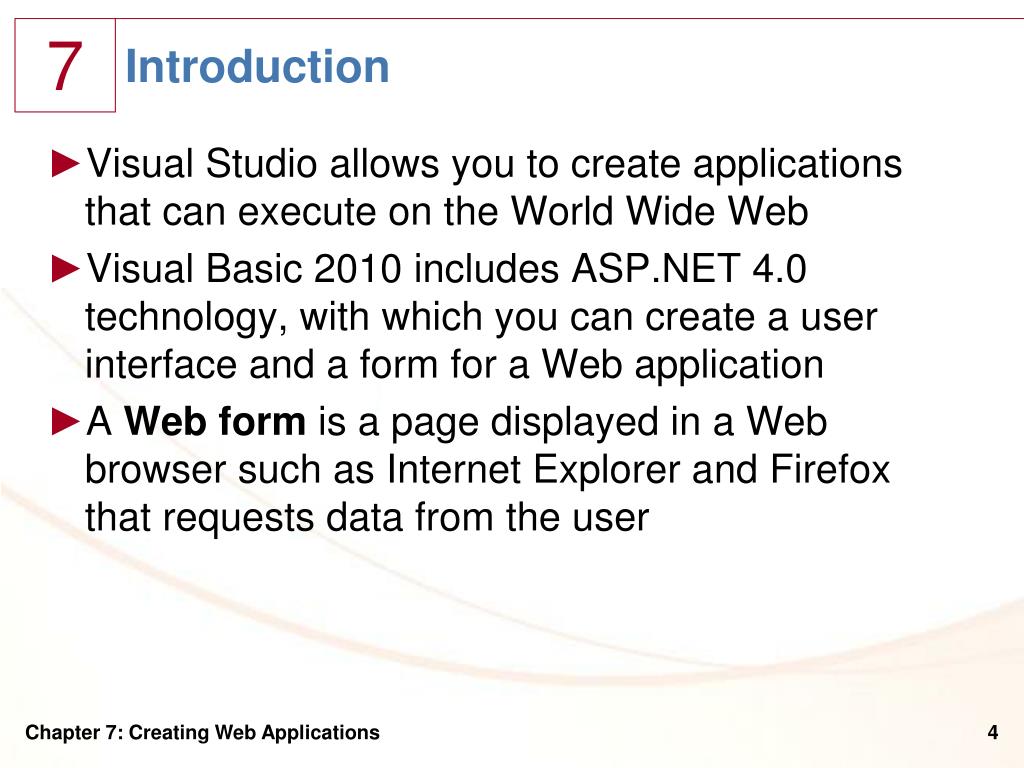

4. Introduction • Visual Studio allows you to create applications that can execute on the World Wide Web • Visual Basic 2010 includes ASP.NET 4.0 technology, with which you can create a user interface and a form for a Web application • A Web form is a page displayed in a Web browser such as Internet Explorer and Firefox that requests data from the user Chapter 7: Creating Web Applications

5. Introduction Chapter 7: Creating Web Applications

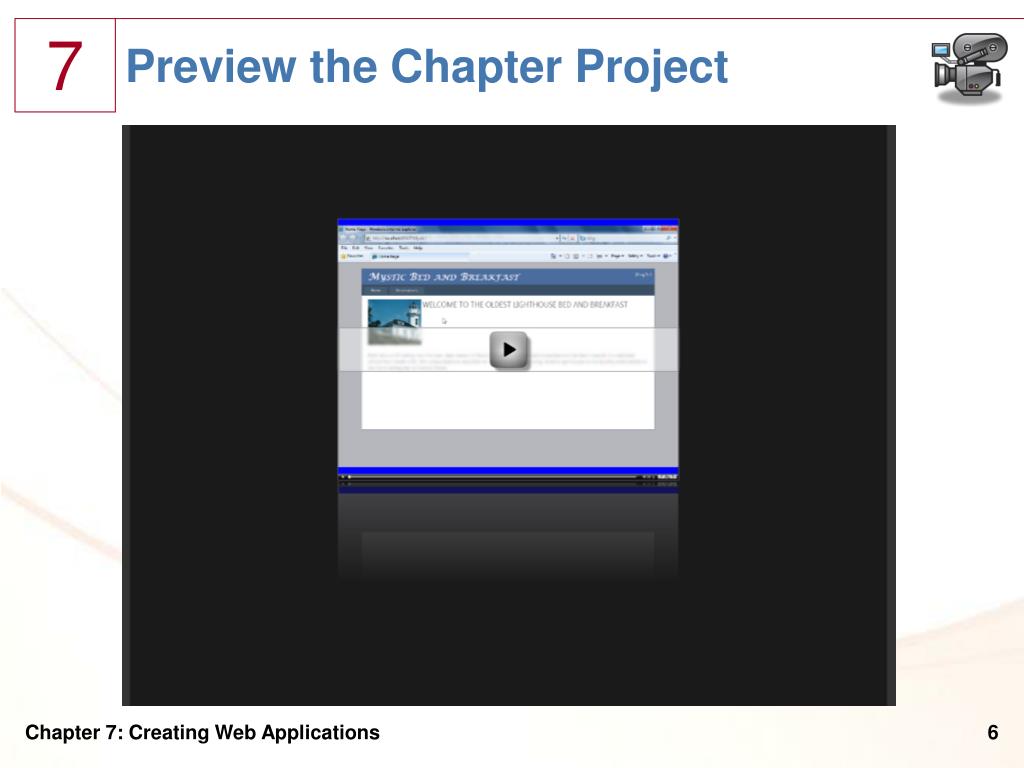

6. Preview the Chapter Project Chapter 7: Creating Web Applications

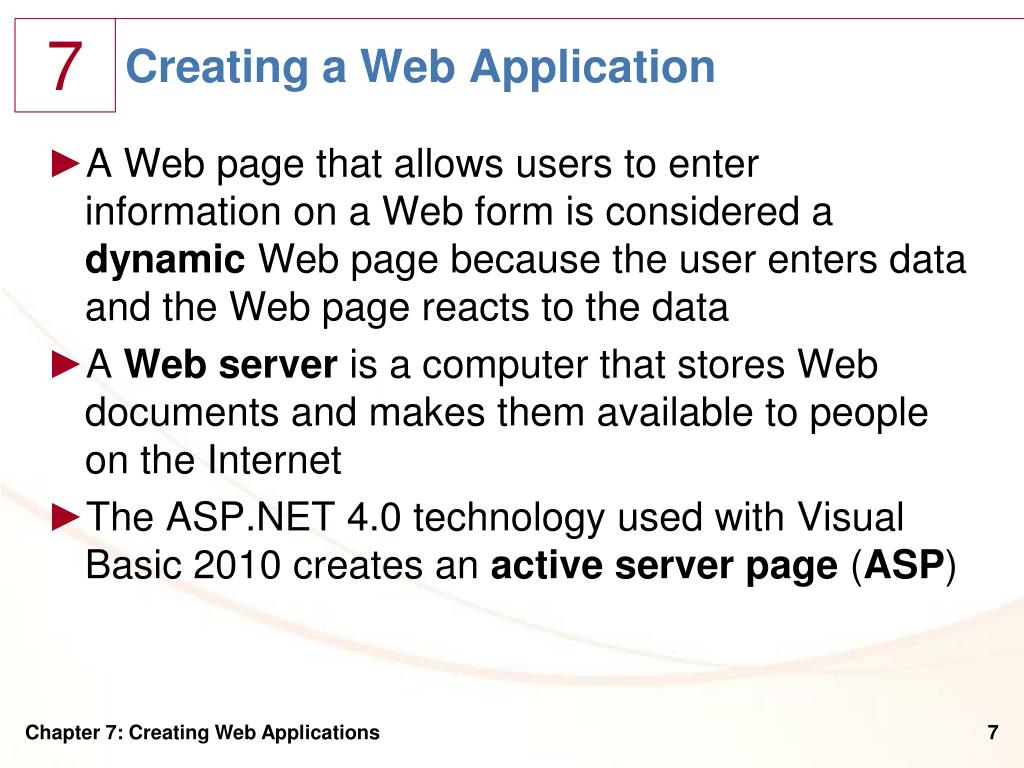

7. Creating a Web Application • A Web page that allows users to enter information on a Web form is considered a dynamic Web page because the user enters data and the Web page reacts to the data • A Web server is a computer that stores Web documents and makes them available to people on the Internet • The ASP.NET 4.0 technology used with Visual Basic 2010 creates an active server page (ASP) Chapter 7: Creating Web Applications

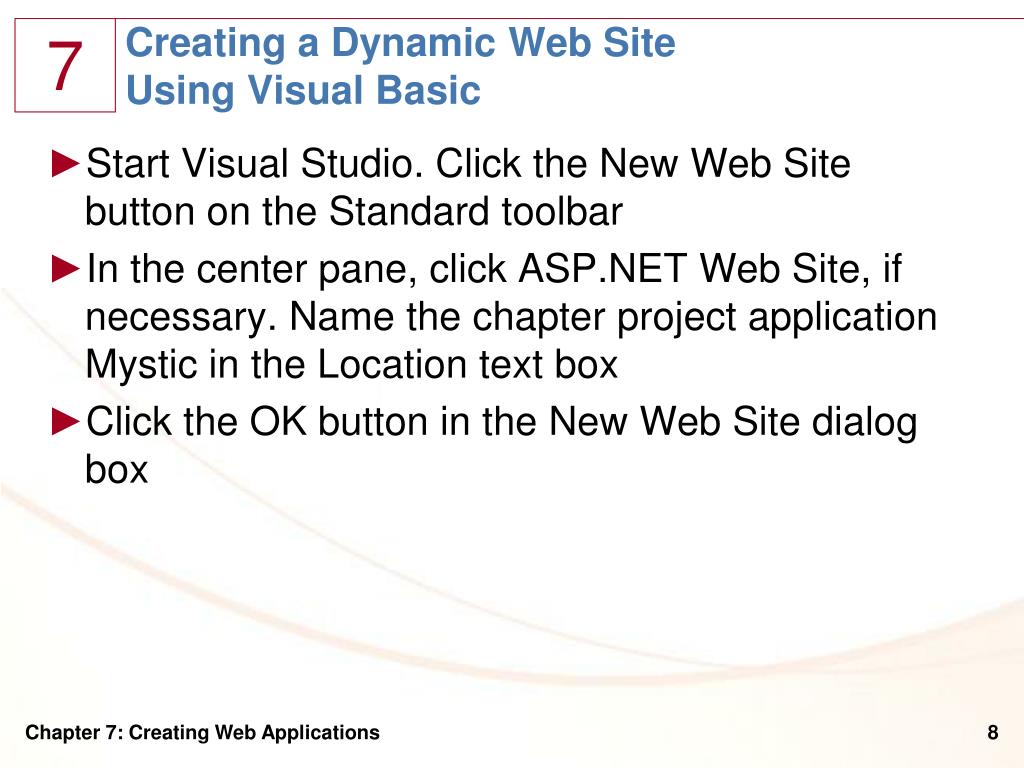

8. Creating a Dynamic Web Site Using Visual Basic • Start Visual Studio. Click the New Web Site button on the Standard toolbar • In the center pane, click ASP.NET Web Site, if necessary. Name the chapter project application Mystic in the Location text box • Click the OK button in the New Web Site dialog box Chapter 7: Creating Web Applications

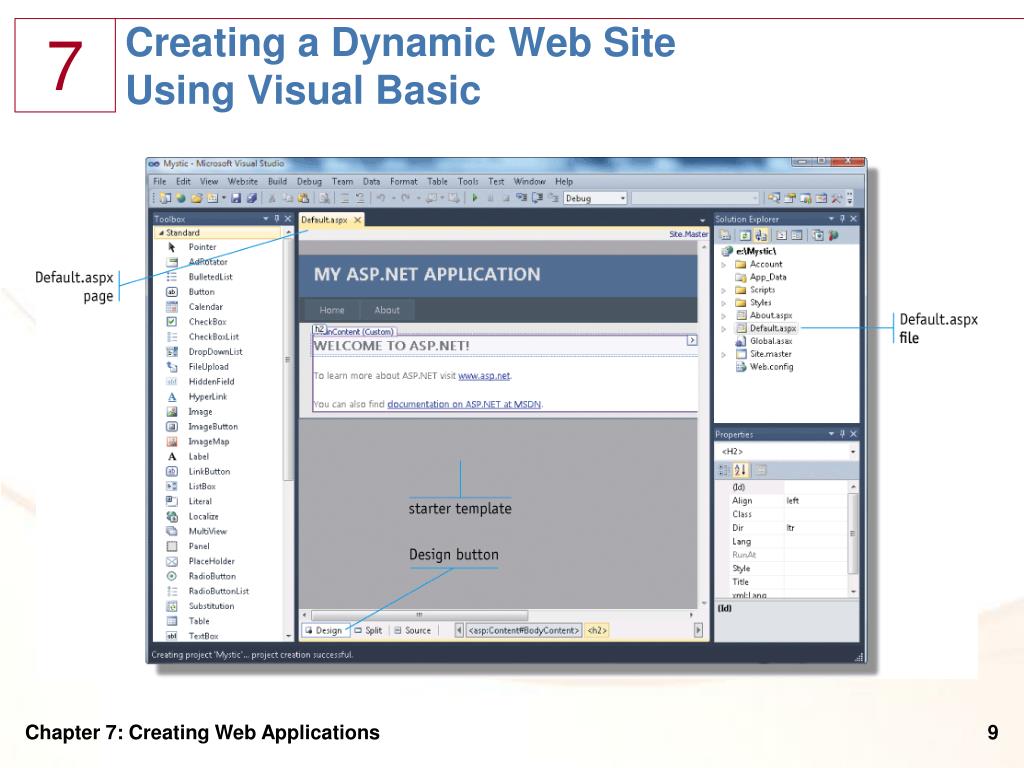

9. Creating a Dynamic Web Site Using Visual Basic Chapter 7: Creating Web Applications

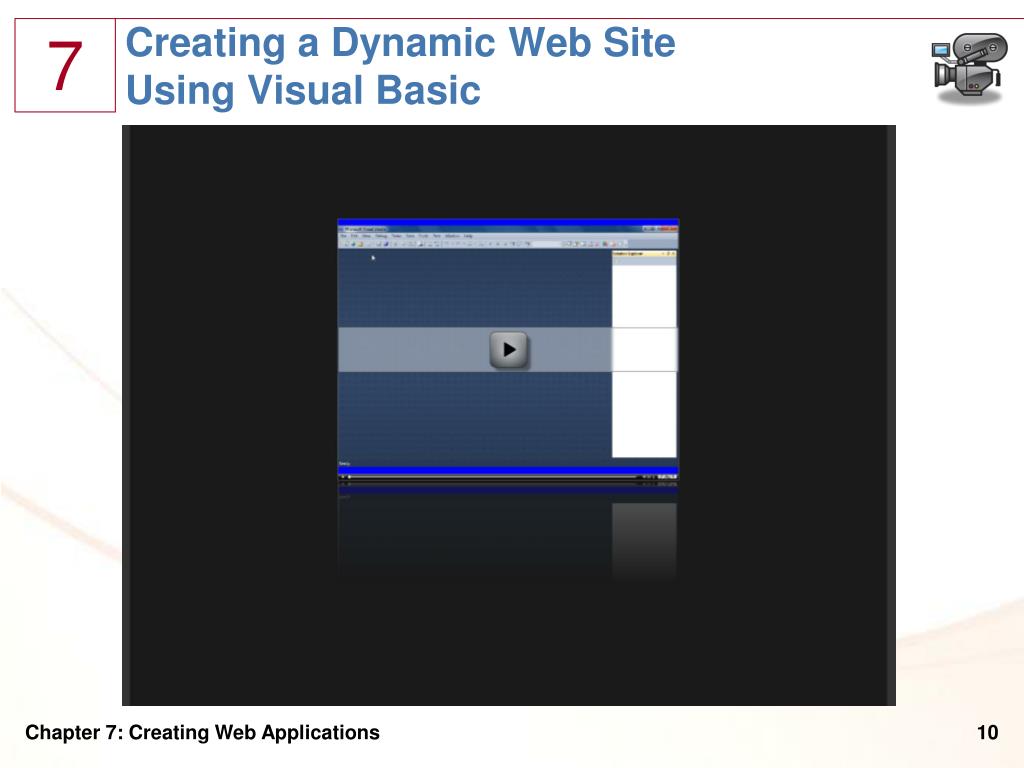

10. Creating a Dynamic Web Site Using Visual Basic Chapter 7: Creating Web Applications

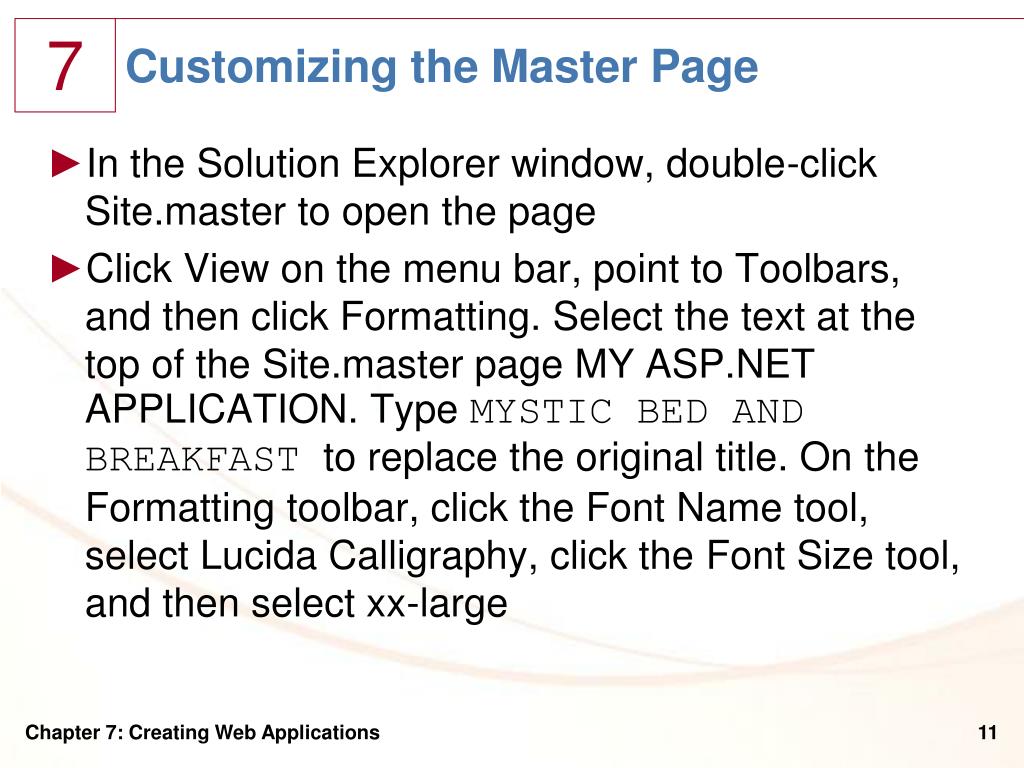

11. Customizing the Master Page • In the Solution Explorer window, double-click Site.master to open the page • Click View on the menu bar, point to Toolbars, and then click Formatting. Select the text at the top of the Site.master page MY ASP.NET APPLICATION. Type MYSTIC BED AND BREAKFAST to replace the original title. On the Formatting toolbar, click the Font Name tool, select Lucida Calligraphy, click the Font Size tool, and then select xx-large Chapter 7: Creating Web Applications

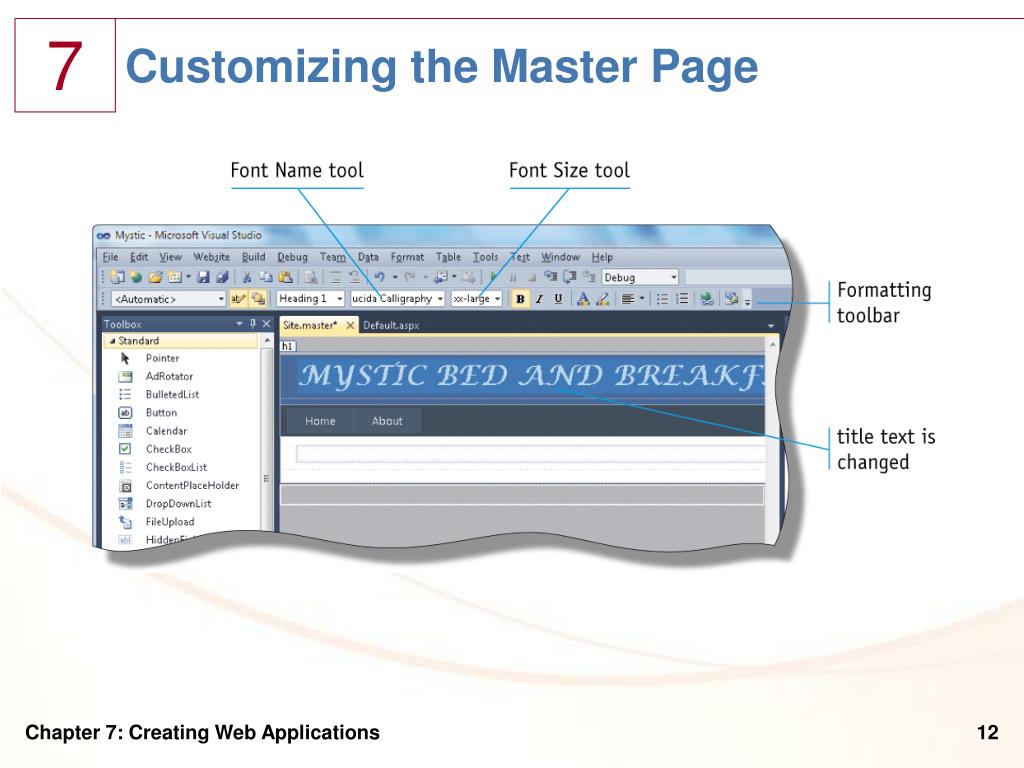

12. Customizing the Master Page Chapter 7: Creating Web Applications

13. Customizing the Master Page Chapter 7: Creating Web Applications

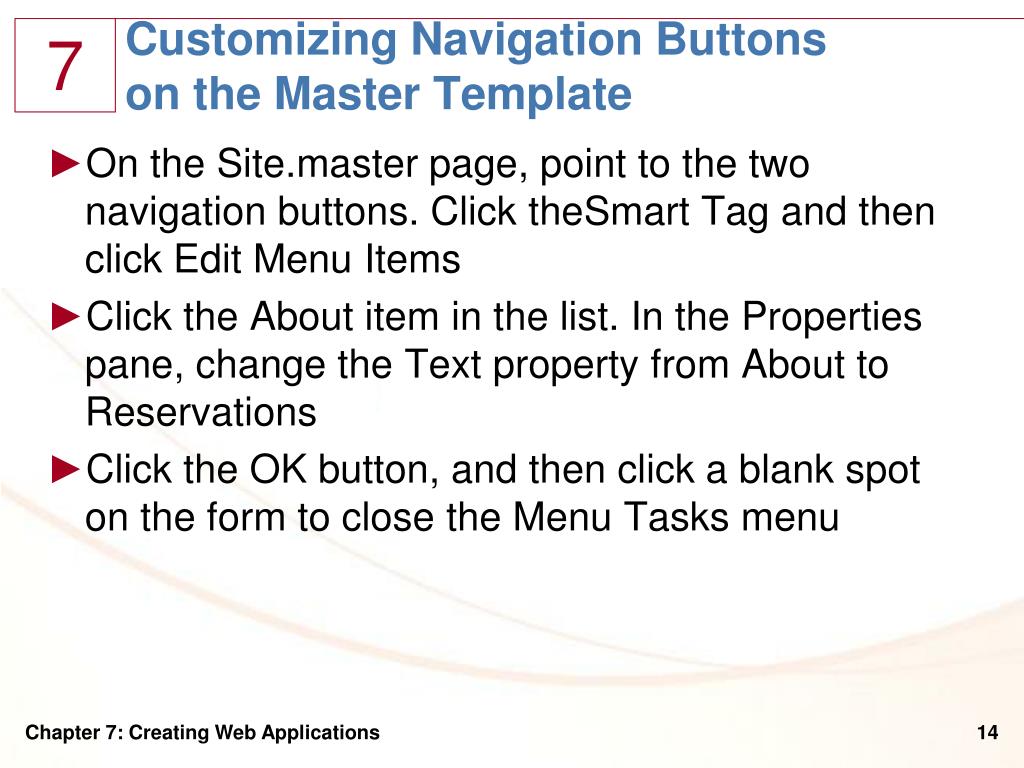

14. Customizing Navigation Buttons on the Master Template • On the Site.master page, point to the two navigation buttons. Click theSmartTag and then click Edit Menu Items • Click the About item in the list. In the Properties pane, change the Text property from About to Reservations • Click the OK button, and then click a blank spot on the form to close the Menu Tasks menu Chapter 7: Creating Web Applications

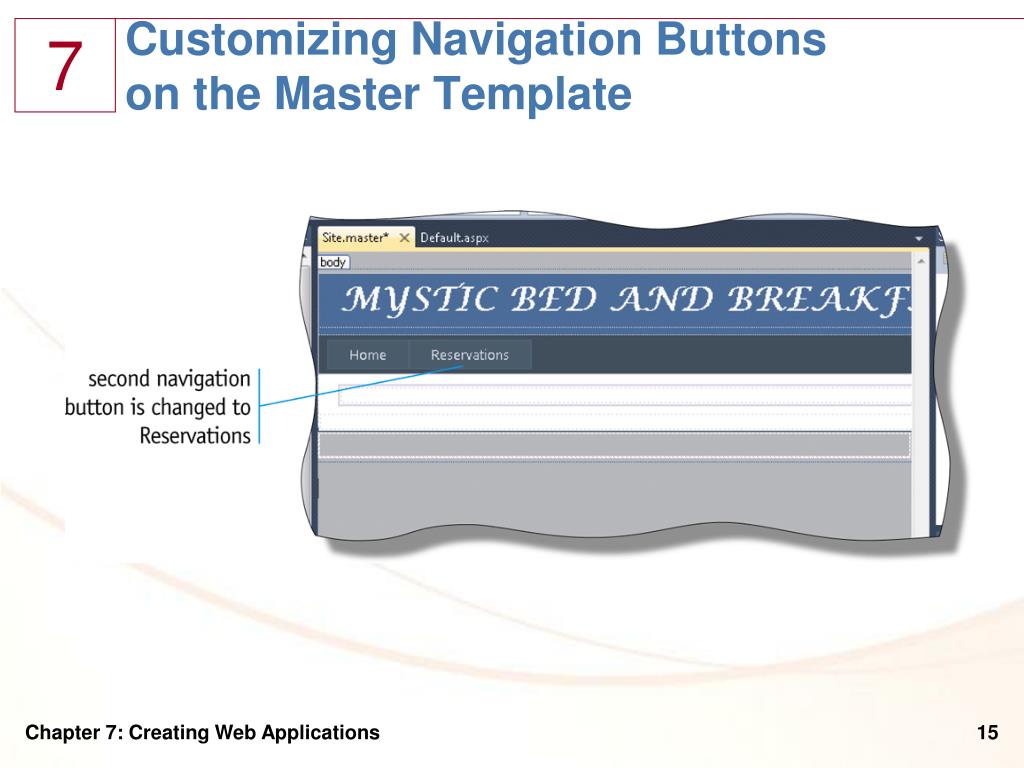

15. Customizing Navigation Buttons on the Master Template Chapter 7: Creating Web Applications

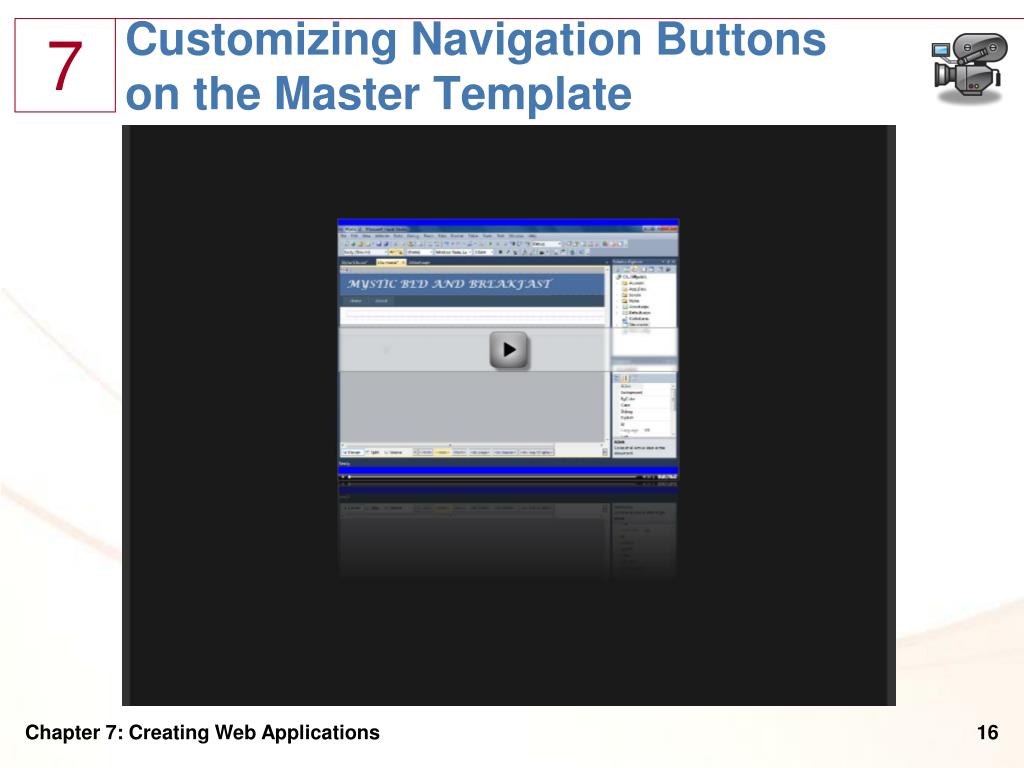

16. Customizing Navigation Buttons on the Master Template Chapter 7: Creating Web Applications

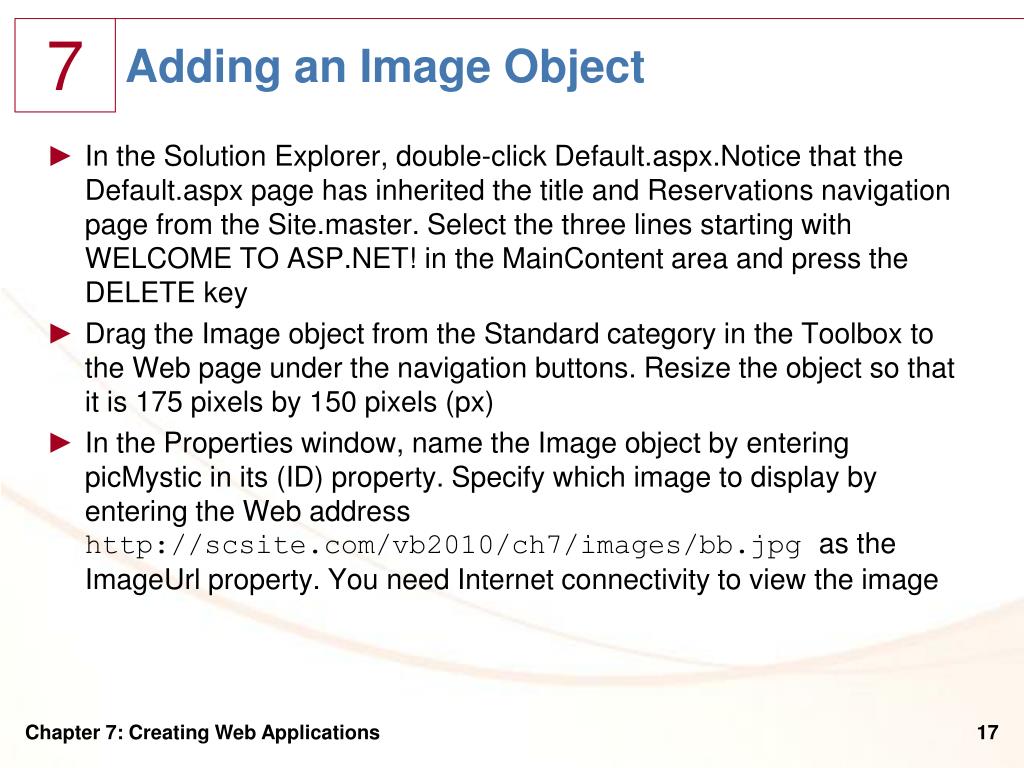

17. Adding an Image Object • In the Solution Explorer, double-click Default.aspx.Notice that the Default.aspx page has inherited the title and Reservations navigation page from the Site.master. Select the three lines starting with WELCOME TO ASP.NET! in the MainContentarea and press the DELETE key • Drag the Image object from the Standard category in the Toolbox to the Web page under the navigation buttons. Resize the object so that it is 175 pixels by 150 pixels (px) • In the Properties window, name the Image object by entering picMysticin its (ID) property. Specify which image to display by entering the Web address http://scsite.com/vb2010/ch7/images/bb.jpg as the ImageUrlproperty. You need Internet connectivity to view the image Chapter 7: Creating Web Applications

18. Adding an Image Object Chapter 7: Creating Web Applications

19. Adding an Image Object Chapter 7: Creating Web Applications

20. Entering Text Directly on the Web Form • Click to the right of the Image object and type in all caps WELCOME TO THE OLDEST LIGHTHOUSE BED AND BREAKFAST directly on the Default.aspx page. Select the typed text and change the font size on the Formatting toolbar to x-large. Click a blank spot on the form to deselect the text • To change the vertical alignment, select the text, click the Style property, and then click the ellipsis button to the right of the Style property in the Properties window. In the Category pane of the Modify Style dialog box, click Block. In the vertical-align drop box, select top Chapter 7: Creating Web Applications

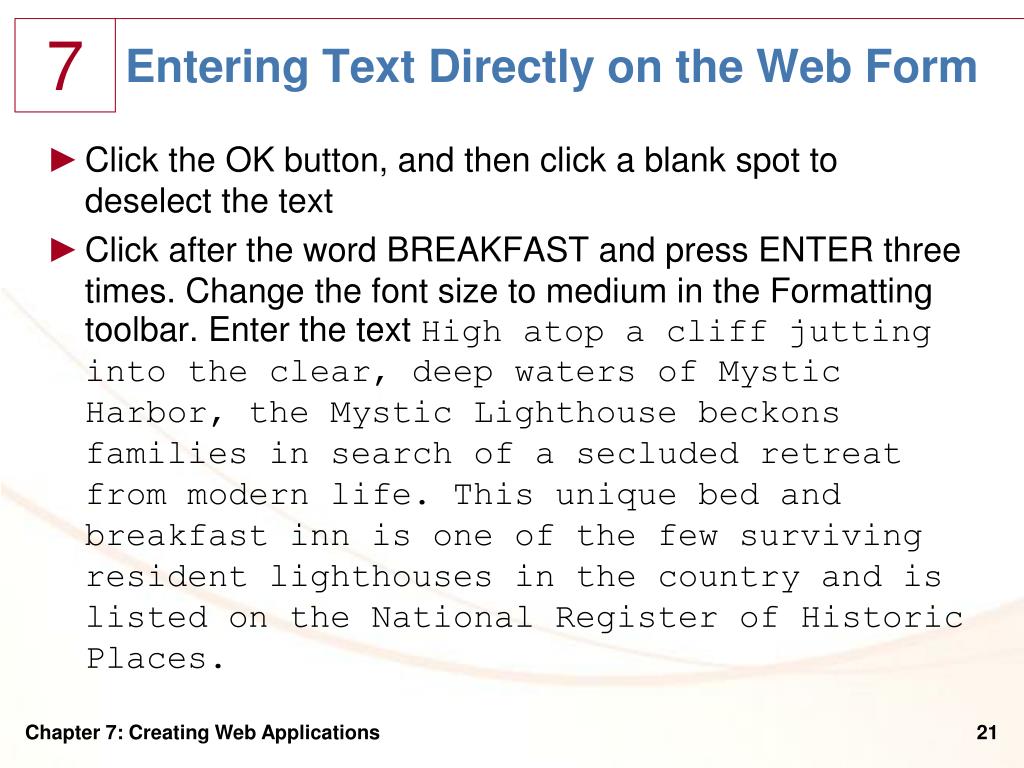

21. Entering Text Directly on the Web Form • Click the OK button, and then click a blank spot to deselect the text • Click after the word BREAKFAST and press ENTER three times. Change the font size to medium in the Formatting toolbar. Enter the text High atop a cliff jutting into the clear, deep waters of Mystic Harbor, the Mystic Lighthouse beckons families in search of a secluded retreat from modern life. This unique bed and breakfast inn is one of the few surviving resident lighthouses in the country and is listed on the National Register of Historic Places. Chapter 7: Creating Web Applications

22. Entering Text Directly on the Web Form Chapter 7: Creating Web Applications

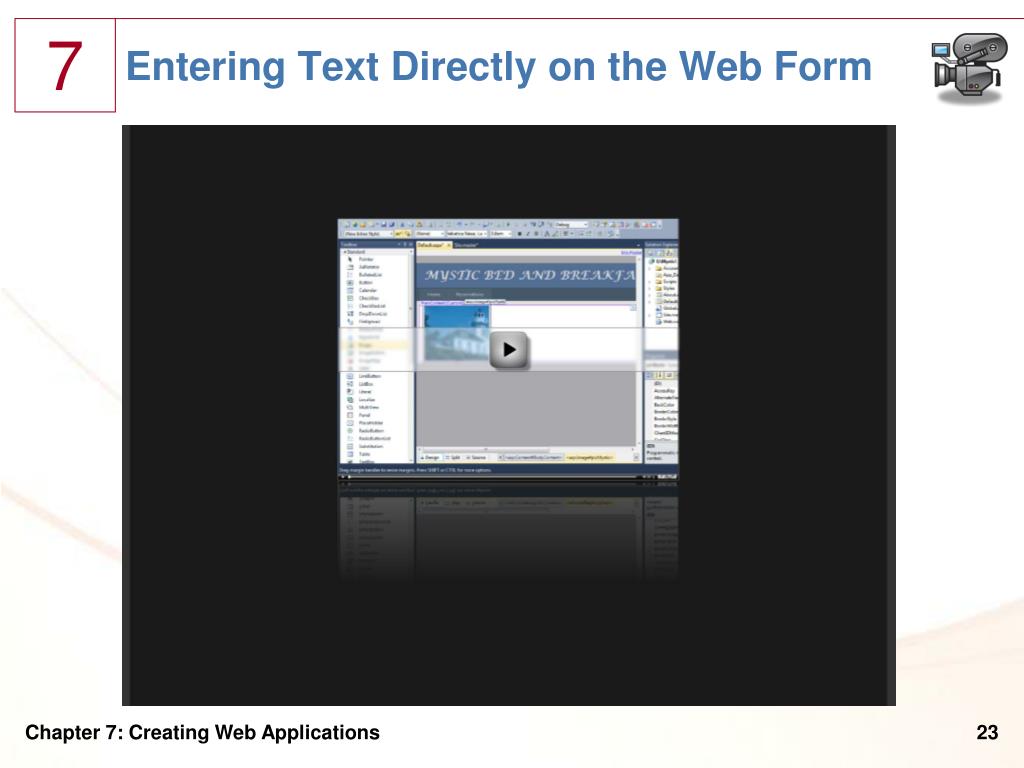

23. Entering Text Directly on the Web Form Chapter 7: Creating Web Applications

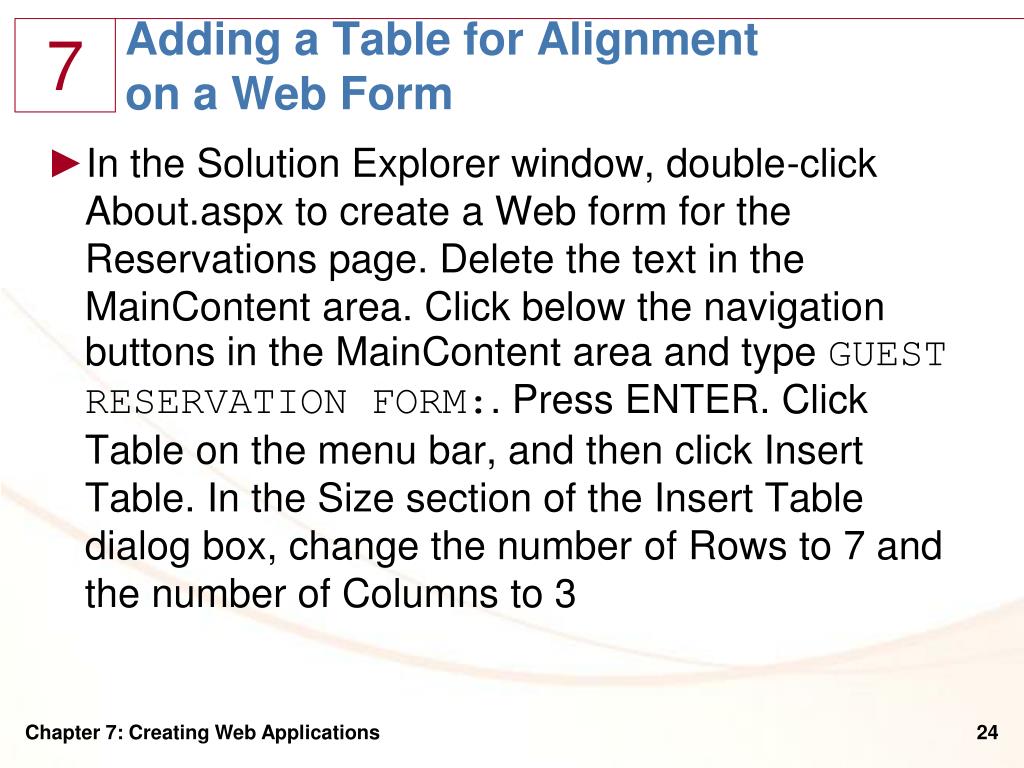

24. Adding a Table for Alignment on a Web Form • In the Solution Explorer window, double-click About.aspx to create a Web form for the Reservations page. Delete the text in the MainContent area. Click below the navigation buttons in the MainContent area and type GUEST RESERVATION FORM:. Press ENTER. Click Table on the menu bar, and then click Insert Table. In the Size section of the Insert Table dialog box, change the number of Rows to 7 and the number of Columns to 3 Chapter 7: Creating Web Applications

25. Adding a Table for Alignment on a Web Form • Click the OK button. To resize the columns, point to a column divider until a two-sided arrow appears. Drag the divider to change the column width. As you drag, a ScreenTip shows the width of the column in pixels. Resize the first column until it is 150 px wide. Resize the second column to 250 px wide Chapter 7: Creating Web Applications

26. Adding a Table for Alignment on a Web Form Chapter 7: Creating Web Applications

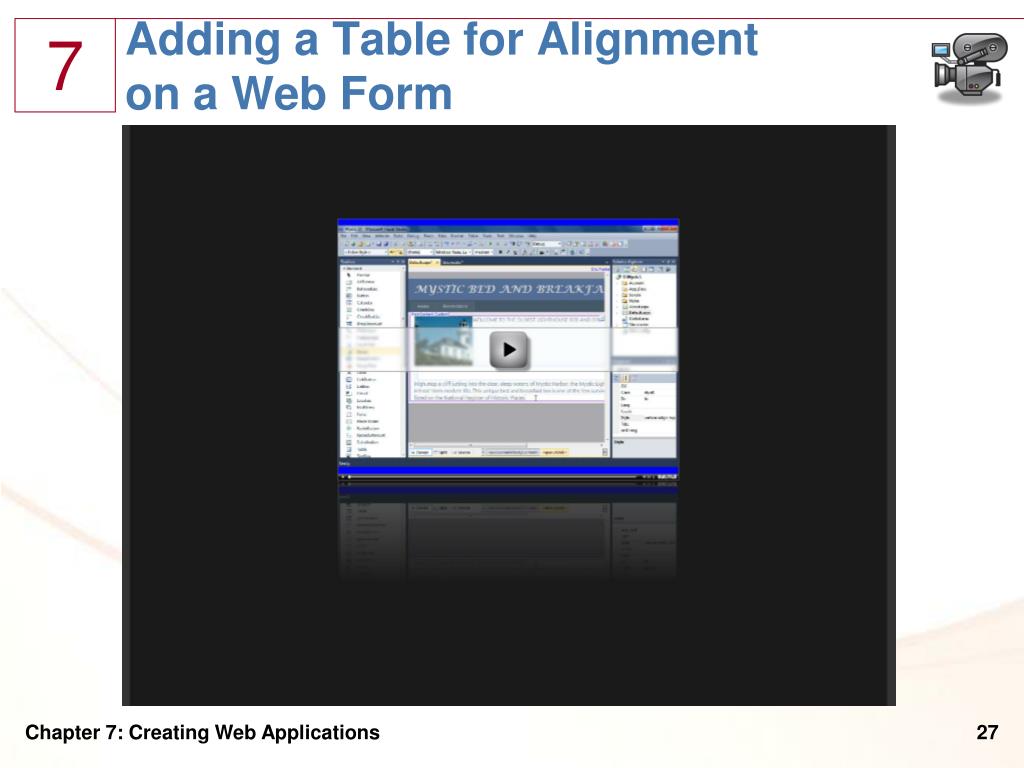

27. Adding a Table for Alignment on a Web Form Chapter 7: Creating Web Applications

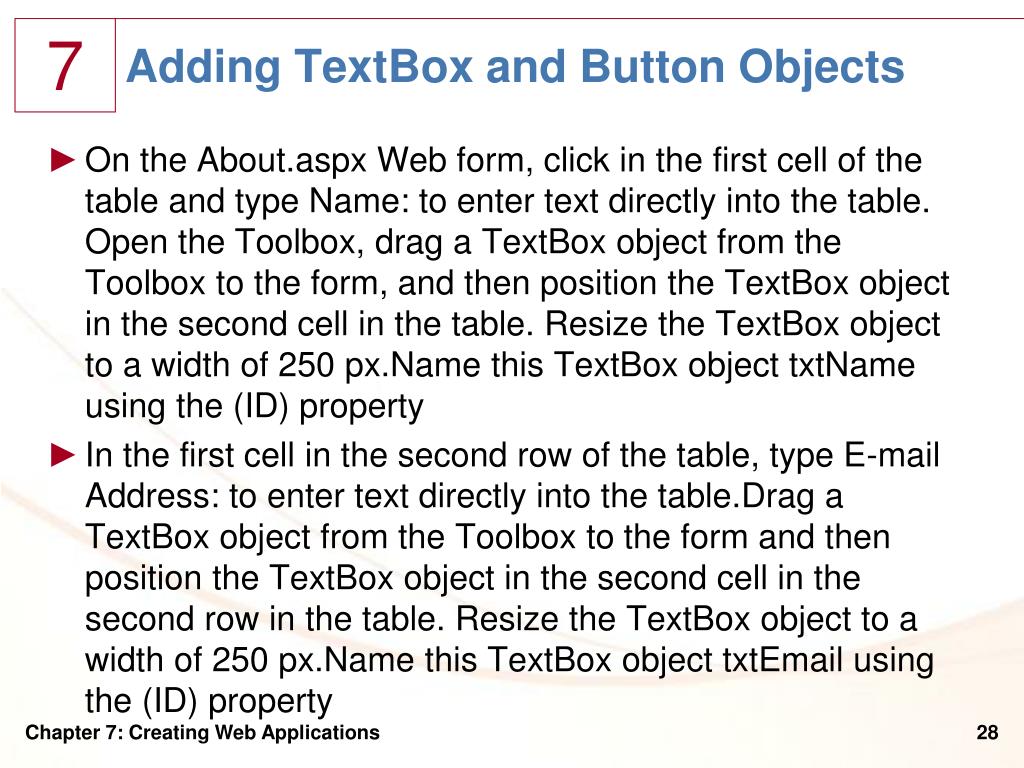

28. Adding TextBox and Button Objects • On the About.aspx Web form, click in the first cell of the table and type Name: to enter text directly into the table. Open the Toolbox, drag a TextBoxobject from the Toolbox to the form, and then position the TextBox object in the second cell in the table. Resize the TextBox object to a width of 250 px.Name this TextBox object txtName using the (ID) property • In the first cell in the second row of the table, type E-mail Address: to enter text directly into the table.Drag a TextBox object from the Toolbox to the form and then position the TextBox object in the second cell in the second row in the table. Resize the TextBox object to a width of 250 px.Name this TextBoxobject txtEmailusing the (ID) property Chapter 7: Creating Web Applications

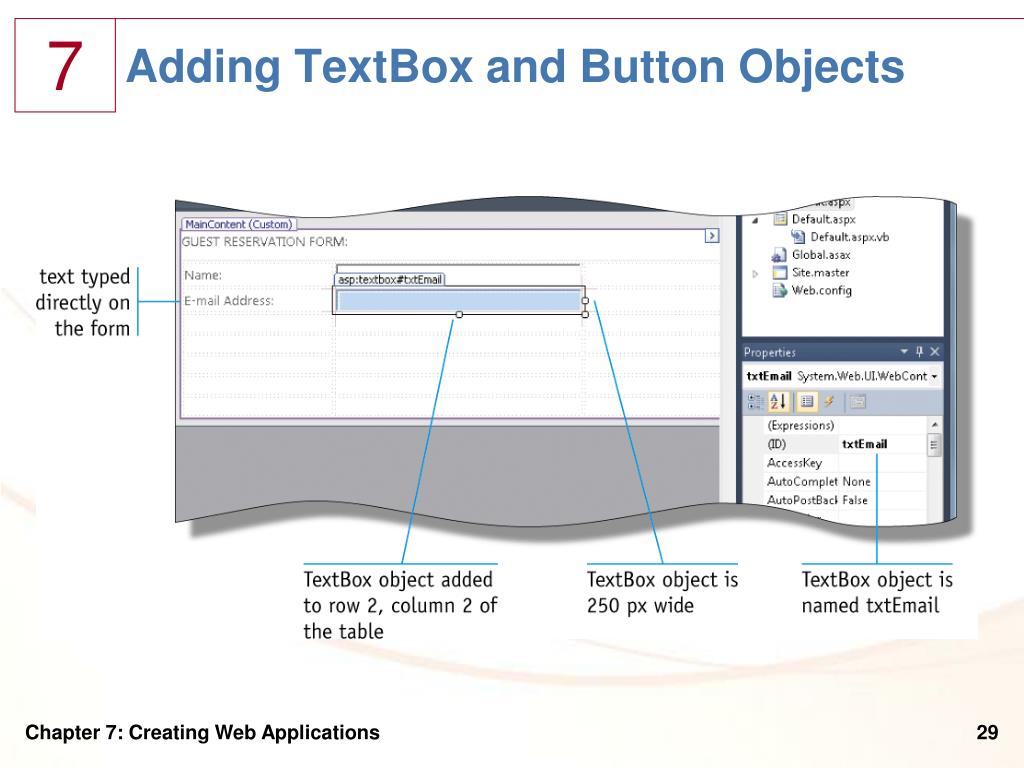

29. Adding TextBox and Button Objects Chapter 7: Creating Web Applications

30. Adding TextBox and Button Objects Chapter 7: Creating Web Applications

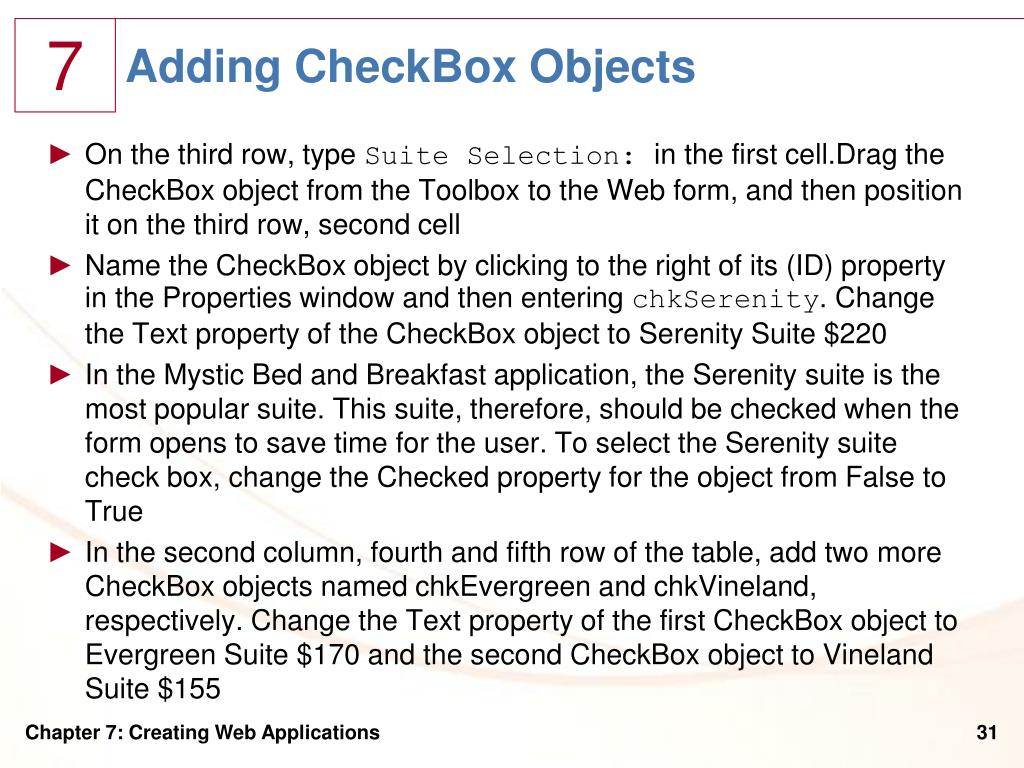

31. Adding CheckBox Objects • On the third row, type Suite Selection: in the first cell.Dragthe CheckBoxobject from the Toolbox to the Web form, and then position it on the third row, second cell • Name the CheckBox object by clicking to the right of its (ID) property in the Properties window and then entering chkSerenity. Change the Text property of the CheckBox object to Serenity Suite $220 • In the Mystic Bed and Breakfast application, the Serenity suite is the most popular suite. This suite, therefore, should be checked when the form opens to save time for the user. To select the Serenity suite check box, change the Checked property for the object from False to True • In the second column, fourth and fifth row of the table, add two more CheckBoxobjects named chkEvergreen and chkVineland, respectively. Change the Text property of the first CheckBox object to Evergreen Suite $170 and the second CheckBoxobject to Vineland Suite $155 Chapter 7: Creating Web Applications

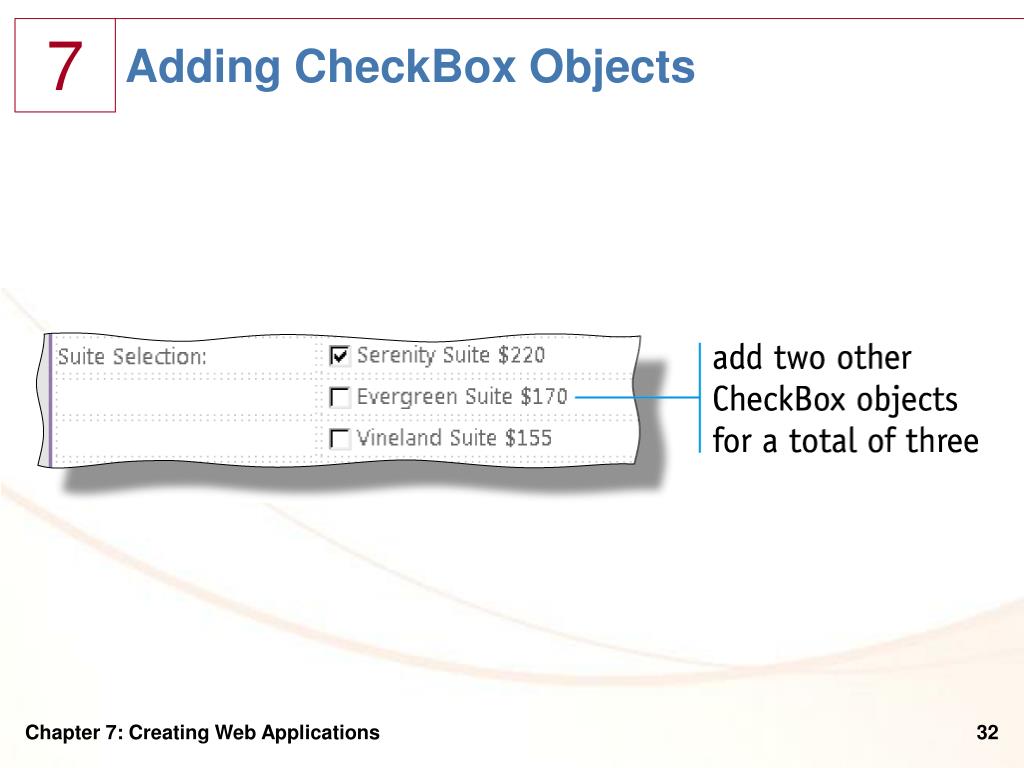

32. Adding CheckBox Objects Chapter 7: Creating Web Applications

33. Adding CheckBox Objects Chapter 7: Creating Web Applications

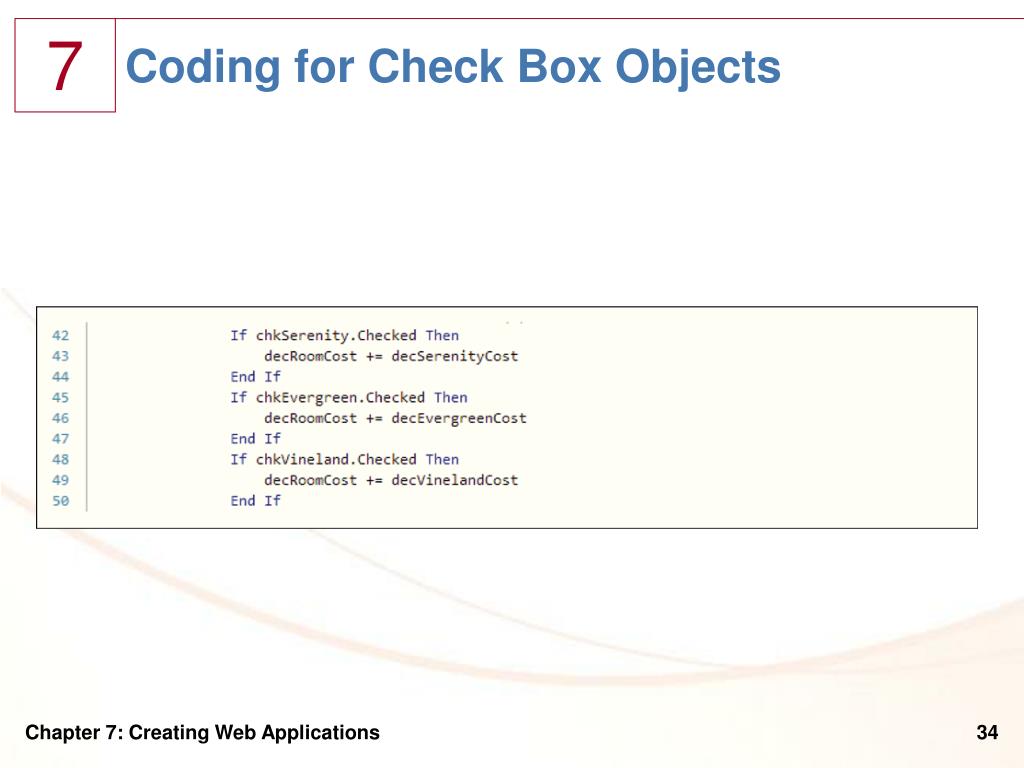

34. Coding for Check Box Objects Chapter 7: Creating Web Applications

35. Adding a DropDownList Object • In the sixth row of the table, type Night(s): in the first column. Drag the DropDownList object to the second column of the sixth row.Namethe DropDownListobject by clicking to the right of the (ID) property in the object’s Properties window and then typing ddlNights • To fill the DropDownList object with list items, click the Smart Tag on the upper-right corner of the object • Click Edit Items on the DropDownList Tasks menu Chapter 7: Creating Web Applications

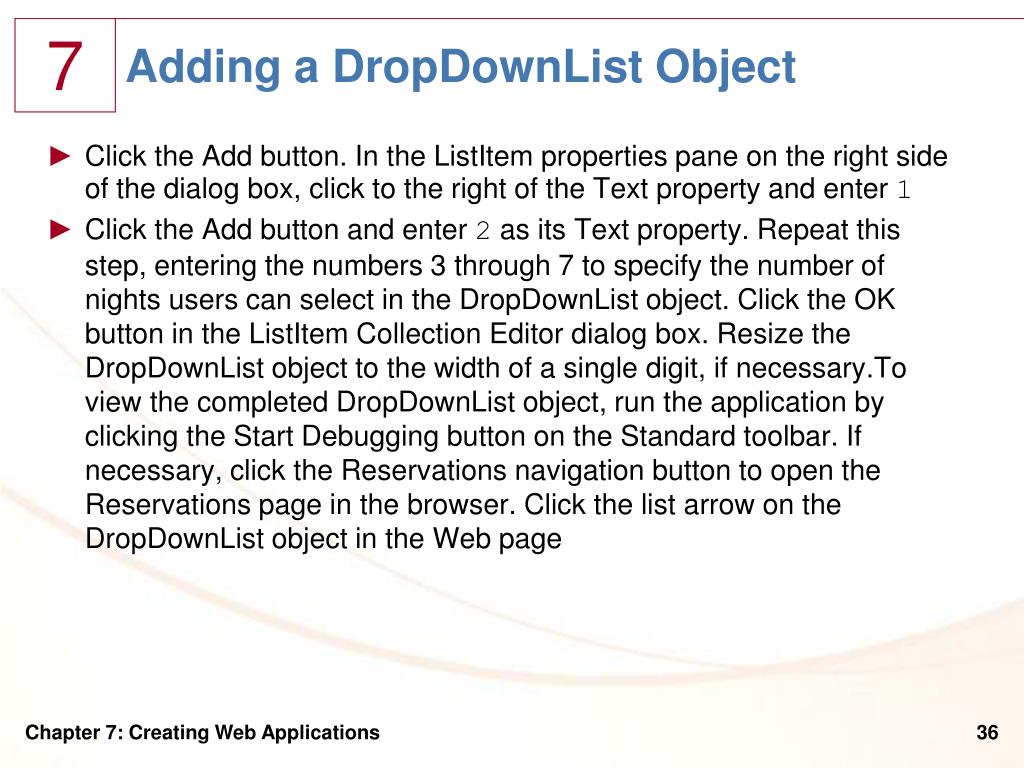

36. Adding a DropDownList Object • Click the Add button. In the ListItem properties pane on the right side of the dialog box, click to the right of the Text property and enter 1 • Click the Add button and enter 2 as its Text property. Repeat this step, entering the numbers 3 through 7 to specify the number of nights users can select in the DropDownList object. Click the OK button in the ListItemCollection Editor dialog box. Resize the DropDownList object to the width of a single digit, if necessary.To view the completed DropDownList object, run the application by clicking the Start Debugging button on the Standard toolbar. If necessary, click the Reservations navigation button to open the Reservations page in the browser. Click the list arrow on the DropDownList object in the Web page Chapter 7: Creating Web Applications

37. Adding a DropDownList Object Chapter 7: Creating Web Applications

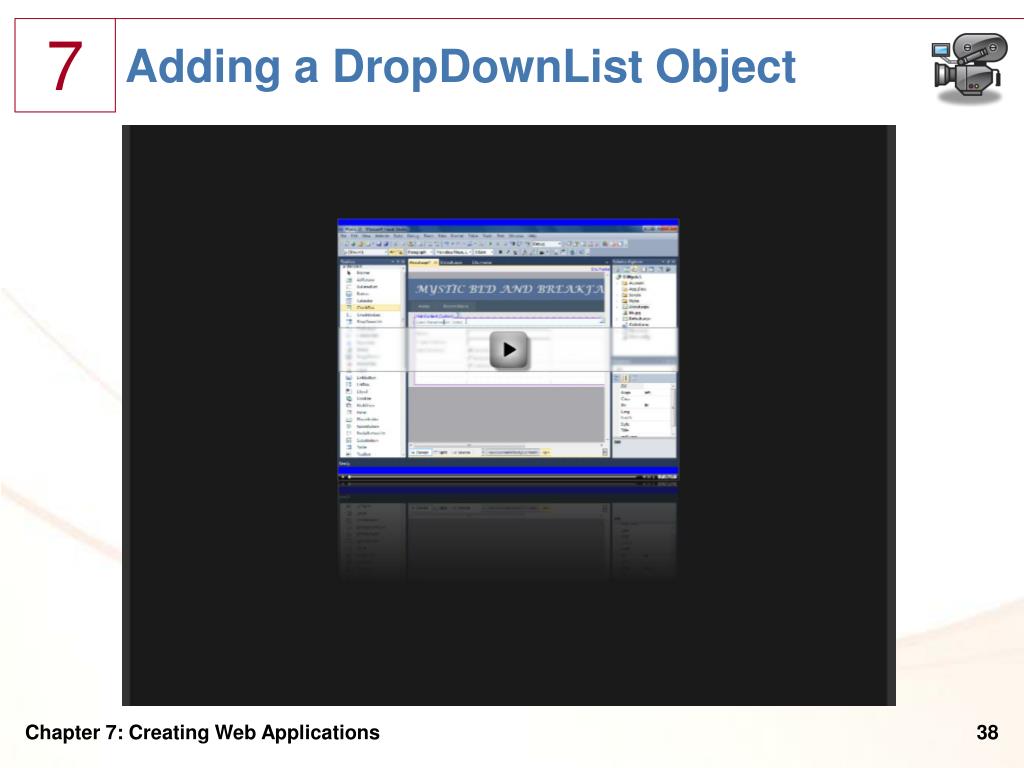

38. Adding a DropDownList Object Chapter 7: Creating Web Applications

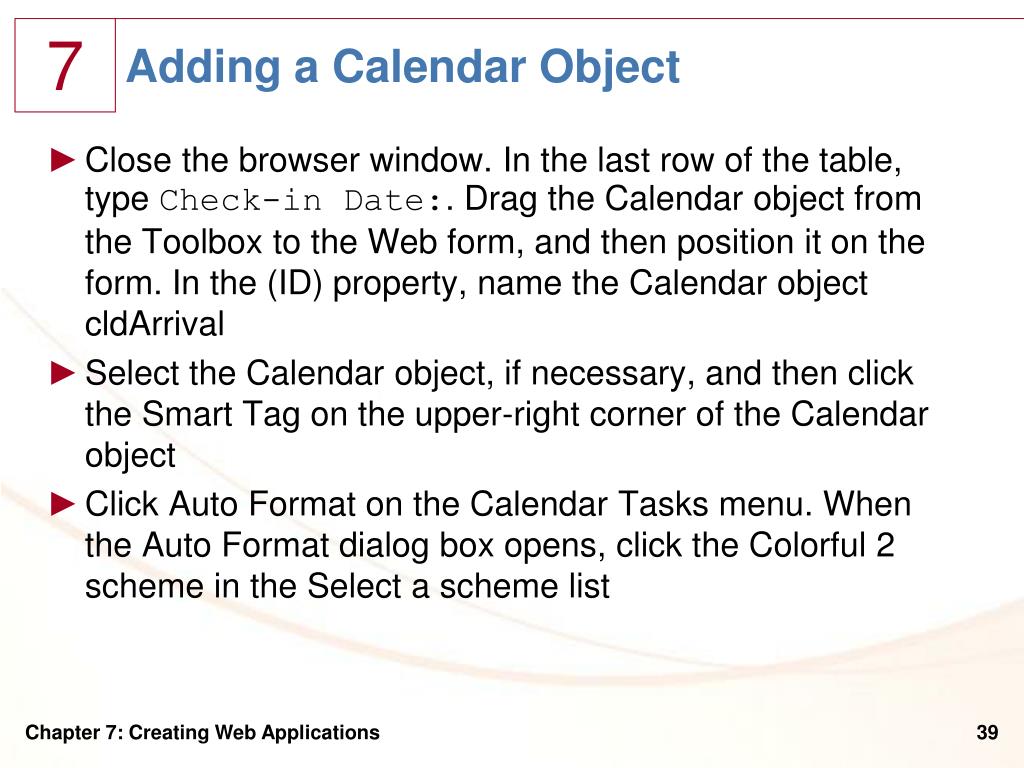

39. Adding a Calendar Object • Close the browser window. In the last row of the table, type Check-in Date:. Drag the Calendar object from the Toolbox to the Web form, and then position it on the form. In the (ID) property, name the Calendar object cldArrival • Select the Calendar object, if necessary, and then click the Smart Tag on the upper-right corner of the Calendar object • Click Auto Format on the Calendar Tasks menu. When the Auto Format dialog box opens, click the Colorful 2 scheme in the Select a scheme list Chapter 7: Creating Web Applications

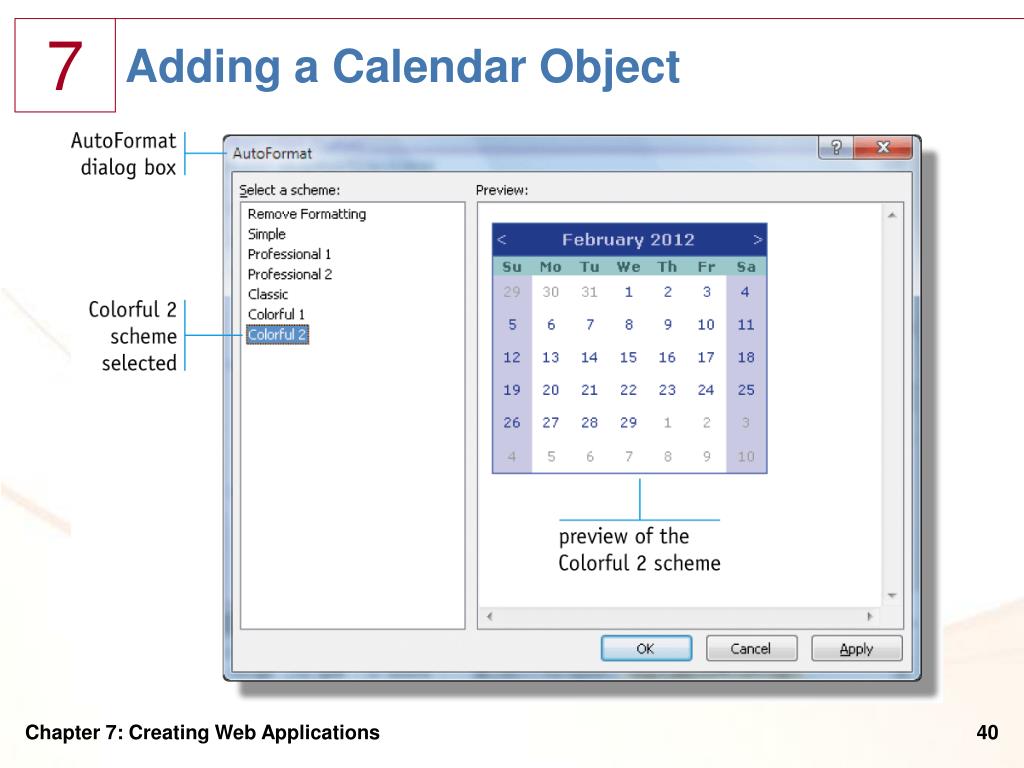

40. Adding a Calendar Object Chapter 7: Creating Web Applications

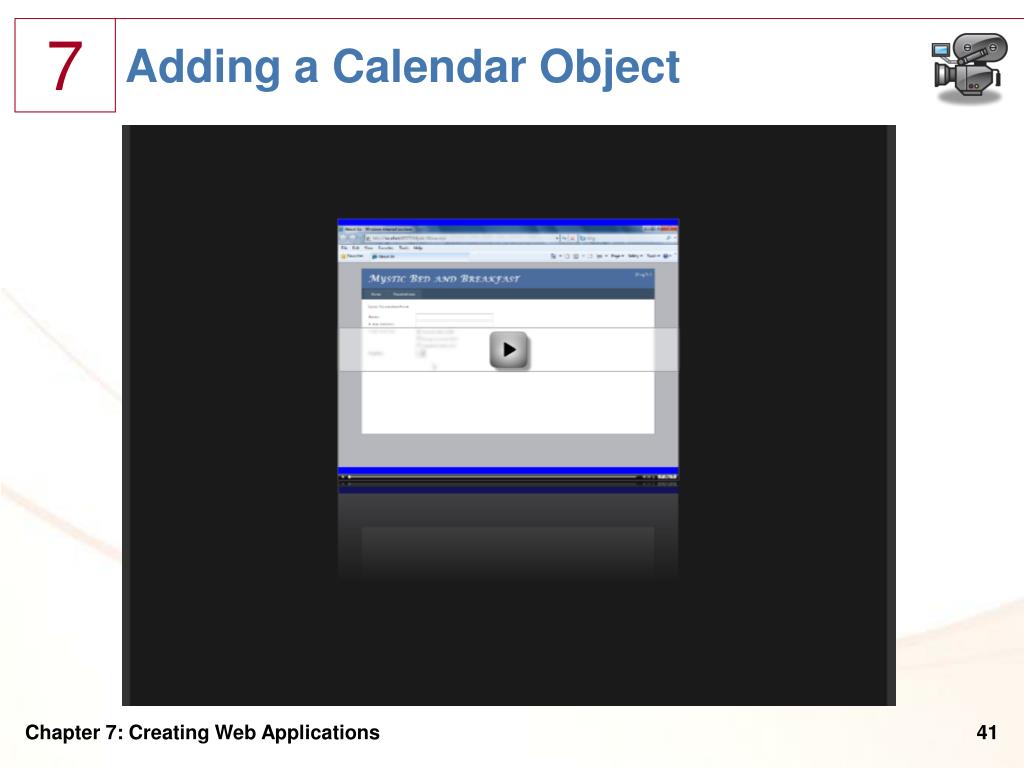

41. Adding a Calendar Object Chapter 7: Creating Web Applications

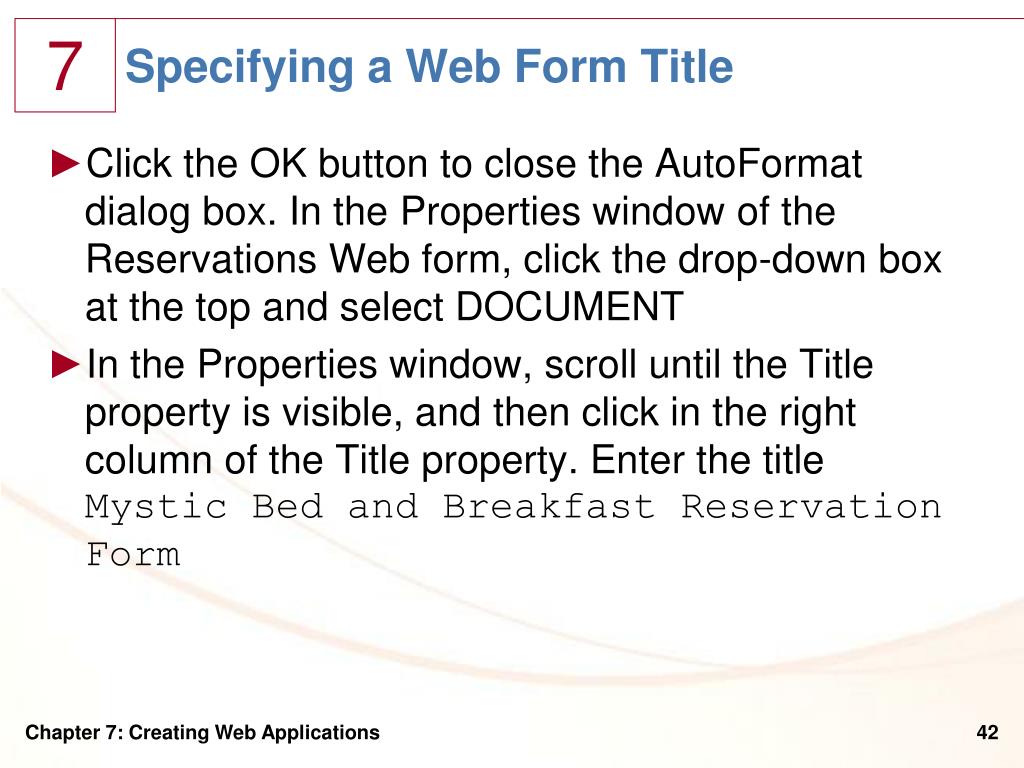

42. Specifying a Web Form Title • Click the OK button to close the AutoFormat dialog box. In the Properties window of the Reservations Web form, click the drop-down box at the top and select DOCUMENT • In the Properties window, scroll until the Title property is visible, and then click in the right column of the Title property. Enter the title Mystic Bed and Breakfast Reservation Form Chapter 7: Creating Web Applications

43. Specifying a Web Form Title Chapter 7: Creating Web Applications

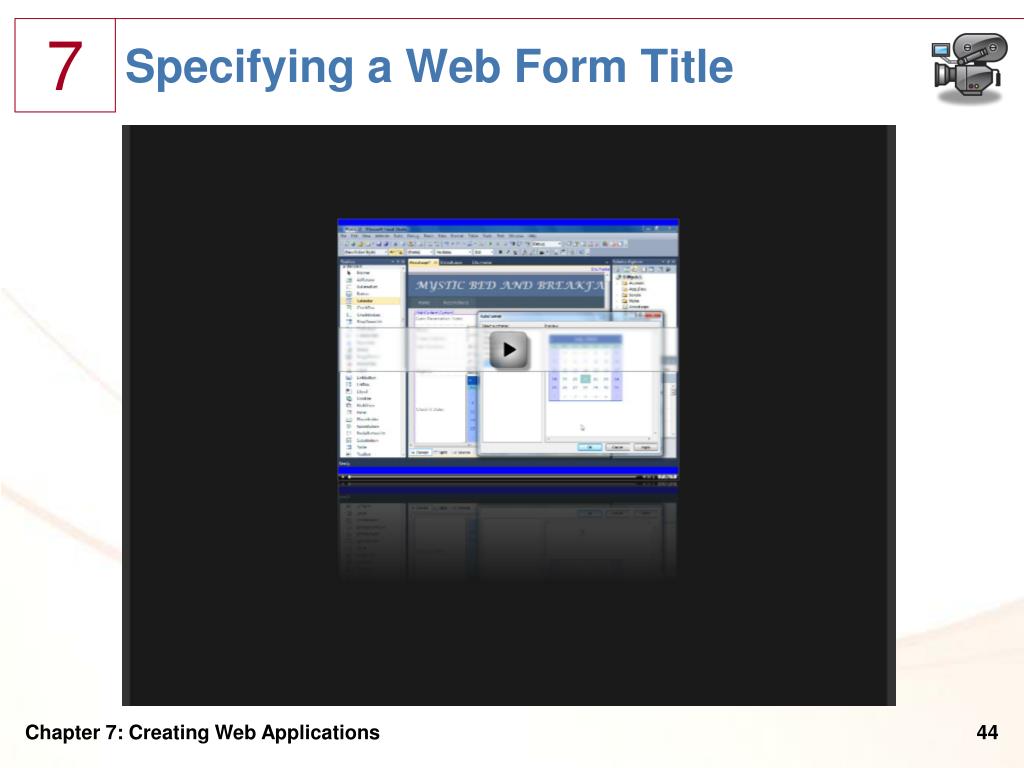

44. Specifying a Web Form Title Chapter 7: Creating Web Applications

45. Code for a Calendar Object Chapter 7: Creating Web Applications

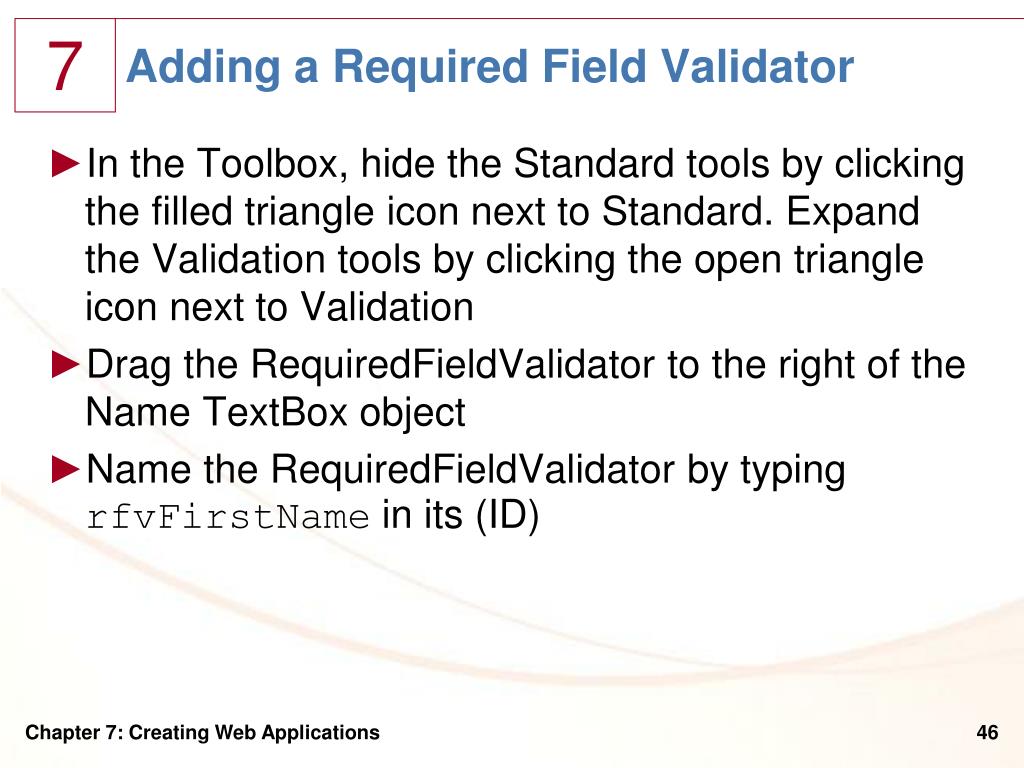

46. Adding a Required Field Validator • In the Toolbox, hide the Standard tools by clicking the filled triangle icon next to Standard. Expand the Validation tools by clicking the open triangle icon next to Validation • Drag the RequiredFieldValidator to the right of the Name TextBox object • Name the RequiredFieldValidator by typing rfvFirstName in its (ID) Chapter 7: Creating Web Applications

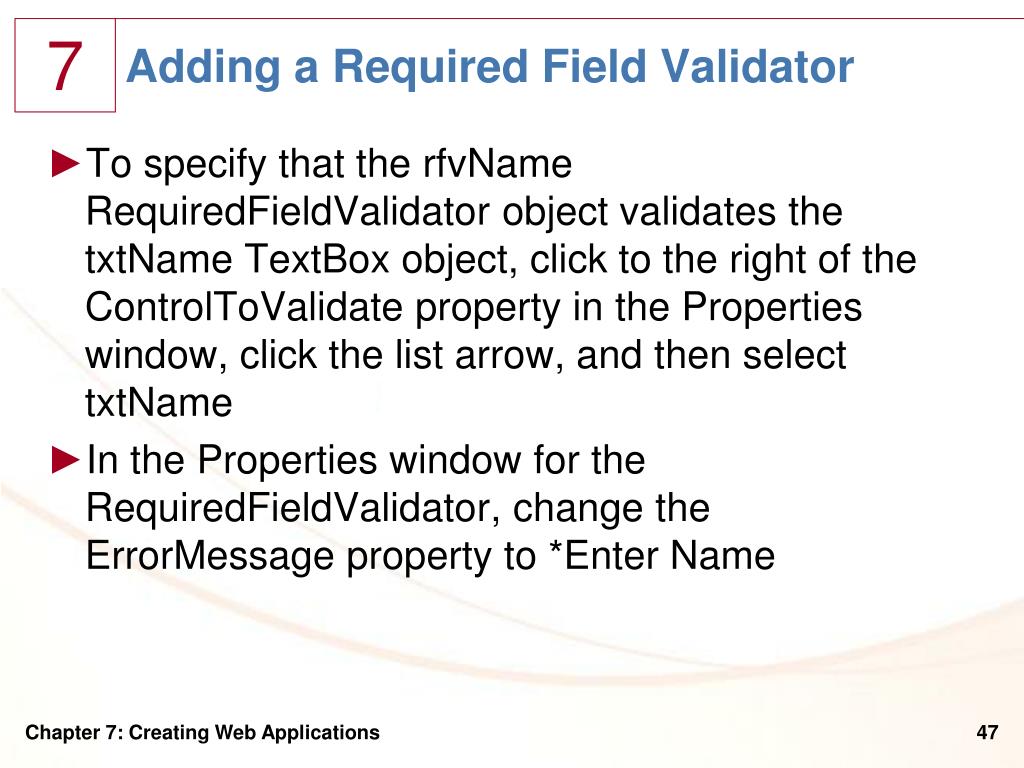

47. Adding a Required Field Validator • To specify that the rfvNameRequiredFieldValidator object validates the txtNameTextBox object, click to the right of the ControlToValidate property in the Properties window, click the list arrow, and then select txtName • In the Properties window for the RequiredFieldValidator, change the ErrorMessageproperty to *Enter Name Chapter 7: Creating Web Applications

48. Adding a Required Field Validator Chapter 7: Creating Web Applications

49. Adding a Required Field Validator Chapter 7: Creating Web Applications

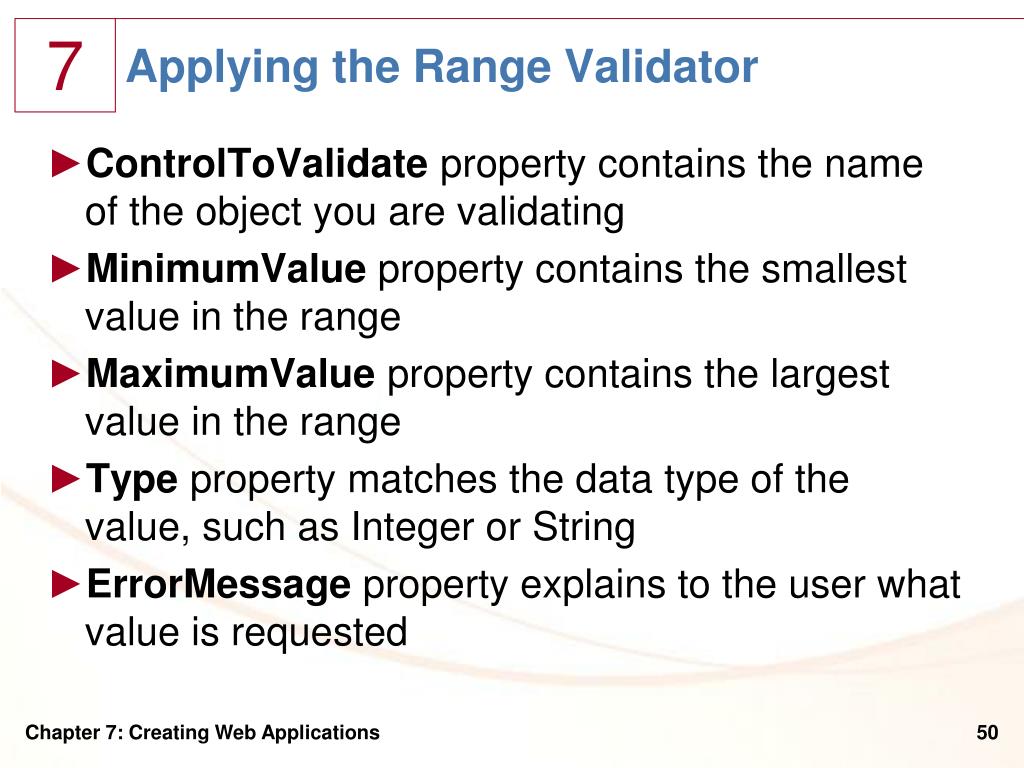

50. Applying the Range Validator • ControlToValidate property contains the name of the object you are validating • MinimumValueproperty contains the smallest value in the range • MaximumValueproperty contains the largest value in the range • Type property matches the data type of the value, such as Integer or String • ErrorMessageproperty explains to the user what value is requested Chapter 7: Creating Web Applications
