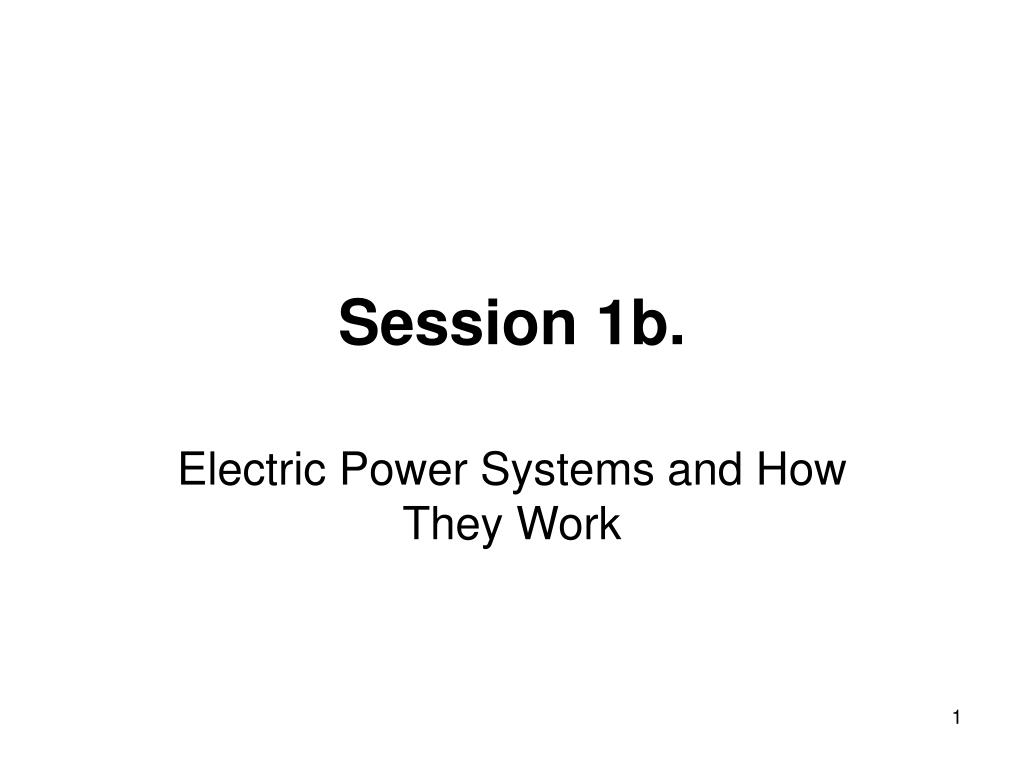

  1. Session 1b. Electric Power Systems and How They Work

  2. What really makes power flow ? • The amount of power flowing over the bulk power system is proportional to the difference between the power angles of the machines • Actually, proportional to the sine of the angle

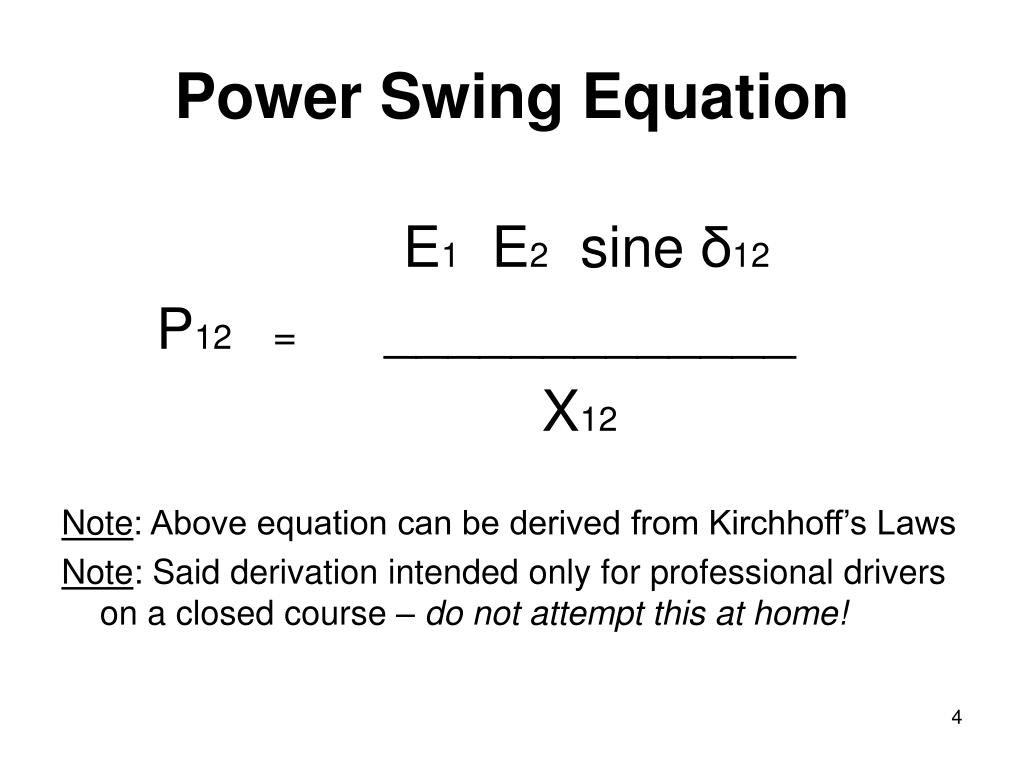

  3. Power Swing Equation E1 E2 sine δ12 P12 = _____________ X12 Note: Above equation can be derived from Kirchhoff’s Laws Note: Said derivation intended only for professional drivers on a closed course – do not attempt this at home!

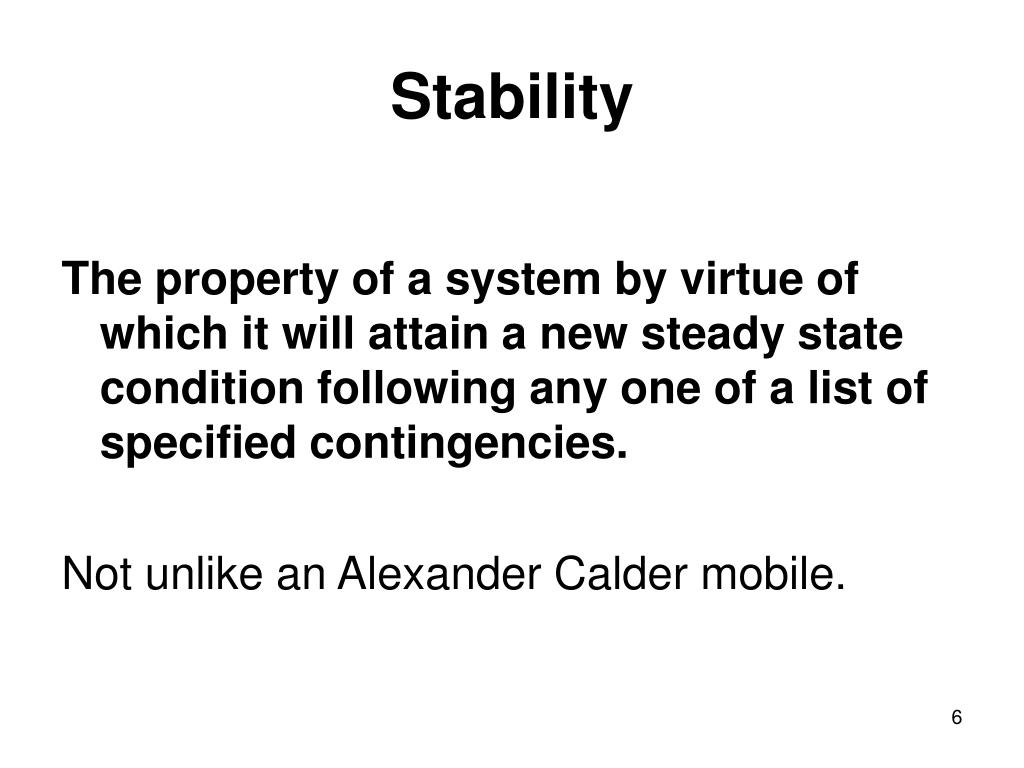

  4. Stability The property of a system by virtue of which it will attain a new steady state condition following any one of a list of specified contingencies. Not unlike an Alexander Calder mobile.

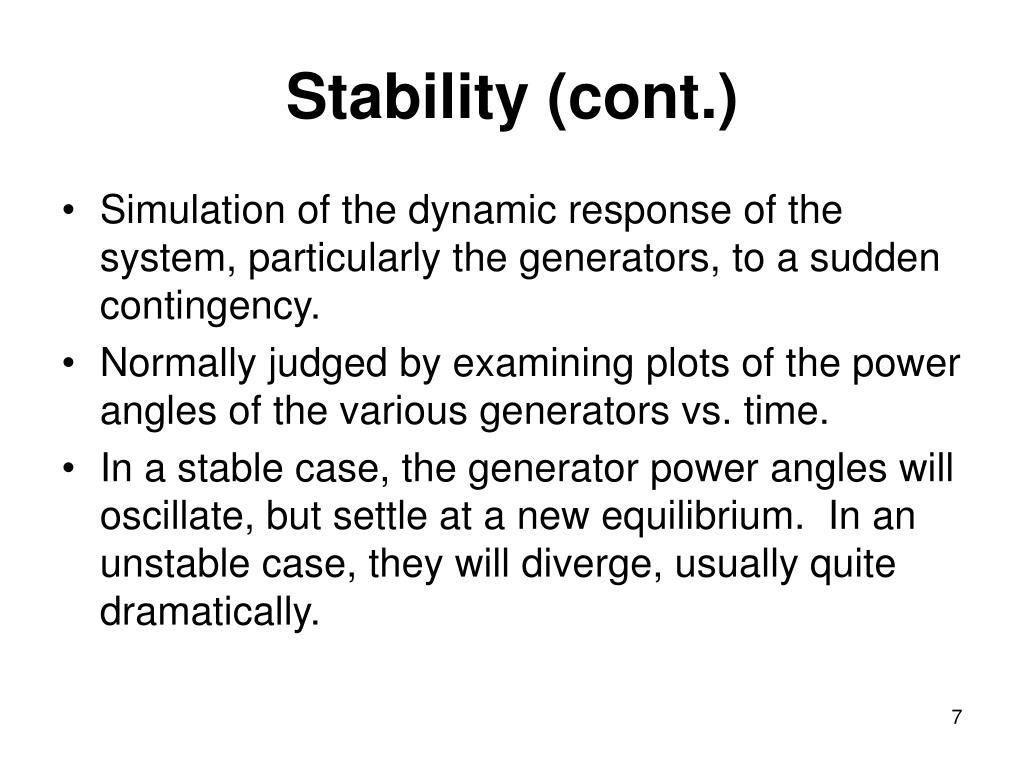

  5. Stability (cont.) • Simulation of the dynamic response of the system, particularly the generators, to a sudden contingency. • Normally judged by examining plots of the power angles of the various generators vs. time. • In a stable case, the generator power angles will oscillate, but settle at a new equilibrium. In an unstable case, they will diverge, usually quite dramatically.

  6. Electric Systems of Pangaea

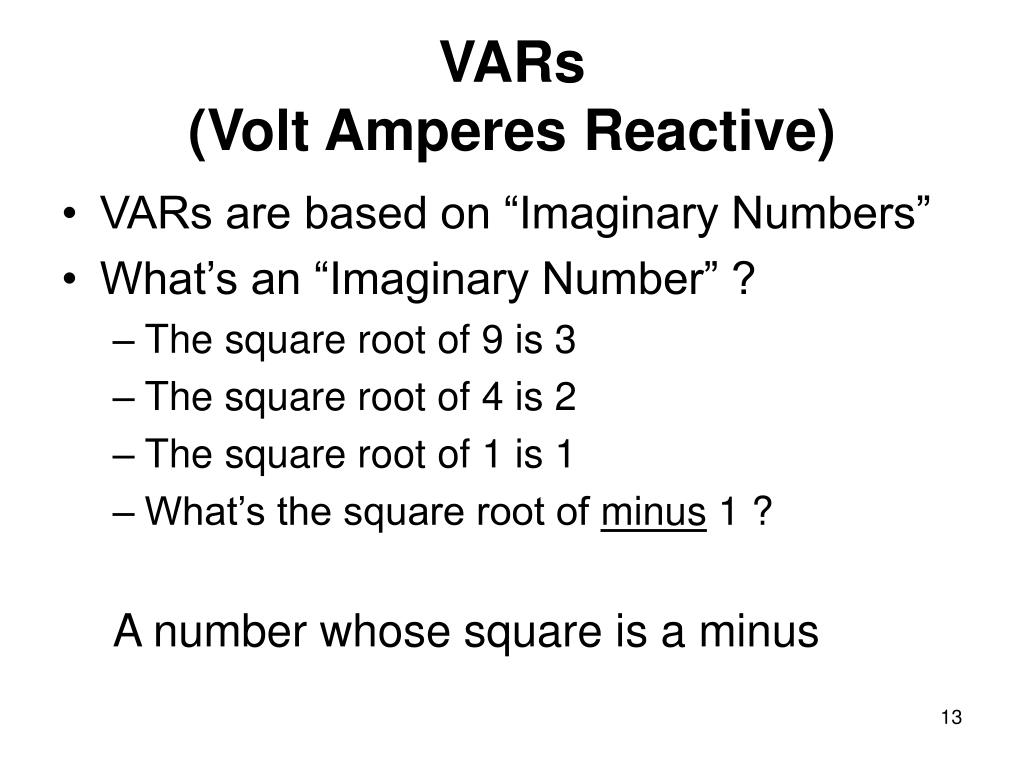

  7. VARs (Volt Amperes Reactive) • VARs are based on “Imaginary Numbers” • What’s an “Imaginary Number” ? • The square root of 9 is 3 • The square root of 4 is 2 • The square root of 1 is 1 • What’s the square root of minus 1 ? A number whose square is a minus

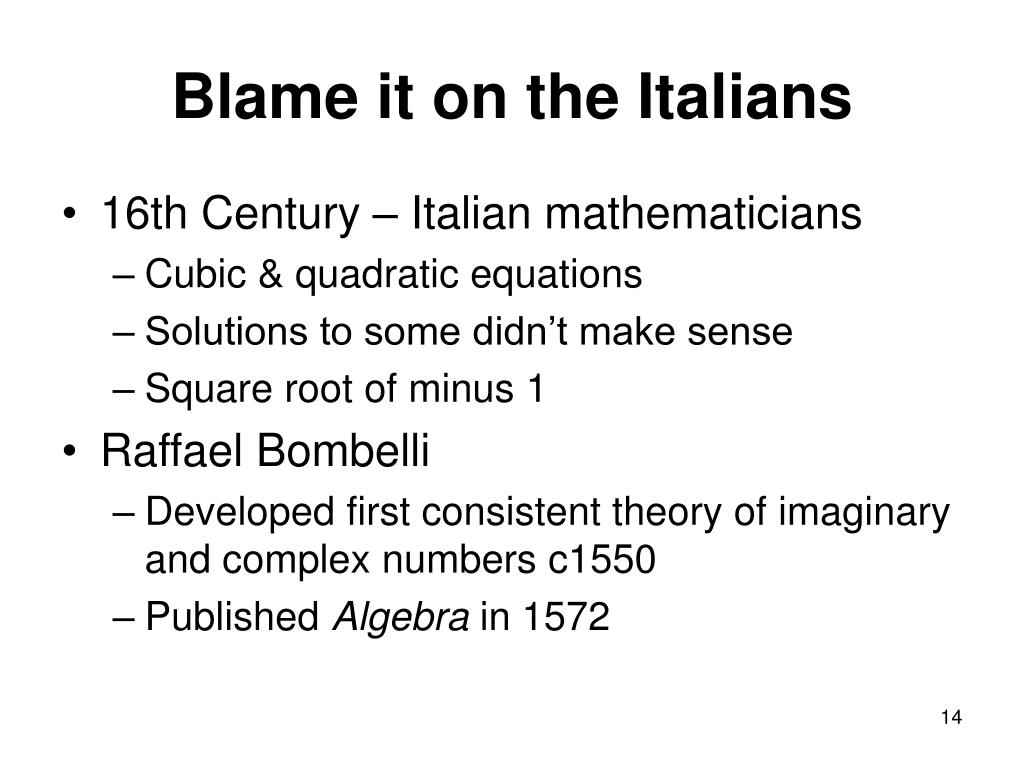

  8. Blame it on the Italians • 16th Century – Italian mathematicians • Cubic & quadratic equations • Solutions to some didn’t make sense • Square root of minus 1 • Raffael Bombelli • Developed first consistent theory of imaginary and complex numbers c1550 • Published Algebra in 1572

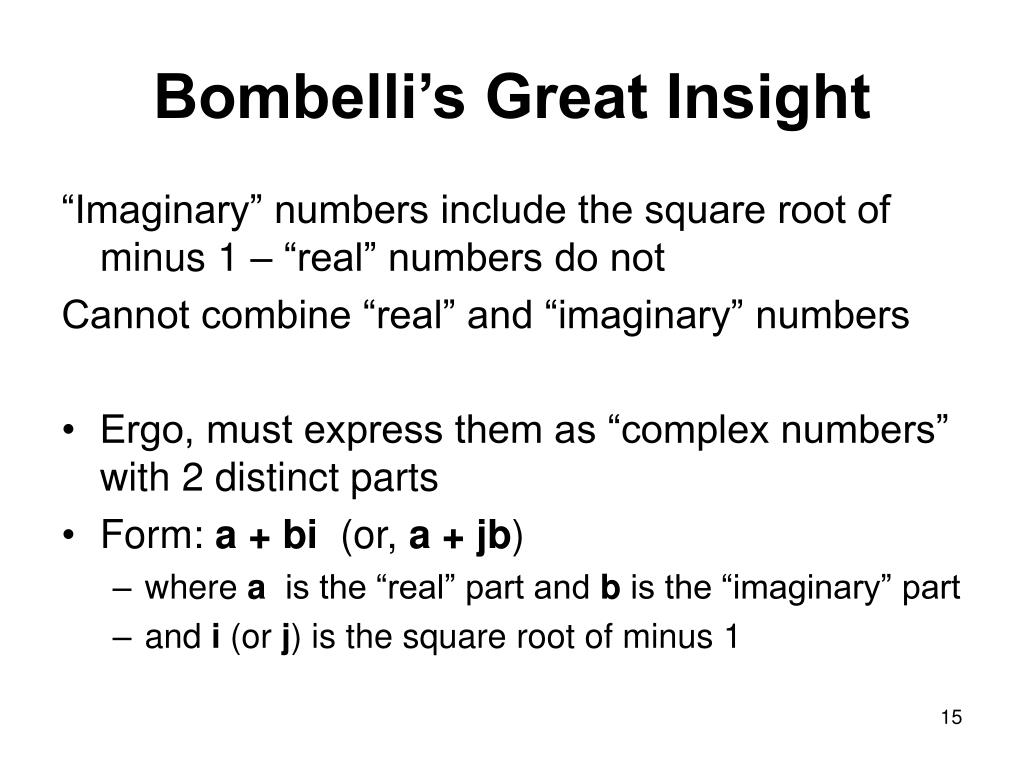

  9. Bombelli’s Great Insight “Imaginary” numbers include the square root of minus 1 – “real” numbers do not Cannot combine “real” and “imaginary” numbers • Ergo, must express them as “complex numbers” with 2 distinct parts • Form: a + bi (or, a + jb) • where a is the “real” part and b is the “imaginary” part • and i (or j) is the square root of minus 1

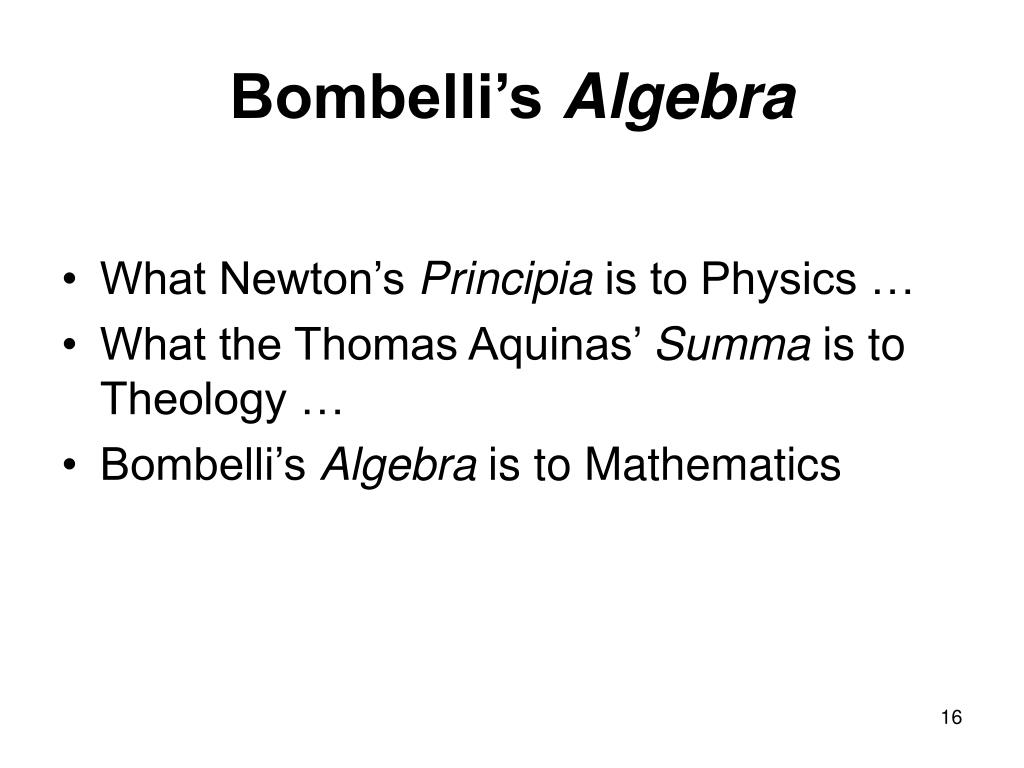

  10. Bombelli’s Algebra • What Newton’s Principia is to Physics … • What the Thomas Aquinas’ Summa is to Theology … • Bombelli’s Algebra is to Mathematics

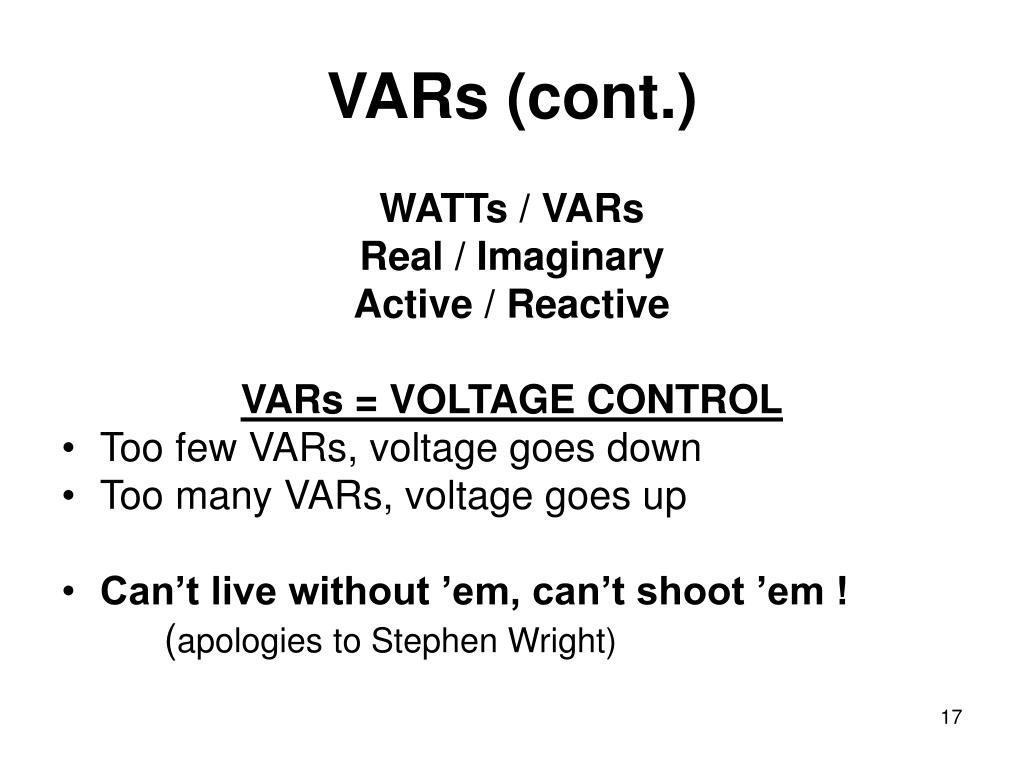

  11. VARs (cont.) WATTs / VARs Real / Imaginary Active / Reactive VARs = VOLTAGE CONTROL • Too few VARs, voltage goes down • Too many VARs, voltage goes up • Can’t live without ’em, can’t shoot ’em ! (apologies to Stephen Wright)

  12. VARs (cont.) • Need VARs all along the way • Can’t move WATTs without VARs • VARs don’t travel well • Generally, they need to be produced locally • That’s because X >> R • “You want VARs with that?”

  13. Transmission LossesExamples New York “Central East” • 1 – 765 kV line operated at 345 kV • 1 – 345 kV line • 2 – 230 kV lines, a number of 115 kV lines At interface loading of about 3000 MW, losses are: • 87.7 MW • 861 MVAR (717 net after line charging) Typical ECAR (Ohio Valley) to NPCC • Incr. MW losses about 10% of incr. transfer

  14. Where do VARs Come From?(And Where do they Go to Die?) VARs are produced by : • generators & synchronous condensers • capacitors (or capacitor banks) • transmission lines (capacitive effect – “line charging”) VARs are consumed by : • the customers’ electrical load • series reactors • transmission lines (inductance – creates magnetic field) • generators & synchronous condensers French blackout – 12/7/78 – insufficient VARs

  15. VAR Analogies VARs are like your brother-in-law; they do no work. But, unlike your brother-in-law, they’re absolutely essential. • Steam locomotive • Dyeing fabric • Carrier wave • Telephone poles • Head on the beer (?) • Pushing car across inclined plane

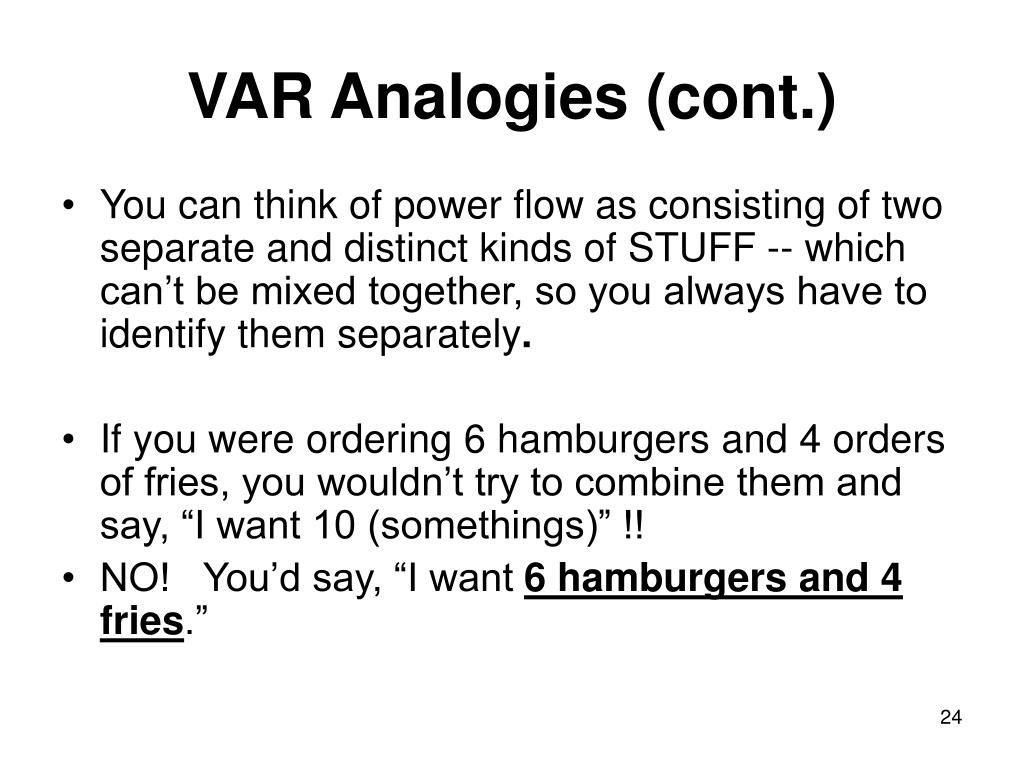

  16. VAR Analogies (cont.) • You can think of power flow as consisting of two separate and distinct kinds of STUFF -- which can’t be mixed together, so you always have to identify them separately. • If you were ordering 6 hamburgers and 4 orders of fries, you wouldn’t try to combine them and say, “I want 10 (somethings)” !! • NO! You’d say, “I want 6 hamburgers and 4 fries.”

  17. Loehr’s First Law • VARs roll down the voltage hill • They flow in accordance with differences in voltage magnitude • WATTs roll down the angle hill • They flow in accordance with differences in voltage angle

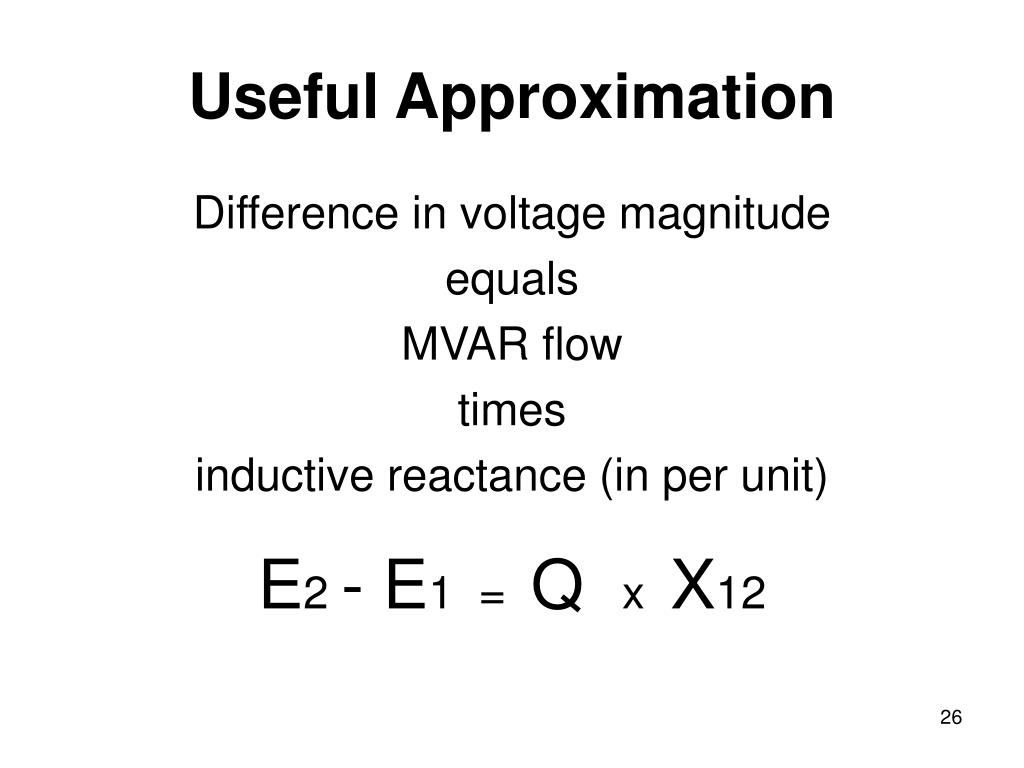

  18. Useful Approximation Difference in voltage magnitude equals MVAR flow times inductive reactance (in per unit) E2 - E1 = Q x X12

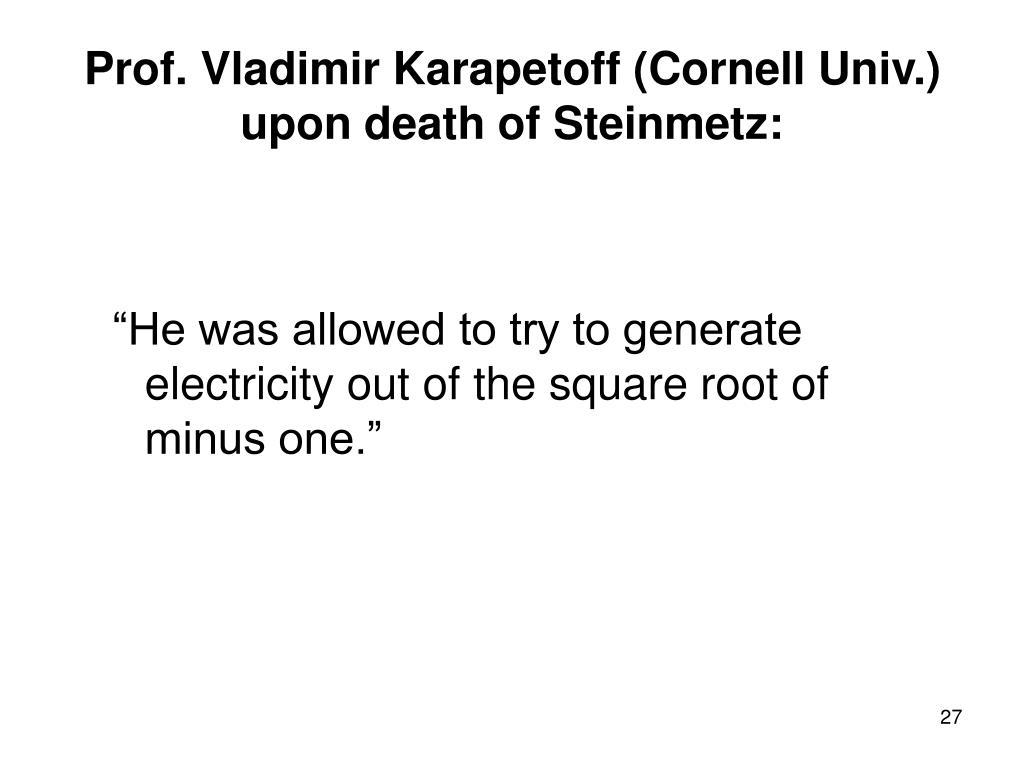

  19. Prof. Vladimir Karapetoff (Cornell Univ.) upon death of Steinmetz: “He was allowed to try to generate electricity out of the square root of minus one.”
