  1. Introduction to Biotechnology!

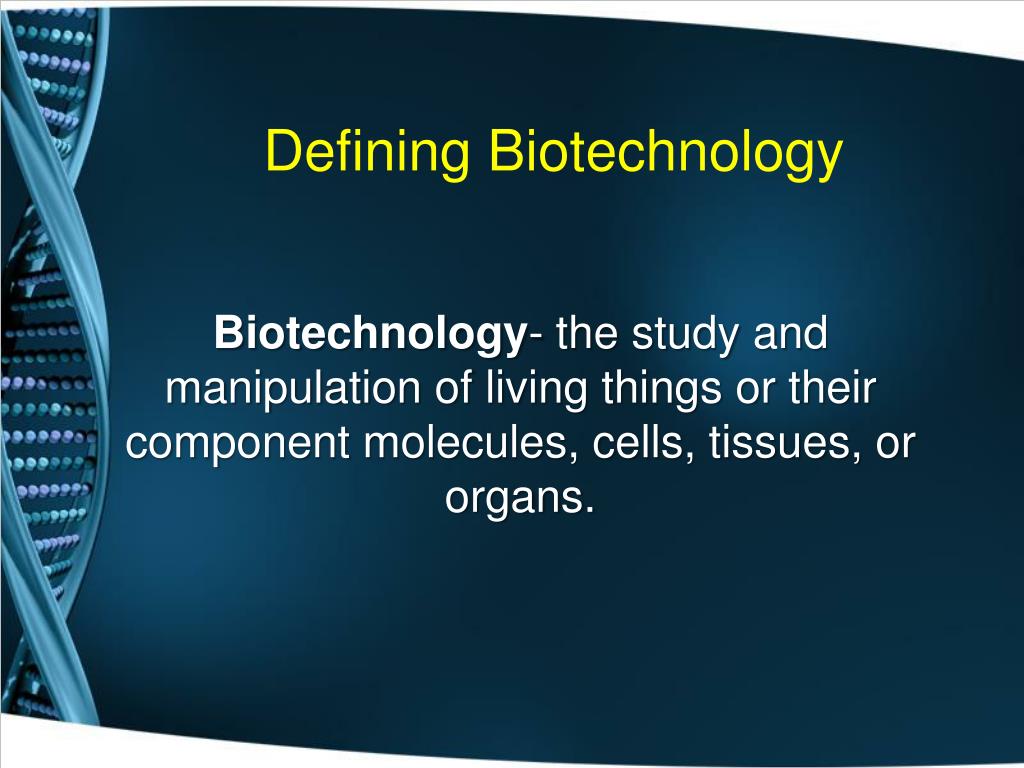

  2. Defining Biotechnology Biotechnology- the study and manipulation of living things or their component molecules, cells, tissues, or organs.

  3. The beginning of biotechnology • Humans have been manipulating living things for thousands of years • Selective breeding- manipulating living things with desired characteristics • Why? • Examples?

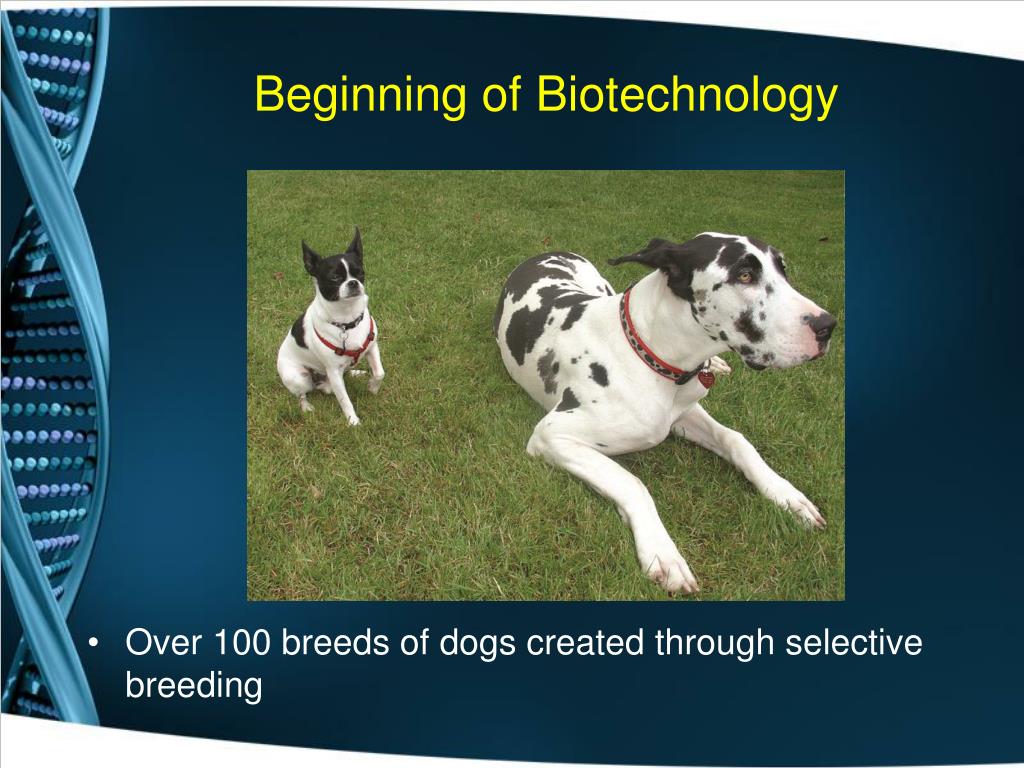

  4. Beginning of Biotechnology • Over 100 breeds of dogs created through selective breeding

  5. Beginning of Biotechnology • Different varieties of apples commonly found in grocery stores

  6. Beginning of Biotechnology • Range of size, color, and fragrance for a variety of roses

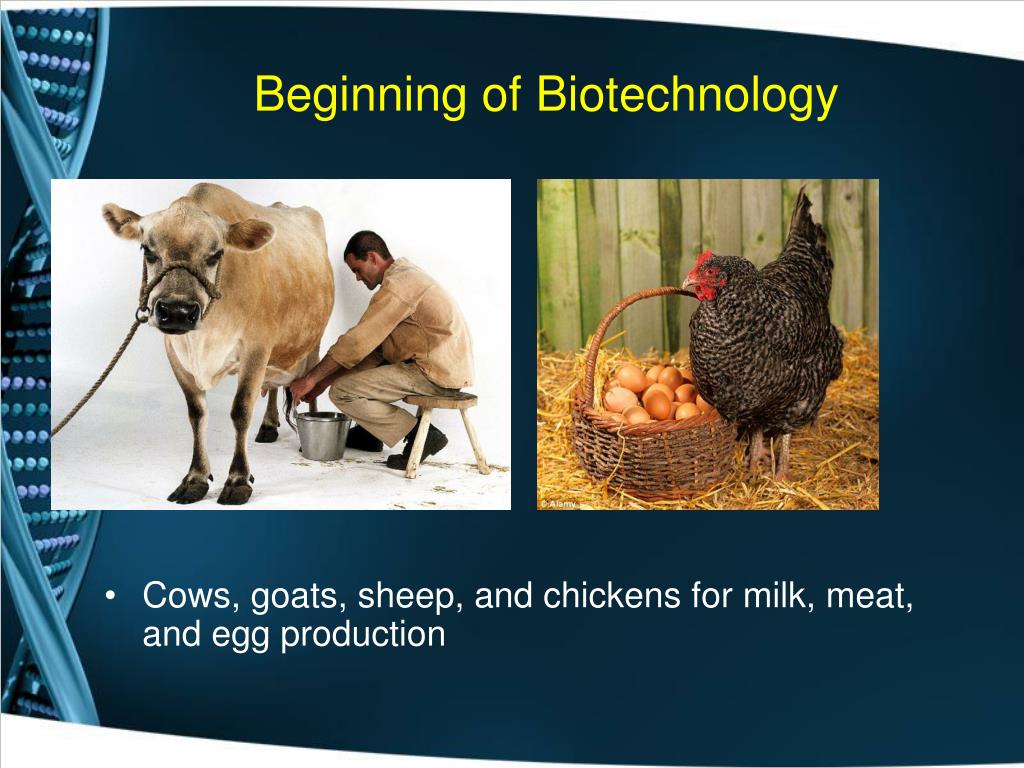

  7. Beginning of Biotechnology • Cows, goats, sheep, and chickens for milk, meat, and egg production

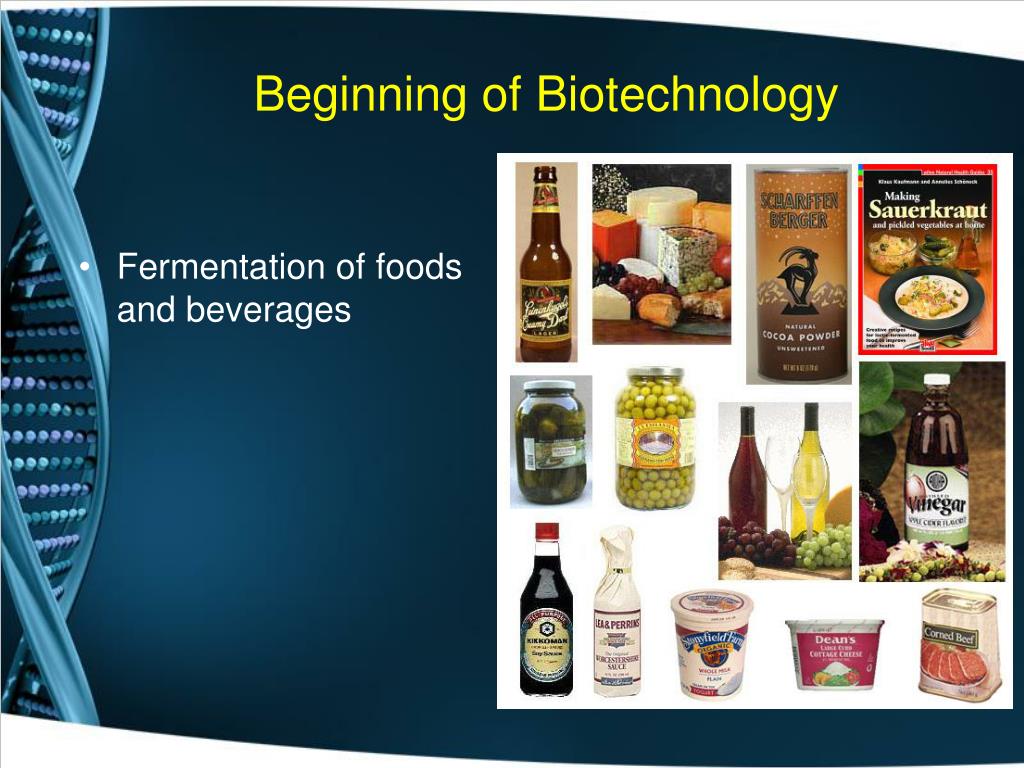

  8. Beginning of Biotechnology • Fermentation of foods and beverages

  9. The 1970’s • Scientists began experimenting with molecules, cells, tissues, and organs (moving away from entire organisms). WHY? • New technologies are applied to the research and development of products from plant and animal tissues • The term “Biotechnology” was coined

  10. Biotechnology today • Focuses on DNA, not RNA or proteins • Manipulate at the earliest source possible (very difficult to control outcome later)

  11. The Central Dogma of Biology. Uses The Central Dogma of Biology. Moving genes into cells to produce new proteins is the basic principle in genetic engineering.

  12. The Increasing Variety of Biotechnology Products “In the past 100 years, scientists have increased the pace of searching for products that improve the quality of life.” As the methods of manipulating livings have become more sophisticated, the number and variety of biological products have increased at an incredible rate

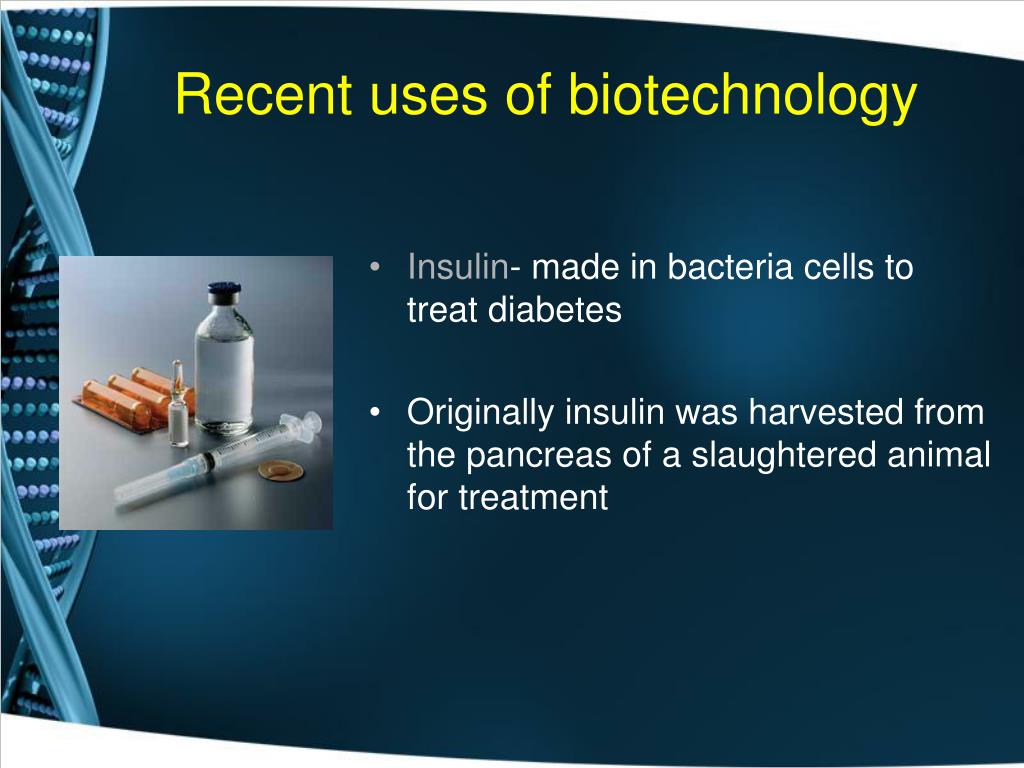

  13. Recent uses of biotechnology • Insulin- made in bacteria cells to treat diabetes • Originally insulin was harvested from the pancreas of a slaughtered animal for treatment

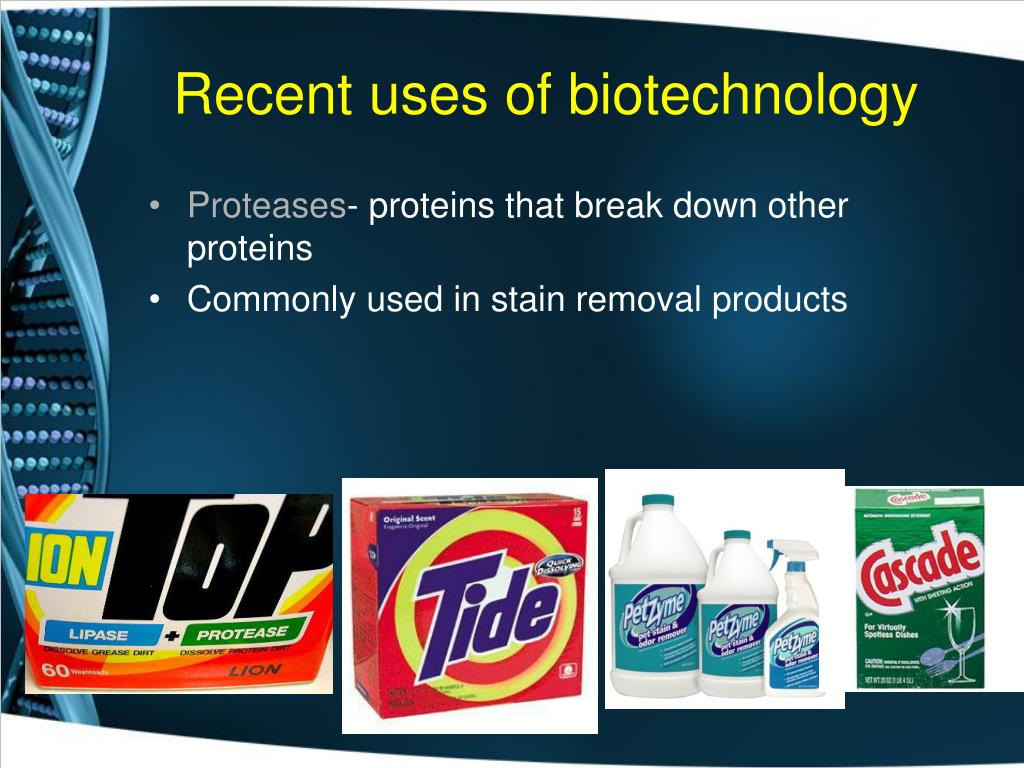

  14. Recent uses of biotechnology • Proteases- proteins that break down other proteins • Commonly used in stain removal products

  15. Recent uses of biotechnology • Antibiotics- proteins developed by the immune system that recognize a specific molecule (antigen) • Used to fight diseases

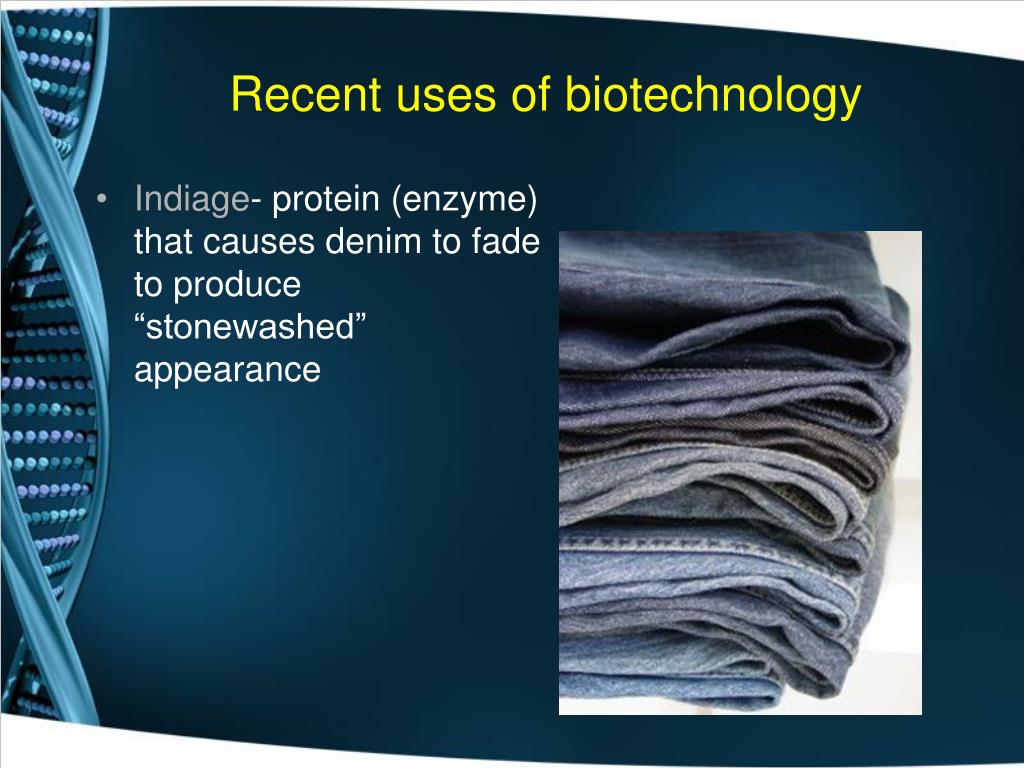

  16. Recent uses of biotechnology • Indiage- protein (enzyme) that causes denim to fade to produce “stonewashed” appearance

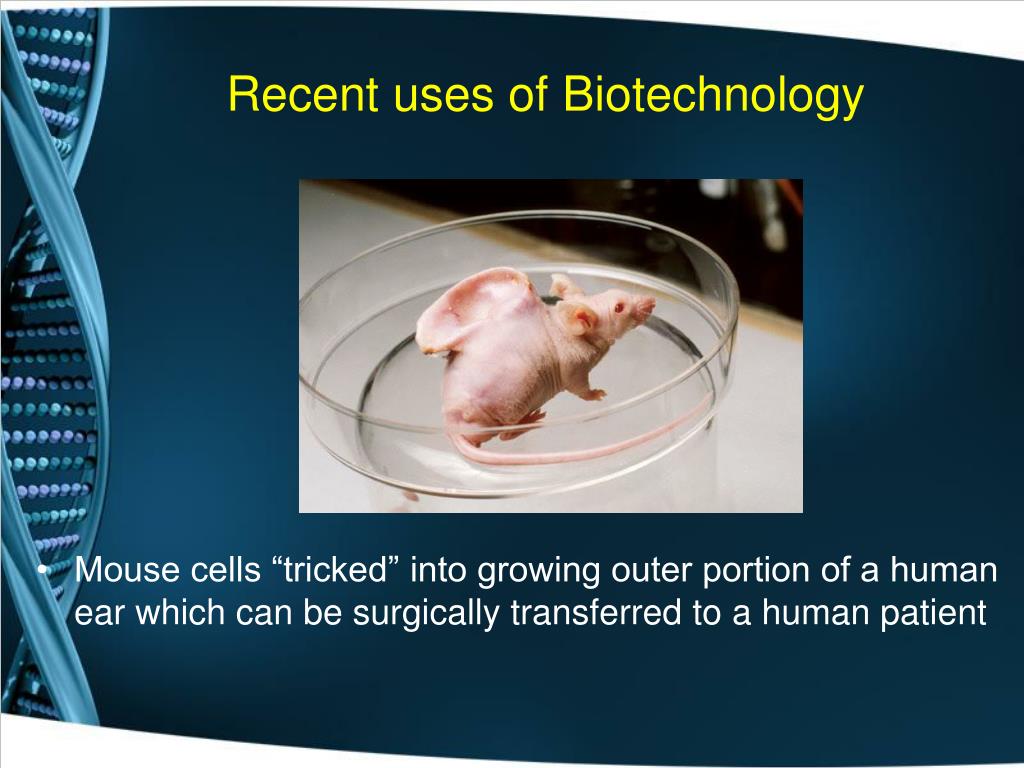

  17. Recent uses of Biotechnology • Mouse cells “tricked” into growing outer portion of a human ear which can be surgically transferred to a human patient

  18. Recent Advances in Biotechnology come from Manipulation of DNA!What do you think of when you hear this?

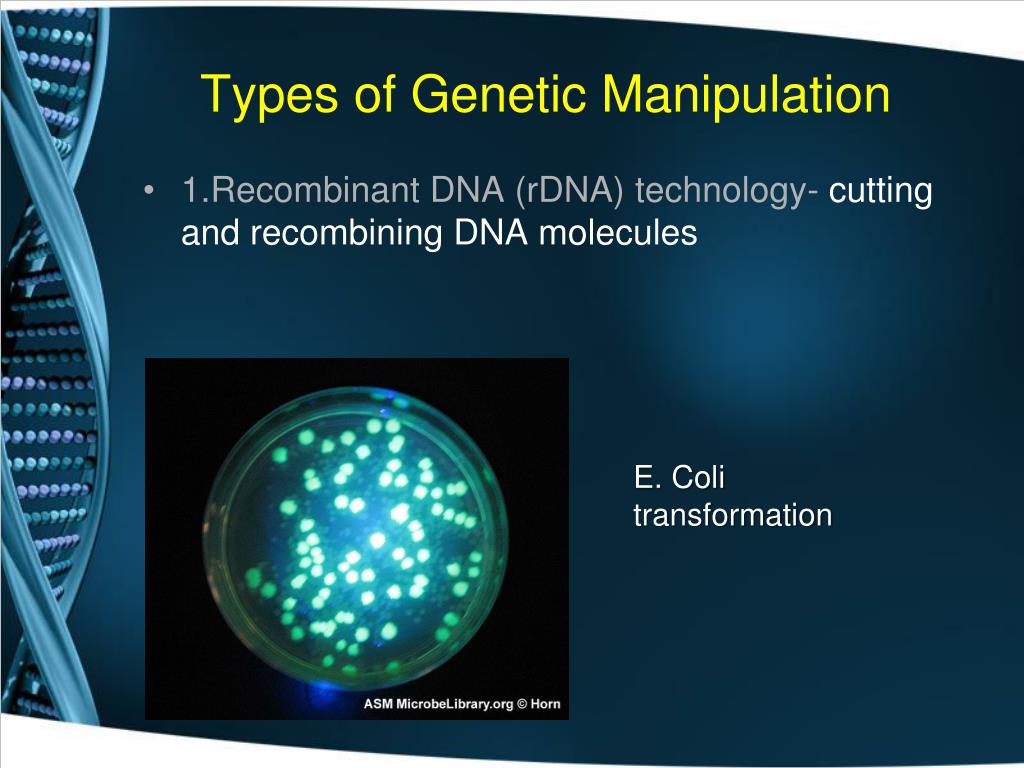

  19. Types of Genetic Manipulation • 1.Recombinant DNA (rDNA) technology- cutting and recombining DNA molecules E. Coli transformation

  20. What Makes rDNA Possible? • Polymerase Chain Reaction or PCR: copying short pieces of DNA (genes) • Restriction enzymes – cuts nucleotide sequence at specific sites on DNA molecule • Gel Electrophoresis: Separate DNA fragments by size • DNA ligase – enzyme that pastes DNA molecules together allowing for new combinations

  21. Gel Electrophoresis

  22. Gel Electrophoresis • Electrophoresis allows separation of molecules in an electrical field on the basis of size/molecular/weight and shape. • A molecule with a negative charge (anion) will migrate toward the positive electrode (anode), and a molecule with a positive charge (cation) will migrate toward the negative electrode (cathode) • The migration and separation of molecules are carried out using a solid matrix (i.e. agarose, polyacrylamide). • The matrix retards the movement of molecules by a seiving effect – small molecule navigate the matrix more quickly than larger ones.

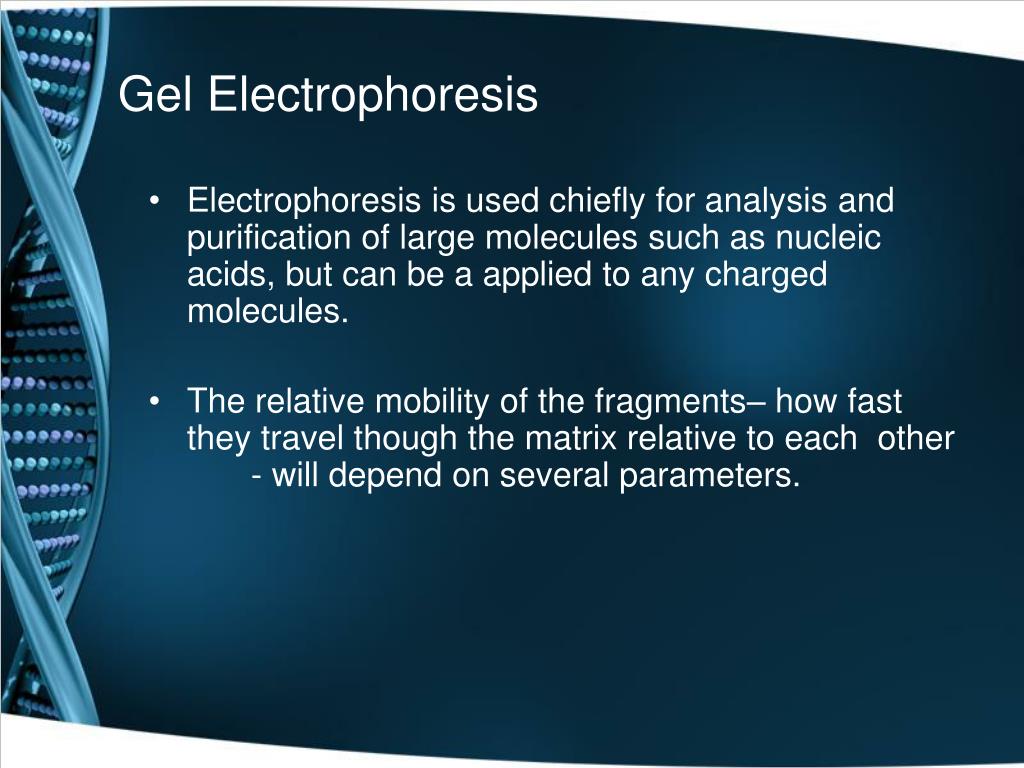

  23. Gel Electrophoresis • Electrophoresis is used chiefly for analysis and purification of large molecules such as nucleic acids, but can be a applied to any charged molecules. • The relative mobility of the fragments– how fast they travel though the matrix relative to each other - will depend on several parameters.

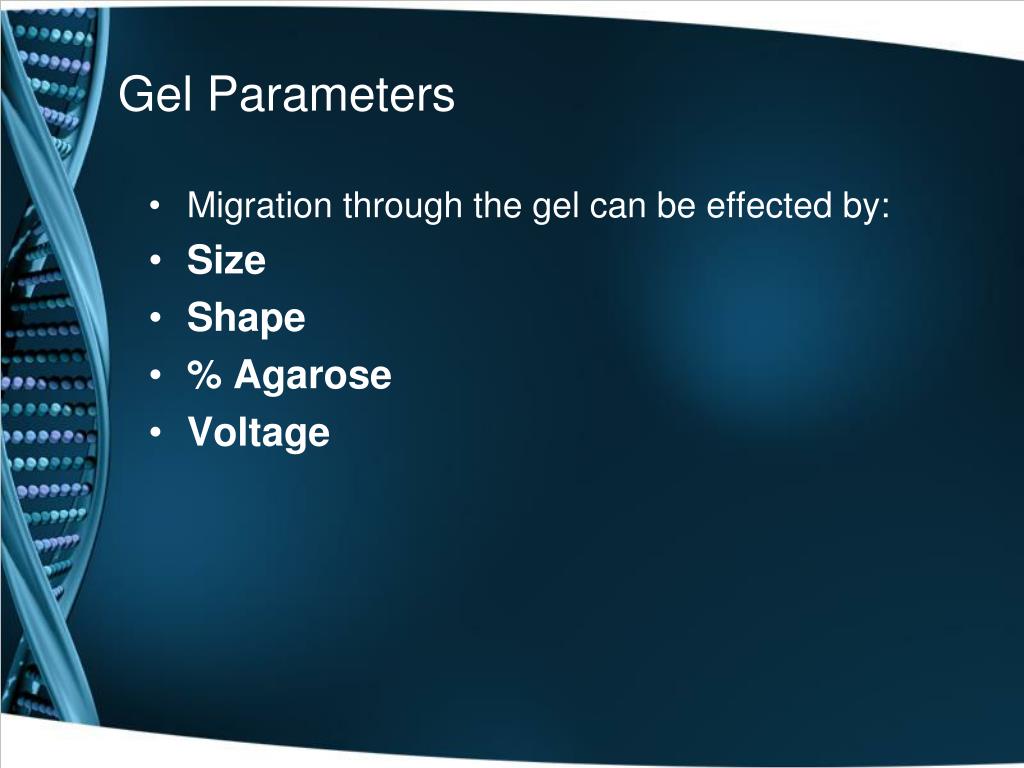

  24. Gel Parameters • Migration through the gel can be effected by: • Size • Shape • % Agarose • Voltage

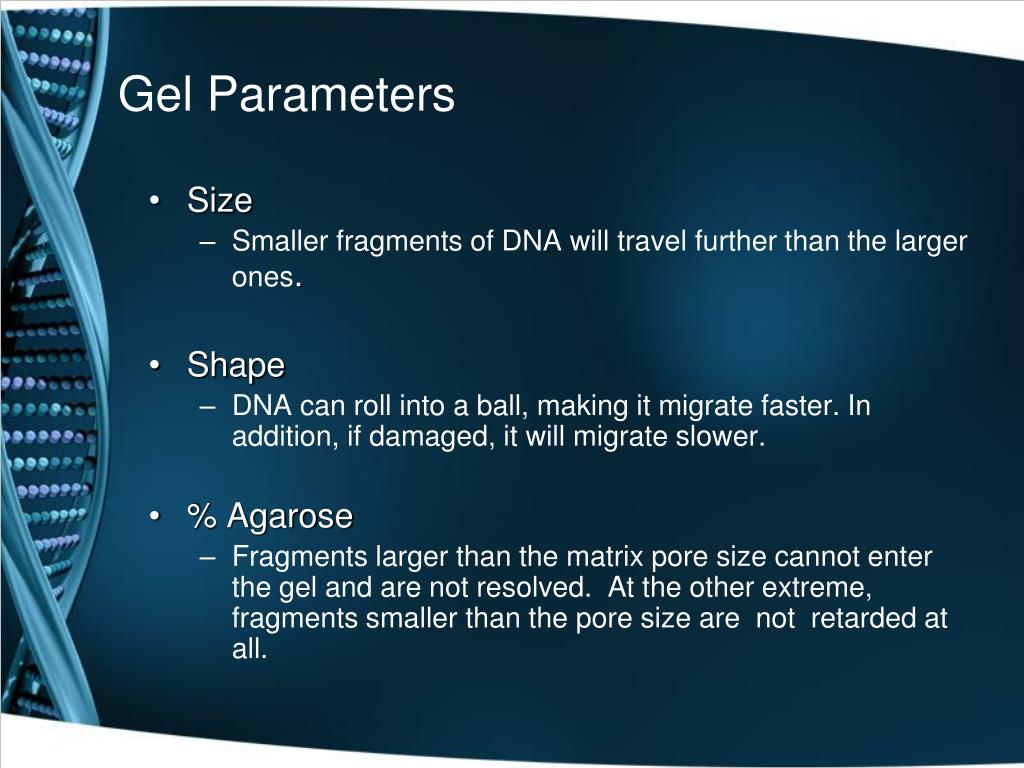

  25. Gel Parameters • Size • Smaller fragments of DNA will travel further than the larger ones. • Shape • DNA can roll into a ball, making it migrate faster. In addition, if damaged, it will migrate slower. • % Agarose • Fragments larger than the matrix pore size cannot enter the gel and are not resolved. At the other extreme, fragments smaller than the pore size are not retarded at all.

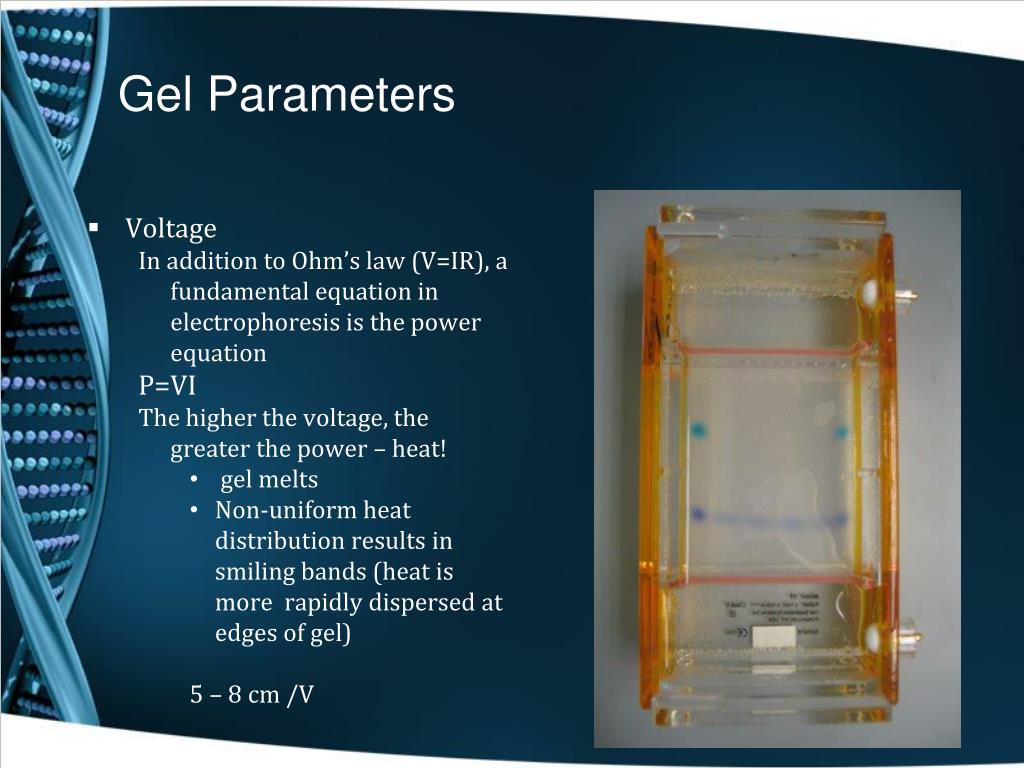

  26. Gel Parameters • Voltage In addition to Ohm’s law (V=IR), a fundamental equation in electrophoresis is the power equation P=VI The higher the voltage, the greater the power – heat! • gel melts • Non-uniform heat distribution results in smiling bands (heat is more rapidly dispersed at edges of gel) 5 – 8 cm /V

  27. Gel Electrophoresis • Loading dye • Glycerol (gives weight to the DNA sample so it will not float out well of the gel into the buffer) • Dye (so we can see the DNA enter the gel and migrate) • Visualization • Ethidium Bromide is a dye that intercalates between the base of nucleic acids. When exposed to UV light, it will fluoresce, making the DNA visible. • We will then find the size of the DNA fragments, and determine the quality and quantity of DNA we have

  28. Markers A DNA marker, a sample of DNA fragments of known sizes and mass, is used as a reference to estimate the size of unknown DNA molecules. You run it on the gel with the DNA samples and compare the sizes of your fragments to the sizes of these known fragments

  29. Quality and Quantity Assessment Quality: Is the band a distinct band or a smear? A smear indicates broken or degraded DNA. Quantity: How bright is the band. The brighter the band=the more DNA

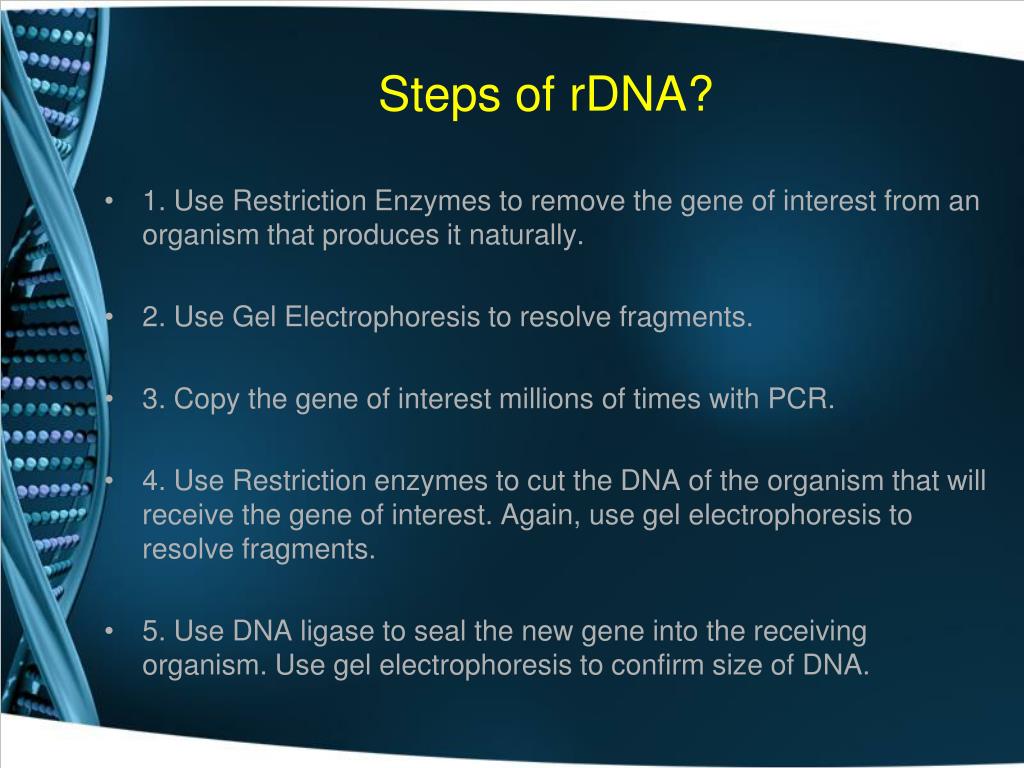

  30. Steps of rDNA? • 1. Use Restriction Enzymes to remove the gene of interest from an organism that produces it naturally. • 2. Use Gel Electrophoresis to resolve fragments. • 3. Copy the gene of interest millions of times with PCR. • 4. Use Restriction enzymes to cut the DNA of the organism that will receive the gene of interest. Again, use gel electrophoresis to resolve fragments. • 5. Use DNA ligase to seal the new gene into the receiving organism. Use gel electrophoresis to confirm size of DNA.

  31. Steps of rDNA • Production of rDNA can be done directly or with the use of plasmids • Plasmids – tiny circular pieces of DNA usually from bacteria that is used to insert recombinant DNA into an organism

  32. rDNA to GMO Restriction enzymes, Gel Electrophoresis, DNA ligase, and plasmids: • Make Recombinant DNA – DNA created from two or more sources • Genetically modified organism (GMO) – organism that contains DNA from another organism and produces new proteins encoded on the acquired DNA leads to

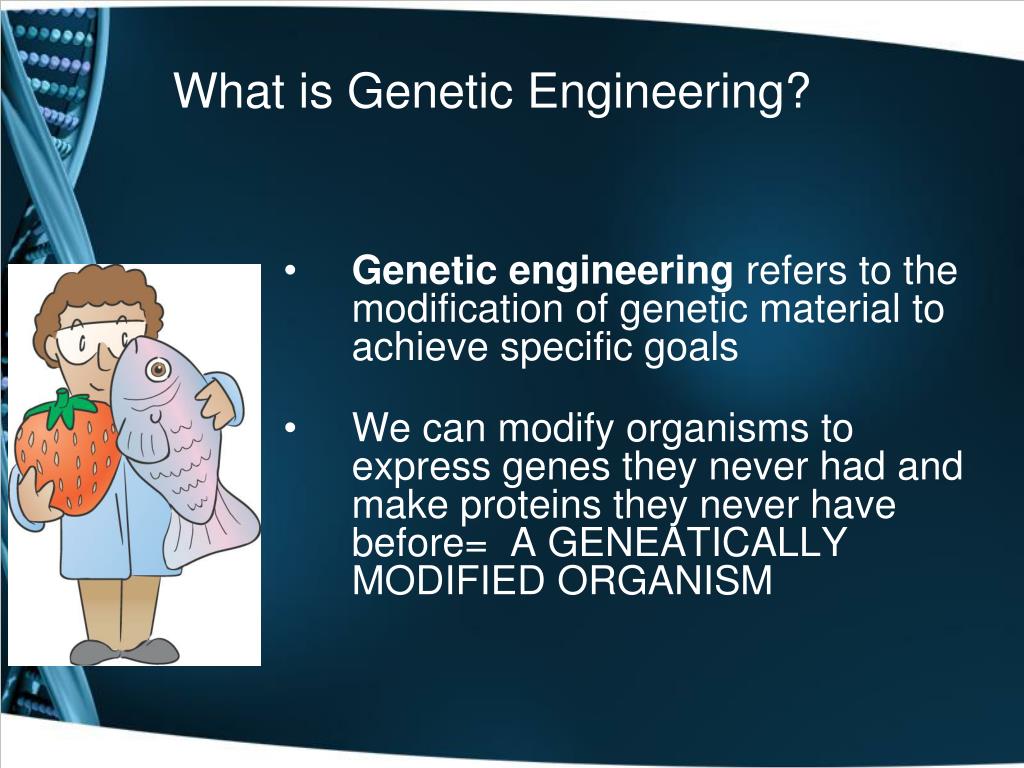

  33. What is Genetic Engineering? • Genetic engineering refers to the modification of genetic material to achieve specific goals • We can modify organisms to express genes they never had and make proteins they never have before= A GENEATICALLY MODIFIED ORGANISM

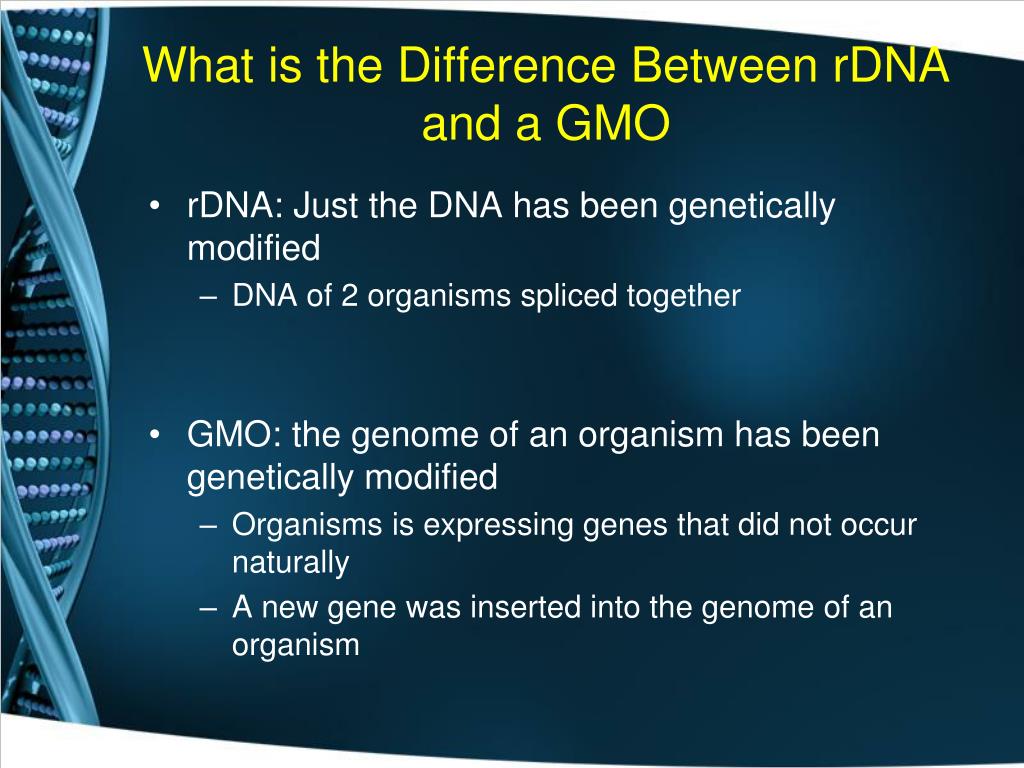

  34. What is the Difference Between rDNA and a GMO • rDNA: Just the DNA has been genetically modified • DNA of 2 organisms spliced together • GMO: the genome of an organism has been genetically modified • Organisms is expressing genes that did not occur naturally • A new gene was inserted into the genome of an organism

  35. Examples of GMOs Gene Engineered Plant. Scientists have learned how to insert genes that code for certain traits and transfer them from one species to another. The organism that gets the new genes will then have the potential to express the new traits coded in the newly acquired genes.

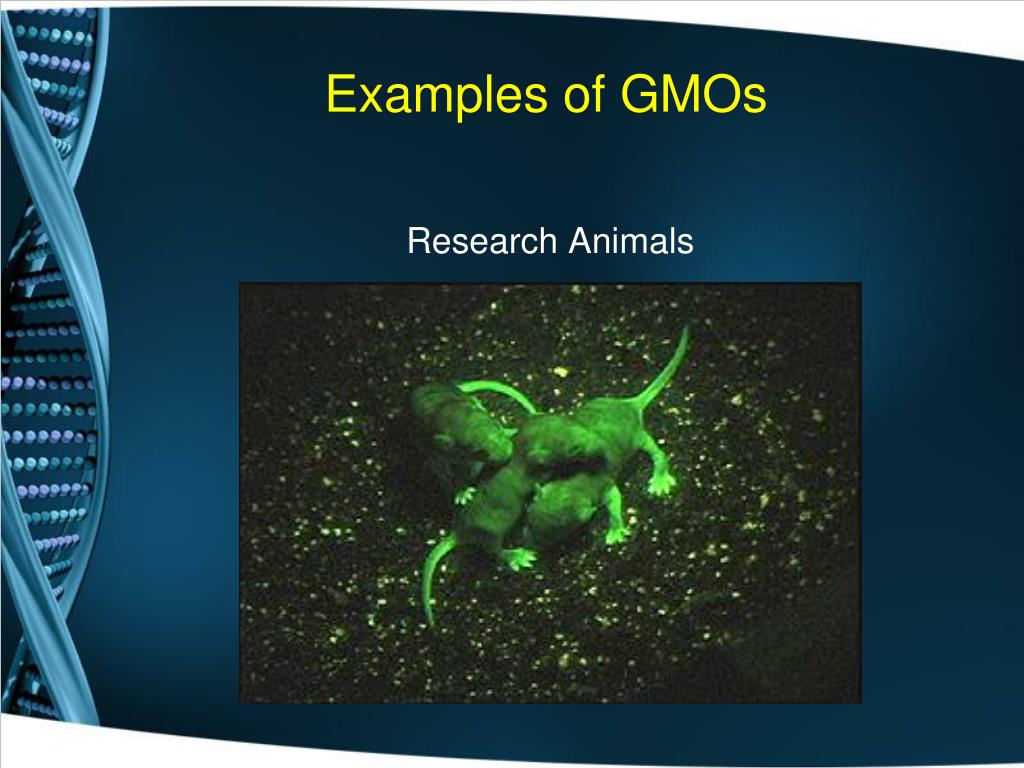

  36. Research Animals Examples of GMOs

  37. Examples of GMOs Medicines Humans make only a small amount of human tissue plasminogen activator (t-PA) naturally. By genetically modifying Chinese hamster ovary (CHO) cells, scientists can make large amounts of t-PA for therapeutic purposes, such as to clear blood vessels in the event of a heart attack or stroke.

  38. Examples of GMOs • Recombinant DNA and genetic engineering produces 100’s of products

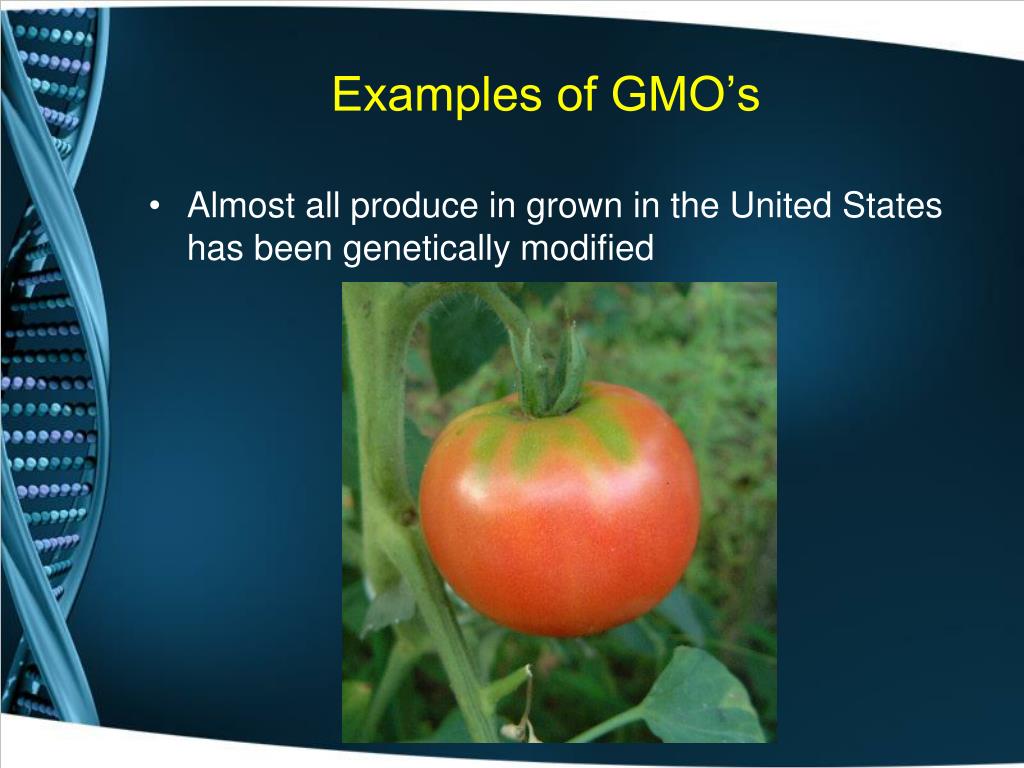

  39. Examples of GMO’s • Almost all produce in grown in the United States has been genetically modified

  40. Why do you think we have GMO foods?

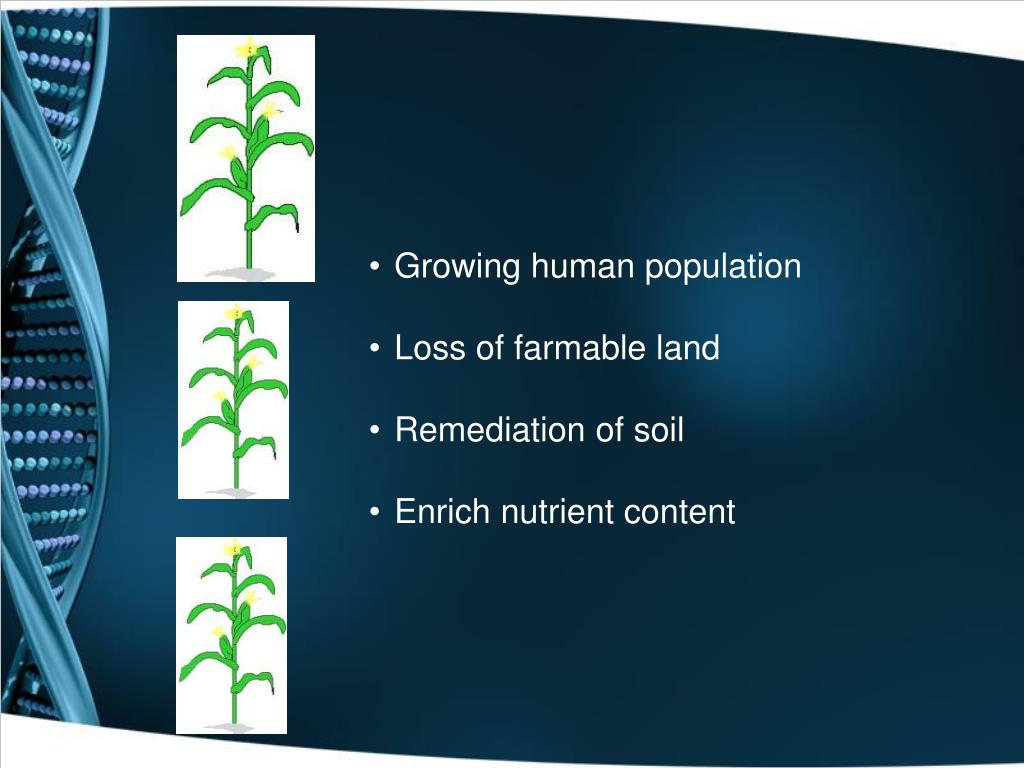

  41. Growing human population • Loss of farmable land • Remediation of soil • Enrich nutrient content

  42. What are some desirable traits for a GMO to have?

  43. Desirable Traits • Pest Resistance • Herbicide Tolerance • Viral Resistance • Drought Resistance • Increased Nutritional Value • Improved Fruit • Altered Ripening

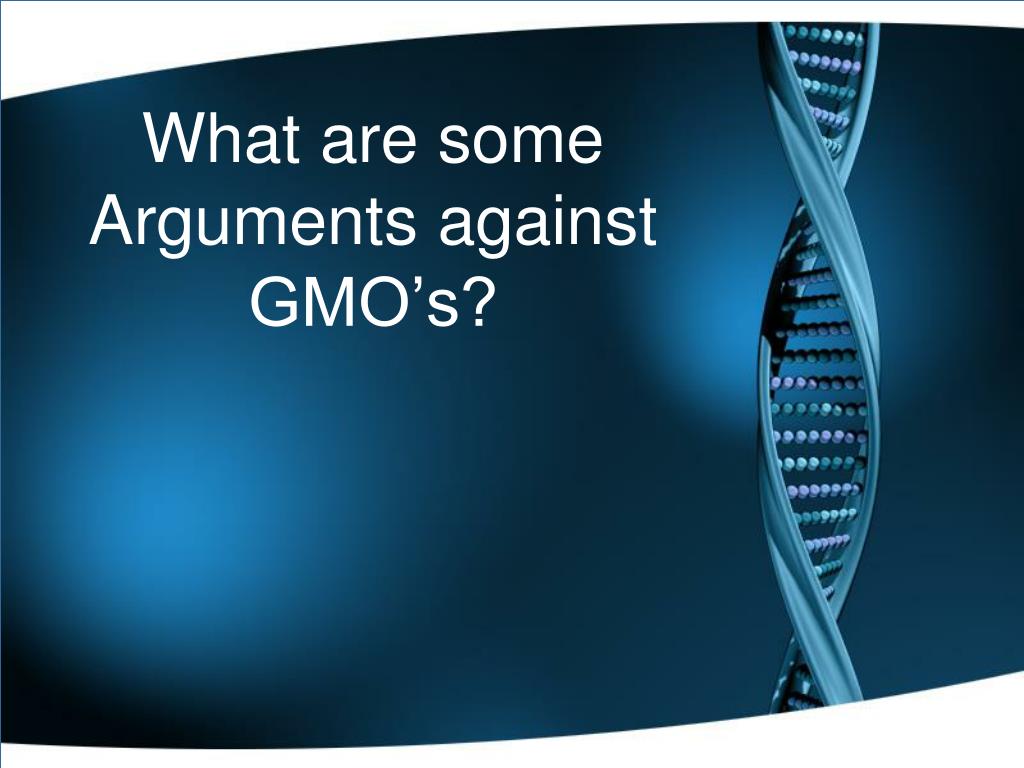

  44. What are some Arguments against GMO’s?

  45. Opponents argue • Creation of super pests • Creation of super weeds • Loss of biodiversity • Biotechnology companies control agriculture • Health concerns

  46. Types of Genetic Manipulation • 2. Cloning-producing identical organisms

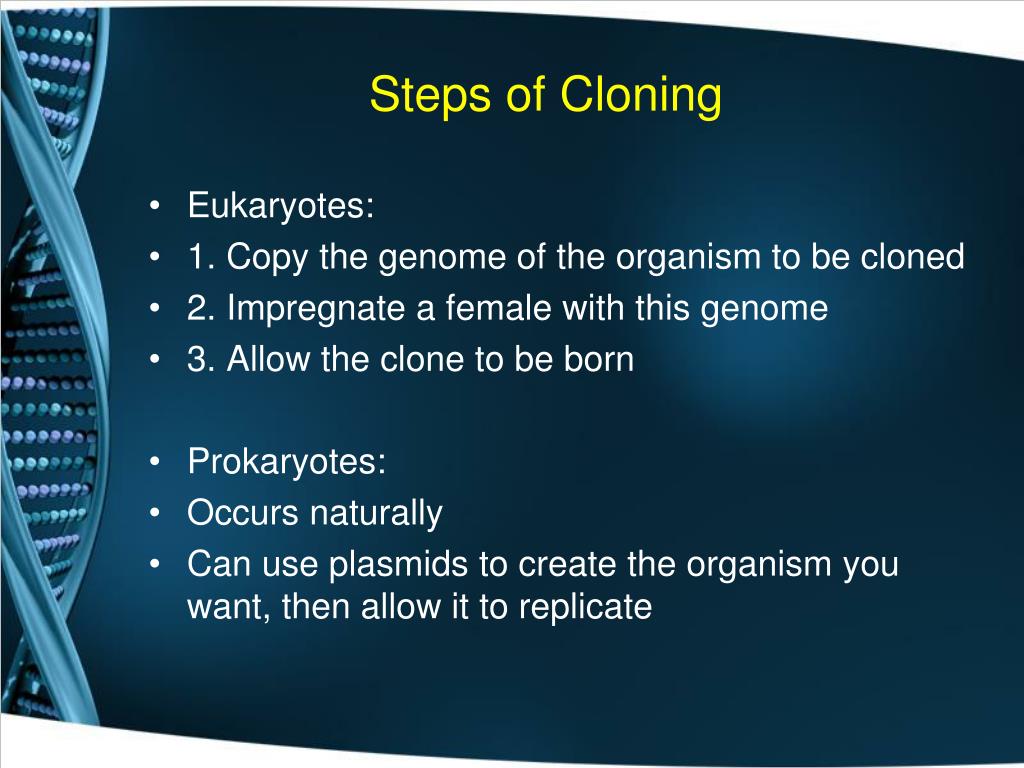

  47. Steps of Cloning • Eukaryotes: • 1. Copy the genome of the organism to be cloned • 2. Impregnate a female with this genome • 3. Allow the clone to be born • Prokaryotes: • Occurs naturally • Can use plasmids to create the organism you want, then allow it to replicate

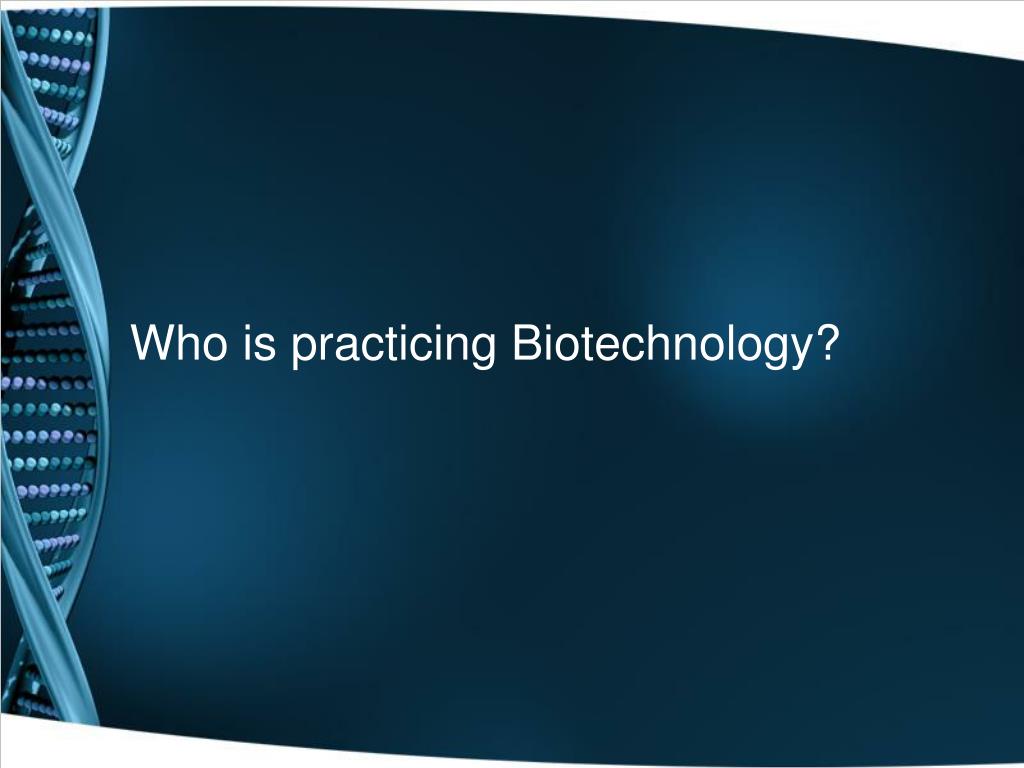

  48. Who is practicing Biotechnology?

  49. The Biotechnology Workplace • Biotechnology Companies - goal is to produce and sell commercial “for-profit” products • Staff- scientists, researchers, lab technicians, manufacturing, marketing, sales • Universities - conduct “pure science” research, nonprofit • Report results in scientific journals or meetings for the “public good”

  50. The Biotechnology Workplace • Government Agencies • CDC Centers for Disease Control and Prevention-national research center for developing and applying disease prevention and control, environmental health, and health promotion and education activities to improve public health • NIH National Institutes of Health- the federal agency that funds and conducts biomedical research
