Q1. (1/2) Find Vo and Io

Q1. (1/2) Find Vo and Io. Q1. (2/2) Find Vo and Io. Q2. Find Vo. Q3. (1/2) Find Vo by using superposition. Step1. Q3. (2/2) Find Vo by using superposition. Step2. Step3. Q4. (1/2) Determine v1 and v2 using mesh. Q4. (2/2) Determine v1 and v2 using mesh.

mizell
Télécharger la présentation

Q1. (1/2) Find Vo and Io

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

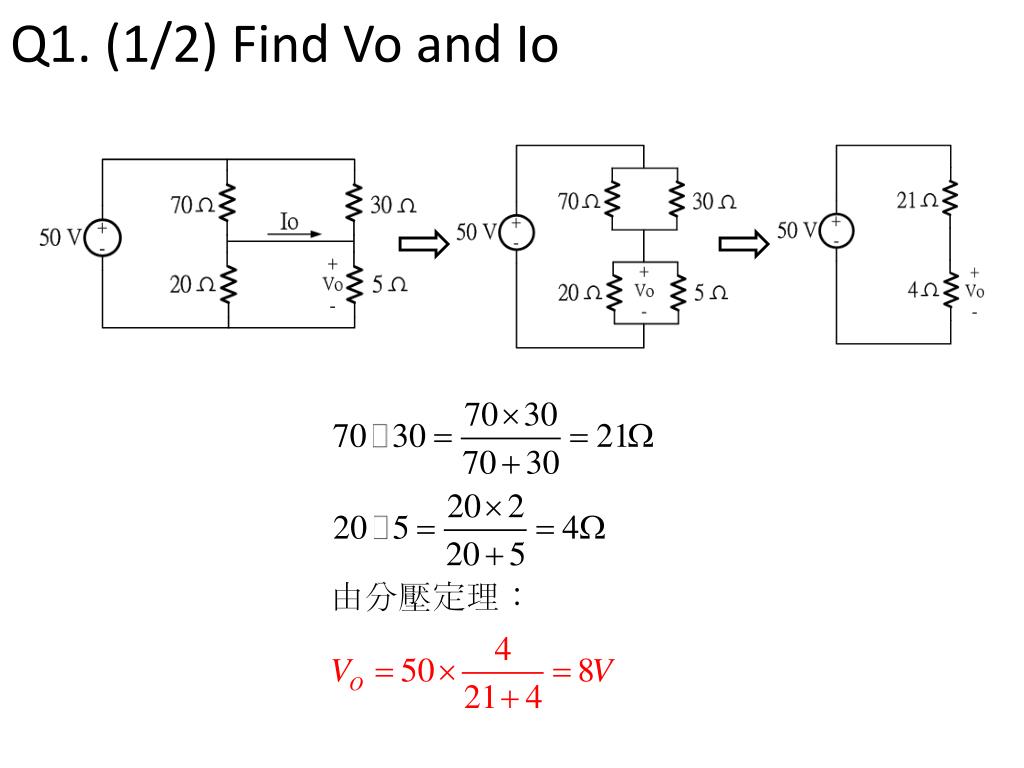

  1. Q1. (1/2) Find Vo and Io

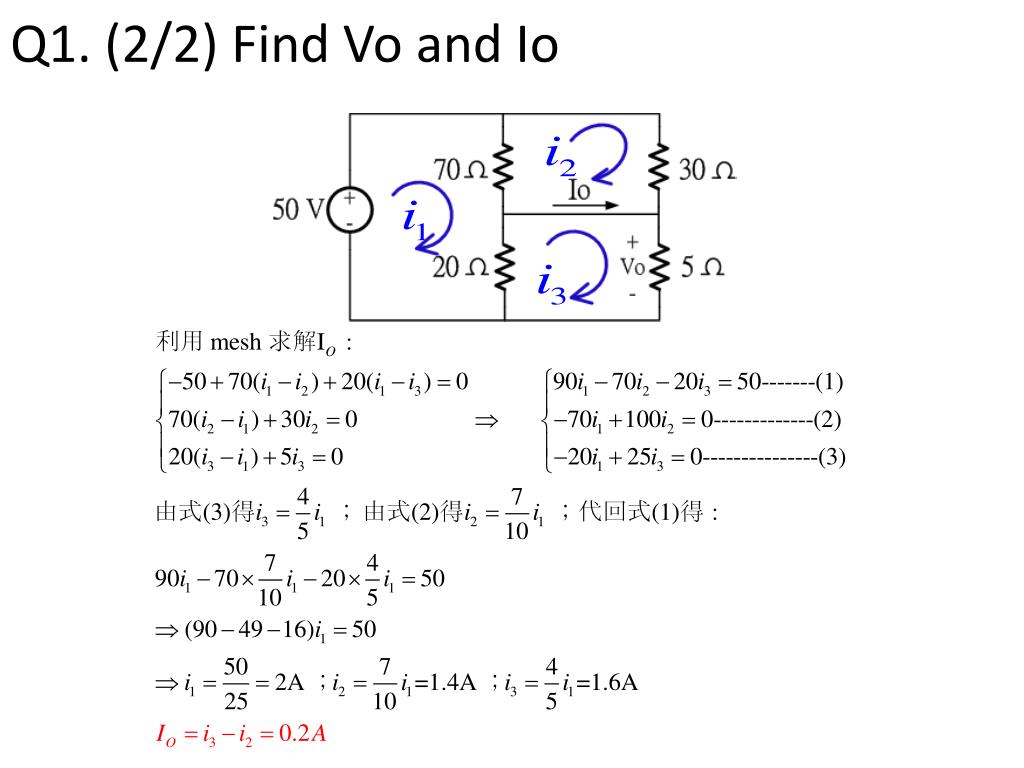

  2. Q1. (2/2) Find Vo and Io

  3. Q2. Find Vo

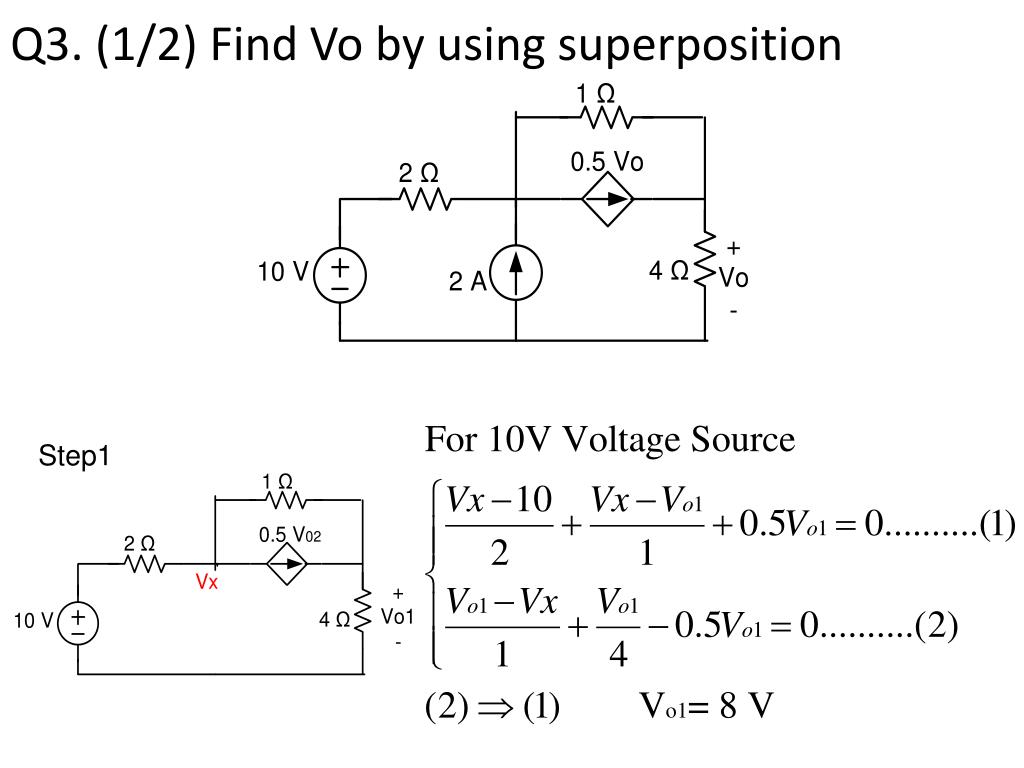

  4. Q3. (1/2) Find Vo by using superposition Step1

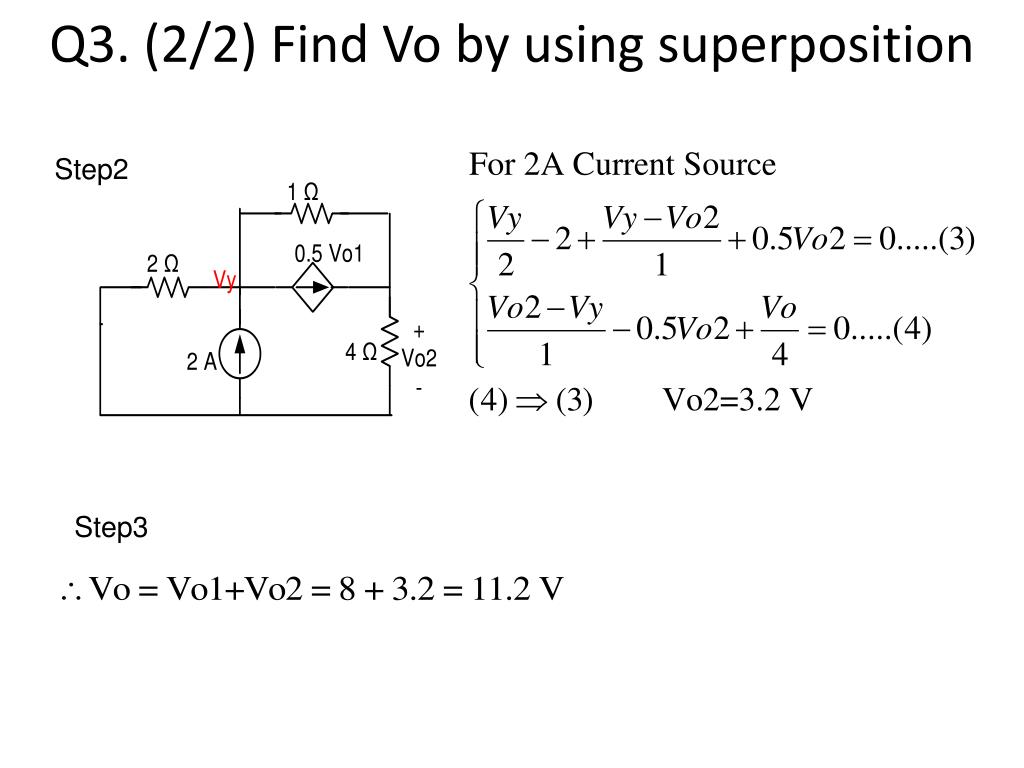

  5. Q3. (2/2) Find Vo by using superposition Step2 Step3

  6. Q4. (1/2) Determine v1 and v2 using mesh

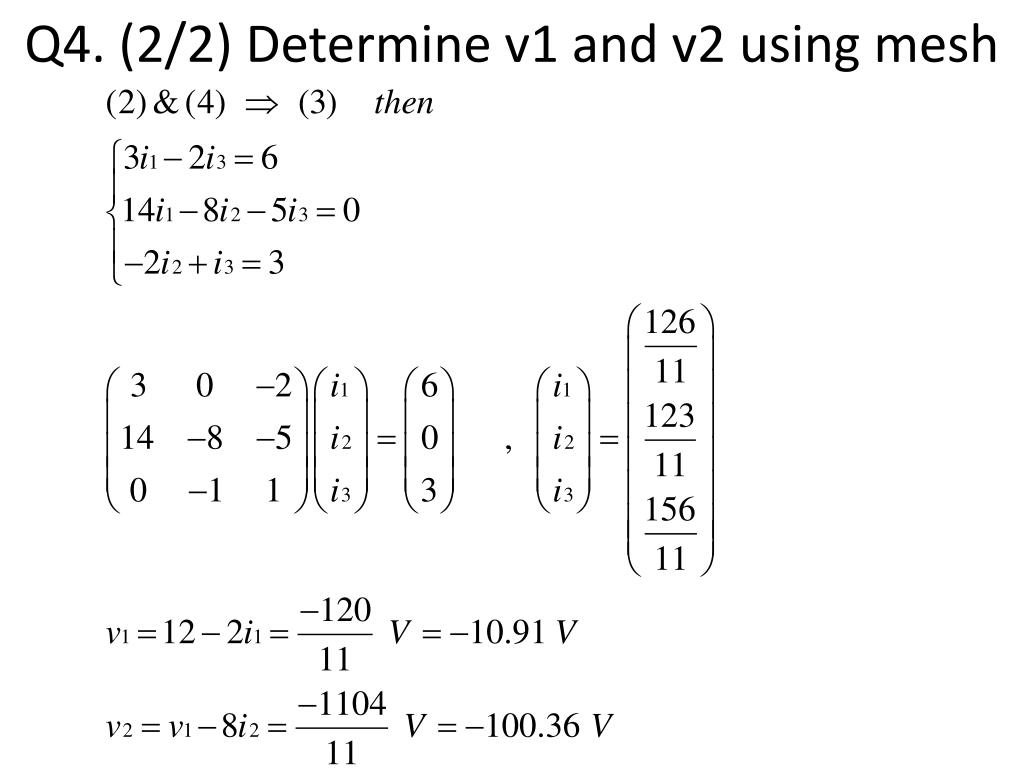

  7. Q4. (2/2) Determine v1 and v2 using mesh

  8. Q5. (1/2) Find the Thevenin equivalent ckt (i) Find Rth

  9. Q5. (2/2) Find the Thevenin equivalent ckt (ii) Find Vth

  10. Q6. (1/2) Find the Norton equivalent ckt (i) Find RN

  11. Q6. (2/2) Find the Norton equivalent ckt (ii) Find IN 

  12. Q7. Find

  13. Q8. (1/2) Find Io/Vi

  14. Q9.
