  1. IPmux-4L Version 1.0

  2. RAD’s TDM Pseudowire Product Offering • Carrier-grade TDM voice or data over packet networks • Uniform TDM access across all Last Mile infrastructure types • Preserves investment in legacy equipment in migration to PSN • Lowers OpEx of TDM service by utilizing packet infrastructure • Carrier-grade voice quality (no compression, no Silence Suppression) POP/HUB/CO Packet Network PE PE CE TDM Service TDM Service Last Mile Pseudowire

  3. IPmux-4LTDM Pseudowire Access Gateway • Supports TDM, HDLC-based and Ethernet services over Ethernet, MPLS or IP networks with pseudowire technology • Ideal solution for PSTN access and TDM trunking • Provides cost-effective solution for converging new and legacy services over packet infrastructure Compact 1 U, ½ 19” enclosure Serial port Control port Wide-range (AC/DC) PS 2xE1 ports 2xFast Ethernet Ports (UTP) Fast Ethernet port (SFP)

  4. IPmux-4L Applications

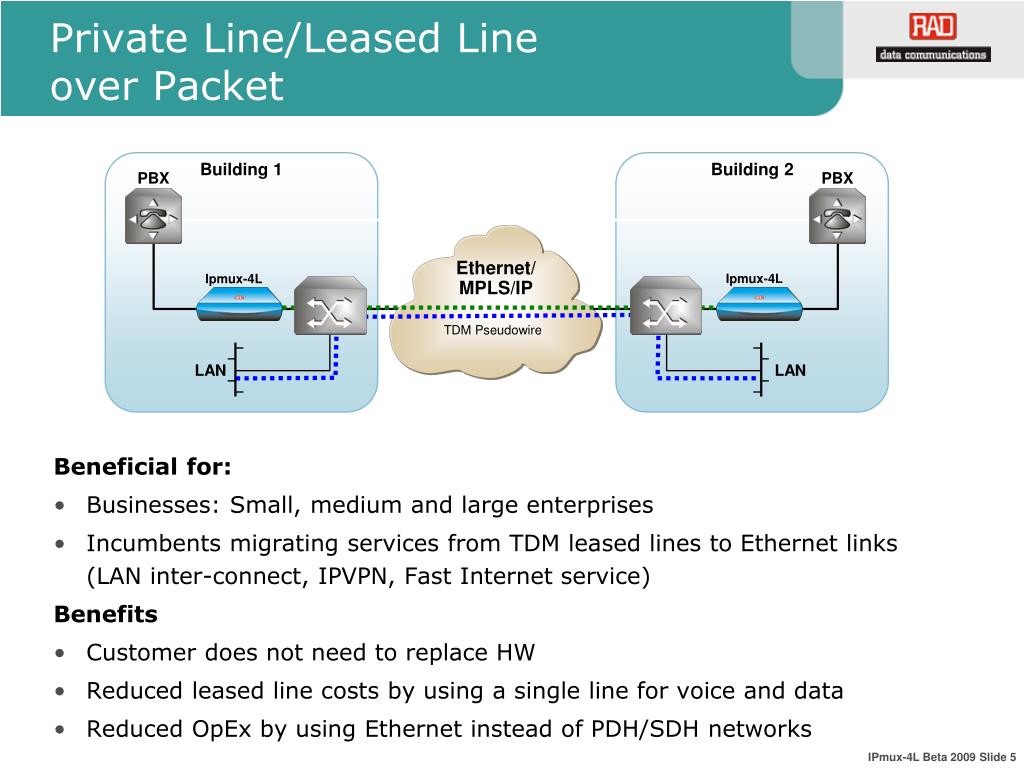

  5. Private Line/Leased Line over Packet Building 1 Building 2 PBX PBX Beneficial for: • Businesses: Small, medium and large enterprises • Incumbents migrating services from TDM leased lines to Ethernet links (LAN inter-connect, IPVPN, Fast Internet service) Benefits • Customer does not need to replace HW • Reduced leased line costs by using a single line for voice and data • Reduced OpEx by using Ethernet instead of PDH/SDH networks Leased Line Ethernet/ MPLS/IP Ipmux-4L Ipmux-4L GbETH GbETH TDM Pseudowire LAN LAN

  6. TDM Backhaul/Trunking over Packets IPmux-4L Ipmux-4L Beneficial for: • Alternative Carriers provisioning IP based services without leasing capacity from Incumbent carrier • Incumbent providing IP services Benefits • Supports 63 pseudowires (31 per each E1 port and 1 per the Serial port) • Grooms fractional E1s for efficient use of E1 ports on the central & remote site devices E1 E1 SDH Ethernet/ MPLS/IP FE FE PBX Class 5 Switch

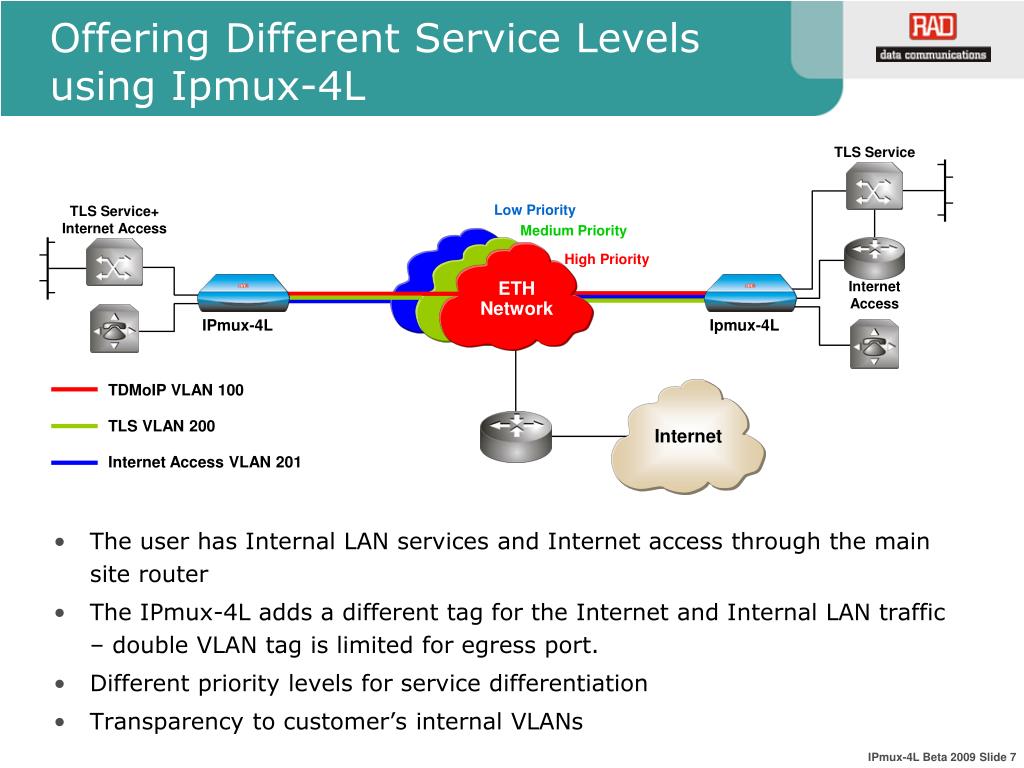

  7. Offering Different Service Levels using Ipmux-4L TLS Service Low Priority • The user has Internal LAN services and Internet access through the main site router • The IPmux-4L adds a different tag for the Internet and Internal LAN traffic – double VLAN tag is limited for egress port. • Different priority levels for service differentiation • Transparency to customer’s internal VLANs TLS Service+ Internet Access Medium Priority High Priority Internet Access ETH Network IPmux-4L Ipmux-4L TDMoIP VLAN 100 TLS VLAN 200 Internet Internet Access VLAN 201

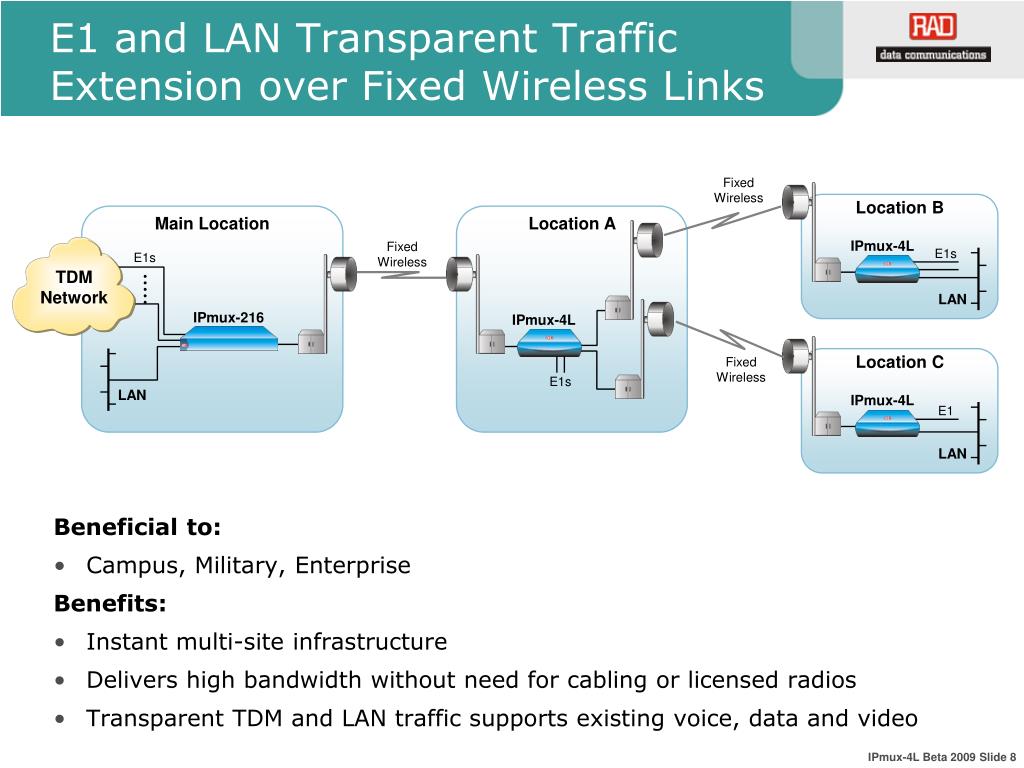

  8. E1 and LAN Transparent Traffic Extension over Fixed Wireless Links Fixed Wireless Location B Beneficial to: • Campus, Military, Enterprise Benefits: • Instant multi-site infrastructure • Delivers high bandwidth without need for cabling or licensed radios • Transparent TDM and LAN traffic supports existing voice, data and video Main Location Location A IPmux-4L Fixed Wireless E1s E1s TDMNetwork LAN IPmux-216 IPmux-4L Location C Fixed Wireless E1s LAN IPmux-4L E1 LAN

  9. E1, High-speed and LAN Traffic Extension over Fixed Wireless Links Site A Site B Beneficial to: • Campus, military, enterprise, rural area connectivity Benefits: • Instant multi-site infrastructure • Delivers high bandwidth without need for cabling or licensed radios • Transparent TDM and LAN traffic supports existing voice, data and video Router Router V.35 V.35 Fixed Wireless IPmux-4L IPmux-4L LAN LAN PBX PBX 2 x E1 EMS 2x E1

  10. Legacy Leased Lines over any Packet Access Technology Fixed Wireless IPmux-24 E1/T1 GbE/FE Ethernet IPmux-24 E1/T1 GbE/FE over Fiber (Pt-2-Pt, xPON) Ethernet Central GW Gmux-2000 IPmux-4L E1 FE Ethernet/IP/ MPLS Core Network GbE Ethernet Ethernet over Cable IPmux-216 n x E1/T1 or C.T3 or C.STM-1/OC-3 E1/T1 Cable HFC Infrastructure FE PSTN IPmux-24 E1/T1 xDSL FE FE / GbE Ethernet 1 x E1/T1 • Target Customers: • Alternative Carriers and Cable MSOs • Enterprises and public institutes • Incumbents migrating to PSN FE Ethernet

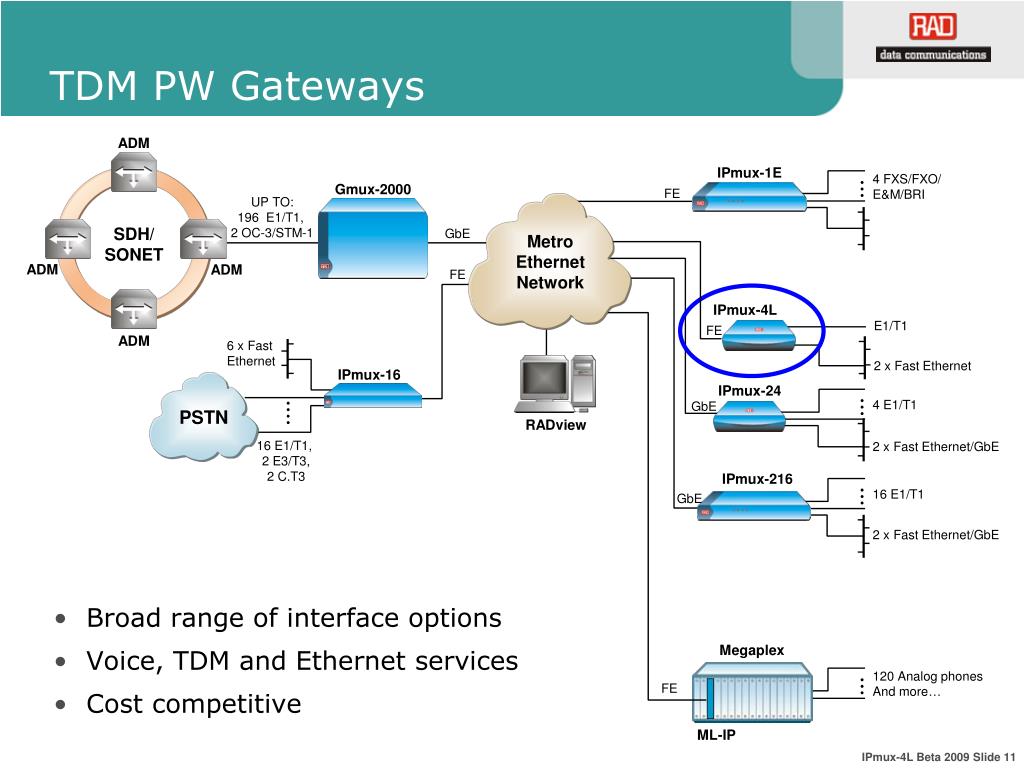

  11. TDM PW Gateways ADM IPmux-1E 4 FXS/FXO/E&M/BRI Gmux-2000 FE UP TO: 196 E1/T1, 2 OC-3/STM-1 • Broad range of interface options • Voice, TDM and Ethernet services • Cost competitive SDH/ SONET GbE Metro Ethernet Network ADM ADM FE IPmux-4L E1/T1 FE ADM 6 x Fast Ethernet 2 x Fast Ethernet IPmux-16 IPmux-24 4 E1/T1 GbE PSTN RADview 16 E1/T1, 2 E3/T3, 2 C.T3 2 x Fast Ethernet/GbE IPmux-216 16 E1/T1 GbE 2 x Fast Ethernet/GbE Megaplex 120 Analog phones And more… FE ML-IP

  12. IPmux-4L Features

  13. Legacy and Ethernet Services TDM Service • 4 framed or Unframed E1 with CAS and CCS signaling and up to 63 DS0 (timeslot) bundles • Fully transparent emulation of TDM circuit • Conforms to the most strict jitter and wander standards Ethernet Service • 2 Fast Ethernet-service ports • Ingress and Egress rate limiting • VLAN stacking (Q-in-Q)

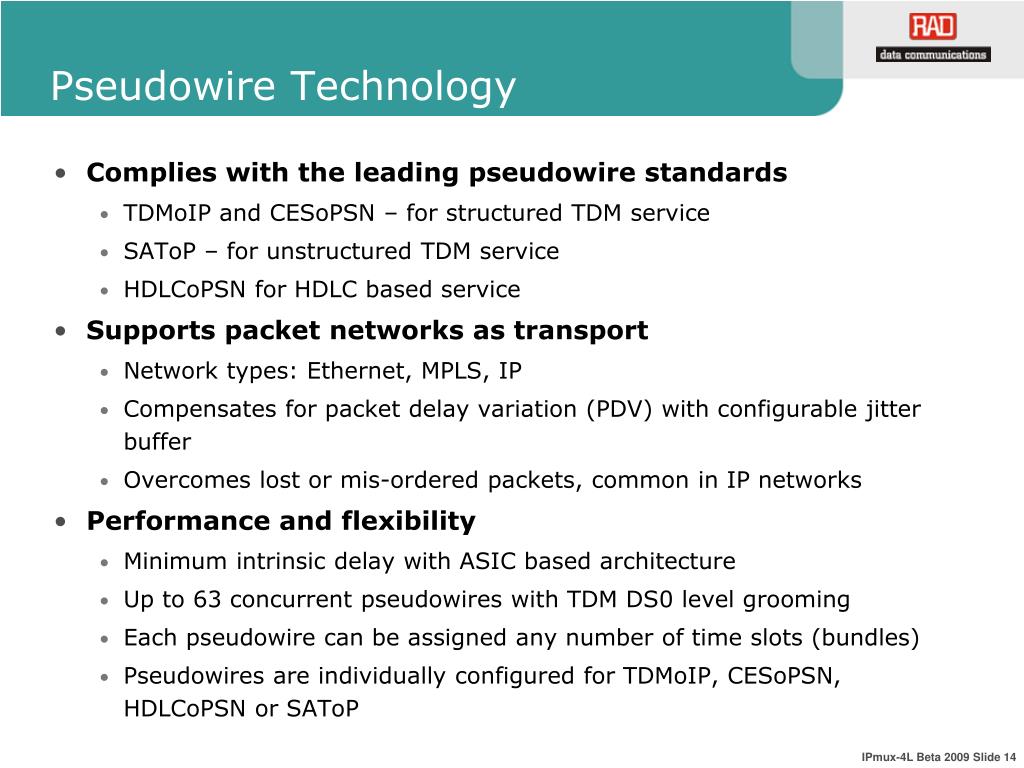

  14. Pseudowire Technology • Complies with the leading pseudowire standards • TDMoIP and CESoPSN – for structured TDM service • SAToP – for unstructured TDM service • HDLCoPSN for HDLC based service • Supports packet networks as transport • Network types: Ethernet, MPLS, IP • Compensates for packet delay variation (PDV) with configurable jitter buffer • Overcomes lost or mis-ordered packets, common in IP networks • Performance and flexibility • Minimum intrinsic delay with ASIC based architecture • Up to 63 concurrent pseudowires with TDM DS0 level grooming • Each pseudowire can be assigned any number of time slots (bundles) • Pseudowires are individually configured for TDMoIP, CESoPSN, HDLCoPSN or SAToP

  15. Clock Recovery and Timing • Timing • TDM ports can be configured for timing as any standard TDM device • LBT – Loopback Timing • Internal – Using the IPmux-4L internal oscillator • External – Using a dedicated clock port with external clock source • Adaptive Clock Recovery • The remote IPmux-4L can recover the original transmitting clock over the packet network with great accuracy • Clock recovery mechanism per TDM port • G.823 Traffic Interface mask for high quality E1 circuit

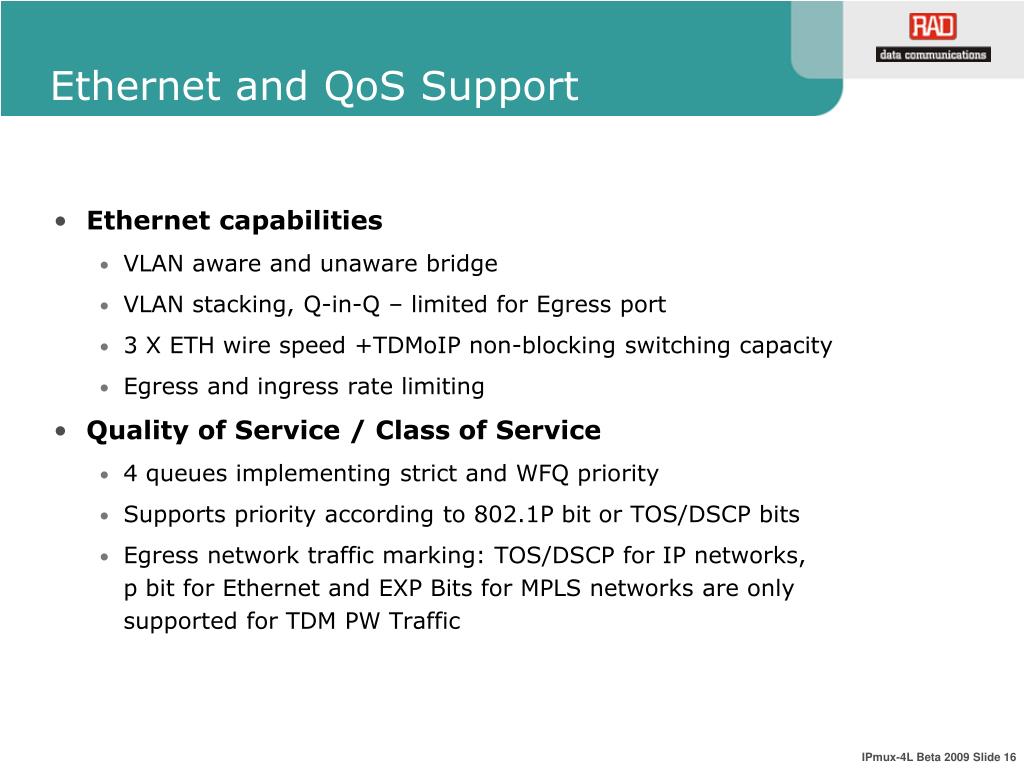

  16. Ethernet and QoS Support • Ethernet capabilities • VLAN aware and unaware bridge • VLAN stacking, Q-in-Q – limited for Egress port • 3 X ETH wire speed +TDMoIP non-blocking switching capacity • Egress and ingress rate limiting • Quality of Service / Class of Service • 4 queues implementing strict and WFQ priority • Supports priority according to 802.1P bit or TOS/DSCP bits • Egress network traffic marking: TOS/DSCP for IP networks, p bit for Ethernet and EXP Bits for MPLS networks are only supported for TDM PW Traffic

  17. Management and OAM • Management • DB-9 Craft port • Telnet, Web and terminal • Defect detection, notification and localization • Performance monitoring • TDM PW OAM • Ensuring correct end-to-end provisioning of TDM Pseudowire • Prevention of Network traffic load in case of connectivity lost

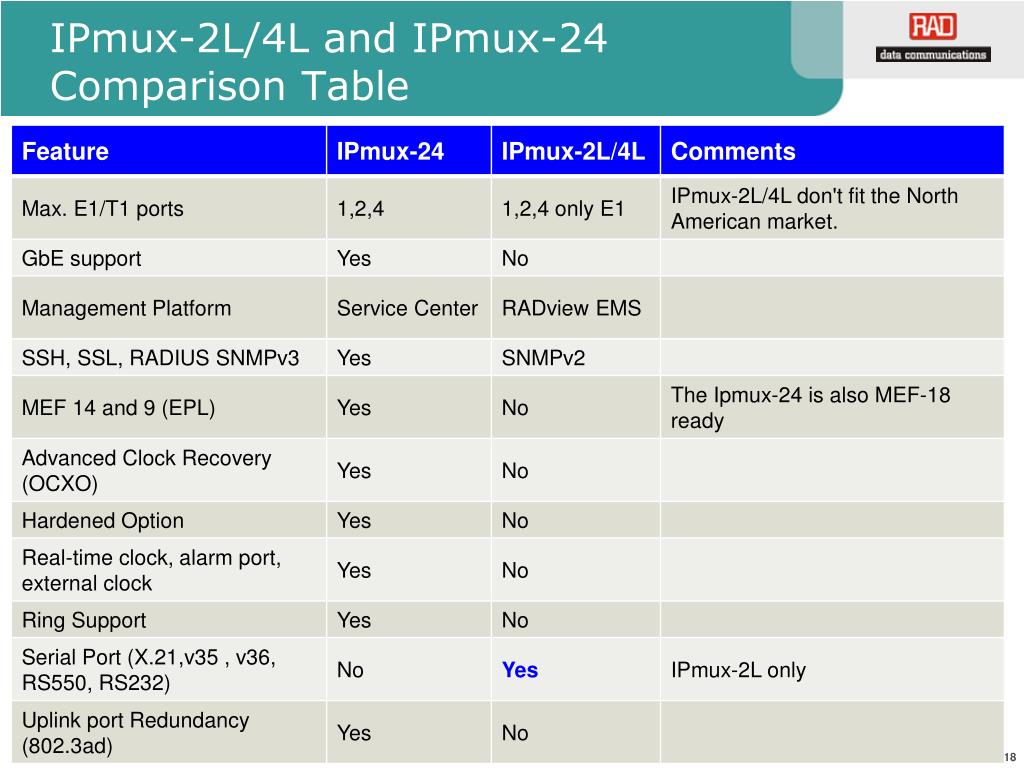

  18. IPmux-2L/4L and IPmux-24 Comparison Table

  19. TDM PW Available Product Line

  20. IPmux-4L Summary • Competitively priced pseudowire gateway • 4xE1 port CLE/NTU • Up to 3 Fast Ethernet service/network ports • Complete pseudowire support for TDM services with TDMoIP, HDLCoPSN, CESoPSN and SAToP • Ethernet, MPLS and IP network support • TDM Pseudowire OAM

  21. thank you for your attention www.rad.com
